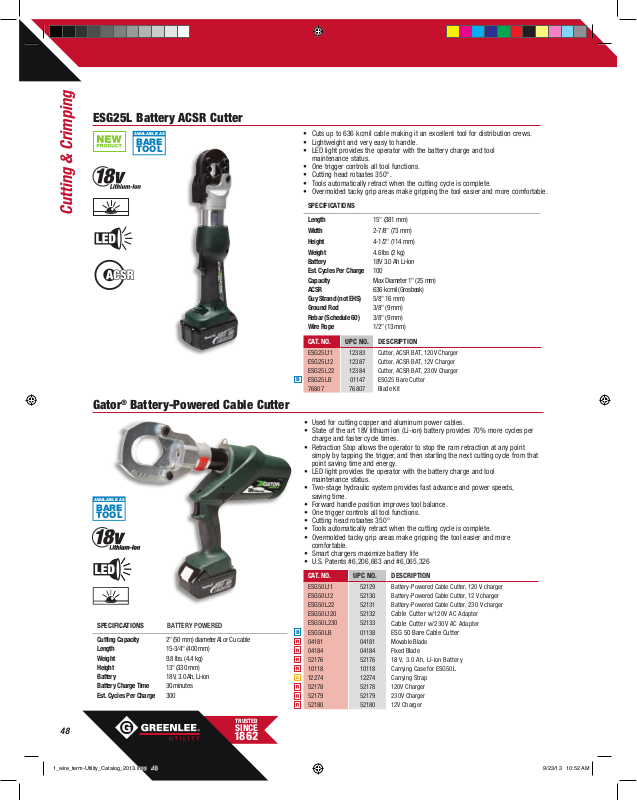

Greenlee ESG25L Battery ACSR Cutter Catalog Page
ESG25L Battery ACSR Cutter
AVAILABLE AS
BARE
TOOL
Cutting & Crimping
• Cuts up to 636 kcmil cable making it an excellent tool for distribution crews.
• Lightweight and very easy to handle.
• LED light provides the operator with the battery charge and tool
maintenance status.
• One trigger controls all tool functions.
• Cutting head rotaates 350°.
• Tools automatically retract when the cutting cycle is complete.
• Overmolded tacky grip areas make gripping the tool easier and more comfortable.
SPECIFICATIONS
Length 15" (381 mm)
Width 2-7/8" (73 mm)
Height 4-1/2" (114 mm)
Weight 4.6 lbs (2 kg)
Battery 18V 3.0 Ah Li-Ion
Est. Cycles Per Charge 100
Capacity Max Diameter 1" (25 mm)
ACSR 636 kcmil (Grosbeak)
Guy Strand (not EHS) 5/8" 16 mm)
Ground Rod 3/8" (9 mm)
Rebar (Schedule 60) 3/8" (9 mm)
Wire Rope 1/2" (13 mm)
CAT. NO. UPC NO. DESCRIPTION
ESG 25L11 12383 Cutter, ACSR BAT, 120V Charger
ESG25L12 12387 Cutter, ACSR BAT, 12V Charger
ESG25L22 12384 Cutter, ACSR BAT, 230V Charger
B
ESG25LB 01147 ESG25 Bare Cutter
76807 76807 Blade Kit
Gator® Battery-Powered Cable Cutter
AVAILABLE AS
BARE
TOOL
SPECIFICATIONS BATTERY POWERED
Cutting Capacity 2" (50 mm) diameter Al or Cu cable
Length 15-3/4" (400 mm)
Weight 9.8 lbs. (4.4 kg)
Height 13" (330 mm)
Battery 18 V, 3.0 Ah, Li-ion
Battery Charge Time 30 minutes
Est. Cycles Per Charge 300
• Used for cutting copper and aluminum power cables.
• State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per
charge and faster cycle times.
• Retraction Stop allows the operator to stop the ram retraction at any point
simply by tapping the trigger, and then starting the next cutting cycle from that
point saving time and energy.
• LED light provides the operator with the battery charge and tool
maintenance status.
• Two-stage hydraulic system provides fast advance and power speeds,
saving time.
• Forward handle position improves tool balance.
• One trigger controls all tool functions.
• Cutting head rotaates 350°
• Tools automatically retract when the cutting cycle is complete.
• Overmolded tacky grip areas make gripping the tool easier and more
comfortable.
• Smart chargers maximize battery life
• U.S. Patents #6,206,663 and #6,065,326
CAT. NO. UPC NO. DESCRIPTION
ESG 50L11 52129 Battery-Powered Cable Cutter, 120 V charger
ESG50L12 52130 Battery-Powered Cable Cutter, 12 V charger
ESG50L22 52131 Battery-Powered Cable Cutter, 230 V charger
ESG5 0L120 52132
ESG50L230 52133
B
ESG50LB 01138
04181 04181 Movable Blade
04184 04184 Fixed Blade
52176 52176 18 V, 3.0 Ah, Li-ion Battery
10 118 10 118 Carrying Case for ESG50L
12 274 12274 Carrying Strap
52178 52178 120V Charger
52179 52179 230V Charger
52180 52180 12V Charger
Cable Cutter w/120V AC Adapter
Cable Cutter w/230V AC Adapter
ESG 50 Bare Cable Cutter
48
TRUSTED
SINCE
18 62
