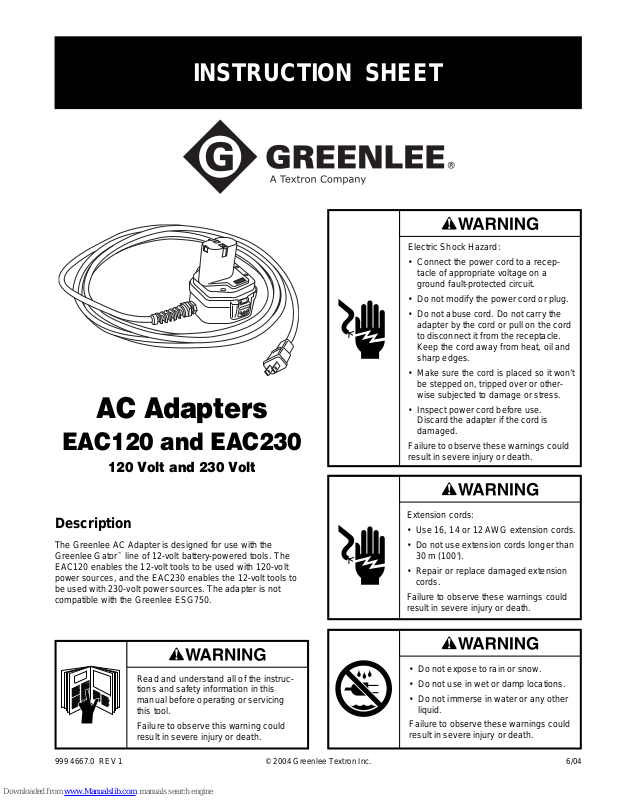

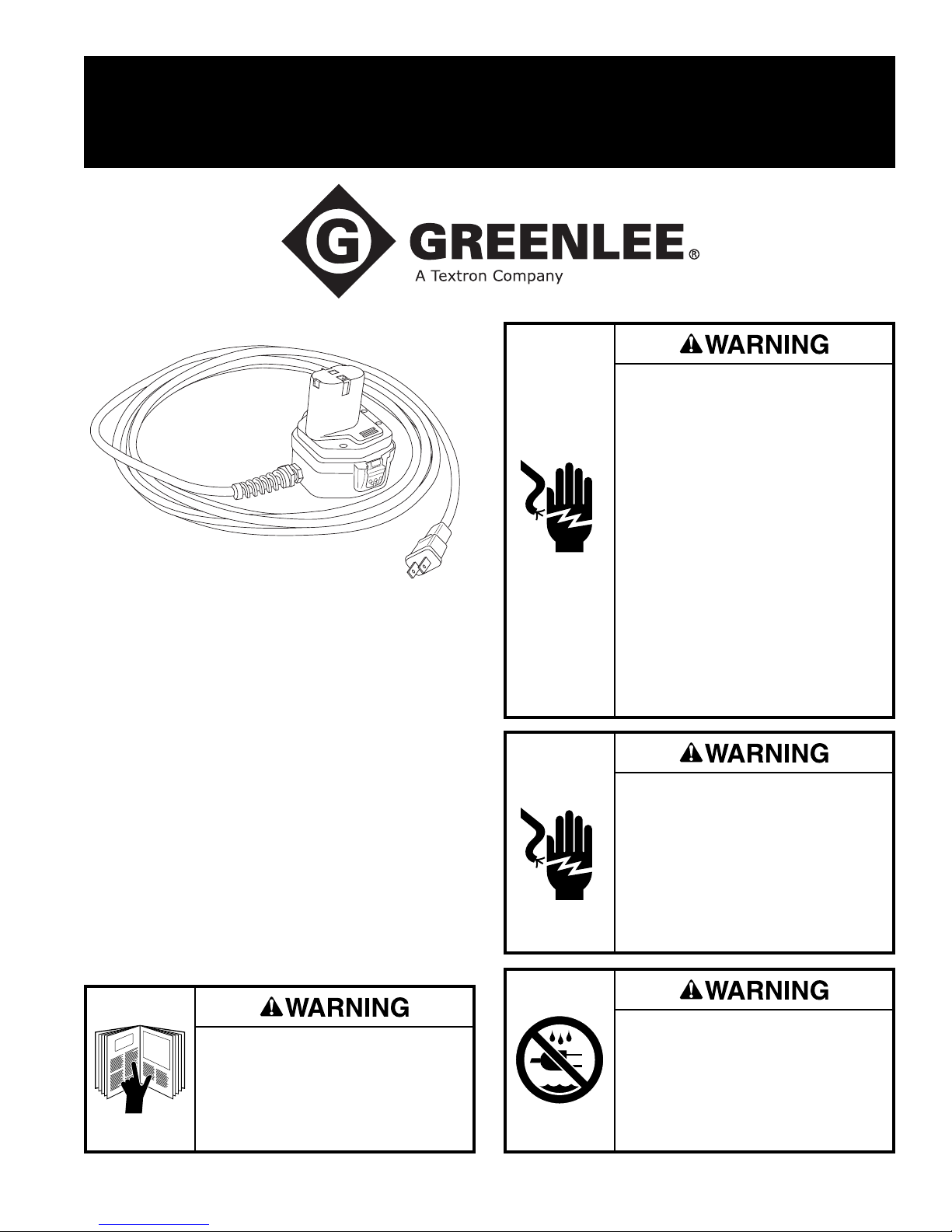

Page 1
INSTRUCTION SHEET
AC Adapters
EAC120 and EAC230
120 Volt and 230 Volt
Electric Shock Hazard:
• Connect the power cord to a receptacle of appropriate voltage on a
ground fault-protected circuit.
• Do not modify the power cord or plug.
• Do not abuse cord. Do not carry the
adapter by the cord or pull on the cord
to disconnect it from the receptacle.
Keep the cord away from heat, oil and
sharp edges.
Make sure the cord is placed so it won’t
•
be stepped on, tripped over or otherwise subjected to damage or stress.
• Inspect power cord before use.
Discard the adapter if the cord is
damaged.
Failure to observe these warnings could
result in severe injury or death.
Description
The Greenlee AC Adapter is designed for use with the
Greenlee Gator™ line of 12-volt battery-powered tools. The
EAC120 enables the 12-volt tools to be used with 120-volt
power sources, and the EAC230 enables the 12-volt tools to
be used with 230-volt power sources. The adapter is not
compatible with the Greenlee ESG750.
Read and understand all of the instructions and safety information in this
manual before operating or servicing
this tool.
Failure to observe this warning could
result in severe injury or death.
999 4667.0 REV 1 © 2004 Greenlee Textron Inc. 6/04
Extension cords:
• Use 16, 14 or 12 AWG extension cords.
• Do not use extension cords longer than
30 m (100').
• Repair or replace damaged extension
cords.
Failure to observe these warnings could
result in severe injury or death.
• Do not expose to rain or snow.
• Do not use in wet or damp locations.
• Do not immerse in water or any other
liquid.
Failure to observe these warnings could
result in severe injury or death.
Page 2
• Disconnect the adapter from the power source when
not in use.
• While the adapter is connected to a power source, do
not place it into a pocket, tool pouch or tool box with
conductive objects. Conductive objects may create a
short circuit.
• While the adapter is connected to a power source, do
not place it on moist ground or grass. Moisture may
create a short circuit.
Failure to observe these warnings could result in severe
injury or death.
Do not use solvents or flammable
cleaners to clean the tool body.
Solvents could ignite, causing serious
injury or property damage.
AC Adapters EAC120 and EAC230
Specifications
EAC 120
Input........................................120 VAC 60 Hz 150 W
Output .................................................... 12 VDC 6.5A
Power cord................ 4 meter/ polarized NEMA 1-15P
EAC 230
Input........................................230 VAC 50 Hz 150 W
Output .................................................... 12 VDC 6.5A
Power cord.................................4 meter/ Schuko plug
Operating Instructions
1. Insert the adapter into the Gator tool.
2. Connect adapter to an appropriate power source.
3. Operate tool normally. Always follow the instructions and
safety information supplied with the Greenlee Gator tool.
Note: Observe the duty cycle information supplied with your
battery-powered tool.
Always disconnect the adapter from the power source before
removing it from the tool.
Keep the ventilation slots clear of any obstructions.
Do not place the unit on a soft surface which could
block the bottom ventilation slots. The adapter
generates internal heat.
Failure to observe this precaution may result in injury
or property damage.
Do not attempt to repair this tool. This tool contains no
user serviceable parts.
Use this tool for the manufacturer’s intended use only.
Use other than that described in this manual may
result in injury or property damage.
Cleaning Instructions
1. Disconnect the adapter from the power source.
2. Remove adapter from the tool.
3. Use a clean, damp cloth to wipe the housing and cord
clean.
Do not use solvents.
Do not immerse in any liquid.
This adapter is not approved by Makita for use on Makita
power tools.
USA 800-435-0786 Fax: 800-451-2632
815-397-7070 Fax: 815-397-1865
Canada 800-435-0786 Fax: 800-524-2853
International +1-815-397-7070 Fax: +1-815-397-9247
Greenlee Textron / Subsidiary of Textron Inc. 2 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815/397-7070
4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
An ISO 9001 Company
www.greenlee.com
•
Greenlee Textron Inc. is a subsidiary of Textron Inc.
