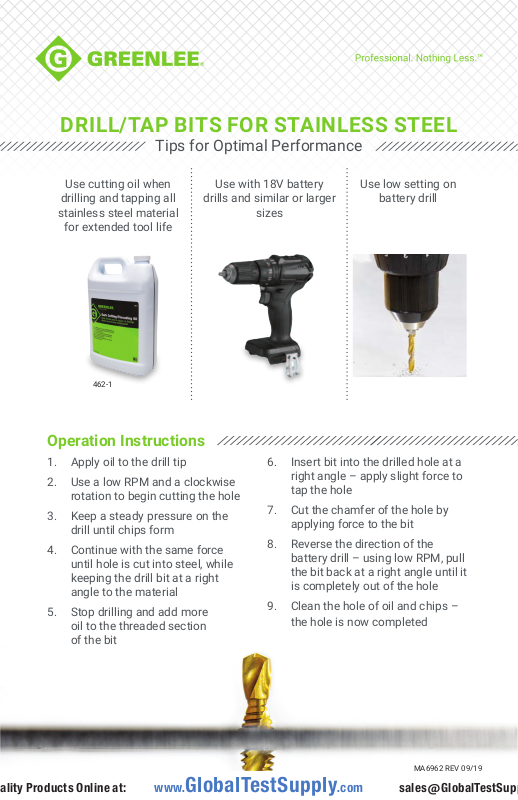

DRILL/TAP BITS FOR STAINLESS STEEL
Tips for Optimal Performance
Use cutting oil when
drilling and tapping all
stainless steel material
for extended tool life
462-1
Use with 18V battery
drills and similar or larger
Operation Instructions
1. Apply oil to the drill tip
2. Use a low RPM and a clockwise
rotation to begin cutting the hole
3. Keep a steady pressure on the
drill until chips form
4. Continue with the same force
until hole is cut into steel, while
keeping the drill bit at a right
angle to the material
5. Stop drilling and add more
oil to the threaded section
of the bit
Use low setting on
battery drill
sizes
6. Insert bit into the drilled hole at a
right angle – apply slight force to
tap the hole
7. Cut the chamfer of the hole by
applying force to the bit
8. Reverse the direction of the
battery drill – using low RPM, pull
the bit back at a right angle until it
is completely out of the hole
9. Clean the hole of oil and chips –
the hole is now completed
www.GlobalTestSupply.com
MA6962 REV 09/19
