Page 1

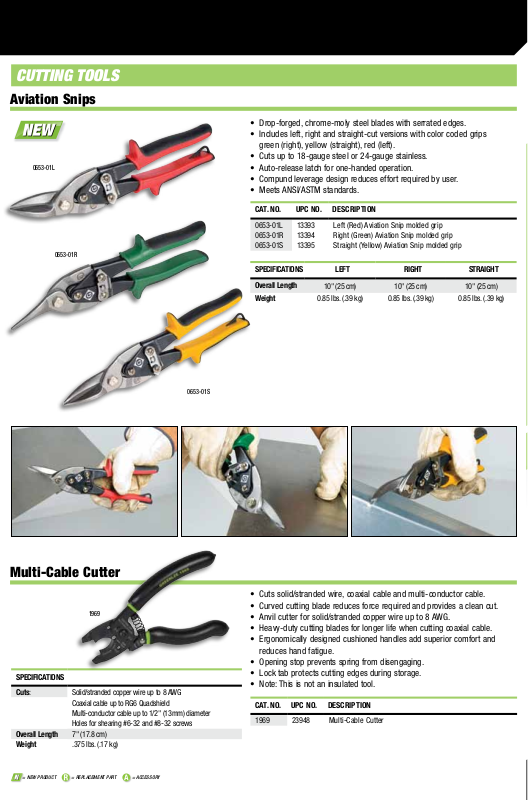

CUTTiNG TOOls
Aviation Snips
0653-01L
0653-01R
• Drop-forged, chrome-moly steel blades with serrated edges.
• Includes left, right and straight-cut versions with color coded grips
green (right), yellow (straight), red (left).
• Cuts up to 18-gauge steel or 24-gauge stainless.
• Auto-release latch for one-handed operation.
• Compund leverage design reduces effort required by user.
• Meets ANSI/ASTM standards.
CAT. NO. UPC NO. DESCRIPTION
0653-01L
0653-01R
0653-01S
SPECIFICATIONS LEFT RIGHT STRAIGHT
Overall Length
Weight
13393
13394
13395
Left (Red) Aviation Snip molded grip
Right (Green) Aviation Snip molded grip
Straight (Yellow) Aviation Snip molded grip
10" (25 cm) 10" (25 cm) 10" (25 cm)
0.85 lbs. (.39 kg) 0.85 lbs. (.39 kg) 0.85 lbs. (.39 kg)
Multi-Cable Cutter
1969
SPECIFICATIONS UPC NO.
Cuts: Solid/stranded copper wire up to 8 AWG
Coaxial cable up to RG6 Quadshield
Multi-conductor cable up to 1/2" (13mm) diameter
Holes for shearing #6-32 and #8-32 screws
Overall Length 7" (17.8 cm)
Weight .375 lbs. (.17 kg)
0653-01S
• Cuts solid/stranded wire, coaxial cable and multi-conductor cable.
• Curved cutting blade reduces force required and provides a clean cut.
• Anvil cutter for solid/stranded copper wire up to 8 AWG.
• Heavy-duty cutting blades for longer life when cutting coaxial cable.
• Ergonomically designed cushioned handles add superior comfort and
reduces hand fatigue.
• Opening stop prevents spring from disengaging.
• Lock tab protects cutting edges during storage.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
1969 23948 Multi-Cable Cutter
= NEW PRODUCT
= Replacement paRt
= accessoRy
Page 2
Cable Cutter
727
MADE FOR THE TRADE!
™
• Easily cuts heavier copper and aluminum cables up to 2/0 (70 mm²).
• Precision-ground, shear-action, curved cutting blades.
• 727 has PVC-covered, high-leverage handles for easier cuts.
• 727M has cushion grip, high-leverage handles for added comfort.
• Heat-treated for long life.
• Made of heavy-duty forged steel.
• Rust-resistant black oxide finish.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
727 31291 Cable Cutter
727M 12629 Cable Cutter with Molded Grip
Utility Knife
Keyhole Saw
0652-11
727M
9952-11
SPECIFICATIONS Copper Aluminum Comm. Cable
2
Max Capacity 2/0 (70 mm
Frequent Use Capacity #1 AWG (35 mm
Overall Length 9-1/4" (235 mm)
Weight 1 lb. (.45 kg)
)
2
) 2/0 (70 mm2) 100 pair
• Over-molded for secure, comfortable grip.
• Retractable three-position blade for safety and convenience.
• Easy front-loading design provides for quick blade change.
• Blade storage in pop-up holder.
• Packaged with three heavy-duty patented serrated blades (Cat # 9952-11).
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
0652-11
0652-11-CP
9952-11 56301 Blades for 0652-11 Utility Knife, 5 pack
SPECIFICATIONS
Overall Length (closed) 6-3/16" (15.7 cm)
Weight .44 lb. (.20 kg)
54729
95928
Utility Knife with blades
Utility Knife with blades Counter Pack (Qty 10)
301A
• Integrated blade and handle design provides maximum strength.
• Ergonomic handle with non-slip grip.
• Hardened steel blade with clog-free teeth.
• Pointed tip easily punches through drywall.
• Blade cuts on both push and pull strokes.
• Hole in handle may be used for lanyard or convenient storage.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
301A 23641 6" Keyhole Saw
SPECIFICATIONS
Overall Length 11-5/8" (29.5 mm)
Weight .27 lb. (.12 kg)
Page 3
Retractable Saw Set
311
SPECIFICATIONS
Overall Length: 8-3/8" 21.3 cm (33.0 cm blade extended)
Height: 1-3/4" 4.3 cm
Width: 1-1/8" 2.8 cm
Weight: .35 lbs. 1.6 kg
CAPACITY
Jab Blade Drywall, Ceiling Tile, Wood
Bimetal Blade Conduit, Metal, PVC, Plastics
12" Heavy Duty Hack Saw
333A
• 6" blade retracts into the handle for convenience and safety.
• Quickly change blade for added versatility.
• Accepts most 6" (or shorter) standard reciprocating saw blades.
• Ergonomically designed handle allows force to be applied both on the push
and pull stroke.
• Built-in blade storage area can hold 2 additional blades.
• Adjustable blade can be used at any length or the 3 hard stops can be used
for aggressive sawing.
• Jab blade and a bi-metal blade included.
• U.S. Patent #D527,602.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
311 13110 Retractable Saw Set
311-JAB 71945 Jab Blades
• Over-molded rugged design for heavy-duty use and comfort.
• Fully-adjustable blade tension up to 30,000 psi for longer blade life and
faster, accurate cuts.
• Alternative 45° blade mounting allows for flush cutting.
• Mounting for most reciprocating saw blades for extra versatility.
• Handy blade storage in tubular frame.
• Convenient front grip feature for two-handed sawing.
• Complete with bi-metal blade (12
"
/24 TPI).
• Lifetime limited warranty.
SPECIFICATIONS
Overall Length
Weight
Max. Blade Tension
15-3/4" (40.0 cm)
2.15 lbs. (.98 kg)
30 KSI
PVC Saws
322-018
322-013
CAT. NO. UPC NO. DESCRIPTION
333A 23635 12" Heavy Duty Hacksaw
333-1218 10037 12" (30.5 cm) Bi-metal Blades, 18 teeth per inch, 5 pack
333-1224 10038 12" (30.5 cm) Bi-metal Blades, 24 teeth per inch, 5 pack
333-1232 10039 12" (30.5 cm) Bi-metal Blades, 32 teeth per inch, 5 pack
• “V” tooth design enables straight cuts on both push and pull saw strokes.
• Blade can be resharpened for extended use.
• Pointed blade nose makes drywall surface penetration easy.
• Ergonomic handle is interchangeable with most popular PVC saw brands.
CAT. NO. UPC NO. BLADE LENGTH DESCRIPTION
322-013 00113 13" (33.0 cm) PVC Saw
322-018 00114 18" (45.7 cm) PVC Saw
322-113 00115 13" (33.0 cm) Blade for 00113
322-118 00116 18" (45.7 cm) Blade for 00114
SPECIFICATIONS 13" 18"
Overall Length 18.75" (47.6 cm) 23-3/4" (60.3 cm)
Weight .69 lbs. (.31 kg) .82 lbs. (.37 kg)
= NEW PRODUCT
= Replacement paRt
= accessoRy
Page 4
MADE FOR THE TRADE!
PVC Cutters
862
PVC Cutter for up to 1-1/4"
™
• Cuts 3/4” schedule 40 PVC
• Cuts 1/8” - 1-3/8” (3-35mm) O.D. flexible plastic pipe
• Diecast aluminum alloy body for added strength and blade guide
for square cuts.
• Reversible blade for twice the life.
• Handle latch for safety.
CAT. NO. UPC NO. DESCRIPTION
862 89806 Plastic Pipe Cutter
SPECIFICATIONS
Capacity Up through 1-3/8" O.D. Flexible Plastic Pipe
Weight 0.36 lbs. (0.16 kg)
864
PVC Cutter for up to 2"
865
• Ratchet action for fast, easy cutting.
• Heat-treated, replaceable steel blade for long cutting life.
• Rugged metal alloy frame for durability.
CAT. NO. UPC NO. DESCRIPTION
864 04253 PVC Cutter for up to 1-1/4"
00355 00355 Blade Kit
SPECIFICATIONS
Capacity Up thru 1-1/4" PVC
Weight 0.8 lbs. (0.4 kg)
• High-leverage compound ratchet action and long handles reduce effort.
• Heavy-duty metal frame for cutting large diameters.
• Replaceable steel blade may be sharpened.
CAT. NO. UPC NO. DESCRIPTION
865 09865 PVC Cutter for up to 2"
07978
07982
07987
SPECIFICATIONS
Capacity Up thru 2" PVC
Weight 2.5 lbs. (1.1 kg)
07978
07982
07987
Blade
Pressing Spring
Ratchet Spring
Flex Splitter® MC Flexible Cable/Conduit Cutter
• Cut steel or aluminum metal clad cable or conduit in seconds with a few
turns of the crank.
1940
• Thumb screw allows for easy adjustment for cable sizes from 14-2
thru 10-5.
• Spring loaded cable guide allows for quick repeat cuts.
• Easily adjust for the new MC
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
1940 34953 Flex Splitter
1941-1 00288 Single Replacement Blade for 1940
1941-5 33735 5 Pack Replacement Blades for 1940
SPECIFICATIONS
Capacity 14/2 to 10/4 BX 3/8" flexible metal conduit
Weight 1940 - 4 lbs. (1.8 kg)
ap
tight wound cable.
®
Flexible Metal Conduit Cutter
Page 5
EMT Conduit Cutter
• Patented cutting wheel scores the conduit allowing the user to snap it in two.
8600
Eliminates the need to debur the ID.
• Simple to use-just tighten the screw, turn the tool around the conduit,
and snap the conduit in two!
• Heavy duty cast body for long life.
• Large smooth spindle knob is easy to grip and doesn’t hurt your hand.
• Replaceable cutter wheel.
CAT. NO. UPC NO. DESCRIPTION
8600 11915 Conduit Cutter
11917 11917 Cutter Wheel for 8600
SPECIFICATIONS
Overall Length FULLY OPEN - 8-1/4" (21.0 cm) • FULLY CLOSED - 7" (17.8 cm)
Weight 1.2 lb. (.55 kg)
Cutting Capacity Cuts 1/2" and 3/4" diameter EMT electrical conduit
TAPe MeAsUres, levels, hAMMers & flAshliGhTs
Fiberglass Measuring Tapes
• 3/4" extra-wide, heavy-duty fiberglass tape is nonconductive.
• High-impact ABS case with rubber bumpers and grip.
• 3 to 1 gear drive for fast rewinds.
0155-100
0155-200
• Heavy-duty end hook with loop.
• 2-sided, 2-color tape features decimal feet and fractional inches.
• Magnetic latch retains end hook for storage.
• Steel-reinforced folding handle.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
0155-100 13483 Fiberglass Measuring Tapes, double sided, 100'
0155-200 13484 Fiberglass Measuring Tapes, double sided, 200'
Power-Return Tape Measures
0155-25
0155-16
0155-7M
= NEW PRODUCT
= Replacement paRt
= accessoRy
SPECIFICATIONS 100' 200'
Overall Length 12" (30.5 cm) 14" (35.6 cm)
Weight 2.1 lbs. (1 kg) 3.1 lbs. (1.4 kg)
• Compact housing fits easliy in the hand or pouch.
• Easy to use Click Lock holds tape securely.
• Tough ABS case with rubber over mold.
• Rigid 1" wide nylon coated blade is double-sided.
• Multi-riveted double tang foot for strength.
• 16" and 19.2" stud markings.
• 0155-7MA has Metric and English markings.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
0155-25A 12479 Power Return Tape Measure, double tang/sided, 25'
0155-16A 12478 Power Return Tape Measure, double tang/sided, 16'
0155-7MA 12477 Power Return Tape Measure, double tang/sided, 7.5 meter
SPECIFICATIONS 25' 7.5M 16'
Tape Width
Weight
Standout
1" (2.5 cm) 1" (2.5 cm) 1" (2.5 cm)
0.89 lbs. (.40 kg) 0.89 lbs. (.40 kg) .64 lbs. (.29 kg)
6' 6' 6'
