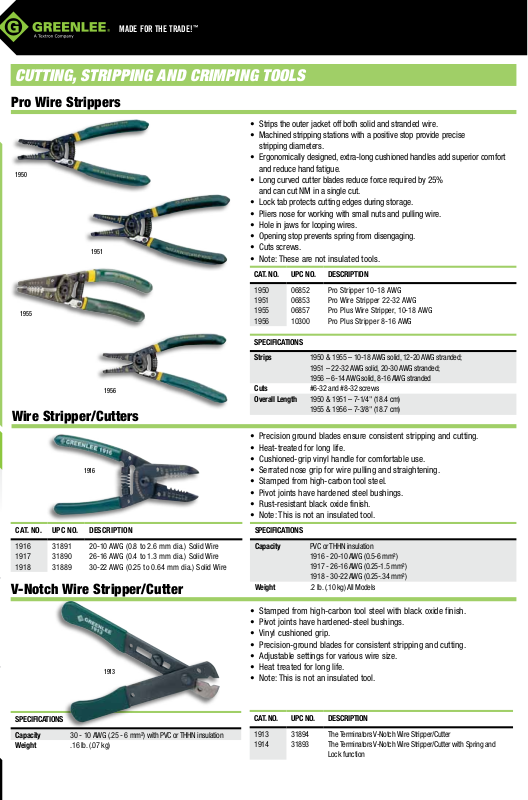

MADE FOR THE TRADE!
™
CUTTiNG, sTriPPiNG AND CriMPiNG TOOls
Pro Wire Strippers
• Strips the outer jacket off both solid and stranded wire.
• Machined stripping stations with a positive stop provide precise
stripping diameters.
• Ergonomically designed, extra-long cushioned handles add superior comfort
1950
1951
1955
and reduce hand fatigue.
• Long curved cutter blades reduce force required by 25%
and can cut NM in a single cut.
• Lock tab protects cutting edges during storage.
• Pliers nose for working with small nuts and pulling wire.
• Hole in jaws for looping wires.
• Opening stop prevents spring from disengaging.
• Cuts screws.
• Note: These are not insulated tools.
CAT. NO. UPC NO. DESCRIPTION
1950 06852 Pro Stripper 10-18 AWG
1951 06853 Pro Wire Stripper 22-32 AWG
1955 06857 Pro Plus Wire Stripper, 10-18 AWG
1956 10300 Pro Plus Stripper 8-16 AWG
1956
Wire Stripper/Cutters
1916
CAT. NO. UPC NO. DESCRIPTION
1916 31891 20-10 AWG (0.8 to 2.6 mm dia.) Solid Wire
1917 31890 26-16 AWG (0.4 to 1.3 mm dia.) Solid Wire
1918 31889 30-22 AWG (0.25 to 0.64 mm dia.) Solid Wire
V-Notch Wire Stripper/Cutter
1913
SPECIFICATIONS
Strips 1950 & 1955 – 10-18 AWG solid, 12-20 AWG stranded;
1951 – 22-32 AWG solid, 20-30 AWG stranded;
1956 – 6-14 AWG solid, 8-16 AWG stranded
Cuts #6-32 and #8-32 screws
Overall Length 1950 & 1951 – 7-1/4" (18.4 cm)
1955 & 1956 – 7-3/8" (18.7 cm)
• Precision ground blades ensure consistent stripping and cutting.
• Heat-treated for long life.
• Cushioned-grip vinyl handle for comfortable use.
• Serrated nose grip for wire pulling and straightening.
• Stamped from high-carbon tool steel.
• Pivot joints have hardened steel bushings.
• Rust-resistant black oxide finish.
• Note: This is not an insulated tool.
SPECIFICATIONS
Capacity PVC or THHN insulation
1916 - 20-10 AWG (0.5-6 mm²)
1917 - 26-16 AWG (0.25-1.5 mm²)
1918 - 30-22 AWG (0.25-.34 mm²)
Weight .2 lb. (.10 kg) All Models
• Stamped from high-carbon tool steel with black oxide finish.
• Pivot joints have hardened-steel bushings.
• Vinyl cushioned grip.
• Precision-ground blades for consistent stripping and cutting.
• Adjustable settings for various wire size.
• Heat treated for long life.
• Note: This is not an insulated tool.
SPECIFICATIONS
Capacity 30 - 10 AWG (.25 - 6 mm²) with PVC or THHN insulation
Weight .16 lb. (.07 kg)
CAT. NO. UPC NO. DESCRIPTION
1913 31894 The Terminators V-Notch Wire Stripper/Cutter
1914 31893 The Terminators V-Notch Wire Stripper/Cutter with Spring and
Lock function
Page 2
Automatic Wire Stripper
1935
Kwik Stripper® Wire Stripper
45000
Pro Wire Stripper for NM Cable
• Production grade wire stripper strips insulation from most
smaller gauge wire.
• Strips up to 7/8" (22.2 mm) length.
• Strips PVC and THHN insulation.
• For use with solid and stranded wire.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
1935 37600 Automatic Wire Stripper
SPECIFICATIONS
Capacity 20 - 10 AWG (.5 mm² - 6 mm²) with PVC or THHN insulation
Weight .7 lb. (.30 kg)
• 34-10 AWG (.08-6mm²) stripping capacity.
• 12 AWG (4 mm²) solid, 10 AWG (6 mm²) stranded capacity.
• Strips and cuts flat and round cable.
• Self-adjusts to different wire gauges.
• Laminated steel blades minimize the risk of nicking conductors.
• Front entry jaws have an adjustable strip length guide.
• Lightweight reinforced nylon is chemical and corrosion resistant.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
45000
20243
45000
20243
Kwik Stripper Wire Stripper
Blade Cassette
1960
CAT. NO. UPC NO. DESCRIPTION
1960 06854 Pro Stripper 12/2 & 14/2
NM Cable Ripper
0252-11
• Pliers' nose for working with small nuts and pulling wire.
• Machined stripping stations with a positive stop provide precise
stripping diameters for #14 and #12 AWG.
• Strips outer jacket off 14-2 and 12-2 NM cable.
• Long curved cutter blades reduce force required by 25% and can cut
NM in single cut.
• Hole in jaws for looping wires.
• Extra-long cushioned handles add comfort and reduce hand fatigue.
• Lock tab protects cutting edges during storage.
• Cuts #6-32 & #8-32 screws.
• Note: This is not an insulated tool.
SPECIFICATIONS
Removes NM-B outer jacket
Strips #12 and #14 AWG solid
Cuts #6-32 and #8-32 screws
Overall Length 7-3/4" (19.7 cm)
• Slits outer jacket of Romex® 10/2, 12/2, 14/2 and other non-metallic (NM)
sheathed cable.
• Wire gauge on handle for identifying #6 to #14 AWG.
• Corrosion-resistant zinc plating.
• Side-entry design for end or mid-run slitting of jacket.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
0252-11 56300 NM Cable Ripper
= NEW PRODUCT
= Replacement paRt
= accessoRy
SPECIFICATIONS
Overall Length
Weight
3-5/8" (9.2 cm)
.06 lbs. (.03 kg)
Page 3
MADE FOR THE TRADE!
™
Stripping/Crimping Combination Tool
1927
• Pliers' nose avoids having to switch tools for gripping tasks.
• Extra-narrow nose for getting into tight boxes.
• Machined stripping stations with a positive stop provide precise
stripping diameters.
• Wire looping holes in jaw.
• Long, curved cutter blades reduce force required by 25% and can cut
NM in single cut.
• Screw cutting stations are collapsed around the pivot – 20% less force
is required.
• Smooth, rounded pivot bolt won’t catch in tool pouch or on other tools.
• Comfortable, cushioned grips.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
1927 06851 Stripping/Crimping Combination Tool
Crimping/Stripping Combination Tool
1923
CAT. NO. UPC NO. DESCRIPTION
1923 06850 Crimping/Stripping Combination Tool
Combination Tool
SPECIFICATIONS
Strips 10-22 AWG solid and stranded
Crimps 10-22 AWG insulated and non-insulated terminals
Cuts #4-40, #5-40, #6-32, #8-32, #10-24 and #10-32 screws
Overall Length 8-1/8" (20.6 cm)
• Up-front cutter for snipping hard-to-reach wires.
• Narrow nose for getting into tight boxes.
• Wire looping holes in jaw.
• Screw cutting stations are collapsed around the pivot – 20% less force
is required.
• Machined stripping stations with a positive stop provide precise
stripping diameters.
• Long, curved cutter blades reduce force required by 25% and can cut
NM in single cut.
• Smooth, rounded pivot bolt won’t catch in tool pouch or on other tools.
• Comfortable, cushioned grips.
• Note: This is not an insulated tool.
SPECIFICATIONS
Strips 8-18 AWG solid, 10-22 AWG stranded
Crimps 10-22 AWG insulated and non-insulated terminals
Cuts #4-40, #6-32, #8-32, #10-24 and #10-32 screws
Overall Length 8-1/2" (21.6 cm)
1921
CAT. NO. UPC NO. DESCRIPTION
1921 31888 The Terminators Combination Tool
• Crimp, strip and cut wire with a single tool, also cut and
re-thread screws.
• Hardened alloy steel with black oxide finish.
• Pivot joints have hardened-steel bushings.
• New, softer grips.
• Precision-ground blades for fast, easy and consistent wire
stripping and cutting.
• Note: This is not an insulated tool.
SPECIFICATIONS
Capacity PVC or THHN insulation
Cut – 22 - 10 AWG (.34 mm² - 6 mm²)
Strip – 22 - 10 AWG (.34 mm² - 6 mm²)
Crimp – insulated and non insulated, 22 - 10 AWG (.34 mm² - 6 mm²)
Terminals and Splices; 7 and 8 mm Ignition Terminals
Screws – Cut & Re-thread, 10-24, 10-32, 8-32, 6-32 and 4-40
Length 8-5/8" (22.0 cm)
Weight .5 lb. (.23 kg)
Page 4
Premium Crimping Tool
K210
• Storage for two sets of crimping dies in the handles.
• No tools needed to change dies.
• Precision machined for smooth crimping cycles.
• Hardened mechanism components for long term durability.
• Cushioned handles for comfort.
• Full cycle mechanism assures complete crimps, but tool can be opened
in mid-cycle if necessary.
• Equipped with 3 crimping die sets for 22-10 AWG insulated terminals
(red, yellow, blue), 22-10 AWG uninsulated terminals, and 26-8 AWG
wire ferrules.
CAT. NO. UPC NO. DESCRIPTION
K210
10873
10874
10875
10876
10877
10872
10873
10874
10875
10876
10877
Crimping Tool with 10873, 10874 & 10875 die sets
Die set, 22-10 AWG Insulated Terminals
Die set, 22-10 AWG Unisulated Terminals
Die set, 26-8 AWG Wire Ferrules
Die set, RG, 58/59/62/71
Die set, 20-10 AWG Barrel Connectors
Crimping/Stripping Combination Tool
KP1022
KP1022D
SPECIFICATIONS
Overall Length 9" (23 cm)
Weight 1.35 lbs. (.6 kg)
Insulated Terminals & Splices 22-10 AWG
Uninsulated Terminals & Splices 22-10 AWG
Wire Ferrules 26-8 AWG
• Two die positions permit the KP1022 to crimp both insulated and
uninsulated terminals and splices.
• Forged steel and hardened design provides long life.
• Smooth pivot action allows tool to easily be used with one hand.
• Double-cushioned handle grips are easy on the hands.
• Precision machined and hardened cutter blades make wire cutting easy.
CAT. NO. UPC NO. DESCRIPTION
KP1022
KP1022D
SPECIFICATIONS
Overall Length 9-1/2" (241 mm)
Weight 1.05 lbs. (.48 kg)
Insulated Terminals & Splices 10-22 AWG
Uninsulated Terminals & Splices 10-22 AWG
02155
10633
Terminal Crimping Tool with molded grip
Terminal Crimping Tool with dipped grip
sCrew & NUT Drivers
5-Piece Screwdriver Set
= NEW PRODUCT
= Replacement paRt
= accessoRy
0153-01C
• Heavy-duty construction for longer life.
• Handle marked for easy identification of screwdriver size, type and length.
• Precision-machined tips for accurate fastener contact.
• Strong, durable black phosphate tips prevent chipping of plating.
• High-grade, rust resistant, chrome-plated finish.
• Soft, cushioned grip for extra comfort and torque.
• Exceeds ASME/ANSI specifications.
• Lifetime limited warranty.
• Note: This is not an insulated tool.
CAT. NO. UPC NO. DESCRIPTION
0153-01C
0153-01C-CP
SPECIFICATIONS
Contains 3/16" x 6" Cabinet, 1/4" x 4" Keystone, 1/4" x 6" Cabinet, 5/16" x 6"
Weight 1.38 lbs. (.63 kg)
56303
95930
5-Piece Screwdriver Set
5-Piece Screwdriver Set Counter Pack (Qty 5)
Keystone & #2 x 4" Phillips
