Centrifugal Ceiling and Cabinet
Exhaust Fans
Models SP and CSP
Making a Sound Difference
with Silent Solutions
November
2006
Ceiling Cabinet
Ceiling and Cabinet Exhaust Fans
Great things come in small packages, as do our ceiling fans (Model SP) and cabinet fans (Model CSP). Be
assured when you buy any Greenheck product, you are getting a quality product at a competitive price. In
fact, we guarantee our ceiling and cabinet exhaust fans with a three (3) year warranty. We offer the most
comprehensive ceiling and cabinet exhaust fan line in the commercial market. We are your market leader!
Benefits
Benefits
Low sound
•
Compact size
•
Competitive price
•
Broadest performance selections in the industry
•
Go Inside the Numbers
Go Inside the Numbers
SP fans
Greenheck has been providing solutions for over 50 years.
•
Preferred 3 to 1 over the competition.
•
Number 1 in product quality and reliability.
•
Number 1 in customer satisfaction and after-sale customer
•
service support.
More than 400 times a day a new ceiling
•
fan is put into service.
3 year warranty.
•
SP fans are designed for ceiling
mounted applications.
Greenheck Fan Corporation certifies that
the SP models shown herein are licensed to
bear the AMCA seal. The ratings shown are
based on tests and procedures performed in
accordance with AMCA Publication 211 and
AMCA Publication 311 and comply with the
requirements of the AMCA Certified Ratings
Program.
Greenheck Fan Corporation certifies that the
CSP models shown herein are licensed to
bear the AMCA seal. The ratings shown are
based on tests and procedures performed in
accordance with AMCA Publication 211 and
comply with the requirements of the AMCA
Certified Ratings Program.
Leading Edge Technical Support
Leading Edge Technical Support
When you need extensive product and IOM (Installation, Operation and
Maintenance Manual) information, our products are supported by the
industry’s best product literature, electronic media, and Computer Aided
Product Selection (CAPS) program. You’ll also find this information on our
website at www.greenheck.com
You can always count on personal service and expertise from our national and
international representative organization. To locate your nearest Greenheck
representative, call 715-359-6171 or visit our website at
www.greenheck.com
CSP fans are designed for inline
CSP fans
remote mounted applications.
Models SP and CSP are listed electric fans
(UL/cUL 507). Ceiling Exhaust Fans are also
UL Listed for above bathtub/shower with GFCI
branch protected circuit. File no. E33599.
2
Model Number Code
Model Number Code
SP - A 50 FL
Light Options:
L - Fan/Light (Incandescent) Combination
FL - Fan/Light (Fluorescent) Combination
Nominal cfm at 0.10 inches static pressure
Level of Construction:
A - Premium unit; lowest sound, insulated housing
B - Deluxe unit; low sound, low profile
C - Standard unit; lowest profile, inexpensive
Model:
SP - Silent Partner
CSP - Cabinet Silent Partner
Table of Contents
Table of Contents
®
SP-A . . . . . . . . . . . . . . . . . . . . . . . . 4
SP-A Light . . . . . . . . . . . . . . . . . 5
SP-A Performance. . . . . . .16
SP-B . . . . . . . . . . . . . . . . . . . . . . . . 6
SP-B Light . . . . . . . . . . . . . . . . . 7
SP-B Performance. . . . . . .17
SP-C. . . . . . . . . . . . . . . . . . . . . . . . 8
SP-C Performance. . . . . . .17
Quick Delivery and Quick Build Programs
Quick Delivery and Quick Build Programs
Order from hundreds of SP and CSP configurations, accessories, and
thousands of other products that can ship to your job site in less than 24
hours. We have strategically located warehouses across the United States and
internationally to fill your request at a moments notice. Speed up your process
even more by ordering your units at QD Online at www.greenheck.com/qd.
CSP-A . . . . . . . . . . . . . . . . . . . . .10
CSP-A Performance. . . . .18
CSP-B . . . . . . . . . . . . . . . . . . . . .11
CSP-B Performance. . . . .19
Sound Data . . . . . . . . . . . . . . . . 9
Accessories. . . . . . . . . 12 - 15
Specifications . . . . . . . . . . . .19
www.greenheck.com/qd
For other sizes and configurations where rapid response time is required, our
Quick Build (QB) Program manufactures and ships your custom products in
one, three, five, or ten days.
3
®
SP
PREMIUM CEILING FAN
The SP-A is a Premium Ceiling Fan. It is in the top of its class when it comes to meeting sound
requirements.
Profile as low as 10
•
Sound levels as low as 0.7 sones.
•
Air volume as high as 1,607 cfm.
•
UL Listed for above bathtub/
•
shower with GFCI branch protected
circuit.

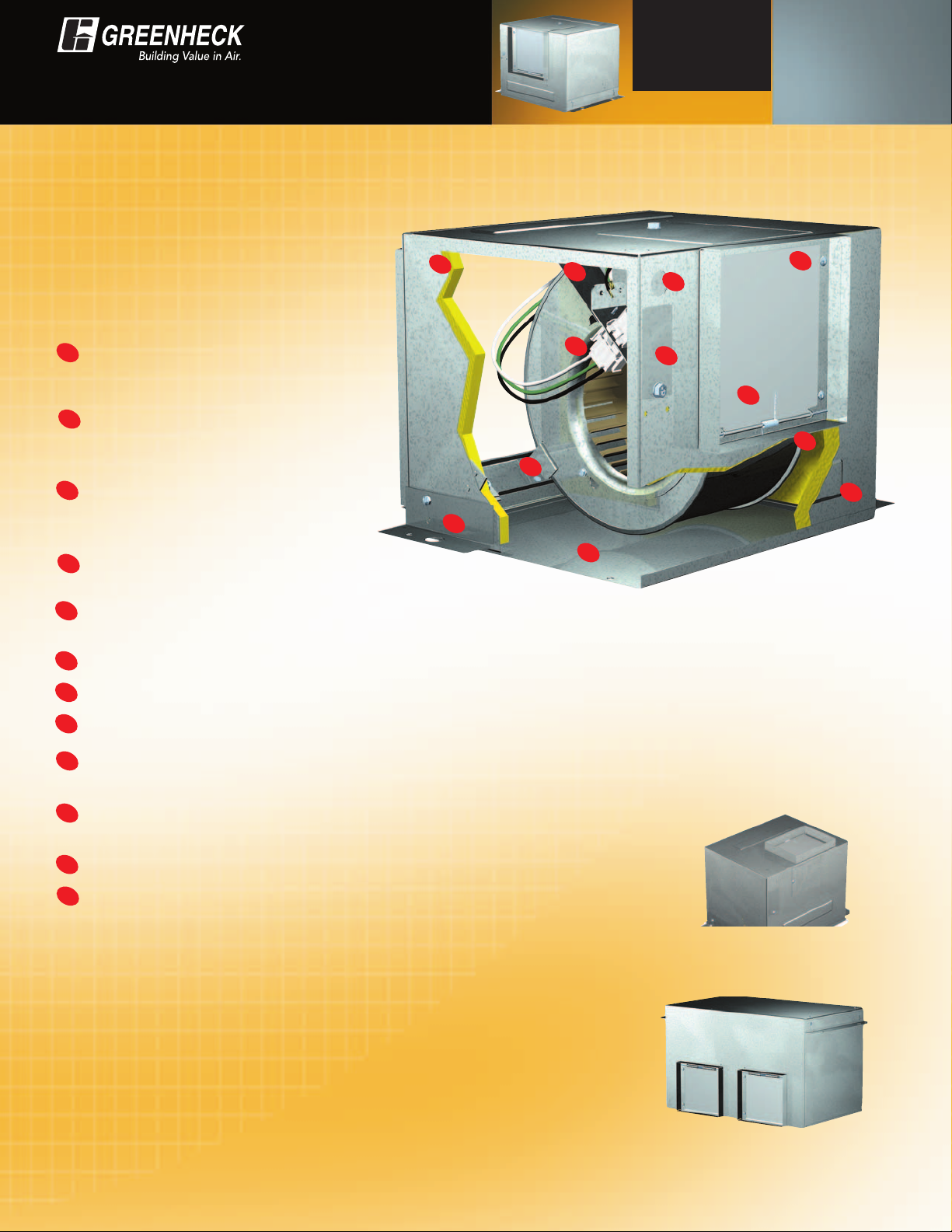

SP-A FEATURES
SP-A
1
Spring Loaded Aluminum Backdraft
Damper - Eliminates rattling or
unwanted backdrafts.
2
Outlet - Both square and round outlets
are field rotatable from horizontal to
vertical discharge.
3
Power Assembly - Removes quickly for
maintenance or conversion from horizontal to
vertical discharge.
4
External Electrical Access - Eliminates removing
motor pack, saving installation time.
Electrical Knockouts (horizontal or vertical) -
5
Eliminates drilling holes.
6
Acoustic Insulation - Absorbs sound.
7
Disconnect - Servicing is quick and safe.
8
Electrical Junction Box - Large for easy wiring.
9
Attractive Designer Grille - Concealed
attachment screws securely fasten grille to
housing for quiet, rattle free operation.
10
Mounting Brackets - Fully adjustable for multiple
installation conditions.
11
Housing - Embossed galvanized steel for rigidity.
12
Motors - All motors are compatible for use
with speed controls and have thermal overload
protection. Both domestic and international
applications available.
1
/2 inches.
5
7
8
6
3
10
Grille Options
Grille Options
Designer - Standard Grille
Decorative - Lighted and non-lighted
Aluminum - White enamel finish
Stainless Steel - Polished stainless steel finish
Round Duct Connection
Round Duct Connection
Standard - Sizes A50, A70,
and A90.
Round Duct Adapter
Round Duct Adapter
Optional - Sizes A110 through A510
Exclusive Electrical Wiring Feature
Exclusive Electrical Wiring Feature
Greenheck SP-A models are the only fans of this type
with an electrical access cover located on the housing
exterior. This feature permits external wiring without
removing the power assembly, saving installation time
and cost.
Vertical Discharge
Vertical Discharge
Photo shows exhaust outlet
duct installed in the optional
vertical position. The power
assembly must be rotated
to match the duct adapter
position. (See SP-A IOM)
4
9
2
1
12
A
11
50 cycle, 220v, and 240v options.
•
(See page 16 for availability)
60 cycle, 115v, 208v, 220v, 230v, and 277v
•
options. (See CAPS for availability)
4
Double Wide Fans
Double Wide Fans
Available for applications
requiring 700 cfm or greater.
Double wide fans have two
double width forward curved
wheels, which are housed in
separate scrolls, and driven by
a single motor.
®
SP
PREMIUM CEILING FAN
Light Options
Light Options
Greenheck’s fan/light combination includes a prismatic or frosted lens,
and compact fluorescent or incandescent lamps. Our unique patent
pending light box is manufactured with a reflective material to increase
the light given off by either type of lamp. UL Listed for above bathtub/
showers with GFCI branch protected circuit.
Available on Sizes 50 - 125
Available on Sizes 50 - 125
Prismatic Lens Frosted Lens
Prismatic Lens Frosted Lens
The prismatic lens design provides
approximately 25% more light than a
traditional frosted lens. The lens may
be easily removed to replace light
bulbs. (Patent Pending)
Compact Fluorescent Lamps (CFL)
Compact Fluorescent Lamps (CFL)
Incandescent LampsIncandescent Lamps
A
The frosted lens option is a
traditional design which lets
approximately 80% of light
through the lens. The lens may
be easily removed to replace light
bulbs.
Quick start bulbs
•
Reflective light box (Patent Pending)
•
Produce 90% less heat
•
Lower energy costs
•
Two 13 watt CFL bulbs equals 100
•
watts of incandescent light (included)
A major advantage of using CFL’s is to
save money, as shown in the table to the
right. This table assumes the light is on for
six hours per day and that the electric rate
is 10 cents per kilowatt-hour. This study
was based over a 4½ year period.
Ceiling Radiation Damper
Ceiling Radiation Damper
National Fire Protection Association (NFPA)
Standard 90A requires openings in fire rated
ceiling/floor assemblies be protected by
appropriately rated ceiling radiation dampers.
As a result, many local codes require fans
installed in fire rated ceilings must also be
protected by dampers which are insulated
against both heat and flame.
The Greenheck SP-A ceiling radiation damper is UL Classified, rated at three
to four hours fire resistance, and is available on all SP-A fans and fan/light
combinations. This design saves space by allowing the damper to mount
directly beneath the fan.
Cost of Lamps $14.00 $0.50
Lamp Life 1,642.5 days (4.5 years) 167 days
Annual Energy Cost $5.91 $21.90
Lamps Replaced in 4.5 years 0 10
Total Cost $40.60 $103.55
Savings Over Lamp Life $62.95 $0.00
Source: U.S. Department of Energy, August 2001
Office of Energy Efficiency and Renewable Energy
Dimmable
•
Reflective light box (Patent Pending)
•
Low first-cost light
•
One bulb provides up to 100
•
watts of light (by others)
27 Watt Compact
Fluorescent
3"
*CRD is approximately 1/4 inch larger
than housing dimension. (See SP-A IOM)
100 Watt
Incandescent
AxB
SP-A Fan
Hanging
Vibration
Isolation
Ceiling
Radiation
Damper
Grille
Fire Rated
Ceiling
5
®
SP
DELUXE CEILING FAN
The SP-B is a Deluxe Ceiling Fan compact enough for almost
any application. If quiet is what you are after, this fan will
accommodate your needs.
Profile as low as 6
•
Sound levels as low as 1.7 sones.
•
Air volume as high as 197 cfm.
•
UL Listed for above bathtub/shower with
•
GFCI branch protected circuit.
SP-B FEATURES
SP-B
Aluminum Backdraft Damper -
1
Prevents unwanted backdrafts.
Round Standard Outlet (4 or 6 in.) - Versatile
2
for quick, easy connections.
Power Assembly - Removes quickly for
3
maintenance.
15
/16 inches.
7
B
9
1
2
3
10
8
6
4
5
Electrical Access (vertical) - Eliminates drilling
4
holes.
5
Disconnect - Servicing is quick and safe.
6
Electrical Junction Box - Large for easy wiring.
7
Attractive Designer Grille - Concealed
attachment screws securely fasten grille to
housing for quiet, rattle free operation.
Mounting Brackets - Fully adjustable for multiple
8
installation types.
Housing - Embossed galvanized steel for rigidity
9
and low profile for height restricted areas.
Motors - All motors are compatible for use
10
with speed controls and have thermal overload
protection. Both domestic and international
applications available.
50 cycle, 220v, and 240v options.
•
(See page 17 for availability)
60 cycle, 115v, 208v, 220v, 230v, and 277v
•
options.
(See CAPS for availability)
Grille OptionsGrille Options
Designer - Standard Grille
Decorative - Lighted and non-lighted
Aluminum - White enamel finish
Stainless Steel - Polished stainless steel finish
Round Duct ConnectionRound Duct Connection
4 in. - B50, B70, and B80
6 in. - B90, B110, B150, and B200
Contractor 4 PaksContractor 4 Paks
Save installation time and labor
by installing the housing first, then
installing the internal components
after the sheetrocking, plastering, and
finishing is done.
Housings are packaged in one box,
power assembly and grille are
packaged in another box.
Components are shipped to coincide
with the phase of your project.
6
®
SP
DELUXE CEILING FAN
Light Options
Light Options
Greenheck’s new fan/light combination includes a prismatic or frosted
lens, and compact fluorescent or incandescent lamps. Our unique patent
pending light box is manufactured with a reflective material to increase
the light given off by either lamp. UL Listed for above bathtub/showers
with GFCI branch protected circuit.
Available on Sizes 50 - 150
Available on Sizes 50 - 150
Prismatic Lens Frosted Lens
Prismatic Lens Frosted Lens
The prismatic lens design provides
approximately 25% more light than a
traditional frosted lens. The lens may
be easily removed to replace light
bulbs. (Patent Pending)
Compact Fluorescent Lamps (CFL)
Compact Fluorescent Lamps (CFL)
Incandescent LampsIncandescent Lamps
B
The frosted lens option is a
traditional design which lets
approximately 80% of light
through the lens. The lens may
be easily removed to replace light
bulbs.
Quick start bulbs
•
Reflective light box (Patent Pending)
•
Produce 90% less heat
•
Lower energy costs
•
Two 13 watt CFL bulbs equals 100
•
watts of incandescent light (included)
A major advantage of using CFL’s is to
save money, as shown in the table to the
right. This table assumes the light is on
for six hours per day and that the electric
rate is 10 cents per kilowatt-hour. This
study was based over a 4½ year period.
Ceiling Radiation Damper
Ceiling Radiation Damper
National Fire Protection Association (NFPA)
Standard 90A requires openings in fire rated
ceiling/floor assemblies be protected by
appropriately rated ceiling radiation dampers.
As a result, many local codes require fans
installed in fire rated ceilings must also be
protected by dampers which are insulated
against both heat and flame.
The Greenheck SP-B ceiling radiation damper
is UL Classified, rated at three to four hours fire resistance, and is available on
all SP-B fans and fan/light combinations. This design saves space by allowing
the damper to mount directly beneath the fan.
Dimmable
•
Reflective light box (Patent Pending)
•
Low first-cost light
•
One bulb provides up to 100
•
watts of light (by others)
27 Watt Compact
Fluorescent
Cost of Lamps $14.00 $0.50
Lamp Life 1,642.5 days (4.5 years) 167 days
Annual Energy Cost $5.91 $21.90
Lamps Replaced in 4.5 years 0 10
Total Cost $40.60 $103.55
Savings Over Lamp Life $62.95 $0.00
Source: U.S. Department of Energy, August 2001
Office of Energy Efficiency and Renewable Energy
3"
AxB
*CRD is approximately 1/4 inch larger
than housing dimension. (See SP-B IOM)
100 Watt
Incandescent
SP-B Fan
Hanging
Vibration
Isolation
Ceiling
Radiation
Damper
Grille
Fire Rated
Ceiling
7
®
SP
STANDARD CEILING FAN
The SP-C is our economy ceiling fan designed
for light commercial applications.
Profile as low as 3
•
Sound levels as low as 2.9 sones.
•
Air volume as high as 52 cfm.
•
UL Listed for above bathtub/shower with
•
GFCI branch protected circuit.
SP-C FEATURES
SP-C
1
Plastic Backdraft Damper - Prevents unwanted
backdrafts.
Round Outlet - 3 inch diameter allows quick easy
2
connections.
5
/8 inches.
C
1
2
7
6
3
8
4
3
Power Assembly - Removes quickly for
maintenance.
Disconnect - Servicing is quick and safe.
4
Polymeric Grille - Quickly snaps into place.
5
Mounting Brackets - Adjustable for several
6
installation types.
Housing - Galvanized steel for rigidity and low
7
profile for height restricted areas.
Motors - Compatible for use with speed controls
8
and has thermal overload protection.
60 cycle, 115v•
5
8
Things to know,
Things to know,
when sound is critical
when sound is critical
®
Sound Data
The sound data shown in this catalog has been
presented to aid the system designer in selecting a
fan which will meet the desired sound criteria. Sone
levels have been included on the performance pages
to provide a means of quickly evaluating the relative
loudness of a fan selection.
What is a sone?
Sones are an internationally recognized unit of loudness. In
practical terms, the loudness of one sone is equivalent to the
sound of a quiet refrigerator measured from five feet away
in an acoustically average room. A sone is a single number
rating, which indicates the inlet noise derived from the eight
audible octave bands. Sones are a linear measurement of
sound level. For example, a sound level of 10 sones is twice
as loud as 5 sones.
What is the difference in a AMCA Sone vs. HVI Sones?
SUGGESTED LIMITS FOR ROOM LOUDNESS
Sones DBA
1.3-4 32-48 Private homes (rural and suburban)
1.7-5 36-51 Conference rooms
2-6 38-54 Hotel rooms, libraries, movie
theatres, executive offices
2.5-8 41-58 Schools and classrooms, hospital
wards and operating rooms
3-9 44-60 Court rooms, museums, apartment
houses, private homes (urban)
4-2 48-64 Restaurants, lobbies, general open
offices, banks
5-15 51-67 Corridors and halls, cocktail
lounges, washrooms and toilets
7-21 56-72 Hotel kitchens and laundries,
supermarkets
Reprinted from AMCA Publication 302 (Application of Sone
Ratings for Non Ducted Air Moving Devices, with room—sone—
dBA correlations) with the written permission from the AMCA
International, Inc., 30 West University Drive, Arlington Heights, IL
60004-1893.
NOTE: Values above are for room loudness and are not sound
ratings. Room loudness is the resulting level in a conditioned space
after the acoustical qualities of the room have been accounted for.
In general, the AMCA (Air Movement and Control Association)
sone value is focused on commercial markets, whereas the
HVI (Home Ventilating Institute) sone value is focused on residential markets. Both calculate their sone data from
the same raw test data (eight octave bands), however an AMCA sone applies a hemispherical correction factor
to the sound power and rounds to the nearest 0.1, whereas HVI applies a spherical correction factor to the sound
power and rounds to the nearest 0.1 under 1.5 sones and to the nearest 0.5, 1.5 sones and greater. There are no
conversions from one sone to the other, each must be calculated. In every instance the same fan will have a lower
HVI calculated sone rating than an AMCA calculated sone rating.
Can radiated noise increase the sound levels?
Radiated noise from fan housings can cause unacceptable sound levels, on any brand of fan. The size of these
fans allows them to be placed in areas where this noise will be transmitted to the conditioned space through walls
or ceilings. Where possible, cabinet fans should be located in remote parts of the ventilation system.
When should a SP or CSP fan be used?
Model SP and CSP fans are designed for the lowest possible sound levels. Forward curved wheels, insulated
housings, and vibration isolators between the motor and housing contribute to quiet, efficient operation.
Applied and installed as recommended, SP and CSP sound levels will fall well within the ranges shown in
the chart above. For applications where sound levels are critical, a remote mounted CSP with ductboard is
recommended. Placement of SP/CSP fans should take into account the desired sound level at the location of
the listener. Their compact size allows the system
designer greater flexibility in locating these fans for
lowest sound levels. In critical sound areas, insulated
ductwork, flexible duct connections, or placing the
fan in a remote section of the ductwork (away from
the critical area) offers the best means of meeting
desired sound levels.
When room sound levels are critical, such as in
executive offices, conference rooms, hospital
Fiberglass
Remote mounted
Model CSP with
vibration isolators and
insulated ductwork
provides quietest
installation.
operating rooms, and school study areas, a CSP
fan is the best choice. Shown here is a comparison
of SP and CSP fans of the same size, with equal
performance in typical installations. The CSP shows
lower sone values.
Model CFM WG FRPM Sones
SP-A410 405 1/8 1000 3.7
CSP-A410 426 1/8 1000 2.1*
*Sone value with insulated inlet duct.
Model SP mounted directly
overhead may be too loud for
sound critical applications.
9
®
CSP
PREMIUM INLINE FAN
The CSP-A is a Premium Inline Fan. It outperforms the competition and is preferred by specifying
engineers.
Profile as low as 10
•
Sound levels as low as 0.8 sones.
•
Air volume as high as 3,778 cfm.
•
UL/cUL Listed.
•
CSP-A FEATURES
CSP-A
Spring Loaded Aluminum Backdraft
1
Damper - Eliminates rattling or unwanted
backdrafts.
2
Outlet - Both square and round outlets
are field rotatable from horizontal to
vertical discharge.
3
Power Assembly - Removes quickly for
maintenance or conversion from horizontal
to vertical discharge.
External Electrical Access - Eliminates
4
removing motor pack, saving installation time.
1
/2 inches.
6
10
8
7
3
9
5
4
1
2
12
A
11
5
Electrical Knockouts (horizontal or vertical) -
Eliminates drilling holes.
6
Acoustic Insulation - Absorbs sound.
7
Disconnect - Servicing is quick and safe.
8
Electrical Junction Box - Large for easy wiring.
9
Access Panel - Gain easy access to internal
components once installed.
Mounting Brackets - Fully adjustable for multiple
10
installation conditions.
Housing - Embossed galvanized steel for rigidity.
11
12
Motors - All motors are compatible for use
with speed controls and have thermal overload
protection. Both domestic and international
applications available (not shown).
50 cycle, 220v, and 240v options.
•
(See page 18 for availability)
60 cycle, 115v, 208v, 220v, 230v, and 277v
•
options. (See CAPS for availability)
Exclusive Electrical Wiring Feature
Exclusive Electrical Wiring Feature
Greenheck CSP-A models are the only fans of this type
with an electrical access cover located on the housing
exterior. This feature permits external wiring without
removing the power assembly, saving installation time
and cost.
Vertical Discharge
Vertical Discharge
Photo shows exhaust outlet
duct installed in the optional
vertical position. The power
assembly must be rotated
to match the duct adapter
position. (See CSP-A IOM)
Double Wide Fans
Double Wide Fans
Available for applications
requiring 700 cfm or
greater. Double wide
fans have two double
width forward curved
wheels, which are housed
in separate scrolls, and
driven by a single motor.
10
®
CSP
DELUXE INLINE FAN
The CSP-B is a compact Deluxe Inline Fan. It is designed to fit in small remote quarters.
Profiles as low as 6
•
Sound levels as low as 2.0 sones.
•
Air volume as high as 186 cfm.
•
UL/cUL Listed.
•
CSP-B FEATURES
CSP-B
Aluminum Backdraft Damper -
1
Prevents unwanted backdrafts.
2
Round Standard Outlet (4 or 6 in.) -
Versatile for quick, easy connections.
3
Power Assembly - Removes quickly for
maintenance.
Electrical Access (vertical) - Eliminates drilling holes.
4
5
Disconnect - Servicing is quick and safe.
15
/16 inches.
2
4
5
3
10
6
7
B
1
9
8
6
Electrical Junction Box - Large for easy wiring.
Access Panel - Gain easy access to internal
7
components once installed.
8
Mounting Brackets - Fully adjustable for multiple
installation types.
9
Housing - Embossed galvanized steel for rigidity and
low profile for height restricted areas.
Motors - All motors are compatible for use with speed
10
controls and have thermal overload protection. Both
domestic and international applications available.
50 cycle, 220v and 240v options.
•
(See page 19 availability)
60 cycle, 115v, 208v, 220v, 230v, and 277v options.
•
(See CAPS for availability)
11

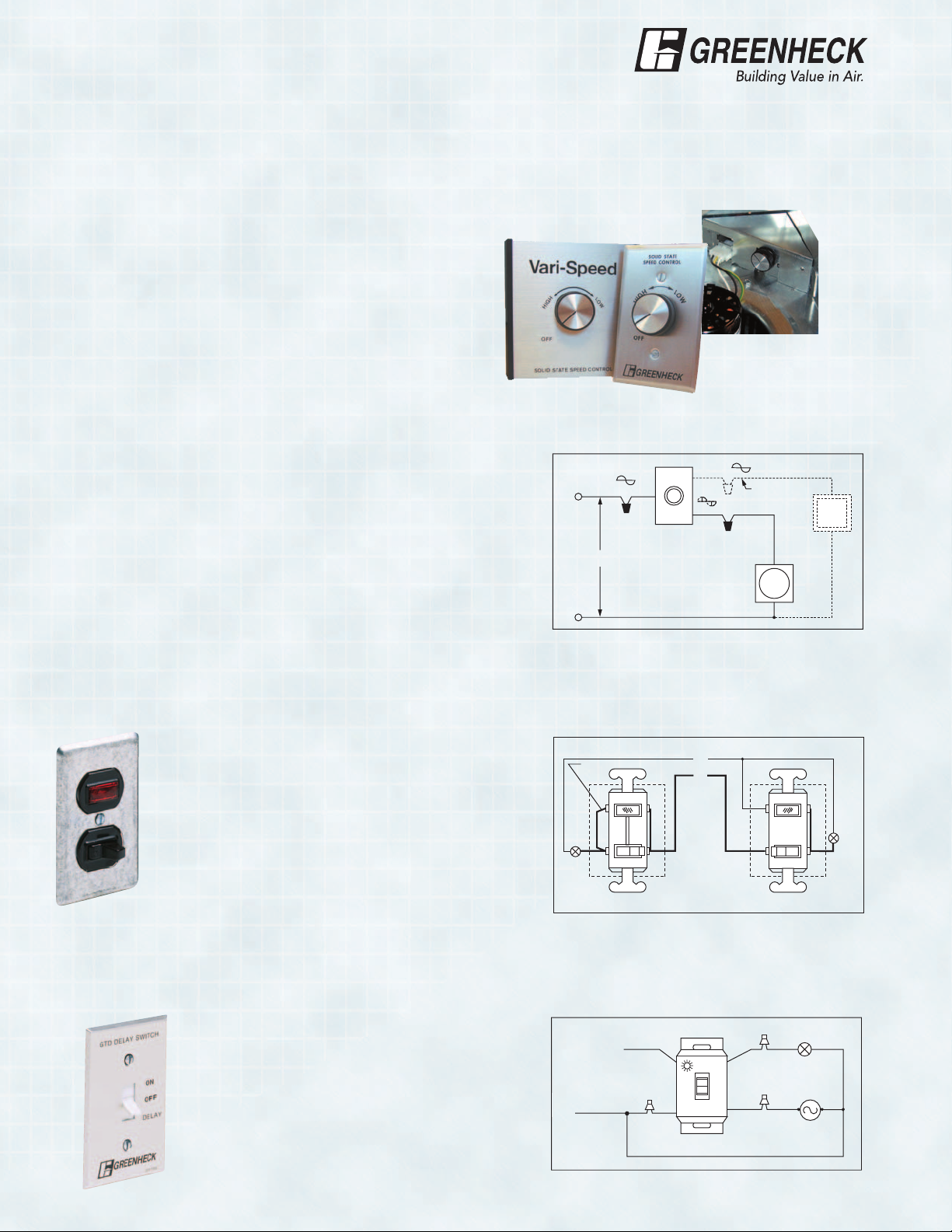

AccessoriesAccessories
®
Speed Controls
Speed controls may be used on Model SP and CSP fans for manual adjustment of the fan’s performance (for final
system balancing) or to control the fan’s output in confined spaces, such as conference or meeting rooms. The
fan can be adjusted to 60% of design airflow with a speed control. This reduction in airflow and fan speed is also
accompanied by a reduction in noise level. Solid state speed controls are available for a range of applications up
to 15 amps. Speed controls can be used to operate more than one fan if the combined total amperage of the
fans does not exceed the control rating.
Model 5WSSC - For use w/ shaded pole and PSC motors.
Available shipped loose or mounted internal or external.
• Rated for 115 - 127v, 5 Amp • UL Listed
• Require a 2x4 handy box
Model 5W240 - For use w/ shaded pole and PSC motors.
Available shipped loose or mounted internal or external.
• Rated for 220 - 240v, 5 Amp • UL Listed
• Requires 2x4 handy box
Model 5W277 - For use w/ shaded pole and PSC motors.
Available shipped loose or mounted internal or external.
• Rated for 277v, 5 Amp • UL Listed
• Requires 2x4 handy box
Model 8WSSC - For use w/ shaded pole and PSC motors.
Available shipped loose or mounted internal or external.
• Rated for 220 - 240v, 8 Amp • UL Listed
• Requires 2x4 handy box
Model 10WSSC - For use w/ shaded pole and PSC motors.
Available shipped loose or mounted internal or external.
• Rated for 115 - 127v, 10 Amp • UL Listed
• Requires 4x4 handy box
Model 15WSSC - For use w/ shaded pole and PSC motors.
Available shipped loose or mounted internal or external.
• Rated for 115 - 127v, 15 Amp • UL Listed
• Requires 4x4 handy box
H
N
FULL VOLTAGE
120 VAC
RED
BLACK
WHITE
SPEED CONTROL
SWITCHED FULL VOLTAGE
Dotted line indicates
for use with 10W
switch only.
VARIABLE
VOLTAGE
FAN
AUX
DEVICE
Switches
Switches may be used on Models SP and CSP fans to enable manual control of your fan or fan/light
combination. There are several options to fit your application.
NEMA 1- Single pole rocker switch assembly.
• Rated for, 115v, 15 Amp, 1/2 Hp • UL Listed
Model MS-16- Single pole rocker switch assembly
with cover and pilot light.
• Rated for, 115v, 15 Amp, 1/2 Hp • UL Listed
NEMA 1 - Two pole rocker switch assembly.
• Rated for, 220/230/240/277v, 20 Amp, 2 Hp • UL Listed
• Requires a 2x4 handy box.
EXTERNAL JUMPER
LOAD
Time Delay Switch
Time delay switches save energy by automatically turning off equipment. They may be used with Models SP
and CSP fans and fan/light combinations, for extended operating time of fan. Time delay switches act in the
same manner as a standard switch, however, there is a delay of 1 to 60 minutes after the it has been turned off.
RED
(500 Watt Max)
LIGHT
(7.5 Amps Max)
FAN MOTOR
Model GTD - Single switch controls both fan
and light. Available shipped loose.
• Silent Operation • Rated for 115v
• UL Listed • Requires 2x4 handy box
115 VOLT AC
60 CYCLE
(NEUTRAL)
BLACK BLUE
(HOT)
WHITE
LOAD
12

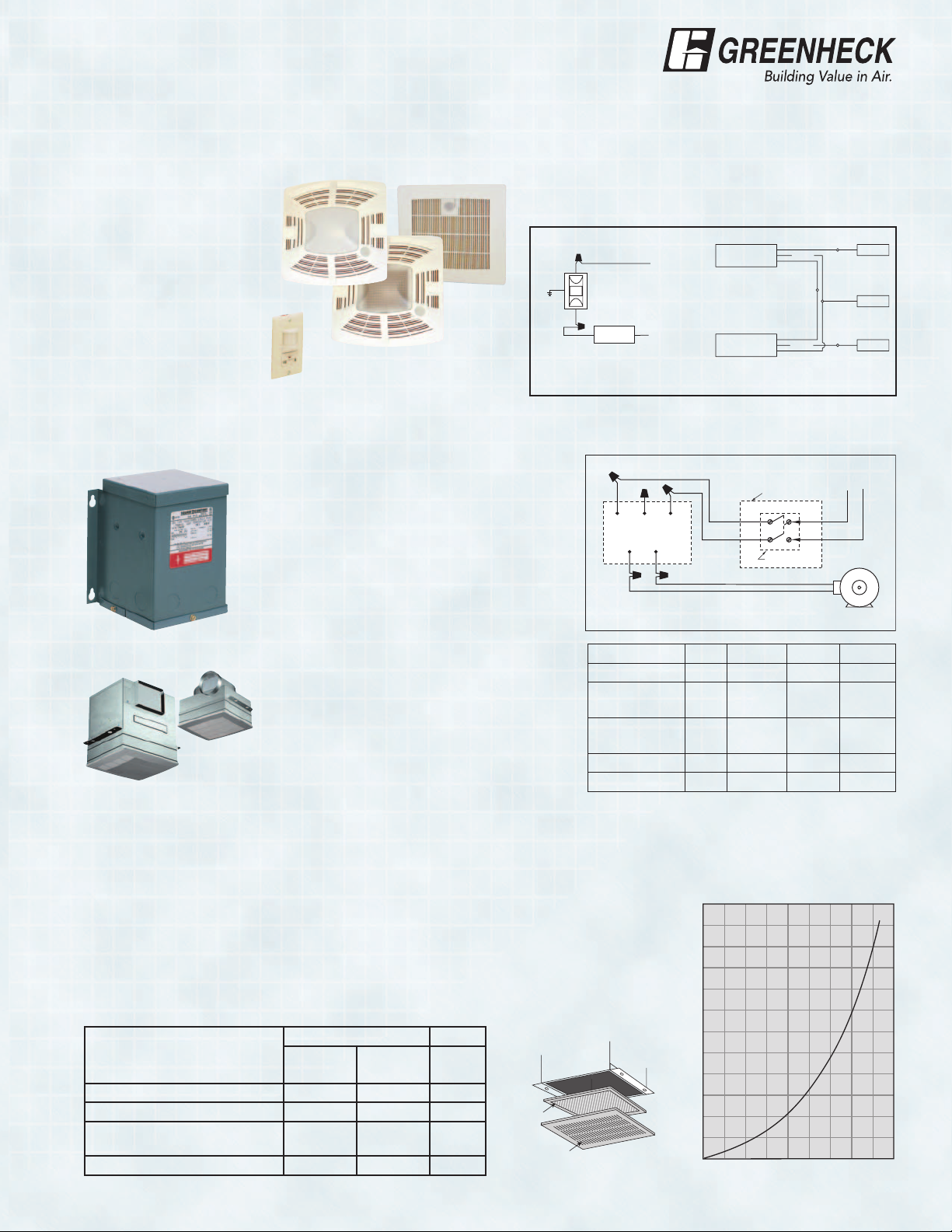

AccessoriesAccessories
®
Motion Detectors
Motion detectors may be used with Models SP and CSP fans, or fan and light combinations. Motion detectors
use a passive infrared motion detector that will automatically turn on the fan when a change in temperature is
sensed. They have a viewing area of 180 degrees, however they must be placed in the line-of-sight. They also
have an adjustable time delay shutoff setting of 1 to 20 minutes.
Grille Motion Detectors
are available on models up
through size SP-A390 and
SP-B200.
• Rated for 115v
• UL Listed
Model MDW
For use on fan or lights.
Available shipped loose.
• Rated for 115v
• UL Listed
• Requires 2x4 handy box
Black
Green
Gnd.
Red
Load
(12.5 Amps Max.)
Wall Mount
Hot
Neutral
Motion Sensor
Fan Motor and/or
Light
Transformers
Transformers are available for applications requiring voltage reduction. Selection is based on motor amperage.
All transformers are shipped loose.
Model T-2.0 - UL Listed
• Rated for 230/277v to 115, 2 Amps
Model T-4.3 - UL Listed
• Rated for 230/277v to 115, 4.3 Amps
Model T-6.5 - UL Listed
• Rated for 230/277v to 115, 6.5 Amps
Model T-8.6 - UL Listed
• Rated for 230/277v to 115, 8.6 Amps
BLK
BLK BLK
H1
H2 H3
277V TO 115V TRANS.
750 VA
X1 X2
RED
RED
Black
White
Red
Black
Green
White
Grille Mount
SWITCH BOX
SWITCH
Hot
Neutral
Ground
277 V SUPPLY
115 V MOTOR
Ceiling Radiation Dampers
The Greenheck SP-A and SP-B ceiling
radiation dampers are UL Classified, rated
at three to four hours fire resistance, and
is available on all SP-A and SP-B fans and
fan/light combinations. This design saves
space by allowing the damper to mount
directly beneath the fan.
Filters
SP Model CRD Length Width Height
A50 - A190 310 13 1/2 11 1/8 3
B50 - B200
A200 - A390
A410 - A510
A710 - A780
320 14 3/8 12 1/4 3
350 18 7/16 14 15/16 3
A - 700 700 24 3/16 12 1/4 3
A900 - A1550 360 24 3/16 14 15/16 3
All dimensions shown in inches.
Add an “L” to all CRD models if fan & light combo is used.
Fans used in most applications, even where air is not excessively dirty, will collect airborne dirt on wheels and
motors over time. Accumulations of dirt on the fan wheel will sharply reduce performance and cause imbalance.
Dirt buildup on the motor can cause it to overheat. All of these conditions will
shorten the life of the fan. To help reduce this accumulation, washable aluminum
mesh filters are available to trap dirt before it enters the fan. These filters should
be regularly cleaned to maintain performance. The Filter Loss Chart shows the
effect the filter will have on performance. To determine the added resistance,
divide the desired cfm by the filter area (ft2). This will give FPM. Use this with
the filter loss chart to get the added resistance. In addition to reducing dirt
accumulations on the motor and wheel, filters also reduce sound levels.
Filter Model Filter
SP Model
Designer
Grill
*Metal
Grille
SP-A50 - A190 F-200 F-210 .620
SP-B50 - B200, A200 - A390 F-200 F-220 .785
SP-A410 - A510
SP-A710 - A780
NA F-250 1.319
SP-A900 - A155 NA F-260 1.797
All dimensions shown in inches. *Aluminium or Stainless Steel Grille.
Area
2
(ft
)
Mesh
Filter
SP
Grille
.24
.22
.20
.18
.16
.14
.12
.10
.08
Resistance in w.c.
.06
.04
.02
.00
FILTER LOSS CHART
0123456789
Velocity FPM x 100
13
A
Wall Discharge AccessoriesWall Discharge Accessories
®
B
C
E
E
D
Model WC (Round Connection)
Hooded Wall Cap
• Aluminum construction - aluminum finish
• For outside wall applications
• Built in birdscreen
Model A B C D E
WC-4
WC-6 8 8 6 4
C50, B50-B80 6
B90-B200
A50-A190
WC-8 A200-A510 11 11 8 51/8 3.5
All dimensions shown in inches.
E
(not available on WC-4) and damper
For use
with sizes
1
/2 6 4 23/4 5
C
1
B
/8 5
G
D
C
A
B
F
E
Model WC (Square/Rectangular Connections)
Hooded Wall Cap
• Steel construction with black enamel finish
• For outside wall applications
• Built in birdscreen and damper
Model A B C D E F G
WC-10x3 50-290 5
WC-8x8 200-510 10
WC-18x8 700-1550 10
All dimensions shown in inches.
For use
with sizes
1
/2 123/4 31/2 101/4 111/8 41/4 5
1
/4 101/4 81/4 81/4 81/4 63/4 5
1
/4 201/4 81/4 181/4 181/4 63/4 5
A
B
D
Model WL
Wall Louvered Discharge
• Anodized aluminum grille
• Built in damper
• Not recommended for exterior applications exposed
to severe weather conditions. An external wall louver
is recommended for such applications.
Model A B C D E
WL-10x3 50-290 12 51/4 10 73/4 31/2
WL-18x6 390-1550 193/4 8 18 9 6
All dimensions shown in inches.
For use
with sizes
A
Model BVE
C
Brick Vent
• Designed for installation in masonry walls
• Anodized aluminum construction
• Built in aluminum mesh insect screen
Model A B C
BVE808 50-290 8
BVE128 390-510 12 73/4 4
BVE157 700-1050 15
All dimensions shown in inches.
For use
with sizes
1
/8 73/4 4
5
/8 73/4 4
ACCESSORY PRESSURE DROPS
Model RDC
Round Duct Connector
• Replaces the standard
square discharge ductconnector and damper
Model Dia.
RDC-6 A110-A190 6
RDC-8 A200-A510 8
All dimensions shown in inches.
• Uses existing mounting holes
• Galvanized steel construction
• RDC-6 includes a damper
• RDC-8 does not include a
damper
Model TR 6x4
Transition Duct Reducer
• Reduces duct from 6 to 4
inches.
• Galvanized steel construction
Model
B50-B200
TR 6x4 A50-A90
A110-A190*
* Used in conjunction with RDC-6.
For use
with sizes
6 in.
dia.
RDC-6
For use
with sizes
6.25 in.
RDC-8
4 in.
dia
The chart below can be used with all of the discharge
accessories shown on these two pages. Specific pressure
drop values for these accessories must be included in total
system calculations for proper fan selection.
30
20
10
9
8
7
6
CFM x 100
5
4
3
2
.07 .08 .09
.10
.01 .02 .03 .04 .05 .06
1
Pressure Drop in Inches of Water Gauge
Above accessories tested with 4 feet of inlet duct
.2 .3 .4 .5 .6
WL-18x6
RJ-10x10
BVE-157
WC-18x8
BVE-128
WC-8x8
WC-8
WC-10x3
WC-6
RJ-6x9
EL-10x3
WL-10x3
BVE-808
RFC-7
RCC-7
14
Roof Discharge AccessoriesRoof Discharge Accessories
B
RJ-4 and
RJ-6x9
D
E
A
C
B
RJ-10x10
E
Model RJ
Pitched Roof Cap
• Steel construction with black enamel finish
• Integral flashing flange
• Built in birdscreen and damper
Model A B C D E Throat
RJ-4 C50, B50-B80 11 91/4 81/4 55/16 41/2 4 in. Dia.
B90-B200
RJ-6x9
A50-A390
RJ-10x10 A410-A1050 18
All dimensions shown in inches.
For use
with sizes
3
18
/4 141/4 141/2 103/8 61/
1
/2 271/2 153/4 235/8 91/2 10x10
D
A
C
B
Model EL - 10x3
Elbow Discharge with Grille
• Designed for installation under roof eaves
6x9
2
• Painted steel louvered grille
• Built in damper
• For SP/CSP sizes 50-290
Flat Roof CapsFlat Roof Caps
®
1
8
/
1
1
1
2
/
3
11
1
/
2
1
9
/
4
1
0
1
8
/
5
B
C
D
ia
.
A
Model RCC-7
Curb Cap
• Weathertight aluminum
construction
• Integral birdscreen
• Built in curb cap
• Requires roof curb
D
1
1
/
2
in
.
Dia.
A
C
D
3
/4 in.
1
Model GRS
Curb Cap
• All aluminum exterior
construction
• Galvanized steel internal
supports
• Integral birdscreen
• Built in curb cap
• Requires roof curb
Throat
Model
RCC-7 50-390 15 12 10 6
GRS-10 410-710 19 20
For use
with sizes
A B C D
1
/2 61/4 3 101/4
Dia.
3
/8 7
GRS-12 780-1050 22 29 77/8 31/4 121/4
GRS-16 1410-2150 26 29 83/4 33/4 165/16
GRS-20 3600 30 351/2 91/4 41/4 205/16
All dimensions shown in inches.
B
C
D
ia
.
A
D
Model RFC-7
Flashing Flange
• Weathertight aluminum
construction
• Integral birdscreen
• Built in flashing flange
Model GRSF
Flashing Flange
• All aluminum exterior
construction
• Galvanized steel internal
supports
B
D
Dia.
A
• Integral birdscreen
• Built in flashing flange
Throat
Model
RFC-7 50-390 18 12 10 6
GRSF-10 410-710 23 20
For use
with sizes
A B C D
1
/2 61/4 3 101/4
Dia.
3
/8 7
GRSF-12 780-1050 26 29 77/8 31/4 121/4
GRSF-16 1410-2150 30 29 83/4 33/4 165/16
GRSF-20 3600 34 351/2 91/4 41/4 205/16
All dimensions shown in inches.
C
Hanging Vibration Isolators
Vibration isolator kits are available
for suspended installations. Kits
include all hardware necessary to
mount one unit, with the exception
of 10-32 threaded rod to be
supplied by others. Fan mounting
brackets include prepunched
mounting holes for ease of
installation.
A
10-32 hanging
support rod by
others
Unit
A B
Size
B
B50-B200 4
1
/2 155/8
A50-A190 51/2 145/8
A200-A390 63/4 151/2
A410, A510
A710, A780
A700 5
A900-A1050
A1410-A1550
A1750, A2150 9
A3600 91/4 485/8
All dimensions shown in inches.
1
/4 195/8
9
1
/2 251/8
91/4 253/8
1
/4 363/4
15
®
SP
PREMIUM CEILING FAN
A
Dimensional Data
Model
50, 70, 90 131/4 105/8 115/8 6 DIA. 147/8 x 131/4 15
110, 125, 190 13
200, 250, 290, 390 14 11
410, 510 18 14
700 23
710, 780 18 14
900, 1050, 1410, 1550 23
Outlet connection width is 1 inch - Mounting bracket width is 1½ inch.
For complete dimensional information, see CAPS submittal drawings.
All dimensions are in inches.
A B C D E
1
/4 105/8 101/2 8 6 147/8 x 131/4 15
7
/8 111/4 8 8 147/8 x 131/4 15
3
/8 141/2 8 8 193/8 x 163/8 - 31
5
/8 115/8 115/8 191/2 8 251/8 x 131/2 - 34
3
/8 141/2 10 8 193/8 x 163/8 - 34
3
/4 143/8 141/2 183/4 8 25 x 163/8 - 56
Standard Decorative Unit
Grille
Grille Wt.
1
/4 sq. 12
1
/4 sq. 17
1
/4 sq. 24
A
E
D
B
C
A
E
D
B
Performance Data
HVI CFM /Static Pressure in inches of WG
Model RPM Amps Watts
Sones 0.000 0.100 0.125 0.250 0.375 0.500 0.625 0.750 1.000
2,3,5
CFM 76 51 47 30
SP-A50 700 0.31 18 0.7
Sones 0.7 1.0 1.1 1.8
2,3,5
CFM 83 70 66 42
SP-A70 850 0.27 20 0.8
Sones 1.1 1.1 1.4 2.2
2,3,5
CFM 99 88 84 61 25
SP-A90 900 0.34 29 1.0
Sones 1.1 1.4 1.4 1.7 1.9
2,3,4,5,6
CFM 119 110 106 88
SP-A110 950 0.58 49 0.8
Sones 1.3 1.2 1.2 1.6
2,3,5,6
CFM 135 123 121 104
SP-A125 1100 0.62 53 1.2
Sones 1.4 1.7 1.8 1.9
3,4,5,6
CFM 216 197 192 167 133
SP-A190 1400 1.30 113 2.0
Sones 3.2 2.8 2.9 3.1 3.4
3,5
CFM 247 225 220 196 172 142 105 67
SP-A200 900 0.43 48 2.0
Sones 2.0 2.3 2.4 3.0 3.5 4.1 4.6 4.5
3,5
CFM 272 251 246 227 210 185 157 119
SP-A250 1000 0.77 83 2.0
Sones 2.9 3.0 3.0 3.4 4.4 4.6 4.9 5.2
3,4,5
CFM 315 293 287 257 231 207 175 124
SP-A290 1050 0.72 81 2.5
Sones 3.2 3.3 3.3 3.6 3.9 4.1 4.5 5.5
3,4,5
CFM 410 395 391 368 345 325 307 279
SP-A390 1350 1.34 135 4.5
Sones 5.4 5.4 5.4 5.7 6.0 6.3 6.4 6.7
3
CFM 443 413 405 351 305
SP-A410 1000 1.74 121 3.0
Sones 4.1 3.8 3.7 3.7 4.3
3,4
CFM 557 512 501 439 392 325
SP-A510 1070 3.30 224 4.5
Sones 6.0 5.7 5.6 5.5 5.4 4.7
3
CFM 757 729 723 700 679 649 613 560 396
SP-A700 1100 3.20 350 5.5
Sones 6.1 6.1 6.1 6.3 6.7 7.1 7.3 7.5 7.7
3
CFM 752 714 701 653 588 485 320
SP-A710 1080 4.40 285 6.0
Sones 7.4 7.2 7.2 7.0 6.8 6.7 6.7
3,4
CFM 812 782 775 741 704 665 625 581
SP-A780 1600 3.30 348 8.5
Sones 10.2 10.2 10.2 9.9 9.5 9.5 9.4 9.4
3
CFM 955 907 896 841 773 701
SP-A900 950 4.00 285 4.5
Sones 5.2 5.7 5.8 6.1 6.2 6.2
3,4
CFM 1125 1059 1043 964 885 796 662
SP-A1050 1095 6.30 420 6.0
Sones 7.2 7.0 6.9 6.8 6.6 6.5 6.5
3
CFM 1455 1414 1404 1353 1307 1262 1218 1174
SP-A1410 1450 7.40 786 9.5
Sones 11.6 11.6 11.7 11.6 11.5 11.6 11.6 11.6
3,4
CFM 1607 1568 1558 1506 1449 1407 1369 1323
SP-A1550 1610 8.60 818 10.0
Sones 12.4 12.1 12.1 12.0 11.9 12.8 14.1 15.9
1 HVI sones at 0.1 wg
2 Available with light
Performance certified is for Model SP exhaust for installation type B: Free inlet, Ducted outlet. Performance ratings include the effects of an inlet grille and backdraft damper. Speed
(RPM) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in fan sones at 5 ft. (1.5m) in a hemispherical free field calculated
per AMCA Standard 301. Values are for installation type B: free inlet fan sone levels.
3 Available with CRD - Ceiling Radiation Damper
4 Available with 50 Hz motors (See CAPS for performance)
1
5 UL Listed for use above tubs.
6 Available with 277 volt motor.
C
16
®
SP
DELUXE CEILING FAN
B
Dimensional Data
Model A B *C D E
50, 70, & 80 137/8 111/2 615/16 4 3/4 147/8 x 131/4 15 1/4 sq. 9
90, 110, 150, 200 137/8 111/2 715/16 6 11/4 147/8 x 131/4 15 1/4 sq. 10
*Add 1½ inches to C dimension for incandescent light.
Mounting bracket width is 1½ inch
For complete dimensional information, see CAPS submittal drawings.
All dimensions are in inches.
Designer Decorative Unit
Grille Grille Wt.
B
C
A
E
D
Performance Data
HVI CFM/Static Pressure in inches of WG
Model RPM AMPS Watts
Sones 0.000 0.100 0.125 0.250 0.375 0.500 0.625 0.750 1.000
2,3,5
CFM 67 53 51 40 29
SP-B50 625 0.50 38 1.4
Sones 1.7 1.9 1.9 2.6 3.5
2,3,5
CFM 77 70 68 57 49 39
SP-B70 675 0.53 45 1.4
Sones 1.7 1.9 1.9 2.4 3.1 3.6
2,3,5
CFM 87 80 78 68 61 54 44 30
SP-B80 900 0.60 54 2.5
Sones 2.9 2.9 3.0 3.2 3.6 4.3 5.5 5.6
2,3,4,5
CFM 102 92 88 75 59 45 30
SP-B90 700 0.65 50 2.0
Sones 1.9 2.6 2.7 3.0 3.6 4.1 4.9
2,3,4,5,6
CFM 133 114 110 97 95 94 91 85 50
SP-B110 950 1.14 80 1.5
Sones 2.0 2.1 2.2 2.4 2.7 2.8 3.6 4.4 5.4
2,3,4,5,6
CFM 160 156 155 154 152 149 147 138 92
SP-B150 1050 1.70 129 2.5
Sones 3.0 3.3 3.3 3.7 4.3 4.5 5.0 5.3 5.8
3,4,5,6
CFM 197 195 194 191 187 184 181 166 128
SP-B200 1100 2.20 173 4.0
Sones 4.4 4.6 4.7 5.1 5.6 5.8 6.0 6.3 6.6
1 HVI sones at 0.1 wg
2 Available with light
Performance certified is for Model SP exhaust for installation type B: Free inlet, Ducted outlet. Performance ratings include the effects of an inlet grille and backdraft damper. Speed
(RPM) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in fan sones at 5 ft. (1.5m) in a hemispherical free field calculated
per AMCA Standard 301. Values are for installation type B: free inlet fan sone levels.
3 Available with CRD - Ceiling Radiation Damper
4 Available with 50 Hz motors (See CAPS for performance)
1
5 UL Listed for use above tubs.
6 Available with 277 volt motor.
®
SP
STANDARD CEILING FAN
Dimensional Data
50 7
For complete dimensional information, see CAPS submittal drawings.
All dimensions are in inches.
A B C D E F Grille Wt.
Model
1
/2 71/2 35/8 3 15/8 1/2 91/4 x 9 5
C
F
Performance Data
CFM/Static Pressure in inches of WG
Model RPM AMPS Watts
0.00 0.100 0.125 0.250 0.375 0.500 0.625
CFM 52 49 48 46 43 37 29
SP-C50 1680 0.80 46
Sones 2.9 3.6 3.6 3.9 4.2 4.8 6.3
Performance certified is for Model SP exhaust for installation type B: Free inlet, Ducted outlet. Performance ratings include the effects of an inlet grille and backdraft damper. Speed
(RPM) shown is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in fan sones at 5 ft. (1.5m) in a hemispherical free field calculated
per AMCA Standard 301. Values are for installation type B: free inlet fan sone levels.
B
A
E
D
C
17
®
CSP
PREMIUM INLINE FAN
Dimensional Data
Model A B C D E F G Wt.
110, 125, 190 131/4 105/8 101/2 8 6 12 91/4 16
200,250, 290, 390 14 11
410, 510 18 14
700 23
710, 780 18 14
900, 1050,
23
1410, 1550
1750, 2150 35 14
3600 45
Inlet and outlet connections widths are 1 inch - Mounting bracket width is 1½ inch
For complete dimensional information, see CAPS submittal drawings.
All dimensions are in inches.
7
/8 111/4 8 8 127/8 10 23
3
/8 141/2 8 8 167/8 131/4 36
5
/8 115/8 115/8 191/2 8 225/8 101/2 34
3
/8 141/2 10 8 167/8 131/4 36
3
/4 143/8 141/2 183/4 8 225/8 131/4 59
3
/4 143/4 28 6 323/4 13 68
1
/2 161/2 161/2 40 11 431/4 145/8 122
A
E
D
C
F
G
E
B
C
D
A
A
B
F
t
le
In
Performance Data
CFM/Static Pressure in inches of WG
Model RPM AMPS Watts
0.000 0.100 0.125 0.250 0.375 0.500 0.625 0.750 1.000
4,6
CFM 124 112 110 102 77
CSP-A110 950 0.62 51
Sones 1.1 1.1 1.1 1.3 1.3
6
CFM 138 126 124 113 91
CSP-A125 1100 0.63 55
Sones 1.4 1.4 1.3 1.4 1.7
4,6
CFM 215 202 198 180 159 121
CSP-A190 1400 1.10 100
Sones 2.3 2.0 2.2 2.7 2.9 3.0
CFM 254 230 225 203 177 145 109 70
CSP-A200 900 0.43 48
Sones 0.8 0.7 0.8 1.3 1.5 1.9 2.2 2.1
CFM 266 246 241 221 205 187 165 132
CSP-A250 1000 0.79 83
Sones 1.3 1.5 1.5 2.3 3.3 3.4 3.2 3.0
CFM 318 299 292 265 248 229 201 144
CSP-A290 1050 0.71 80
Sones 1.6 1.7 1.8 2.6 3.3 4.0 3.7 3.4
4
CFM 412 400 397 382 363 339 324 309
CSP-A390 1350 1.33 144
Sones 2.8 2.7 2.8 3.2 3.7 4.7 5.5 6.5
CFM 447 411 403 364 316 217
CSP-A410 1000 1.87 139
Sones 2.2 2.1 2.2 2.5 2.7 2.7
CFM 545 514 506 464 405 324
CSP-A510 1070 3.11 217
Sones 3.1 2.9 2.8 2.8 2.7 3.1
CFM 766 755 752 739 726 702 678 635 418
CSP-A700 1100 3.20 350
Sones 2.6 2.5 2.4 2.4 2.5 2.6 2.7 3.0 4.9
CFM 737 698 688 635 566 474 334
CSP-A710 1080 4.40 325
Sones 3.2 3.3 3.2 3.3 2.7 2.5 2.7
4
CFM 813 783 776 741 707 671 637 603 527
CSP-A780 1600 3.77 405
Sones 3.8 3.6 3.6 3.5 3.4 3.5 3.6 3.8 4.3
CFM 908 852 840 782 714 631
CSP-A900 950 4.87 328
Sones 1.9 2.0 2.0 2.3 2.6 2.9
4
CFM 1182 1110 1093 1013 922 832 743
CSP-A1050 1095 6.65 455
Sones 3.5 3.2 3.1 3.1 3.4 3.4 3.4
CFM 1584 1543 1533 1483 1439 1395 1345 1293 1181
CSP-A1410 1450 7.80 822
Sones 4.2 4.0 4.0 4.1 4.2 4.3 4.5 4.6 5.0
4
CFM 1672 1617 1604 1542 1484 1427 1367 1306 1171
CSP-A1550 1610 8.32 830
Sones 5.8 5.4 5.3 5.4 5.4 5.1 5.1 5.2 5.8
CFM 1842 1767 1749 1619 1463 1283 1032 771
CSP-A1750 1130 6.60 550
Sones 6.4 6.0 6.0 5.5 5.3 4.7 4.1 3.8
CFM 2249 2175 2156 2044 1900 1701 1424 1114
CSP-A2150 1100 7.80 735
Sones 6.0 5.8 5.8 5.2 5.0 4.6 3.8 3.4
CFM 3778 3653 3622 3460 3280 3091 2844 2551 1750
CSP-A3600 1100 7.10 1330
Sones 6.4 6.1 6.1 5.7 5.4 5.1 4.9 4.7 4.3
4 Units available with 50 Hz motors (See CAPS for performance)
Performance certified is for Model CSP inline for installation type D: Ducted inlet, Ducted outlet. Performance ratings include the effects of a backdraft damper. Speed (RPM) shown
is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in fan sones at 5 ft. (1.5m) from the test inlet duct in a hemispherical free field
calculated per AMCA Standard 301. Values are for installation type D: Ducted inlet fan sone levels. Ratings do not include the effects of duct end correction. Ratings are based on 10 ft.
of insulated duct. The AMCA Certified Ratings Seal applies to air performance only.
18
6 Available with 277 volt motor.
G
C
dia.
et
G
®
CSP
DELUXE INLINE FAN
B
Dimensional Data
Model
110, 150, 200 13
Outlet connection width is 1 inch - Mounting bracket width is 1½ inch
For complete dimensional information, see CAPS submittal drawings.
All dimensions are in inches.
A B C D E F G Wt.
7
/8 111/2 715/16 6 1
1
/4 10
1
/4 31/4 101/4
Inl
Performance Data
CFM/Static Pressure in inches of WG
Model RPM AMPS Watts
0.000 0.100 0.125 0.250 0.375 0.500 0.625 0.750
4,6
CFM 103 100 99 98 97 96 93 86
CSP-B110 950 1.14 80
Sones 2.0 2.0 2.1 2.3 2.6 2.7 3.1 3.3
4,6
CFM 151 149 149 148 147 145 142 134
CSP-B150 1050 1.70 129
Sones 2.5 2.7 2.7 2.9 3.1 3.4 3.6 3.9
4,6
CFM 186 184 183 182 180 178 175 169
CSP-B200 1100 2.20 173
4 Units available with 50 Hz motors (See CAPS for performance)
Performance certified is for Model CSP inline for installation type D: Ducted inlet, Ducted outlet. Performance ratings include the effects of a backdraft damper. Speed (RPM) shown
is nominal. Performance is based on actual speed of test. The sound ratings shown are loudness values in fan sones at 5 ft. (1.5m) from the test inlet duct in a hemispherical free field
calculated per AMCA Standard 301. Values are for installation type D: Ducted inlet fan sone levels. Ratings do not include the effects of duct end correction. Ratings are based on 10 ft.
of insulated duct. The AMCA Certified Ratings Seal applies to air performance only.
Sones 3.4 3.6 3.7 4.0 4.1 4.1 4.3 4.5
6 Available with 277 volt motor.
Model SP-C50
Ceiling mounted exhaust fans shall be of the centrifugal direct drive
type. The fan housing shall be constructed of steel. The plastic
duct collar shall be a tapered sleeve for ease of connection to
3 and 4 inch round ductwork and shall include a backdraft damper.
The grille shall be constructed of non-yellowing high impact
polystyrene and attached to the housing with torsion springs.
The wheels shall be constructed of high strength polymer. The
access for wiring shall be external. The motor disconnect shall
be internal and of the plug in type. All fans shall bear the AMCA
Certified Ratings Seal for sound and air performance. Model
SP-C50 shall be UL Listed. Fans shall be Model SP-C50 as supplied
by Greenheck Fan Corporation, Schofield, Wisconsin.
Models SP-B50, B70, B80, B90, B110, B150, and B200
Ceiling mounted exhaust fans shall be of the centrifugal direct
drive type. The fan housing shall be constructed of steel. The
steel duct collar shall be 4 inch in diameter on the B50, B70, and
B80 and 6 inch in diameter on the B90, B150, and B200 to accept
4 inch and 6 inch round ductwork and shall include a backdraft
damper. The designer grille shall be constructed of non-yellowing
high impact polystyrene and attached to the housing with hidden
attachment screws. The access for wiring shall be external. The
motor disconnect shall be internal and of the plug in type.
The motor shall be mounted on vibration isolators. The fan wheel
shall be of the forward curved centrifugal type, constructed of
calcium carbonate filled polypropylene and dynamically balanced.
All fans shall bear the AMCA Certified Ratings Seal for sound
and air performance and shall be UL/cUL Listed. Ceiling or wall
mount fans shall be Model SP-B50, B70, B80, B90, B110, B150 or
B200 as manufactured by Greenheck Fan Corporation, Schofield,
Wisconsin.
Models SP-A50 thru A1550
Ceiling mounted exhaust fans shall be of the centrifugal direct
drive type. The fan housing shall be constructed of heavy gauge
galvanized steel. The housing interior shall be lined with 1/2 inch
acoustical insulation. The outlet duct collar shall include an aluminum
backdraft damper on all SP-A sizes and shall be spring loaded on
size SP-A110 and larger. Outlet shall be adaptable for horizontal
or vertical discharge. The designer grille for sizes SP-A50 through
SP-A390 shall be constructed of high impact polystyrene and for
sizes SP-A410 through SP-A1550, the grille shall be constructed of
aluminum. Grilles shall be non-yellowing.
Typical SpecificationsTypical Specifications
The access for wiring shall be external. The motor disconnect shall
be internal and of the plug in type. The motor shall be mounted on
vibration isolators. The fan wheel(s) shall be of the forward curved
centrifugal type and dynamically balanced. All fans shall bear the
AMCA Certified Ratings Seal for sound and air performance and
shall be UL/cUL Listed. Ceiling or wall mount fans shall be Model
SP as manufactured by Greenheck Fan Corporation, Schofield,
Wisconsin.
Models CSP-B110, B150, and B200
Duct mounted exhaust, supply or return air fans shall be of the
centrifugal direct drive type. The fan housing shall be constructed
of steel. The steel duct collar shall be 6 inch in diameter to accept
6 inch round ductwork and shall include a backdraft damper. The
access for wiring shall be external. The motor disconnect shall be
internal and of the plug in type.
The motor shall mounted on vibration isolators. The fan Wheel shall
be of the forward curved centrifugal type, constructed of calcium
carbonate filled polypropylene and dynamically balanced. All fans
shall bear the AMCA Certified Ratings Seal for air performance and
shall be UL/cUL Listed. Ceiling or wall mount fans shall be Model
CSP-B110, B150 or B200 as manufactured by Greenheck Fan
Corporation, Schofield, Wisconsin.
Models CSP-A110 thru A3600
Duct mounted exhaust, supply or return air fans shall be of the
centrifugal direct drive type. The fan housing shall be constructed
of heavy gauge galvanized steel. The housing interior shall be lined
with 1/2 inch acoustical insulation. The outlet duct collar shall
include an aluminum backdraft damper and shall be adaptable
for horizontal or vertical discharge. The access for wiring shall be
external. The motor disconnect shall be internal and of the plug in
type.
The motor shall be mounted on vibration isolators. The fan wheel(s)
shall be of the forward curved centrifugal type and dynamically
balanced. All fans shall bear the AMCA Certified Ratings Seal for
air performance and shall be UL/cUL Listed. Ceiling or wall mount
fans shall be Model CSP as manufactured by Greenheck Fan
Corporation, Schofield, Wisconsin.
19
Ceiling Fan Solutions
Ceiling Fans
Ceiling Fans
w/ Light
SP-A110 SP-A110 SP-A390 SP-A125
SP-A50 SP-A70 SP-A90 SP-A90
Ceiling Fans
w/ CRD
Ceiling Fans
w/ Light & CRD
SP-B50 SP-B90 SP-B200 SP-B80
Our Warranty
Greenheck Fan Corporation warrants its SP/CSP products to be free of any defect in
material or workmanship for a period of three (3) years from the date of purchase. In the
event of such a defect during the warranty period, Greenheck Fan Corporation agrees, at
its option, to either repair or replace the defective product free of charge. This warranty
runs to the original purchaser of such SP/CSP products for a period of three (3) years from
the date of purchase. Any product repaired or replaced under this warranty will, itself,
be warranted only for the remainder of the warranty period of the original product being
repaired or replaced. All light bulbs are excluded under this limited warranty. Greenheck
Fan Corporation is not responsible for any removal, installation, or transportation cost. For
full SP/CSP warranty information visit www.greenheck.com.
As a result of our commitment to continuous improvement, Greenheck reserves the right to
change specifications without notice.
P.O. Box 410 • Schofield, WI 54476-0410 • Phone (715) 359-6171 • greenheck.com
Catalog SP CSP Rev 5 November 2006 SP
Copyright © 2006 Greenheck Fan Corp.
Loading...
