Greenheck Smoke Detector Supplement User Manual
11 in. "A" dimension
21 in. sleeve length
6.000 wall
maximum
Duct Breakaway
Connection (by others)
Height equal to
or greater than
25 inches
Accessory (OCI/RRL/TOR)
mounted externally on right-
hand side of damper.
Note: All actuators will be
externally mounted on the
right-hand side of damper
3 in. minimum to
allow for retaining
angle and duct
breakaway connection
Smoke detector
mounted
externally on
left-hand side of
damper
1.5 in. x 1.5 in.
16 ga. minimum
retaining angle
1.5 in. x 1.5 in.
16 ga. minimum
retainign angles
®
Refer to:
‘Installation Instructions for SMD, SMDR and SSSMD Series
Leakage Rated Smoke Dampers’ (Part #461338)
or
‘Installation Instructions for CFSD Series Corridor Ceiling
Dampers’ (Part #461335)
or
‘Installation Instructions for CFSD, FSD, DFD, and SSFSD
Series Combination Fire Smoke Dampers’ (Part #461336) and
FSD-3XXV series (Part # 461666) for additional details.
Notes
1. Mininum air velocity for smoke detector operation is 100 fpm
(2.5 m/s). Maximum is 4000 fpm (20.3 m/s).
2. Since the smoke detector is not rated for use at velocities
below 100 fpm (2.5 m/s), local code may require an alternate
means of damper closure such as zone detection or
automated damper closure when the system fan is shut down.
The local authority having jurisdiction should be consulted
prior to the installation of the damper and smoke detector.
3. Holes on sampling tube must face into airstream.
4. Smoke detector specifications are:
Operating temperature range: 23°F to 131°F (-5°C to 55°C)
Operating humidity range: 10% to 93% R.H.
Operation voltage: 24 VAC/DC or 120 VAC
5. Refer to System Sensor, D4120 Installation and Maintenance
Instructions for further installation details.
6. Refer to System Sensor, D4120, Installation and Maintenance
Instructions for maintenance and field tests.
7. System Sensor
3825 Ohio Avenue
St. Charles, Illinois 60174
Phone: 1-800-SENSOR2
Fax: 1-630-377-6495
Website: http://www.systemsensor.com
DuctMate
Connector
1.5 x 1.5 in.
Retaining Angles
1.5 x 1.5 in.
Retaining Angles
DuctMate
Connector
Document number 463813
Installation Instruction
Supplement for
SMD, SMDR & SSSMD Series
Smoke Dampers and
FSD, FSD-3XXV & SSFSD Series
Combination Fire Smoke Dampers and
CFSD Series
Corridor Ceiling Dampers
with Factory Mounted Duct Smoke Detectors
“UL CLASSIFIED (see complete marking on
product)”
“UL CLASSIFIED to Canadian safety standards
(see complete marking on product)”
Standard 555 (Listing #R13317)
Standard 555S (Listing #R13447)
Figure 1: Smoke detector mounting orientation for dampers
15.00
24.00
6.00
Wall Maximum
less than 25 inches (635mm) in height.
5.75
Figure 2: Smoke detector mounting orientation for dampers
equal to or greater than 25 inches (635mm) in
height.
Fusible Link

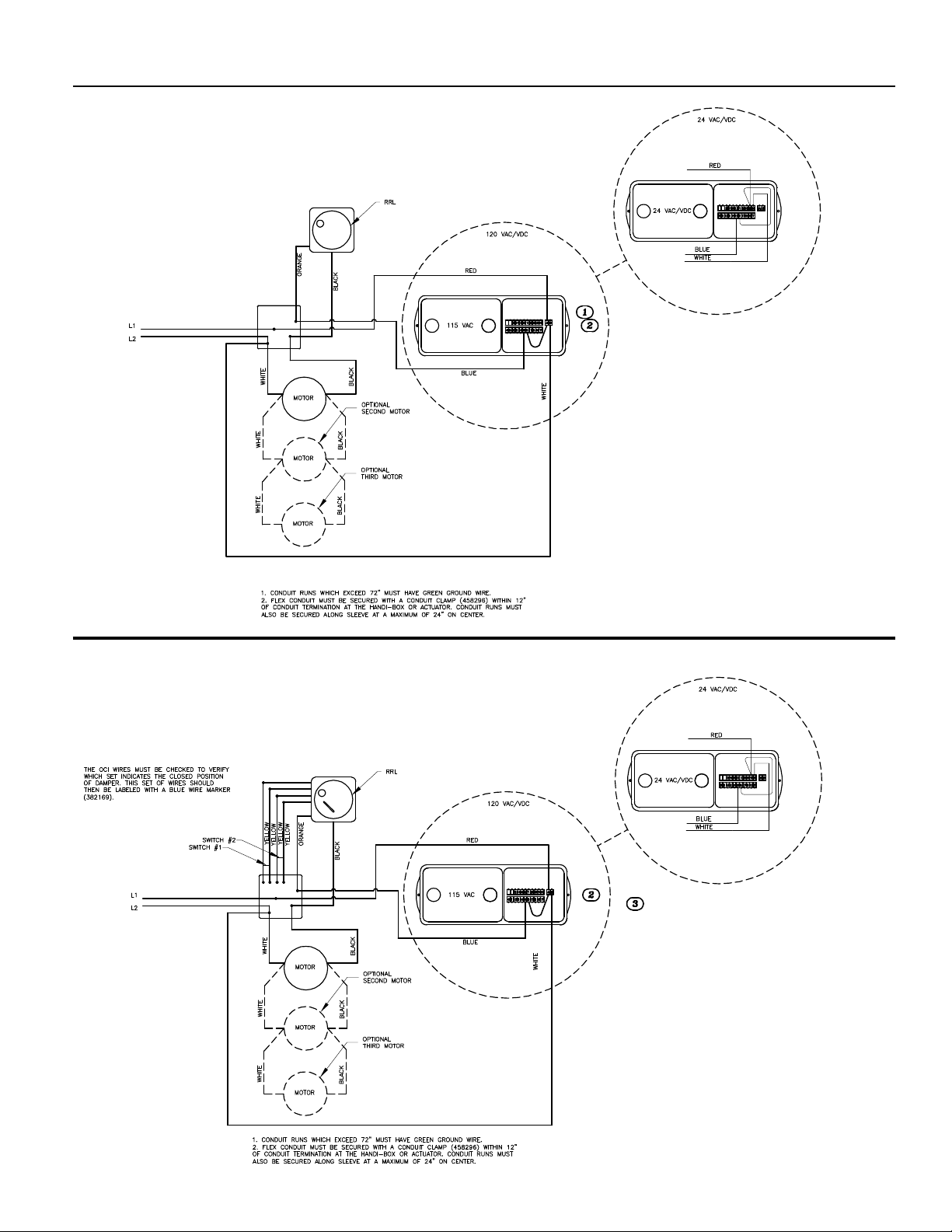

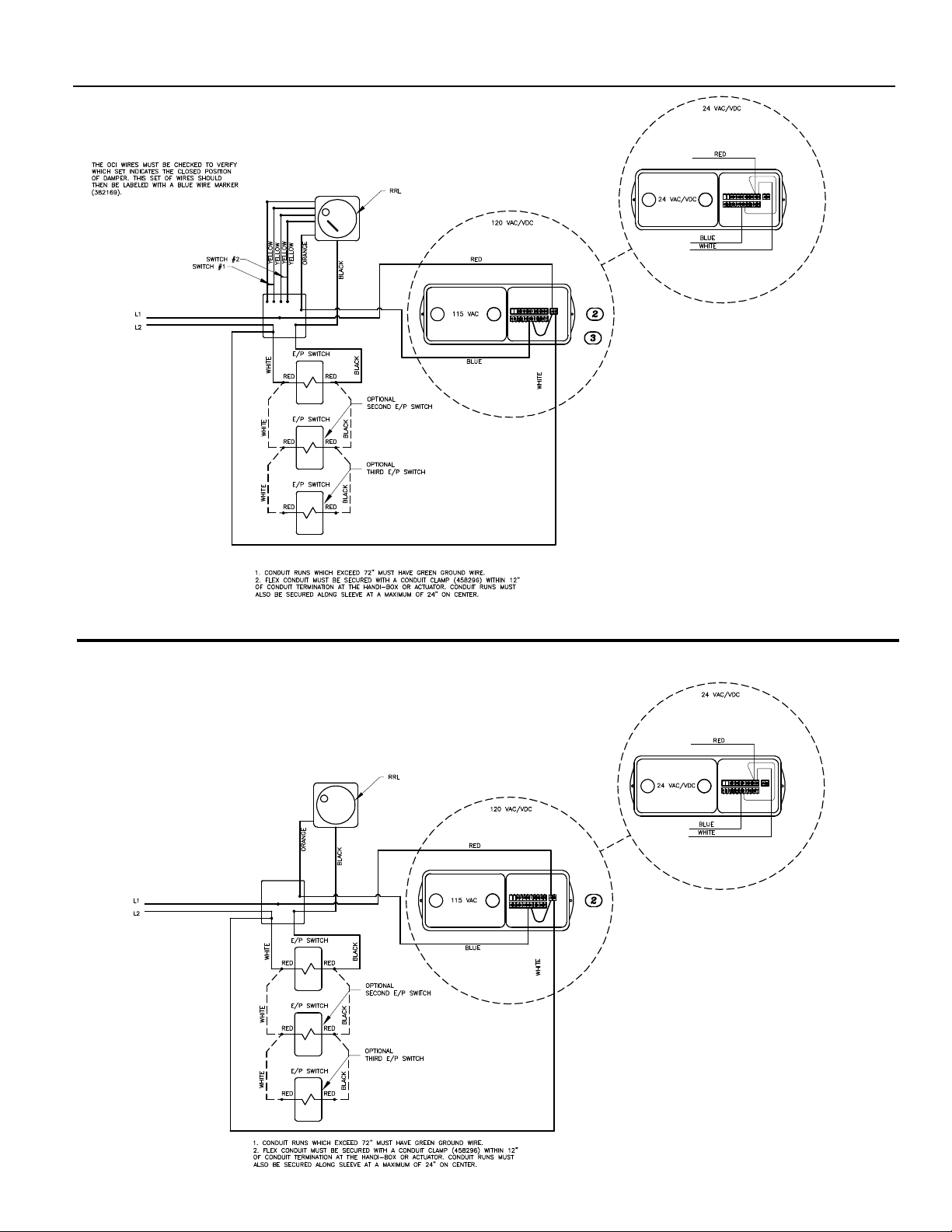

DUCT SMOKE DETECTORWIRING DIAGRAMS
OCI
