Model SWB - Series 100, 200 and 300

Models SFB, SFD and SWD

Centrifugal Utility Fans

Installation, Operation and Maintenance Manual

Please read and save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage!

Model SWB

Series 300

Model SFB

Model SWB

Series 200

Model SWB

Series 100

Model SWD

Table of Contents

General Safety Information .................... 2

Receiving, Unpacking, Storage, Inspection ....... 3

Installation

Discharge Positions ........................ 4

UL/cUL 762 for Restaurant Exhaust ............ 4

Affect of Installation on Performance ............ 5

Pre-Starting Checks

Alignment of Pulleys and Belts ................ 5

Wheels and Wheel Rotation .................. 6

Mounting for Severe Duty Installation ............ 7

Maintenance

Bearing Lubrication Schedule ................. 7

Motor Maintenance (Belt and Direct Drive) ....... 8

Wheel and Fastener Maintenance ............. 8

Belt Maintenance .......................... 8

Model SFD

Installation of Motor, Drives and Belt(s) .......... 9

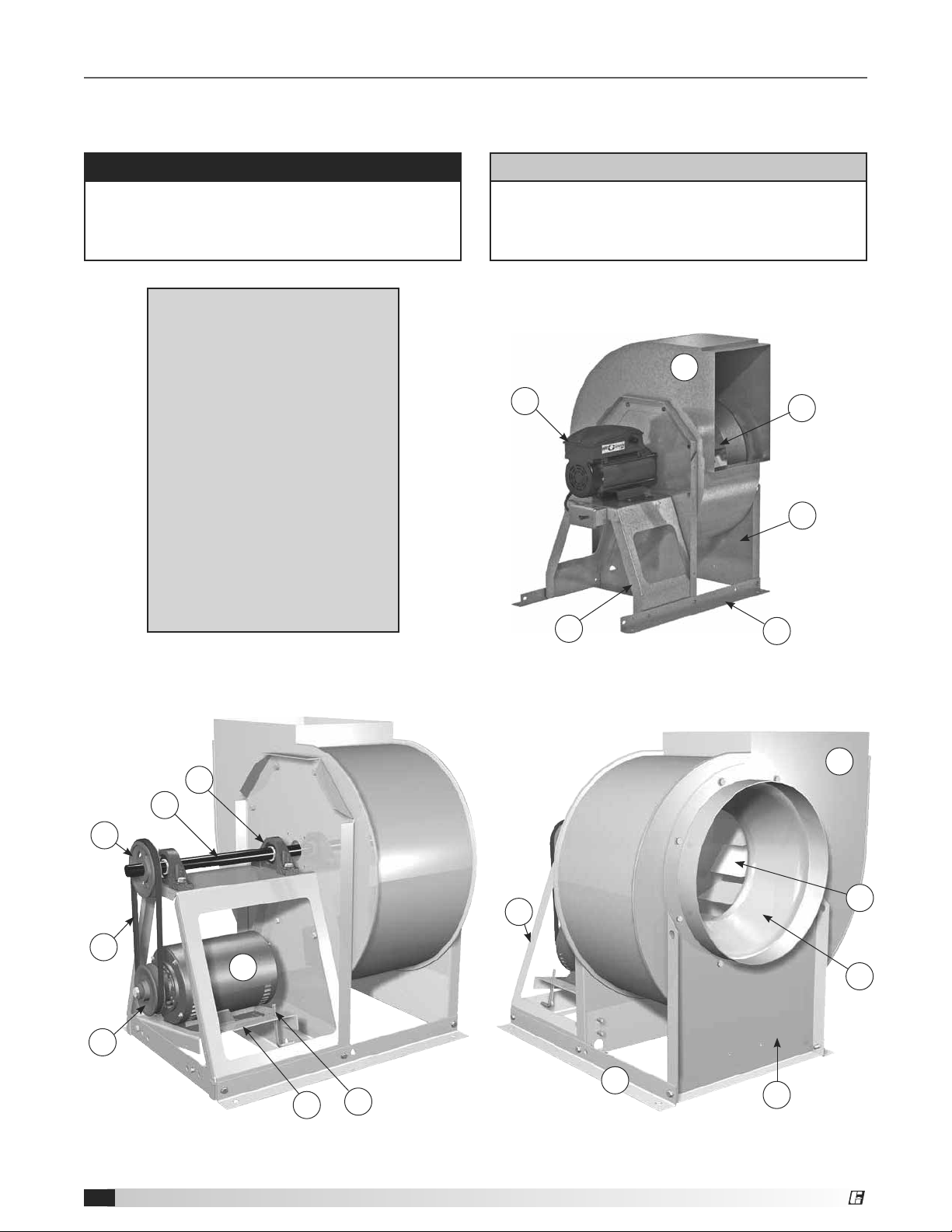

Parts List ................................. 10

Troubleshooting ............................ 11

Our Committment .......................... 12

Centrifugal Utility Fans 1

General Safety Information

Only qualiﬁed personnel should install this fan. Personnel should have a clear understanding of these instructions and should be aware of general safety precautions. Improper installation can result in electric shock, possible injury due to coming in contact with moving parts, as well as other potential hazards. Other considerations may be required if seismic activity is present. If more information is needed, contact a licensed professional engineer before moving forward.

1. Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the National Fire Protection Agency (NFPA), where applicable. Follow the Canadian Electric Code (CEC) in Canada.

2. The rotation of the wheel is critical. It must be free to rotate without striking or rubbing any stationary objects.

3. Motor must be securely and adequately grounded.

4. Do not spin fan wheel faster than max cataloged fan RPM. Adjustments to fan speed signiﬁcantly effects motor load. If the fan RPM is changed, the motor current should be checked to make sure it is not exceeding the motor nameplate amps.

5. Do not allow the power cable to kink or come in contact with oil, grease, hot surfaces or chemicals. Replace cord immediately if damaged.

6. Verify that the power source is compatible with the equipment.

7. Never open access doors to a duct while the fan is running.

DANGER

Always disconnect, lock and tag power source before installing or servicing. Failure to disconnect power source can result in fire, shock or serious injury.

CAUTION

When servicing the fan, motor may be hot enough to cause pain or injury. Allow motor to cool before servicing.

CAUTION

Precaution should be taken in explosive atmospheres.

DANGER

Pour écarter les risques d’incendie, de choc électrique ou de blessure grave, veiller à toujours débrancher, verrouiller et étiqueter la source de courant avant l’installation ou l’entretien.

ATTENTION

Lors de toute intervention sur la soufflante, le moteur peut être suffisamment chaud pour provoquer une douleur voire une blessure. Laisser le moteur refroidir avant toute maintenance.

ATTENTION

Faire preuve de précaution dans les atmosphères explosives.

Centrifugal Utility Fans

Receiving

Upon receiving the product, check to ensure all items are accounted for by referencing the delivery receipt or packing list. Inspect each crate or carton for shipping damage before accepting delivery. Alert the carrier of any damage detected. The customer will make a notation of damage (or shortage of items) on the delivery receipt and all copies of the bill of lading which is countersigned by the delivering carrier. If damaged, immediately contact your Greenheck Representative. Any physical damage to the unit after acceptance is not the responsibility of Greenheck Fan Corporation.

Unpacking

Verify that all required parts and the correct quantity of each item have been received. If any items are missing, report shortages to your local representative to arrange for obtaining missing parts. Sometimes it is not possible that all items for the unit be shipped together due to availability of transportation and truck space. Conﬁrmation of shipment(s) must be limited to only items on the bill of lading.

Storage

Fans are protected against damage during shipment. If the unit cannot be installed and operated immediately, precautions need to be taken to prevent deterioration of the unit during storage. The user assumes responsibility of the fan and accessories while in storage. The manufacturer will not be responsible for damage during storage. These suggestions are provided solely as a convenience to the user.

Indoor -

The ideal environment for the storage of fans and accessories is indoors, above grade, in a low humidity atmosphere which is sealed to prevent the entry of blowing dust, rain or snow. Temperatures should be evenly maintained between 30° to 110°F (-1° to 43°C), wide temperature swings may cause condensation and “sweating” of metal parts. All accessories must be stored indoors in a clean, dry atmosphere.

Remove any accumulations of dirt, water, ice, or snow and wipe dry before moving to indoor storage. To avoid “sweating” of metal parts allow cold parts to reach room temperature. To dry parts and packages use a portable electric heater to remove any moisture build up. Leave coverings loose to permit air circulation and to allow for periodic inspection.

The unit should be stored at least 3½ inches

(89 mm)

off the ﬂoor on wooden blocks covered with moisture proof paper or polyethylene sheathing. Aisles between parts and along all walls should be provided to permit air circulation and space for inspection.

Outdoor - Fans designed for outdoor applications may

be stored outdoors, if absolutely necessary. Roads or aisles for portable cranes and hauling equipment are needed.

The fan should be placed on a level surface to prevent water from leaking into the fan. The fan should be elevated on an adequate number of wooden blocks so it is above water and snow levels and has enough blocking to prevent it from settling into soft ground. Locate parts far enough apart to permit air circulation, sunlight and space for periodic inspection. To minimize water accumulation, place all fan parts on blocking supports so rain water will run off.

Do not cover parts with plastic ﬁlm or tarps as these cause condensation of moisture from the air passing through heating and cooling cycles. Fan wheels should be blocked to prevent spinning caused by strong winds.

Inspection and Maintenance During Storage

While in storage, inspect fans once per month. Keep a record of inspection and maintenance performed.

If moisture or dirt accumulations are found on parts, the source should be located and eliminated. At each inspection, rotate the wheel by hand ten to ﬁfteen revolutions to distribute lubricant in motor and bearings. If paint deterioration begins, consideration should be given to touch-up or repainting. Fans with special coatings may require special techniques for touch-up or repair.

Machined parts coated with rust preventive should be restored to good condition promptly if signs of rust occur. Immediately remove the original rust preventive coating with petroleum solvent and clean with lintfree cloths. Polish any remaining rust from surface with crocus cloth or ﬁne emery paper and oil. Do not destroy the continuity of the surfaces. Thoroughly wipe clean with Tectyl

506 (Ashland Inc.) or the equivalent. For hard to reach internal surfaces or for occasional use, consider using Tectyl® 511M Rust Preventive, WD-40® or the equivalent.

Removing From Storage

As fans are removed from storage to be installed in their ﬁnal location, they should be protected and maintained in a similar fashion until the fan equipment goes into operation.

Centrifugal Utility Fans

Installation

Inspect the unit for any damage and report it to the shipper immediately. Also, check to see that all accessory items are accounted for.

Move the fan to the desired location and fasten securely through mounting holes provided in the base angles. The unit must be set level (shimming may be necessary). Flexible duct connections and vibration isolators should be used where noise is a factor.

The motor voltage and ampere rating must be checked for compatibility with the electrical supply prior to ﬁnal electrical connection. Supply wiring to the fan must be properly fused, and conform to local and national electrical codes.

The discharge is factory set as speciﬁed by customer order, however, it can be rotated to other discharge positions in the ﬁeld if necessary. Removal of the housing bolts allows the discharge to be rotated to the clockwise positions below. For TAD, BD and BAD discharge positions, a portion of the frame angle must be removed.

Clockwise rotation shown. Counterclockwise discharge positions are a mirror image of those shown. Fan rotation is always speciﬁed from the drive side of the housing.

Discharge Positions

Installation of UL/cUL 762 Listed Fans for Restaurant Exhaust

The UL/cUL 762 listing for restaurant exhaust is available on model SWB Series 200, sizes 206 - 224, and Series 300, sizes 327 - 349 with a weatherhood.

UL/cUL 762 fans are listed for a maximum operating temperature of 375°F door and 1inch outlet guard is strongly recommended when the fan discharge is accessible. An upblast discharge is recommended. The fan discharge must be a minimum of 40 inches

(1016 mm)

exhaust duct must be fully welded to a distance of 18inches

40 in.**

(1016 mm)

**Per NFPA 96 the fan discharge must be a minimum of 40 in. (1016 mm) above the roof surface.

This drawing is for dimensional information only. See the latest edition of NFPA 96 Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations for detailed installation instructions, materials, duct connections and clearances.

(457mm)

Upblast Discharge

Weatherhood

(191°C)

(25.4mm)

and includes an access

drain connection. An

above the roof line and the

above the roof surface.

SWB Series 200 and 300 models are listed for grease removal (UL/cUL 762) File no. MH11745

Optional Companion Flange

3 Wheel

Diameters

Duct from

kitchen

hood

18 in.*

(457 mm)

*Per NFPA 96 the duct must be of all-welded construction to a minimum distance of 18 inches (457 mm) above the roof surface.

CW BH CW BAU CW TAUCW UB

CW TH CW TAD

CW DB

CW BAD

Centrifugal Utility Fans

Affect of Installation on Performance

Restricted or unstable ﬂow at the fan inlet can cause pre-rotation of incoming air or uneven loading of the fan wheel, yielding large system losses, increased sound levels and structural failure of the fan wheel. Free discharge or turbulent ﬂow in the discharge ductwork will also result in system effect losses.

These examples show the system layout and inlet and discharge conﬁgurations which can affect fan performance.

7o MAX.

POOR

Turning

Varies

FAIR

POOR

FAIR

One

Impeller

Dia.

GOOD

FAIR

Should be at least 1/2 Impeller Dia.

GOOD

Pre-Starting Checks

DANGER

Always disconnect, lock and tag power source before installing or servicing. Failure to disconnect power source can result in fire, shock or serious injury.

CAUTION

When servicing the fan, motor may be hot enough to cause pain or injury. Allow motor to cool before servicing.

CAUTION

Precaution should be taken in explosive atmospheres.

DANGER

ATTENTION

Lors de toute intervention sur la soufflante, le moteur peut être suffisamment chaud pour provoquer une douleur voire une blessure. Laisser le moteur refroidir avant toute maintenance.

ATTENTION

Faire preuve de précaution dans les atmosphères explosives.

Alignment of Pulleys and Belts

Check pulleys and belts for proper alignment to avoid unnecessary belt wear, noise, vibration and power loss. Motor and drive shafts must be parallel and pulleys in line as shown in Figure 1.

CORRECT WRONG WRONG WRONG

Not Greater than

POOR

Including Angle

FAIR

Figure 1

The adjustable motor pulley is set at the factory for the fan RPM speciﬁed by the customer. Fan RPM can be increased by closing or decreased by opening the adjustable motor pulley. Multigroove variable pitch pulleys must be adjusted an equal number of turns open or closed. Any increase in fan speed represents a substantial increase in load on the motor.

To avoid motor overheating and possible burnout, motor load amperes should always be checked and compared to nameplate rating when fan speed is increased.

Centrifugal Utility Fans

Radial Gap

Overlap

Wheel

Gap

Wheel

Wheels

Wheels must rotate freely and not rub on the inlet venturi. Model SWB and SWD wheels overlap the inlet venturi as shown in Figure 2. Refer to the Approximate Wheel Clearance Dimensions table for the proper dimensions for wheel overlap and radial gap.

Models SFD and SFB wheels do not overlap the venturi, but have a gap between the inlet venturi and the wheel, see Figure 3. Wheel position is preset at the factory and the unit is test run. Wheel movement may occur during shipment or installation and wheel alignment may be necessary.

Figure 2

Model SWB / SWD

Figure 3

Model SFD / SFB

Approximate Wheel Clearance Dimensions

Unit Size

SFD SFB SWD

SWB

Series

100

SWB

Series

200

SWB

Series

300

SWB and SWD SFD SFB

Overlap

Tolerance

Radial

Gap

inches (mm)

6 106 206 — — —3⁄8

7.5 7 107 207 — — — 9 9 8 108 208 — — —

10 10 10 110 210

12 212

13 113 213

15 15 115 215

16 116 216 18 18 118 218 20 120 220 22 222

124 224

⁄8

⁄16

⁄2

⁄8

⁄16

⁄4

(10)

(11)

(13)

(16)

(18)

(19)

⁄4 ⁄4 ⁄4 ⁄4

⁄4 ⁄8 ⁄8 ⁄8 ⁄8

(6)

(10)

⁄32

⁄32 25 — — — —3⁄4 27 3277⁄8 30 33015⁄16

333 11⁄16

⁄16

336 1

340 1

⁄4 344 17⁄16 349 19⁄16

(22)

(24)

(32)

(27)

(30)

(37)

(40)

⁄4 ⁄8 ⁄8 ⁄8 ⁄8 ⁄8 ⁄2

(6)

(10)

(13)

⁄16

⁄4

⁄16

Gap Gap

(10)

⁄8

⁄2

(4)

⁄2

(4)

—1⁄2

(4)

—1⁄2

(4)

—1⁄2

(4)

——

(4)

—1⁄2

(4)

—5⁄8

(4)

—5⁄8

(4)

——

(5)

—3⁄4

(5)

—3⁄4

(5)

——

(5)

——

(6)

——

(8)

——

(8)

——

(13)

— —

(13)

⁄2

(13)

⁄2

(13)

(16)

(19)

Method for Centering Wheel

On belt drive units, centering can be accomplished by (a) loosening the inlet cone bolts to move the inlet cone or by (b) loosening the bearings in order to move the shaft. Wheel and inlet cone overlap can be adjusted by loosening the wheel hub set screws and moving the wheel to the desired position. Tighten all fasteners and set screws securely and realign drive pulleys after adjustment.

Wheel Rotation

Rotation direction of the wheel is critical and incorrect rotation will result in reduced air performance, increased motor loading and possible motor burnout.

Check wheel rotation by momentarily energizing the unit and noting if rotation is in the same direction as the airﬂow at the outlet and conforms to the rotation decal afﬁxed to the unit.

Wheels as viewed from the drive side:

Airﬂow

Models SFD and SFB units should be operated only when attached to the system for which they were designed. Without proper system static pressure, the motor could be overloaded.

NOTE

Airﬂow

Backward Inclined

SWD and SWB Series 100, 200 & 300

Centrifugal Utility Fans

Forward Curved

SFD and SFB

Airfoil

SWB 327 - 349

Mounting for Severe Duty Installation

Isolator Anchoring

Two fasteners per equipment support. Three supports required for model sizes 20 and larger.

1/2 inch (13 mm) - 13 Bolt

1/2 inch (13 mm) - 13 Bolt (Four Locations)

(Four Locations)

Isolator Anchoring

Equipment Support Anchoring

One fastener per isolator anchoring. Four isolators required.

5/8 inch (16 mm) Lag Screw

5/8 inch (16 mm) Lag Screw Min. 1-1/2 inch (38 mm) Thread Engagement

Min. 1-1/2 inch (38 mm) Thread Engagement (Two per Equipment Support)

(Two per Equipment Support)

18 Ga. Galvanized G90 with Wood Nailer

Three Supports Required for Sizes 20 and larger

Equipment Support Anchoring

Min. 5 inch

(127 mm)

3/8 inch (10 mm) S.S. Hilti Kwik Bolt

3/8 inch (10 mm) S.S. Hilti Kwik Bolt Three Expansion Anchors

Three Expansion Anchors Min. 2-1/2 inch (64 mm) Engagement

Min. 2-1/2 inch (64 mm) Engagement

2000 Min. PSI Concrete

Concrete

Deck Anchoring

5/16 inch (8 mm) Self-D rilling Screw Min. 1/2 inch (13 mm) of Threads Through

Steel

Deck Anchoring

Roof Truss 1/8 inch (3 mm) Thick or 12 Gauge Min.

Wood Timber Min. 4 inch (102 mm) Min. G = 0.42

Timber Anchoring

7/16 inch (11 mm) Lag Bolt Min. 3-1/4 inch (83 mm) Thread Engagement

Centrifugal Utility Fans

Maintenance

Bearing Lubrication Schedule

Shaft bearings are the most critical moving part of a fan. Therefore, special attention should be given to keeping the bearings clean and well lubricated. Proper lubrication provides for reduction in friction and wear, transmission and dissipation of heat, extended bearing life and prevention of rust.

In order for a lubricant to fulﬁll these tasks, the proper grease applied at regular intervals is required. See the recommended bearing lubrication schedule below.

If unusual conditions exist (temperatures below 32°F or above 200°F), moisture or contaminants - more frequent lubrication is required.

Recommended Bearing Lubrication Schedule

Fan

RPM

To 250 12 12 12 12 12

500 12 12 11 10 8

750 12 9 8 7 6 1000 12 7 6 5 4 1250 12 6 5 4 3 1500 12 5 4 3 2 2000 12 3 3 2 1 2500 12 2 2 1 0.5 3000 12 2 1 0.5 0.25 3500 12 1 0.5 0.25 4000 12 0.5 0.25 - 5000 12 0.25 - - -

Number

of Shots

• Lubrication interval is based on 12 hour per day operation and maximum 160°F housing temperature. For 24 hour per day operation, the interval should be cut in half.

• Lubricant should be added with the shaft rotating and until clean grease is seen purging from the bearing. The lubrication interval may be modiﬁed based on the condition of the purged grease. If bearing is not visible to observe purged grease, lubricate with number of shots indicated in chart for bore size.

• For conditions including high temperatures, moisture, dirt or excessive vibration, consult the factory for a speciﬁc lubrication interval for your application.

• Lubricant should be a high quality lithium complex grease conforming to NLGI Grade 2. Factory recommends Mobilux EP-2.

• The use of synthetic lubricants will increase lubrication intervals by approximately 3 times.

In addition to lubricating the bearings at speciﬁed intervals, set screws in the bearing collars should be checked for tightness. A bearing collar which has loosened will cause premature failure of the fan shaft. Fasteners attaching the bearings to the drive frame should also be checked.

Relubrication Schedule in Months

Standard Grease

Bearing Bore (inches)

1/2 -1 11⁄8 - 11⁄2 15⁄8 - 17⁄8 115⁄16 - 23⁄16 27⁄16 - 3

4881016

Motor Maintenance (Belt and Direct Drive)

Motor maintenance is generally limited to cleaning and lubrication (where applicable). Cleaning should be limited to exterior surfaces only. Removing dust and grease buildup on the motor housing assures proper motor cooling. Use caution and do not allow water or solvents to enter the motor or bearings. Under no circumstances should motors or bearings be sprayed with steam, water or solvents.

Many fractional horsepower motors are permanently lubricated for life and require no further lubrication. Motors supplied with grease ﬁttings should be greased in accordance with the manufacturer’s recommendations.

Wheel and Fastener Maintenance

Wheels require very little attention when exhausting clean air, however, air heavily laden with grease or dirt will tend to accumulate on the wheel causing unbalance. Wheels exhausting dirty or grease-laden air require frequent cleaning to assure smooth and safe operation.

All fasteners, including set screws in the bearing collars, should be checked for tightness each time maintenance checks are performed.

A proper maintenance program will help preserve the performance and reliability designed into the fan.

Belt Maintenance (Belt Drive)

Belts tend to stretch after a period of time. They should be periodically checked for tension and wear. When replacing belts, use the same type as supplied with the unit. Replacement of belts should be accomplished by loosening the tensioning “L-Bolts” so the belts may be removed by hand. Do not force belts on or off as this may cause breakage of cords and lead to premature belt failure.

Belt tension should be adjusted to allow 1/64 in. of belt deﬂection per 1 in. of belt span. For example, a 16 in. belt span should have 16/64 in. or 1/4 in. of deﬂection with moderate thumb pressure at mid-point between the pulleys. (Figure 4).

Belt Span

Figure 4

Deﬂection =

Refer to Greenheck’s Product Application Guide, “Measuring Belt Tension” for additional information— FA/127-11, found online at www.greenheck.com under the library section.

Centrifugal Utility Fans

Motor and Drive Installation Instructions

For model SWB and SFB units that are shipped from stock without motors or drives.

1. Adjust motor pulley to its closed position for maximum fan speed or increments of 1/2 turn open (maximum of 5 turns open) for reduced fan speed. Tighten set screw on ﬂat area only.

4. Install shaft pulley to fan shaft.

2. Install motor pulley to the motor shaft and install motor to the motor plate. Pre-punched holes are provided for most common motor frame sizes.

3. If supplied, install taperlock bushing into shaft pulley.

5. Install drive belt(s). Belts should not be forced over pulleys. Align motor and shaft pulleys with a straight edge. Tighten all set screws.

6. Adjust belt tension. See page 8 for belt tensioning instructions.

Centrifugal Utility Fans

Parts List

Each fan bears a manufacturer’s nameplate with model number and serial number embossed. This information will assist the local Greenheck representative and the factory in providing service and replacement parts. Before taking any corrective action, make certain unit is not capable of operation during repairs.

CAUTION

A fan manufactured with an explosion resistant motor does not certify the entire unit to be explosion proof. Refer to ULListing Mark for the fans approved usage.

Available Replacement Parts:

1. Scroll housing

2. Drive frame - base angle

3. Intake support panel

4. Inlet ring and cone

5. Wheel (specify rotation)

6. Drive frame assembly

7. Pillow block bearings

8. Fan shaft

9. Shaft pulley

10. Belt

11. Motor pulley

12. Belt tensioning bolts

13. Motor plate

14. Motor

CAUTION

La présence d’un moteur antidéflagrant sur un ventilateur ne garantit pas que tout l’appareil est antidéflagrant. Pour connaître les emplois autorisés de l’appareil, voir son marquage de conformité UL.

Direct Drive

Belt Drive

Centrifugal Utility Fans

Troubleshooting

WARNING

Before taking any corrective action, make certain unit is not capable of operation during repairs.

Avant d’entreprendre toute action corrective, s’assurer que l’appareil ne pourra pas fonctionner

AVERTISSEMENT

durant les réparations.

PROBLEM CAUSE CORRECTIVE ACTION

Adjust wheel and/or inlet cone. Tighten wheel hub or bearing collars on shaft.

Tighten sheaves on motor/fan shaft. Adjust belt tension. Align sheaves properly (see page 4). Replace worn belts or sheaves.

Replace defective bearing(s). Lubricate bearings. Tighten collars & fasteners.

Clean all dirt off wheel. Check wheel balance, rebalance in place if necessary.

Excessive Noise

Low CFM

Wheel Rubbing Inlet

V-Belt Drive

Bearings

Wheel Unbalance

Fan Check wheel for correct rotation. Increase fan speed.*

Duct System See page 3.

Fan Resize ductwork. Access door, ﬁlters, grills not installed.

High CFM

Duct System

Change obstructions in system. Use correction factor to adjust for temperature/altitude. Resize ductwork. Clean ﬁlters/coils. Change fan speed.*

Static Pressure Wrong

High Horsepower

Fan Doesn’t Operate

Duct system has more or less restriction than

Check rotation of wheel. Adjust fan speed.

anticipated

Fan Check rotation of wheel. Reduce fan speed.

Duct System

Electrical Supply

Resize ductwork. Check proper operation of face and bypass dampers. Check ﬁlters and access doors.

Check fuses/circuit breakers. Check for switches off. Check for correct supply voltage.

Drive Check for broken belts. Tighten loose pulleys.

Motor Assure motor is correct horsepower and not tripping overload protector.

Overheated Bearing

Lubrication Check for excessive or insufﬁcient grease in the bearing.

Mechanical

Replace damaged bearing. Relieve excessive belt tension. Align bearings. Check for bent shaft.

* Always check motor amps and compare to nameplate rating. Excessive fan speed may overload the motor

and result in burnout.

Centrifugal Utility Fans

Our Commitment

As a result of our commitment to continuous improvement, Greenheck reserves the right to change speciﬁcations without notice.

Speciﬁc Greenheck product warranties are located on greenheck.com within the product area tabs and in the Library under Warranties.

Greenheck’s Centrifugal Utility Fans catalog provides additional information describing the equipment, fan performance, available accessories, and speciﬁcation data.

Phone: 715.359.6171 • Fax: 715.355.2399 • Parts: 800.355.5354 • E-mail: gfcinfo@greenheck.com • Website: www.greenheck.com

AMCA Publication 410-96, Safety Practices for Users and Installers of Industrial and Commercial Fans, provides additional safety information. This publication can be obtained from AMCA International, Inc. at www.amca.org.

Greenheck SFD, SFB, SWB User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
