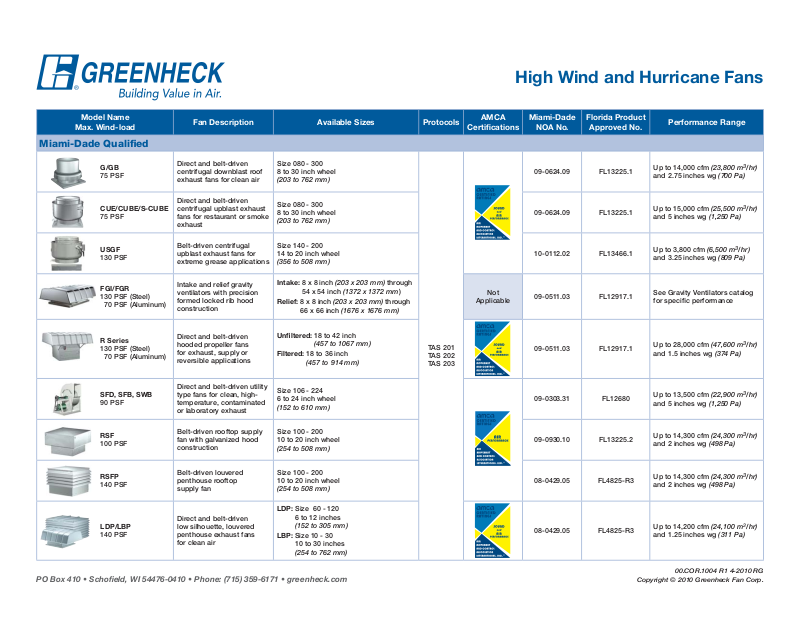

Greenheck CUBE75 PSF User Manual
High Wind and Hurricane Fans
Model Name
Max. Wind-load
Miami-Dade Qualifi ed
G/GB
75 PSF
CUE/CUBE/S-CUBE
75 PSF
USGF
130 PSF
FGI/FGR
130 PSF (Steel)
70 PSF (Aluminum)
R Series
130 PSF (Steel)
70 PSF (Aluminum)
SFD, SFB, SWB
90 PSF
Fan Description Available Sizes Protocols
Direct and belt-driven
centrifugal downblast roof
exhaust fans for clean air
Direct and belt-driven
centrifugal upblast exhaust
fans for restaurant or smoke
exhaust
Belt-driven centrifugal
upblast exhaust fans for
extreme grease applications
Intake and relief gravity
ventilators with precision
formed locked rib hood
construction
Direct and belt-driven
hooded propeller fans
for exhaust, supply or
reversible applications
Direct and belt-driven utility
type fans for clean, hightemperature, contaminated
or laboratory exhaust
Size 080 - 300
8 to 30 inch wheel
(203 to 762 mm)
Size 080 - 300
8 to 30 inch wheel
(203 to 762 mm)
Size 140 - 200
14 to 20 inch wheel
(356 to 508 mm)
Intake: 8 x 8 inch (203 x 203 mm) through
54 x 54 inch (1372 x 1372 mm)
Relief: 8 x 8 inch (203 x 203 mm) through
66 x 66 inch (1676 x 1676 mm)
Unfi ltered: 18 to 42 inch
(457 to 1067 mm)
Filtered: 18 to 36 inch
(457 to 914 mm)
Size 106 - 224
6 to 24 inch wheel
(152 to 610 mm)
TAS 201
TAS 202
TAS 203
AMCA
Certifi cations
Not
Applicable
Miami-Dade
NOA No.
09-0624.09 FL13225.1
09-0624.09 FL13225.1
10-0112.02 FL13466.1
09-0511.03 FL12917.1
09-0511.03 FL12917.1
09-0303.31 FL12680
Florida Product
Approved No.
Performance Range
Up to 14,000 cfm (23,800 m3/hr)
and 2.75 inches wg (700 Pa)
3
3
/hr)
/hr)
Up to 15,000 cfm (25,500 m
and 5 inches wg (1,250 Pa)
Up to 3,800 cfm (6,500 m
and 3.25 inches wg (809 Pa)
See Gravity Ventilators catalog
for specifi c performance
Up to 28,000 cfm (47,600 m3/hr)
and 1.5 inches wg (374 Pa)
Up to 13,500 cfm (22,900 m3/hr)
and 5 inches wg (1,250 Pa)
RSF
100 PSF
RSFP
140 PSF
LDP/LBP
140 PSF
Belt-driven rooftop supply
fan with galvanized hood
construction
Belt-driven louvered
penthouse rooftop
supply fan
Direct and belt-driven
low silhouette, louvered
penthouse exhaust fans
for clean air
Size 100 - 200
10 to 20 inch wheel
(254 to 508 mm)
Size 100 - 200
10 to 20 inch wheel
(254 to 508 mm)
LDP: Size 60 - 120
6 to 12 inches
(152 to 305 mm)
LBP: Size 10 - 30
10 to 30 inches
(254 to 762 mm)
PO Box 410 • Schofi eld, WI 54476-0410 • Phone: (715) 359-6171 • greenheck.com
09-0930.10 FL13225.2
08-0429.05 FL4825-R3
08-0429.05 FL4825-R3
Up to 14,300 cfm (24,300 m
and 2 inches wg (498 Pa)
Up to 14,300 cfm (24,300 m
and 2 inches wg (498 Pa)
Up to 14,200 cfm (24,100 m3/hr)
and 1.25 inches wg (311 Pa)
00.COR.1004 R1 4-2010 RG
Copyright © 2010 Greenheck Fan Corp.
3
3
/hr)
/hr)
