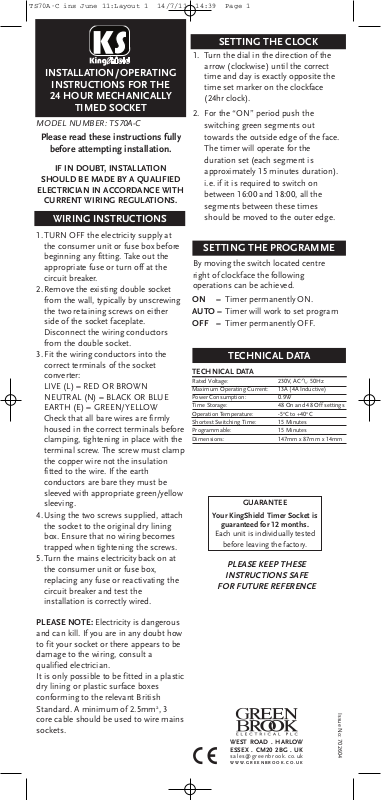

NSTALLATION/OPERATING
I
INSTRUCTIONS FOR THE
24 HOUR MECHANICALLY
TIMED SOCKET
MODEL NUMBER: TS70A-C
lease read these instructions fully
P
before attempting installation.
IF IN DOUBT, INSTALLATION
SHOULD BE MADE BY A QUALIFIED
ELECTRICIAN IN ACCORDANCE WITH
URRENT WIRING REGULATIONS.
C
WIRING INSTRUCTIONS
1. TURN OFF the electricity supply at
the consumer unit or fuse box before
beginning any fitting. Take out the
appropriate fuse or turn off at the
circuit breaker.
2. Remove the existing double socket
from the wall, typically by unscrewing
the two retaining screws on either
side of the socket faceplate.
Disconnect the wiring conductors
from the double socket.
3. Fit the wiring conductors into the
correct terminals of the socket
converter:
LIVE (L) = RED OR BROWN
NEUTRAL (N) = BLACK OR BLUE
EARTH (E) = GREEN/YELLOW
Check that all bare wires are firmly
housed in the correct terminals before
clamping, tightening in place with the
terminal screw. The screw must clamp
the copper wire not the insulation
fitted to the wire. If the earth
conductors are bare they must be
sleeved with appropriate green/yellow
sleeving.
4. Using the two screws supplied, attach
the socket to the original dry lining
box. Ensure that no wiring becomes
trapped when tightening the screws.
5. Turn the mains electricity back on at
the consumer unit or fuse box,
replacing any fuse or reactivating the
circuit breaker and test the
installation is correctly wired.
ETTING THE CLOCK
S
1. Turn the dial in the direction of the
arrow (clockwise) until the correct
time and day is exactly opposite the
time set marker on the clockface
(24hr clock).
2. For the “ON” period push the
switching green segments out
towards the outside edge of the face.
The timer will operate for the
uration set (each segment is
d
approximately 15 minutes duration).
i.e. if it is required to switch on
between 16:00 and 18:00, all the
segments between these times
hould be moved to the outer edge.
s
SETTING THE PROGRAMME
By moving the switch located centre
right of clockface the following
operations can be achieved.
ON = Timer permanently ON.
AUTO = Timer will work to set program
OFF = Timer permanently OFF.
TECHNICAL DATA
TECHNICAL DATA
Rated Voltage: 230V, AC 50Hz
Maximum Operating Current: 13A (4A Inductive)
Power Consumption: 0.9W
Time Storage: 48 On and 48 Off settings
Operation Temperature: -5
Shortest Switching Time: 15 Minutes
Programmable: 15 Minutes
Dimensions: 147mm x 87mm x 14mm
GUARANTEE
Your KingShield Timer Socket is
guaranteed for 12 months.
Each unit is individually tested
before leaving the factory.
PLEASE KEEP THESE
INSTRUCTIONS SAFE
FOR FUTURE REFERENCE
0
C to +400C
PLEASE NOTE: Electricity is dangerous
and can kill. If you are in any doubt how
to fit your socket or there appears to be
damage to the wiring, consult a
qualified electrician.
It is only possible to be fitted in a plastic
dry lining or plastic surface boxes
conforming to the relevant British
2
Standard. A minimum of 2.5mm
, 3
core cable should be used to wire mains
sockets.
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sa les @gr ee nbr oo k.c o. u k
W W W. GR E E NB R O O K. C O .U K
Issue No: 702604
