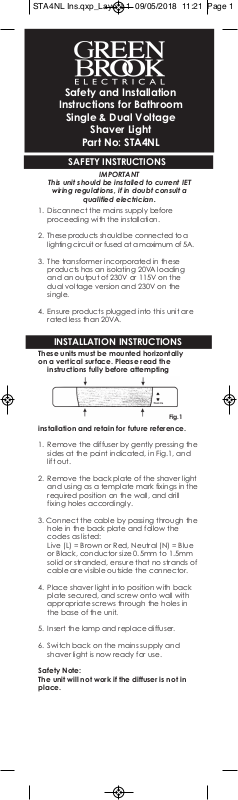

Page 1
Safety and Installation
Instructions for Bathroom
Single & Dual Voltage
Shaver Light
Part No: STA4NL
SAFETY INSTRUCTIONS
This unit should be installed to current IET
iring regulations, if in doubt consult a
w
1. Disconnect the mains supply before
proceeding with the installation.
2. These products should be connected to a
ighting circuit or fused at a maximum of 5A.
l
. The transformer incorporated in these
3
products has an isolating 20VA loading
and an output of 230V or 115V on the
ual voltage version and 230V on the
d
single.
4. Ensure products plugged into this unit are
ated less than 20VA.
r
INSTALLATION INSTRUCTIONS
These units must be mounted horizontally
on a vertical surface. Please read the
instructions fully before attempting
IMPORTANT
qualified electrician.
Fig.1
installation and retain for future reference.
1. Remove the diffuser by gently pressing the
sides at the point indicated, in Fig.1, and
lift out.
2. Remove the back plate of the shaver light
and using as a template mark fixings in the
required position on the wall, and drill
fixing holes accordingly.
3. Connect the cable by passing through the
hole in the back plate and follow the
codes as listed:
Live (L) = Brown or Red, Neutral (N) = Blue
or Black, conductor size 0.5mm to 1.5mm
solid or stranded, ensure that no strands of
cable are visible outside the connector.
4. Place shaver light into position with back
plate secured, and screw onto wall with
appropriate screws through the holes in
the base of the unit.
5. Insert the lamp and replace diffuser.
6. Switch back on the mains supply and
shaver light is now ready for use.
Safety Note:
The unit will not work if the diffuser is not in
place.
Page 2

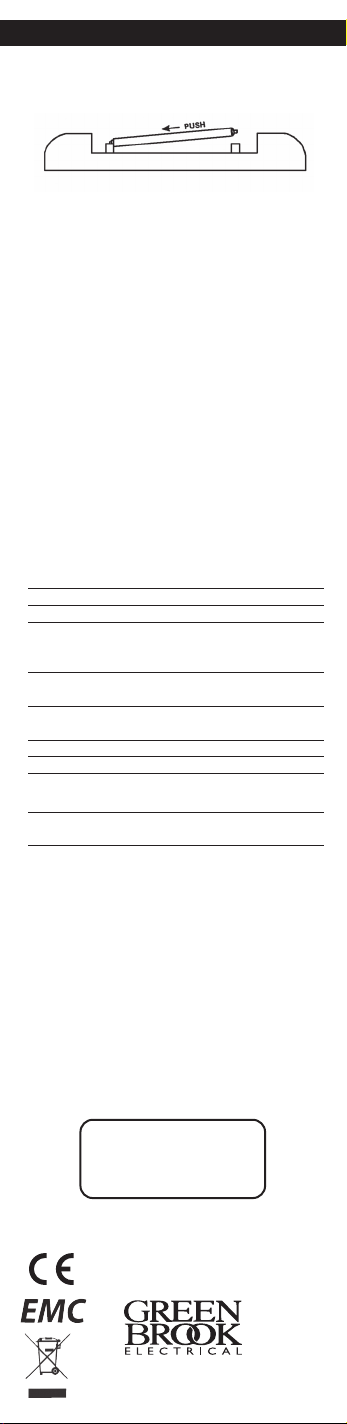

LAMP REPLACEMENT
Remove the tube by gently pushing it
ideways into the right hand or left hand
s
socket and lift out from the socket. See Fig. 2
Fig. 2
Note:
efore plugging in the shaver, select the
B
correct out put voltage (230 or 115) with the
witch provided (dual voltage version only).
s
TECHNICAL DATA
Power Rating: 230V 50Hz supply
IP Rating: IP20
Max Rating: 60W
F Marked: Can be mounted
Transformer: 20VA overload
Insulation: Double insulated
Diffuser: Safety interlocked
Dimensions: H60 X W495 x D70mm
Lamp Type: 284mm S15 double
Compatible with: LED or incandescent
115V/230V output
on flammable
surfaces
protected
transformer
cap
lamps
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
Your GreenBrook Bathroom Shaver
GUARANTEE
Light is guaranteed for 1 year from
the date of purchase.
This is in addition to your
statutory rights.
