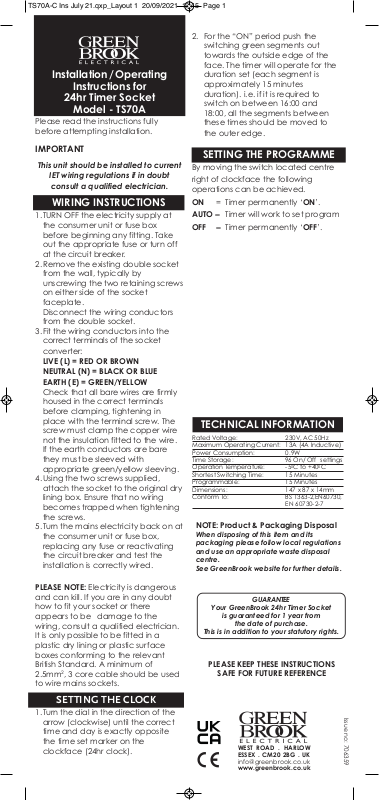

Installation / Operating
nstructions for
I
24hr Timer Socket
Model - TS70A
Please read the instructions fully
efore attempting installation.
b
MPORTANT
I
This unit should be installed to current
IET wiring regulations if in doubt
consult a qualified electrician.
WIRING INSTRUCTIONS
1.TURN OFF the electricity supply at
the consumer unit or fuse box
before beginning any fitting. Take
out the appropriate fuse or turn off
at the circuit breaker.
2.Remove the existing double socket
rom the wall, typically by
f
unscrewing the two retaining screws
on either side of the socket
faceplate.
Disconnect the wiring conductors
from the double socket.
3.Fit the wiring conductors into the
correct terminals of the socket
converter:
LIVE (L) = RED OR BROWN
NEUTRAL (N) = BLACK OR BLUE
EARTH (E) = GREEN/YELLOW
Check that all bare wires are firmly
housed in the correct terminals
before clamping, tightening in
place with the terminal screw. The
screw must clamp the copper wire
not the insulation fitted to the wire.
If the earth conductors are bare
they must be sleeved with
appropriate green/yellow sleeving.
4.Using the two screws supplied,
attach the socket to the original dry
lining box. Ensure that no wiring
becomes trapped when tightening
the screws.
5.Turn the mains electricity back on at
the consumer unit or fuse box,
replacing any fuse or reactivating
the circuit breaker and test the
installation is correctly wired.
2. For the “ON” period push the
switching green segments out
towards the outside edge of the
face. The timer will operate for the
duration set (each segment is
approximately 15 minutes
duration). i.e. if it is required to
switch on between 16:00 and
18:00, all the segments between
these times should be moved to
the outer edge.
SETTING THE PROGRAMME
By moving the switch located centre
right of clockface the following
operations can be achieved.
ON = Timer permanently ‘ON’.
= Timer will work to set program
AUTO
= Timer permanently ‘OFF’.
OFF
TECHNICAL INFORMATION
Rated Voltage: 230V, AC 50Hz
Maximum Operating Current: 13A (4A Inductive)
Power Consumption: 0.9W
Time Storage: 96 On/ Off settings
Operation Temperature: -50C to +400C
Shortest Switching Time: 15 Minutes
Programmable: 15 Minutes
Dimensions: 147 x 87 x 14mm
Conform To: BS 1363-2,EN60730,
NOTE: Product & Packaging Disposal
When disposing of this item and its
packaging please follow local regulations
and use an appropriate waste disposal
centre.
See GreenBrook website for further details.
EN 60730-2-7
PLEASE NOTE: Electricity is dangerous
and can kill. If you are in any doubt
how to fit your socket or there
appears to be damage to the
wiring, consult a qualified electrician.
It is only possible to be fitted in a
plastic dry lining or plastic surface
boxes conforming to the relevant
British Standard. A minimum of
2
2.5mm
, 3 core cable should be used
to wire mains sockets.
SETTING THE CLOCK
1.Turn the dial in the direction of the
arrow (clockwise) until the correct
time and day is exactly opposite
the time set marker on the
clockface (24hr clock).
Your GreenBrook 24hr Timer Socket
is guaranteed for 1 year from
This is in addition to your statutory rights.
GUARANTEE
the date of purchase.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
