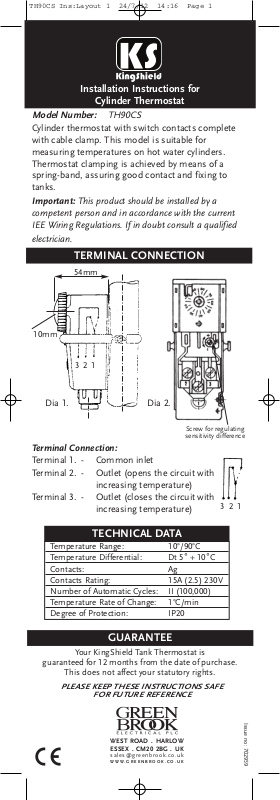

Installation Instructions for
ylinder Thermostat
C
odel Number: TH90CS
M
Cylinder thermostat with switch contacts complete
with cable clamp. This model is suitable for
measuring temperatures on hot water cylinders.
Thermostat clamping is achieved by means of a
spring-band, assuring good contact and fixing to
tanks.
Important: This product should be installed by a
competent person and in accordance with the current
IEE Wiring Regulations. If in doubt consult a qualified
electrician.

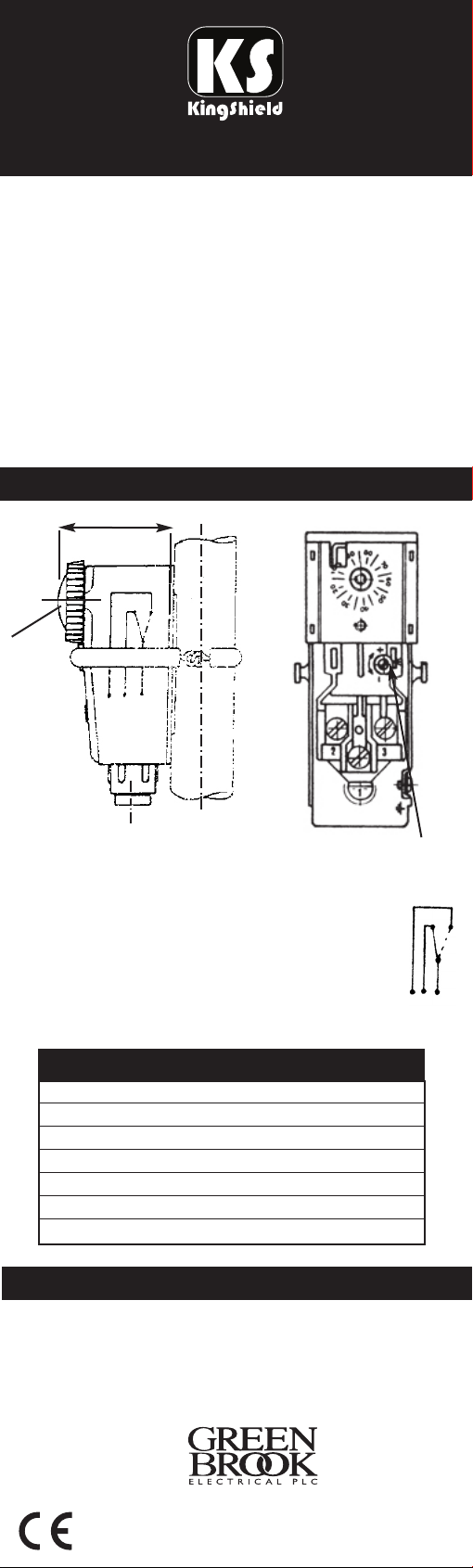

TERMINAL CONNECTION
54mm
10mm
3
2
1
Dia 1.
Dia 2.
Screw for regulating
sensitivity difference
Terminal Connection:
Terminal 1. - Common inlet
Terminal 2. - Outlet (opens the circuit with
increasing temperature)
Terminal 3. - Outlet (closes the circuit with
increasing temperature)
TECHNICAL DATA
Temperature Range: 10°/90°C
Temperature Differential: Dt 5° + 10°C
Contacts: Ag
Contacts Rating: 15A (2.5) 230V
Number of Automatic Cycles: II (100,000)
Temperature Rate of Change: 1°C/min
Degree of Protection: IP20
3
2
1
GUARANTEE
Your KingShield Tank Thermostat is
guaranteed for 12 months from the date of purchase.
This does not affect your statutory rights.
PLEASE KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sa les@g reenb rook. co.uk
W W W. G R E EN B R O O K . CO . U K
Issue no: 702959
