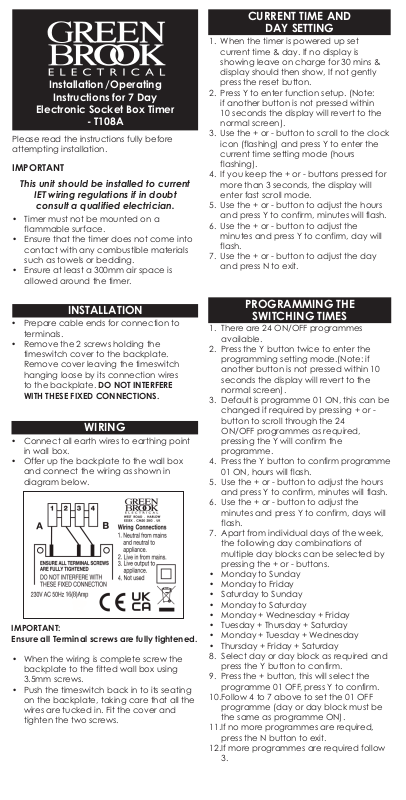

Page 1
Installation / Operating
Instructions for 7 Day
Electronic Socket Box Timer
T108A
-
Please read the instructions fully before
attempting installation.
IMPORTANT
his unit should be installed to current
T
IET wiring regulations if in doubt
consult a qualified electrician.
Timer must not be mounted on a
•
flammable surface.
• Ensure that the timer does not come into
contact with any combustible materials
such as towels or bedding.
• Ensure at least a 300mm air space is
allowed around the timer.
CURRENT TIME AND
DAY SETTING
1. When the timer is powered up set
current time & day. If no display is
showing leave on charge for 30 mins &
display should then show, If not gently
press the reset button.
2. Press Y to enter function setup. (Note:
if another button is not pressed within
10 seconds the display will revert to the
normal screen).
3. Use the + or - button to scroll to the clock
icon (flashing) and press Y to enter the
current time setting mode (hours
flashing).
4. If you keep the + or - buttons pressed for
more than 3 seconds, the display will
enter fast scroll mode.
5. Use the + or - button to adjust the hours
and press Y to confirm, minutes will flash.
6. Use the + or - button to adjust the
minutes and press Y to confirm, day will
flash.
7. Use the + or - button to adjust the day
and press N to exit.
INSTALLATION
• Prepare cable ends for connection to
terminals.
• Remove the 2 screws holding the
timeswitch cover to the backplate.
Remove cover leaving the timeswitch
hanging loose by its connection wires
to the backplate. DO NOT INTERFERE
WITH THESE FIXED CONNECTIONS.
WIRING
• Connect all earth wires to earthing point
in wall box.

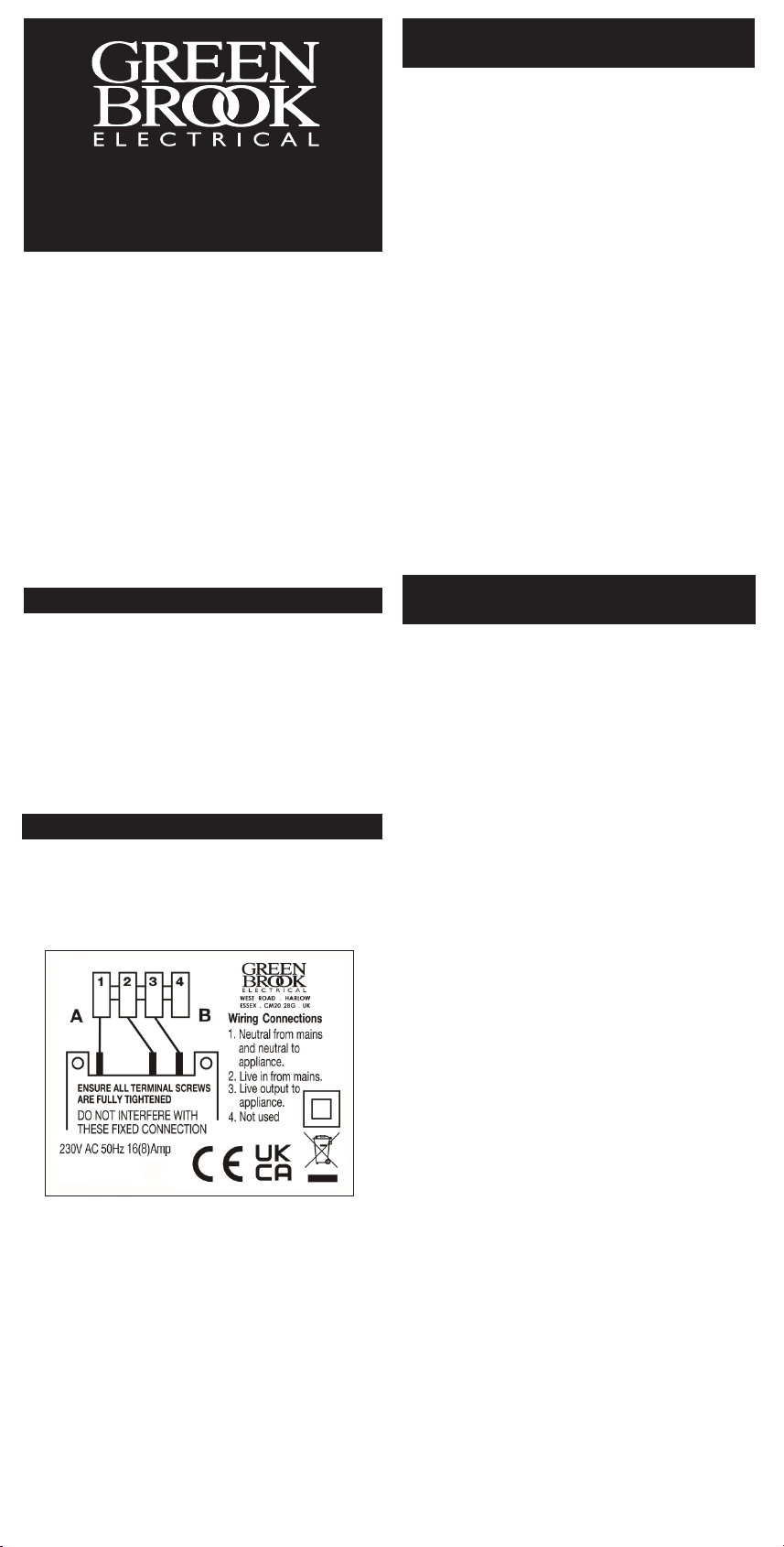

• Offer up the backplate to the wall box
and connect the wiring as shown in
diagram below.
IMPORTANT:
Ensure all Terminal screws are fully tightened.
• When the wiring is complete screw the
backplate to the fitted wall box using
3.5mm screws.
• Push the timeswitch back in to its seating
on the backplate, taking care that all the
wires are tucked in. Fit the cover and
tighten the two screws.
PROGRAMMING THE
SWITCHING TIMES
1. There are 24 ON/OFF programmes
available.
2. Press the Y button twice to enter the
programming setting mode.(Note: if
another button is not pressed within 10
seconds the display will revert to the
normal screen).
3. Default is programme 01 ON, this can be
changed if required by pressing + or button to scroll through the 24
ON/OFF programmes as required,
pressing the Y will confirm the
programme.
4. Press the Y button to confirm programme
01 ON, hours will flash.
5. Use the + or - button to adjust the hours
and press Y to confirm, minutes will flash.
6. Use the + or - button to adjust the
minutes and press Y to confirm, days will
flash.
7. Apart from individual days of the week,
the following day combinations of
multiple day blocks can be selected by
pressing the + or - buttons.
• Monday to Sunday
• Monday to Friday
• Saturday to Sunday
• Monday to Saturday
• Monday + Wednesday + Friday
• Tuesday + Thursday + Saturday
• Monday + Tuesday + Wednesday
• Thursday + Friday + Saturday
8. Select day or day block as required and
press the Y button to confirm.
9. Press the + button, this will select the
programme 01 OFF, press Y to confirm.
10.Follow 4 to 7 above to set the 01 OFF
programme (day or day block must be
the same as programme ON).
11.If no more programmes are required,
press the N button to exit.
12.If more programmes are required follow
3.
Page 2
13.To cancel a programme once set, press
and hold the N button for more than 3
seconds when the desired programme
number is flashing i.e. to cancel
programme 01 ON, press the Y button
twice and hold the N button down for
more than 3 seconds to delete. Pressing
the + button again will select 01 OFF.
14.Repeat 13 to delete 01 OFF. This
procedure can be repeated to delete
any of the 24 programmes.
TIMER COUNTDOWN
FUNCTION
. Timer has a 100 hour countdown feature
1
i.e. the timer can be set to any period
from 1 minute to 100 hours and will
countdown in the ON state and turn OFF
at the end of the countdown period.
2. Press the Y button then use the + or button to select the “down” icon on the
right hand side of the display, press Y
again to enter the countdown mode.
3. Use the + or - button to adjust the hours
and press Y to confirm. minutes will flash.
4. Use the + or - button to adjust the
minutes and press Y to confirm and
complete the countdown time setting.
5. Press the N button to start the
countdown.
6. Output switched to ON during the
countdown period.
7. Press the N button to pause the
countdown (output switched to OFF)
8. To resume countdown simply press the N
button again.
9. Press and hold the N button for more
than 3 seconds to exit the countdown
function.
MANUAL OVERRIDE
1. When in normal clock mode, pressing
the N button will scroll through the
following switching options.
• ALWAYS ON - timer is permanently ON.
• PROG - timer is in programme ON
mode, will switch off at the next
programme OFF time.
• ALWAYS OFF - timer is permanently OFF.
• PROG - timer is in programme OFF
mode, will switch on at the next
programme ON time.
SUMMER TIME SETTING
1. Press the Y button, then use the + or buttons to scroll through to “summer”
(flashing).
2. Press the Y button again to access the
summer time setting.
3. Press the + or - button to change
between summer on or off.
4. Press Y to confirm summer setting, time
will advance 1 hour.
5. A “SUMMER” icon will appear in the
display.
6. Use the same procedure to remove the
“SUMMER” icon when reverting to GMT
in the winter.
RANDOM SETTING
The random setting allows the timer to
switch ON and OFF with a random delay of
between 2 and 32 minutes. This function will
only operate if one or more programmes
have been programmed into the timer.1.
Press the Y button, then use the + or buttons to scroll through to “RANDOM”
(flashing).
. Press the Y button again to access the
2
random setting.
3. Pressing the + or - buttons will toggle the
random icon on and off.
. Press the Y button to confirm random
4
function.
5. A “RANDOM” function icon will appear
in the display.
. Timer will now operate in the random
6
mode.
7. To cancel random feature use the
procedure above to remove the
“RANDOM” icon from the display.
READING YOUR
PROGRAMMED TIMES
1. Press Y button twice to enter programme
mode.
2. Press the + or - buttons to scroll through
the 24 ON/OFF programmes to check
settings.
3. Press the N button to exit and revert to
clock mode.
RESET
Pressing the reset button R with a pencil or
similar will reset all programmed times and
set time of day to zero.
IMPORTANT:
1. When you have completed the programme
settings ensure you set the correct operating
mode as shown in manual override.
2. Do not leave uncharged for more than 6 months.
TECHNICAL INFORMATION
Switching Capacity: 230V AC,16A resistive,
8A Inductive
Ambient Temperature: -10°C to + 55°C
Battery Backup: 150 hours
Memory Location: 24
Shortest Switching Time: 1 minute
Wattage: 3000W
Conforms To: BS EN 60730-1,
BS EN 60730-2-7
NOTE:
Product & Packaging Disposal
When disposing of this item and its packaging
please follow local regulations and use an
appropriate waste disposal centre.
See GreenBrook website for further details.
CE INFORMATION
ACTION TYPE: IB
POLLUTION SITUATION: NORMAL
CLASS 2 INSULATION:
:MICRO-DISCONNECTION
LIVE POLE ONLY
Your GreenBrook 7 Day Electronic Timer
is guaranteed for 1 year from
This is in addition to your statutory rights.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
GUARANTEE
the date of purchase.
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
www.greenbrook.co.uk
Issue no: 706352
