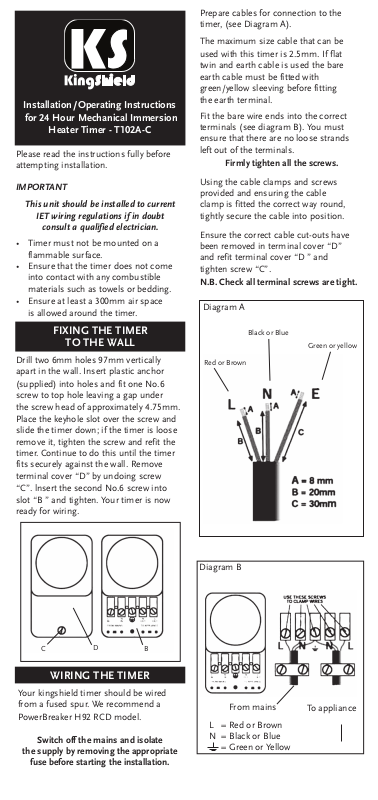

nstallation/ Operating Instructions
I
for 24 Hour Mechanical Immersion
Heater Timer - T102A-C
Please read the instructions fully before
attempting installation.
Prepare cables for connection to the
imer, (see Diagram A).
t
The maximum size cable that can be
used with this timer is 2.5mm. If flat
twin and earth cable is used the bare
earth cable must be fitted with
green/yellow sleeving before fitting
the earth terminal.
Fit the bare wire ends into the correct
terminals (see diagram B). You must
ensure that there are no loose strands
left out of the terminals.
Firmly tighten all the screws.
IMPORTANT
This unit should be installed to current
IET wiring regulations if in doubt
consult a qualified electrician.
• Timer must not be mounted on a
flammable surface.
• Ensure that the timer does not come
into contact with any combustible
materials such as towels or bedding.
• Ensure at least a 300mm air space
is allowed around the timer.
FIXING THE TIMER
TO THE WALL
Drill two 6mm holes 97mm vertically
apart in the wall. Insert plastic anchor
(supplied) into holes and fit one No.6
screw to top hole leaving a gap under
the screw head of approximately 4.75mm.
Place the keyhole slot over the screw and
slide the timer down; if the timer is loose
remove it, tighten the screw and refit the
timer. Continue to do this until the timer
fits securely against the wall. Remove
terminal cover “D” by undoing screw
“C”. lnsert the second No.6 screw into
slot “B ” and tighten. Your timer is now
ready for wiring.
Using the cable clamps and screws
provided and ensuring the cable
clamp is fitted the correct way round,
tightly secure the cable into position.
Ensure the correct cable cut-outs have
been removed in terminal cover “D”
and refit terminal cover “D ” and
tighten screw “C”.
N.B. Check all terminal screws are tight.

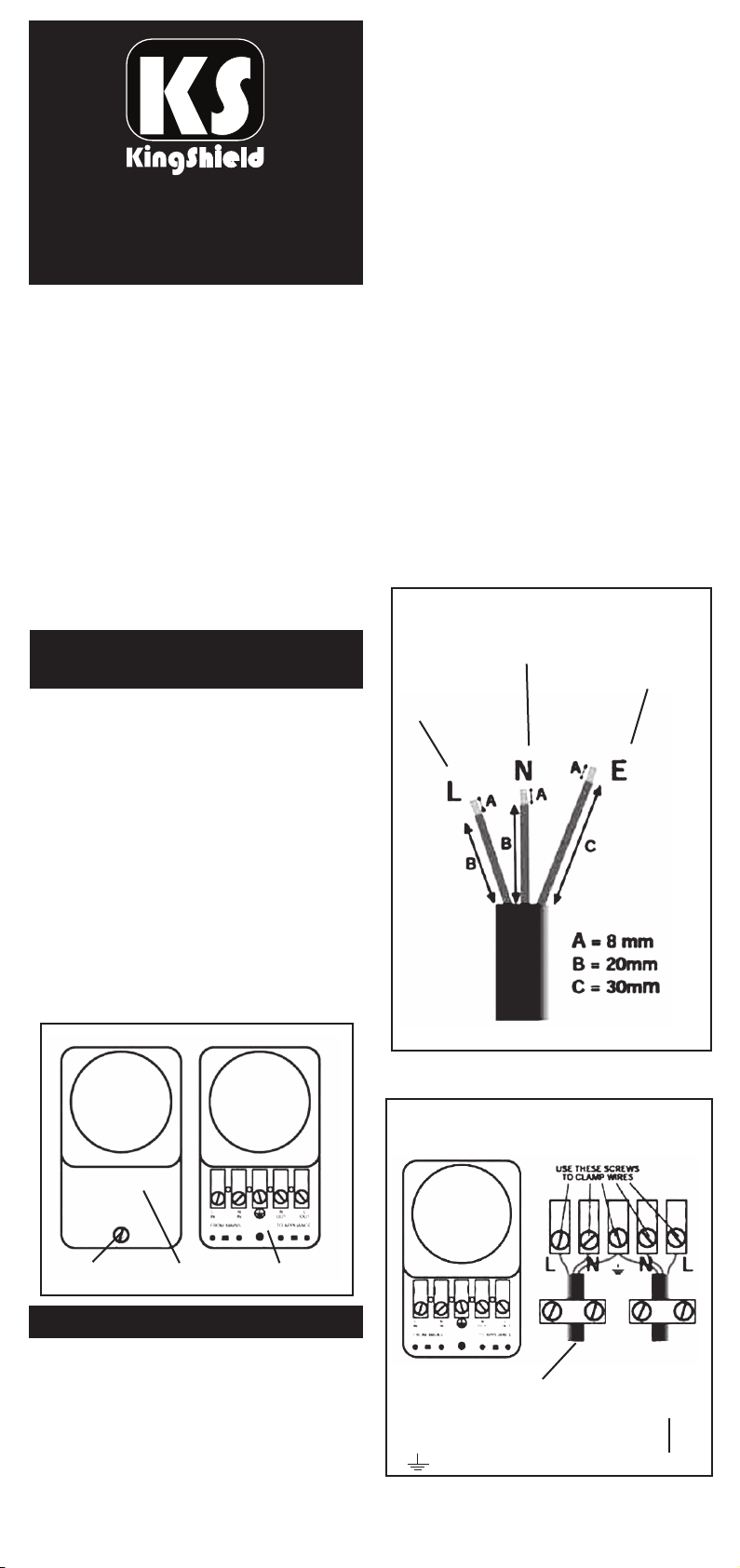

Diagram A
Black or Blue
Green or yellow
Red or Brown
C
D
B
WIRING THE TIMER
Your kingshield timer should be wired
from a fused spur. We recommend a
PowerBreaker H92 RCD model.
Switch off the mains and isolate
the supply by removing the appropriate
fuse before starting the installation.
Diagram B
From mains
L = Red or Brown
N = Black or Blue
= Green or Yellow
To appliance
Page 2
SETTING THE CLOCK
Turn the dial (by turning with finger
nd thumb) in the direction of the
a
arrow (clockwise) until the correct
time of day is exactly opposite the
time set marker in centre of the dial.
SETTING THE PROGRAMMES
To set the ON periods push all the
sliding segments away from the centre
of dial, between your chosen on and
off time. The timer will operate during the
coloured section now exposed. Each slide
represents 15 minutes. The timer will be in
the OFF mode when the sliding segments
are pushed towards the centre.
When switch is pushed towards:
= timer will be permanently ON
I
= in the centre of the slot. The timer
will work to the set programme.
O
= timer will be permanently OFF.
TECHNICAL INFORMATION
Switching Capacity: 230V AC,16A
Ambient Temperature: -10°C to + 55°C
Shortest Switching Time: 15 minutes
Wattage: 3000W
Conforms To: EN 60730-1:2011,
resistive,2A Inductive
EN 60730-2-7:2010/
C11:2011
GUARANTEE
Your KingShield 24 Hour Mechanical
Immersion Heater Timer is guaranteed
for 12 months from the date of purchase.
This does not affect your statutory rights.
CE INFORMATION
ACTION TYPE: IB
POLLUTION SITUATION: NORMAL
CLASS 2 INSULATION:
:MICRO-DISCONNECTION LIVE
POLE ONLY
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sal es@ gre enb ro ok.c o.u k
w w w. gr e e n b r o o k. co.u k
Issue no: 703913
