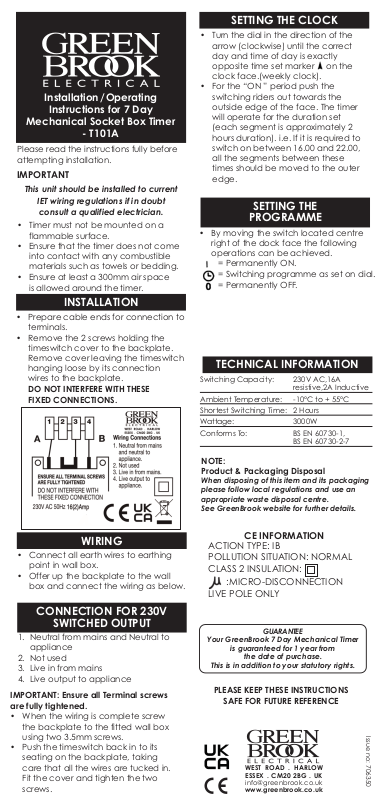

Page 1
Installation / Operating
Instructions for 7 Day
Mechanical Socket Box Timer
T101A
-
lease read the instructions fully before
P
attempting installation.
IMPORTANT
his unit should be installed to current
T
IET wiring regulations if in doubt
consult a qualified electrician.
• Timer must not be mounted on a
flammable surface.
• Ensure that the timer does not come
into contact with any combustible
materials such as towels or bedding.
• Ensure at least a 300mm air space
is allowed around the timer.
INSTALLATION
• Prepare cable ends for connection to
terminals.
• Remove the 2 screws holding the
timeswitch cover to the backplate.
Remove cover leaving the timeswitch
hanging loose by its connection
wires to the backplate.
DO NOT INTERFERE WITH THESE
FIXED CONNECTIONS.
SETTING THE CLOCK
• Turn the dial in the direction of the
arrow (clockwise) until the correct
day and time of day is exactly
opposite time set marker on the
clock face.(weekly clock).
• For the “ON ” period push the
switching riders out towards the
outside edge of the face. The timer
will operate for the duration set
(each segment is approximately 2
hours duration). i.e. If it is required to
switch on between 16.00 and 22.00,
all the segments between these
times should be moved to the outer
dge.
e
SETTING THE
PROGRAMME
• By moving the switch located centre
right of the dock face the following
operations can be achieved.
= Permanently ON.
= Switching programme as set on dial.
= Permanently OFF.
TECHNICAL INFORMATION
Switching Capacity: 230V AC,16A
Ambient Temperature: -10°C to + 55°C
Shortest Switching Time: 2 Hours
Wattage: 3000W
Conforms To: BS EN 60730-1,
resistive,2A Inductive
BS EN 60730-2-7

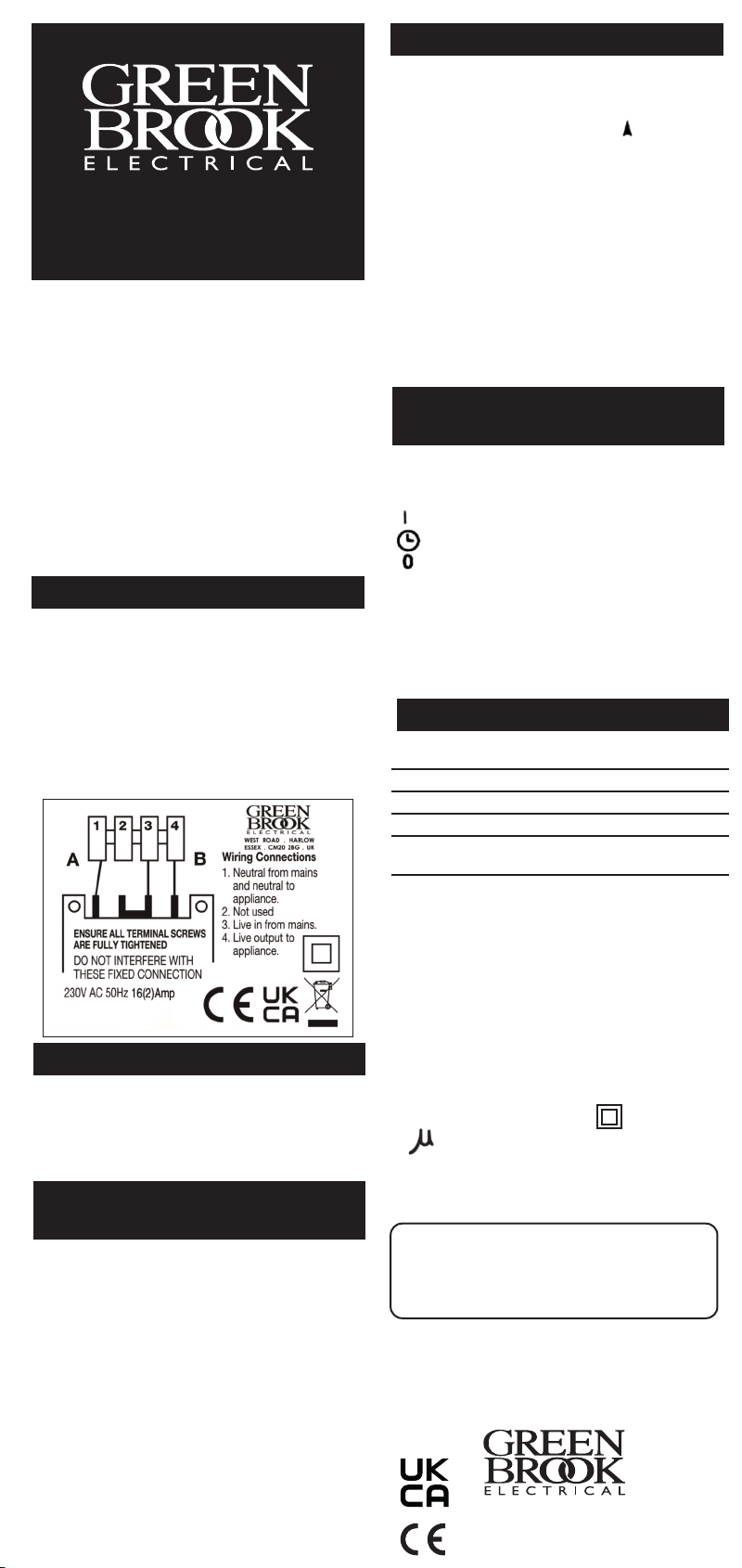

WIRING
• Connect all earth wires to earthing
point in wall box.
• Offer up the backplate to the wall
box and connect the wiring as below.
CONNECTION FOR 230V
SWITCHED OUTPUT
1. Neutral from mains and Neutral to
appliance
2. Not used
3. Live in from mains
4. Live output to appliance
IMPORTANT: Ensure all Terminal screws
are fully tightened.
• When the wiring is complete screw
the backplate to the fitted wall box
using two 3.5mm screws.
• Push the timeswitch back in to its
seating on the backplate, taking
care that all the wires are tucked in.
Fit the cover and tighten the two
screws.
NOTE:
Product & Packaging Disposal
When disposing of this item and its packaging
please follow local regulations and use an
appropriate waste disposal centre.
See GreenBrook website for further details.
CE INFORMATION
ACTION TYPE: IB
POLLUTION SITUATION: NORMAL
CLASS 2 INSULATION:
:MICRO-DISCONNECTION
LIVE POLE ONLY
Your GreenBrook 7 Day Mechanical Timer
is guaranteed for 1 year from
This is in addition to your statutory rights.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
GUARANTEE
the date of purchase.
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
www.greenbrook.co.uk
Issue no: 706350
