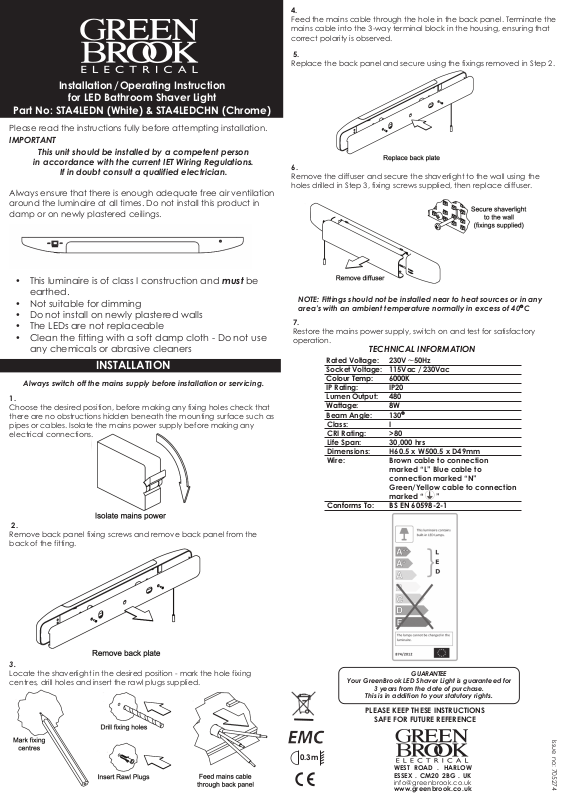

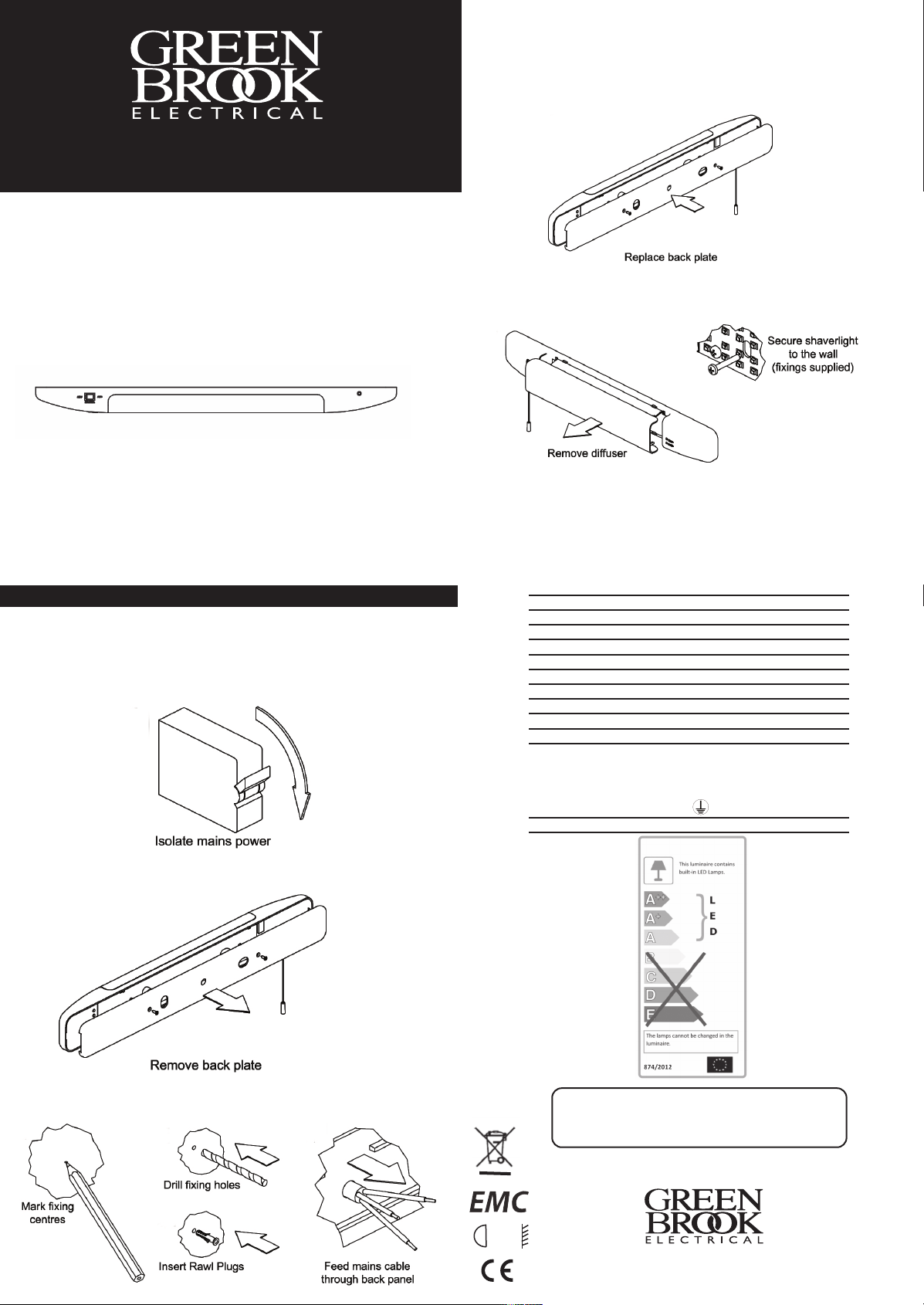

nstallation / Operating Instruction
I
for LED Bathroom Shaver Light
Part No: STA4LEDN (White) & STA4LEDCHN (Chrome)
Please read the instructions fully before attempting installation.
MPORTANT
I
This unit should be installed by a competent person
in accordance with the current IET Wiring Regulations.
If in doubt consult a qualified electrician.
Always ensure that there is enough adequate free air ventilation
around the luminaire at all times. Do not install this product in
amp or on newly plastered ceilings.
d
• This luminaire is of class I construction and must be
earthed.
• Not suitable for dimming
• Do not install on newly plastered walls
• The LEDs are not replaceable
• Clean the fitting with a soft damp cloth - Do not use
any chemicals or abrasive cleaners
INSTALLATION
Always switch off the mains supply before installation or servicing.
1.
Choose the desired position, before making any fixing holes check that
there are no obstructions hidden beneath the mounting surface such as
pipes or cables. Isolate the mains power supply before making any
electrical connections.
4.
Feed the mains cable through the hole in the back panel. Terminate the
mains cable into the 3-way terminal block in the housing, ensuring that
correct polarity is observed.
5.
Replace the back panel and secure using the fixings removed in Step 2.
6.
Remove the diffuser and secure the shaverlight to the wall using the
holes drilled in Step 3, fixing screws supplied, then replace diffuser.
NOTE: Fittings should not be installed near to heat sources or in any
area’s with an ambient temperature normally in excess of 40
7.
Restore the mains power supply, switch on and test for satisfactory
operation.
°
C
TECHNICAL INFORMATION
Rated Voltage: 230V～50Hz
Socket Voltage: 115Vac / 230Vac
Colour Temp: 6000K
IP Rating: IP20
Lumen Output: 480
Wattage: 8W
Beam Angle: 130
Class: I
CRI Rating: >80
Life Span: 30,000 hrs
Dimensions: H60.5 x W500.5 x D49mm
Wire: Brown cable to connection
marked “L” Blue cable to
connection marked “N”
Green/Yellow cable to connection
marked “ ”
Conforms To: BS EN 60598-2-1
°
2.
Remove back panel fixing screws and remove back panel from the
back of the fitting.
3.
Locate the shaverlight in the desired position - mark the hole fixing
centres, drill holes and insert the rawl plugs supplied.
0.3m
Your GreenBrook LED Shaver Light is guaranteed for
3 years from the date of purchase.
This is in addition to your statutory rights.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
GUARANTEE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
www.greenbrook.co.uk
Issue no: 705274
