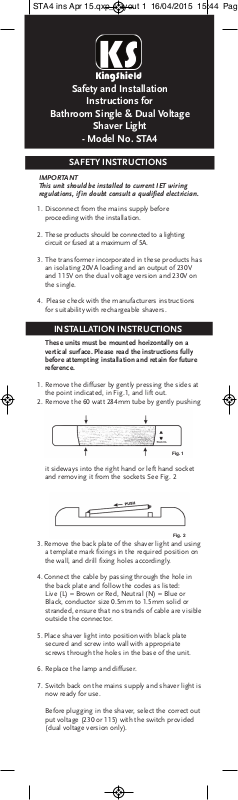

Page 1
Safety and Installation
nstructions for
I
Bathroom Single & Dual Voltage
Shaver Light
- Model No. STA4
SAFETY INSTRUCTIONS
MPORTANT
I
This unit should be installed to current IET wiring
egulations, if in doubt consult a qualified electrician.
r
1. Disconnect from the mains supply before
roceeding with the installation.
p
2. These products should be connected to a lighting
ircuit or fused at a maximum of 5A.
c
3. The transformer incorporated in these products has
an isolating 20VA loading and an output of 230V
nd 115V on the dual voltage version and 230V on
a
the single.
4. Please check with the manufacturers instructions
or suitability with rechargeable shavers.
f
INSTALLATION INSTRUCTIONS
These units must be mounted horizontally on a
vertical surface. Please read the instructions fully
before attempting installation and retain for future
reference.
1. Remove the diffuser by gently pressing the sides at
the point indicated, in Fig.1, and lift out.
2. Remove the 60 watt 284mm tube by gently pushing
Fig.1
it sideways into the right hand or left hand socket
and removing it from the sockets See Fig. 2
3. Remove the back plate of the shaver light and using
a template mark fixings in the required position on
the wall, and drill fixing holes accordingly.
4. Connect the cable by passing through the hole in
the back plate and follow the codes as listed:
Live (L) = Brown or Red, Neutral (N) = Blue or
Black, conductor size 0.5mm to 1.5mm solid or
stranded, ensure that no strands of cable are visible
outside the connector.
5. Place shaver light into position with black plate
secured and screw into wall with appropriate
screws through the holes in the base of the unit.
6. Replace the lamp and diffuser.
7. Switch back on the mains supply and shaver light is
now ready for use.
Before plugging in the shaver, select the correct out
put voltage (230 or 115) with the switch provided
(dual voltage version only).
Fig. 2
Page 2
ECHNICAL DATA
T
ower Rating: 230V 50Hz supply
P
P Rating: IP20
I
Marked: Can be mounted on
F
ransformer: 20VA overload protected
T
Diffuser: Safety interlocked
amp Type: 60W 284mm double
L
amp Output.
L
verage Life: 1000 hours
A
Lampholder: S15
umen output: 500
L
Colour Temp: 2500 - 3000K
amp Size: 284 length +
L
immable: Yes
D
Energy Consumption: 60 KWH/1000 hours
Energy rating: E
CRI: >80
15/230V output
1
flammable surfaces
cap striplight
mm
1
1mm
26 Dia +
GUARANTEE
Your KingShield Bathroom Shaver Light
is guaranteed for 12 months from
the date of purchase.
This is in addition to your
statutory rights.
PLEASE KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sa les@ gr ee nbr ook. co .u k
w w w . g r e e n b r o o k . c o . u k
Issue No: 704078
