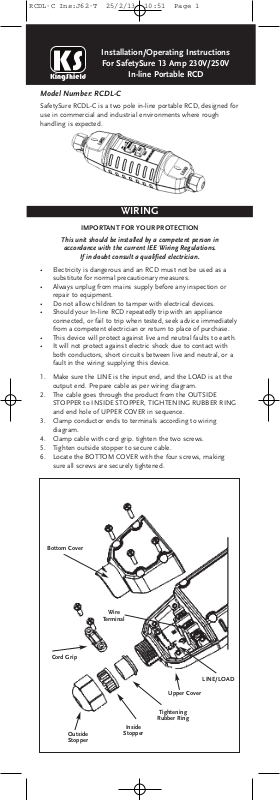

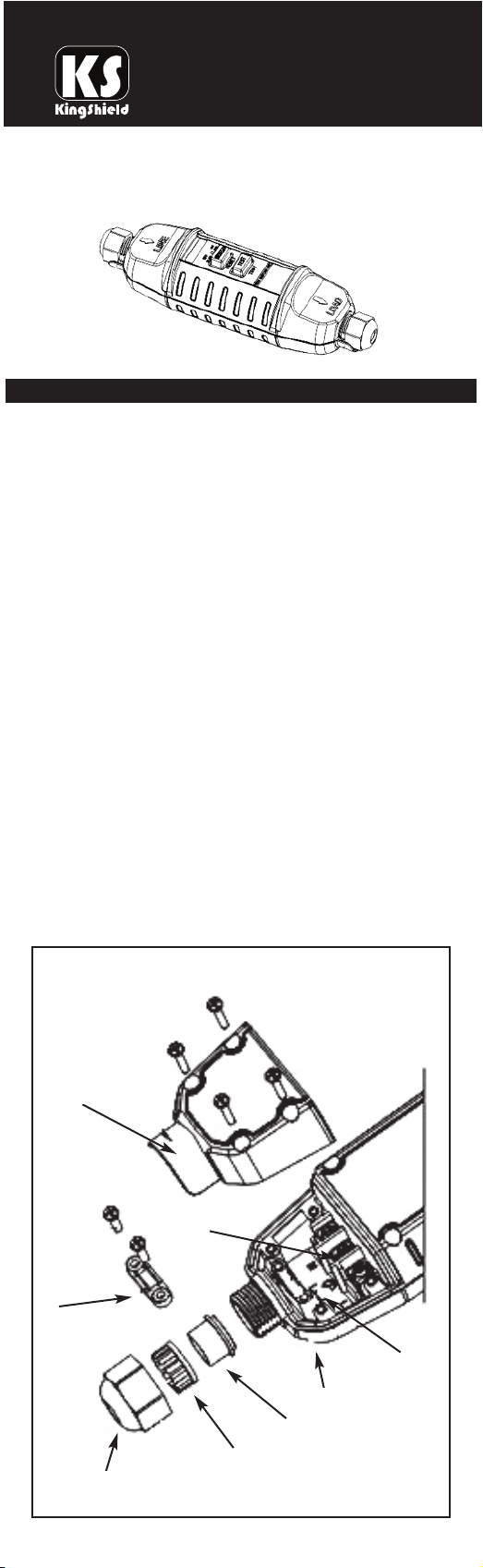

Installation/Operating Instructions
For SafetySure 13 Amp 230V/250V
In-line Portable RCD
Model Number: RCDL-C
SafetySure RCDL-C is a two pole in-line portable RCD, designed for
use in commercial and industrial environments where rough
handling is expected.
WIRING
IMPORTANT FOR YOUR PROTECTION
This unit should be installed by a competent person in
accordance with the current IEE Wiring Regulations.
If in doubt consult a qualified electrician.
• Electricity is dangerous and an RCD must not be used as a
substitute for normal precautionary measures.
• Always unplug from mains supply before any inspection or
repair to equipment.
• Do not allow children to tamper with electrical devices.
• Should your In-line RCD repeatedly trip with an appliance
connected, or fail to trip when tested, seek advice immediately
from a competent electrician or return to place of purchase.
• This device will protect against live and neutral faults to earth.
• It will not protect against electric shock due to contact with
both conductors, short circuits between live and neutral, or a
fault in the wiring supplying this device.
1. Make sure the LINE is the input end, and the LOAD is at the
output end. Prepare cable as per wiring diagram.
2. The cable goes through the product from the OUTSIDE
STOPPER to INSIDE STOPPER, TIGHTENING RUBBER RING
and end hole of UPPER COVER in sequence.
3. Clamp conductor ends to terminals according to wiring
diagram.
4. Clamp cable with cord grip. tighten the two screws.
5. Tighten outside stopper to secure cable.
6. Locate the BOTTOM COVER with the four screws, making
sure all screws are securely tightened.
Bottom Cover
Cord Grip
Outside
Stopper
Wire
Terminal
Inside
Stopper
Upper Cover
Tightening
Rubber Ring
LINE/LOAD
Page 2

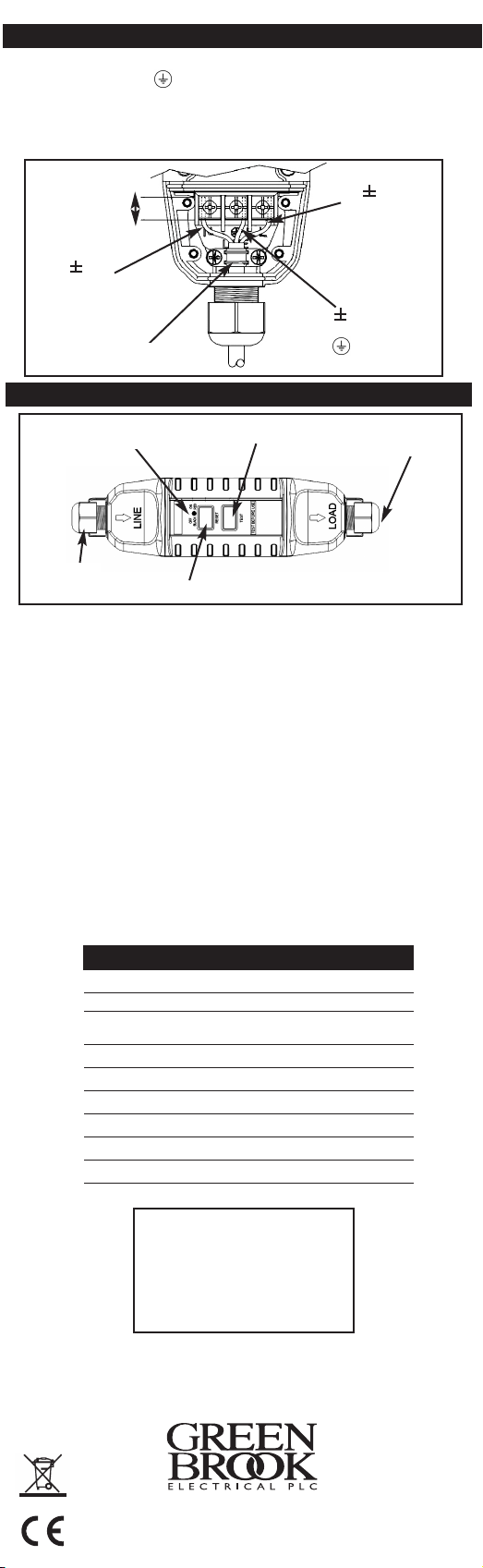

WIRING LAYOUT
• Blue to (N) Neutral wire terminal
• Green/Yellow to Earth Terminal
• Brown to (L) Live wire terminal
Replace the cord grip and secure with screws.
NOTE: The cable must extend past the cord grip by 3mm.
0 1mm
8-10mm
Length of bare
conductor
30 1mm
Blue to (N)
Neutral terminal
Cord Grip
3
rown to (L)
B
eutral terminal
N
38 1mm
Green/Yellow to
Earth terminal
INSTRUCTIONS
Test
Output
nput
I
Indicator
eset
R
Test Before use:
1. Plug line input into socket outlet.
2. Press ‘RESET’ button indicator should be ‘ON’
(Red).
3. Press ‘TEST’ button indicator should be ‘OFF’
(Black).
4. Press ‘RESET’ button for use, DO NOT USE if
‘TEST’ fails.
Note:
The SafetySure In-line Portable RCD has been designed for storage
and use between -5°C and +40°C at an altitude no greater than
2000m above sea level. Care must be taken not to subject your
SafetySure to abnormal pollution by smoke chemical or flammable
fumes, salt laden spray, prolonged periods of high humidity,
immersion, repeated dropping, or any other abnormal conditions.
TECHNICAL INFORMATION
Rated voltage: 230V/250V AC, 50/60Hz
No of Poles: 2
Maximum Operating 13 Amps
Current: (4 amps inductive load)
IP Rating: IP55
Maximum Load: 3kW
Rated Tripping Current: 30 mA
Trip Speed Less than: 100mS (Typical)
Max Cable Dia: 7 - 10mm
Conforms to: BS 7071:1992, BS 1363
GUARANTEE
Your SafetySure 13A
in-line Portable RCD
is guaranteed for 12 months.
Each unit is individually tested
before leaving the factory.
PLEASE KEEP THESE
INSTRUCTIONS SAFE
FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sa les@ g r een b r ook. c o .uk
W W W . G RE E N B R O O K .C O. U K
Issue no: 703077
