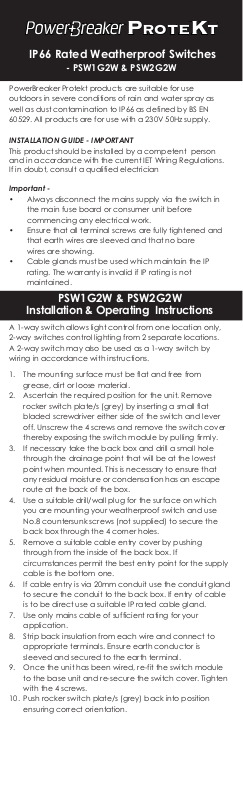

P66 Rated Weatherproof Switches
I
- PSW1G2W & PSW2G2W
PowerBreaker Protekt products are suitable for use
outdoors in severe conditions of rain and water spray as
well as dust contamination to IP66 as defined by BS EN
60529. All products are for use with a 230V 50Hz supply.
INSTALLATION GUIDE - IMPORTANT
This product should be installed by a competent person
and in accordance with the current IET Wiring Regulations.
If in doubt, consult a qualified electrician
Important -
• Always disconnect the mains supply via the switch in
the main fuse board or consumer unit before
commencing any electrical work.
• Ensure that all terminal screws are fully tightened and
that earth wires are sleeved and that no bare
wires are showing.
• Cable glands must be used which maintain the IP
rating. The warranty is invalid if IP rating is not
maintained.
PSW1G2W & PSW2G2W
Installation & Operating Instructions
A 1-way switch allows light control from one location only,
2-way switches control lighting from 2 separate locations.
A 2-way switch may also be used as a 1-way switch by
wiring in accordance with instructions.
1. The mounting surface must be flat and free from
grease, dirt or loose material.
2. Ascertain the required position for the unit. Remove
rocker switch plate/s (grey) by inserting a small flat
bladed screwdriver either side of the switch and lever
off. Unscrew the 4 screws and remove the switch cover
thereby exposing the switch module by pulling firmly.
3. If necessary take the back box and drill a small hole
through the drainage point that will be at the lowest
point when mounted. This is necessary to ensure that
any residual moisture or condensation has an escape
route at the back of the box.
4. Use a suitable drill/wall plug for the surface on which
you are mounting your weatherproof switch and use
No.8 countersunk screws (not supplied) to secure the
back box through the 4 corner holes.
5. Remove a suitable cable entry cover by pushing
through from the inside of the back box. If
circumstances permit the best entry point for the supply
cable is the bottom one.
6. If cable entry is via 20mm conduit use the conduit gland
to secure the conduit to the back box. If entry of cable
is to be direct use a suitable IP rated cable gland.
7. Use only mains cable of sufficient rating for your
application.
8. Strip back insulation from each wire and connect to
appropriate terminals. Ensure earth conductor is
sleeved and secured to the earth terminal.
9. Once the unit has been wired, re-fit the switch module
to the base unit and re-secure the switch cover. Tighten
with the 4 screws.
10. Push rocker switch plate/s (grey) back into position
ensuring correct orientation.
Page 2

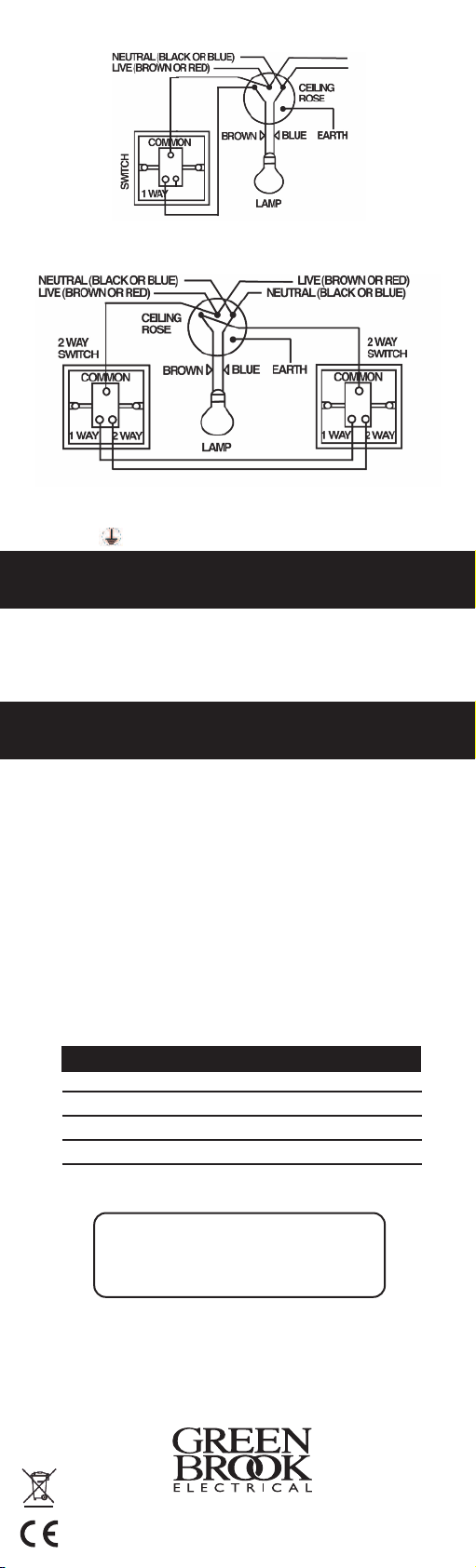

LIGHT SWITCH 2-WAY
Lighting circuit showing 1-way switching
WAY
2
WITCH
S
WAY
2
LIGHT SWITCH 2-WAY
Typical lighting circuit showing 2-way switching.
+ L LIVE = (Brown or Red)
- N NEUTRAL = (Black or Blue)
E EARTH = (Green/Yellow)
Cleaning
If the unit needs cleaning it should be disconnected from
the mains supply. Wipe the surface with a dry cloth. Do not
use a damp or wet cloth or a solvent based cleaning
agent, as this may damage or impair the safety of the
product.
Disclaimer
This equipment is intended for domestic & light commercial
use only. It must be installed in accordance with these
fitting instructions. It should be fixed in the approved &
conventional way to a solid or suitably safe surface.
The equipment should be connected to a mains supply of
the appropriate voltage (indicated on the product). If you
are unsure, consult a qualified electrician before fitting. No
liability can be accepted if this product is installed or used
in any other way.
PLEASE NOTE: Electricity is dangerous and can kill. If you are
in any doubt of how to fit your product or there appears to
be damage to the wiring, please consult a qualified
electri
cian.
TECHNICAL INFORMATION
Rating: 10AX, 230 ～240V 50Hz
Working Temp: -5ºC - 40ºC
Dimensions: W97 x H97 x 65mm
Conforms To: BS EN 60669-1 & BS EN 61058-1
Your PowerBreaker Protekt IP66 Switch
is guaranteed for 5 years from
This is in addition to your statutory rights.
GUARANTEE
the date of purchase.
Please keep these instructions for future reference.
INSTALLER - Please pass instruction manual onto the
owner of the unit.
