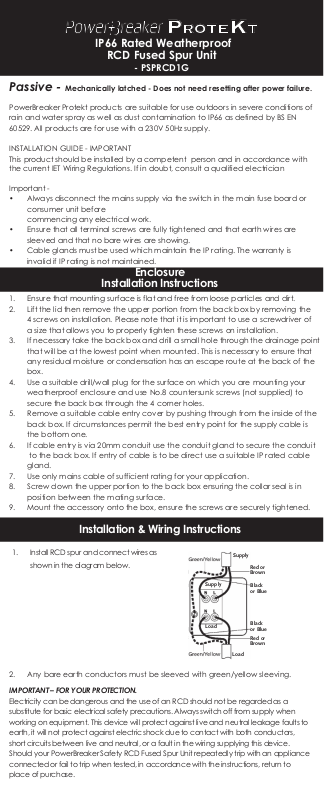

Page 1
ProteKt
IP66 Rated Weatherproof
CD Fused Spur Unit
R
- PSPRCD1G
Passive - Mechanically latched - Does not need resetting after power failure.
PowerBreaker Protekt products are suitable for use outdoors in severe conditions of
rain and water spray as well as dust contamination to IP66 as defined by BS EN
60529. All products are for use with a 230V 50Hz supply.
INSTALLATION GUIDE - IMPORTANT
This product should be installed by a competent person and in accordance with
the current IET Wiring Regulations. If in doubt, consult a qualified electrician
Important -
• Always disconnect the mains supply via the switch in the main fuse board or
consumer unit before
commencing any electrical work.
• Ensure that all terminal screws are fully tightened and that earth wires are
sleeved and that no bare wires are showing.
• Cable glands must be used which maintain the IP rating. The warranty is
invalid if IP rating is not maintained.
Enclosure
Installation Instructions
1. Ensure that mounting surface is flat and free from loose particles and dirt.
2. Lift the lid then remove the upper portion from the back box by removing the
4 screws on installation. Please note that it is important to use a screwdriver of
a size that allows you to properly tighten these screws on installation.
3. If necessary take the back box and drill a small hole through the drainage point
that will be at the lowest point when mounted. This is necessary to ensure that
any residual moisture or condensation has an escape route at the back of the
box.
4. Use a suitable drill/wall plug for the surface on which you are mounting your
weatherproof enclosure and use No.8 countersunk screws (not supplied) to
secure the back box through the 4 corner holes.
5. Remove a suitable cable entry cover by pushing through from the inside of the
back box. If circumstances permit the best entry point for the supply cable is
the bottom one.
6. If cable entry is via 20mm conduit use the conduit gland to secure the conduit
to the back box. If entry of cable is to be direct use a suitable IP rated cable
gland.
7. Use only mains cable of sufficient rating for your application.
8. Screw down the upper portion to the back box ensuring the collar seal is in
position between the mating surface.
9. Mount the accessory onto the box, ensure the screws are securely tightened.
Installation & Wiring Instructions

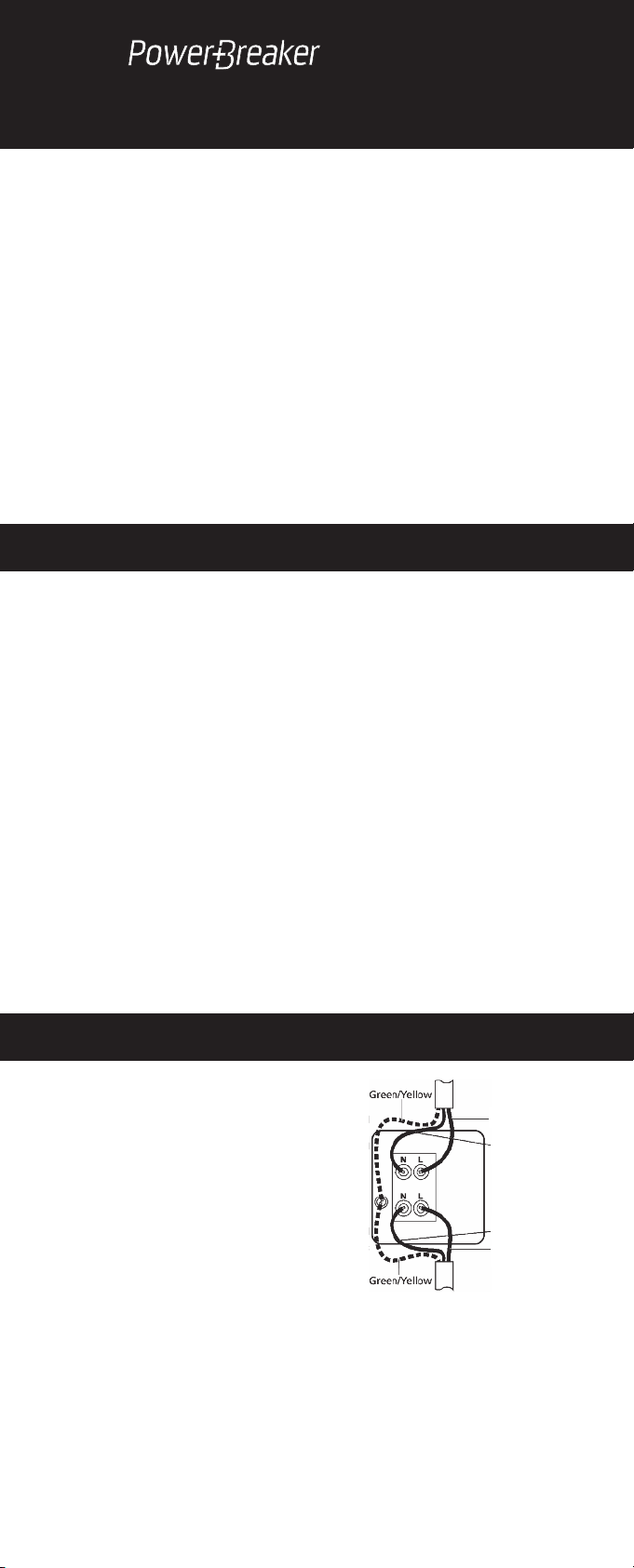

1. Install RCD spur and connect wires as
shown in the diagram below.
pl
Sup
Load
2. Any bare earth conductors must be sleeved with green/yellow sleeving.
IMPORTANT – FOR YOUR PROTECTION.
Electricity can be dangerous and the use of an RCD should not be regarded as a
substitute for basic electrical safety precautions. Always switch off from supply when
working on equipment. This device will protect against live and neutral leakage faults to
earth, it will not protect against electric shock due to contact with both conductors,
short circuits between live and neutral, or a fault in the wiring supplying this device.
Should your PowerBreaker Safety RCD Fused Spur Unit repeatedly trip with an appliance
connected or fail to trip when tested, in accordance with the instructions, return to
place of purchase.
ly
p
p
u
S
or
ed
R
n
Brow
y
Load
Blac
or
Blac
or
ed
R
Brow
Blue
Blue
k
k
or
n
Page 2
PLEASE CARRY OUT THIS SIMPLE TEST PROCEDURE AFTER
INSTALLATION.
1. Press White ON button.
2. Window indicator will illuminate Red.
3. Press Grey Test button.
4. Red window indicator and illumination will disappear. This means that the RCD has
tripped successfully.*
5. To reset – press White ON button and use as normal spur.
Fit BS1362 fuse in accordance with equipment manufacturers’specification. Remove
this RCD from circuit before performing any high voltage insulation tests.
*If indicator fails to work, test fuse, if unit still fails to work do not use and return to place of
purchase.

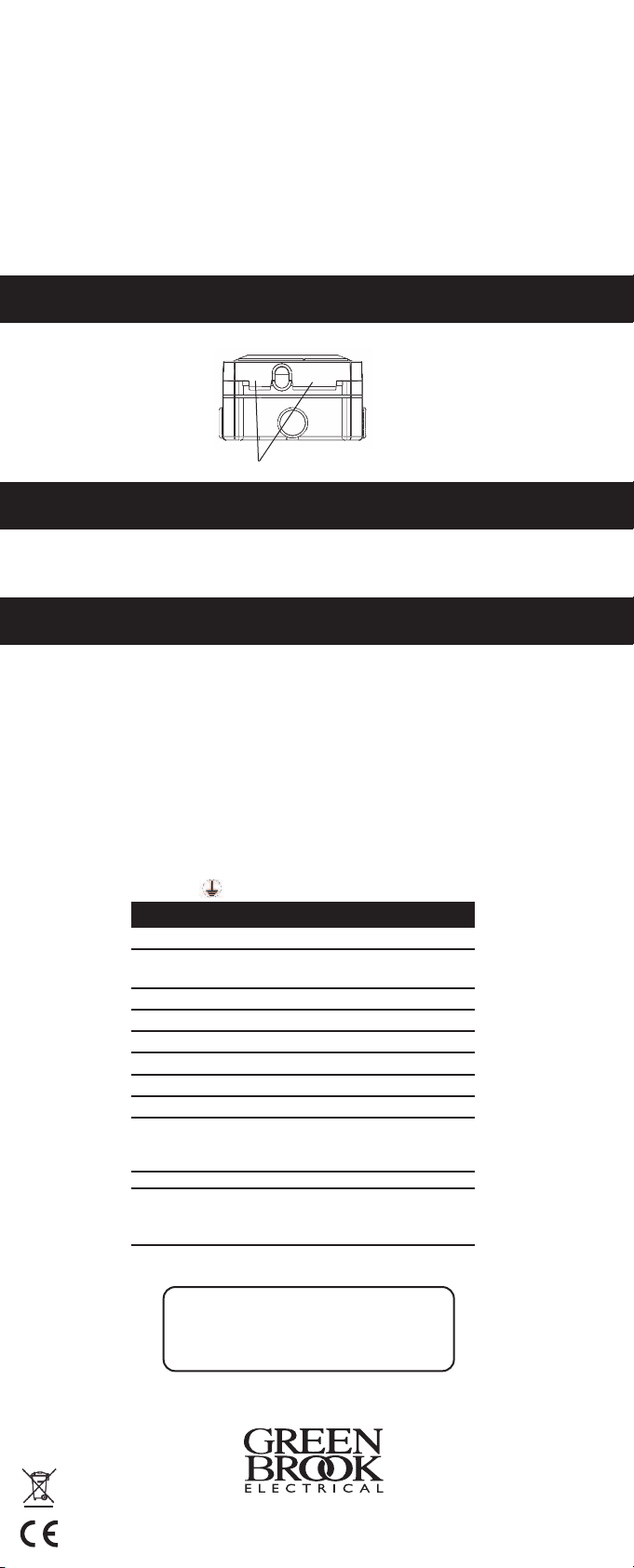

Opening the lid
To open the lid use your thumbs to un-clip the end snap-shut clips. The lid should
then pop open.
Snap-Shut Clips
Lift to open)
(
Cleaning
If the unit needs cleaning it should be disconnected from the mains supply. Wipe
the surface with a dry cloth. Do not use a damp or wet cloth or a solvent based
cleaning agent, as this may damage or impair the safety of the product.
Disclaimer
This equipment is intended for domestic & light commercial use only. It must be
installed in accordance with these fitting instructions. It should be fixed in the
approved & conventional way to a solid or suitably safe surface.
The equipment should be connected to a mains supply of the appropriate
voltage (indicated on the product). If you are unsure, consult a qualified
electrician before fitting. No liability can be accepted if this product is installed or
used in any other way.
PLEASE NOTE: Electricity is dangerous and can kill. If you are in any doubt of how
to fit your product or there appears to be damage to the wiring, please consult a
qualified
cian.
electri
+ L LIVE = (Brown or Red)
- N NEUTRAL = (Black or Blue)
E EARTH = (Green/Yellow)
TECHNICAL INFORMATION
Rated voltage: 230V AC～50Hz
Maximum
operating current: 13A (13A inductive)
Rated trip speed: Less than 20mS (typical)
Rated trip current: 30mA
Terminal capacity: 6mm² max
RCD contact break: Double pole
Mechanical Latching: Passive
Working Temp: -5ºC - 40ºC
Cord anchorage -
Cable Dia: 4.6mm – 10.4mm
Cable Size: 0.5mm2to 1.5mm
Dimensions: W137 x H132 x D80mm
Independently BS 7288:1990
tested to: BS 1363-4:1995
BS EN 61543:1996
IP Box Conforms To: IEC 60670-1 & IEC60670-22
2
Your PowerBreaker Protekt IP66 Metalclad
Fused Spur Unit is guaranteed for 5 years
This is in addition to your statutory rights.
GUARANTEE
from the date of purchase.
Please keep these instructions for future reference.
INSTALLER - Please pass instruction manual onto the owner of the unit.
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
www.greenbrook.co.uk
Issue no: 704499
