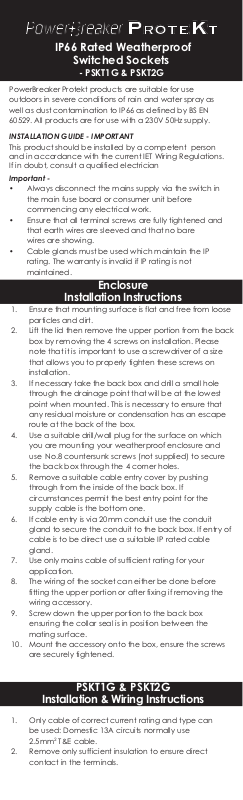

ProteKt
IP66 Rated Weatherproof
Switched Sockets
- PSKT1G & PSKT2G
PowerBreaker Protekt products are suitable for use
outdoors in severe conditions of rain and water spray as
well as dust contamination to IP66 as defined by BS EN
60529. All products are for use with a 230V 50Hz supply.
INSTALLATION GUIDE - IMPORTANT
This product should be installed by a competent person
and in accordance with the current IET Wiring Regulations.
If in doubt, consult a qualified electrician
Important -
• Always disconnect the mains supply via the switch in
the main fuse board or consumer unit before
commencing any electrical work.
• Ensure that all terminal screws are fully tightened and
that earth wires are sleeved and that no bare
wires are showing.
• Cable glands must be used which maintain the IP
rating. The warranty is invalid if IP rating is not
maintained.
Enclosure
Installation Instructions
1. Ensure that mounting surface is flat and free from loose
particles and dirt.
2. Lift the lid then remove the upper portion from the back
box by removing the 4 screws on installation. Please
note that it is important to use a screwdriver of a size
that allows you to properly tighten these screws on
installation.
3. If necessary take the back box and drill a small hole
through the drainage point that will be at the lowest
point when mounted. This is necessary to ensure that
any residual moisture or condensation has an escape
route at the back of the box.
4. Use a suitable drill/wall plug for the surface on which
you are mounting your weatherproof enclosure and
use No.8 countersunk screws (not supplied) to secure
the back box through the 4 corner holes.
5. Remove a suitable cable entry cover by pushing
through from the inside of the back box. If
circumstances permit the best entry point for the
supply cable is the bottom one.
6. If cable entry is via 20mm conduit use the conduit
gland to secure the conduit to the back box. If entry of
cable is to be direct use a suitable IP rated cable
gland.
7. Use only mains cable of sufficient rating for your
application.
8. The wiring of the socket can either be done before
fitting the upper portion or after fixing if removing the
wiring accessory.
9. Screw down the upper portion to the back box
ensuring the collar seal is in position between the
mating surface.
10. Mount the accessory onto the box, ensure the screws
are securely tightened.
PSKT1G & PSKT2G
Installation & Wiring Instructions
1. Only cable of correct current rating and type can
be used: Domestic 13A circuits normally use
2.5mm2T&E cable.
2. Remove only sufficient insulation to ensure direct
contact in the terminals.
Page 2
3. Connect wires as detailed. The EARTH wires to the
terminal marked E, EARTH ensuring wire is sleeved
with green/yellow sleeving. The RED or BROWN to
terminal marked L. The BLACK or BLUE to terminal
marked N.
4. Ensure that all terminal screws are tightened.
Cleaning
If the unit needs cleaning it should be disconnected from
the mains supply. Wipe the surface with a dry cloth. Do not
use a damp or wet cloth or a solvent based cleaning
agent, as this may damage or impair the safety of the
product.
Disclaimer
This equipment is intended for domestic & light commercial
use only. It must be installed in accordance with these
fitting instructions. It should be fixed in the approved &
conventional way to a solid or suitably safe surface.
The equipment should be connected to a mains supply of
the appropriate voltage (indicated on the product). If you
are unsure, consult a qualified electrician before fitting. No
liability can be accepted if this product is installed or used
in any other way.
PLEASE NOTE: Electricity is dangerous and can kill. If you are
in any doubt of how to fit your product or there appears to
be damage to the wiring, please consult a qualified
cian.
electri

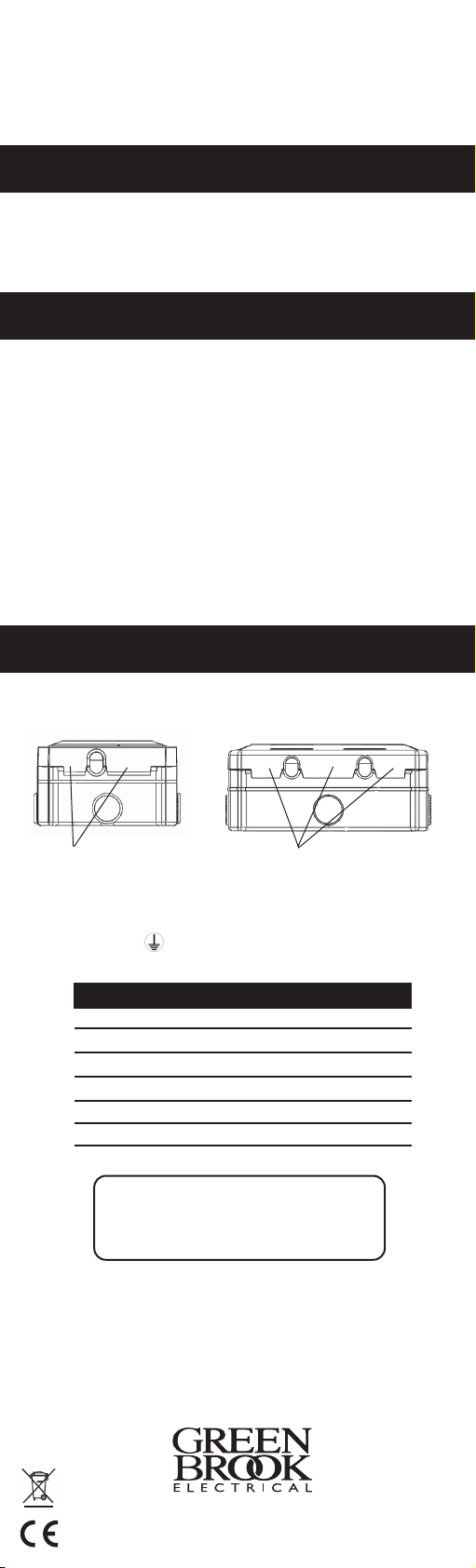

Opening the lid
To open the lid use your thumbs to un-clip the end snap-shut
clips. The lid should then pop open.
Snap-Shut Clips
(Lift to open)
+ L LIVE = (Brown or Red)
- N NEUTRAL = (Black or Blue)
E EARTH = (Green/Yellow)
TECHNICAL INFORMATION
Rated Voltage: 13A, 230～240V 50Hz
PSKT1G Dims: W131 X H119 X D80mm
PSKT2G Dims: W179 X H130 X D80mm
Working Temp: -5ºC to 40ºC
Socket Conforms To: BS1363-2
IP Box Conforms To: IEC 60670-1 & IEC60670-22
Your PowerBreaker Protekt IP66 Switched
Socket is guaranteed for 5 years from
This is in addition to your statutory rights.
GUARANTEE
the date of purchase.
Snap-Shut Clips
(Lift to open)
Please keep these instructions for future reference.
INSTALLER - Please pass instruction manual onto the
owner of the unit.
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
www.greenbrook.co.uk
Issue no: 704495
