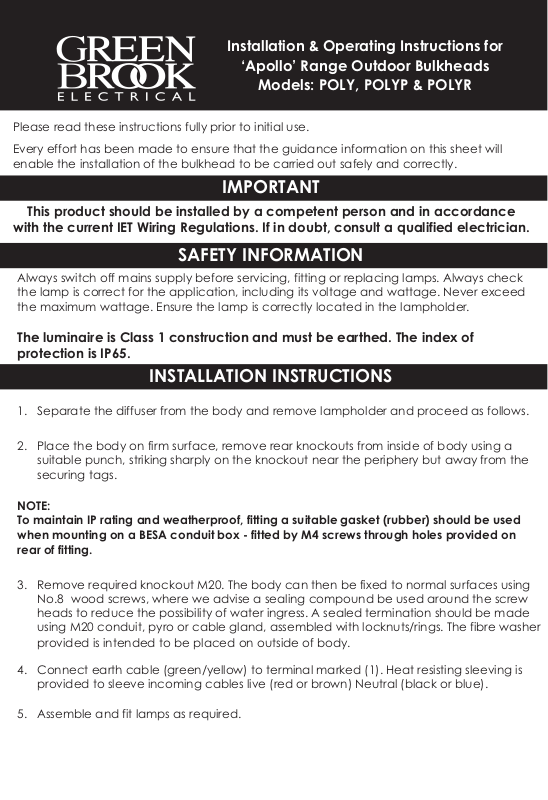

Installation & Operating Instructions for
‘Apollo’ Range Outdoor Bulkheads
Models: POLY, POLYP & POLYR
Please read these instructions fully prior to initial use.
Every effort has been made to ensure that the guidance information on this sheet will
enable the installation of the bulkhead to be carried out safely and correctly.
IMPORTANT
This product should be installed by a competent person and in accordance
with the current IET Wiring Regulations. If in doubt, consult a qualified electrician.
SAFETY INFORMATION
Always switch off mains supply before servicing, fitting or replacing lamps. Always check
the lamp is correct for the application, including its voltage and wattage. Never exceed
the maximum wattage. Ensure the lamp is correctly located in the lampholder.
The luminaire is Class 1 construction and must be earthed. The index of
protection is IP65.
INSTALLATION INSTRUCTIONS
1. Separate the diffuser from the body and remove lampholder and proceed as follows.
2. Place the body on firm surface, remove rear knockouts from inside of body using a
suitable punch, striking sharply on the knockout near the periphery but away from the
securing tags.
NOTE:
To maintain IP rating and weatherproof, fitting a suitable gasket (rubber) should be used
when mounting on a BESA conduit box - fitted by M4 screws through holes provided on
rear of fitting.
3. Remove required knockout M20. The body can then be fixed to normal surfaces using
No.8 wood screws, where we advise a sealing compound be used around the screw
heads to reduce the possibility of water ingress. A sealed termination should be made
using M20 conduit, pyro or cable gland, assembled with locknuts/rings. The fibre washer
provided is intended to be placed on outside of body.
4. Connect earth cable (green/yellow) to terminal marked (1). Heat resisting sleeving is
provided to sleeve incoming cables live (red or brown) Neutral (black or blue).
5. Assemble and fit lamps as required.
Page 2
NOTE:

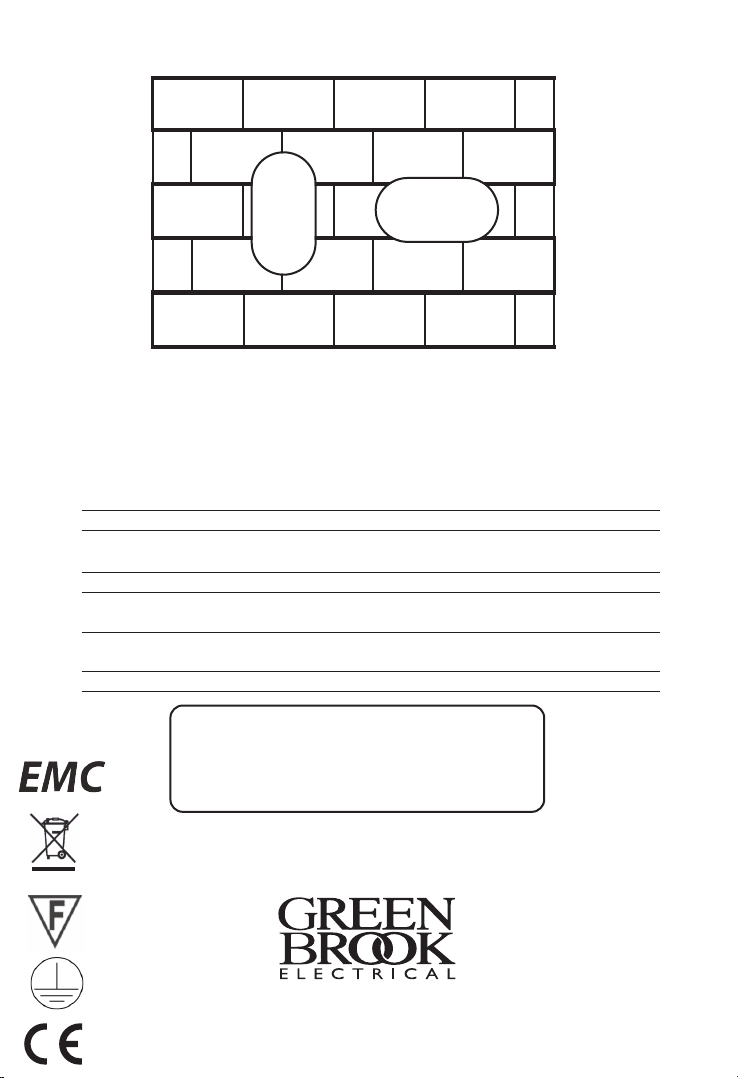

If installing fittings horizontally (wall mounting), then a 60 watt lamp only should be used.
100W
60W MAX
MAX
6. Do not over-tighten fixing screws. An effective weatherproof seal can be provided
with moderate tightening of screws.
NOTE: Ceiling mounting & vertical wall 100W Max
TECHNICAL INFORMATION
Power Rating: 230V AC～50Hz
IP Rating: IP65
Wattage: Max 100W B22 GLS (Lamp not supplied)
LED Lamp compatible
Class Type: 1
Housing: POLY / POLYR Clear Diffuser & Non-Corrosive Aluminium Body
POLYP Clear Diffuser & Black Polycarbonate Base
Dimensions: POLY / POLYR H130 x W240 x D100mm
POLYP H130 x W240 x D130mm
Conforms To: EN60598-2-1
GUARANTEE
Your GreenBrook IP65 Bulkhead
is guaranteed for 1 year from
the date of purchase.
This is in addition to your statutory rights.
.
PLEASE KEEP THESE INSTRUCTIONS SAFE FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
www.greenbrook.co.uk
Issue no: 705038
