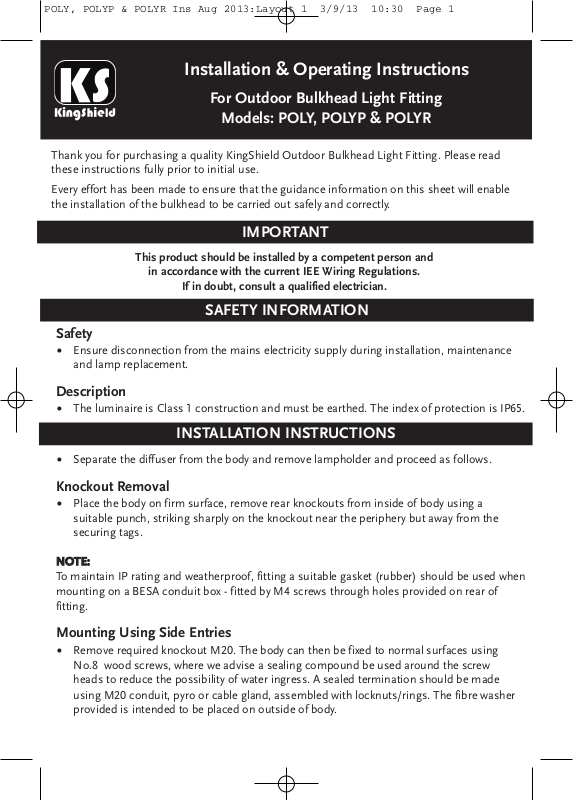

Installation & Operating Instructions
For Outdoor Bulkhead Light Fitting
Models: POLY, POLYP & POLYR
Thank you for purchasing a quality KingShield Outdoor Bulkhead Light Fitting. Please read
these instructions fully prior to initial use.
Every effort has been made to ensure that the guidance information on this sheet will enable
the installation of the bulkhead to be carried out safely and correctly.
IMPORTANT
This product should be installed by a competent person and
in accordance with the current IEE Wiring Regulations.
If in doubt, consult a qualified electrician.
SAFETY INFORMATION
Safety
• Ensure disconnection from the mains electricity supply during installation, maintenance
and lamp replacement.
Description
• The luminaire is Class 1 construction and must be earthed. The index of protection is IP65.
INSTALLATION INSTRUCTIONS
• Separate the diffuser from the body and remove lampholder and proceed as follows.
Knockout Removal
• Place the body on firm surface, remove rear knockouts from inside of body using a
suitable punch, striking sharply on the knockout near the periphery but away from the
securing tags.
NNOOTTEE::
To maintain IP rating and weatherproof, fitting a suitable gasket (rubber) should be used when
mounting on a BESA conduit box - fitted by M4 screws through holes provided on rear of
fitting.
Mounting Using Side Entries
• Remove required knockout M20. The body can then be fixed to normal surfaces using
No.8 wood screws, where we advise a sealing compound be used around the screw
heads to reduce the possibility of water ingress. A sealed termination should be made
using M20 conduit, pyro or cable gland, assembled with locknuts/rings. The fibre washer
provided is intended to be placed on outside of body.
Page 2
Supply Cable Terminations
• Connect earth cable (green/yellow) to terminal marked (1). Heat resisting sleeving is
provided to sleeve incoming cables live (red or brown) Neutral (black or blue).
Replace Lampholders/Gear Tray
• Assemble and fit lamps as required.
NOTE:

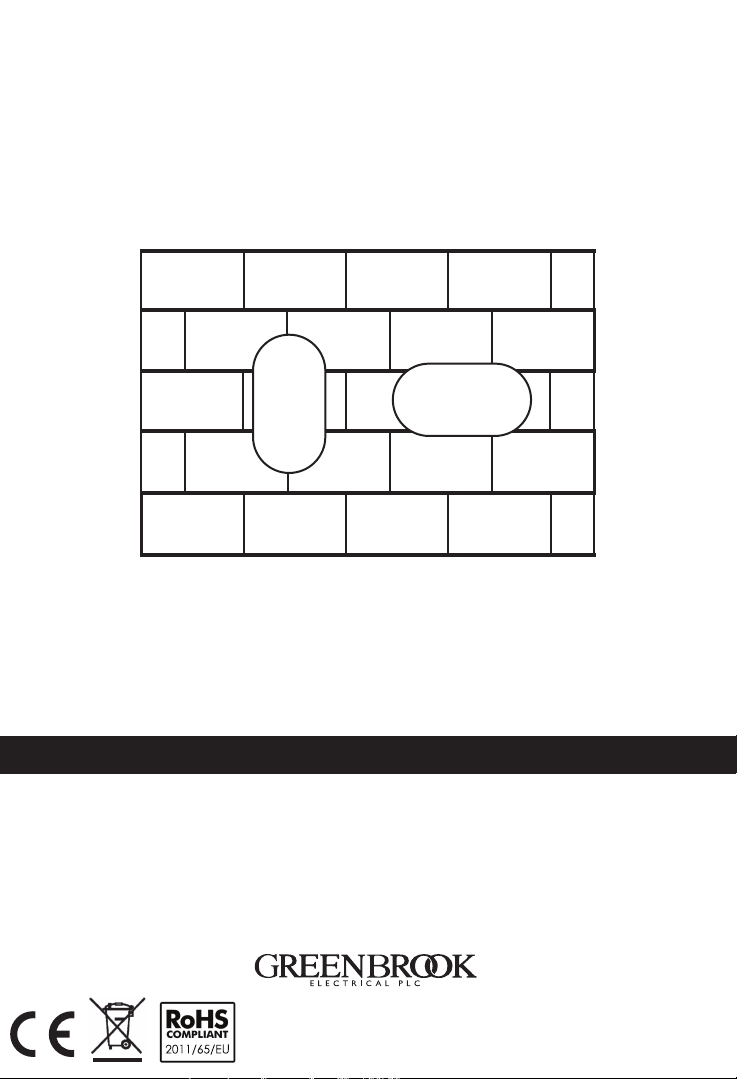

If installing fittings horizontally (wall mounting), then a 60 watt lamp only should be used.
100W
60W MAX
MAX
Fit Diffuser
• Do not over-tighten fixing screws. An effective weatherproof seal can be provided with
moderate tightening of screws.
Mounting Position
• NOTE: Ceiling mounting & vertical wall 100W Max.
GUARANTEE
Your KingShield Outdoor Bulkhead Light Fitting is guaranteed for 12 months
from the date of purchase. This is in addition to your statutory rights.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
Issue no: 703398
