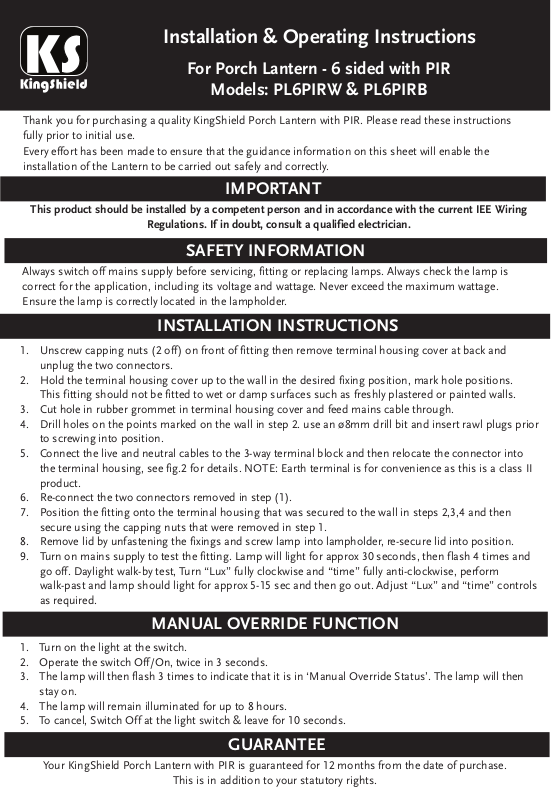

Page 1
Installation & Operating Instructions
For Porch Lantern - 6 sided with PIR
Models: PL6PIRW & PL6PIRB
Thank you for purchasing a quality KingShield Porch Lantern with PIR. Please read these instructions
fully prior to initial use.
Every effort has been made to ensure that the guidance information on this sheet will enable the
installation of the Lantern to be carried out safely and correctly.
IMPORTANT
This product should be installed by a competent person and in accordance with the current IEE Wiring
Regulations. If in doubt, consult a qualified electrician.
SAFETY INFORMATION
Always switch off mains supply before servicing, fitting or replacing lamps. Always check the lamp is
correct for the application, including its voltage and wattage. Never exceed the maximum wattage.
Ensure the lamp is correctly located in the lampholder.
INSTALLATION INSTRUCTIONS
1. Unscrew capping nuts (2 off ) on front of fitting then remove terminal housing cover at back and
unplug the two connectors.
2. Hold the terminal housing cover up to the wall in the desired fixing position, mark hole positions.
This fitting should not be fitted to wet or damp surfaces such as freshly plastered or painted walls.
3. Cut hole in rubber grommet in terminal housing cover and feed mains cable through.
4. Drill holes on the points marked on the wall in step 2. use an ø8mm drill bit and insert rawl plugs prior
to screwing into position.
5. Connect the live and neutral cables to the 3-way terminal block and then relocate the connector into
the terminal housing, see fig.2 for details. NOTE: Earth terminal is for convenience as this is a class II
product.
6. Re-connect the two connectors removed in step (1).
7. Position the fitting onto the terminal housing that was secured to the wall in steps 2,3,4 and then
secure using the capping nuts that were removed in step 1.
8. Remove lid by unfastening the fixings and screw lamp into lampholder, re-secure lid into position.
9. Turn on mains supply to test the fitting. Lamp will light for approx 30 seconds, then flash 4 times and
go off. Daylight walk-by test, Turn “Lux” fully clockwise and “time” fully anti-clockwise, perform
walk-past and lamp should light for approx 5-15 sec and then go out. Adjust “Lux” and “time” controls
as required.
MANUAL OVERRIDE FUNCTION
1. Turn on the light at the switch.
2. Operate the switch Off/On, twice in 3 seconds.
3. The lamp will then flash 3 times to indicate that it is in ‘Manual Override Status’. The lamp will then
stay on.
4. The lamp will remain illuminated for up to 8 hours.
5. To cancel, Switch Off at the light switch & leave for 10 seconds.
GUARANTEE
Your KingShield Porch Lantern with PIR is guaranteed for 12 months from the date of purchase.
This is in addition to your statutory rights.
Page 2
TECHNICAL INFORMATION
Supply: 240VAC, 50Hz
IP Rated: IP44
Time Delay: 5 sec to 6 min (+/- 2 min)
Ambient Light: <10 LUX ~ 2000 LUX
Detection Distance: Max 8m +/- 2m
Detection Range: 140°
Installation Height: 0.5 - 3.5m
Power Consumption: 0.45W (Static 0.1W)
Detection Motion Speed: 0.6 ~ 1.5m/s

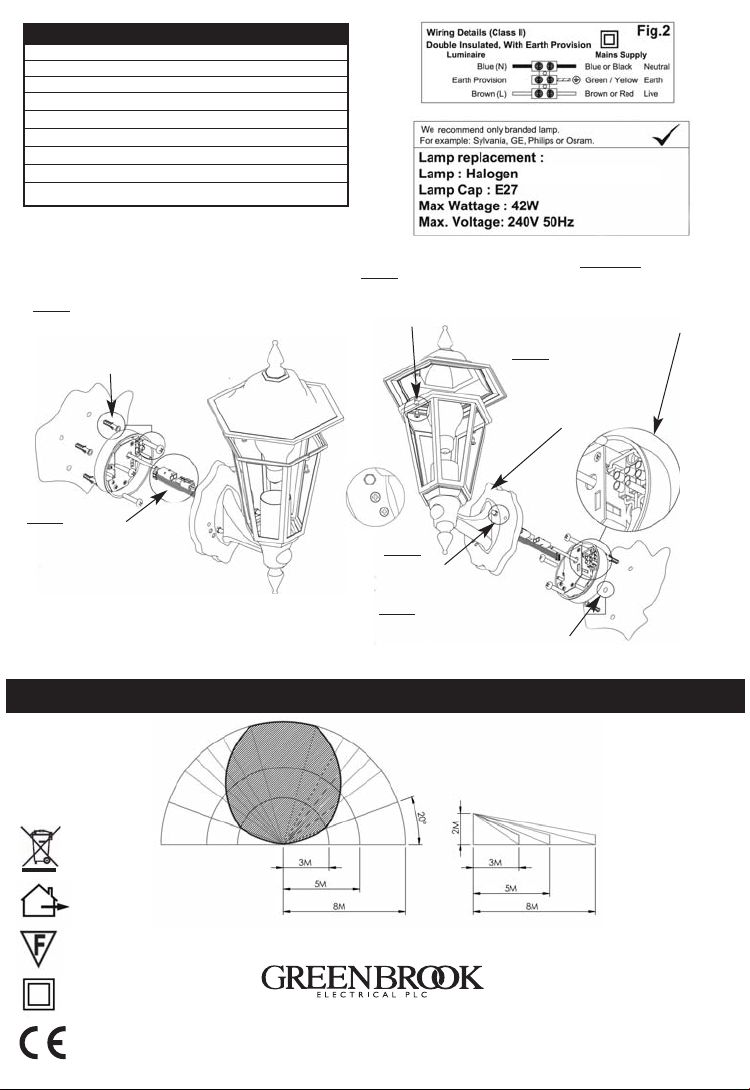

Step 4
Drill holes on the points
marked in step 2, insert
Rawl Plugs & screw into
position, typ. 3 pos’ns.
Step
6
Secure PIR Connectors.
Step 8
Unscrew lid fixing, remove lid,
screw lamp into position and
resecure lid.
Step
Locate main body
of the fitting to the
Terminal Housing
& resecure Capping
Nuts.
Step 1
Unscrew
Capping Nuts.
2
Step
Mark hole positions through
fixing holes in Terminal housing,
typ. 3 pos’ns.
42W or CFL 14W
ES
Step
Cut hole in Rubber
Grommet, feed mains
cable through & connect
to Terminal Block see
Fig.2 for details.
7
3 & 5
DETECTION RANGE FOR THE PIR SENSOR
PLEASE KEEP THESE INSTRUCTIONS SAFE FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sales@greenbrook . c o . u k
W W W. G R E E N B R O O K . C O . U K
Issue no: 703428
