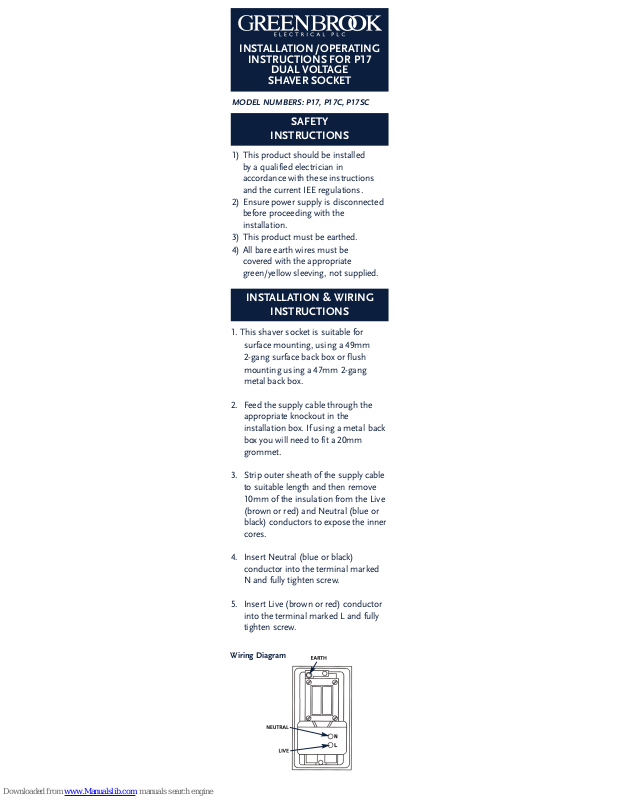

MODEL NUMBERS: P17, P17C, P17SC
INSTALLATION/OPERATING
I
NSTRUCTIONS FOR P17
DUAL VOLTAGE
SHAVER SOCKET
INSTALLATION & WIRING
INSTRUCTIONS
SAFETY
INSTRUCTIONS
1) This product should be installed
by a qualified electrician in
accordance with these instructions
and the current IEE regulations.
2) Ensure power supply is disconnected
before proceeding with the
installation.
3) This product must be earthed.
4) All bare earth wires must be
covered with the appropriate
green/yellow sleeving, not supplied.
1. This shaver socket is suitable for
surface mounting, using a 49mm
2-gang surface back box or flush
mounting using a 47mm 2-gang
metal back box.
2. Feed the supply cable through the
appropriate knockout in the
installation box. If using a metal back
box you will need to fit a 20mm
grommet.
3. Strip outer sheath of the supply cable
to suitable length and then remove
10mm of the insulation from the Live
(brown or red) and Neutral (blue or
black) conductors to expose the inner
cores.
4. Insert Neutral (blue or black)
conductor into the terminal marked
N and fully tighten screw.
5. Insert Live (brown or red) conductor
into the terminal marked L and fully
tighten screw.

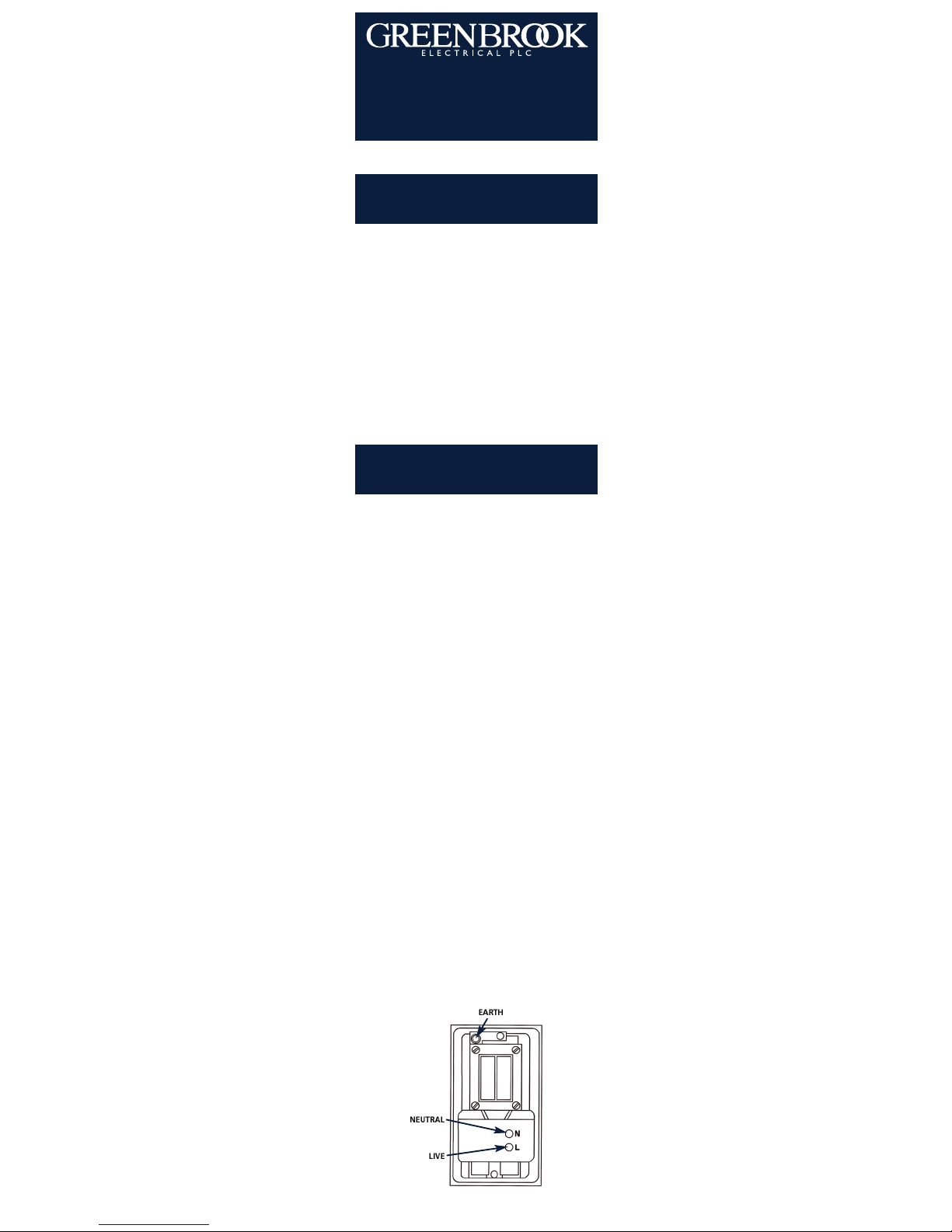

Wiring Diagram
Page 2
6
. Insert the earth conductor, ensuring it
has been sleeved with green/yellow
sleeving, into the terminal marked
7. Ensure that an additional earth cable
is connected between the shaver
supply unit earth terminal and the
earth terminal in back box.
8. Fit socket to back box with the two
f
ixing screws provided.
9. To complete the installation process,
simply re-connect the power supply
a
nd test unit is in working order.
Your shaver socket is now ready for use.
To select the voltage required simply
insert shaver plug into appropriate
socket. Either 115V/230V.
Always unplug appliance after use.
To protect the transformer, it is only
possible to insert one plug into either
the 115V or 230V socket at a time.
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
WWW. G RE E NBR O OK. C O. U K
Issue no:
701370
