GreenBrook LEDFLSPIR20B, LEDFLSPIR10B, LEDFLSPIR30B, LEDFLSPIR50B, LEDFLSPIR10W Installation Instructions
Page 1
Installation Instructions for:-
‘Lynx’ Range
ED Slimline PIR Floodlights
L
Part Nos: LEDFLSPIR10W, LEDFLSPIR10B, LEDFLSPIR20W,
LEDFLSPIR20B, LEDFLSPIR30W, LEDFLSPIR30B, LEDFLSPIR50B,
LEDFLSPIR100B
IMPORTANT INFORMATION
This product should be installed by a competent person
and in accordance with the IET Wiring Regulations.
If in doubt, consult a qualified electrician.
These instructions should be read carefully prior to any
installation and retained after completion for further
reference and maintenance. Please give these instructions
to the building owner/occupier after installation.
Always turn off the power source before commencing work
on this device

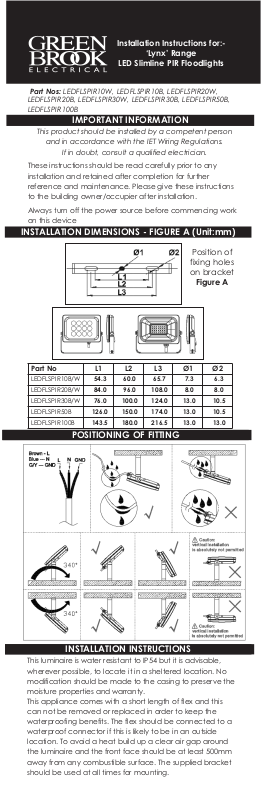

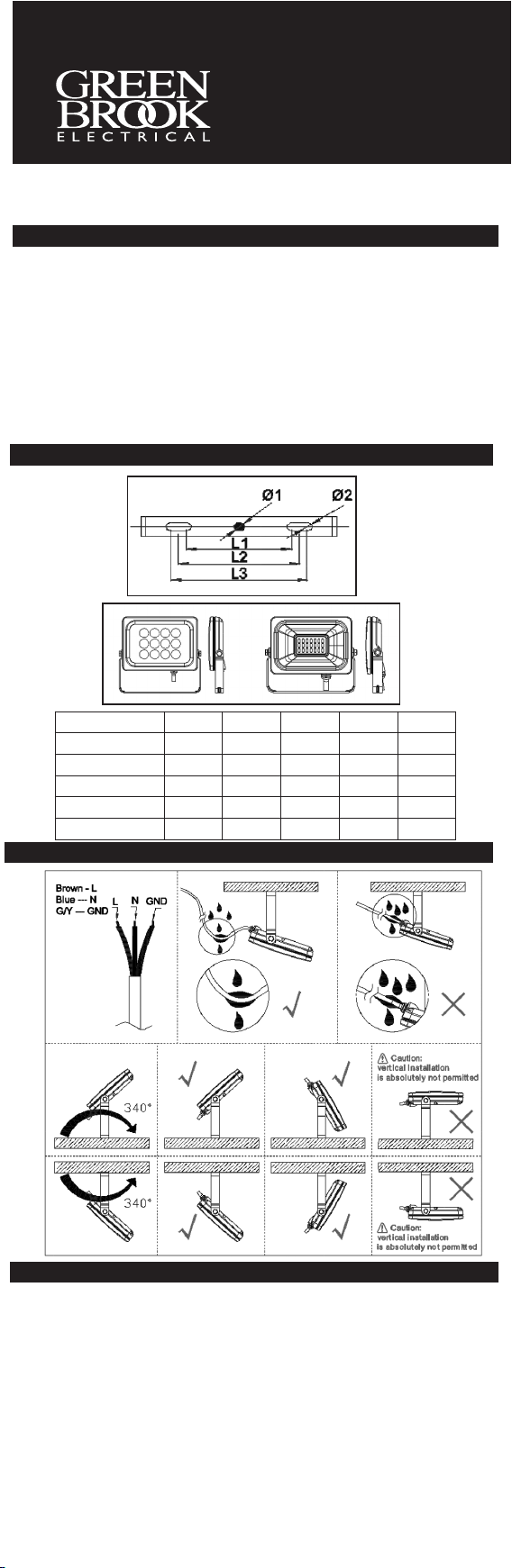

INSTALLATION DIMENSIONS - FIGURE A (Unit:mm)
Position of
fixing holes
on bracket
Figure A
Part No L1 L2 L3 Ø1 Ø2
EDFLSPIR10B/W54.3
L
LEDFLSPIR20B/W 84.0 96.0 108.0 8.0 8.0
LEDFLSPIR30B/W 76.0 100.0 124.0 13.0 10.5
LEDFLSPIR50B 126.0 150.0 174.0 13.0 10.5
LEDFLSPIR100B 143.5 180.0 216.5 13.0 13.0
0.0
6
5.7
6
.3
7
6
POSITIONING OF FITTING
.3
INSTALLATION INSTRUCTIONS
This luminaire is water resistant to IP54 but it is advisable,
wherever possible, to locate it in a sheltered location. No
modification should be made to the casing to preserve the
moisture properties and warranty.
This appliance comes with a short length of flex and this
can not be removed or replaced in order to keep the
waterproofing benefits. The flex should be connected to a
waterproof connector if this is likely to be in an outside
location. To avoid a heat build up a clear air gap around
the luminaire and the front face should be at least 500mm
away from any combustible surface. The supplied bracket
should be used at all times for mounting.
Page 2

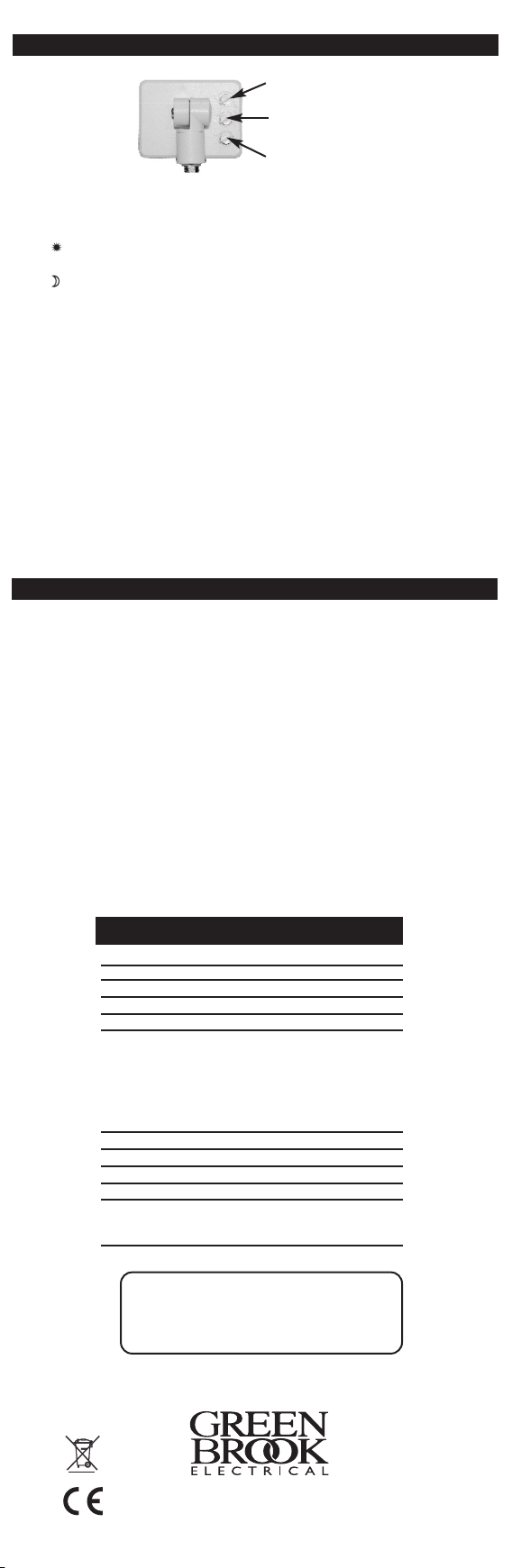

DIAL FUNCTION
Lux: Sets the light
ensitivity of the sensor
s
Time: Sets the
nterval time
i
Sens: Sets the
response level to movement
ADJUSTING THE LUX CONTROL LEVEL
The Lux control module has a built-in photocell that detects
daylight and darkness.
( ) position denotes that the lamp will be turned on by the
PIR during day and night.
( ) position denotes that the lamp will be turned on by PIR
only at night.
A Lux range of 5 - 2000 Lux can be selected. The desired
Lux level can be achieved by adjusting the Lux knob.
ADJUSTING THE DURATION TIME
The duration time is the length of time that the PIR Detector
switches the light ‘on’ after activation. The duration time
can be adjusted from approx 12 seconds up to 7 minutes.
Rotating the TIME knob from (+) to (-) will reduce the
duration time.
ADJUSTING SENSITIVITY
This control allows the user to adjust the level of movement
required, to trigger the device (+) will increase the
sensitivity of the unit. (-) will decrease the sensitivity of the
unit.
POSITIONING OF SENSOR
The motion sensor can be adjusted 340º from left to right
and adjustable through 180° up and down.
Pan +170,0,-170
Tilt +90,0, -90
MAINTENANCE:
Keep the glass front clean with a soft cloth. There are no
user serviceable parts contained within fitting. Any
disassembly or modification will invalidate the warranty.
DISPOSAL:
At the end of the product’s life this product must not be
disposed of in landfill.
Local recycling guidance should be sought for disposal.
There are no hazardous materials contained therein.
TECHNICAL INFORMATION
Rated Voltage: 100-240V AC～50Hz
Colour Temp: 6,000K
Class: I
IP Rating: IP54
Switching Cycles: 100,000
Total Lumens:
LEDFLSPIR10W/B 1,000 / 100 lm/W
LEDFLSPIR20W/B 2,000 / 100 lm/W
LEDFLSPIR30W/B 3,000 / 100 lm/W
LEDFLSPIR50W/B 5,250 / 105 lm/W
LEDFLSPIR100B 10,000 / 100 lm/W
Beam Angle: 120º
PIR Detection Distance: 2 - 8m
PIR Time Lag: 12s - 7m
Life Span: > 35,000 hours
Conforms to: EN60598, EN62031,
Your GreenBrook PIR LED Slimline Floodlight
is guaranteed for 3 years from
This is in addition to your statutory rights.
the date of purchase.
EN61500, EN61547
& EN55015
GUARANTEE
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
www.greenbrook.co.uk
Issue no: 704769
