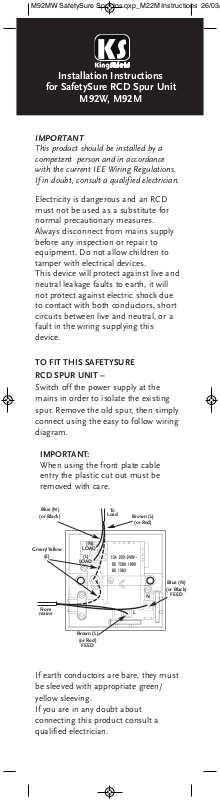

Page 1
Installation Instructions
or SafetySure RCD Spur Unit
f
M92W, M92M
IMPORTANT
This product should be installed by a
ompetent person and in accordance
c
with the current IEE Wiring Regulations.
If in doubt, consult a qualified electrician.
Electricity is dangerous and an RCD
must not be used as a substitute for
normal precautionary measures.
lways disconnect from mains supply
A
before any inspection or repair to
equipment. Do not allow children to
tamper with electrical devices.
This device will protect against live and
neutral leakage faults to earth, it will
not protect against electric shock due
to contact with both conductors, short
circuits between live and neutral, or a
fault in the wiring supplying this
device.

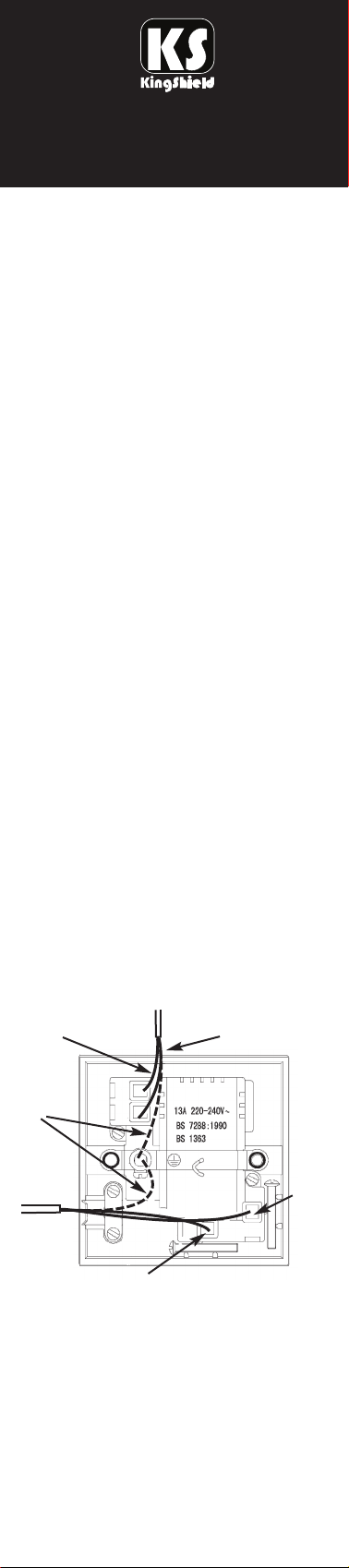

TO FIT THIS SAFETYSURE
RCD SPUR UNIT –
Switch off the power supply at the
mains in order to isolate the existing
spur. Remove the old spur, then simply
connect using the easy to follow wiring
diagram.
IMPORTANT:
When using the front plate cable
entry the plastic cut out must be
removed with care.
Blue (N)
(or Black)
Green/Yellow
(E)
From
mains
LOAD
(L)
LOAD
(N)
To
Load
Brown (L)
(or Red)
N
L
Blue (N)
(or Black)
FEED
Brown (L)
(or Red)
FEED
If earth conductors are bare, they must
be sleeved with appropriate green/
yellow sleeving.
If you are in any doubt about
connecting this product consult a
qualified electrician.
Page 2
Wiring insulation tests should be
completed before setting the SafetySure
RCD Spur to avoid misleading
instrument readings and possible
internal damage to the unit.
LEASE CARRY OUT THIS SIMPLE
P
TEST PROCEDURE PRIOR TO EACH
SE.
U
1. Press green(R) reset button.
2. Indicator window will turn red*.
3. Press white Test button (T).
4. Red window indicator will
isappear*. This means the RCD has
d
tripped successfully.
. To reset – press green (R) button.
5
* If indicator fails to work, do not use
and return to place of
purchase.
NOTE 1:
If the red window indicator disappears
once the spur has been reset, this may
mean that the appliance or the cable
lead is faulty, and should be checked by
a qualified electrician.
NOTE 2:
Remove this RCD from circuit before
performing any high voltage insulation
tests.
TECHNICAL DATA
Rated voltage: 230V AC 50Hz
Maximum operating current: 13A (3A inductive)
Rated trip current: 30mA
Trip speed: 30mS Typical
RCD contact break: Double pole
Test/Reset buttons: Responsive to both
Dimensions: 86.5mm x 86.5mm
Conforms to BS7288:1990 & BS1363
positive and
negative cycles
x 48mm
GUARANTEE
Your KingShield RCD Spur Unit
is guaranteed for 12 months from the
date of purchase.
This does not affect your statutory
rights.
Please keep these instructions for future
reference.
INSTALLER - Please pass instruction manual
onto the owner of the unit
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
sale s@gre enbro ok.co .uk
W WW. G RE E NB RO OK .C O. UK
Issue no: 703738
