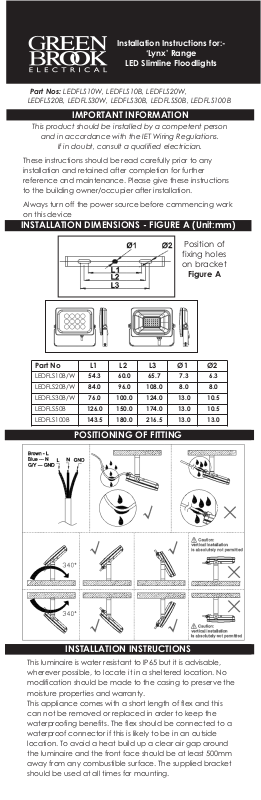

GreenBrook LEDFLS30B, LEDFLS50B, LEDFLS10B, LEDFLS20B, LEDFLS100B Installation Instructions
Page 1
Installation Instructions for:-
‘Lynx’ Range
ED Slimline Floodlights
L
Part Nos: LEDFLS10W, LEDFLS10B, LEDFLS20W,
LEDFLS20B, LEDFLS30W, LEDFLS30B, LEDFLS50B, LEDFLS100B
MPORTANT INFORMATION
I
This product should be installed by a competent person
and in accordance with the IET Wiring Regulations.
If in doubt, consult a qualified electrician.
These instructions should be read carefully prior to any
installation and retained after completion for further
reference and maintenance. Please give these instructions
to the building owner/occupier after installation.
Always turn off the power source before commencing work
on this device

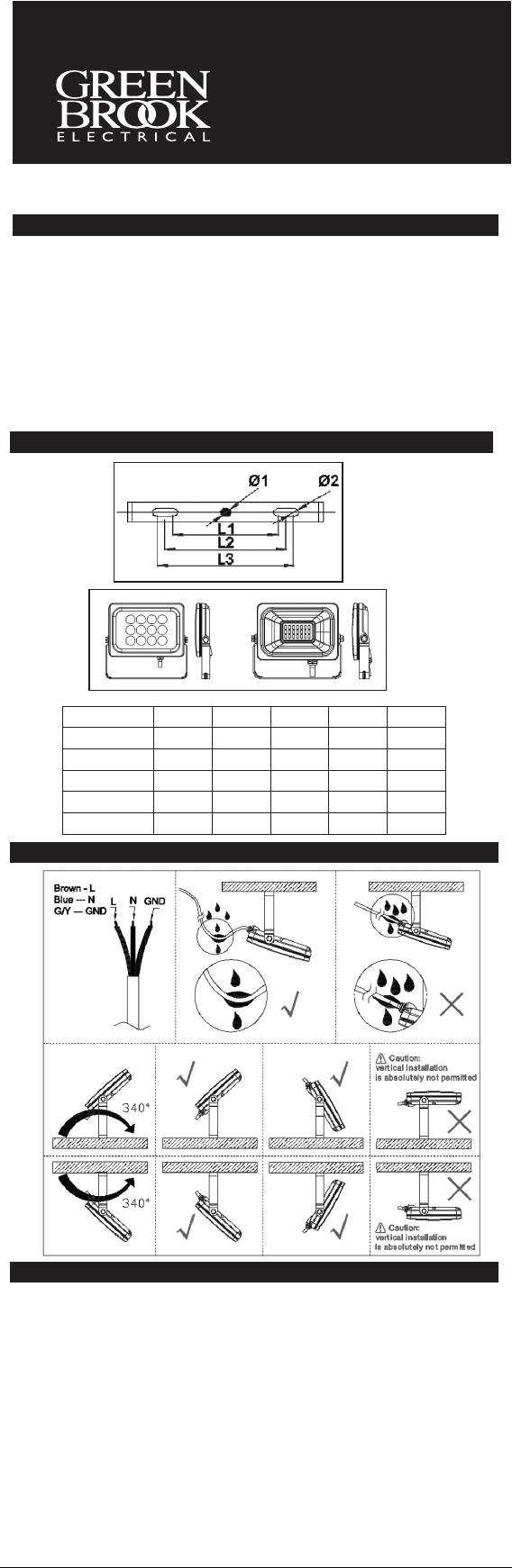

INSTALLATION DIMENSIONS - FIGURE A (Unit:mm)
Position of
fixing holes
on bracket
Figure A
Part No L1 L2 L3 Ø1 Ø2
LEDFLS10B/W 54.3 60.0 65.7 7.3 6.3
LEDFLS20B/W 84.0 96.0 108.0 8.0 8.0
LEDFLS30B/W 76.0 100.0 124.0 13.0 10.5
LEDFLS50B 126.0 150.0 174.0 13.0 10.5
LEDFLS100B 143.5 180.0 216.5 13.0 13.0
POSITIONING OF FITTING
INSTALLATION INSTRUCTIONS
This luminaire is water resistant to IP65 but it is advisable,
wherever possible, to locate it in a sheltered location. No
modification should be made to the casing to preserve the
moisture properties and warranty.
This appliance comes with a short length of flex and this
can not be removed or replaced in order to keep the
waterproofing benefits. The flex should be connected to a
waterproof connector if this is likely to be in an outside
location. To avoid a heat build up a clear air gap around
the luminaire and the front face should be at least 500mm
away from any combustible surface. The supplied bracket
should be used at all times for mounting.
Page 2
AINTENANCE:
M
Keep the glass front clean with a soft cloth. There are no
user serviceable parts contained within fitting. Any
disassembly or modification will invalidate the warranty.
DISPOSAL:
At the end of the product’s life this product must not be
disposed of in landfill.
Local recycling guidance should be sought for disposal.
There are no hazardous materials contained therein.
TECHNICAL INFORMATION
Rated Voltage: 100-240V AC～50Hz
Colour Temp: 6,000K
Class: I
IP Rating: IP65
Beam Angle: 120°
Switching Cycles: 100,000
Total Lumens:
LEDFLS10W/B 1,000 / 100 lm/W
LEDFLS20W/B 2,000 / 100 lm/W
LEDFLS30W/B 3,000 / 100 lm/W
LEDFLS50W/B 5,250 / 105 lm/W
LEDFLS100B 10,000 / 100 lm/W
Life Span: > 35,000 hours
Conforms to: EN60598, EN62031,
Your GreenBrook LED Slimline Floodlight
is guaranteed for 3 years from
This is in addition to your statutory rights.
the date of purchase.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
EN61500, EN61547
& EN55015
GUARANTEE
Issue no: 704770
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
www.greenbrook.co.uk
