Gree GJC07AB-K3MNB8A, GJH07AB-K3MNB8A, GJC07AB-K3RNB9A, GJH07AB-K3RNB9A, GJC09AB-K3MNB8A OPERATING INSTRUCTIONS

Room Air Conditioner

OPERATING INSTRUCTIONS

GJC07AB-K3MNB8A
GJH07AB-K3MNB8A
GJC07AB-K3RNB9A
GJH07AB-K3RNB9A

GJC09AB-K3MNB8A
GJH09AB-K3MNB8A
GJC09AB-K3RNB9A

GJH09AB-K3RNB9A
GJC18AC-K3RNB9B

GJH18AC-K3RNB9B
GJH24AC-K3RNB9A

GJC12AD-K3MNB8A
GJH12AD-K3MNB8A
GJC12AD-K3RNB9A

GJH12AD-K3RNB9A
GJC18AC-K3MNB8A
GJH18AC-K3MNB8A
GJC18AC-K3RNB9A

GJH18AC-K3RNB9A
GJC24AC-K3MNB8A
GJH24AC-K3MNB8A

GJC24AC-K3RNB9A

Please read this operating instructions thoroughly before

using your air conditioner and keep it for future reference.

NOTE:The concrete external appearance depends on the product.

66161256

CONTENTS

Thank you for choosing GREE air conditioner. Our design is based on the best efficiency and the lowest

noise operation and it can keep the room comfortable. Please read this operating manual carefully before
operating the unit and keep it for consultation.

Structure mechanism and Installation

Function

Operating condition

power requirement
Installation

Notes for installation

Operation procedure

Part identification 6
Air direction adjustment 6
Main switch operation procedure 7

Operation of wireless remote control 8
Operation tips 14

Care and maintenance

1

2
2
3
5

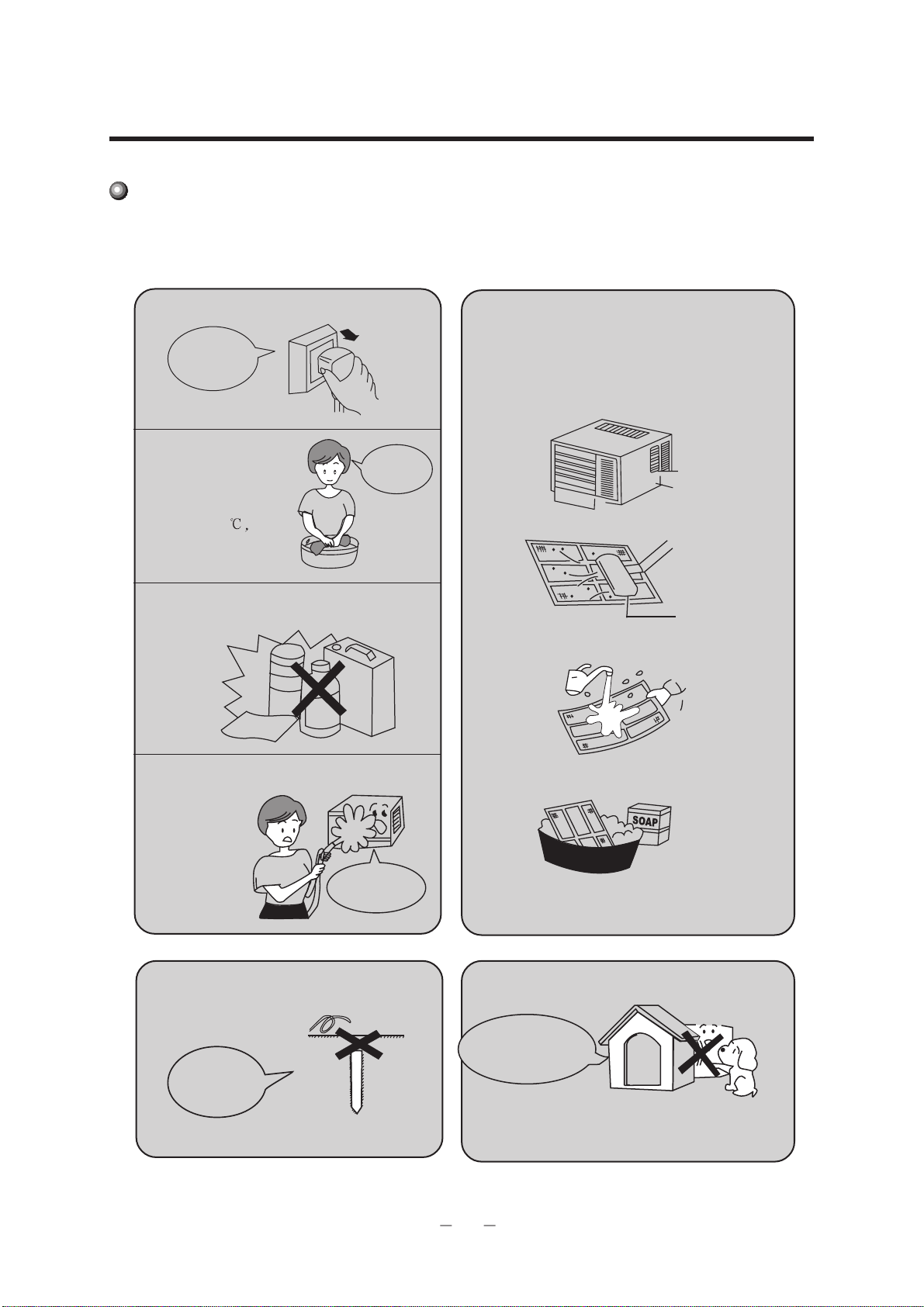

Caution 15

Care and maintenance 16

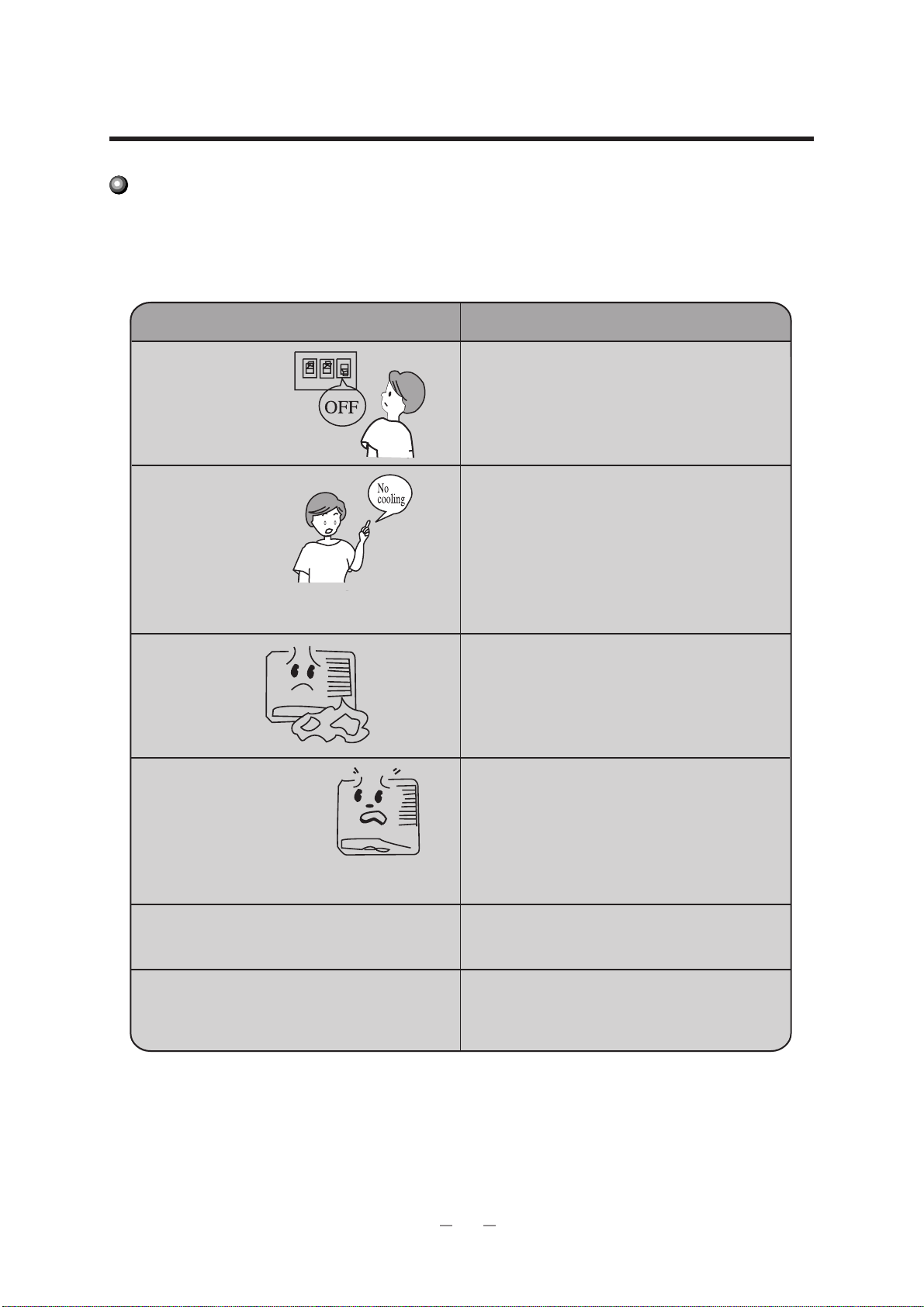

Trouble shooting guide 17
After service 18

Please read this operating manual care­fully before operating the unit.

The figures in this manual may be different with the material objects,
please refer to the material objects for reference.

Function

Introduction

Room
temp.

Spring

Summer

Autumn

Winter

Wind
direction

Cooling in summer

In hot summer, Air conditioner can cool down
the room air by transferring heat out.

Window type room air conditioners of GREE can regulate the room
temperature and dry the room. It is convenient for your work,study
and life. It can be widely used in residence, shop, hotel, office, library
and laboratory, and so on.

Dehumidifying in rainy or
humid season

Without reducing the room temp., air conditioner
can dehumidify and make the room air dry and
comfortable.

Dry

Heating in winter

(Only for heat unit)

In cold winter, Air conditioner can heat up room air.

Exchange fresh air

Open storm door to keep the fresh air in the room.

Fresh Air

1

Operating Condition

Please operate air conditioner in the correct conditions as following.

COOL mode operation

Outdoor temperature should be in range of 18
to 43 , otherwise it is possible for air conditioner
to breakdown.
Room humidity should be lower than 90%.
Otherwise, it is possible for air conditioner to dew
at air conditioner surface and even drop water af­ter running for so much time. But this is normal.

Power requirement

DRY mode operation

Outdoor temperature should be in range of 18 to 43 ,
otherwise it is possible for air conditioner to breakdown.

Rated voltage and voltage range:

The electric components will be damaged when the voltage is too high.

If the voltage is too low, the compressor will vibrate violently to dam­age the refrigerant system and easily cause the compressor and elec­tric components not work.

The ground must be connected.
Special socket must be used. Furthermore, the socket and wiring
must conform to the wiring regulations. And the earthing method
must be reliable.
In fixed circuit, there must be electricity leakage protection switch
of enough power capacity and air switch with enough space.

230V 10%

Earth wire To ensure the reliable earthing, please do not connect earth wire to the following places:

Water pipe

2

Installation

Installation precaution:

Window type conditioner is so valuable and the improper installa­tion of it will cause a lot of damage! Please associate the profes­sional technician to install the unit and don’t install it by yourself.
Otherwise, we are not responsible for the damage like this.

Location:

The condensation water must be drained away conveniently.

Install air conditioner unit far away from TV set or radio
etc. to avoid disturbing video or voice.

In salt and coastal area or place where is near thermal springs
and polluted by sulphurous gas, or other special areas, please
contact the seller before use.

Avoid a place where is possible for inflammable gas to leak out.

How to install:

Choose a location where there are no any obstacle surrounding

the unit, and the plug is accessible.
Prepare the installation hole slightly bigger than unit size.
Choose the installation space according to the following diagram.

Avoid other heat sources or direct sun light.
Avoid a place where is easy for children to touch.

Don't use the unit in the immediate surrondings of

a laundry,a bath,a shower or a swimming pool.

For window type air conditioner with remote

control, install in a location where is strong elec­tromagnetic disturbance, you should contact the

seller in advance to avoid the malfunction in use.

The distance of obstructions from window unit
inside should be upper 300mm, lower 1500mm,

left 500mm,right 500mm, front1500mm.

3

Installation procedure:

1) Remove the sticker from the front panel.

2) Put the unit into the installation hole.
When installing the unit, it should be slanted
down to the back to avoid the enlargement of
noise or vibration. (Slant between 6-10mm.)
(Shown at right figure.)
The installation place should be strong enough
to avoid the enlargement of noise or vibration.

3) Fill up sews in the cabinet with sponge or foam.

Installation assistance:

Horizontal line

Wall

Sunshade board

Wooden frame

Use iron support
The installation hole should be strong enough to
support the air conditioner. If it cannot, iron sup­port has to be used outdoors.
Iron support should be fixed on the building (Shown
at right figure.)
Use sunshade board
Air conditioner should avoid anything to be dropped
into it and avoid direct sunshine. If there is no cover
on it, you should contact the seller for installing
the sunshade board. When installing the sunshade
board, don’t let it block the air inlet at the side grille.

Rubber plate

Support

Horizontal line

Drain water:

To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water on the
condenser coil.

To the cooling only unit,If the splashing sound annoys you, you can provide an outside drain by using the follo

-wing procedure, whichmay however cause a small loss of performance.

1. Slide out the chassis from the cabinet.

2. Remove the rubber plug from the body base plate.

3. Install the drain pan to the corner of the cabinet with 2 screws.

4. Connect the drain hose to the outlet on the drain pan bottom.

5. Slide the chassis into its original place in the cabinet.

4

Note:

Drain pan and drain hose must be installed before using reverse cycle models.

Drain hose or tubing can be purchased locally to satisfy your particular needs.

Notes for installation

Remove

Before removing air conditioner to the other place, you should
contact the seller firstly.
Then it must be done under the direction of the professional
technician. In addition, the charge of this must be paid.

Noise

Install in a location where is firm enough to avoid the enlargement of noise
and vibration.
Don’t put anything in front of the outlet of outdoor unit to avoid increasing
noise.
Be sure that hot air or noise will not inconvenience neighbors.
Please contact the seller as soon as there is strange noise during operation.
Please use the safety support.

Electric wiring

Must connect with ground reliably.

The exclusive circuit must be used. But removable socket can’t be used because poor

contact of it can cause over heat or fire.

Don’t pull the power cord strongly.

In fixed circuit, there must be electricity leakage protection switch and leakage current
is less than 30mA.

Connecting method between air conditioners and power cord and interconnecting method

of each individual element with one another should accord with wiring diagram on the unit.

The air conditioner should be installed in accordance with national wiring regulation.

An all-pole disconnection switch having a contact separation of at least 3mm in all poles
should be connected in fixed wiring

Air switch (thermal-magnetic breaker) should be installed in the circuit.

If the supply cord is damaged,it must be replaced by the manufacturer or your dealer

or a qualified person to avoid a hazard.
All The dectrical work must be done according to the local wiring regulations.

GJH18AC-K3RNB9A, GJC18AC-K3RNB9A can be connected only to a supply with system impedance no
more than 0.225 ohm. In case necessary, please consult your supply authority for system impedance information.

GJH18AC-K3RNB9B, GJC18AC-K3RNB9B can be connected only to a supply with system impedance no
more than 0.243 ohm. In case necessary, please consult your supply authority for system impedance information.

5

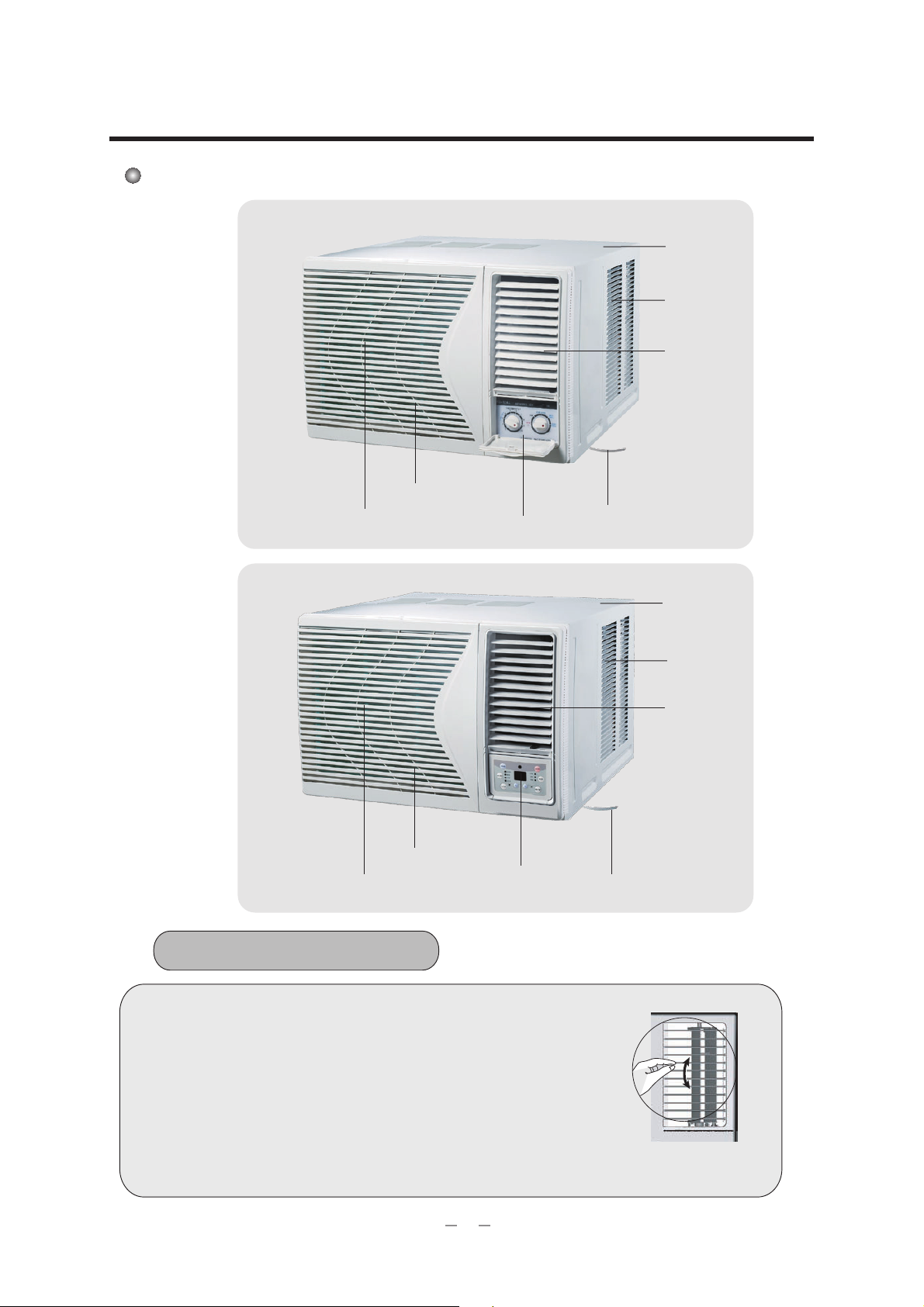

PART IDENTIFICATION

Panel outlook picture,just for reference,please take the real until as standard.

Cabinet

Air inlet louv

Front grille

Front intake grille)

Air filter

(behind the front intake grille)

Panel outlook picture,just for reference,please take the real until as standard.

Control panel

Power cord

Cabinet

Air inlet louver

Front grille

er

Front intake grille)

Air filter

(behind the front intake grille)

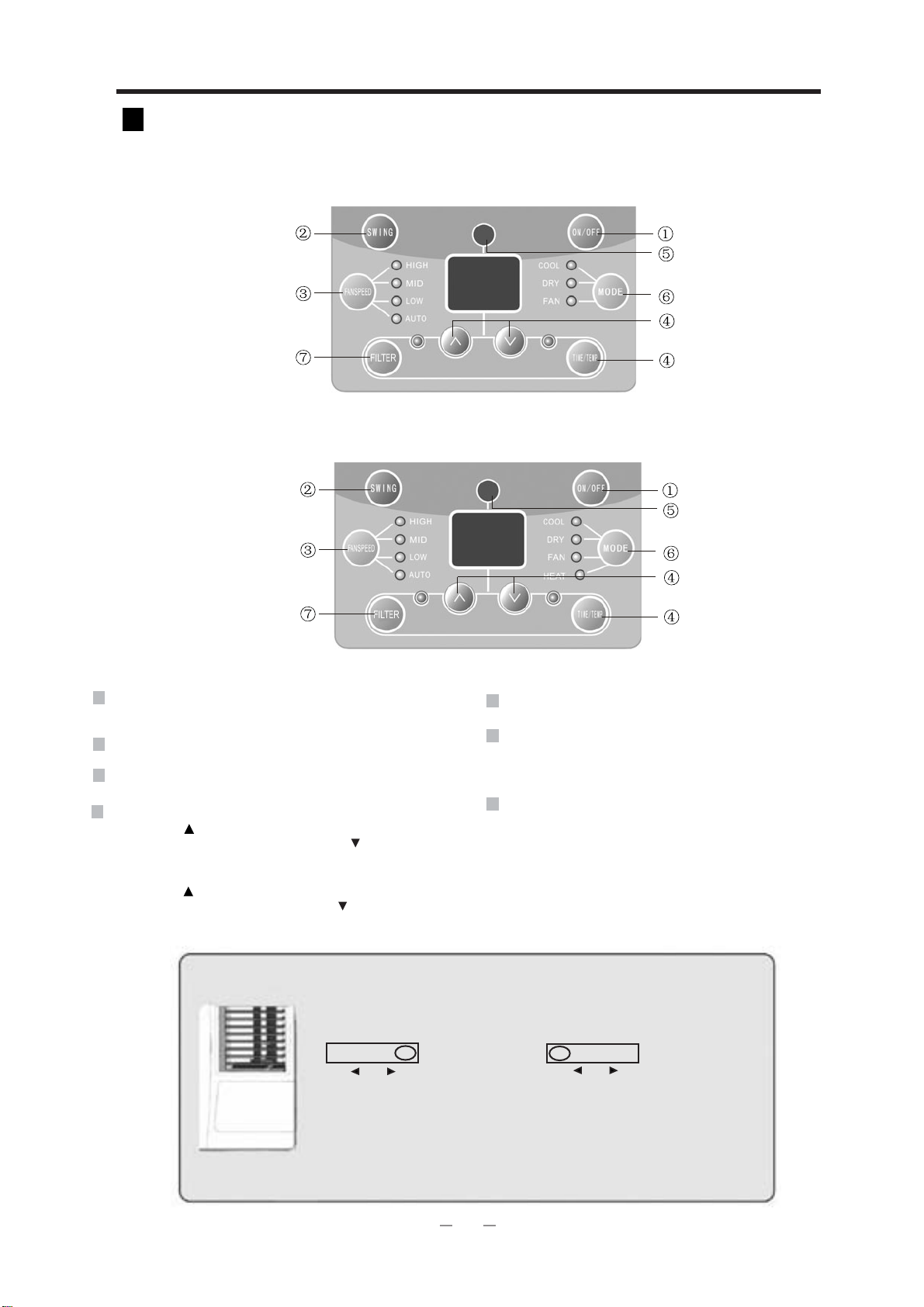

Remote control panel

Air direction adjustment

Vertical airflow direction vane

(Airflow direction adjustment up and down).

The vertical airflow direction vane is controlled by

positioning the vane to discharge the air upwards,
downwards or straight out.

6

Power cord

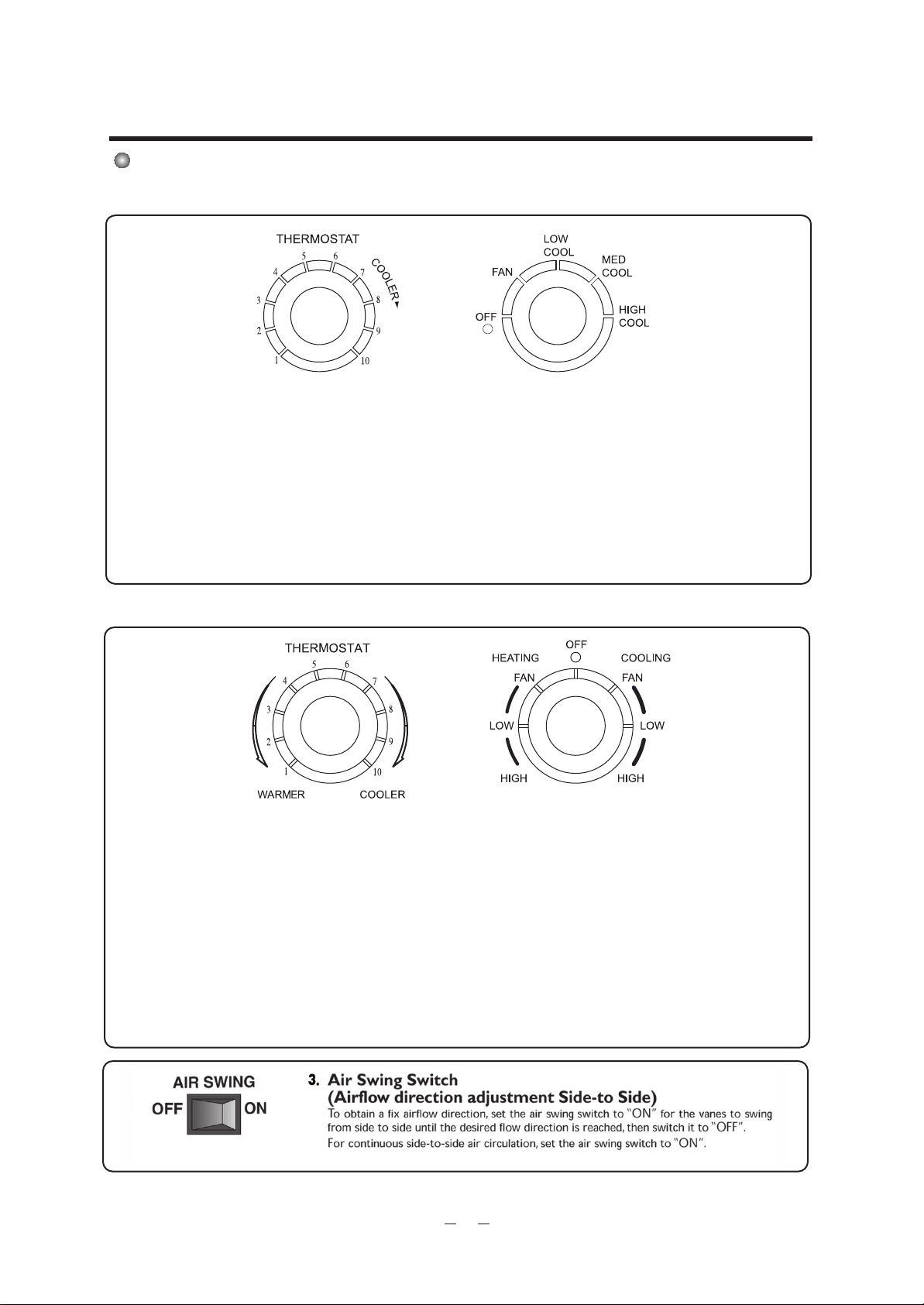

Main switch operation procedure

1.Only Cooling

1.Main Control Knob
Set to Low Cool,Med Cool or High Cool as desired(FAN setting operates the fan only.)

CAUTION:If the main control
WAIT at teast 3minutes before resetting to cooling operation.

2.Thermostat control Knob
Set the thermostat control knob to your desired setting(Usually 6-7 is recommended),If the room temperature is

not as desired after a reasonable period,turn the thermostat.When the thermostat control know is set to 10moisture

may free
evaporator fins so that mormal cooling can be resumed.

ze onto evaporator fins and the thermostat control knob counter clockwise,This will quickly defrost the

2.Cooling and Heating

knob is turned off of changed to a fan setting from a cooling operation setting.

1.Main Control Knob
Set either Low Cooling or High Cooling and Low Heating or High Heating as desired.

(FAN setting operates the fan only.)

CAUTION:If the main control

WAIT at teast 3minutes before resetting to cooling operation.

2.Thermostat control K nob
Set the thermostat control knob to your desired setting(Usually 4-5 is recommended setting for setting for heating

and 6-7 for cooling),If the room temperature is not as desired after a reasonable period,turn the thermostat.When

the thermostat control know is set to 10moisture may freeze onto evaporator fins and the thermostat control knob
counter clockwise,This will quickly defrost the evaporator fins so that mormal cooling can be resumed.

knob is turned off of changed to a fan setting from a cooling operation setting.

7

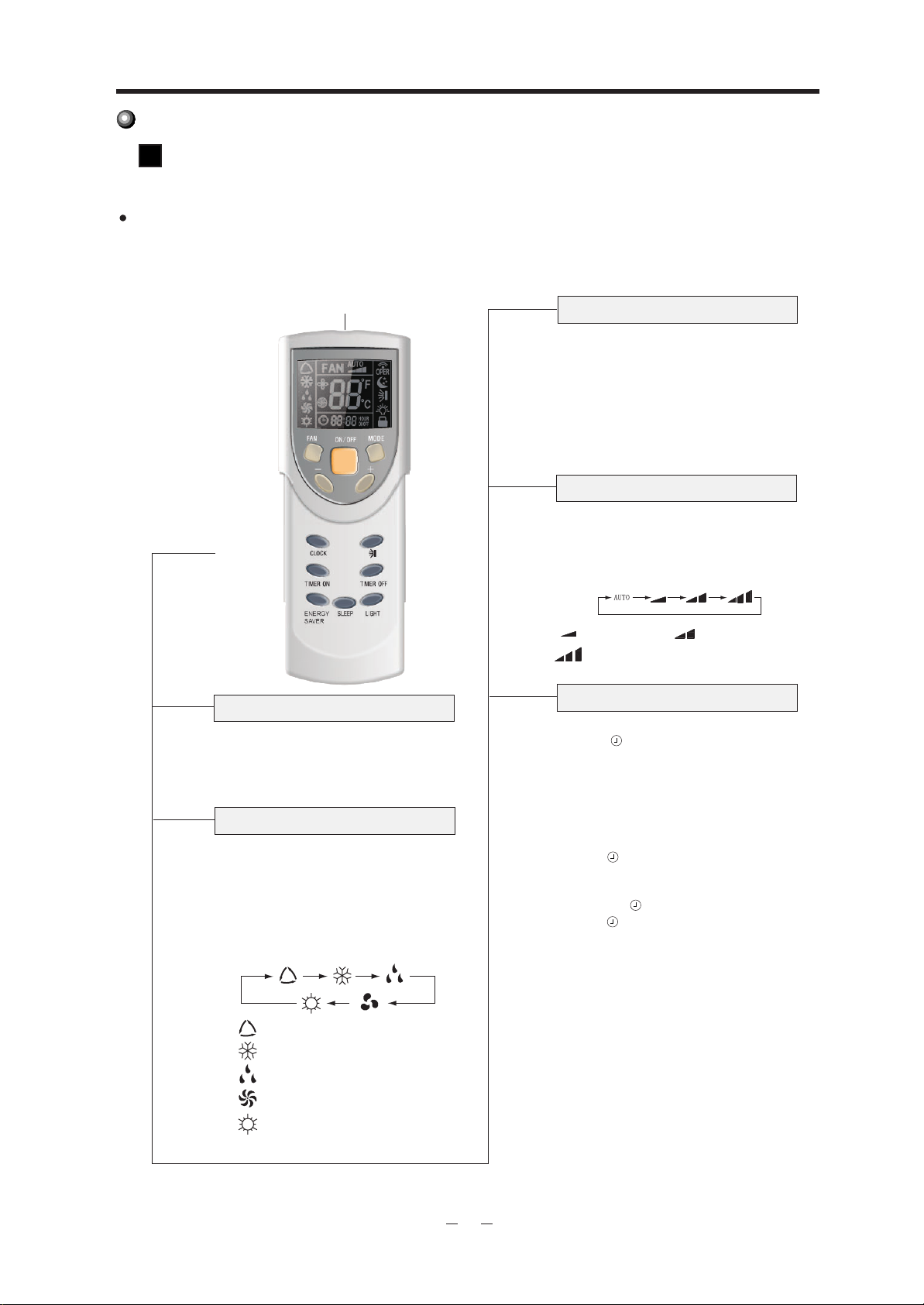

ON/OFF button

ON/OFF

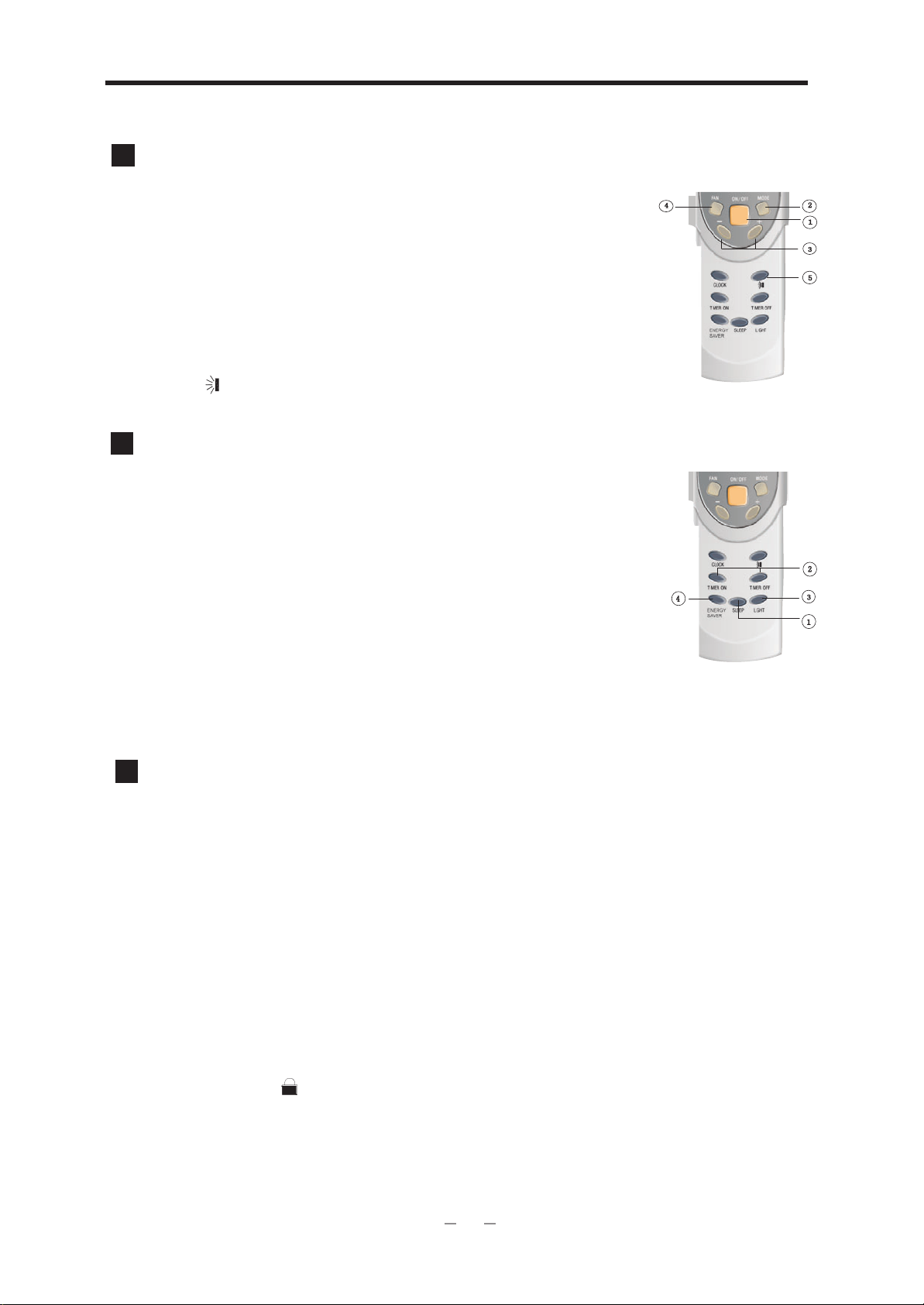

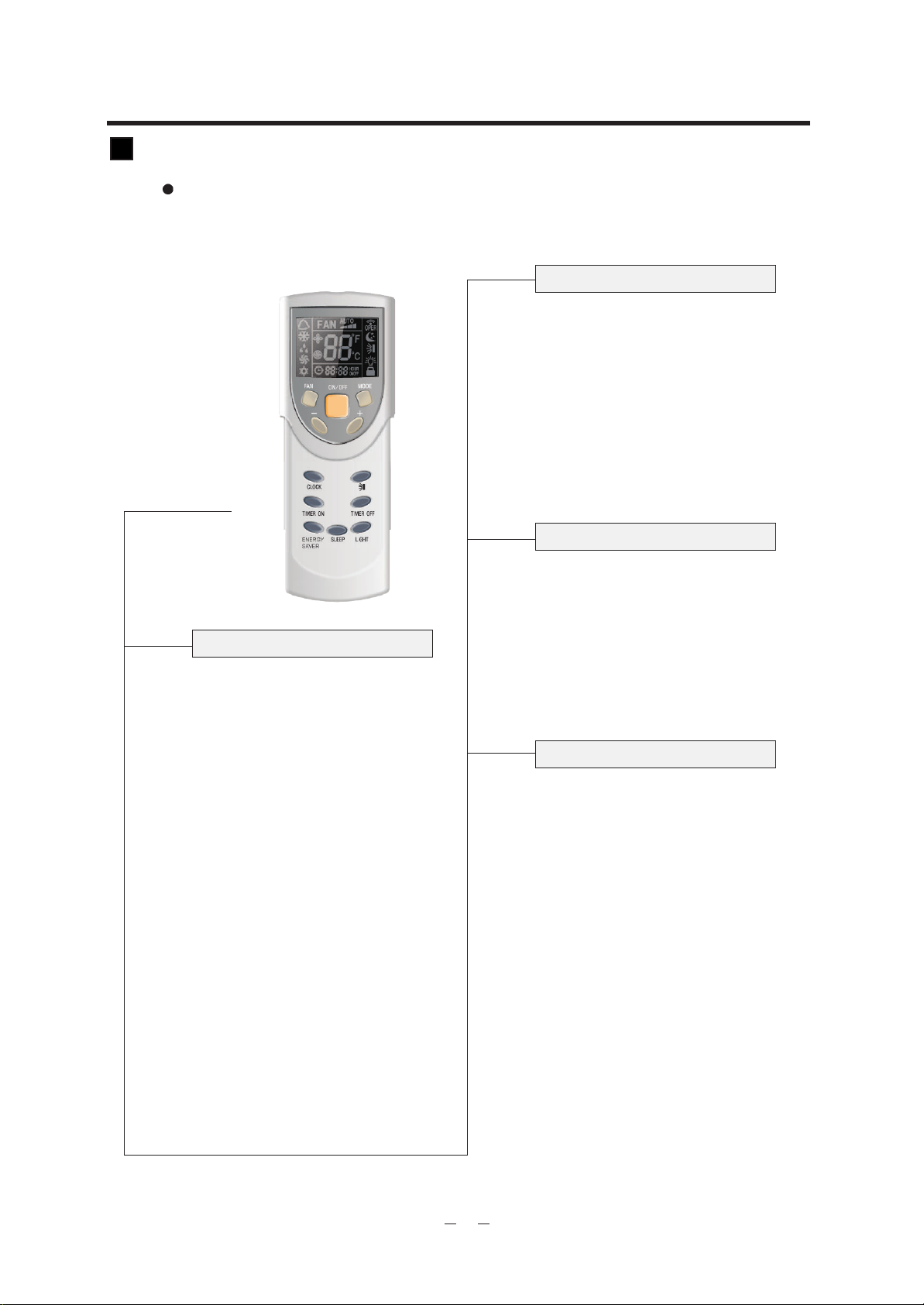

Remote control

Signal transmitter

AUTO
COOL
DRY

FAN

Middle fan

●

Press this button, Auto, Cool,Dry, Fan,
Heat mode can be selected circularly.

MODE button

MODE

Auto mode is default while power on.
Under Auto mode,the temperature will not
be displayed; Under Heat mode, the

●

Press this button, Sleep On and Sleep
Off can be selected. After powered on,Sleep

SLEEP button

SLEEP

Off is defaulted. After the unit is turned
off, the Sleep function is canceled. After
Sleep function set up, the signal of Sleep
will display. In this mode, the time of timer
can be adjusted. Under Fan and Auto
modes, this function is not available.

●

Press this button, Auto, Low, Middle, High

speed can be circularly selected. After

FAN button

FAN

powered on,Auto fan speed is default.

Under

mode, Low fan speed only

can be set up.

Low fan

High fan

●

Press this button, the clock can be set up,

signal blink and display.Within 5

CLOCK button

CLOCK

seconds, the value can be adjusted by
pressing + or - button, if continuously
press this button for 2 seconds above,
in every 0.5 seconds, the value on ten place
of Minute will be increased 1. During blinking,
repress the Clock button or Confirm button,
signal will be constantly displayed and
it denotes the setting succeeded. After
powered on, 12:00 is defaulted to display
and signal will be displayed. If there is

current time value is Clock value, otherwise
is Timer value.

signal be displayed that denotes the

●

Press this button, the unit will be turned
on, press it once more, the unit will be

turned off. Sleep function will be canceled,

while unit off.

(only for cooling and heating unit)

HEAT

initial value is 28℃

;Under other

modes,

the initial value is 25℃ .

(

o

F)

82

(

o

F)

77

Operation of wireless remote control

Name and function of wireless remote control

Note:

Besure that there are no obstructions between receiver and remote controller; Don't

drop or throw the remote control; Don't let any liquid in the remote control and

put the remote control directly under the sunlight or any place where is very hot.

DRY

8

Name and function of wireless remote control

ENERGY
SAVER

Note:

units, some buttons of this control which are not available to this unit will
not be described below.

Remote control

This wireless remote control is universal, and it could be used for many

ENERGY SAVER button

●

Under the Cool and Dry mode, press this
button once, the unit will enter "energy

saver" mode.Repress this button ,the
unit will exit "energy saver" mode.

+

-

LIGHT

+ button

●

Presetting temperature can be increased.

Press this button, the temperature can be
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃

o

F) signal will be displayed all the time.

(

The temperature adjustment is unava­ilable under the Auto mode, but the order
can be sent if pressing this button.
Temperature of Celsius degree setting:
16-30 ; for Fahrenheit degree setting:
61-86.

- button

●

Presetting temperature can be decreased.

Press this button, the temperature can be

set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold

this button and send the order that the ℃

o

F) signal will be displayed all the time.

(

The temperature adjustment is unav­ailable under the Auto mode, but the order
can be sent by if pressing this button.

LIGHT button

●

Press this button at unit On or Off status,

Light On and Light Off can be set up.

After powered on, Light On is defaulted.

9

Name and function of wireless remote control

actual time.

Note:
This wireless remote control is universal, and it could be used for many units, some

buttons of this control which are not available to this unit will not be described below.

Remote control

SWING BUTTON

●

When it is pressed,the louvers start to
rotate automatically and stop when

repressed.

TIMER ON

TIMER OFF

TIMER ON BUTTON

●

At unit off, press Timer On button,
"HOUR ON" will blink and display,signal

will be concealed, in the timer on
setting.During 5 seconds blinking,the value
can be adjusted by pressing + or - button,
every press of this button, 0.5hour will
be increased or decreased, but contin­uously press the + or - button, 2 seconds
later,the value will be changed quickly,

0.5hour will be increased in every 0.25
second automatically by the remote controller.
During blinking, press the Timer On button
to confirm the time.After Timer On set up,
when repressing the Timer On button, the
Timer On setting will be canceled. After
powered on, no Timer is defaulted, signal
"HOUR ON (OFF)" will not display,and only
the clock is displayed.After the timer
reached, the relative contents with Timer
will conceal.Before setting the Tmer,
please adsult the clock to the current

TIMER OFF BUTTON

●At unit on, press Timer Off button to enter

into Timer Off setting.The method of
setting is the same as for TIMER ON.

10

Guide for operation- general operation

1. After powered on, press ON/OFF button, the unit will start to run.(Note: When
it is powered off the guide louver of main unit will close automatically.)

2. Press MODE button, select desired running mode.

3. Pressing +or - button, to set the desired temperature (It is unnecessary

to set the temp. at AUTO mode.)

4. Pressing FAN button, set fan speed, can select AUTO FAN, LOW, MID

and HIGH.

5. Pressing button, to select the swing.

Guide for operation- Optional operation

1. Press SLEEP button, to set sleep.

2. Press TIMER ON and TIMER OFF button, can set the scheduled timer on

or timer off.

3. Press LIGHT button, to control the on and off of the displaying part of the

unit (This function may be not available for some units).

4. Press ENERGY SAVER button, can realize the ON and OFF of

ENERGY SAVER function.

Introduction for special function

About AUTO RUN

★

When AUTO RUN mode is selected, the setting temperature will not be displayed on the

LCD, the unit will be in accordance with the room temp. automatically to select the suitable

running method and to make ambient comfortable.

About lock

★

Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller

is locked, the icon

flicker for three times. If the keyboard is unlocked, the mark will disappear.

will be displayed on it, in which case, press any button, the mark will

11

About swing up and down

★

1. Press swing up and down button continuously more than 2s,the main unit will swing back
and forth from up to down, and then loosen the button, the unit will stop swinging and present
position of guide louver will be kept immediately.

2. Under swing up and down mode, when the status is switched from off to , if press this
button again 2s later, status will switch to off status directly; if press this button again

within 2s,the change of swing status will also depend on the circulation sequence stated above.

About switch between Fahrenheit and Centigrade

★

Under status of unit off, press MODE and - buttons simultaneously to switch℃ and ℉.

About new function of defrosting

★

It indicates: after starting this function by remote controller and the unit has been under
defrost status, If turn off the unit by remote controller, the unit will not stop defrosting until

it is finished; if change setting mode by remote controller, the function ,which is set last
time, won't be carried out until defrosting finished.

Operation of this function on or off: If remote controller is under off status, press mode button
and blow button simultaneously in order to enter or cancel this new function. If the unit is under

defrost mode, dual eight position on remote controller will display H1.If switch to heat mode,
the position will display H1, which flickers for 5s, in which case, press MODE/- button, H1 will
disappear and setting temp. be displayed.

After remote controller is powered on, the new defrost function will be defaulted to be closed.

Changing batteries and notices

Slightly to press the place with , along the arrowhead direction to push the back cover of wireless

1.

remote control. (As show in figure)

2.

Take out the old batteries. (As show in figure)

3.

Insert two new AAA1.5V dry batteries, and pay attention to the polarity.

(As show in figure)

4.

Attach the back cover of wireless remote control. (As show in figure)

★

NOTE:

When changing the batteries, do not use the old or different batteries,

●

otherwise, it can cause the malfunction of the wireless remote control.

If the wireless remote control will not be used for a long time, please

●

t

ake them out, and don't let the leakage liquid damage the wireless

remote control.

The operation should be in its receiving range.

●

It should be placed at where is 1m away from the TV set or stereo sound sets.

●

If the wireless remote control can not operate normally, please take them out,

●

after 30s later and reinsert, if they cannot normally run, please change them.

Sketch map for
changing batteries

12

Remote control panel

Note:

If wireless remote controller is lost, open the surface panel and operate manually.

1

POWER BUTTON
Operation starts when pressing this button, and stops

when pressing this button again.
SWING BUTTON

2

Activate the automatic air swing function.

3

FAN SPEED BUTTON
Select the fan speed HIGH, MID, LOW and AUTO in sequence.

TEMP/TIMER BUTTON

4

Pres s t he keyp ad to increas e t he set (ope rating)

temperature of the unit.and Press the keypad to
decrease the set (operating) temperature of the unit.
The temperature seting range is from 16~30℃

Press the keypad also to increase the selected time
in 1 hour increments,and Press the keypad to
decrease the selected time in 1 hour decrements,The　
time seting range is from 0~24 hours.

VENTILATION LEVER

When the slider at the:

ＣＬＯＳＥ　　　　　ＶＥＮＴ　　　　　ＯＰＥＮ

-"OPEN" position,the ventilation door
opens to allow air,smoke or odors to

be expelled from the room.

5

SIGNAL RECEIVER

MODE BUTTON

6

Select the operation mode, AUTO, HEAT, COOL, FAN,
DRY (for reverse cycle model) or AUTO,COOL,FAN, DRY
(for cooling only model).

FILTER BUTTON

7

This feature is a reminder to clean the Air Filter (See
Care and Cleaning) for more efficient operation and
cooling. The LED (light) will illuminate after 250 hours
of operation. To reset after cleaning the filter, press the
"Check Filter" button and the light will go off. Before the

LED(light) illuminate, press the "Check filter" button until
after 3 seconds, the accumulated time of. Operation will be

canceled.

When the slider at the:

ＣＬＯＳＥ　　　　　ＶＥＮＴ　　　　　ＯＰＥＮ

-"CLOSE" position,the ventilation door
is closed and the air will be circulated

inside the room and conditioned.

Ventilation Lever

13

Operation Tips

Operation for comfort and economy

Do not overcool the room
temperature. This is not good

for health and wastes electricity.

Make sure that the doors and win­dows are tightly closed.Avoid open-

ing doors and windows as much as
possible to keep air conditioning in the
room.

Keep blind or curtains closed.
Do not let sunshine enter the
room directly when the air con­dition is in operation.

Clean the air filter regularly.
Blockages in the air filter re­duce dehumidifying effects.
Clean the air filter at least once
every two weeks.

Keep the room temp. uniform.
Adjust the vertical and horizon­tal airflow direction to ensure a
uniform temperature in the room.
Air can’t be discharged to the di­rection of air-in.

V entilate the room occasionally.
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.
When starting the unit, curtains or
windows should be closed to pre­vent the heat/cool leakage.

14

Caution

Operations for safety and health

1) The plug must be accessible after the appliance is positioned.

2) Do not use this appliance in the laundry.

3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard.

Do not pull out the power cord.
Damage to the cord may result
in serious electric shocks.

Select the most appropriate
temperature.
Pay attention to adjust the tempera­ture to suit the conditions.
Rooms occupied by infants,the
elderly, or the sick should be kept at
an appropriate temperature.

Do not use the air conditioner
for other purposes except for
cooling the room.
Do not use the air conditioner
for other purposes such as
drying clothes, preserving
foods, or cultivating
vegetables.

Do not use heating apparatuses in
the vicinity.The air conditioner
plastic parts will melt if exposed to
excessive heat.

Do not block the air intake and
outlet vents
This causes lowered perfor­mance and irregular operation.
Do not insert sticks or other
objects into these vents as it is
dangerous to touch the electric
components and the fan.

Avoid exposing the body directly to
a continuous unidirectional air flow

s

for long periods.
This is not recommended for health
reason.

Always wait at least 3 minutes before switching the
air conditioner on again after you have switched it
off during cooling or heating.

Always wait
at least 3 minutes

15

Care and maintenance

Always turn off the air conditioner and main power supply before cleaning to ensure safety.

Cleaning unit

1. Cut power off before cleaning.

Plug out only after
ai r c ond itio ner
stops at all.

2. Use soft cloth when
cleaning cabinet.
If the cabinet is very

Dry the cl oth by
h and s be fo re
cleaning.

dirty, dip cloth into warm
water below 40

the cloth and then rub off
the dirt.

dry

3. Don’t use gas, benzene, solvent,wash, chemical

solvent, etc. for cleaning.

Air filter

The air filter behind the intake grille should be washed at least

once every two weeks or as often as it needs cleaning.

How to clean the air filter:

1. To remove the air intake grille, grasp the tab on the filter and

pull to take out.

2. Vacuum the filter on the dusty side to remove light dust.

Vacuum cleaner

3. Wash the filter, cleaner side up under gently flowing water
to wash out accumulated dust and lint.

4. Do not splash water directly into indoor
unit, in which

there are micro­com p u t er and
cir c ui t p l ate,
they must not be
drenched with
water.

Accident could
happen.

* Check earth wire

Is it broken
or loose?

4. If the filter is very dirty, use a mild household detergent in
the wash water.

Let the filter dry thoroughly before reinstalling it.
If. necessary, please ask the professional personnel to
clean it.

* Check if air inlet and outlet of outdoor unit
are blocked or not.

Air lock could result
in bad efficiency.

16

Trouble shooting guide

Please check the following items before asking for repair,it saves your time and
money.

Fault phenomenon Trouble-shooting

* Is there a power failure?

Air conditioner dose not
operate at all.

Cool or heat efficiency is
not good.

* Is the plug out?
* Is power fuse or switch off ?
* Whether the voltage is too high or too low?

* Is air inlet or outlet locking?
* Is there any other heat/cool source in room?
* Are air filters dirty very much?
* Is indoor fan speed set at LOW?

* Maybe the room is too hot/cool when the unit is

started.

Foggy air
flows out.

The air conditioner opera­tion is noisy.

It seems that condensation is leaking from air conditioner.

Air conditioner dose not operate for about 3 minutes when
restart.

* At COOL mode operation, sometimes there is foggy

air flowing out of indoor unit, this is because the room
humid air has been cooling rapidly.

* The unit is normal while the indoor outlet is sending

out some odor, because the inlet air may be mixed
with the smell of furniture and smoke.

* For a noise that sounds like water flowing:

This is the sound of freon flowing inside the air con-

ditioner unit.

* For a noise that sounds like a shower:

This is the sound of the dehumidifying water being
processed inside the air conditioner unit.

* Condensation occurs when the airflow from the air

conditioner cools the warm room air.

* This is to protect the mechanism.
* Wait about three minutes and operation will begin.

17

Immediately stop all operations and plug out, please contact your dealer
in the following situations.

*Operation starts or stops abnormally;
*Power fuse or switch often breaks;
*Carelessly splash water or something into air conditioner;
*Electrical lines are much hot or lines cover breaks;
*Other strange situations.

After service

If your air conditioner has the questions of quality or anything else, please contact

the service center of GREE.

18

GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI

Website: http://www.gree.com

66161256
