Table of Contents Part Number Index
Parts Manual
EWD13
13' End Wheel Drill
1992-1997
Read the Operator's manual entirely.When you see this symbol, the subsequent
instructions and warnings are serious - follow without exception.Your life and the
lives of others depend on it!
13187
Cover illustration may show optional equipment not supplied with standard unit.
© Copyright 2011 Printed 01/19/11 175-083P
Table of Contents Part Number Index
Table of Contents
Section 1: Introduction.................................................4
Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4
Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
Press Wheel 1"X 12" Single..............................................74
Press Wheel 2" X 13" Double "V (8/31/96-)......................76
Press Wheel 3" X 13" Single "V" Crown (8/31/96-)...........78
Press Wheel 3" X 13" Single "V" Crown (9/1/96+)............80
Press Wheel 3" X 14" Peaked...........................................82
Transport......................................................................84
Lock-Out Hub....................................................................84
Opener Lift........................................................................86
Transpor t Wheel................................................................88
Boxes..............................................................................6
Lid, Step & Access Cover....................................................6
Single Lid Gas Spring.........................................................8
Small Seeds Box & Lid Assembly.....................................10
Small Seeds Box Mount....................................................12
Small Seeds Walkboard Extension...................................14
Part Number Index.......................................................90
Decals...........................................................................16
Decal Placement...............................................................16
Small Seeds Decal Placement..........................................18
Drive.............................................................................20
Drive Jackshaft (S/N 4108R-)............................................20
Drive Jackshaft With Sprocket Box (S/N 4109R+)............22
Fertilizer Drive...................................................................24
Gear Box Drive (S/N 4108R-)............................................26
Gearbox Transmission 4-Speed Change (S/N 4108R-).....28
Jaw Clutch.........................................................................30
Small Seeds Drive.............................................................32
Sprocket Box (S/N 4109R+)..............................................34
Sprocket Box Drive (S/N 4109R+) (152-207A)..................36
Frame............................................................................38
Tongue & Pull Bar.............................................................38
Hydraulics....................................................................40
3 1/2" X 8" X 1 1/4" Rod, Hydraulic Cylinder (810-070C)...40
Lift Hydraulics....................................................................42
Markers.........................................................................44
Manual Marker..................................................................44
Marker Disk (113-364S)....................................................46
Marker Disk (113-563S)....................................................48
Metering System..........................................................50
Feeder Cup & Cup Drive...................................................50
Feeder Cup Channel.........................................................52
Fertilizer Tray 6", 7", 7 1/2", 8" & 10..................................56
Small Seeds Metering.......................................................60
Opener..........................................................................62
Double Disk Opener..........................................................62
Seed-Lok...........................................................................66
Small Seeds Hose Retainer..............................................68
Small Seeds Y-Tube Drop..................................................70
Press Wheels...............................................................72
Covering Chain.................................................................72
© Copyright 2011 All rights reserved Printed 01/19/11
Great Plains Manufacturing, Inc. provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparation of this manual, Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from
the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit. This publication describes
the state of this product at the time of its publication, and may not reflect the product in the future.
The following are trademarks of Great Plains Mfg., Inc.: Application Systems, Ausherman, Land Pride, Great Plains
All other brands and product names are trademarks or registered trademarks of their respective holders.
Great Plains Manufacturing, Incorporated Trademarks
Printed in the United States of America.
175-083P - 2 - 01/19/11
Table of Contents Part Number Index
Alphabetized Table of Contents
Selected Models
3
3 1/2" X 8" X 1 1/4" Rod, Hydraulic Cylinder
(810-070C).............................................................40
C
Covering Chain.............................................................72
D
Decal Placement..........................................................16
Double Disk Opener.....................................................62
Drive Jackshaft (S/N 4108R-).......................................20
Drive Jackshaft With Sprocket Box (S/N 4109R+)........22
F
Feeder Cup & Cup Drive..............................................50
Feeder Cup Channel....................................................52
Fertilizer Drive..............................................................24
Fertilizer Tray 6", 7", 7 1/2", 8" & 10..............................56
G
Gear Box Drive (S/N 4108R-).......................................26
Gearbox Transmission 4-Speed Change (S/N
4108R-)..................................................................28
Small Seeds Hose Retainer.........................................68
Small Seeds Metering..................................................60
Small Seeds Walkboard Extension..............................14
Small Seeds Y-Tube Drop.............................................70
Sprocket Box (S/N 4109R+).........................................34
Sprocket Box Drive (S/N 4109R+) (152-207A).............36
T
Tongue & Pull Bar........................................................38
Transport Wheel...........................................................88
J
Jaw Clutch....................................................................30
L
Lid, Step & Access Cover...............................................6
Lift Hydraulics...............................................................42
Lock-Out Hub...............................................................84
M
Manual Marker.............................................................44
Marker Disk (113-364S)...............................................46
Marker Disk (113-563S)...............................................48
O
Opener Lift...................................................................86
P
Press Wheel 1"X 12" Single.........................................74
Press Wheel 2" X 13" Double "V (8/31/96-).................76
Press Wheel 3" X 13" Single "V" Crown (8/31/96-)......78
Press Wheel 3" X 13" Single "V" Crown (9/1/96+).......80
Press Wheel 3" X 14" Peaked......................................82
S
Seed-Lok......................................................................66
Single Lid Gas Spring....................................................8
Small Seeds Box & Lid Assembly................................10
Small Seeds Box Mount...............................................12
Small Seeds Decal Placement.....................................18
Small Seeds Drive........................................................32
01/19/11 - 3 - 175-083P
Table of Contents Part Number Index
175-083P - 4 - 01/19/11
Table of Contents Part Number Index
01/19/11 - 5 - 175-083P
Table of Contents Part Number Index
Lid, Step & Access Cover
(Applies to EWD13 only)
10198
175-083P - 6 - 01/19/11
Table of Contents Part Number Index
Lid, Step & Access Cover
(Applies to EWD13 only)
Image No.dwg10198
LID WELDMENT179-003H1.
LID LATCH - HANDLE179-023D2.
WASHER WAVE SPRING 5/16804-056C3.
NUT HEX NYLOCK 5/16-18 PLT803-084C5.
LID HINGE WELDMENT L.H.179-004H6.
LID HINGE WELDMENT R.H.179-005H6.
HHCS 3/8-16X1 GR5802-017C7.
WASHER FLAT 3/8 SAE PLT804-012C8.
WASHER LOCK SPRING 3/8 PLT804-013C9.
NUT HEX 3/8-16 PLT803-014C10.
SEED DIVERTER179-026D11.
END PANEL SPACER TUBE175-040D12.
SNAP RING EXT E 5/8800-048C13.
HHCS 5/16-18X1 GR5802-159C14.
LID LATCH - UPPER ARM179-022D15.
LID LATCH - LOWER ARM179-021D16.
LID LATCH GRIP817-033C17.
SCREW 5/16-18X82DEG CNTSKX3/4P801-024C18.
FRONT LID LATCHSTRIKE179-024D19.
SCREW RD HD 10-24 X 3/4 PLT801-021C20.
WASHER INTERNAL STAR #10 PLT804-004C21.
NUT HEX 10-24 PLT803-001C22.
REAR LID LATCH STRIKE179-030D23.
STEP WELDMENT - 13'179-001H24.
STEP HANGER WELDMENT179-002H25.
HHCS 1/2-13X1 1/4 GR5802-034C26.
WASHER LOCK SPRING 1/2 PLT804-015C27.
NUT HEX 1/2-13 PLT803-020C28.
DECAL SLOWMOVING-GALV. BACKED818-055C29.
SCREW RD HD 1/4-20 X 5/8801-018C30.
WASHER LOCK SPRING 1/4 PLT804-006C31.
NUT-HEX 1/4-20 PLT803-006C32.
HHCS 3/4-10X2 GR5802-064C33.
WASHER LOCK SPRING 3/4 PLT804-023C34.
WASHER FLAT 3/4 SAE PLT804-025C35.
13' EW FERT ACCESS COVER175-216D36.
ACCESS COVER L.H.175-057D37.
ACCESS COVER R.H.175-058D38.
HHCS 1/4-20X5/8 GR5802-078C39.
1/4-20 X 1 U TYPE FASTENER800-013C40.
CORNER SIGHT GLASS817-030C41.
SIGHT GLASS GASKET816-013C42.
SIGHT GLASS RETAINER175-043D43.
SCREW RD HD SLT10-24X1/2 PLT801-003C44.
13' EW FERT BOX WELDMENT175-121H45.
13' BOX SINGLE LID WELDMENT179-007H46.
Boxes
RevisionCommentsPart DescriptionPart No.Ref.
2nd rev.13' EW SNGL LID BOX&PULL TB WM175-081H4.
1st rev.13' E.W.B.W REPL BY 175-081H175-064H4.
01/19/11 - 7 - 175-083P
Single Lid Gas Spring
(Applies to EWD13 only)
Table of Contents Part Number Index
11749
175-083P - 8 - 01/19/11
Table of Contents Part Number Index
Single Lid Gas Spring
(Applies to EWD13 only)
Image No.dwg11749
12-20 X 90 LB GAS SPRING890-221C1.
WASHER LOCK SPRING 5/16 PLT804-009C3.
NUT HEX 5/16-18 PLT803-008C4.
Boxes
RevisionCommentsPart DescriptionPart No.Ref.
Furnished with CylinderSTUD,BALL 10MM X 5/16 -UNC2.
01/19/11 - 9 - 175-083P
Table of Contents Part Number Index
Small Seeds Box & Lid Assembly
(Applies to EWD13 only)
17028
175-083P - 10 - 01/19/11
Table of Contents Part Number Index
Small Seeds Box & Lid Assembly
(Applies to EWD13 only)
Image No.dwg17028
13'-6 EW SMALL SEEDS BOX123-896H1.
13'-7 EW SMALL SEEDS BOX123-897H1.
13'-7.5 EW SMALL SEEDS BOX123-898H1.
13'-8 EW SMALL SEEDS BOX123-899H1.
13'-10 EW SMALL SEEDS BOX123-900H1.
NUT HEX 10-24 PLT803-001C2.
WASHER LOCK #10804-054C3.
WASHER FLAT #10 SAE PLT804-046C4.
SCREW RD HD SLT10-24X1/2 PLT801-003C5.
3PT 12' SML SDS BOX LID123-824H6.
RMVBL SMALL SEED BOX PARTITION123-409D7.
LATCH KEEPER 37-15-061-17816-113C8.
RIVET POP 1/8X.265LG FLG800-101C9.
HHCS 1/4-20X5/8 GR5802-078C10.
NUT-LOCK 1/4-20 PLT803-007C11.
SEED ADJUSTMENT SUPPORT123-118D12.
RUBBER LATCH 37-11-065-10816-112C13.
10' EWNT SGS LID LATCH123-356D14.
DECAL SMALL SEEDS DANGER838-467C15.
Boxes
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 11 - 175-083P
Table of Contents Part Number Index
Small Seeds Box Mount
(Applies to EWD13 only)
13571
175-083P - 12 - 01/19/11
Table of Contents Part Number Index
Small Seeds Box Mount
(Applies to EWD13 only)
Image No.dwg13571
SCREW RD HD 1/4-20 X 5/8801-018C1.
DECAL SLOWMOVING-GALV. BACKED818-055C2.
SMV MOUNTING BLADE890-153C3.
WASHER LOCK SPRING 1/4 PLT804-006C4.
NUT-HEX 1/4-20 PLT803-006C5.
HHCS 1/4-20X3/4 GR5802-004C6.
13'-6 EW SML SDS BOX ASSY123-890L7.
13'-7 EW SML SDS BOX ASSY123-891L7.
13'-7.5 EW SML SDS BOX ASSY123-892L7.
13'-8 EW SML SDS BOX ASSY123-893L7.
13'-10 EW SML SDS BOX ASSY123-894L7.
SEED BOX REINFORCEMENT STRAP123-520D8.
HFSS 1/4-20X3/4 GR5802-257C9.
13' EW SMALL SEEDS DRIVE GUARD123-555D10.
13' EW SMALL SEEDS BOX MOUNT123-902H11.
HFS 3/8-16X1 GR5802-388C12.
NUT FLANGE LOCK 3/8-16 PLT803-209C13.
NUT HEX 3/8-16 PLT803-014C14.
WASHER LOCK SPRING 3/8 PLT804-013C15.
WASHER FLAT 3/8 SAE PLT804-012C16.
HHCS 3/8-16X1 1/2 GR5802-022C17.
Boxes
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 13 - 175-083P
Table of Contents Part Number Index
Small Seeds Walkboard Extension
(Applies to EWD13 only)
13473
175-083P - 14 - 01/19/11
Table of Contents Part Number Index
Small Seeds Walkboard Extension
(Applies to EWD13 only)
Image No.dwg13473
3-PT STEP RETAINER119-032D1.
STEP EXTENSION MOUNT ANGLE123-260D2.
13' EW STEP EXTENSION123-559D3.
HHCS 3/8-16X1 1/4 GR5802-079C4.
NUT HEX 3/8-16 PLT803-014C5.
WASHER LOCK SPRING 3/8 PLT804-013C6.
Boxes
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 15 - 175-083P
Decal Placement
(Applies to EWD13 only)
Table of Contents Part Number Index
16498
175-083P - 16 - 01/19/11
Decal Placement
(Applies to EWD13 only)
Image No.dwg16498
DECAL WARNING 20 MPH TRANS LRG818-188C1.
DECAL AMBER REFLECTOR818-229C2.
DECAL RED REFLECTOR818-230C3.
DECAL SLOWMOVING-GALV. BACKED818-055C4.
DECAL GP SOLID STAND W/LOGO818-048C5.
DECAL 13' SS END WHEEL W/LOGO818-053C6.
DECAL GREAT PLAINS W/LOGO818-052C7.
REPLACED BY 838-160C818-064C8.
DECAL SOLID STAND END WHEEL818-060C9.
DECAL SEED RATE & ADJ END WHL818-057C12.
13' EW DECAL BUNDLE, ALL175-086A
Table of Contents Part Number Index
Pea Drive onlyDECAL 13' PEA DRIVE818-820C10.
Use forsprocket box.DECAL DRILLS SPROCKET CHANGE818-811C11.
Pea Drive onlyDECAL END WHEEL PEA818-281C13.
Not shown.DECAL 13' EW FERT RATE818-299C
Includes items 1 thru 4.13' EW DECAL BUNDLE, SAFETY175-087A
Includes items 1 thru 9, 11, 12, &
818-299C.
Decals
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 17 - 175-083P
Table of Contents Part Number Index
Small Seeds Decal Placement
(Applies to EWD13 only)
13474
175-083P - 18 - 01/19/11
Table of Contents Part Number Index
Small Seeds Decal Placement
(Applies to EWD13 only)
Image No.dwg13474
DECAL SOLID STAND END WHEEL818-060C1.
DECAL GREAT PLAINS W/LOGO818-052C2.
DECAL GRASS SEED RATE CHART EW818-059C3.
DECAL GRASS SEEDER SEED RATE818-031C4.
DECAL RED REFLECTOR818-230C5.
DECAL SLOWMOVING-GALV. BACKED818-055C6.
REPLACED BY 838-160C818-064C7.
DECAL WARNING MOVING PARTS HAZ818-205C8.
Decals
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 19 - 175-083P
Table of Contents Part Number Index
Drive Jackshaft (S/N 4108R-)
(Applies to EWD13 only)
14398
175-083P - 20 - 01/19/11
Table of Contents Part Number Index
Drive Jackshaft (S/N 4108R-)
(Applies to EWD13 only)
Image No.dwg14398
SNAP RING EXT 5/8800-045C1.
GEAR BEVEL 16TX7PX5/8B & KW808-088C2.
WASHER FLAT 5/16 USS PLT804-010C3.
WASHER LOCK SPRING 5/16 PLT804-009C4.
NUT HEX 5/16-18 PLT803-008C5.
BRG. & GEAR ADJ. PLATE176-001D6.
SCREW HEX 5/16-12 X 1 THD CUTT801-031C7.
FLANGETTE 52 MST822-032C8.
BRG INS 1.00IDX2.04OD SPH822-060C9.
WOODRUFF KEY #606800-046C10.
HHCS 5/16-18X3/4 GR5802-007C11.
13' EW FRONT JACK SHAFT123-558D12.
PIN COTTER7/64 X 1 LONG805-064C13.
WASHER FLAT 3/8 SAE PLT804-012C14.
CLUTCH LINK ARM WLDMT176-036H16.
CLUTCH ACTIVATOR WLDMT176-007H17.
SCREW SET SQ HD 3/8-16 X 1/2 P801-022C18.
WASHER FLAT 5/16 SAE PLT804-036C20.
2SNT CLUTCH SPROCKET152-171D21.
WASHER LOCK SPRING 1/4 PLT804-006C22.
HSHCS 1/4-20X3/4801-070C23.
WASHER FLAT 1/2 SAE PLT804-016C24.
NO. 40 12T IDLER SPKT.817-025C25.
NUT LOCK 1/2-13 PLT803-019C26.
HHCS 1/4-20X1 1/2 GR5802-167C27.
NUT-HEX 1/4-20 PLT803-006C28.
SPRING EXT IDLER807-025C29.
HHCS 1/2-13X3 1/2 GR5802-041C30.
13' EW IDLER ARM WLMT176-034H31.
RPBY 176-034H176-009H31.
ACREMETER 13' ENDWHEEL DRILL890-116C32.
HHCS 5/16-18X1 GR5802-159C33.
WASHER FLAT 5/16 SAE PLT804-036C34.
HHCS 3/8-16X1 1/4 GR5802-079C35.
WASHER FLAT 3/8 SAE PLT804-012C36.
CLUTCH ENGAGEMENTMOUNT176-074D37.
WASHER LOCK SPRING 3/8 PLT804-013C38.
NUT HEX 3/8-16 PLT803-014C39.
GREASE ZERK 1/4-28 X 90-DEG800-073C40.
12'EWNT CLUTCH TAB152-338D41.
CLUTCH TAB ADJUSTMENT176-075D42.
RHSNB 3/8-16X1 GR5802-015C43.
NUT NYLOCK JAM THIN 3/8-16 PLT803-215C44.
PIN ROLL 1/4 X 3/4 PLT805-026C45.
Drive
RevisionCommentsPart DescriptionPart No.Ref.
Refer to "Jaw Clutch" for breakdown.JAWCLUTCH CCW176-045S15.
Revision2 is notinterchangeable
with revision1.
1st Revision.RPBY 176-041S & 176-045S176-039S15.
2nd Revision.CHAIN RL #40 122 PITCHES136-016D19.
Use existingstock; 1st Revision.RPBY 136-016D809-032C19.
Revision2 is notinterchangeable
with revision1.
01/19/11 - 21 - 175-083P
Table of Contents Part Number Index
Drive Jackshaft With Sprocket Box (S/N 4109R+)
(Applies to EWD13 only)
16492
175-083P - 22 - 01/19/11
Table of Contents Part Number Index
Drive Jackshaft With Sprocket Box (S/N 4109R+)
(Applies to EWD13 only)
Image No.dwg16492
13' EW LOWER JACK SHAFT152-405D1.
CLUTCH ENGAGEMENTMOUNT176-074D2.
WASHER FLAT 5/16 USS PLT804-010C3.
WASHER LOCK SPRING 5/16 PLT804-009C4.
NUT HEX 5/16-18 PLT803-008C5.
NUT HEX 3/8-16 PLT803-014C6.
WASHER LOCK SPRING 3/8 PLT804-013C7.
FLANGETTE 52 MST822-032C8.
BRG INS 1.00IDX2.04OD SPH822-060C9.
ACREMETER 13' ENDWHEEL DRILL890-116C10.
HHCS 5/16-18X3/4 GR5802-007C11.
NUT NYLOCK JAM THIN 3/8-16 PLT803-215C12.
PIN COTTER7/64 X 1 LONG805-064C13.
WASHER FLAT 3/8 SAE PLT804-012C14.
JAWCLUTCH CCW176-045S15.
CLUTCH LINK ARM WLDMT176-036H16.
CLUTCH ACTIVATOR WLDMT176-007H17.
SCREW SET SQ HD 3/8-16 X 1/2 P801-022C18.
WASHER FLAT 5/16 SAE PLT804-036C20.
2SNT CLUTCH SPROCKET152-171D21.
WASHER LOCK SPRING 1/4 PLT804-006C22.
HSHCS 1/4-20X3/4801-070C23.
WASHER FLAT 1/2 SAE PLT804-016C24.
NO. 40 12T IDLER SPKT.817-025C25.
NUT LOCK 1/2-13 PLT803-019C26.
HHCS 1/4-20X1 1/2 GR5802-167C27.
NUT-HEX 1/4-20 PLT803-006C28.
SPRING EXT IDLER807-025C29.
HHCS 1/2-13X3 1/2 GR5802-041C30.
13' EW IDLER ARM WLMT176-034H31.
HHCS 5/16-18X1 GR5802-159C32.
WASHER FLAT 5/16 SAE PLT804-036C33.
PIN ROLL 1/4 X 3/4 PLT805-026C34.
CLUTCH TAB ADJUSTMENT176-075D35.
WASHER FLAT 3/8 SAE PLT804-012C36.
HHCS 3/8-16X1 1/4 GR5802-079C37.
12'EWNT CLUTCH TAB152-338D38.
RHSNB 3/8-16X1 GR5802-015C39.
Drive
RevisionCommentsPart DescriptionPart No.Ref.
2nd Revision.CHAIN RL #40 122 PITCHES136-016D19.
Use existingstock; 1st Revision.RPBY 136-016D809-032C19.
01/19/11 - 23 - 175-083P
Fertilizer Drive
(Applies to EWD13 only)
Table of Contents Part Number Index
11236
175-083P - 24 - 01/19/11
Fertilizer Drive
(Applies to EWD13 only)
Image No.dwg11236
13' EW FERT TRAY ASSY 6175-104L1.
13' EW FERT TRAY ASSY 7175-105L1.
13' EW FERT TRAY ASSY 7 1/2175-106L1.
13' EW FERT TRAY ASSY 8175-107L1.
13' EW FERT TRAY ASSY 10175-108L1.
.00 HEX SS 1/4-20 NYLOCK803-003C2.
WASHER LOCK 1/4 SS804-033C3.
WASHER FLAT 1/4 SAE SS804-034C4.
NUT HEX SS 1/4-20803-004C5.
RHSNB 1/4-20X3/4 SS802-089C6.
FERTILIZER DIVERTER L.H.175-113D7.
FERTILIZER DIVERTER R.H.175-114D7.
SCREW RD HD 1/4-20 X 5/8801-018C8.
HHCS 1/2-13X3 1/2 GR5802-041C9.
NUT-HEX 1/4-20 PLT803-006C10.
WASHER LOCK SPRING 1/4 PLT804-006C11.
HHCS 1/4-20X1 1/2 GR5802-167C12.
SPKT 40B12 X 1 BORE808-024C14.
KEY 1/4 X 1123-004D15.
NUT LOCK 1/2-13 PLT803-019C16.
SPRING EXT IDLER807-025C17.
13' EW IDLER ARM WLMT176-034H18.
NO. 40 12T IDLER SPKT.817-025C19.
WASHER FLAT 1/2 SAE PLT804-016C20.
PIN COTTER7/64 X 1 LONG805-064C21.
HHCS 5/16-18X3/4 GR5802-007C22.
WASHER LOCK SPRING 5/16 PLT804-009C23.
NUT HEX 5/16-18 PLT803-008C24.
NUT LOCK 5/8-11 PLT803-024C25.
BRG .62IDX1.37ODX.43WD W/FLG822-058C26.
INTERMEDIATE BRG HOUSING WLDMT176-005H27.
P.W. BRG. SPACER TUBE162-032D28.
FERT. DOUBLE SPKT. WELDMENT176-006H29.
HHCS 5/8-11X4 GR5802-060C30.
FERT. DOUBLE SPROCKET ASSY.176-014S31.
CHAIN RL #40 51 PITCHES136-064D32.
HHCS 1/4-20X3/4 GR5802-004C33.
WASHER FLAT 1/4 SAE PLT804-007C34.
HHCS 1/4-20X1 SS802-093C36.
Table of Contents Part Number Index
Drive
RevisionCommentsPart DescriptionPart No.Ref.
2nd rev.CHAIN RL #40 109 PITCHES136-044D13.
Use existingstock; 1st rev.RPBY 136-044D809-045C13.
2nd rev.13' EW DEW SHIELD & DUST COVER816-184C35.
Use existingstock; 1st rev.11/9213' EW 6 LH DEW SHIELD175-190D35.
Use existingstock; 1st rev.11/9213' EW 10 RH DEW SHIELD175-199D35.
01/19/11 - 25 - 175-083P
Table of Contents Part Number Index
Gear Box Drive (S/N 4108R-)
(Applies to EWD13 only)
11215
175-083P - 26 - 01/19/11
Table of Contents Part Number Index
Gear Box Drive (S/N 4108R-)
(Applies to EWD13 only)
Image No.dwg11215
OBSOLETE890-114C1.
NUT HEX 8-32 BRASS803-035C2.
WASHER INTERNAL STAR #8 BRASS804-002C3.
SPEED CHG. BOX COVER176-008H4.
END WHEEL DRIVE TYPE PLATE819-024C5.
WASHER FLAT #8 BRASS804-003C6.
SCREW RD HD 8-32 X 3/8 BRASS801-001C7.
SPEED CHANGE HANDLE176-017D8.
WASHER LOCK SPRING 5/16 PLT804-009C9.
NUT HEX 5/16-18 PLT803-008C10.
PIN COTTER7/64 X 1 LONG805-064C11.
WASHER FLAT 1/2 SAE PLT804-016C12.
SCR HEX HD-5/16-12X3/4 THD FRM801-025C13.
CUP DRIVE IDLER BRACKET176-020D14.
NO. 40 12T IDLER SPKT.817-025C15.
HHCS 5/16-18X3/4 GR5802-007C16.
DRIVE IDLER BAR176-018D17.
CUP DRIVE IDLER ARM WELDMENT176-010H18.
SPRING EXT IDLER807-025C19.
HHCS 1/4-20X3/4 GR5802-004C20.
RPBY 136-019D809-035C21.
SPROCKET 8T FOR 41 CHAIN808-080C22.
MF SPKT #40-12T SPLINE BORE181-080H22.
WASHER FLAT 1/4 SAE PLT804-007C23.
GEAR BEVEL 16TX7PX5/8B & KW808-088C24.
SNAP RING EXT 5/8800-045C25.
WASHER LOCK SPRING 1/4 PLT804-006C26.
NUT-HEX 1/4-20 PLT803-006C27.
Drive
RevisionCommentsPart DescriptionPart No.Ref.
Not available. Replaced by152-207A.
"A" bundle replaces allparts onpage.
Refer to "Sprocket Box Drive (S/N
4109R+) (152-207A).
01/19/11 - 27 - 175-083P
Table of Contents Part Number Index
Gearbox Transmission 4-Speed Change (S/N 4108R-)
(Applies to EWD13 only)
10000
175-083P - 28 - 01/19/11
Table of Contents Part Number Index
Gearbox Transmission 4-Speed Change (S/N 4108R-)
(Applies to EWD13 only)
Image No.dwg10000
DA BALL, DETENTDA10371.
DA WASHER,PLAIN,.632X1.00X.041DA10682.
DA WASHER,PLAIN,.632X1.00X.031DA10822.
DA WASHER,PLAIN,.632X1.00X.060DA11452.
DA WASHER,PLAIN,.632X1.00X.082DA13192.
DA WASHER,PLAIN,.632X1.00X.050DA13582.
DA WASHER,PLAIN,.632X1.00X.045DA14252.
SNAP RING EXT 5/8800-045C3.
DA KEY,WOODRUFF, #9DA13744.
DA RETAINING, RINGDA36245.
DA SCREW,TAPPING,1/4-20X.734LGDA19196.
DA O-RINGDA19267.
DA SCREW,SET, 1/4-20 X .50 LGDA32398.
DA PINION, BEVEL, 14TDA35909.
DA ASSEMBLY,KIT,BEVEL GEARDA486910.
DA HOUSING, LOWERDA3664-E11.
DA SPRING, DETENTDA372012.
DA PLUGDA374513.
DA ASSEMBLY,KIT,INPUT SHAFTDA413514.
DA ASSEMBLY, SHIFTERDA422115.
DA ASSEMBLY,HOUSING,UPPERDA424116.
DA BEARING, FLANGEDA154217.
SPROCKET 8T FOR 41 CHAIN808-080C18.
Drive
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 29 - 175-083P
Jaw Clutch
(Applies to EWD13 only)
Table of Contents Part Number Index
13868
175-083P - 30 - 01/19/11
Jaw Clutch
(Applies to EWD13 only)
Image No.dwg13868
SNAP RING EXT 1 1/4 HEAVY800-177C1.
CLUTCH FRICTION WASHER176-065D2.
BSHG FLG 1.26IDX1.41ODX.87L817-111C3.
CLUTCH DRIVE PLATE - CCW176-082D4.
CLUTCJ ARM PLATE176-080D5.
RPBY 176-077D176-060D6.
CLUTCH HUB 1 BORE176-083D7.
RPBY 176-083D176-073D7.
SPRING COMP 2 1/16 OD X 4 LG807-097C8.
CLUTCH SPRING RETAINER176-066D9.
PIN ROLL 3/16X 1 1/2 PLT805-024C10.
Table of Contents Part Number Index
Includes items 1 through 10JAWCLUTCH CCW176-045S
Drive
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 2 is not interchangeable
w/rev. 1
1st rev.Includes items 1 through 10RPBY 176-041S & 176-045S176-039S
Rev. 2 is not interchangeable
w/rev. 1
1st rev.RPBY 176-079D & 176-082D176-062D4.
Rev. 2 is not interchangeable
w/rev. 1
1st rev.RPBY 176-080D176-063D5.
Rev. 3 is not interchangeable
w/rev. 2
Rev. 2 is not interchangeable
w/rev. 1
1st rev.RPBY 176-073D176-064D7.
Rev. 2 is not interchangeable
w/rev. 1
1st rev.RPBY 805-024C805-172C10.
01/19/11 - 31 - 175-083P
Small Seeds Drive
(Applies to EWD13 only)
Table of Contents Part Number Index
13572
175-083P - 32 - 01/19/11
Small Seeds Drive
(Applies to EWD13 only)
Image No.dwg13572
HHCS 1/2-13X3 GR8802-365C1.
NO. 40 12T IDLER SPKT.817-025C2.
NUT HEX JAM 1/2-13 PLT803-036C3.
WASHER FLAT 1/2 SAE PLT804-016C4.
WASHER LOCK SPRING 1/2 PLT804-015C5.
RHSNB 5/16-18X3/4 GR5802-092C6.
SCREW SET 5/16-18 SKT KP X 3/8801-035C7.
LOCK COLLAR, 7/8 HEX W/ SET SC402-025S8.
FLANGETTE 52 MST822-032C9.
BRG 7/8HEXX2.05OD SPH822-119C10.
HHCS 1/2-13X4 1/2 GR5802-413C11.
NUT HEX WHIZ 5/16-18 PLT803-043C12.
HHCS 5/16-18X3/4 GR5802-007C13.
WASHER FLAT 5/8 SAE PLT804-021C14.
NUT LOCK 5/8-11 PLT803-024C15.
BRG .62IDX1.37ODX.43WD W/FLG822-058C16.
P.W. BRG. SPACER TUBE162-032D17.
INTERMEDIATE BRG HOUSING WLDMT176-005H18.
WASHER LOCK SPRING 5/16 PLT804-009C19.
NUT HEX 5/16-18 PLT803-008C20.
WASHER MACH 1.19 X .63 X 18GA804-040C21.
FERT. DOUBLE SPKT. WELDMENT176-006H22.
CHAIN RL #40 X 170 PITCH W/CON809-161C23.
CHAIN RL #40 X 62 PITCH W/CON809-133C24.
HHCS 5/8-11X4 1/2 GR5802-100C25.
SPKT 40B22 7/8 HEX BORE & SS808-194C26.
SPKT 40B12 7/8 HEX BORE W/SS808-143C28.
SCREW SET SCKT HD 1/4-20X1/2801-015C29.
13' EW SS BOX MNT BRG PLT SHFT123-557D30.
JACK SHAFT - KEY109-031D32.
SHEAR SPROCKET ASSEMBLY123-308S33.
Table of Contents Part Number Index
S/N 4109R+13' EW LOWER JACK SHAFT152-405D31.
Drive
RevisionCommentsPart DescriptionPart No.Ref.
2nd rev.CHAIN RL #40 43 PITCHES136-118D27.
Use existingstock; 1st rev.OBSOLETE REPLACEDBY 136-118D809-160C27.
Rev. 2 is not interchangeable
w/rev. 1
1st rev.S/N 4108R-13' EW FRONT JACK SHAFT123-558D31.
01/19/11 - 33 - 175-083P
Table of Contents Part Number Index
Sprocket Box (S/N 4109R+)
(Applies to EWD13 only)
16495
175-083P - 34 - 01/19/11
Table of Contents Part Number Index
Sprocket Box (S/N 4109R+)
(Applies to EWD13 only)
Image No.dwg16495
SPROCKET BOX WELDMENT152-192H1.
SPRKT BOX REAR JS F/13' PEA DR152-406D2.
13' SPKT BOX FRT JACKSHAFT152-399D3.
SPROCKET DOUBLE IDLER WLMT152-193H4.
FLANGETTE 52 MST822-032C5.
BRG 7/8HEXX2.05OD SPH822-119C6.
RHSNB 5/16-18X1 GR5802-282C7.
WASHER FLAT 5/16 USS PLT804-010C8.
WASHER LOCK SPRING 5/16 PLT804-009C9.
NUT HEX 5/16-18 PLT803-008C10.
PIN ROLL 1/4 X 1 1/2 LG PLT805-180C11.
CHAIN RL #40 76 PITCHES136-013D12.
SPKT 40C37 X 7/8 HEX BORE808-252C13.
SPKT 40C12 X 7/8 HEX BORE808-219C14.
SPKT 40B54 W/7/8 HEX B X 1 1/4152-212H15.
SPKT 40C22 X 7/8 HEX BORE808-250C16.
SPKT 40C18 X 7/8 HEX BORE808-249C17.
IDLER CLAMP PLATE WLMT152-211H18.
NO. 40 12T IDLER SPKT.817-025C19.
NUT LOCK 3/8-16 PLT803-013C20.
HHCS 1/2-13X2 3/4 GR5802-226C21.
NUT HEX JAM 1/2-13 PLT803-036C22.
WASHER FLAT 1/2 SAE PLT804-016C23.
WASHER LOCK SPRING 1/2 PLT804-015C24.
RHSNB 1/2-13X1 1/4 GR5802-214C25.
NUT HEX 1/2-13 PLT803-020C26.
GW SNAP ON SPACER - 1/4 THICK817-151C27.
GW SNAP ON SPACER - 1 THICK817-152C28.
WASHER FLAT 1 SAE804-029C29.
PIN, ROLL 1/4 X 1 1/4 LONG805-208C30.
#40 CONNECTORLINK-PLATED809-096C31.
SPKT 40C36 X 7/8 HEX BORE808-251C35.
Drive
RevisionCommentsPart DescriptionPart No.Ref.
Pea Drive onlyPIN LINCH 1/4 X 1 3/4 PLT805-126C32.
Pea Drive only#40 COATED OFFSET809-070C33.
Pea Drive onlySPKT 40C18 X 7/8 HEX BORE808-249C34.
01/19/11 - 35 - 175-083P
Table of Contents Part Number Index
Sprocket Box Drive (S/N 4109R+) (152-207A)
(Applies to EWD13 only)
16486
175-083P - 36 - 01/19/11
Table of Contents Part Number Index
Sprocket Box Drive (S/N 4109R+) (152-207A)
(Applies to EWD13 only)
Image No.dwg16486
13' EW LOWER JACK SHAFT152-405D1.
WASHER FLAT 3/8 USS PLT804-011C2.
WASHER LOCK SPRING 3/8 PLT804-013C3.
NUT HEX 3/8-16 PLT803-014C4.
WASHER FLAT 5/16 USS PLT804-010C5.
WASHER LOCK SPRING 5/16 PLT804-009C6.
NUT HEX 5/16-18 PLT803-008C7.
WASHER FLAT 5/8 SAE PLT804-021C8.
WASHER LOCK SPRING 5/8 PLT804-022C9.
NUT HEX JAM 5/8-11 PLT803-023C10.
RHSNB 5/16-18X1 GR5802-282C11.
HHCS 1/4-20X3/4 GR5802-004C12.
13' IDLER SUPPORT PLATE152-402D13.
HHCS 3/8-16X1 GR5802-017C14.
NUT HEX 5/8-11 PLT803-021C15.
SPROCKET 40A17 IDLER808-046C16.
HHCS 5/8-11X2 GR5802-055C17.
#40 CONNECTORLINK-PLATED809-096C19.
KEY 1/4 X 1123-004D20.
SPKT 40B12 X 1 BORE808-024C21.
FLANGETTE 52 MST822-032C22.
BRG INS 1.00IDX2.04OD SPH822-060C23.
Referto "Sprocket Box (S/N4109R+).13' SPROCKET BOX ASSEMBLY152-196K24.
CHAIN RL #40 84 PITCHES136-023D25.
HHCS 5/16-18X1 GR5802-159C26.
WASHER FLAT 1/4 USS PLT804-075C27.
WASHER LOCK SPRING 1/4 PLT804-006C28.
NUT-HEX 1/4-20 PLT803-006C29.
Drive
RevisionCommentsPart DescriptionPart No.Ref.
2nd rev.CHAIN RL #40 111 PITCHES136-106D18.
Use existingstock; 1st rev.RPBY 136-106D809-135C18.
01/19/11 - 37 - 175-083P
Tongue & Pull Bar
(Applies to EWD13 only)
Table of Contents Part Number Index
10206
175-083P - 38 - 01/19/11
Tongue & Pull Bar
(Applies to EWD13 only)
Image No.dwg10206
13' END WHEEL TONGUE WELDMENT177-001H1.
PULL BAR WELDMENT LH177-004H2.
PULL BAR WELDMENT RH177-005H2.
U-BOLT 5/8-11 X 3 17/32 UNEVEN806-032C3.
WASHER LOCK SPRING 5/8 PLT804-022C4.
NUT HEX 5/8-11 PLT803-021C5.
RHSNB 1/2-13X1 GR5 LG802-183C6.
HFSS 1/2-13X1 1/4 GR8802-083C7.
WASHER LOCK SPRING 1/2 PLT804-015C8.
NUT HEX 1/2-13 PLT803-020C9.
SAFETY CHAIN WASHER177-587D10.
SPRING HOSE LOOP807-023C11.
SCREW HEX 3/8-16X1 TYPE F801-026C12.
WASHER LOCK SPRING 3/8 PLT804-013C13.
WASHER FLAT 3/8 SAE PLT804-012C14.
CLEVIS HITCH TOP HALF177-009D15.
CLEVIS HITCH BOTTOM HALF177-008D16.
RHSNB 3/4-10X2 1/2 GR5802-177C17.
WASHER LOCK SPRING 3/4 PLT804-023C18.
NUT HEX 3/4-10 PLT803-027C19.
NUT HEX WHIZ 1/2-13803-037C20.
U-BOLT 1/2-13 X 3 17/32 X4 3/4806-028C21.
SCREW JACK 2000#890-118C22.
RHSNB 3/4-10X3 GR5802-299C23.
SAFETY CHAIN 10000 LB890-182C24.
Table of Contents Part Number Index
Frame
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 39 - 175-083P
Table of Contents Part Number Index
3 1/2" X 8" X 1 1/4" Rod, Hydraulic Cylinder (810-070C)
(Applies to EWD13 only)
11442
175-083P - 40 - 01/19/11
Table of Contents Part Number Index
3 1/2" X 8" X 1 1/4" Rod, Hydraulic Cylinder (810-070C)
(Applies to EWD13 only)
Image No.dwg11442
NUT CROSS2A0246-161.
PISTON CROSS1D1401-3502.
Only available in item 28.O-RING3.
Only available in item 28.BACKUP4.
CROSS ROD1D0207-14625.
CROSS TUBE1D0009-10126.
CROSS FEED TUBE1D1980-11257.
Only available in item 28.BACKUP8.
Only available in item 28.O-RING9.
CROSS SPRING2A9054-210.
Only available in item 28.O-RING11.
Only available in item 28.BACKUP12.
HEAD3C7296-213.
CROSS CART. ASSY FOR 810-511C3C727214.
Only available in item 28.O-RING15.
Only available in item 28.BACKUP16.
Only available in item 28.WIPER17.
REPL BY 810-079C3C518518.
CROSS RODCLEVIS3C454919.
CROSS BASE CLEVIS2C574220.
TIE ROD NUT CROSS2A0236-921.
TIE ROD CROSS22A0581-135022.
CROSS SCREW, CAP2A0079-61623.
CROSS NUT, CLEVIS & TIE ROD2A0235-624.
PIN CLIP2AJ0308-125.
CROSS CLEVIS PIN1D1582-1630026.
CROSS CLEVIS PIN1D1582-1630027.
CYL SEAL KIT -3C7682-810-070C810-078C28.
Hydraulics
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 41 - 175-083P
Lift Hydraulics
(Applies to EWD13 only)
Table of Contents Part Number Index
10191
175-083P - 42 - 01/19/11
Lift Hydraulics
(Applies to EWD13 only)
Image No.dwg10191
CYL 3.5X8X1.25 ROD W/D.C.(TIE)810-070C1.
AD 3/4MJIC 1/2MNPT811-041C2.
HH1/2R1 122 1/2MNPT 3/4FJIC811-383C3.
Table of Contents Part Number Index
Refer to "Rod 3 1/2" X 8" X 1 1/4",
Hydraulic Cylinder (810-070C)" for
breakdown.
Hydraulics
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 43 - 175-083P
Manual Marker
(Applies to EWD13 only)
Table of Contents Part Number Index
11247
175-083P - 44 - 01/19/11

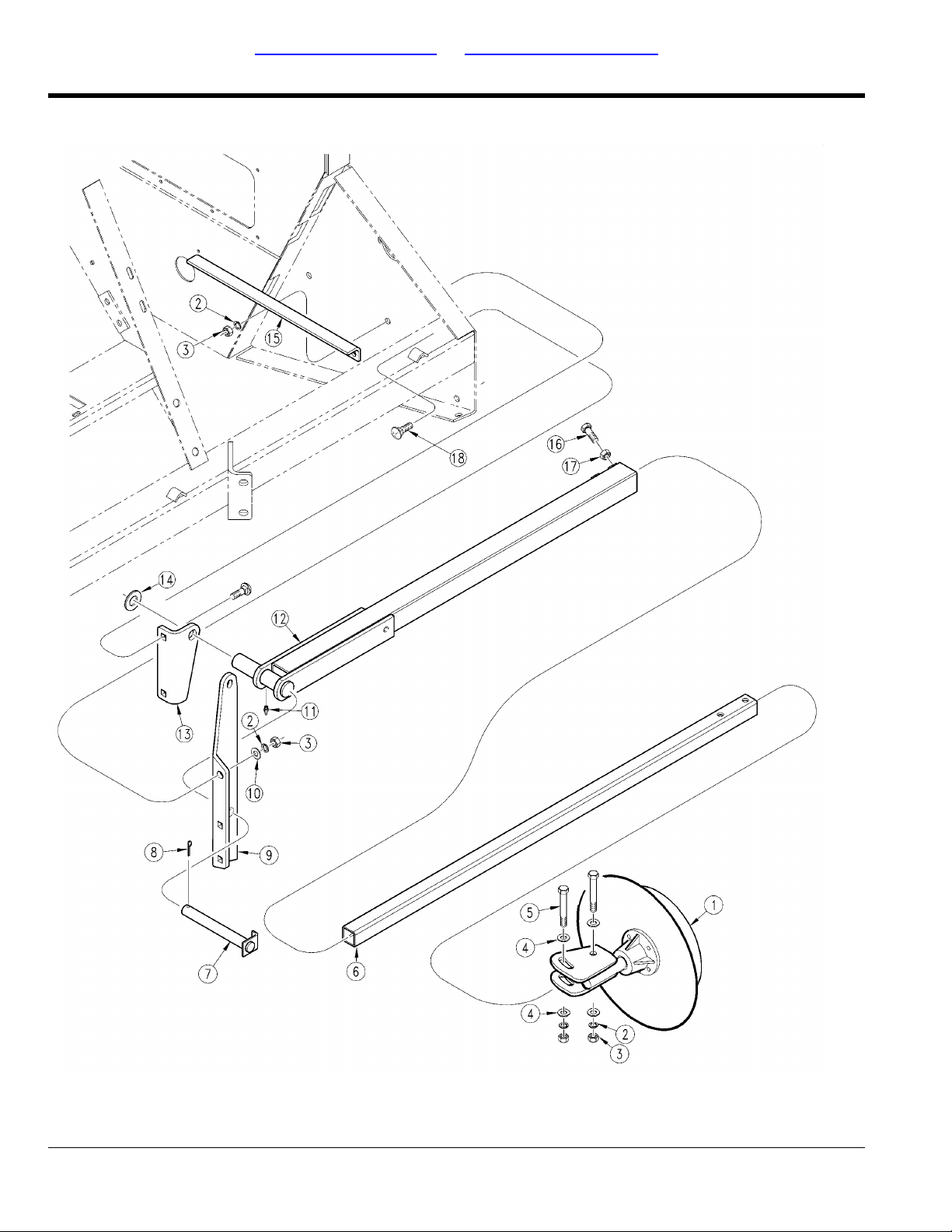

Manual Marker
(Applies to EWD13 only)
Image No.dwg11247
MARKER DISC & HUB ASSEMBLY113-563S1.
RPBY 113-563S113-364S1.
WASHER LOCK SPRING 1/2 PLT804-015C2.
NUT HEX 1/2-13 PLT803-020C3.
WASHER FLAT 1/2 USS PLT804-017C4.
HHCS 1/2-13X3 GR5802-039C5.
13' MARKER TUBE 46 1/2 LONG113-354D6.
MARKER PIVOT PIN WELDMENT113-148H7.
PIN COTTER3/16 X 1 1/4 PLT805-016C8.
MANUAL MARKER PIVOT & LOCK-LH113-178D9.
WASHER FLAT 1/2 SAE PLT804-016C10.
GREASE ZERK STRAIGHT 1/4-28800-001C11.
E.W.13' MARKER L.H. MANUAL113-145H12.
PIVOTSUPPORT ANGLE L.H.113-173D13.
WASHER FLAT 7/8 SAE PLT804-026C14.
MARKER SUPPORTANGLE L.H.113-174D15.
HHCS 1/2-13X1 1/4 GR5802-034C16.
NUT HEX JAM 1/2-13 PLT803-036C17.
RHSNB 1/2-13X1 1/2 GR5802-106C18.
Table of Contents Part Number Index
Refer to "Marker Disk (113-563S)" for
breakdown.
breakdown.
Markers
RevisionCommentsPart DescriptionPart No.Ref.
Rev. 2 is not interchangable
w/rev. 1
1st rev.Refer to "MarkerDisk (113-563S)" for
01/19/11 - 45 - 175-083P
Table of Contents Part Number Index
Marker Disk (113-364S)
(Applies to EWD13 only)
17980
175-083P - 46 - 01/19/11
Table of Contents Part Number Index
Marker Disk (113-364S)
(Applies to EWD13 only)
Image No.dwg17980
SEAL 1 X 1.785 X .469816-135C2.
BRG CONE .75IDX.65WD #LM11949822-045C3.
BRG CUP 1.78ODX.46WD #LM11910822-050C4.
MARKER HUB REPLACEMENT KIT113-661S5.
WASHER FLAT 5/8 SAE PLT804-021C6.
MARKER HUB REPLACEMENT KIT113-661S7.
NUT HEX SLOTTED 5/8-18 PLT803-185C8.
HHCS 1/2-20X1 GR5802-240C9.
GREASE CAP 1.785 X .89890-213C10.
PIN COTTER5/32 X 1 PLT805-019C11.
14 4-BOLT MARKER DISK820-098C12.
DEPTH BAND 10 4-BOLT4B.C.113-369H13.
Markers
RevisionCommentsPart DescriptionPart No.Ref.
2nd rev.Included in 113-661S.1 SPINDLE MARKER WELDMENT113-562H1.
1st rev.MARKER DISK SPINDLE WELDMENT113-363H1.
2nd rev.Includes items 1and 815-001C. Refer
to "PressWheel 3" X 14" Peaked" or
"Covering Chain" for breakdown.
1st rev.RPBY 113-661S815-039C5.
2nd rev.Includes items 1and 815-001C. Refer
to "PressWheel 3" X 14" Peaked" or
"Covering Chain" for breakdown.
1st rev.RPBY 113-661S815-038C7.
01/19/11 - 47 - 175-083P
Table of Contents Part Number Index
Marker Disk (113-563S)
(Applies to EWD13 only)
16557
175-083P - 48 - 01/19/11
Table of Contents Part Number Index
Marker Disk (113-563S)
(Applies to EWD13 only)
Image No.dwg16557
1 SPINDLE MARKER WELDMENT113-562H1.
TINE GAUGE WHEEL HUB SEAL816-014C2.
BRG CONE 1.00ID L44643822-030C3.
BRG CUP 1.98OD L44610822-080C4.
RELIABLE HUB 4 BOLT1-100-02-005.
WASHER FLAT 3/4 SAE PLT804-025C9.
NUT HEX SLOTTED 3/4-16803-053C10.
PIN COTTER5/32 X 1 PLT805-019C11.
DEPTH BAND 10 4-BOLT4B.C.113-369H13.
NUT LUG 1/2-20X60DEG PLT(.75AF803-159C14.
Markers
RevisionCommentsPart DescriptionPart No.Ref.
2nd rev.NEILSON STUD 1/2-20UNFX1 13/16B0-476.
1st rev.RPBY BO-47802-125C6.
2nd rev.GREASE CAP #1505890-614C7.
1st rev.RPBY 890-614C890-068C7.
Includes items 2 through 7 and 14.TINE GW HUB815-001C8.
2nd rev.16 4-BOLT NOTCHED MARKER DISK820-094C12.
1st rev.14 4-BOLT MARKER DISK820-098C12.
01/19/11 - 49 - 175-083P
Table of Contents Part Number Index
Feeder Cup & Cup Drive
(Applies to EWD13 only)
13910
175-083P - 50 - 01/19/11
Table of Contents Part Number Index
Feeder Cup & Cup Drive
(Applies to EWD13 only)
Image No.dwg13910
SCR SELF TAP 8X3/8 TYPE25 BT801-057C1.
SEED CUP WASHER RETAINER817-073C2.
NYLON WASHER-SPLIT817-004C3.
SEED CUP LEFT HALF817-096C4.
SEED CUP DOOR817-095C5.
SEED CUP RIGHT HALF817-097C6.
SEED CUP ADJUSTMENT HANDLE817-071C7.
SEED CUP ASSEMBLY-1 1/4817-094C8.
RPBY 118-509D176-003E9.
CUP DRIVE BRG. HOUSING176-006D10.
BRG BALL 1.18IDX2.44OD 206PP822-059C11.
RING FC HOUSING800-005C12.
SNAP RING EXT BASIC 1 3/16800-004C13.
CUP DRIVE BEARING HOUSING ASSY176-031V14.
CUP DRIVE BRG. & SPKT. ASSY.176-004S15.
Metering System
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 51 - 175-083P
Feeder Cup Channel
(Applies to EWD13 only)
Table of Contents Part Number Index
10192
175-083P - 52 - 01/19/11
Feeder Cup Channel
(Applies to EWD13 only)
Image No.dwg10192
SEED RATE ADJ. HANDLE WLDMT.175-014H1.
ADJUSTMENT HANDLE PIVOT109-069D2.
WASHER FLAT 5/8 USS PLT804-019C3.
PIN COTTER3/16 X 1 1/4 PLT805-016C4.
SEED RATE ADJ. PIVOT175-048D5.
HHCS 3/8-16X3/4 GR5802-014C6.
WASHER LOCK SPRING 3/8 PLT804-013C7.
WASHER FLAT 3/8 SAE PLT804-012C8.
HHCS 5/16-18X3/4 GR5802-007C9.
WASHER LOCK SPRING 5/16 PLT804-009C10.
NUT HEX 5/16-18 PLT803-008C11.
ADJ LOCK PLATE ASS'Y - 1 1/2 W109-025H12.
NUT WING 1/2-13 PLT803-016C13.
NAME PLATE ADJ. GUIDE SHORT819-005C14.
SEED MOUNT GAUGE ANGLE175-014D15.
SCREW RD HD 8-32 X 3/8 BRASS801-001C16.
WASHER FLAT #8 BRASS804-003C17.
WASHER INTERNAL STAR #8 BRASS804-002C18.
NUT HEX 8-32 BRASS803-035C19.
HHCS 1/4-20X3/4 GR5802-004C20.
WASHER LOCK SPRING 1/4 PLT804-006C21.
WASHER FLAT 1/4 SAE PLT804-007C22.
NUT-HEX 1/4-20 PLT803-006C23.
SEED CUP ASSEMBLY-1 1/4817-094C24.
PIN ROLL .182 X 1 5/32 FDR CUP805-070C26.
DELRIN SLEEVE817-003C27.
WASHER RETAINING804-031C28.
MACHINED ADJUSTMENT SPOOL109-091D29.
PIN ROLL 3/16X1 1/4 PLT805-023C30.
SNAP RING EXT 17 MM800-003C31.
BRG BALL 17IDX40OD 6203822-008C32.
WASHER ADJ HANDLE BRG804-001C33.
HHCS 1/4-20X5/8 GR5802-078C34.
CUP DRIVE BRG. & SPKT. ASSY.176-004S35.
HHCS 1/2-13X3/4 GR5802-032C36.
WASHER LOCK SPRING 1/2 PLT804-015C37.
13'-6 ADJ.SPROCKET SHAFT176-033D38.
13'-6 13/16 ADJ. SPKT. SHAFT176-034D38.
13'-7 1/2 ADJ. SPKT. SHAFT176-035D38.
13'-7 7/8 ADJ. SPKT. SHAFT176-036D38.
13'-10 ADJ.SPKT.SHAFT176-037D38.
REPLACED BY 175-168D175-008H39.
RPBY 175-169D175-009H39.
RPBY 175-170D175-010H39.
RPBY 175-171D175-011H39.
REPLACED BY 175-172D175-012H39.
NUT HEX FLANGE 1/2-13 GR G PLT803-193C40.
FEEDER CUP DIVIDER CLIP118-331D41.
13' EW BOX DVDR FOR 10 ROW175-225D42.
13' EW BOX DVDR FOR 7 7/8 ROW175-226D42.
13' EW BOX DVDR FOR 7 1/2 ROW175-227D42.
13' EW BOX DVDR FOR6 13/16ROW175-228D42.
13' EW BOX DVDR FOR 6 ROW175-229D42.
13' EW BOX DVDR SHORT 6 ROW175-230D42.
Table of Contents Part Number Index
Referto "FeederCup& CupDrive" for
breakdown.
Metering System
RevisionCommentsPart DescriptionPart No.Ref.
2nd Revision.POWDER METAL SPROCKET D2861B890-121C25.
Use existingstock; 1st Revision.RPBY 890-121C817-002C25.
01/19/11 - 53 - 175-083P
Table of Contents Part Number Index
Feeder Cup Channel (continued)
(Applies to EWD13 only)
13' EW ROW DVDR LONG 6 ROW175-231D42.
RevisionCommentsPart DescriptionPart No.Ref.
175-083P - 54 - 01/19/11
Table of Contents Part Number Index
Feeder Cup Channel (continued)
(Applies to EWD13 only)

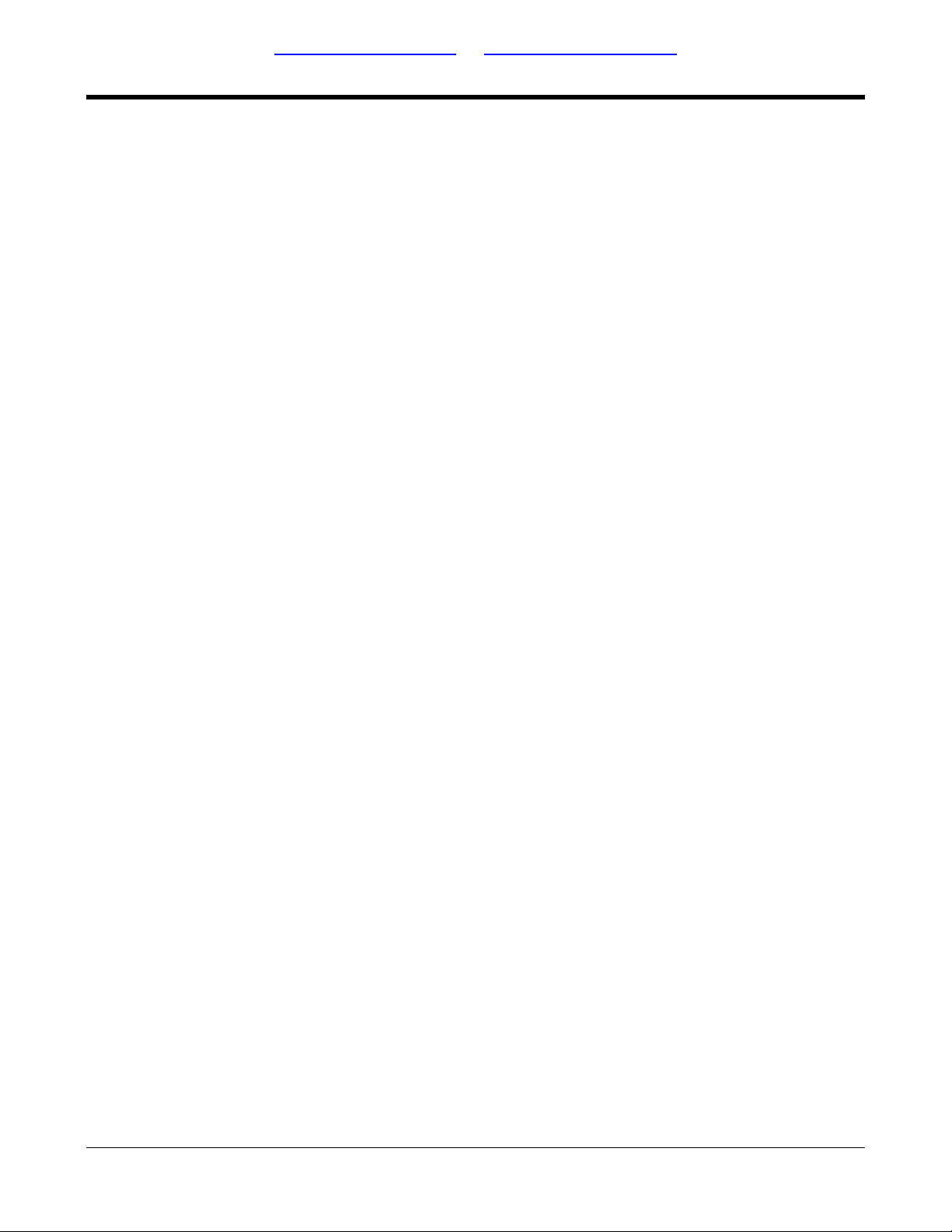

This Page Intentionally Left Blank
Metering System
01/19/11 - 55 - 175-083P
Table of Contents Part Number Index
Fertilizer Tray 6", 7", 7 1/2", 8" & 10
(Applies to EWD13 only)
13260
175-083P - 56 - 01/19/11
Table of Contents Part Number Index
Fertilizer Tray 6", 7", 7 1/2", 8" & 10
(Applies to EWD13 only)
Image No.dwg13260
TENSION SPRING RETAINER122-065D1.
SPRING SCREW ADJ TENSION STRHT807-020C2.
FERT DROP TUBE ASSEMBLY BOX141-011E3.
SLIDE STOPASSEMBLY141-041E4.
13' EW TRAY BEARING SPACER175-224D5.
FELT SEAL890-026C6.
ACME SLOTTED NUT150-051D7.
SPKT 40B30 X 3/4 HEXBORE W/ SS808-086C8.
MF FERT.75 HEX BORE BUSHING191-001D9.
FERTILIZER ADJ BRKT WELDMENT191-001H10.
MF FERTHEX BORE PLASTIC BUSH191-002D11.
13' EW FERT BEARING RETAINER175-102H12.
FERTILIZER ADJUSTMENT ROD ASSY150-044S13.
13' EW 6FERT SLIDE GATE WLDMT175-136H14.
13' EW 7FERT SLIDE GATE WLDMT175-137H14.
13' EW 7.5FERT SLIDE GATE WLMT175-138H14.
13' EW 8 FERT SLIDE GATE WLMT175-139H14.
13' EW 10FERT SLIDE GATE WLMT175-140H14.
13' EW F.T. END PNL LH WLDMT175-134H16.
13' EW F.T. END PNL RH WLDMT175-135H17.
13' EW FERT TRAY WLMT 6175-096H18.
13' EW FERT TRAY WLMT 7175-097H18.
13' EW FERT TRAY WLMT 7 1/2175-098H18.
13' EW FERT TRAY WLMT 8175-099H18.
13' EW FERT TRAY WLMT 10175-100H18.
13' EW FERT HEX SHAFT 158 7/8175-232D19.
SEAL 5/16 X 3/4 DOR-TITE TRAY990-024R20.
BRG FLG 1.25ID 3BOLT822-083C21.
MF FERTSTARRETAINER SIDE PLT191-018D22.
MF FERTTRAY SLIDE SUPPORT191-019D23.
LATCH STRIKE800-032C24.
RIVET SS 1/8 DIA800-012C25.
SCREW RD HD 8-32 X 3/8 BRASS801-001C26.
SCREW SET 1/4-28 SH X 1/2 LG801-009C27.
SCREW PAN HD 10-32 X 3/8 SS801-010C28.
SCREW RD HD 1/4-20 X 5/8801-018C29.
HHCS 3/8-16X1 GR5802-017C30.
RHSNB 1/4-20X3/4 SS802-089C31.
RHSNB 5/16-18X3/4 GR5802-092C32.
RHSNB 3/8-16X1 3/4 GR5802-252C33.
NUT HEX SS 10-32803-002C34.
NUT HEX SS 1/4-20803-004C35.
NUT-HEX 1/4-20 PLT803-006C36.
NUT HEX 5/16-18 PLT803-008C37.
NUT HEX 3/8-16 PLT803-014C38.
NUT HEX 8-32 BRASS803-035C39.
WASHER INTERNAL STAR #8 BRASS804-002C40.
WASHER FLAT #8 BRASS804-003C41.
WASHER LOCK SPRING 1/4 PLT804-006C42.
WASHER LOCK SPRING 5/16 PLT804-009C43.
WASHER LOCK SPRING 3/8 PLT804-013C44.
WASHER LOCK INTERNAL #10 SS804-032C45.
WASHER LOCK 1/4 SS804-033C46.
PIN COTTER7/64 X 1 LONG805-064C47.
6 POINT FERT METERING WHEEL817-053C48.
Metering System
RevisionCommentsPart DescriptionPart No.Ref.
(3/15/94+)13' EW FERT DOOR WLDMT175-114E15.
(3/14/94-)13' EW FERT DOOR WLMT175-090H15.
01/19/11 - 57 - 175-083P
Table of Contents Part Number Index
Fertilizer Tray 6", 7", 7 1/2", 8" & 10 (continued)
(Applies to EWD13 only)
KNOB P.W. ADJUSTMENT817-021C49.
FERTILIZER ADJUSTMENT GAUGE819-034C50.
13' EW FERT TRAY SLIDE PNL LH175-214D51.
13' EW FERT TRAY SLIDE PNL RH175-215D52.
13' EW DEW SHIELD & DUST COVER816-184C53.
WASHER FLAT 1/4 SAE PLT804-007C54.
WASHER MACH 2 1/2X1 3/4X.075804-048C55.
RevisionCommentsPart DescriptionPart No.Ref.
175-083P - 58 - 01/19/11
Table of Contents Part Number Index
Fertilizer Tray 6", 7", 7 1/2", 8" & 10 (continued)
(Applies to EWD13 only)
This Page Intentionally Left Blank
Metering System
01/19/11 - 59 - 175-083P
Small Seeds Metering
(Applies to EWD13 only)
Table of Contents Part Number Index
17029
175-083P - 60 - 01/19/11
Table of Contents Part Number Index
Small Seeds Metering
(Applies to EWD13 only)
Image No.dwg17029
13' EW SMLSDS DRV SPKT HUB 15T123-901H2.
NUT-HEX 1/4-20 PLT803-006C3.
WASHER FLAT 1/4 SAE PLT804-007C4.
HANGER DRIVE SHAFT817-026C5.
WASHER FLAT 1 3/8X.876X.048 TH804-044C6.
SNAP RING .875800-028C7.
HHCS 1/4-20X1 GR5802-005C8.
13'-6 EW SML SDS CUP SHAFT123-544D9.
WASHER GRASS SEEDER CUP SHAFT804-042C10.
PIN COTTER1/8 X 3/4805-067C11.
GRASS SEEDER SLEEVE817-009C12.
RPBY 817-504C817-008C13.
NUT-HEX 1/4-20 PLT803-006C14.
GRASS SEEDER SPROCKET817-010C15.
HFSS 1/4-20X1/2 GR5802-148C16.
WASHER LOCK SPRING 1/4 PLT804-006C17.
ADJUSTMENT HANDLE PIVOT123-050H18.
PIN COTTER5/32 X 1 PLT805-019C19.
SCREW SET 5/16-18 SKT KP X 3/8801-035C21.
SEED ADJUSTMENT SPOOL123-116D22.
WASHER FLAT 3/8 SAE PLT804-012C23.
REAR SEED RATE ADJ HANDLE WLD123-476H24.
NUT WING 5/16-18803-058C25.
LOCK TAB123-113D26.
RHSNB 5/16-18X3/4 GR5802-092C27.
GAUGE MOUNTING BRACKET123-410D28.
NUT HEX 8-32 BRASS803-035C29.
WASHER INTERNAL STAR #8 BRASS804-002C30.
WASHER FLAT #8 BRASS804-003C31.
SCREW RD HD 8-32 X 3/8 BRASS801-001C33.
SMALL SEEDS CUP WIND SHIELD817-806C34.
Metering System
RevisionCommentsPart DescriptionPart No.Ref.
2nd rev.CHAIN RL #40 43 PITCHES136-118D1.
Use existingstock; 1st rev.OBSOLETE REPLACEDBY 136-118D809-160C1.
2nd rev.3/8 SHAFT LOCKING COLLAR890-349C20.
Use existingstock; 1st rev.RPBY 890-349C123-436D20.
2nd rev.NAME PLATE FEED ADJ. GUIDE819-087C32.
Use existingstock; 1st rev.SEED ADJUSTMENT GUIDE819-041C32.
01/19/11 - 61 - 175-083P

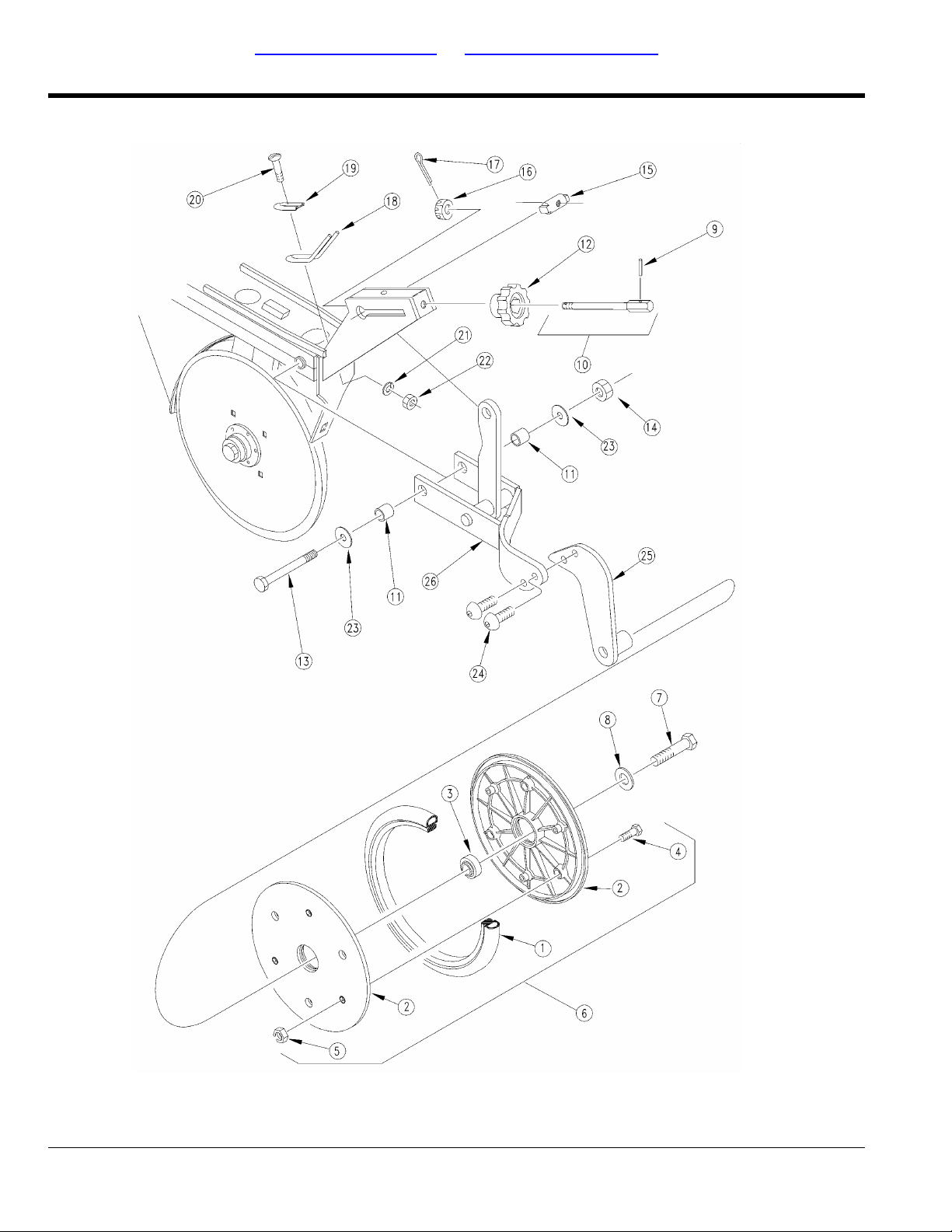

Double Disk Opener
(Applies to EWD13 only)
Table of Contents Part Number Index
11257
175-083P - 62 - 01/19/11
Double Disk Opener
(Applies to EWD13 only)
Image No.dwg11257
U-BOLT 1/2-13X1 1/8X2 5/16X1--806-030C1.
OPENER SHAFT178-017D2.
OPENER LIFT ARM178-015D3.
OPENER LIFT TOP178-016D4.
WASHER LOCK SPRING 1/2 PLT804-015C5.
NUT HEX 1/2-13 PLT803-020C6.
NUT-HEX 1/4-20 PLT803-006C7.
WASHER LOCK SPRING 1/4 PLT804-006C8.
HHCS 1/4-20X3/4 GR5802-004C9.
CASTING END WHEEL SPRING ROD812-032C10.
DISK SPRING BAR178-014D11.
END WHEEL DISK SPRING807-021C12.
DISC SPRING BAR WIRE CLIP107-027D13.
CLAMP HOSE 1 5/8 NO. 26800-009C14.
END WHEEL SEED HOSE816-055C15.
.005LE WIRE HOSE CLAMP #23800-268C16.
NUT LOCK 3/8-16 PLT803-013C17.
UPPER FERTHOSE CLAMP800-016C18.
END WHEEL FERTILIZER HOSE816-037C19.
PW LEVER TUBE BUSHING122-071D20.
WASHER FLAT 3/8 SAE PLT804-012C21.
HHCS 3/8-16X4 3/4 GR5 SPTHD802-174C22.
RPBY 107-134A820-005C23.
FLAT DISK STEEL-2 1/2 MM820-113C23.
HHCS 5/8-11X1 1/2 GR5 NYL802-228C24.
WASHER MACH 1.19 X .63 X 18GA804-040C25.
D.D. SLOTTED SCRAPER107-113D26.
WASHER LOCK SPRING 3/8 PLT804-013C27.
NUT HEX 3/8-16 PLT803-014C28.
NUT LOCK 3/8-16 NYLON INSERT803-078C29.
RHSNB 3/8-16X1 GR5802-015C30.
RIVET,BUTTON HEAD .203 X 9/16800-212C31.
PLASTIC SEED GUIDE817-059C32.
RPBY 107-133S107-130S33.
2 1/2MM DD W/205BRG ASSY-PLTFL107-131S33.
BEARING AA205DD188-001V34.
BEARING FLANGE-3/16 DIA HOLES107-112D35.
DD BRG FLANGE DUST COVER107-111D36.
6-OPENER CHANNEL LEFT178-018D37.
6-OPENER CHANNEL RIGHT178-019D37.
6 13/16 OPENER CHANNEL LEFT178-020D37.
6 13/16 OPENER CHANNEL RIGHT178-021D37.
7 1/2 OPENER CHANNEL LEFT178-022D37.
7 1/2 OPENER CHANNEL RIGHT178-023D37.
7 7/8 OPENER CHANNEL LEFT178-024D37.
7 7/8 OPENER CHANNEL RIGHT178-025D37.
10 OPENER CHANNEL LEFT178-026D37.
10 OPENER CHANNEL RIGHT178-027D37.
7 13/32 OPNR CHNL LH-2X13 DBLV178-034D37.
7 13/32 OPNR CHNL RH-2X13 DBLV178-035D37.
7 25/32 OPNR CHNL LH-2X13 DBLV178-036D37.
7 25/32 OPNR CHNL RH-2X13 DBLV178-037D37.
9 29/32 OPNR CHNL LH-2X13 DBLV178-038D37.
9 29/32 OPNR CHNL RH-2X13 DBLV178-039D37.
38.
3 1/2" SQUARE MOUNTING TUBE (WELDED
TO BOX)
SCREW U-TYPE DRIVE #4 X 1/2801-056C39.
Table of Contents Part Number Index
Opener
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 63 - 175-083P
Table of Contents Part Number Index
Double Disk Opener (continued)
(Applies to EWD13 only)
WASHER FLAT #4 SAE PLT804-079C40.
HHCS 3/8-16X3 1/2 GR5802-147C41.
D.D. OPENER FRONT178-001H42.
D.D. OPENER REAR178-002H42.
NUT MAC-LOKFLG 3/8-16 GR F803-086C43.
DD PIVOT BLOCK CAP178-040D44.
END WHEEL D.D.PIVOT BLOCK817-027C45.
HFSS 3/8-16X2 1/4 GR5802-191C46.
RevisionCommentsPart DescriptionPart No.Ref.
175-083P - 64 - 01/19/11
Table of Contents Part Number Index
Double Disk Opener (continued)
(Applies to EWD13 only)
This Page Intentionally Left Blank
Opener
01/19/11 - 65 - 175-083P
Seed-Lok
(Applies to EWD13 only)
Table of Contents Part Number Index
13536
175-083P - 66 - 01/19/11
Seed-Lok
(Applies to EWD13 only)
Image No.dwg13536
SEED-LOK ARM (1994)122-151D1.
WASHER INTERNAL STAR 3/8 PLT.804-078C2.
SCR HX SKT BUT CP 3/8-16X3/4801-078C3.
SD-LK 203 BEARING WHEEL ASSY122-201S4.
RING SNAP EXTERNAL '"E'" 1/2800-093C5.
5 SEED-LOK WHL ARM PIVOTPIN122-120D6.
EW RMVBL SD-LOK MNT WLDMT178-065H7.
SPRING, 1 O.D.X.125WIREX 3 1/2807-101C8.
WASHER FLAT 3/8 SAE PLT804-012C9.
WASHER LOCK SPRING 3/8 PLT804-013C10.
HHCS 3/8-16X1 GR5802-017C11.
5/8 X 5 SEED FIRMING WHEEL817-134C12.
RETAINER W/BONDED SEAL 4BLT816-173C14.
SCR PH THD FMG #10X1/2 TP ZP801-084C15.
RPBY 206-021D206-013D16.
SEED LOK TIE UP809-198C17.
Table of Contents Part Number Index
Includes 6 bearings.RPBY 188-008V122-231A13.
Opener
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 67 - 175-083P
Table of Contents Part Number Index
Small Seeds Hose Retainer
(Applies to EWD13 only)
13475
175-083P - 68 - 01/19/11
Table of Contents Part Number Index
Small Seeds Hose Retainer
(Applies to EWD13 only)
Image No.dwg13475
HHCS 1/4-20X1 GR5802-005C1.
WASHER FLAT 1/4 SAE PLT804-007C2.
HOSE RETAINER MOUNT PLATE123-298D3.
GRASS SEED HOSE RETAINER123-202D4.
CLAMP WORM DRIVE 11/16-1 1/4800-024C5.
WASHER LOCK SPRING 1/4 PLT804-006C6.
NUT-HEX 1/4-20 PLT803-006C7.
GRASS SEED HOSE, 60IN.123-307D8.
SINGLE WIRE HOSE CLAMP #14800-029C9.
Opener
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 69 - 175-083P
Table of Contents Part Number Index
Small Seeds Y-Tube Drop
(Applies to EWD13 only)
13903
175-083P - 70 - 01/19/11
Table of Contents Part Number Index
Small Seeds Y-Tube Drop
(Applies to EWD13 only)
Image No.dwg13903
EWNT Y GRASS SEED HOSE123-306D1.
SINGLE WIRE HOSE CLAMP #14800-029C2.
1 1/4 DIA PLAST OPNR DROP TUBE817-127C3.
CLAMP HOSE 1 1/2 NO. 24800-008C4.
RPBY 816-284C123-299D5.
RUBBER GRAIN TUBE816-002C6.
Opener
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 71 - 175-083P
Covering Chain
(Applies to EWD13 only)
Table of Contents Part Number Index
10089
175-083P - 72 - 01/19/11
Covering Chain
(Applies to EWD13 only)
Image No.dwg10089
COVERING CHAIN MOUNT BAR178-033D1.
RHSNB 3/8-16X1 1/4 GR5802-155C2.
WASHER FLAT 3/8 SAE PLT804-012C3.
WASHER LOCK SPRING 3/8 PLT804-013C4.
NUT HEX 3/8-16 PLT803-014C5.
DRAG CHAIN890-063C6.
COVERING CHAIN KIT122-078A
Table of Contents Part Number Index
Press Wheels
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 73 - 175-083P
Table of Contents Part Number Index
Press Wheel 1"X 12" Single
(Applies to EWD13 only)
10568
175-083P - 74 - 01/19/11
Table of Contents Part Number Index
Press Wheel 1"X 12" Single
(Applies to EWD13 only)
Image No.dwg10568
TIRE RUBBER1 X 12814-034C1.
1 X 12 MOLDED PRESS WHEEL RIM817-081C2.
BEARING AA205DD188-001V3.
HHCS 1/4-20X1 GR5802-005C4.
NUT-LOCK 1/4-20 PLT803-007C5.
1 X 12 GP PRESS WHEEL ASSEMBLY814-143C6.
HHCS 5/8-11X1 1/2 GR5802-051C7.
WASHER LOCK SPRING 5/8 PLT804-022C8.
PIN ROLL 5/32 X 1805-073C9.
SCREW ADJUSTMENT ROD122-055S10.
PW LEVER TUBE BUSHING122-071D11.
KNOB P.W. ADJUSTMENT817-021C12.
HHCS 3/8-16X4 3/4 GR5 SPTHD802-174C13.
NUT LOCK 3/8-16 NYLON INSERT803-078C14.
SLIDE TRUNNION122-061D15.
NUT HEX SLOTTED 7/16-14 PLT803-069C16.
PIN COTTER7/64 X 1 LONG805-064C17.
SCREW ADJ TENSION SPRING BENT807-066C18.
TENSION SPRING RETAINER122-065D19.
SCREW RD HD 1/4-20 X 5/8801-018C20.
WASHER LOCK SPRING 1/4 PLT804-006C21.
NUT-HEX 1/4-20 PLT803-006C22.
WASHER FLAT 3/8 SAE PLT804-012C23.
HSBHCS 1/2-13X1 GR5 NYL802-371C24.
1 X 12 PRESS WHEEL ARM WMNT122-130H25.
COMBINATION PW ARM WLDMENT122-110H26.
EW 1X12 SNGL PW & HARDWARE122-146A
Press Wheels
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 75 - 175-083P
Table of Contents Part Number Index
Press Wheel 2" X 13" Double "V (8/31/96-)
(Applies to EWD13 only)
10571
175-083P - 76 - 01/19/11
Table of Contents Part Number Index
Press Wheel 2" X 13" Double "V (8/31/96-)
(Applies to EWD13 only)
Image No.dwg10571
TIRE 2 X 13 PW CROWN814-069C1.
RPBY 122-233 OR -234A122-115D2.
2 X 13 PW BRG. SPACER TUBE122-114D3.
HHCS 5/16-18X1 3/4 GR5802-013C4.
803-184 FLG TP LK 5/16-18ZNYCR803-177C5.
2 BEARING HUB122-002D6.
2 P.W. RIM SPACERRING817-067C7.
BRG INS .63IDX1.57OD DBL LIP822-095C8.
RPBY 122-233A122-115S9.
2X13 DOUBLE V PW ARM MNT WELD122-135H10.
HHCS 5/8-11X3 GR5802-059C11.
WASHER LOCK SPRING 5/8 PLT804-022C12.
PW LEVER TUBE BUSHING122-071D13.
KNOB P.W. ADJUSTMENT817-021C14.
HHCS 3/8-16X4 3/4 GR5 SPTHD802-174C15.
NUT LOCK 3/8-16 NYLON INSERT803-078C16.
SLIDE TRUNNION122-061D17.
NUT HEX SLOTTED 7/16-14 PLT803-069C18.
PIN COTTER7/64 X 1 LONG805-064C19.
SCREW ADJ TENSION SPRING BENT807-066C20.
TENSION SPRING RETAINER122-065D21.
SCREW RD HD 1/4-20 X 5/8801-018C22.
WASHER LOCK SPRING 1/4 PLT804-006C23.
NUT-HEX 1/4-20 PLT803-006C24.
WASHER FLAT 3/8 SAE PLT804-012C25.
2 X 13 DBL V NARROW ANGLE BAR122-134H26.
PW ADJUSTMENT BAR 2X13 DBL V122-021D27.
HHCS 5/16-18X1 1/2 GR5802-012C28.
NUT LOCK 5/16-18 PLT803-011C29.
HHCS 3/8-16X1 1/2 GR5802-022C30.
PIN CLEVIS 5/16 X 1 13/32805-011C31.
PIN HAIR COTTER .094805-010C32.
PIN ROLL 5/32 X 1805-073C33.
SCREW ADJUSTMENT ROD122-055S34.
2X13 P.W. BOLT SPACER890-198C35.
2 X 13 TIRE & RING ASSEMBLY122-189V36.
EW 2X13 DBL V PW & HARDWARE122-149A
Press Wheels
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 77 - 175-083P
Table of Contents Part Number Index
Press Wheel 3" X 13" Single "V" Crown (8/31/96-)
(Applies to EWD13 only)
10572
175-083P - 78 - 01/19/11
Table of Contents Part Number Index
Press Wheel 3" X 13" Single "V" Crown (8/31/96-)
(Applies to EWD13 only)
Image No.dwg10572
TIRE 3 X 13 PW V CROWN814-068C1.
RPBY 122-233 OR -234A122-115D2.
3 X 13 P.W. BRG SPACER TUBE122-111D3.
HHCS 5/16-18X2 3/4 GR5802-197C4.
803-184 FLG TP LK 5/16-18ZNYCR803-177C5.
3 BEARING HUB122-001D6.
3 P.W. RIM SPACERRING817-065C7.
BRG INS .63IDX1.57OD DBL LIP822-095C8.
RPBY 122-234A122-116S9.
COMBINATION PW ARM WLDMENT122-110H10.
HHCS 5/8-11X4 1/4 GR5802-151C11.
WASHER LOCK SPRING 5/8 PLT804-022C12.
PW LEVER TUBE BUSHING122-071D13.
KNOB P.W. ADJUSTMENT817-021C14.
HHCS 3/8-16X4 3/4 GR5 SPTHD802-174C15.
NUT LOCK 3/8-16 NYLON INSERT803-078C16.
SLIDE TRUNNION122-061D17.
NUT HEX SLOTTED 7/16-14 PLT803-069C18.
PIN COTTER7/64 X 1 LONG805-064C19.
SCREW ADJ TENSION SPRING BENT807-066C20.
TENSION SPRING RETAINER122-065D21.
SCREW RD HD 1/4-20 X 5/8801-018C22.
WASHER LOCK SPRING 1/4 PLT804-006C23.
NUT-HEX 1/4-20 PLT803-006C24.
WASHER FLAT 3/8 SAE PLT804-012C25.
HSBHCS 1/2-13X1 GR5 NYL802-371C26.
PRESS WHEEL ARM END WMNT122-188H27.
PIN ROLL 5/32 X 1805-073C28.
SCREW ADJUSTMENT ROD122-055S29.
3 X 13 PRESS WHEEL SPACER122-124D30.
3X13 P.W. BOLT SPACER890-199C31.
3 X 13 TIRE & RING ASSEMBLY122-192V32.
EW 3X13 SNGL PW & HARDWARE122-150A
Press Wheels
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 79 - 175-083P
Table of Contents Part Number Index
Press Wheel 3" X 13" Single "V" Crown (9/1/96+)
(Applies to EWD13 only)
16320
175-083P - 80 - 01/19/11
Table of Contents Part Number Index
Press Wheel 3" X 13" Single "V" Crown (9/1/96+)
(Applies to EWD13 only)
Image No.dwg16320
3 X 13 PRESS WHEEL TIRE814-160C1.
3 X 13 PRESS WHEEL RIM HALF817-297C2.
BRG .63ID PRESS WHL ASY822-170C3.
HHFS 1/4-20 X 2 GR 5802-618C4.
NUT HEX LOCK 1/4-20 FLG803-088C5.
3 X 13 PRESS WHEEL ASSEMBLY814-158C6.
COMBINATION PW ARM WLDMENT122-110H7.
HHCS 5/8-11X4 1/4 GR5802-151C8.
WASHER LOCK SPRING 5/8 PLT804-022C9.
PW LEVER TUBE BUSHING122-071D10.
KNOB P.W. ADJUSTMENT817-021C11.
HHCS 3/8-16X4 3/4 GR5 SPTHD802-174C12.
NUT LOCK 3/8-16 NYLON INSERT803-078C13.
SLIDE TRUNNION122-061D14.
NUT HEX SLOTTED 7/16-14 PLT803-069C15.
PIN COTTER7/64 X 1 LONG805-064C16.
SCREW ADJ TENSION SPRING BENT807-066C17.
TENSION SPRING RETAINER122-065D18.
SCREW RD HD 1/4-20 X 5/8801-018C19.
WASHER LOCK SPRING 1/4 PLT804-006C20.
NUT-HEX 1/4-20 PLT803-006C21.
WASHER FLAT 3/8 SAE PLT804-012C22.
HSBHCS 1/2-13X1 GR5 NYL802-371C23.
PRESS WHEEL ARM END WMNT122-188H24.
PIN ROLL 5/32 X 1805-073C25.
SCREW ADJUSTMENT ROD122-055S26.
3 X 13 ACE PRESS WHEEL SPACER122-159D27.
EW 3X13 SINGLE PW & HARDWARE122-221A
Press Wheels
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 81 - 175-083P
Table of Contents Part Number Index
Press Wheel 3" X 14" Peaked
(Applies to EWD13 only)
10573
175-083P - 82 - 01/19/11
Table of Contents Part Number Index
Press Wheel 3" X 14" Peaked
(Applies to EWD13 only)
Image No.dwg10573
3 X 14 PEAKED PRESS WHEEL TIRE814-067C1.
4X12 PW RIM HALF122-041D2.
SMALL SPACER TUBE122-110D3.
HHCS 5/16-18X2 3/4 GR5802-197C4.
803-184 FLG TP LK 5/16-18ZNYCR803-177C5.
LARGE SPACER TUBE817-062C6.
3 X 14 RIM SPACER RING817-063C7.
BRG INS .63IDX1.57OD DBL LIP822-095C8.
3 X 14 PEAKED P.W. ASSEMBLY122-117S9.
COMBINATION PW ARM WLDMENT122-110H10.
HHCS 5/8-11X4 GR5802-060C11.
WASHER LOCK SPRING 5/8 PLT804-022C12.
PW LEVER TUBE BUSHING122-071D13.
KNOB P.W. ADJUSTMENT817-021C14.
HHCS 3/8-16X4 3/4 GR5 SPTHD802-174C15.
NUT LOCK 3/8-16 NYLON INSERT803-078C16.
SLIDE TRUNNION122-061D17.
NUT HEX SLOTTED 7/16-14 PLT803-069C18.
PIN COTTER7/64 X 1 LONG805-064C19.
SCREW ADJ TENSION SPRING BENT807-066C20.
TENSION SPRING RETAINER122-065D21.
SCREW RD HD 1/4-20 X 5/8801-018C22.
WASHER LOCK SPRING 1/4 PLT804-006C23.
NUT-HEX 1/4-20 PLT803-006C24.
WASHER FLAT 3/8 SAE PLT804-012C25.
HSBHCS 1/2-13X1 GR5 NYL802-371C26.
PRESS WHEEL ARM END WMNT122-188H27.
PIN ROLL 5/32 X 1805-073C28.
SCREW ADJUSTMENT ROD122-055S29.
3 X 14 PRESS WHEEL SPACER122-125D30.
3 X 14 TIRE & RING ASSEMBLY122-198V31.
EW 3X14 PEAK PW & HARDWARE122-151A
Press Wheels
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 83 - 175-083P
Lock-Out Hub
(Applies to EWD13 only)
Table of Contents Part Number Index
10256
175-083P - 84 - 01/19/11
Lock-Out Hub
(Applies to EWD13 only)
Image No.dwg10256
BUSHING BRZ 1 1DX1 1/4 OD FLG822-108C1.
SEAL DBL LIP 2.5 ID X 3.881 OD816-138C2.
BRG CONE 2.25ID 387822-106C3.
6-BOLT LOCKOUT HUB W/ CUPS200-041S4.
BRG CUP 3.81D 382A822-107C5.
6-BOLT LOCKOUT HUB-MACHINED172-218D6.
BRG CUP 25520822-013C7.
BEARING CONE 25590822-014C8.
WASHER BRG LOCK 1.767804-083C9.
NUT BRG LOCK 1.767 OD THD803-186C10.
13' EW LOCKOUT HUB SHAFT175-127H11.
6 BOLT LOCKOUT PLUNGER172-201D12.
SPRING COMP 1/2 OD X 1 LG807-096C13.
30-3SEC LOCKOUT HUB SEAL816-139C14.
6 BOLT LOCKOUT END CAP172-199D15.
PIN ROLL 3/16 X 2 1/2 LG. PTL.805-062C16.
HHCS 1/4-20X1 GR5802-005C17.
WASHER LOCK SPRING 1/4 PLT804-006C18.
1/4 SQ. KEY X 7/8 LG172-242D19.
SPKT 40B30 X 1 W/KW & SS808-058C20.
13' EW LOCKOUT HUB PANEL WLMT175-125H21.
BEARING 1.000 DIA W/SET-SCREWS188-003V22.
NUT HEX 1/2-13 PLT803-020C23.
WASHER LOCK SPRING 1/2 PLT804-015C24.
HHCS 1/2-13X1 1/4 GR5802-034C25.
BOLT WHEEL 1/2-20X1 90-DEG802-104C26.
VALVE STEM TR415X.625X1 1/4 LG816-035C27.
WHEEL 20 X 5.50F-6 BOLT814-029C28.
TIRE 7.50 X 20 4 PLY RIB IMPL814-030C29.
TRANSPORT WHEEL & TIRE ASSY.176-021K30.
Table of Contents Part Number Index
Transport
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 85 - 175-083P
Opener Lift
(Applies to EWD13 only)
Table of Contents Part Number Index
10205
175-083P - 86 - 01/19/11
Opener Lift
(Applies to EWD13 only)
Image No.dwg10205
6 & 7 1/2 ROW LIFT TUBE175-068H1.
RPBY 175-068H175-067H1.
PUSH, PIVOT TUBE HALF CLAMP175-061D2.
PIVOTTUBE WEAR PAD175-060D3.
GREASE ZERK STRAIGHT 1/4-28800-001C4.
HHCS 5/8-11X1 3/4 GR5802-053C5.
WASHER LOCK SPRING 5/8 PLT804-022C6.
NUT HEX 5/8-11 PLT803-021C7.
BUSHING CYL 1 1/4 X 1 X 1890-005C8.
PIN CLEVIS 3/4 X 1 1/2805-083C9.
PIN COTTER5/32 X 1 1/4 LG805-045C10.
WASHER FLAT 3/4 SAE PLT804-025C11.
OPENER LIFT LINK175-053D12.
MOUNTING STRAP WELDMENT175-041H13.
LIFT BAR PIVOT ARM175-055D14.
PIVOTARM CHANNEL175-054D15.
LOCK ADJUSTMENT ROD ASSEMBLY175-066H16.
PIN COTTER7/64 X 1 LONG805-064C17.
LOCK CLEVIS WELDMENT175-065H18.
PIN COTTERLESS5/8X2 1/2 1018805-092C19.
HHCS 3/8-16X2 GR5802-143C20.
NUT LOCK 3/8-16 PLT803-013C21.
OPENER SHAFT178-017D22.
OPENER LIFT BRG. FLANGE175-045D23.
OPENER LIFT BRG. TUBE175-063D24.
HHCS 1/4-20X5/8 GR5802-078C25.
WASHER LOCK SPRING 1/4 PLT804-006C26.
NUT-HEX 1/4-20 PLT803-006C27.
LIFT BRG. ASSY.175-034S28.
HHCS 1/2-13X1 1/4 GR5802-034C29.
WASHER LOCK SPRING 1/2 PLT804-015C30.
NUT HEX 1/2-13 PLT803-020C31.
Table of Contents Part Number Index
Transport
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 87 - 175-083P
Transport Wheel
(Applies to EWD13 only)
Table of Contents Part Number Index
10845
175-083P - 88 - 01/19/11
Transport Wheel
(Applies to EWD13 only)
Image No.dwg10845
13' EW NON DR HUB PANEL WLMT175-124H1.
WASHER LOCK SPRING 1/2 PLT804-015C2.
HHCS 1/2-13X1 1/4 GR5802-034C3.
NUT HEX 1/2-13 PLT803-020C4.
SEAL MF WALKING TANDEM HUB816-050C5.
BRG CONE 1.62IDX.78WD#LM501349822-048C6.
BRG CUP 2.89ODX.58WD #LM501310822-053C7.
RPBY 815-013C200-013D8.
BEARING CUP LM-67010822-020C9.
BEARING CONE LM-67048822-021C10.
7/8 SPINDLE WASHER, HARDENED181-064D11.
NUT HEX SLOTTED 7/8-14 PLT803-029C12.
PIN COTTER3/16 X 1 3/4 PLT805-017C13.
HUB GREASE CAP200-001D14.
TRANSPORT WHEEL & TIRE ASSY.176-021K15.
VALVE STEM TR415X.625X1 1/4 LG816-035C16.
WHEEL 20 X 5.50F-6 BOLT814-029C17.
TIRE 7.50 X 20 4 PLY RIB IMPL814-030C18.
BOLT WHEEL 1/2-20X1 90-DEG802-104C19.
MF WALKING TANDEM HUB ASSEMBLY200-027S20.
6H-06AA HUB PACKAGE LESS SEAL815-013C20.
Table of Contents Part Number Index
Transport
RevisionCommentsPart DescriptionPart No.Ref.
01/19/11 - 89 - 175-083P
Table of Contents Part Number Index
Part Number Index
The Part Number Index is a numeric index of all part numbers included in this manual.The index shows what page(s) the part is used on.
PagePart Number
PagePart Number
PagePart Number
PagePart Number
122-065D ...................
122-071D ...................
491-100-02-00 ...............
63107-027D ...................
63107-111D ...................
63107-112D ...................
63107-113D ...................
63107-130S ...................
63107-131S ...................
53109-025H ...................
33109-031D ...................
53109-069D ...................
53109-091D ...................
45113-145H ...................
45113-148H ...................
45113-173D ...................
45113-174D ...................
45113-178D ...................
45113-354D ...................
47113-363H ...................
45113-364S ...................
47, 49113-369H ...................
47, 49113-562H ...................
45113-563S ...................
47113-661S ...................
53118-331D ...................
15119-032D ...................
79122-001D ...................
77122-002D ...................
77122-021D ...................
83122-041D ...................
75, 77, 79, 81, 83122-055S ...................
75, 77, 79, 81, 83122-061D ...................
57, 75, 77, 79,
81, 83
63, 75, 77, 79,
81, 83
73122-078A ...................
83122-110D ...................
75, 79, 81, 83122-110H ...................
79122-111D ...................
77122-114D ...................
77, 79122-115D ...................
77122-115S ...................
79122-116S ...................
83122-117S ...................
67122-120D ...................
79122-124D ...................
83122-125D ...................
75122-130H ...................
77122-134H ...................
77122-135H ...................
75122-146A ...................
77122-149A ...................
79122-150A ...................
83122-151A ...................
67122-151D ...................
81122-159D ...................
79, 81, 83122-188H ...................
77122-189V ...................
79122-192V ...................
83122-198V ...................
67122-201S ...................
81122-221A ...................
67122-231A ...................
25, 37123-004D ...................
61123-050H ...................
61123-113D ...................
61123-116D ...................
11123-118D ...................
69123-202D ...................
15123-260D ...................
69123-298D ...................
71123-299D ...................
71123-306D ...................
69123-307D ...................
33123-308S ...................
11123-356D ...................
11123-409D ...................
61123-410D ...................
61123-436D ...................
61123-476H ...................
13123-520D ...................
61123-544D ...................
13123-555D ...................
33123-557D ...................
21, 33123-558D ...................
15123-559D ...................
11123-824H ...................
13123-890L ...................
13123-891L ...................
13123-892L ...................
13123-893L ...................
13123-894L ...................
11123-896H ...................
11123-897H ...................
11123-898H ...................
11123-899H ...................
11123-900H ...................
61123-901H ...................
13123-902H ...................
35136-013D ...................
21, 23136-016D ...................
37136-023D ...................
25136-044D ...................
25136-064D ...................
37136-106D ...................
33, 61136-118D ...................
57141-011E ...................
57141-041E ...................
57150-044S ...................
57150-051D ...................
21, 23152-171D ...................
35152-192H ...................
35152-193H ...................
37152-196K ...................
35152-211H ...................
35152-212H ...................
21, 23152-338D ...................
35152-399D ...................
37152-402D ...................
23, 33, 37152-405D ...................
35152-406D ...................
25, 33162-032D ...................
85172-199D ...................
85172-201D ...................
85172-218D ...................
85172-242D ...................
53175-008H ...................
53175-009H ...................
53175-010H ...................
53175-011H ...................
53175-012H ...................
53175-014D ...................
53175-014H ...................
87175-034S ...................
7175-040D ...................
87175-041H ...................
7175-043D ...................
87175-045D ...................
53175-048D ...................
87175-053D ...................
87175-054D ...................
87175-055D ...................
7175-057D ...................
7175-058D ...................
87175-060D ...................
87175-061D ...................
87175-063D ...................
7175-064H ...................
87175-065H ...................
87175-066H ...................
87175-067H ...................
87175-068H ...................
7175-081H ...................
17175-086A ...................
17175-087A ...................
57175-090H ...................
57175-096H ...................
57175-097H ...................
57175-098H ...................
57175-099H ...................
57175-100H ...................
57175-102H ...................
25175-104L ...................
25175-105L ...................
25175-106L ...................
25175-107L ...................
25175-108L ...................
25175-113D ...................
25175-114D ...................
57175-114E ...................
7175-121H ...................
89175-124H ...................
85175-125H ...................
85175-127H ...................
57175-134H ...................
57175-135H ...................
57175-136H ...................
57175-137H ...................
57175-138H ...................
57175-139H ...................
57175-140H ...................
25175-190D ...................
25175-199D ...................
58175-214D ...................
58175-215D ...................
7175-216D ...................
57175-224D ...................
53175-225D ...................
53175-226D ...................
53175-227D ...................
53175-228D ...................
53175-229D ...................
53175-230D ...................
54175-231D ...................
57175-232D ...................
21176-001D ...................
51176-003E ...................
51, 53176-004S ...................
25, 33176-005H ...................
51176-006D ...................
25, 33176-006H ...................
21, 23176-007H ...................
27176-008H ...................
21176-009H ...................
27176-010H ...................
25176-014S ...................
27176-017D ...................
27176-018D ...................
27176-020D ...................
85, 89176-021K ...................
51176-031V ...................
53176-033D ...................
53176-034D ...................
21, 23, 25176-034H ...................
53176-035D ...................
53176-036D ...................
21, 23176-036H ...................
53176-037D ...................
21, 31176-039S ...................
21, 23, 31176-045S ...................
31176-060D ...................
31176-062D ...................
31176-063D ...................
31176-064D ...................
31176-065D ...................
31176-066D ...................
31176-073D ...................
21, 23176-074D ...................
21, 23176-075D ...................
31176-080D ...................
31176-082D ...................
31176-083D ...................
39177-001H ...................
39177-004H ...................
39177-005H ...................
39177-008D ...................
39177-009D ...................
39177-587D ...................
64178-001H ...................
64178-002H ...................
63178-014D ...................
63178-015D ...................
63178-016D ...................
63, 87178-017D ...................
63178-018D ...................
63178-019D ...................
63178-020D ...................
63178-021D ...................
63178-022D ...................
63178-023D ...................
63178-024D ...................
63178-025D ...................
63178-026D ...................
63178-027D ...................
73178-033D ...................
63178-034D ...................
63178-035D ...................
63178-036D ...................
63178-037D ...................
63178-038D ...................
63178-039D ...................
64178-040D ...................
67178-065H ...................
7179-001H ...................
7179-002H ...................
7179-003H ...................
7179-004H ...................
7179-005H ...................
7179-007H ...................
7179-021D ...................
7179-022D ...................
7179-023D ...................
7179-024D ...................
7179-026D ...................
7179-030D ...................
89181-064D ...................
27181-080H ...................
63, 75188-001V ...................
85188-003V ...................
57191-001D ...................
175-083P - 90 - 01/19/11
Table of Contents Part Number Index
Part Number Index (continued)
801-018C ...................
802-004C ...................
PagePart Number
57191-001H ...................
57191-002D ...................
57191-018D ...................
57191-019D ...................
411D0009-1012 .............
411D0207-1462 .............
411D1401-350 ...............
411D1582-16300 ...........
411D1980-1125 .............
89200-001D ...................
89200-013D ...................
89200-027S ...................
85200-041S ...................
67206-013D ...................
4122A0581-1350 ...........
412A0079-616 ...............
412A0235-6 ...................
412A0236-9 ...................
412A0246-16 .................
412A9054-2 ...................
412AJ0308-1 .................
412C5742 ......................
413C4549 ......................
413C5185 ......................
413C7272 ......................
413C7296-2 ...................
33402-025S ...................
45, 87800-001C ...................
53800-003C ...................
51800-004C ...................
51800-005C ...................
71800-008C ...................
63800-009C ...................
57800-012C ...................
7800-013C ...................
63800-016C ...................
69800-024C ...................
61800-028C ...................
69, 71800-029C ...................
57800-032C ...................
21, 27, 29800-045C ...................
21800-046C ...................
7800-048C ...................
21800-073C ...................
67800-093C ...................
11800-101C ...................
31800-177C ...................
63800-212C ...................
63800-268C ...................
27, 53, 57, 61801-001C ...................
7, 11801-003C ...................
57801-009C ...................
57801-010C ...................
33801-015C ...................
7, 13, 25, 57, 75,
77, 79, 81, 83
7801-021C ...................
21, 23801-022C ...................
7801-024C ...................
27801-025C ...................
39801-026C ...................
21801-031C ...................
33, 61801-035C ...................
63801-056C ...................
51801-057C ...................
21, 23801-070C ...................
67801-078C ...................
67801-084C ...................
13, 25, 27, 37,
53, 63
61, 69, 75, 85802-005C ...................
802-007C ...................
802-174C ...................
803-006C ...................
803-008C ...................
803-014C ...................
PagePart Number
21, 23, 25, 27,
33, 53
77802-012C ...................
77802-013C ...................
53802-014C ...................
21, 23, 63802-015C ...................
7, 37, 57, 67802-017C ...................
13, 77802-022C ...................
53802-032C ...................
7, 45, 85, 87, 89802-034C ...................
45802-039C ...................
21, 23, 25802-041C ...................
75802-051C ...................
87802-053C ...................
37802-055C ...................
77802-059C ...................
25, 83802-060C ...................
7802-064C ...................
7, 11, 53, 87802-078C ...................
15, 21, 23802-079C ...................
39802-083C ...................
25, 57802-089C ...................
33, 57, 61802-092C ...................
25802-093C ...................
33802-100C ...................
85, 89802-104C ...................
45802-106C ...................
49802-125C ...................
87802-143C ...................
64802-147C ...................
61802-148C ...................
79, 81802-151C ...................
73802-155C ...................
7, 21, 23, 37802-159C ...................
21, 23, 25802-167C ...................
63, 75, 77, 79,
81, 83
39802-177C ...................
39802-183C ...................
64802-191C ...................
79, 83802-197C ...................
35802-214C ...................
35802-226C ...................
63802-228C ...................
47802-240C ...................
57802-252C ...................
13802-257C ...................
35, 37802-282C ...................
39802-299C ...................
33802-365C ...................
75, 79, 81, 83802-371C ...................
13802-388C ...................
33802-413C ...................
81802-618C ...................
7, 11803-001C ...................
57803-002C ...................
25803-003C ...................
25, 57803-004C ...................
7, 13, 21, 23, 25,
27, 37, 53, 57,
61, 63, 69, 75,
77, 79, 81, 83, 87
11, 75803-007C ...................
9, 21, 23, 25, 27,
33, 35, 37, 53, 57
77803-011C ...................
35, 63, 87803-013C ...................
7, 13, 15, 21, 23,
37, 57, 63, 73
53803-016C ...................
21, 23, 25803-019C ...................
803-020C ...................
803-078C ...................
804-006C ...................
804-007C ...................
804-009C ...................
804-012C ...................
804-013C ...................
804-015C ...................
804-016C ...................
804-022C ...................
PagePart Number
7, 35, 39, 45, 63,
85, 87, 89
37, 39, 87803-021C ...................
37803-023C ...................
25, 33803-024C ...................
39803-027C ...................
89803-029C ...................
27, 53, 57, 61803-035C ...................
33, 35, 45803-036C ...................
39803-037C ...................
33803-043C ...................
49803-053C ...................
61803-058C ...................
75, 77, 79, 81, 83803-069C ...................
63, 75, 77, 79,
81, 83
7803-084C ...................
64803-086C ...................
81803-088C ...................
49803-159C ...................
77, 79, 83803-177C ...................
47803-185C ...................
85803-186C ...................
53803-193C ...................
13803-209C ...................
21, 23803-215C ...................
53804-001C ...................
27, 53, 57, 61804-002C ...................
27, 53, 57, 61804-003C ...................
7804-004C ...................
7, 13, 21, 23, 25,
27, 37, 53, 57,
61, 63, 69, 75,
77, 79, 81, 83,
85, 87
25, 27, 53, 58,
61, 69
9, 21, 23, 25, 27,
33, 35, 37, 53, 57
21, 23, 35, 37804-010C ...................
37804-011C ...................
7, 13, 21, 23, 39,
53, 61, 63, 67,
73, 75, 77, 79,
81, 83
7, 13, 15, 21, 23,
37, 39, 53, 57,
63, 67, 73
7, 33, 35, 39, 45,
53, 63, 85, 87, 89
21, 23, 25, 27,
33, 35, 45
45804-017C ...................
53804-019C ...................
33, 37, 47804-021C ...................
37, 39, 75, 77,
79, 81, 83, 87
7, 39804-023C ...................
7, 49, 87804-025C ...................
45804-026C ...................
35804-029C ...................
53804-031C ...................
57804-032C ...................
25, 57804-033C ...................
25804-034C ...................
21, 23804-036C ...................
33, 63804-040C ...................
61804-042C ...................
61804-044C ...................
11804-046C ...................
58804-048C ...................
805-064C ...................
PagePart Number
11804-054C ...................
7804-056C ...................
37804-075C ...................
67804-078C ...................
64804-079C ...................
85804-083C ...................
77805-010C ...................
77805-011C ...................
45, 53805-016C ...................
89805-017C ...................
47, 49, 61805-019C ...................
53805-023C ...................
31805-024C ...................
21, 23805-026C ...................
87805-045C ...................
85805-062C ...................
21, 23, 25, 27,
57, 75, 77, 79,
81, 83, 87
61805-067C ...................
53805-070C ...................
75, 77, 79, 81, 83805-073C ...................
87805-083C ...................
87805-092C ...................
35805-126C ...................
31805-172C ...................
35805-180C ...................
35805-208C ...................
39806-028C ...................
63806-030C ...................
39806-032C ...................
57807-020C ...................
63807-021C ...................
39807-023C ...................
21, 23, 25, 27807-025C ...................
75, 77, 79, 81, 83807-066C ...................
85807-096C ...................
31807-097C ...................
67807-101C ...................
25, 37808-024C ...................
37808-046C ...................
85808-058C ...................
27, 29808-080C ...................
57808-086C ...................
21, 27808-088C ...................
33808-143C ...................
33808-194C ...................
35808-219C ...................
35808-249C ...................
35808-250C ...................
35808-251C ...................
35808-252C ...................
21, 23809-032C ...................
27809-035C ...................
25809-045C ...................
35809-070C ...................
35, 37809-096C ...................
33809-133C ...................
37809-135C ...................
33, 61809-160C ...................
33809-161C ...................
67809-198C ...................
43810-070C ...................
41810-078C ...................
43811-041C ...................
43811-383C ...................
63812-032C ...................
85, 89814-029C ...................
85, 89814-030C ...................
75814-034C ...................
83814-067C ...................
01/19/11 - 91 - 175-083P
Table of Contents Part Number Index
Part Number Index (continued)
817-021C ...................
817-025C ...................
PagePart Number
79814-068C ...................
77814-069C ...................
75814-143C ...................
81814-158C ...................
81814-160C ...................
49815-001C ...................
89815-013C ...................
47815-038C ...................
47815-039C ...................
71816-002C ...................
7816-013C ...................
49816-014C ...................
85, 89816-035C ...................
63816-037C ...................
89816-050C ...................
63816-055C ...................
11816-112C ...................
11816-113C ...................
47816-135C ...................
85816-138C ...................
85816-139C ...................
67816-173C ...................
25, 58816-184C ...................
53817-002C ...................
53817-003C ...................
51817-004C ...................
61817-008C ...................
61817-009C ...................
61817-010C ...................
58, 75, 77, 79,
81, 83
21, 23, 25, 27,
33, 35
61817-026C ...................
64817-027C ...................
7817-030C ...................
7817-033C ...................
57817-053C ...................
63817-059C ...................
83817-062C ...................
83817-063C ...................
79817-065C ...................
77817-067C ...................
51817-071C ...................
51817-073C ...................
75817-081C ...................
51, 53817-094C ...................
51817-095C ...................
51817-096C ...................
51817-097C ...................
31817-111C ...................
71817-127C ...................
67817-134C ...................
35817-151C ...................
35817-152C ...................
81817-297C ...................
61817-806C ...................
19818-031C ...................
17818-048C ...................
17, 19818-052C ...................
17818-053C ...................
7, 13, 17, 19818-055C ...................
17818-057C ...................
19818-059C ...................
17, 19818-060C ...................
17, 19818-064C ...................
17818-188C ...................
19818-205C ...................
17818-229C ...................
17, 19818-230C ...................
17818-281C ...................
PagePart Number
17818-299C ...................
17818-811C ...................
17818-820C ...................
53819-005C ...................
27819-024C ...................
58819-034C ...................
61819-041C ...................
61819-087C ...................
63820-005C ...................
49820-094C ...................
47, 49820-098C ...................
63820-113C ...................
53822-008C ...................
85822-013C ...................
85822-014C ...................
89822-020C ...................
89822-021C ...................
49822-030C ...................
21, 23, 33, 35, 37822-032C ...................
47822-045C ...................
89822-048C ...................
47822-050C ...................
89822-053C ...................
25, 33822-058C ...................
51822-059C ...................
21, 23, 37822-060C ...................
49822-080C ...................
57822-083C ...................
77, 79, 83822-095C ...................
85822-106C ...................
85822-107C ...................
85822-108C ...................
33, 35822-119C ...................
81822-170C ...................
11838-467C ...................
87890-005C ...................
57890-026C ...................
73890-063C ...................
49890-068C ...................
27890-114C ...................
21, 23890-116C ...................
39890-118C ...................
53890-121C ...................
13890-153C ...................
39890-182C ...................
77890-198C ...................
79890-199C ...................
47890-213C ...................
9890-221C ...................
61890-349C ...................
49890-614C ...................
57990-024R ...................
49B0-47 .........................
29DA1037 ......................
29DA1068 ......................
29DA1082 ......................
29DA1145 ......................
29DA1319 ......................
29DA1358 ......................
29DA1374 ......................
29DA1425 ......................
29DA1542 ......................
29DA1919 ......................
29DA1926 ......................
29DA3239 ......................
29DA3590 ......................
29DA3624 ......................
29DA3664-E ..................
29DA3720 ......................
29DA3745 ......................
29DA4135 ......................
PagePart Number
29DA4221 ......................
29DA4241 ......................
29DA4869 ......................
29dwg10000 ..................
73dwg10089 ..................
43dwg10191 ..................
53dwg10192 ..................
7dwg10198 ..................
87dwg10205 ..................
39dwg10206 ..................
85dwg10256 ..................
75dwg10568 ..................
77dwg10571 ..................
79dwg10572 ..................
83dwg10573 ..................
89dwg10845 ..................
27dwg11215 ..................
25dwg11236 ..................
45dwg11247 ..................
63dwg11257 ..................
41dwg11442 ..................
9dwg11749 ..................
57dwg13260 ..................
15dwg13473 ..................
19dwg13474 ..................
69dwg13475 ..................
67dwg13536 ..................
13dwg13571 ..................
33dwg13572 ..................
31dwg13868 ..................
71dwg13903 ..................
51dwg13910 ..................
21dwg14398 ..................
81dwg16320 ..................
37dwg16486 ..................
23dwg16492 ..................
35dwg16495 ..................
17dwg16498 ..................
49dwg16557 ..................
11dwg17028 ..................
61dwg17029 ..................
47dwg17980 ..................
175-083P - 92 - 01/19/11
Table of Contents Part Number Index
This Page Intentionally Left Blank
01/19/11 - 93 - 175-083P
Great Plains Mfg., Inc.
1525 E. North Street
Salina, Kansas 67401 USA
www.greatplainsmfg.com
Loading...
