Operator’ s Manual
CF50 and CF60
Hydraulic Cross-Fold Boom
Manufacturing, Inc.
Read the operator’s manual entirely.Whenyouseethissymbol, the subsequent
instructions and warnings are serious - follow without exception. Your life and
!
the lives of others depend on it!
12300
Cover illustration may show optional equipment not supplied with standard unit.
© Copyright 1998 Printed 4/16/2003
500-015M
Table of Contents
Important Safety Information. . . . . . . . . . . . . . . . . . 1
Wear Protective Equipment . . . . . . . . . . . . . . . . .5
Handle Chemicals Properly . . . . . . . . . . . . . . . . .6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Description of Unit . . . . . . . . . . . . . . . . . . . . . . . 11
Intended Usage . . . . . . . . . . . . . . . . . . . . . .11
Models Covered . . . . . . . . . . . . . . . . . . . . . .11
Using This Manual . . . . . . . . . . . . . . . . . . . . . . .11
Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . .11
Owner Assistance. . . . . . . . . . . . . . . . . . . . . . . .12
Preparation and Setup . . . . . . . . . . . . . . . . . . . . . . 13
Prestart Checklist . . . . . . . . . . . . . . . . . . . . . . . .13
Hitching Tractor to Boom. . . . . . . . . . . . . . . . . . .13
Leveling the Boom . . . . . . . . . . . . . . . . . . . . . . .14
Operating Instructions . . . . . . . . . . . . . . . . . . . . . .15
Prestart Checklist . . . . . . . . . . . . . . . . . . . . . . . .15
Field Operation . . . . . . . . . . . . . . . . . . . . . . . . . .15
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Parking Boom and Three-Point Mount . . . . .17
Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Boom Height. . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Nozzle Pressure . . . . . . . . . . . . . . . . . . . . . . . . . 18
Leveling the Boom . . . . . . . . . . . . . . . . . . . . . . .18
Boom Fold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Break-Away Spring . . . . . . . . . . . . . . . . . . . . . . .18
Fold Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Spring Arm Tension . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Maintenance and Lubrication. . . . . . . . . . . . . . . . .20
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cables and Rollers . . . . . . . . . . . . . . . . . . . . . . .20
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Outside Boom Wing Fold Hinge. . . . . . . . . .21
Break-Away Pivot Plate . . . . . . . . . . . . . . . .21
Break-Away Tube Pivot. . . . . . . . . . . . . . . . . 21
Swing Arm Pivot Joints. . . . . . . . . . . . . . . . .21
Boom Hinge Pin . . . . . . . . . . . . . . . . . . . . . .22
Spring Holder Pivot Hinge . . . . . . . . . . . . . .22
Specifications and Capacities . . . . . . . . . . . . . . . .23
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

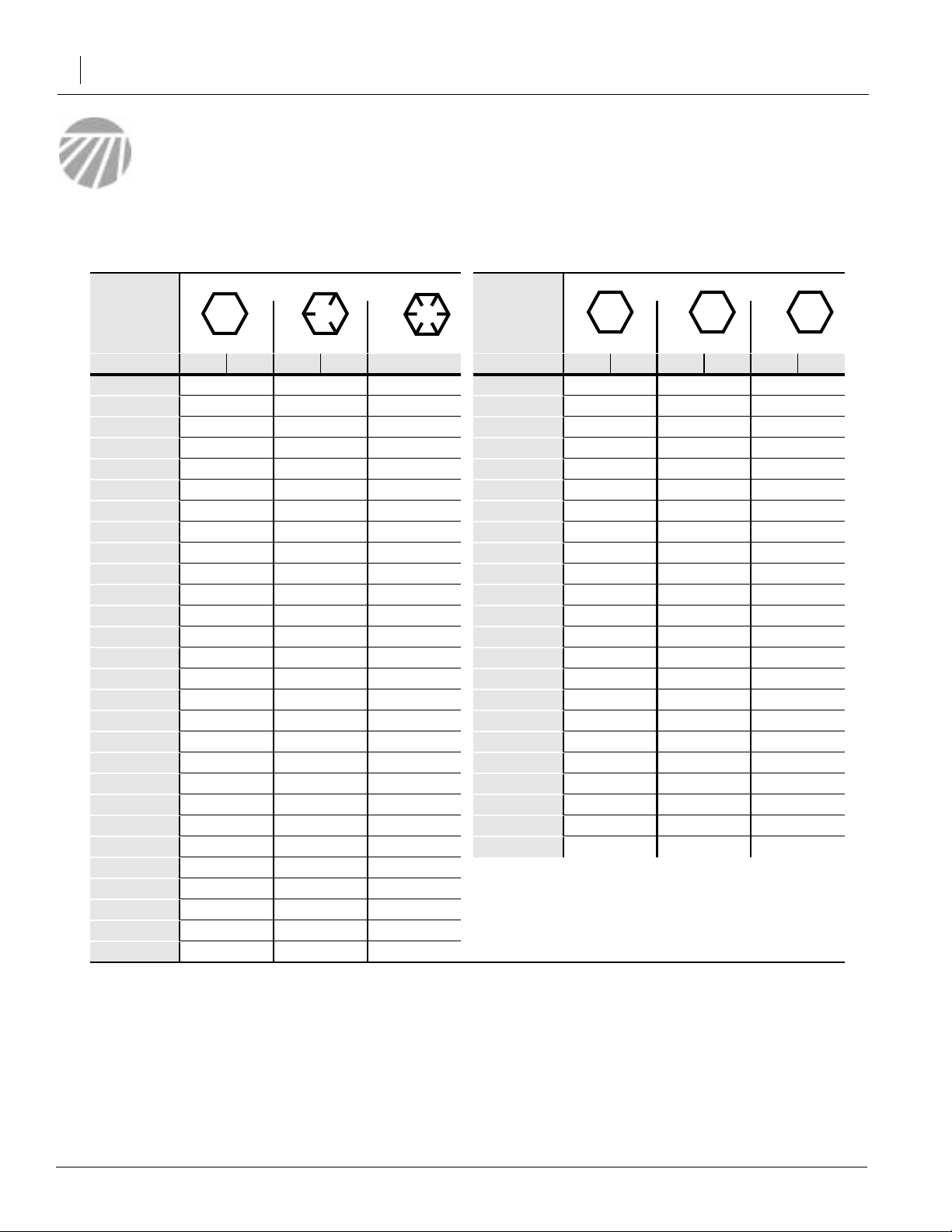

Torque Values Chart. . . . . . . . . . . . . . . . . . . . . . 24
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
© Copyright 1998Allrights Reserved
Great Plains Manufacturing, Inc. provides this publication“as is” without warranty of any kind, either expressed or implied. While every precaution has been takenin the
preparationofthismanual,GreatPlainsMan uf acturing,Inc.assumesno responsibility for errorsoromissions.Neither is any liabilityassumedfordamages resulting from
theuseof the information contained herein. Great Plains Manufacturing,Inc. reservestheright to reviseandimproveits products as it sees fit. This publication describes
the state of this product at the time of its publication, and may not reflect the product in the future.
Great Plains Manufacturing, Incorporated Trademarks
The following are trademarks of Great Plains Mfg., Inc.: Application Systems, Ausherman, Land Pride, Great Plains
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
4/16/2003
500-015M
Important Safety Information
Look for Safety Symbol
The SAFETY ALERT SYMBOL indicates there is
apotential hazard to personal safetyinvolvedand
extrasafety precaution must be taken. When you
see this symbol, be alert and carefully read the
message that follows it. In addition to design and
configuration of equipment, hazard control and
accident prevention are dependent upon the
awareness, concern, prudence and proper training of personnel involved in the operation,
transport, maintenance and storage of
equipment.
Important Safety Information
!
1
Be Aware of Signal Wor ds
Signal words designate a degree or level of hazard seriousness.
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury. This signal word is limited to the
most extreme situations, typically for machine
components that, for functional purposes, cannot
be guarded.
WARNINGindicates a potentially hazardous situationwhich, if not avoided,could resultin death or
serious injury, and includes hazards that are exposed when guards are removed. It may also be
used to alert against unsafe practices.
CAUTION indicates a potentially hazardous situation which, if not avoided,may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
DANGER
!
WARNING
!
CAUTION
!
4/16/2003
500-015M
CF50 and CF60
2
Be Familiar with Safety Decals
▲ Read and understand “Safety Decals,” page 8,
thoroughly.
▲ Read all instructions noted on the decals.
Keep Riders Off Machinery
Riders obstruct the operator’s view.Riders could
be struck by foreign objects or thrown from the
machine.
▲ Never allow children to operate equipment.
▲ Keep all bystanders away from machine dur-
ing operation.
Shutdown and Storage
▲ Fold the Hydraulic Cross-Fold Boom, put trac-
tor in park, turn off engine, and remove the
key .
▲ Secure Hydraulic Cross-Fold Boom using
blocks and supports provided.
OFF
▲ Detach and store Hydraulic Cross-Fold Boom
in an area where children normally do not play.
Use Safety Lights and Devices
Slow-moving tractors and towed implements can
create a hazard when driven on public roads.
They are difficult to see, especially at night.
▲ Use flashing warning lights and turn signals
whenever driving on public roads.
▲ Use lights and devices provided with imple-
ment.
Use A Safety Chain
▲ Use a safety chain to help control drawn
machinery should it separate from tractor
drawbar.
▲ Use a chain with a strength rating equal to or
greater than the gross weight of towed
machinery.
▲ Attach chain to tractor drawbar support or
other specified anchor location. Allow only
enough slack in chain to permit turning.
▲ Replace chain if any links or end fittings are
broken, stretched or damaged.
▲ Do not use safety chain for towing.
500-015M
4/16/2003
Transport Machinery Safely
Maximum transport speed for implement is 20
mph. Some rough terrains require a slower
speed.Sudden brakingcan cause atowed loadto
swerve and upset.
▲ Do not exceed 20 mph. Never travel at a
speed which does not allow adequate control
of steering and stopping. Reduce speed if
towed load is not equipped with brakes.
▲ Comply with state and local laws.
▲ Do not tow an implement that, when fully
loaded, weighs more than 1.5 times the weight
of towing vehicle.
▲ Carry reflectors or flags to mark Hydraulic
Cross-Fold Boom in case of breakdown on the
road.
Important Safety Information
3
▲ Keep clear of overhead power lines and other
obstructions when transporting. Refer to transport dimensions under “Specifications and
Capacities,” page 23.
▲ Do not fold or unfold the Hydraulic Cross-Fold
Boom while the tractor is moving.
Avoid High Pressure Fluids
Escaping fluid under pressure can penetrate the
skin, causing serious injury.
▲ Avoid the hazard by relieving pressure before
disconnecting hydraulic lines.
▲ Use a piece of paper or cardboard, NOT
BODY PARTS, to check for suspected leaks.
▲ Wear protective gloves and safety glasses or
goggles when working with hydraulic systems.
▲ If an accident occurs, see a doctor immedi-
ately. Any fluid injected into the skin must be
surgically removed within a few hours or gangrene may result.
4/16/2003
500-015M
CF50 and CF60
4
Practice Safe Maintenance
▲ Understand procedure before doing work. Use
proper tools and equipment. Refer to this manual for additional information.
▲ Work in a clean, dry area.
▲ Fold the Hydraulic Cross-Fold Boom, put trac-
tor in park, turn off engine, and remove key
before performing maintenance.
▲ Make sure all moving parts have stopped and
all system pressure is relieved.
▲ Allow Hydraulic Cross-Fold Boom to cool com-
pletely.
▲ Disconnect battery ground cable (-) before
servicing or adjusting electrical systems or
before welding on Hydraulic Cross-Fold Boom.
▲ Inspect all parts. Make sure parts are in good
condition and installed properly.
▲ Remove buildup of grease, oil or debris.
▲ Remove all tools and unused parts from
Hydraulic Cross-Fold Boom before operation.
Prepare for Emergencies
▲ Be prepared if a fire starts.
▲ Keep a first aid kit and fire extinguisher handy.
OFF
▲ Keep emergency numbers for doctor, ambu-
lance, hospital and fire department near
phone.
Tire Safety
Tire changing can be dangerous and should be
performed by trained personnel using correct
tools and equipment.
▲ When inflating tires, use a clip-on chuck and
extension hose long enough for you to stand
to one side–not in front of or over tire assembly. Use a safety cage if available.
▲ When removing and installing wheels, use
wheel-handling equipment adequate for
weight involved.
500-015M
911
4/16/2003
Wear Pr otective Equipment
Great Plains advises all users of chemical pesticides or
herbicides to use the following personal safety
equipment.
▲ Waterproof, wide-brimmed hat
▲ Waterproof apron.
▲ Face shield, goggles or full face respirator.
▲ Goggles with side shields or a full face respirator is
required if handling or applying dusts, wettable powders, or granules or if being exposed to spray mist.
▲ Cartridge-type respirator approved for pesticide
vapors unless label specifies another type of respirator.
▲ Waterproof, unlined gloves. Neoprene gloves are
recommended.
Important Safety Information
5
▲ Cloth coveralls/outer clothing changed daily; water-
proof items if there is a chance of becoming wet with
spray
▲ Waterproof boots or foot coverings
▲ Do not wear contaminated clothing. Wash protective
clothing and equipment with soap and water after
each use. Personal clothing must be laundered separately from household articles.
▲ Clothing contaminated with certain pesticides must
be destroyed according to state and local regulations. Read chemical label for specific instructions.
▲ Wear clothing and equipment appropriate for the job.
Avoid loose-fitting clothing.
▲ Prolonged exposure to loud noise can cause hear-
ing impairment or loss. Wear suitable hearing protection such as earmuffs or earplugs.
▲ Avoid wearing radio headphones while operating
machinery. Operating equipment safely requires the
full attention of the operator.
4/16/2003
500-015M
CF50 and CF60
6
Handle Chemicals Properly
▲ Read and follow chemical manufacturer’s
instructions.
▲ Wear protective clothing.
▲ Handle all chemicals with care.
▲ Agricultural chemicals can be dangerous.
Improper use can seriously injure persons,
animals, plants, soil and property.
▲ Inhaling smoke from any type of chemical fire
is a serious health hazard.
▲ Store or dispose of unused chemicals as
specified by the chemical manufacturer.
▲ Before adding chemical to the tank, make
sure tank is at least half full. Do not pour concentrate into an empty tank.
▲ Never leave fill hose attached to the sprayer
after filling tank. Chemicals in tank can siphon
out of tank and contaminate freshwater
source.
▲ Always keep hand-wash tank filled with clean
water and have soap available in case of an
emergency. Immediately and thoroughly flush
any area of the body that is contaminated by
chemicals.
▲ Spray only with acceptable wind conditions.
Wind speed must be below 5 mph. Make sure
wind drift of chemicals will not affect any surrounding land, people or animals.
▲ Never wash out the sprayer tank within 100
feet of any freshwater source or in a car wash.
▲ Rinse out the tank. Spray rinse water on last
field sprayed.
▲ Do not touch sprayer components with mouth
or lips.
▲ If chemical is swallowed, carefully follow the
chemical manufacturer’s recommendations
and consult with a doctor.
▲ If persons are exposed to a chemical in a way
that could affect their health, consult a doctor
immediately with the chemical label or container in hand. Any delay could cause serious
illness or death.
▲ Dispose of empty chemical containers prop-
erly. By law rinsing of the used chemical container must be repeated three times. Puncture
the container to prevent future use. An alternative is to jet-rinse or pressure rinse the container.
▲ Wash hands and face before eating after
working with chemicals. Shower as soon as
spraying is completed for the day.
500-015M
4/16/2003
Safety At All Times
Thoroughly read and understand the instructions
in this manual before operation. Read all instructions noted on the safety decals.
▲ Be familiar with all Hydraulic Cross-Fold Boom
functions.
▲ Operate machinery from the driver’s seat only.
▲ Do not leaveHydraulic Cross-Fold Boom unat-
tended with tractor engine running.
▲ Do not dismount a moving tractor. Dismount-
ing a moving tractor could cause serious injury
or death.
▲ Do not stand between the tractor and Hydrau-
lic Cross-Fold Boom during hitching.
▲ Keep hands, feet and clothing away from
power-driven parts.
Important Safety Information
7
▲ Wear snug-fitting clothing to avoid entangle-
ment with moving parts.
▲ Watch out for wires, trees, etc., when folding
and raising Hydraulic Cross-Fold Boom. Make
sure all persons are clear of working area.
▲ Do not turn tractor too tightly, causing Hydrau-
lic Cross-Fold Boom to ride up on wheels. This
could cause personal injury or equipment
damage.
▲ Use only water without pesticides added to
calibrate the sprayer. Do not exceed the calibrated sprayer speed and pressure when
operating.
▲ When using a PTO pump, be sure that PTO
shield is in place on the tractor, PTO coupler
bolts are torqued to the correct specification,
and torque bar is properly chained to tractor
drawbar.
▲ Spray with the boom in the unfolded position
only.
▲ The boom has many pinch points during field
operation and folding. Keep all bystanders
away.
4/16/2003
500-015M
CF50 and CF60
8
Safety Labels
Your implement comes equipped with all safety labels in place.
They were designed to help you safely operate your implement.
1. Read and follow label directions.
2. Keep all safety labels clean and legible.
3. Replace all damaged or missing labels.
4. Some new equipment installed during repair require safety
labels to be affixed to the replaced component as specified
1217812178121781217812178121781217812178121781217812178121781217812178121781217812178121781217812178
by the manufacturer. When ordering new components make
sure the correct safety labels are included in the request. To
order new labels go to your Great Plains dealer.
5. Refer to this section for proper label placement.
To install new labels:
a. Clean the area the label is to be placed.
b. Peel backing from label. Press firmly on surface
being careful not to cause air bubbles under label.
818-055C
Slow Moving Vehicle Label
12182
500-015M
12178
12179
12179
818-184DC
Amber Reflector
818-335C
Red Reflector
4/16/2003
12178
12178
Important Safety Information
818-367C
Danger Power Line Hazard
9
14685
12178
818-466C
Caution Hitching Sprayer
818-467C
Warning Overhead Boom
4/16/2003
818-647C
Warning Unfold Boom
14685
500-015M
CF50 and CF60
10
14684
818-648C
WarningBoom ParkingPin
500-015M
4/16/2003
Introduction
GreatPlains welcomesyouto itsgrowingfamilyof
new product owners. This Hydraulic Cross-Fold
Boom has been designed with care and built by
skilled workers using quality materials. Proper
setup, maintenance and safe operating practices
willhelp you get yearsof satisfactory use from the
machine.
Description of Unit
The CF50 and CF60 sprayer booms are capable
of spraying at either 50’ or 60’ depending on your
model.
Intended Usage
Usethese booms aspart ofa pressurized sprayer
system to apply liquid pesticides, herbicides or
fertilizers to production-agriculture crops only.Do
not modify sprayerfor use with attachments other
than those approved by Great Plains.
Introduction
11
Models Covered
CF50 and CF60
Using This Manual
This manual will familiarize you with safety, assembly, operation, adjustments, troubleshooting
and maintenance. Read this manual and follow
the recommendations to help ensure safe and efficient operation.
The information in this manual is current at printing. Some parts may change to assure top
performance.
Definitions
The following terms are used throughout this
manual.
Right-hand and left-hand as used in this manual
are determined by facing the direction the machine will travel while in use unless otherwise
stated.
IMPORTANT: A crucial point of information related to the preceding topic. For safe and correct operation, read and follow the directions
provided before continuing.
4/16/2003
NOTE: Useful information related to the preceding topic.
500-015M
CF50 and CF60
12
Owner Assistance
If you need customer service or repair parts, contact a Great Plains dealer. They have trained
personnel, repair parts and equipment specially
designed for Hydraulic Cross-Fold Boom
products.
Refer to Figure 1
Your machine’sparts were specially designed and
shouldonly be replacedwith Hydraulic Cross-Fold
Boom parts. Always use the serial and model
number when ordering parts from your Great
Plains dealer.
Record your sprayermodel and serial number
here for quick reference:
Model Number:__________________________
Serial Number: ___________________________
Your Great Plains dealer wants you to be satisfied
with your new machine. If you do not understand
anypart of this manualor are not satisfied with the
service received, please take the following
actions.
15736
Figure 1
Serial Number
1. Discuss the matter with your dealership service manager. Make sure they are aware of
any problems so they can assist you.
2. If you are still unsatisfied, seek out the owner
or general manager of the dealership.
3. For further assistance write to:
Product Support
Great Plains Mfg. Inc., Service Department
PO Box 5060
Salina, KS 67402-5060
500-015M
4/16/2003
Preparation and Setup
Preparation and Setup
13
This section will help you prepare your boom for use with
your tractor and sprayer.Before using the sprayer in the
field, you must hitch your tractor to your sprayer or threepoint mount and check that the boom is level.
Read and understand the operator’s manual for the sprayer you will be using with the boom.
Prestart Checklist
1. Read and understand “Important Safety Information” beginning on page 1.
2. Check that all working parts are moving freely,bolts
are tight, and cotter pins are spread.
3. Check that all grease fittings are in place and lubricated. Refer to Lubrication,“Maintenance and Lubrica-
tion,” page 21.
4. Check thatall safetylabels andreflectors are correctly
located and legible. Replace if damaged. Refer to
SafetyLabels,” Important Safety Information,” page
8.
Hitching Tractor to Boom
NOTE: The category 4 narrow hitch (CATIV-N) spacers
arenot standard parts supplied with thethree-pointboom.
!
WARNING
You could be seriously injured or killed by being crushed between the tractor and implement. Do not stand or place any
body part between the tractor and hitch or the hitch and boom
while the tractor is in motion. Stop and shut off the tractor before inserting hitch or pivot pins.
If your cross-fold boom is assembled to an Great Plains
sprayer, refer to your sprayer operator’s manual for hitching instructions.
Refer to Figure 2
Ifyourcross-fold boomis assembledto athree-point hitch,
mount three-point attachment to tractor with correct pin
mountings determined from Figure 2.
IMPORTANT:Adjust top three-point link so boom frame
is level. If frame is not level boom may hit tractor cab
when folded.
11939
Figure 2
Three-Point Pin and Spacer Configuration
4/16/2003
500-015M
CF50 and CF60
14
Leveling the Boom
!
CAUTION
Be careful not to pinch fingers in hinge. Make sure boom is securely supported before adjusting shims.
Refer to Figure 3
1. Level inside boom arm with center section (1) by positioning the shims (2) on hinge rest until correct thickness of shims is attained to levelthe boom. The
bottom tube of insideboom sectionshouldbeparallel
to the frame of center section (1). Tighten shim bolts
when finished.
Refer to Figure 4
2. Levelouterboomwing by adding or removing a washer(1) onthe adjustmentbolt (2)so outerboom section
is level with inner boom arm. Tighten jam nuts when
finished.
17059
Figure 4
Shimming Outer Wing
Figure 3
Shimming Inner Wing
17058
500-015M
4/16/2003
Operating Instructions
This section coversgeneral operating procedures. Experience,machine familiarityand the followinginformation will
lead to efficient operation and good working habits. Always operate farm machinery with safety in mind.
Prestart Checklist
1. Read and follow Important Safety Information,
starting on page 1.
2. Read and follow the chemical manufacturer’sinstructions. Consider how you will store and dispose of the
chemical.
Operating Instructions
!
WARNING
Escaping fluid under pressure can penetrate the skin causing
serious injury. Check all hydraulic lines and fittings before applyingpressure.Usepaper or cardboard,NOTBODYPARTS,to
check for suspected leaks. Wear protective gloves and safety
glasses or goggles when working with hydraulic systems. If an
accident occurs, see a doctor immediately. Any fluid injected
into the skin must be surgically removed within a few hours or
gangrene will result.Remove parking stands before folding,
transporting or operating the boom.
15
3. When working with agricultural chemicals, always
wear protective, water-proof clothing that covers the
body.
4. Have soap and water available to wash any exposed
areas. Check that hand-wash tank is full of clean water.
5. Lubricate the boom as indicated under Lubrication,
Maintenance and Lubrication, page 21.
6. Check boom for loose bolts, pins and hose clamps.
Check hoses, pumps, valves and fittings for leaks.
Tighten all bolts as specified on the Torque Value
Chart,“Appendix,” page 24.
Field Operation
!
DANGER
Electrocution hazard. To prevent serious injury or death from
electric shock, keep clear of overhead power lines when transporting, folding or unfolding boom. The boom is not grounded.
Electrocution can occur without direct contact. Refer to transport dimensions under Specifications and Capacities, page 23.
Do not fold or unfold the boom while the tractor is moving.
!
WARNING
Crushing and pinching hazard. The boom has many pinch
points during folding. Bystanders could be injured by the moving sections. Hydraulic failure could cause the boom to fall on
bystanders. Keep all bystanders away during boom folding.
Fold the boom only when the tractor is parked. Do not allow
riders on the boom.
Refer to Figure 5
7. Unfold the boom in the field where you will spray. Remove the transport lock pin.
12177
Figure 5
Transport Lock Pin
8. Fill the sprayertank half full with water.
9. Check nozzles for streaks and non-uniformity. Clean
or replace nozzles as necessary.
10. Calibrate the sprayer. Refer to calibration procedures
in the Application Guide.
11. Adjust boom to properheight. Refer totheelevatoroption and the nozzle tables in the Application Guide.
12. Add chemicals to sprayer and finish filling with water.
Neveropen chemical containers with bare hands.
13. Rinse chemical container three times. Puncture containersto preventfuture use.Dispose of containersas
recommended by the chemical manufacturer.
4/16/2003
14. Start sprayer pressurizing system to work up to the
desired pressure. Refer to your sprayer operator’s
manual for specific instructions.
500-015M
CF50 and CF60
16
!
CAUTION
Operate boom only when boom is completely unfolded. Spraying chemicals with the boom partially folded increases the risk
of sprayer and chemical-exposure accidents.
15. When applying chemicals in the field, your goal is to
apply accurately,efficiently and safely. To reduce expenses and risks to human health:
• Apply spray when wind is 5 mph or less.
• Take note of adjoining crops, houses or persons.
• Minimize drift by using nozzle tips with the largest
practical opening and by operating the boom at the
lowest practical height.
Refer to Figure 6
Transport Lock. Fold the boom and install the transport
lock pin.
• Work crosswiseto the wind. Start from the down-wind
sideof the field to avoidheadingdirectly into chemical
fumes.
• When turning at the end of a field, make sure the
boom will not overlap previously sprayed crop.
• While spraying, monitor pressure closely. Maintain a
constant tank pressure for even and accurate spraying.
• Periodicallycheckthe conditionofhoses,connections
and nozzles. Release pressure before working on the
sprayer. Always wear rubber gloves when making repairs or adjustments.
16. When finished spraying, empty the tank and flush the
sprayerwith water, including the pump, nozzles and
valve-bypassline.Store or disposeunused chemicals
as recommended by the chemical manufacturer.
Transporting
Before transporting the boom check and practice the following items.
12177
Figure 6
Transport Lock Pin
No chemicals. Do not transport the sprayerwith chemi-
cals in the tank.
Remove parking stands. Remove parking stands from
boom and carrier before transporting.
Maximum Speed. Do not exceed 20 mph.
Bystanders. Check that no one is in the way before mov-
ing. Do not allow anyone to ride on the boom or sprayer.
Clearance. Know the dimensions of the folded boom. Re-
fer to Specification and Capacities, page 23. Follow a
route that provides adequate clearance from all obstructions. Be especially observant of low overhead power
lines.
Road Rules. Comply with all federal, state and local laws
when transporting on public roads.
Parking
!
DANGER
Electrocution hazard. To prevent serious injury or death from
electric shock, keep clear of overhead power lines when transporting, folding or unfolding the boom. The boom is not grounded. Electrocution can occur without direct contact. Refer to
transport dimensions under Specifications and Capacities,
page 23.
!
WARNING
Crushing and pinching hazard. The boom has many pinch
points during folding. Bystanders could be injured by the moving sections. Hydraulic failure could cause the boom to fall on
bystanders. Keep all bystanders away during boom folding.
Fold the boom only when the tractor is parked.
500-015M
!
WARNING
Crushinghazard.The parkedboom couldfall andcause serious
injury. Always secure parking stands under parked boom.
!
WARNING
Crushing hazard. You could be seriously injured or killed by being crushed between the tractor and implement. Do not stand or
place any body part between the tractor and implement while
the tractor is moving.Stop and shut off the tractor beforeremoving hitch or pivot pins.
4/16/2003
Operating Instructions
17
If parking a boom that is mounted on an Great Plains
sprayer, refer to your sprayer manual for parking instructions. For information on long-term storage, refer to
Storage, Maintenance and Lubrication, page 20.
Parking Boom and Three-Point Mount
To park a three-point-mounted boom, followthese
instructions.
1. Flush sprayer with water in the last field sprayed.
Flush the pump, nozzles and bypass line from the
valves.Store or dispose unused chemicals as recommended by the manufacturer.
2. Park the boom on a level, flat area that is protected
from wind gusts and direct sunlight. Parkthe boom in
an area where children do not play. If possible, store
the boom inside for longer machine life.
3. Unfold the boom.
Refer to Figure 7
4. Position parking stands (1) under the center frame
and carrier. Make sure the parking stands are positioned over level, firm ground so the boom will be stable from front to rear. If the ground is soft, place
boards under parking stands to increase ground-contact area.
5. Lower the tractor hitch so the boom rests on the parking stands. Secure stands to boom with wire pins (2).
6. Unhook PTO pump or unplug hydraulic lines from hydraulic pump.
7. Unhook cam-lock connectors and hydraulic hoses
and position hoses on frame.
8. Remove three-point pins from tractor and pull away
from boom.
4/16/2003
Figure 7
Parking Stand Installation
14814
500-015M
CF50 and CF60
18
Adjustments
Boom Height
After calibrating sprayer for the specific nozzle to be used
ata desired pressure, and tractor speed,the main field adjustment is boom height. Refer to Elevator Option in the
sprayerowner’smanual. Depending on which type of nozzle used, set boom height to achievecorrect overlap for
that specific nozzle. If the crop canopy is taller in some
fields than others, adjust boom height accordingly. Refer
to nozzle tables in the Application Guide to determine
the height of the boom needed.
EXAMPLE: A 2.5 Metercone nozzle at 20 inch spacing is
being used. From the nozzle chart, a height of 19 to 21
inches above the top of the crop is required. If the crop is
6 inches off the ground, the boom height should be set to
25 to 27 inches off the ground.
Nozzle Pressure
Another area that will need some field adjustments is nozzle pressure. As tank level decreases, adjust the boom
pressure to keep the pressure at the same magnitude for
what the sprayer was calibrated for.Watch the pressure
gauge and be aware of changes in pressure.
Break-Awa y Spring
The break-away spring is located near the hinge for the
outside boom arm. On early models the break-away
spring should be compressed to a length of 5 3/8 inches.
On later models tighten the nuts that compress the spring
until all threads are bottomed out.
Fold Bracket
Thefoldbracketshold outside boomarmupwhen boom is
in the folded position. These bracketsare initially positionedat the factoryat an optimumposition so whenboom
is unfolded, the fold bracketswill not interfere with spray
pattern. The brackets need to be positioned so both portionsof thebracketare locatedthe same distancefrom the
adjacent nozzle. The bracket also needs to be positioned
so when boom is folded, the outer boom wing rests on the
fold rest, not on break-away nuts located near the hinge
point of outer boom wing. If the outer boom wing is resting
on the nuts, they will damage tubing on boom.
Spring Arm Tension
Refer to Figure 8
Leveling the Boom
For even application, the sprayer boom must be level
across the span. The boom is initially leveled during assembly. You may need to make additional adjustments to
levelthe boom. To level the boom, refer to Leveling the
Boom, Preparation and Setup, page 14.
Boom Fold
Ifboom is not foldingsquarely into the foldrest as itshould
due to damage on boom or some other reason, the boom
foldwill need to be adjusted. Fold boom wing to a position
just above the stop rest. Slightly loosen the four adjustment plate nuts until boom wing can move.Positionboom
wing to stop square in the rest stop and retighten adjustment plate nuts to 150 foot pounds. Make sure the
adjustmentplate isadjusted sothere arenogaps between
theball joints of hinge and hinge tubing onboomwing. Unfoldboom wing and re-torque adjustment plate nuts again.
Tighten the spring nut until spring is compressed to a
length of 10 inches. Lock with second nut.
11937
Figure 8
Spring Arm Adjustment
500-015M
4/16/2003
Troubleshooting
Problem Problem Area Specific Checks Corrections
Troubleshooting
19
Excessive cable wear
Pressure increasing Between gauge
Cable & roller Cable Wearing Check cable & roller for obstructions or wear
& nozzle
points. Remove obstruction.
Roller not turning properly Replace roller or roller bushing.
Excessive cable wear Replace cable.
Boom hoses becoming clogged Remove obstruction from clogged area.
Boom hoses pinched Use cable ties to position hose so it will not kink.
4/16/2003
500-015M
CF50 and CF60
20
Maintenance and Lubrication
Maintenance
Properservicingandmaintenance is the keyto longimplement life.With careful and systematic inspection, you can
avoid costly maintenance, downtime and repair.
Alwaysturn off and remove the tractor key before making
any adjustments or performing any maintenance.
!
Some chemicals can cause serious burns, lung damage, and
evendeath. Avoidcontact with skin or eyes.Wearproper protective equipment as required by chemical manufacturer. Avoid
prolonged breathing of chemical fumes. Wear respirator as required by chemical manufacturer. Seek medical assistance immediately if accident occurs. Know what to do.
Crushing hazard. Hydraulic failure or boom instability could
cause the boom to fall and result in serious injury or death. Secure boom to parking stands before performing any maintenance.
Crushing and pinching hazard. The boom has many pinch
points during folding. Bystanders could be injured by the moving sections. Hydraulic failure could cause the boom to fall on
bystanders. Keep all bystanders away during boom folding.
Fold the boom only when the tractor is parked.
DANGER
!
WARNING
!
WARNING
1. Clean nozzles with a low pressure (less than 30 psi)
air hose and replace periodically.
2. Release the system pressure by flipping the boom
sectionswitches on and off without thepump running.
3. Check hoses, pumps, valves, and fittings for leaks. Always wear rubber gloves when making repairs or adjustments.
4. Check sprayerfor loose bolts, pins and hose clamps.
Cables and Rollers
Inspect cables and rollers for proper rolling.
If a roller does not turn, inspect the roller for dirt or other
imperfections on the bearing surface.
The rollers have a self-lubricating bearing. Do not lubri-
cate bearings with oil. Lubricating the bearing may cause
dirt accumulation that jams the roller.
Keep cables tight with the spring compressed to 10 inches. See Spring Arm Tension,“Adjustments,” page 18.
Storage
Store the boom where children do not play. If possible,
store the boom inside for longer life.
1. Empty solution fromsprayertank and storeordispose
of chemical as recommended in the chemical manufacturer’s instructions.
2. Change filters in the tractor cab.
3. Washboom exteriorthoroughlyusing asafesolventor
soap and water.
!
WARNING
Escaping fluid under pressure can penetrate the skin causing
serious injury. Check all hydraulic lines and fittings before applyingpressure.Usepaper or cardboard,NOTBODYPARTS,to
check for suspected leaks. Wear protective gloves and safety
glasses or goggles when working with hydraulic systems. If an
accident occurs, see a doctor immediately. Any fluid injected
into the skin must be surgically removed within a few hours or
gangrene will result.
!
CAUTION
Before servicing or adjusting the sprayer or boom, always disengage power, shut off tractor engine, make sure all moving
parts have stopped, and relieve all system pressure.
500-015M
4. Flush boom outwith antifreezeto preventfreeze damage.
5. Inspect all parts for wear and rust.
6. Repair and paint parts as necessary.
7. Park boom in a dry area away from direct sunlight.
8. Followinstructions to parkthe boom.RefertoParking,
Operating Instructions, page 16.
9. Make sure all personal safety equipment is stored in
an easily accessible place and protected from potential contamination from dust or chemicals.
4/16/2003
Lubrication
Maintenance and Lubrication
21
Lubrication
Legend
Multipurpose
spray lube
12180
Multipurpose
grease lube
Multipurpose
oil lube
50
Intervals at which
lubrication is required
10
Swing Arm Pivot Joints
Two grease zerks are located in each swing arm pivot.
Grease until grease starts to come out.
Type of Lubrication: NLGI grade 2 or 3 grease lubricant
30
Break-Away Pivot Plate
A zerk is located on the round pivot bar on the outside wing
ofboth sides of thesprayerboom. Grease until greasestarts
to come out.
12181
12181
Type of Lubrication: NGLI grade 2 or 3 grease lubricant
30
Break-Away Tube Pivot
The grease zerk is located on top pivot tube of both the outside booms arm break awaypivots. Grease until grease
starts to come out.
Type of Lubrication: NGLI grade 2 or 3 grease lubricant
30
Outside Boom Wing Fold Hinge
There is a grease zerk on both outer foldarm hinges on the
lower side of the hinge tube. Grease until grease starts to
come out.
4/16/2003
12183
Type of Lubrication: NGLI grade 2 or 3 grease lubricant
500-015M
CF50 and CF60
22
30
Boom Hinge Pin
Thegrease zerksarelocated in theswing arm pivotson both
ends. Grease until grease starts to come out.
Type of Lubrication: NLGI grade 2 or 3 grease lubricant
15737
10
Spring Holder Pivot Hinge
A grease zerk is located on both spring holder pivot hinges.
Grease until grease starts to come out.
12180
Type of Lubrication: NGLI grade 2 or 3 grease lubricant
500-015M
4/16/2003
Specifications and Capacities
Specifications and Capacities
23
Boom Width
Transport Width
Weight
Transport Height, Single Axle
Transport Height, 3-Point, and 3-Point Sprayer
Boom Nozzle Height Range on Single Axle
Hydraulic Requirements
Three-Point Hitch Requirements
Material
50’ 60’
153” 153”
1,096 lbs. 1,141 lbs.
154” 154”
145” 145”
20” - 50” 20” - 50”
Two control valves (four outlets)
Category II, III, or IV-N Three-Point (for three-point booms)
1 1/2” Square Tubing & 1 1/4” x 2” Rectangular Tubing
4/16/2003
500-015M
CF50 and CF60
24
Appendix
Torque V alues Chart
Bolt Head Identification
Bolt Head Identification
Bolt Size
(Inches)
1
in-tpi
1/4" - 20 7.4 5.6 11 8 16 12 M 5 X 0.8 4 3 6 5 9 7
1/4" - 28 8.5 6 13 10 18 14 M 6 X 1 7 5 11 8 15 11
5/16 - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27
5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29
3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53
3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62
7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93
7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97
1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105
1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150
9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 215 160
9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230
5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245
5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300
3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355
3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450
7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665
7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780
1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845
1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 1120 2100 1550
1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710
1 1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700
1 1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220
1 1/4" - 12 750 555 1680 1240 2730 2010
1 3/8" - 6 890 655 1990 1470 3230 2380
1 3/8" - 12 1010 745 2270 1670 3680 2710
1 1/2" - 6 1180 870 2640 1950 4290 3160
1 1/2" - 12 1330 980 2970 2190 4820 35604mm x pitch = nominal thread diameter in millimeters x thread pitch
Grade 2 Grade 5
N · m2ft-lb3N · m ft-lb N · m ft-lb mm x pitch4N · m ft-lb N · m ft-lb N · m ft-lb
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.
Grade 8
Bolt Size
(Metric)
1
in-tpi = nominal thread diameter in inches-threads per inch
5.8 8.8 10.9
Class 5.8 Class 8.8 Class 10.9
2
N· m = newton-meters
3
ft-lb= foot pounds
500-015M
4/16/2003
Warranty
Great Plains Manufacturing, Incorporated warrants to the original purchaser that this spraying equipment will be free from defects inmaterial
and workmanship for a period of one year from the date of original purchasewhenused as intended and under normal service and conditions
for personal use; 90 days for commercial or rental purposes. This Warranty is limited to the replacement of any defective part by Great Plains
Manufacturing, Incorporated and the installation by the dealer of any
such replacement part. Great Plains reserves the right to inspect any
equipment or part which are claimed to have been defective in material
or workmanship.
This Warranty does not apply to any part or product which in Great
Plains’ judgement shall have been misused or damaged by accident or
lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its performance or reliability, or
which has been used for a purpose for which the product is not designed. This Warranty shall not apply if the product is towed at a speed
in excess of 20 miles per hour.
Claims under this Warrantymust bemadetothedealerwhichoriginally
sold the product and all warranty adjustments must by made through
such dealer. Great Plains reserves the right to make changes in materials or design of the product at any time without notice.
This Warranty shall not be interpreted to render Great Plains liable for
damages of any kind, direct, consequential, or contingent, to property.
Furthermore,Great Plains shallnotbe liable fordamagesresulting from
any cause beyond its reasonable control. This Warranty does not extend to loss of crops, losses caused by harvest delays or any expense
or loss for labor, supplies, rental machinery or for any other reason.
No other warranty of any kind whatsoever, express or implied, is
made with respect to this sale; and all implied warranties of merchantability and fitness for a particular purpose which exceed
the obligations set forth in this written warranty are hereby disclaimed and excluded from this sale.
This Warranty is not valid unless registered with Great Plains Manufacturing, Incorporated within 10 days from the date of original purchase.
Appendix
25
4/16/2003
500-015M
Great Plains Manufacturing, Inc.
Corporate Office: P.O.Box 5060
Salina, Kansas 67402-5060 USA
