Graymills FLO-BAC User Manual

795-12234 GM 7-05

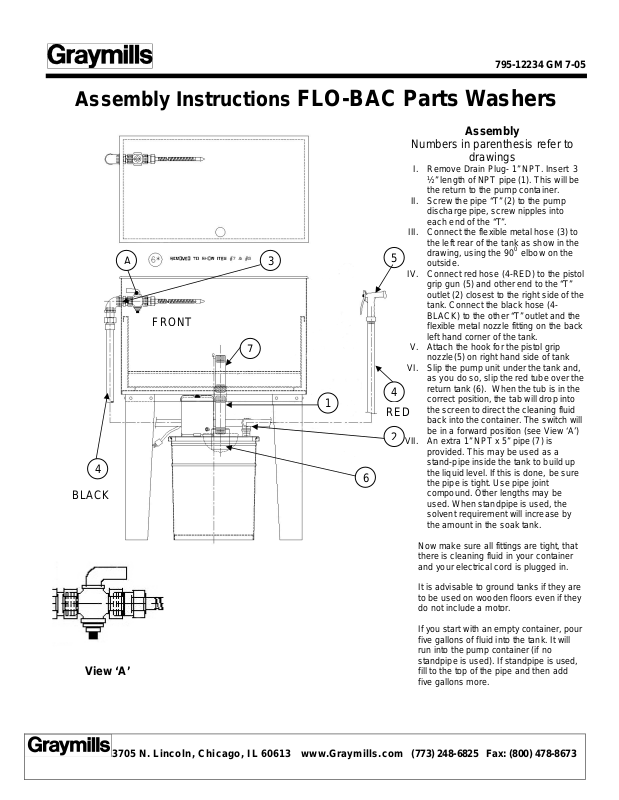

Assembly Instructions FLO-BAC Parts Washers

Assembly

Numbers in parenthesis refer to

drawings

I. Remove Drain Plug- 1” NPT. Insert 3

½” length of NPT pipe (1). This will be
the return to the pump container.

II. Screw the pipe “T” (2) to the pump

discharge pipe, screw nipples into
each end of the “T”.

III. Connect the flexible metal hose (3) to

BLACK

View ‘A’

FRONT

the left rear of the tank as show in the

3

5

RED

6

drawing, using the 90
outside.

IV. Connect red hose (4-RED) to the pistol

grip gun (5) and other end to the “T”
outlet (2) closest to the right side of the
tank. Connect the black hose (4­BLACK) to the other “T” outlet and the
flexible metal nozzle fitting on the back
left hand corner of the tank.

V. Attach the hook for the pistol grip

nozzle(5) on right hand side of tank

VI. Slip the pump unit under the tank and,

as you do so, slip the red tube over the
return tank (6). When the tub is in the
correct position, the tab will drop into
the screen to direct the cleaning fluid
back into the container. The switch will
be in a forward position (see View ‘A’)

VII. An extra 1” NPT x 5” pipe (7) is

provided. This may be used as a
stand-pipe inside the tank to build up
the liquid level. If this is done, be sure
the pipe is tight. Use pipe joint
compound. Other lengths may be
used. When standpipe is used, the
solvent requirement will increase by
the amount in the soak tank.

Now make sure all fittings are tight, that
there is cleaning fluid in your container
and your electrical cord is plugged in.

It is advisable to ground tanks if they are
to be used on wooden floors even if they
do not include a motor.

If you start with an empty container, pour
five gallons of fluid into the tank. It will
run into the pump container (if no
standpipe is used). If standpipe is used,
fill to the top of the pipe and then add
five gallons more.

0

elbow on the

3705 N. Lincoln, Chicago, IL 60613 www.Graymills.com [phone] Fax: [phone]

y

HOW TO ASSEMBLE SAFETY TANKS, 2R, H42RN

Parts List

1. Container & Lid Assembly 1 (one)

2. Basket Assembly 1 (one)

3. Legs 4 (four)

4. Machine Screws 16 (sixteen)

5. Hex Nut 16 (sixteen)

6. Drain Plug 1” NPT* 1 (one)

7. Nipple 1” NPT 5” inside 1 (one)

8. Nipple 1” NPT 3 ½” outside 1 (one)
*Remove to mount #7 and #8, if pump is required.

Assembly

2

1. Place tank upside down and assemble all four
legs, Items 3, 4 & 5.

2. After all machine screw and nuts are in place,
tighten securely

3. Drain shelf mounts over side of tank

8

6

Common Replacement Parts

728-02657 Replacement Hose for Pistol Grip
728-01290 Black Hose
738-02927 Pistol Grip Nozzle
728-12017 Flexible Metal Hose
742-10127 Screen
401-23700 Fusible Link Kit

Warrant

Graymills Corporation warrants that the equipment manufactured and delivered, when properly installed and maintained, shall be free from

defects in workmanship and will function as quoted in the published specification. Graymills does not warrant process performance, nor assume
any liability for equipment selection, adaptation, or installation.

Warranty does not apply to damages or defects caused by shipping, operator carelessness, misuse, improper application or installation, abnormal use,
use of add-on-parts or equipment which damages or impairs the proper function of the unit, and modifications made to the unit. Warranty does not
apply to expendable parts needing replacement periodically due to normal wear and tear.

A new Warranty period shall not be established for repaired or replaced materials or products. Such items shall remain under Warranty for only the
remainder of the Warranty period of the original material or product.

THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, WHETHER ORAL, WRITTEN, EXPRESSED, IMPLIED OR
STATUTORY. GRAYMILL S CORPORATION MAKES NO OTHER WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WHICH EXCEED THE AFORESTATED OBLIGATION
ARE HEREBY DISCLAIMED BY GRAYMILLS CORPORATION AND EXCLUDED FROM THIS SALE. Graymills warranty obligations and Buyer
remedies (except to title), are solely and exclusively stated herein. In no case will Graymills be liable for consequential damages, loss of
production, or any other loss incurred due to interruption of service.
Graymills' obligation under this Warranty shall be limited to:

Buyer must give Graymills prompt notice of any defect or failure.
If you believe you have a Warranty claim, contact Graymills at [phone]. Any return material must have an RMA number on the outside of
the package and shipping prepaid or shipment will be refused. Graymills will promptly examine the material and determine if it is defective and
within the Warranty period.

(a) Repairing or replacing (at Graymills sole discretion) any non-conforming or defective component within one year from the date of

shipment from Graymills.

(b) Repairing or replacing (at Graymills sole discretion), components supplied by, but not manufactured by Graymills, to the extent

of the warranty given by the original manufacturer.

3705 N. Lincoln, Chicago, IL 60613 www.Graymills.com [phone] Fax: [phone]
