Graymills Bio536r-A User Manual

795-92155

07/10/08

Graymills

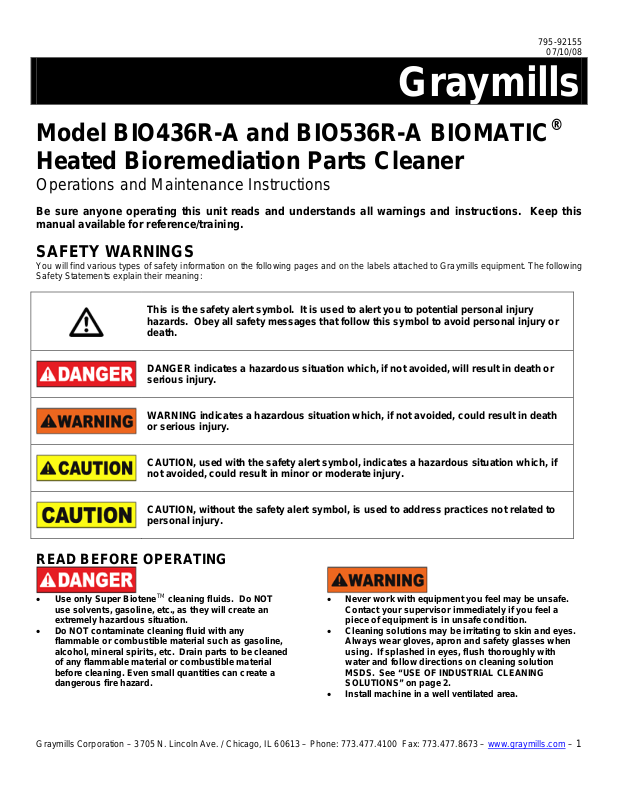

Model BIO436R-A and BIO536R-A BIOMATIC®
Heated Bioremediation Parts Cleaner

Operations and Maintenance Instructions

Be sure anyone operating this unit reads and understands all warnings and instructions. Keep this
manual available for reference/training.

SAFETY WARNINGS

You will find various types of safety information on the following pages and on the labels attached to Graymills equipment. The following
Safety Statements explain their meaning:

This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid personal injury or

READ BEFORE OPERATING

death.

DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.

WARNING indicates a hazardous situation which, if not avoided, could result in death
or serious injury.

CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.

CAUTION, without the safety alert symbol, is used to address practices not related to
personal injury.

• Use only Super BioteneTM cleaning fluids. Do NOT

use solvents, gasoline, etc., as they will create an
extremely hazardous situation.

• Do NOT contaminate cleaning fluid with any

flammable or combustible material such as gasoline,
alcohol, mineral spirits, etc. Drain parts to be cleaned
of any flammable material or combustible material
before cleaning. Even small quantities can create a
dangerous fire hazard.

Graymills Corporation – 3705 N. Lincoln Ave. / Chicago, IL 60613 – Phone: [phone] Fax: [phone] – www.graymills.com

• Never work with equipment you feel may be unsafe.

Contact your supervisor immediately if you feel a
piece of equipment is in unsafe condition.

• Cleaning solutions may be irritating to skin and eyes.

Always wear gloves, apron and safety glasses when
using. If splashed in eyes, flush thoroughly with
water and follow directions on cleaning solution
MSDS. See “USE OF INDUSTRIAL CLEANING
SOLUTIONS” on page 2.

• Install machine in a well ventilated area.

– 1

• The unit has been factory set to maintain an optimum

temperature for the microbes. Do NOT attempt to
change thermostat setting.

• This is a heated system. Always use caution when

first putting hand under liquid stream to prevent injury
from heated solution. If the liquid feels uncomfortably
hot, discontinue use, unplug machine and call
Graymills Customer Service.

• Failure to keep proper liquid level will result in

burning out the pump and heater coil, creating a
potential fire hazard. To help prevent this, this unit is
equipped with a low liquid level device which will shut
off the pump and heater. If solution stops circulating
and the red “RESET” light becomes illuminated,
immediately turn off and unplug unit. For instructions
on filling the reservoir, please see “INSTALLATION
AND OPERATION” steps 6 through 9.

BIO436R Only

• After extended use, the gas-spring used to assist in

opening and closing the lid may lose its ability to keep
the lid open. At the first sign of this, replace the gas­spring immediately.

• Automatic Safety Cover. Since certain soils may be

combustible, e.g., oils, greases, this unit is equipped
with a fusible safety link cover mechanism designed
to support the open cover at a slightly forward angle.
In the event of a fire, the fusible link will melt at 165ºF
permitting the cover to slam shut, limiting oxygen
supply to the fire.

• Do not leave the unit unattended with parts in the tank

which would prevent the cover from closing
completely in the event of a fire. Keep cover closed
when unit is not in use. If the fusible link breaks, do
not operate the unit until a replacement link is
installed.

• DO NOT leave the unit disconnected without power for

extended periods of time (overnight or weekends).
This will cause the microbes to go dormant. This will
adversely affect the bioremediation process. If
microbes do not reactivate after operating
temperature has been reached, a new BIO-POUCH
should be added.

• If unit is to be unused, but not unplugged or turned

off, for extended periods (overnight and weekends), it
may be necessary to top-off tank to the 30-gallon mark
with pre-blended Super Biotene
prevent the machine from shutting down due to low
liquid levels.

TM

cleaning solution to

795-92155

07/10/08

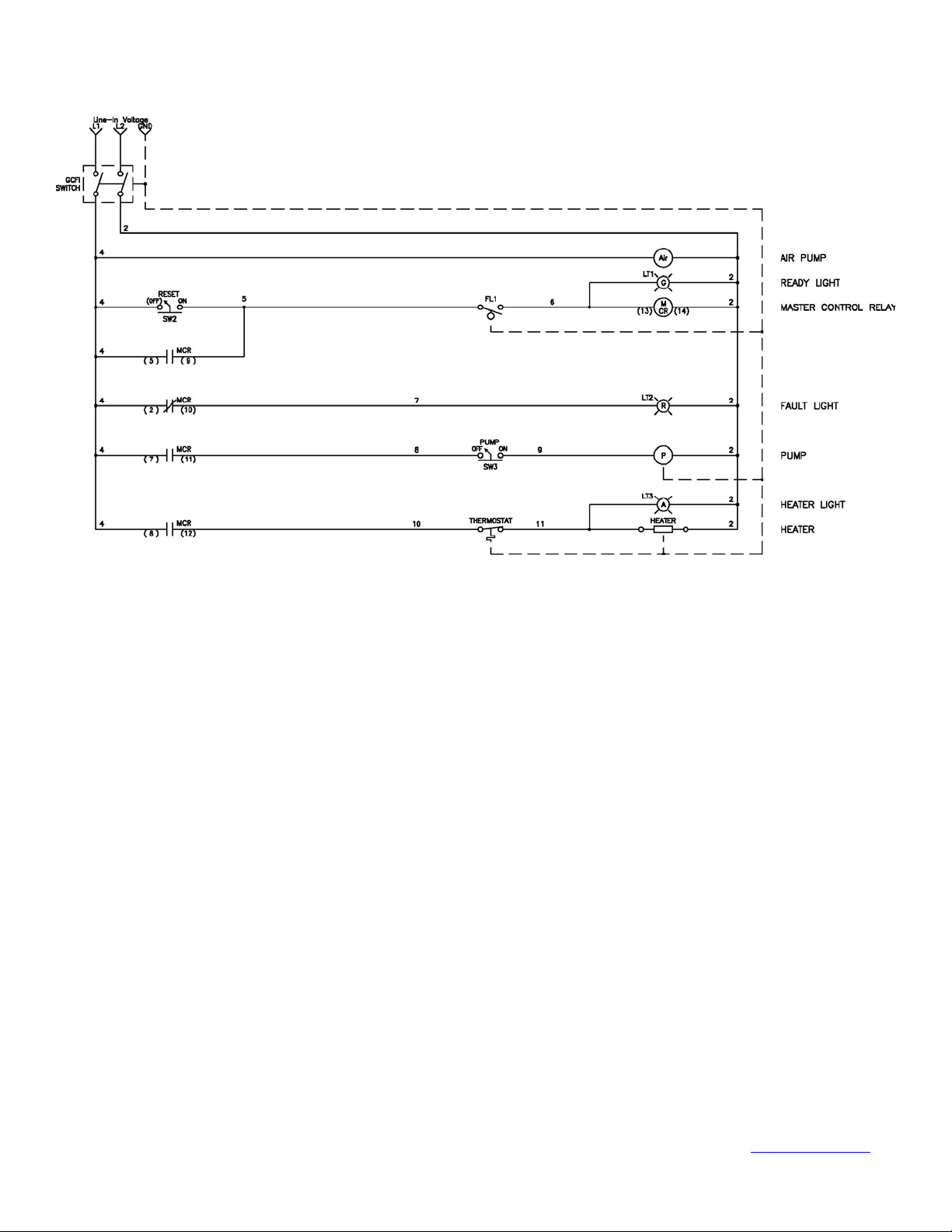

POWER SUPPLY, WIRING AND
GROUNDING

• Failure to permanently ground the unit and controls

before connecting to electrical power can cause
shock, burns or death.

• Install ground and wiring according to local and

national electrical code requirements.

• Install a fused disconnect switch on all power legs

near the unit

• Disconnect and lockout electrical supply before

installing or servicing unit.

• Unit must be properly grounded to prevent electric

shock hazard. Connect only to three-prong outlet.
Should cord become cracked, frayed or damaged in
any way, it should be repaired/replaced immediately
by a qualified electrician. Never use an extension
cord. (See Spare Parts List)

• The full-load amperage draw for this machine is 12

amps.

USE OF INDUSTRIAL CLEANING
SOLUTIONS

• Always wear the recommended safety apparel and

glasses.

• Adequate ventilation should be provided when

operating this unit.

• When making an initial batch of cleaning solution or

when adding compound, follow cleaning solution’s
directions exactly.

• Industrial cleaning solutions may be irritating to some

individuals. Be certain to consult the MSDS for the
cleaning solution you are using before filling or using
parts washer.

• If splashed in the eyes, follow cleaning solution MSDS

instructions.

• If cleaning solution is splashed on clothing, remove

promptly and thoroughly wash any body areas which
have been in contact with solution. DO NOT permit
saturated clothing to remain in contact with skin.
Consult cleaning solution’s MSDS instructions.

• Clean up fluid spills immediately. Super Biotene

create a slippery surface. Also, the microbes
metabolize organic materials and could damage floor
coverings or painted surfaces.

• Graymills strongly recommends that federal, state and

local authorities be consulted before proceeding with
discarding and handling of used materials. Graymills
Corporation accepts no responsibility for user’s
failure to comply with regulations.

• For best results, Graymills’ recommends using only

Super Biotene
660 (pre-blended).

TM

TM

550 (concentrate) or Super BioteneTM

can

Graymills Corporation – 3705 N. Lincoln Ave. / Chicago, IL 60613 – Phone: [phone] Fax: [phone] – www.graymills.com

– 2

MACHINE INSTALLATION AND OPERATION

1. Place unit on a smooth, level surface in a well ventilated area.

2. Install backsplash as show to the right (BIO536R only).

3. Read all warnings posted on machine.

4. Inspect electrical control box, cord and plug for wear or damage.

795-92155

07/10/08

Do not use machine or add fluid if any wear or damage is noticed until impaired
components are repaired or replaced.

5. Install filter cartridge:
a. Unscrew filter cartridge bowl.
b. Remove clear plastic packaging from new filter cartridge and remove

BIO-POUCH from hollow center of cartridge.
c. Install new filter cartridge in the cartridge bowl.
d. Re-attach filter cartridge bowl to filter body.

Be sure electrical cord is unplugged and cleaning solution and heater co il is cool
before adding cleaning solution or performing any maintenance.

6. Remove center sink drain (stainless steel strainer basket, mesh strainer assembly).

7. Add 30-gallons of Super Biotene

8. Add one (1) BIO-POUCH of microbes to tank, found inside filter cartridge.

9. Put center sink drain assembly back into sink drain opening.

10. Plug power cord into properly grounded 115V, 15 amp circuit. Full load amp-draw of unit
is 12 amps.

11. Press TEST button on GFCI on rear of control (right) to ensure switch is operating
properly. Press RESET button on GFCI to prepare unit for operation.

12. Air pump will begin operation immediately upon power being app lied to the machine and
the red “RESET” light will illuminate.

13. Toggle RESET switch located under the electrical box to begin operation. If the unit has
an adequate level of cleaning solution in the tank, the green “READY” light will illuminate
and the red “RESET” light will extinguish.

14. The amber “HEAT” light indicates power to the heater.

15. If cleaning solution is not at the appropriate temperature and heat is required you should
hear the thermostat engage with a “CLICK” and the amber “HEAT” light will illuminate.
Should this not happen, press the red thermostat reset button on the rear of the control
box (right). Should this problem persist: unplug machine and call factory.

16. When the unit reaches its predetermined temperature, the “HEAT” light will extinguish,
indicating the cleaning solution is at the proper temperature to obtain maximum cleaning
efficiency. For maximum cleaning efficiency, allow heater to warm solution for 2 to 4
hours before use.

17. To operate the fluid pump, toggle PUMP switch on front of electrical box to the “ON”
position.

18. For fluid via the flexible hose turn the directional valve counterclockwise to the left.

19. For fluid via the flow-thru brush turn the directional valve clockwise to the right.

TM

solution to the base reservoir tank.

Backsplash Assembly for BIO536R-A

Operator Interface

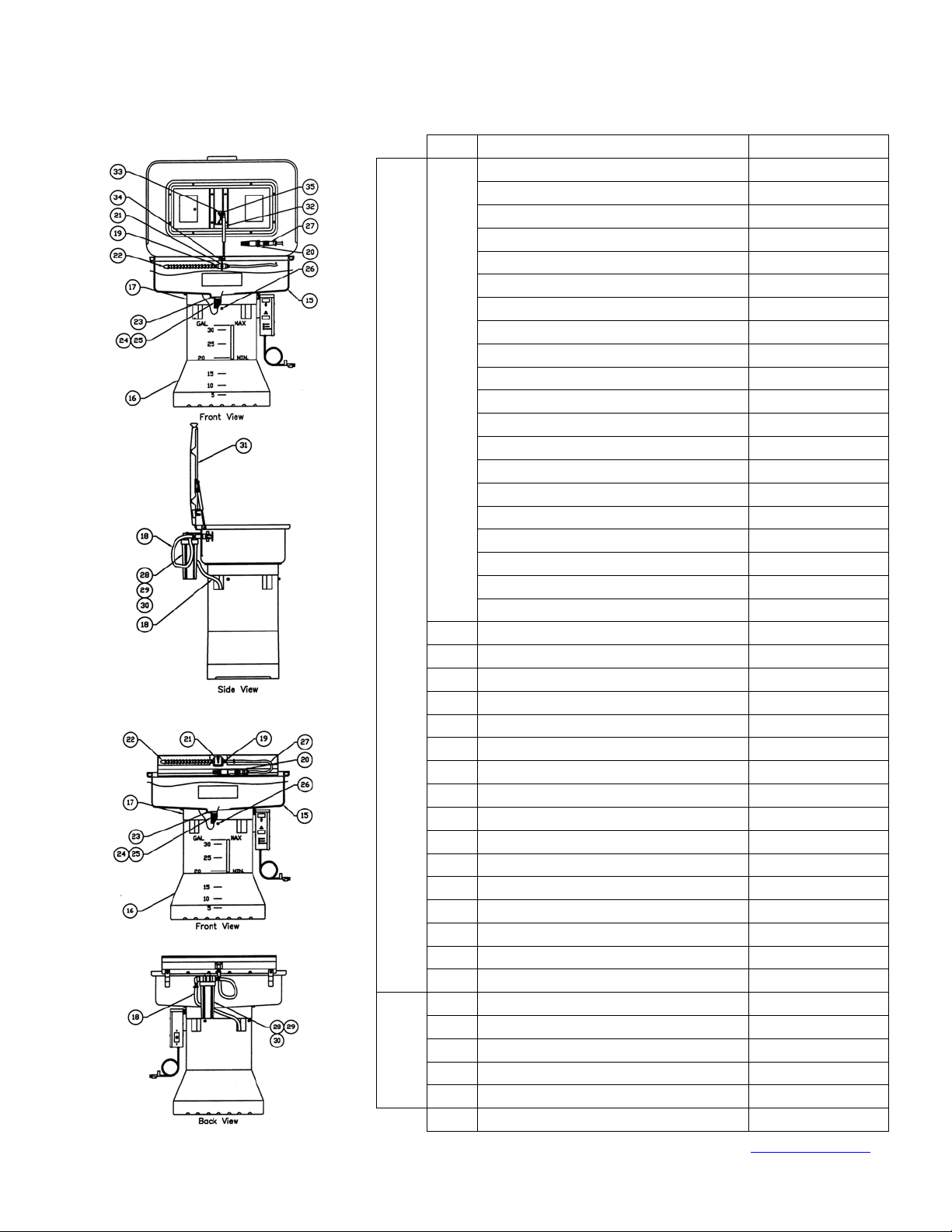

BIO436R-A and BIO536R-A

Front and Back

When not in use return flow-thru brush to brush clip holder to holder to avoid obstructing lid closure (BIO436R only).

20. Failure to keep proper liquid level will result in burning out the pump and heater coil, creating a potential fire hazard. To
prevent this, this unit is equipped with a low liquid level device which will shut off the pump and heater. If solution stops circulating
and the red “RESET” light becomes illuminated, immediately turn off and unplug unit. Follow steps 6 through 9 above for
instructions on refilling unit.

21. When finished, turn pump off and close lid to minimize liquid loss due to evaporation (BI O436R only).
Do NOT unplug the machine for extended periods of time. The internal air pump and heaters are necessary for effective
bioremediation. This will cause the microbes to go dormant and will adversel y affect the bioremediation process. If microbes do
not reactivate after operating temperature has been reached, a new BIO-POUCH should be added.

Graymills Corporation – 3705 N. Lincoln Ave. / Chicago, IL 60613 – Phone: [phone] Fax: [phone] – www.graymills.com

– 3
