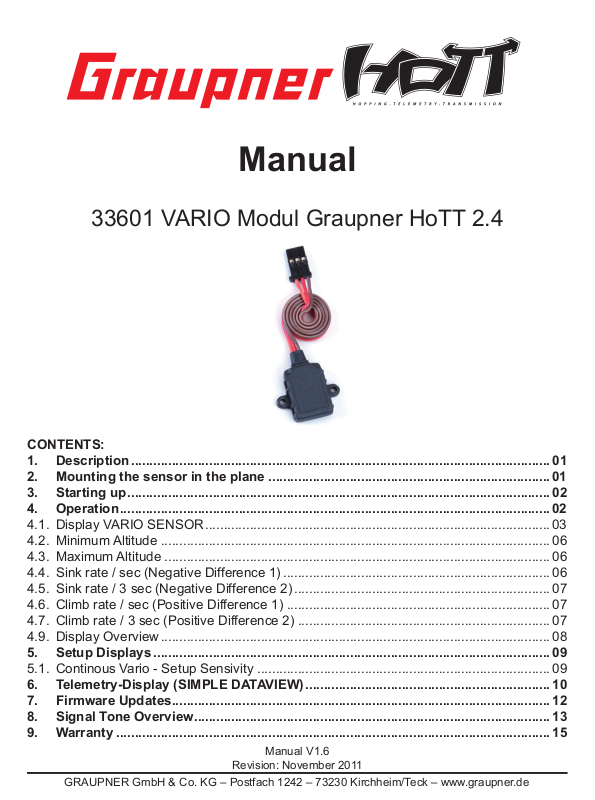

GRAUPNER HoTT 2.4 VARIO Module 33601 User Manual

Manual
33601 VARIO Modul Graupner HoTT 2.4
CONTENTS:
1. Description ................................................................................................................. 01
2. Mounting the sensor in the plane ............................................................................ 01
3. Starting up .................................................................................................................. 02
4. Operation .................................................................................................................... 02
4.2. Minimum Altitude .........................................................................................................06
4.3. Maximum Altitude ........................................................................................................06
4.4. Sink rate / sec (Negative Difference 1) ........................................................................06
4.5. Sink rate / 3 sec (Negative Difference 2) .....................................................................07
4.6. Climb rate / sec (Positive Difference 1) ....................................................................... 07
4.7. Climb rate / 3 sec (Positive Difference 2) .................................................................... 07
4.9. Display Overview .........................................................................................................08
5. Setup Displays ........................................................................................................... 09
5.1. Continous Vario - Setup Sensivity ...............................................................................09
6. Telemetry-Display (SIMPLE DATAVIEW) .................................................................. 1 0
7. Firmware Updates ...................................................................................................... 12
8. Signal Tone Overview ................................................................................................13
9. Warranty ..................................................................................................................... 15
GRAUPNER GmbH & Co. KG – Postfach 1242 – 73230 Kirchheim/Teck – www.graupner.de
Manual V1.6
Revision: November 2011
THANK YOU
for purchasing the Graupner HoTT VARIO MODULE. If you do not have the Graupner HoTT 2.4 radio system this product will not work. This product is not com­patible with any other 2.4GHz radio system. Please read through this entire manual before you attempt the installation and usage of your Graupner HoTT SMART-BOX!
These operating instructions are part of this product. They contains important notes to the operation and handling. Please take this into consideration when you pass on the product to third parties. Neglect of the operating instructions and the safety instructions lead to expiring the warranty. Graupner constantly work on the advancement of all remote control systems; changes of the scope of deli­very in form, technology and equipment we must reserve ourselves therefore. Please have understanding for the fact that from data and illustrations of this operating instructions no requirements can be derived.
Please keep these instructions for further reference!
DESCRIPTION1.
The Graupner-HoTT VARIO-Module enables the wireless monitoring of the altitude and the graphical and acoustic indication of climbing or descent of the model in real time. The VARIO-MODULE can be program­med directly with all HoTT transmitters with integrated telemetry in the transmitter display (some models such as MC-24 with update or modifi cation). The following transmitters must be programmed via SMART-BOX order No. 33700: mx-12 HoTT order No. 4754, mx-16 HoTT order No. 4755, and mx-22 No. 4801/4802, mc-19 No. 4821 and mc-22 No. 4818 after conversion to HoTT. This differentiation between the transmitter models and the resulting operation is explicitly mentioned at the appropriate point in the instructions.
Informations available - Setup:
Current Altitude, Min. Altitude, Max. Altitude, Climb-/Sinkrate/s, Climb/-Sinkrate/3s, Climb/-Sinkrate/Min., Continous Vario, accuracy: 0.1m
Note: Any settings you make on the Transmitter or SMART-BOX will be stored in the VARIO-MODULE only!
Since the VARIO-MODULE can be updated via the USB connection, you always have the latest software and can utilize future functions or languages. Firmware updates for the VARIO-MODULE can be transferred via the DATA or telemetry interface in conjunction with a PC running Windows XP, Vista or 7. For this you also require the USB interface, Order No. 7168.6, and the adapter lead, Order No. 7168.6A, which are available separately. The programs and fi les required for this are available from www.graupner.de in the Download area for the corresponding products.
2. MOUNTING THE SENSOR IN THE PLANE
Mount the sensor at an appropriate location in the model. The sensor detects changes in air pressure and calculates the resulting actual altitude. Therefore, make sure that the sensor is wind-protected in the model and is not located directly in the fl ow of the propeller. Likewise, it must not be mounted on an air-tight place, such in a sealed radio box. The best way to fi x the VARIO-MODULE with the mounting tabs or double sided tape on a wind-protected frame in the model, the orientation of the sensor is not important. Note: the accuracy of the sensor also varies with alterations in ambient air pressure, e.g. due to sudden changes in weather conditions, as well as with changes in air pressure which occur in the course of the day or during an extended fl ight. It is not uncommon for minor fl uctuations in air pressure to affect the accuracy of the sensor to the extent of about 10 to 20 m. These inaccuracies can also be caused by pressure changes inside the fuselage itself (e.g. high pressure due to the forced propeller airfl ow, or air fl owing into the model during a fl ight).
01 33601 VARIO Modul - Graupner HoTT 2.4
3. STARTING UP
Connect the VARIO MODULE with the socket marked „T“ of the receiver. The connector system is polarised, look for the small camfer on the edges. Never use force - the plug should engage easily and fully. The so­ckets are labeled accordingly: black wire (-), red wire (+) and orange wire (S).
Only for transmitters under 1 „exception“ with SMART-BOX: Install the SMART-BOX at the mounting bracket of the transmitter as shown in the fi gure. Connect the box then the 3-pin lead to the transmitter. Put one end of the cable into the DATA jack on the transmitter and the other into the jack on the right side of the SMART-BOX. The connector system is polarised, look for the small camfer on the edges. Never use force - the plug should engage easily and fully. The sockets are labeled accordingly: black wire (-), red wire (+) and orange wire (S).
Note: You can connect the VARIO MODULE instead of the receiver directly to the jack on the right side of the SMART-BOX. By doing this, the settings will be sent directly to the VARIO MODULE (without using the radio control system) and the programming is much faster. A power supply for the SMART-BOX is neccessary (3.6 - 9 V), inserted on the left side. The connector system is reverse polarised, look for the small camfer on the edges. Do not use force, the plug should click into place easily. This sockets is labeled accordingly also. The black wire must be down (-), the red top (+).
4. OPERATION
The operation of the VARIO-MODULE is similar to the operation of the transmitter. You should also read the manual of your remote control system, especially the chapter „telemetry“. The operation is done in the transmitter menu „Telemetry“ under the display SETTING AND DATA VIEW. The sensor displays follow the receiver displays (RX), i.e. the „Vario Sensor“ display follows after the last display servo test (RX SERVO TEST). Please note: the menus can only be selected when the receiver is switched on. When you switch the receiver on, it may take a few seconds before the receiver display becomes active and can be selected: > symbol appears at the top right corner of the transmitter display (TX). There may be a slight delay in the screen’s response to inputs, since all the settings are transmitted directly to the receiver by wireless means.
Operation with the SMART-BOX:
The SMART-BOX is operated by the four buttons on the top. Switch with the ESC and ENTER keys between the different displays. With the DEC and INC buttons you can select the parameters in the display (INC moves the cursor down, DEC up).
Switch on the transmitter. On the startup screen appears SETTING AND DATA VIEW / MODEL SELECT. Move the arrow cursor with the INC or DEC buttons on SETTING AND DATA VIEW and then press ENTER to display the parameters of the transmitter, receiver and telemetry sensors and / or program it, or select MODEL SELECT to display the telemetry data graphically (see point 6). In MODEL SELECT display no changes are possible.
After SETTING AND DATA VIEW have chosen, the VARIO SENSOR display is available. The sensor dis­plays follow the transmitter (TX) and receiver (RX) displays, i.e. the Vario display follows after the last display servo test (RX SERVO TEST).
Please note: the menus can only be selected when the receiver is switched on. When you switch the recei­ver on, it may take a few seconds before the receiver display becomes active and can be selected: > symbol appears at the top right corner of the transmitter display (TX). There may be a slight delay in the screen’s response to inputs using the top buttons, since all the settings are transmitted directly to the receiver by wireless means.
33601 VARIO Modul - Graupner HoTT 2.4 02
4.1. Display VARIO SENSOR
Please note: the labeling of the arrows of the following displays corresponds to the keys on top of the SMART-BOX. This assignment is different depending on the remote control system.
SMART-BOX mx-12/16/20/32 HoTT mc-19/mc-22/mc-24/mx-24 HoTT
ENTER ESC INC DEC
scroll: value:  scroll: push Rotary + value: Rotary scroll: value: scroll: push Rotary + value: Rotary
ENTER CLEAR
INC+DEC SET push Rotary
The descriptive text describes also primarily the button layout and operation of the SMART-BOX, followed by the buttons of the mx-16 HoTT as an example in parentheses. Please note that the button layout for example of the HoTT mc-transmitters (order No. 4758, 4759) may differ. Read the manual of your remote control system to become familiar with the telemetry operation.
ESC
Vario Sensor > Altitude : Min. : Max. : Diff./Sec : Diff./3s : Diff./10s :
In the fi rst row the climb-/sink rate in meter per second is displayed on demand in synchronization with the warning tones alternating with „Vario sensor“ , the vertical speed in meters per second. Sinking is represen­ted by the negative sign.
ENTER
123.2 M
- 10.8 M
123.3 M
- 1.5 M
- 8.5 M
3.5 M
Parameters which have various setting options in the column Setup, can be modifi ed. If these options are missing, the parameter datas are displayed only.
Note: The VARIO MODULE is set to the level 0 m after switching on. The altitude displayed is not the absolute altitude above sea level, but the relative height from the base!
Parameter Description Setup
Altitude Current Altitude (Meter) -
Min. Minimum Altitude since the start (Meter) -
Max. Maximum Altitude since the start (Meter) -
Diff. / Sec Climb-Sink rate (Meter per sec.) - sinking is displayed with
Diff. / 3s Climb-Sink rate (Meter per 3 sec.) - sinking is displayed with
Diff. / 10s Climb-Sink rate (Meter per 10 sec.) - sinking is displayed with
If you wish to carry out an adjustment, you must use the INC or DEC buttons ( select the desired parameter (e.g. page 2) by moving the arrow cursor (INC or moves the cursor down, DEC oder moves it up). Simultaneously pressing the INC and DEC (SET) buttons switches the parameter to be adjusted to inverse video (white on black); this indicates that it can be programmed: pressing the INC () button at this point increases the value, pressing the DEC () button reduces the value. When the ad­justment is complete, save the selected setting by pressing the INC and DEC (SET) buttons simultaneously; the dark background now disappears in order to confi rm this action.
neg. sign
neg. sign
neg. sign
-
-
-
or ) above the screen to
03 33601 VARIO Modul - Graupner HoTT 2.4
Setup structure - Programming Warning Thresholds:
ENTER
ESC
Vario Sensor > Altitude : Min. : Max. : Diff./Sec : Diff./3s : Diff./10s :
123.2 M
- 10.8 M
123.3 M
- 1.5 M
- 8.5 M
3.5 M
ENTER
Vario Sensor < > >Set Warning : Save to Sensor? Factory Set?
ESC
DEC
Vario Sensor < >
Set Warning : >Save to Sensor? Factory Set?
page 1
No No
INC
page 1
No No
INC
DEC
Parameter Display-
Set Warning Page 1 –
page
page 7
Description Setup
Parameter Display Page 1 – page 7
Min. ALT Page 2 Minimum Altitude - 500 to 3000 m
Max. ALT Page 3 Maximum Altitude - 500 to 3000 m
Negative Difference 1 (Sek.) Page 4 Sink rate / Sec. - 50.0 to 0 m
Negative Difference 2 (3 Sek.)
Page 5 Sink rate / 3 Sec. - 50.0 to 0 m
Positive Difference 1 (Sek.) Page 6 Climb rate / Sec. 0 to 50.0 m
Positive Difference 2 (3 Sek.)
Warning Time Page 2 –
Repeat Time Page 2 –
Signal Tone Page 2 –
Save Sensor Page 1 Save the setting in the sensor
Page 7 Climb rate / 3 Sec. 0 to 50.0 m
page 7
page 7
page 7
Warning Time OFF, 5, 10, 15, 20,
Repeat Time Always, 1, 2, 3, 4, 5
25, 30 sec.
Minutes, One Time
Signal Tone A - Z
(VARIO-MODULE)
YES / NO
Factory Set Page 1 Reset to factory settings YES / NO
33601 VARIO Modul - Graupner HoTT 2.4 04
Display (Set Warning): shows the various „display pages“ with the possible adjustable parameters and the associated adjustable warning thresholds (page 1, page 2, etc.). To switch between pages, press the INC or DEC key ( or ).
Factory Set: choosing „YES“, will reset the settings of the variable module to factory settings.
The following parameters can be set separately for all displays: Warning Time: sets whether and how long the warning signal is activated when reaching a certain value for each display screen.
Repeat Time: sets how often the warning signal is activated when reaching a certain value for each display screen.
Signal Tone: sets the signal tone melody. The warning sounds are combined with the warnings on the display and the voice output. Therefore, they may not be changed.
Overview of the signal tones on page 13.
When a warning is activated, the corresponding message (eg. Min. Height) is shown inverted in the rst row of the associated display, which then appears alternately with the display VARIO SENSOR and the selected Signal Tone A - Z sounds. You can stop the warning at any time by pressing one of the buttons on the top of the SMART­BOX.
If you wish to carry out an adjustment (point 4.2 to 4.7) you must use the INC () or DEC () buttons above the screen to select „page 1 - Save Sensor“. Simultaneously pressing the INC and DEC buttons (SET) switches the parameter to be adjusted to inverse video (white on black); this indicates that it can be programmed: pressing the INC () button at this point increases the value to YES. When the adjustment is complete, save the selected setting by pressing the INC and DEC buttons (SET) simultaneously; the dark background now disappears in order to confi rm this action. If you do not want to save the adjustments, select NO.
Warning:
• Do not carry out any programming work on the sensors while the model is fl ying, otherwise there is a real risk that your model will fl y out of control while you are not concentrating on it!
• If your model is fi tted with two or more receivers, it is absolutely essential that you do not carry out pro- gramming work during a fl ight, as this can alter the settings in the receivers to which no telemetry equip- ment is connected; in the worst case this could result in the model crashing. For this reason always carry out programming on the ground, and check that only the receiver with con­ nected sensors is powered on.
05 33601 VARIO Modul - Graupner HoTT 2.4
4.2. Minimum Altitude (Page 2)
Minimum Altitude: Minimum altitude of the model during operation, warning threshold set between -500 and +3000 m (based on the starting altitude 0 m) Factory setting: 20 m, Signal Tone: O
DEC
Vario Sensor < >Set Warning : Save Sensor? Factory Set?
INC
page 1
No No
INC + DEC
Vario Sensor < >Set Warning : Save Sensor? Factory Set?
page 2
No No
INC
DEC
4.3. Maximum Altitude (Page 3)
INC
DEC
Max. Altitude Set Warning : >Max. ALT : Warning Time : Repeat Time :
Signal Tone :
4.4. Sink rate per second (Page 4)
DEC
Negative Difference 1 Set Warning : >Diff / Sec : Warning Time : Repeat Time :
Signal Tone :
page 3
Off
Always
Z
page 4
- 10 m
Off
Always
C
500m
INC
INC + DEC
DEC
Min. Altitude Set Warning : >Min. ALT : Warning Time : Repeat Time :
Maximum Altitude: Maximum altitude of the model during operation, warning threshold set between -500 and +3000 m (based on the star­ting altitude 0 m) Factory setting: 500 m, Signal Tone: Z
Sink rate/s (Negative Difference 1): Sink rate of the model per sec. in Meter, warning threshold set between -50 and 0 m (based on the starting altitude 0 m) Factory setting: 10 m/Sec., Signal Tone: C
Off
O
Signal Tone :
INC
page 2
20m
Always
33601 VARIO Modul - Graupner HoTT 2.4 06
4.5. Sink rate per 3 seconds (Page 5)
DEC
Negative Difference 2 Set Warning : >Diff / 3 Sec : Warning Time : Repeat Time :
Off
B
Signal Tone :
4.6. Climb rate per second (Page 6)
DEC
Positive Difference 1 Set Warning : >Diff / Sec : Warning Time : Repeat Time :
Off
N
Signal Tone :
INC
page 5
- 1 m
Always
INC
page 6
10 m
Always
Sink rate/3 s (Negative Difference 2): Sink rate of the model per 3 sec. in Meter, warning threshold set between -50 and 0 m (based on the starting altitude 0 m) Factory setting: 1 m/3 Sec., Signal Tone: B
Climb rate/s (Positive Difference 1): Climb rate of the model per sec. in Meter, warning threshold set between 0 and 50 m (based on the starting altitude 0 m) Factory setting: 10 m/Sec., Signal Tone: N
4.7. Climb rate per 3 seconds (Page 7)
INC
DEC
Positive Difference 2 Set Warning : >Diff / 3 Sec : Warning Time : Repeat Time :
Signal Tone :
page 7
Off
Always
M
Climb rate/3 s (Positive Difference 2): Climb rate of the model per 3 sec. in Meter, warning threshold set between 0 and 50 m (based on the starting altitude 0 m)
1 m
Factory setting: 1 m/3 Sec., Signal Tone: M
07 33601 VARIO Modul - Graupner HoTT 2.4
4.9. DISPLAY OVERVIEW:
ENTER
ESC
Vario Sensor > Altitude : Min. : Max. : Diff./Sec : Diff./3s : Diff./10s :
123.2 M
- 10.8 M
123.3 M
- 1.5 M
- 8.5 M
3.5 M
ENTER
ESC
Vario Sensor <
page 1
>Set Warning : Save to Sensor? Factory Set?
DEC
Vario Sensor <
>Save to Sensor? Factory Set?
Set Warning :
page 1
No No
INC
INC + DEC
Vario Sensor < >
page 1
>User Setup :
page 2
page 2
Always
page 3
500m
Always
page 4
- 10 m
Always
page 5
- 1 m
Always
page 6
Always
page 7
Always
No No
INC
20m
INC
INC
INC
INC
10 m
INC
1 m
Save to Sensor? Factory Set?
INC
DEC
INC + DEC
Vario Sensor <
No No
>Set Warning : Save to Sensor? Factory Set?
INC + DEC
DEC
Min. Height Set Warning : >Min height : Warning Time : Repeat Time :
Signal Tone :
DEC
Max. Height Set Warning : >Max height : Warning Time : Repeat Time :
Signal Tone :
DEC
Negative Difference 1 Set Warning : >Diff / Sec : Warning Time : Repeat Time :
Signal Tone :
DEC
Negative Difference 2 Set Warning : >Diff / 3 Sec : Warning Time : Repeat Time :
Signal Tone :
DEC
Positive Difference 1 Set Warning : >Diff / Sec : Warning Time : Repeat Time :
Signal Tone :
DEC
Positive Difference 2 Set Warning : >Diff / 3 Sec : Warning Time : Repeat Time :
Signal Tone :
Off
O
Off
B
Off
C
Off
B
Off
N
Off
M
No No
INC DEC
Vario Sensor < > >User Setup : Save to Sensor? Factory Set?
INC + DEC
DEC
Select Sensivity >User Setup : Sensivity :
page 1
page 2
1.0m/ 3s
No No
INC
33601 VARIO Modul - Graupner HoTT 2.4 08
5. SETUP DISPLAYS
5.1. Vario
The module provides two vario functions:
1. Continous Vario: is automatically launched when the menu telemetry VOICE TRIGGER, VARIO is a switch has been set and then the graphical display of the ELECTRIC AIR MODULE is activated. This function CONTINOUS VARIO shows the climb or descent of the model permanently by rising or falling beeps.
2. Sensitivity Vario (only with the modules M-G1/M-G2, mx-12/16 order No. 4754/4755 or mc-19/22 HoTT 4758/4759) - output only trough modules buzzer: The climb or descent rate is predetermined
by the parameter sensitivity (SENSITIVITY). The sensitivity must be programmed before operation. You can choose between: (OFF), 0.5 m / sec 3, 1 m / 3 s, 0.5 m / sec,. 1 m / sec. or 3 m / sec. Factory setting
is 1 m / sec. You should use one of these at the same time.
Sensivity Setup
Select the User Setup display as shown in the diagram. Press the INC and DEC buttons on the SMART-BOX (resp. SET) simultaneously and select User Setup page 2. To save the selected settings, go back to page 1 and choose ,Save Sensor‚ YES.
Vario Sensor < > >User Setup : Save Sensor? Factory Set?
page 1
No No
INC + DEC
Vario Sensor < > >User Setup : Save Sensor? Factory Set?
page 1
No No
INC + DEC
DEC
Select Sensitivity >User Setup : Sensitivity : Average Num: 20
page 2
1 m/ 3s
INC
Parameter Description Setup
User Setup User seup 1 - 2 (page)
Save Sensor Save the setting in the sensor (VARIO-
MODULE)
YES / NO
Factory Set Reset to factory settings YES / NO
Sensitivity Sensitivity - Continous Vario OFF, 0.5m/3 Sec.; 1 m/3 Sec.;
Average Number Number of measurements of the sensor per
Sec.
0.5 m/Sec.; 1m/Sec. oder 3.0 m/Sec. Factory setting
4 - 40 factory setting: 20
1 m/Sek.
09 33601 VARIO Modul - Graupner HoTT 2.4
SENSITIVITY: select the climb or sink rate at which the Beep is activated. Climbing is indicated by a high tone, sinking by a deep tone. The higher / lower the tone sounds, the greater/ smaller is the climb or sink rate. Note: when SENSITIVITY is set to OFF, no beeps or voice announcements will be displayed. See the following table. If the setting is for example 1 m/sec., the tone (A) sounds when the model climbs more than 1 m per second. Is the rate more than 2 m, the next higher note (B) sounds, etc. The actual climb or descent rate is displayed in the Vario screen alternately in the top row. This display responds faster than the „Diff.“- information the display below, so the values can differ.
Climbing/sinking tone overview:
Climb rate:
5 m (E)
4 m (D)
3 m (C)
2 m (B)
1 m (A)
AVERAGE NUMBER: Number of measurements per second, is used to adjust the accuracy of the sensor. More measurements increase the accuracy, while fewer measurements increase display speed. Recommendation: Sensivity 0.5 m: approx. 20 measurements per Sec. Sensivity 1 m: approx. 4 measurements per Sec.
Altitude level Beep:
when the following altitudes (starting from the starting altitude 0 m) are reached, the following tones will sound: 20 / 40 / 60 / 80 / 100 m: low tone once (20 m) up to fi ve times (100 m) 200 / 400 / 650 / 800 / 1000 m: high tone once (200 m) up to fi ve times (1000 m)
2.5 m/3 sec. ; 5 m
2.5 m/sec. ; 5 m/sec. ; 15 m/sec.
2 m/3 sec. ; 4 m 2 m/sec. ; 4 m/sec. ; 12 m/sec.
1.5 m/3 sec. ; 3 m
1.5 m/sec. ; 3m/sec.;- 9 m/sec.
1 m/3 sec. ; 2 m 1 m/sec. ; 2 m/sec. ; 6 m/sec.
0.5 m/3 sec. ; 1 m
0.5 m/sec. ; 1 m/sec.;- 3 m/sec.
/3 sec.
/3 sec.
/3 sec.
/3 sec.
/3 sec.
Sink rate:
- 1 m
- 2 m
- 3 m
- 4 m
- 5 m
- 0.5 m/3 sec. ; - 1 m
- 0.5 m/sec. ; - 1 m/sec. ; - 3 m/sec.
- 1 m/3 sec. ; - 2 m
- 1 m/sec. ; - 2 m/sec. ; - 6 m/sec.
- 1.5 m/3 sec. ; - 3 m
- 1.5 m/sec. ; - 3m/sec. ; - 9 m/sec.
- 2 m/3 sec. ; - 4 m
- 2 m/sec. ; - 4 m/sec. ; - 12 m/sec.
- 2.5 m/3 sec.; - 5 m
- 2.5 m/sec. ; - 5 m/sec. ; - 15 m/sec.
/3 sec.
/3 sec.
/3 sec.
/3 sec.
/3 sec.
6. TELEMETRY DISPLAY
If you select SIMPLE DATAVIEW the telemetry data can only be displayed, i.e. it cannot be programmed - in contrast to SETTING AND DATAVIEW. However, the data is represented in graphic form, and this makes it the preferable option when actually operating a model, as it is easier and quicker to read and assess.
You should also read the manual of your remote control system, especially the chapter „telemetry“. The operation is done in the transmitter menu „telemetry“ under the display SETTING AND DATA VIEW. Please note: the menus can only be selected when the receiver is switched on. When you switch the recei­ver on, it may take a few seconds before the receiver display becomes active and can be selected: > symbol appears at the top right corner of the transmitter display (TX). When the receiver is off, the error message „Can‘t receive data“ appears. There may be a slight delay in the screen’s response to inputs using the top buttons, since all the settings are transmitted directly to the receiver by wireless means.
33601 VARIO Modul - Graupner HoTT 2.4 10
Operation with the SMART-BOX:
Switch the transmitter on: the start screen of the SMART-BOX displays SETTING AND DATAVIEW / MODEL SELECT. Use the INC or DEC button to move the arrow cursor to MODEL SELECT, then press ENTER to switch to the graphic representation of the telemetry display.
Please note: these menus can only be selected if the receiver is already switched on. After you switch the receiver on, note that it may take several seconds before the display becomes active, and can be selected. There may be a slight delay in the screen’s response to inputs using the top buttons, since all the settings are transmitted directly to the receiver by wireless means.
Once you have selected MODEL SELECT, the Smart-Box displays the telemetry menu. You must then select the appropriate sensor using the arrow cursor, depending on whether you are operating a model aircraft (AIRPLANE) or a model car (CAR). It is possible to select any of the displays, but - as you would expect - the unit can only display those parame­ters for which sensors are actually installed in the model; all the other parameters display the value 0.
Use the INC () or DEC () button to move the arrow cursor to AIRPLANE (model aircraft) or CAR (model car), then press ENTER (SET) to move to the corresponding telemetry display.
In the aircraft display (AIRPLANE) you can use the INC or DEC button to select one of the following graphic displays:
RECEIVER: shows the same data as RX DATAVIEW
RECEIVE+VARIO MODUL: receive performance, actual altitude, min. and max. altitude, temperature, climb
rate / sink rate /sec., climb rate / sink rate / 3 sec., climb rate / sink rate / 10 sec.
ALT
0
QUA
0
MAX 0m
MIN 0m
Parameter Description
ALT current Altitude
QUA Signal strength of the signal picked up
by the receiver in %
MAX Maximum Altitude since the start (Meter)
m/sec
m/3s
m/10s
H
0
0
L
0
MIN Mniimum Altitude since the start (Meter)
m/1s m/1 sec climb / descent - sinking is displayed
with neg. sign
m/3s m/3 sec climb / descent
m/10s m/10 sec climb / descent
Multiple sensors, for example GPS and General module, can be connected to the receiver via a Y-cable order No. 3936.11 from software version V2.x or higher for the module, receiver and SMART-BOX. Attention: When using the Y-cable plugged into the telemetry connector on the receiver for connecting mul­tiple sensors, only the SIMPLE DATA VIEW or MODEL SELECT can be used, because only in this mode the sensors are addressed correctly. The SETTING AND DATAVIEW mode for programming can not be used! First the sensors must individually programmed, for example directly with the SMART-BOX.
11 33601 VARIO Modul - Graupner HoTT 2.4
7. Firmware Update VARIO MODULE
Firmware updates for the VARIO MODULE are transferred conjunction with a PC running Windows XP, Vista or 7. For this you also require the USB interface, Order No. 7168.6, the adapter lead, Order No. 7168.6A and a Y-cable Order No. 3936.11 which are available separately. The programs and fi les required for this are available from www.graupner.de in the Download area for the corresponding products. Install the Firmware Update Utility Graupner and the USB drivers on your computer. Check the system requirements!
The fi rst step is to cut through the central red wire in the adapter lead, Order No. 7168.6A, then connect the lead to the USB interface, Order No. 7168.6. This socket is also polarised; note the small chamfer on one edge. Never use force - the plug should engage easily and fully.
Connect the VARIO MODULE to one connector of the Y-cable, into the second connector the adapter cable to the USB port is plugged. The signal line (orange) of the remaining plug of the Y-cable must be disabled, simply drag a sharp object into the safety tab of the connector and pull out the orange cable from the case. The so-prepared plug is connected to a free socket of the receiver.
7.1. Update procedure
Ensure that the adapter lead is confi gured as shown in the illustrations, and are connected. Start the Graupner Firmware Update Utility.
window “Product code error” will appear, and you will not be able to start the update procedure. Press the “Program” button in the software. Wait briefl y until you see movement in the progress bar. This make take up to fi ve seconds, depending on the computer. Switch on the receiver power supply, so that the receiver and the VARIO-MODULE is powered on.
After a few seconds the Status screen displays the message “Found target device…”; you can now release the button, and the fi rmware update process commences. If the device is not recognised, if the pop-up window “Target device ID not found” appears, or if the process fails before 100% is reached, you must restart the update procedure. Repeat all the steps as described above.
Under [COM Port Setup] select the cor­rect COM port, i.e. the one to which the USB lead is connected. If you are not sure of this, press the button „Search“ and select in the pop-up window „Silicon Labs CP210x USB to UART Bridge“ and press „OK“. Select Baud Rate: 19200. Under [Interface Type] click on Signal 2:Vcc 3:Gnd. Now click on the “Browse” button and select the folder containing the pre­viously loaded fi rmware fi le ending in *.bin. If everything is correct, the fi le will appear in the corresponding window. The fi rmware fi les are encoded in pro- duct-specifi c form, i.e. if you acciden- tally select a fi le which does not match the product (e.g. transmitter update fi le instead of receiver fi le), then the pop-up
33601 VARIO Modul - Graupner HoTT 2.4 12
The Status display and the Progress bar show the progress of the fi rmware update. The update is completed when the message “Complete…100%” or “Complete!!” appears.
Switch off the receiver and disconnect all leads.Your VARIO-MODULE is ready to use.
13 33601 VARIO Modul - Graupner HoTT 2.4
8. SIGNAL TONE OVERVIEW
A
B
C
page 5: sink rate / 3 sec.
page 4: sink rate / sek.
D
E
F
G
H
I
J
K
L
M
page 7: climb rate / 3 sec.
O
P
Q
R
S
T
U
V
W
X
Y
Z
page 2: Minimum altitude
page 3: Maximum altitude
N
33601 VARIO Modul - Graupner HoTT 2.4 14
page 6: climb rate / sec.
The current version of this manual is available on the Graupner website www.graupner.de under
Order No. 33601
EG DECLARATION OF CONFORMITY:
We hereby declare that the following product:
VARIO MODULE order.-nr. 33601
confi rms with the essential protective requirements as laid down in the directive for harmonising the statua- tory directives of the member states concerning electro-magnetic interference 2004/108/EC.
This product has been tested for electro-magnetic interference in accordance with the following norms: EN 61000-6-1 EN 61000-6-3
This declaration was produced by Graupner GmbH & Co. KG Henriettenstr. 94-96 73230 Kirchheim/Teck
and is valid for the manufacturer / importer of the product
73230 Kirchheim/Teck, den 08.12.2010 Stefan Graupner Managing Director
Environmental Protection Notes
When this product comes to the end of its useful life, you must not dispose of it in the or­dinary domestic waste. The correct method of disposal is to take it to your local collection point for recycling electrical and electronic equipment. The symbol shown here, which may be found on the product itself, in the operating instructions or on the packaging, indicates that this is the case.
Individual markings indicate which materials can be recycled and re-used. You can make an
recycling the basic materials or recycling redundant equipment in other ways.
Remove batteries from your device and dispose of them at your local collection point for batteries.
In case of R/C models, you have to remove electronic parts like servos, receiver or speed controller from the product in question, and these parts must be disposed of with a corresponding collection point for electrical scrap.
If you don’t know the location of your nearest disposal centre, please enquire at your local council offi ce.
important contribution to the protection of our common environment by re-using the product,
15 33601 VARIO Modul - Graupner HoTT 2.4
Wir gewähren auf dieses Erzeugnis eine /
Garantie von
warrantied for
garantie de
Die Fa. Graupner GmbH & Co. KG, Henriettenstraße 94-96, 73230 Kirchheim/Teck gewährt ab dem Kaufdatum auf dieses Produkt eine Garantie von 24 Monaten. Die Garan­tie gilt nur für die bereits beim Kauf des Produktes vorhan­denen Material- oder Funktionsmängel. Schäden, die auf Abnützung, Überlastung, falsches Zubehör oder unsach­gemäße Behandlung zurückzuführen sind, sind von der Garantie ausgeschlossen. Die gesetzlichen Rechte und Gewährleistunsansprüche des Verbrauchers werden durch diese Garantie nicht berührt. Bitte überprüfen Sie vor ei­ner Reklamation oder Rücksendung das Produkt genau auf Mängel, da wir Ihnen bei Mängelfreiheit die entstan­denen Unkosten in Rechnung stellen müssen.
Graupner GmbH & Co. KG, Henriettenstraße 94-96, 73230 Kirchheim/Teck, Germany guarantees this product for a pe­riod of 24 months from date of purchase. The guarantee applies only to such material or operational defects witch are present at the time of purchase of the product. Dama­ge due to wear, overloading, incompetent use of incorrect accessories is not covered by the guaran­tee. The user´s legal rights and claims under garantee are not affected by this guarantee. Please check the product carefully for defects before you are make a claim or send the item to us, since we are obliged to make a charge for our cost if the product is found to be free of faults.
La société Graupner GmbH & Co. KG, Henriettenstraße 94-96, 73230 Kirchheim/Teck, Allemagne, accorde sur ce produit une garantie de 24 mois à partir de la date d´achat. La garantie prend effet uniquement sur les vices de fonc­tion-nement et de matériel du produit acheté. Les dom­mages dûs à de l´usure, à de la surcharge, à de mauvais accessoires ou à d´une application inadaptée, sont ex­clus de la garantie. Cette garantie ne remet pas en cau­se les droits et prétentions légaux du consommateur. Avant toute réclamation et tout retour du prouit, veuillez s.v.p. cotrôler et noter exactement les défauts ou vices.
Garantie-Urkunde
Warranty certifi cate / Certifi cate de garantie
handling or the
33601 Vario-Modul
This product is /
24
Sur ce produit nous accordons une
Monaten months mois
Servicestellen / Service / Service après-vente
Graupner-Zentralservice Graupner GmbH & Co. KG Henriettenstrasse 94-96 D-73230 Kirchheim / Teck
Belgie/Nederland Jan van Mouwerik Slot de Houvelaan 30 NL 3155 Maasland VT
(+31)10 59 13 59 4
Republika RC Service Z. Hnizdil Letecka 666/22 CZ-16100 Praha 6 - Ruzyne
(+42) 2 33 31 30 95
Anguera Hobbies C/Terrassa 14 E 43206 Reus (Tarragona)
(+34) 97 77 55 32 0
France UK Graupner Service France Gérard Altmayer 86, rue St. Antoine F 57601 Forbach-Oeting
(+33) 3 87 85 62 12
Italia GiMax Via Manzoni, no. 8 I 25064 Gussago
(+39) 30 25 22 73 2
Servicehotline
(+49) 01805 47 28 76 Montag - Freitag 7:30 -11:45 und 12:30 -16:00 Uhr
Luxembourg Kit Flammang 129, route d’Arlon L 8009 Strassen
(+35) 23 12 23 2
SchweizCeská Republika/Slovenská Graupner Service Schweiz CD-Electronics GmbH Kirchweg 18 CH-5614 Sarmenstorf
(+41) 56 66 71 49 1
SverigeEspana Baltechno Electronics P.O. Box 5307 S 40227 Göteborg
(+46) 31 70 73 00 0
Graupner Service UK Brunel Drive GB, NEWARK, Nottingham­shire NG242EG
(+44) 16 36 61 05 39
Übergabedatum Date of purchase/delivery
Date de remise
Name des Käufers Owner´s name Nom de I`achateur
Straße, Wohnort Complete adress Domicie et rue
33601 VARIO Modul - Graupner HoTT 2.4 16
Firmenstempel und Unterschrift des Einzelhändlers Stamp and signature of dealer Cachet de la fi rme et signature
du detailant
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
17 33601 VARIO Modul - Graupner HoTT 2.4
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
_____________________________________________________________________________________
33601 VARIO Modul - Graupner HoTT 2.4 18
Graupner GmbH & Co. KG
Henriettenstraße 94 – 96 D-73230 Kirchheim/Teck
Germany
www.graupner.de
Änderungen sowie Liefermöglichkeiten vorbehalten. Lieferung durch den Fachhandel.
Bezugsquellen werden nachgewiesen. Für Druckfehler kann keine Haftung übernommen
Specifi cations and availability subject to change. Supplied through specialist model shops
only. We will gladly inform you of your nearest supplier. We accept no liability for printing
Sous réserve de modifi cations et de possibilité de livraison. Livraison uniquement au
travers de magasins spécialisés en modélisme. Nous pourrons vous communiquer
l’adresse de votre revendeur le plus proche. Nous ne sommes pas responsables
Con riserva di variazione delle specifi che e disponibilità del prodotto. Fornitura attraverso
rivenditori specializzati.Saremmo lieti di potervi indicare il punto vendita più vicino a voi.
d’éventuelles erreurs d’impression.
Si declina qualsiasi responsabilità per errori di stampa.
33601 / November 2011 - EN V1.6
werden.
errors.
Loading...
