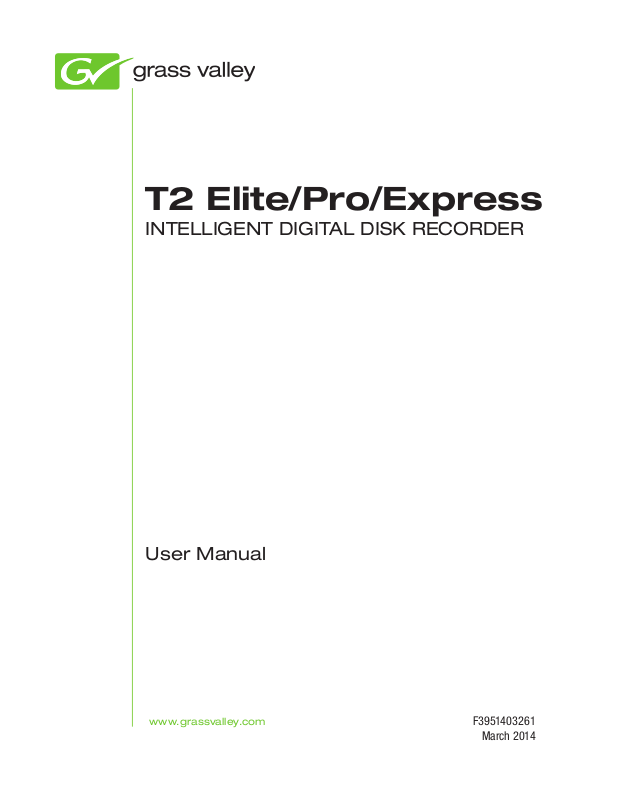

Page 1
T2 Elite/Pro/Express
INTELLIGENT DIGITAL DISK RECORDER
User Manual
www.grassvalley.com
F39514 0 3 2 6 1
Mar c h 2 014
Page 2
Copyright
Copyright 2012-2014 Grass Valley K.K. All rights reserved. Portions of software © 2000 –
2014, Microsoft Corporation. All rights reserved. This document may not be copied in whole
or in part, or otherwise reproduced except as specifically permitted under U.S. copyright law,
without the prior written consent of Grass Valley, Inc., P.O. Box 59900, Nevada City, California
95959-7900. This product may be covered by one or more U.S. and foreign patents.
Grass Valley is a trademark of GVBB Holdings S.a.r.l.
Disclaimer
U.S. Government
Restricted Rights Legend
Trademarks and Logos
• Product options and specifications subject to change without notice. The information in
this manual is furnished for informational use only, is subject to change without notice, and
should not be construed as a commitment by Grass Valley, Inc. Grass Valley, Inc. assumes
no responsibility or liability for any errors or inaccuracies that may appear in this publication.
• The T2 Elite/Pro/Express’s built-in display may sometimes have dead pixels, or always-on
pixels.This is a specification within the liquid crystal display, and will not be considered as a
fault or defect of the product. Also, If the T2 is connected to an external monitor, any dead
or always-on pixels will depend on the specification of the external monitor.
Use, duplication, or disclosure by the United States Government is subject to restrictions as
set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software
clause at DFARS 252.277-7013 or in subparagraph c(1) and (2) of the Commercial Computer
Software Restricted Rights clause at FAR 52.227-19, as applicable.
Grass Valley is a trademark of GVBB Holdings S.a.r.l. Grass Valley USA, LLC products are
covered by U.S. and foreign patents, issued and pending. Additional information regarding
Grass Valley USA, LLC trademarks and other proprietary rights may be found at www.
grassvalley.com.
Other trademarks and logos used in this document are either registered trademarks or
trademarks of the manufacturers or vendors of the associated products, such as Microsoft®
Windows® operating system, Windows Media® player, Internet Explorer® internet browser, and
SQL Server™. QuickTime and the QuickTime logo are trademarks or registered trademarks
of Apple, Inc., used under license therefrom. Intel and Core i7 are the trademarks or
registered trademarks of Intel Corporation or its subsidiaries in the United States of America
and other countries. Adobe and Adobe Premiere are registered trademarks of Adobe Systems
Incorporated. Final Cut Pro is a trademark of Apple Inc., registered in USA and other countries.
XDCAM, MPEG HD422 and XDCAM EX are trademarks or registered trademarks of Sony
Corporation. XDCAM EX, SxS, and their logos are trademarks of Sony Corporation. GF and
GFPAK are trademarks of Toshiba Corporation.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1993–2005
Dolby Laboratories. All rights reserved.
2
T2 Elite/Pro/Express User Manual March 26, 2014
Page 3
Grass Valley Web Site
This public Web site contains all the latest manuals and documentation, and additional
support information. Use the following URL.
http://www.grassvalley.com.
Manual Explanation
• If there are any variations between the explanation in this manual and the actual application
method, priority is given to the actual application method.
• This manual is a common manual for T2 Elite, T2 Pro and T2 Express. Screenshots and
illustrations in this manual may vary from those of the actual product.
• The screenshots used as examples in this manual are those of the development stage, so
they may vary from those in the final product.
• This manual is written for users who have a basic knowledge of how to use a computer.
If there are no special instructions, perform the same operation as a normal computer
operation.
• The contents of this product may modify without prior notice.
T2 Elite/Pro/Express User Manual
Ver 2.2
Copyright © 2012 - 2014 Grass Valley K.K.
All rights reserved.
March 26, 2014 T2 Elite/Pro/Express User Manual
3
Page 4
Contents
1 Notice
MICROSOFT SOFTWARE LICENSE TERMS
WINDOWS EMBEDDED STANDARD 7 .................................................11
2 Overview
Overview ...................................................................................32
About this manual ........................................................................ 33
3 Part Names and Functions
Front panel ................................................................................ 34
Control buttons ................................................................................. 35
Rear panel ..................................................................................36
Analog audio input/output section .......................................................... 37
R1 input section ................................................................................ 38
P1/P2 output section .......................................................................... 38
4 Connection/Start-up/Exit
Attaching T2 iDDR Rack Mount Kit (optional) ........................................39
Parts of T2 iDDR Rack Mount Kit ............................................................ 39
Setting to a 19 inch rack ...................................................................... 40
Setting T2 to a rack ............................................................................ 40
Operating after set up ......................................................................... 44
Connecting peripheral devices ......................................................... 44
Starting up and exiting T2 .............................................................. 45
Starting up T2 ................................................................................... 45
Exiting T2 in the front panel mode .......................................................... 46
Exiting T2 in workstation mode .............................................................. 47
4
T2 Elite/Pro/Express User Manual March 26, 2014
Page 5
Switching front panel mode/workstation mode ......................................47
Checking the software version ......................................................... 48
5 Recording
Displaying R1 channel in 1ch view .....................................................49
Selecting R1 channel in 3ch view ..................................................... 53
Recording by VTR control from T2 (R1-VTR mode) ................................ 54
Recording live video (R1-live mode) ...................................................56
6 Import/Export
Importing a media file ....................................................................58
Contents
Switching from the front panel mode to the workstation mode ........................ 47
Switching from the workstation mode to the front panel mode ........................ 48
Displaying the [Browse] tab .................................................................. 58
Displaying media file in removable media ................................................. 60
Playing media file in removable media ..................................................... 61
Checking the properties of media file ....................................................... 62
Changing media file list display ............................................................. 63
Importing a media file ......................................................................... 63
Importing still images with serial numbers as a sequence clip ........................ 66
Checking the transfer status ................................................................. 67
Removing medium in removable media .................................................... 68
Removing removable media.................................................................. 69
Exporting a file ............................................................................69
Exporting contents to a file ................................................................... 69
Exporting contents in T2 format ............................................................. 72
Transferring a file to other T2 ...........................................................73
Overview of file transfer function from T2 to T2 .......................................... 73
Configuring the FTP server settings of T2 (destination) ................................. 73
Exporting a file from T2 to T2 ................................................................ 74
March 26, 2014 T2 Elite/Pro/Express User Manual
5
Page 6
Contents
Sending/receiving files to T2 ............................................................75
Loading and editing T2 contents to other editing software .........................77
7 Contents Management
Managing contents in the bin ...........................................................79
Displaying the [Bin] tab ....................................................................... 79
Changing bin name ............................................................................. 80
Deleting a bin ................................................................................... 81
Contents types and icons ..................................................................... 81
Moving contents to another bin .............................................................. 83
Changing the display of contents list ....................................................... 83
Checking the properties of the contents .................................................... 83
Releasing pairing of contents ................................................................ 85
Converting contents to other formats ....................................................... 85
Checking the recycle bin .................................................................87
Displaying the [Recycle Bin] tab ............................................................ 87
Backing up all data to other T2 (full sync backup) ...................................88
Overview of full sync backup function ...................................................... 88
Step 1: Setting T2 on the sync destination (slave) to the slave mode ................ 88
Step 2: Setting T2 on the sync source (master) to the master mode for data sync . 89
8 Playing/Editing
Displaying P1/P2 channel in 1ch view .................................................91
Selecting P1/P2 channel in 3ch view ..................................................96
Loading contents to P1/P2 channel ....................................................99
Playing back video ...................................................................... 100
Playing back with operation buttons ....................................................... 100
Playing back in variable speed mode (variable playback) .............................100
Playing back in jog/shuttle mode ...........................................................101
6
T2 Elite/Pro/Express User Manual March 26, 2014
Page 7
Contents
Loading and playing back video currently recorded (chasing playback) ....... 101
Switching playback mode .............................................................. 102
Outputting currently recorded video with active through (E to E mode) .............102
Loop playback of contents (Loop mode) ..................................................103
Sync playback of contents (Sync mode) ...................................................103
Playback of contents with alpha channel (Fill/Key signal output mode) ............104
Editing a clip ............................................................................. 106
Setting In and Out points to a clip ..........................................................106
Trimming a clip between the set In-Out points ........................................... 106
Creating a sub clip between In-Out points (highlight) ..................................107
Checking clip properties .....................................................................107
Changing a clip name ......................................................................... 107
Updating thumbnails of clips ................................................................108
Editing a playlist ........................................................................ 108
Creating a playlist .............................................................................108
Deleting an event from a playlist ........................................................... 109
Playing back a playlist .......................................................................109
Icons for events ................................................................................110
Trimming an event ............................................................................110
Setting effects on an event .................................................................. 111
Updating playlist effect settings ............................................................ 113
Adding place holder to playlist .............................................................. 116
Replacing place holder on playlist ......................................................... 118
Changing a playlist name .................................................................... 118
Checking playlist properties ................................................................ 118
Checking event properties ................................................................... 118
Entering characters and numerics .................................................... 120
Entering characters ...........................................................................120
Entering timecode ............................................................................. 121
Entering numerics .............................................................................122
March 26, 2014 T2 Elite/Pro/Express User Manual
7
Page 8
Contents
9 Operations in Workstation Mode
Screen elements ........................................................................ 123
Keyboard and mouse operations in workstation mode............................ 155
Multiple selection of contents ..............................................................155
Loading contents to P1/P2 channel by drag & drop operation ........................156
Adding events to playlist by drag & drop operation .....................................156
Sorting events in playlist by drag & drop operation ..................................... 157
Replacing place holder by drag & drop operation .......................................157
Major keyboard shortcuts .................................................................... 158
Changing keyboard shortcut assignment ..................................................158
Assigning commands to mouse operation ................................................160
Recording sources at once (batch capturing) ...................................... 162
Displaying media files in network drive ............................................. 164
Searching for contents ................................................................. 165
Changing the display of playlist view ................................................ 167
Checking logs of operations and processes ........................................ 168
10 Settings
Displaying the setting screen ......................................................... 170
General settings ......................................................................... 171
Changing the display of event list ..........................................................167
Changing the display or background color of events .................................... 167
Displaying a log ...............................................................................168
Changing log level settings ..................................................................169
General – Hardware settings ................................................................ 171
General – Network-1/Network-2 settings .................................................172
General – Network-3 settings ............................................................... 173
General – FTP settings ....................................................................... 175
General – WatchFolder settings ............................................................178
General – Miscellaneous settings .......................................................... 179
8
T2 Elite/Pro/Express User Manual March 26, 2014
Page 9
Contents
R1 settings ............................................................................... 184
R1 – Input Settings ............................................................................184
R1 – Timecode & Remote settings ......................................................... 186
R1 – Capture settings .........................................................................187
P1/P2 settings ........................................................................... 189
P1/P2 – Video settings ....................................................................... 189
P1/P2 – Monitor & Remote settings .......................................................191
P1/P2 – Image quality adjustment settings ...............................................193
Transfer settings ........................................................................ 195
Transfer – common settings ................................................................. 195
Transfer – AVCHD settings ...................................................................198
Transfer – AVI settings ....................................................................... 199
Transfer – MXF settings ...................................................................... 201
Transfer – XDCAM settings ..................................................................202
Transfer – P2 settings ........................................................................203
Transfer – GF settings ........................................................................204
Transfer – Playlist settings ..................................................................205
GPI settings .............................................................................. 206
GPI – Input settings ...........................................................................206
GPI – Output settings .........................................................................208
Other settings ............................................................................ 209
Miscellaneous – Jog/Shuttle settings .....................................................209
Miscellaneous – AMP settings .............................................................. 210
Miscellaneous – Remote settings ..........................................................211
11 Remote Control
Remote control using AMP/BVW ..................................................... 212
Overview of AMP control .....................................................................212
Overview of BVW control ....................................................................212
Controlling an external device from T2 with AMP/BVW (R1-VTR mode) ............213
Controlling T2 from an external controller with AMP/BVW (R1-remote mode).....214
Controlling T2 from an external controller with AMP/BVW (P1/P2-remote mode) 214
March 26, 2014 T2 Elite/Pro/Express User Manual
9
Page 10
Contents
Remote control using GPI .............................................................. 215
General settings ......................................................................... 217
12 Appendix
Keyboard shortcut list in workstation mode ........................................ 218
Operation-ensured drivers for each device ......................................... 222
Input/output format list................................................................. 223
Overview of GPI control ...................................................................... 215
Controlling external devices from T2 with GPI output ..................................216
General – Hardware settings ................................................................ 217
Operation-ensured driver versions for XDCAM/XDCAM EX ............................222
Operation-ensured driver version for P2 ..................................................222
Input format ....................................................................................223
Output format ..................................................................................225
Supported video format and output port ...................................................226
Notes on T2 export ............................................................................226
Notes on export and growing clip editing .................................................227
Notes on record of external device and growing clip editing ..........................228
Notes on FTP download and growing clip editing........................................228
AMP command list ...................................................................... 229
Device management ..........................................................................229
Transport controls ............................................................................. 230
Managing clips on the timeline .............................................................233
Managing stored clips ........................................................................235
Clip data information .........................................................................240
Flags ............................................................................................. 241
BVW command list ...................................................................... 242
BVW list supporting remote mode ................................................... 243
10
RS422 input/output pin................................................................. 244
GPI input/output pin ....................................................................244
T2 Elite/Pro/Express User Manual March 26, 2014
Page 11
Notice
MICROSOFT SOFTWARE LICENSE TERMS WINDOWS EMBEDDED STANDARD 7
These license terms are an agreement between you and Grass Valley, Inc. Please
read them. They apply to the soware included on this device. The soware also
includes any separate media on which you received the soware.
The soware on this device includes soware licensed from Microso
Corporation or its aliate.
The terms also apply to any Microso
• updates,
• supplements,
• Internet-based services, and
• support services
for this soware, unless other terms accompany those items. If so, those terms
apply.
If you obtain updates or supplements directly from Microso, then Microso,
and not Grass Valley, Inc., licenses those to you.
As described below, using the software also operates as your consent
to the transmission of certain computer information for Internet-based
services.
By using the software, you accept these terms. If you do not accept them,
do not use the software. Instead, contact Grass Valley, Inc. to determine its
return policy for a refund or credit.
Section 1
If you comply with these license terms, you have the rights below.
1. USE RIGHTS
Use. The soware license is permanently assigned to the device with which you
acquired the soware. You may use the soware on the device.
March 26, 2014 T2 Elite/Pro/Express User Manual
11
Page 12
Section 1 ― Notice
2. ADDITIONAL LICENSING REQUIREMENTS AND/OR USE RIGHTS
a. Specific Use. Grass Valley, Inc. designed the device for a specic use.
You may only use the soware for that use.
b. Other Software. You may use other programs with the soware as long
as the other programs
• directly supports the manufacturer’s specic use for the device, or
• provide system utilities, resource management, or anti-virus or similar
protection.
• Soware that provides consumer or business tasks or processes
may not be run on the device. This includes email, word processing,
spreadsheet, database, scheduling and personal nance soware. The
device may use terminal services protocols to access such soware
running on a server.
c. Device Connections. You may not use the soware as server soware.
In other words, more than one device may not access, display, run, share
or use the soware at the same time.
You may use terminal services protocols to connect the device to a
server running business task or processes soware such as email, word
processing, scheduling or spreadsheets.
You may allow up to ten other devices to access the soware to use
• File Services,
• Print Services,
• Internet Information Services, and
• Internet Connection Sharing and Telephony Services.
The ten connection limit applies to devices that access the soware
indirectly through “multiplexing” or other soware or hardware that
pools connections. You may use unlimited inbound connections at any
time via TCP/IP.
d. Remote Access Technologies. You may access and use the soware
remotely from another device using remote access technologies as
follows.
Remote Desktop. The single primary user of the device may access
a session from any other device using Remote Desktop or similar
technologies. A “session” means the experience of interacting with
the soware, directly or indirectly, through any combination of input,
output and display peripherals. Other users may access a session from
any device using these technologies, if the remote device is separately
licensed to run the soware.
12
T2 Elite/Pro/Express User Manual March 26, 2014
Page 13
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
Other Access Technologies. You may use Remote Assistance or similar
technologies to share an active session.
Other Remote Uses. You may allow any number of devices to access
the soware for purposes other than those described in the Device
Connections and Remote Access Technologies sections above, such as to
synchronize data between devices.
e. Font Components. While the soware is running, you may use its fonts
to display and print content. You may only
• embed fonts in content as permied by the embedding restrictions in
the fonts; and
• temporarily download them to a printer or other output device to print
content.
f. Icons, images and sounds. While the soware is running, you may use
but not share its icons, images, sounds, and media.
3. VHD BOOT.
Virtual Hard Disk functionality (“VHD Image”) may be pre-installed on the
physical hard disk of the device. These VHD Images may only be used for
maintaining or updating the soware installed on the physical hard disk or
drive. If the VHD Image is the only soware on your device, it may be used as
the primary operating system but all other copies of the VHD Image may only
be used for maintenance and updating.
4. POTENTIALLY UNWANTED SOFTWARE.
Windows Defender. If Windows Defender is turned on, it will search this
device for “spyware,” “adware” and other potentially unwanted soware. If it
nds potentially unwanted soware, the soware will ask you if you want to
ignore, disable (quarantine) or remove it. Any potentially unwanted soware
rated “high” or “severe,” will be automatically removed aer scanning unless
you change the default seing. Removing or disabling potentially unwanted
soware may result in
Additional copies of the software created using the software’s
The software may include
• Other soware on your device ceasing to work, or
• Your breaching a license to use other soware on this device
By using this soware , it is possible that you will also remove or disable
soware that is not potentially unwanted soware.
5. SCOPE OF LICENSE.
gives you some rights to use the software. Grass Valley, Inc. and Microsoft
reserve all other rights. Unless applicable law gives you more rights despite
this limitation, you may use the soware only as expressly permied in this
agreement. In doing so, you must comply with any technical limitations in the
The soware is licensed, not sold. This agreement only
March 26, 2014 T2 Elite/Pro/Express User Manual
13
Page 14
Section 1 ― Notice
soware that allow you to use it only in certain ways. For more information,
see the soware documentation or contact Grass Valley, Inc. You may not:
• work around any technical limitations in the soware;
• reverse engineer, decompile or disassemble the soware;
• make more copies of the soware than specied in this agreement;
• publish the soware for others to copy;
• rent, lease or lend the soware; or
• use the soware for commercial soware hosting services.
Except as expressly provided in this agreement, rights to access the soware
on this device do not give you any right to implement Microso patents or
other Microso intellectual property in soware or devices that access this
device.
6. INTERNET-BASED SERVICES.
with the soware. Microso may change or cancel them at any time.
a. Consent for Internet-Based Services. The device may contain one or
more of the soware features described below. These features connect
to Microso or service provider computer systems over the Internet. In
some cases, you will not receive a separate notice when they connect.
For more information about these features, visit go.microso.com/
fwlink/?linkid=104604.
By using these features, you consent to the transmission of this
information. Microso does not use the information to identify or contact
you.
Computer Information. The following features use Internet protocols,
which send to the appropriate systems computer information, such as
your Internet protocol address, the type of operating system and browser,
the name and version of the soware you are using, and the language
code of the device where you installed the soware. Microso uses this
information to make the Internet-based services available to you. Grass
Valley, Inc. has elected to turn on the following features on the device.
Microsoft provides Internet-based services
14
• Plug and Play and Plug and Play Extensions. You may connect new
hardware to your device. Your device may not have the drivers needed
to communicate with that hardware. If so, the update feature of the
soware can obtain the correct driver from Microso and install it on
your device.
• Web Content Features. Features in the soware can retrieve related
content from Microso and provide it to you. Examples of these
features are clip art, templates, online training, online assistance and
Appshelp. You may choose to switch them o or not use them.
• Digital Certicates. The soware uses x.509 version 3 digital certicates.
T2 Elite/Pro/Express User Manual March 26, 2014
Page 15
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
These digital certicates conrm the identity of user sending
information to each other and allow you to encrypt the information.
The soware retrieves certicates and updates certicate revocation
lists over the Internet.
• Auto Root Update. The Auto Root Update feature updates the list of
trusted certicate authorities. You can switch o this feature.
• Windows Media Digital Rights Management. Content owners use
Windows Media digital rights management technology (WMDRM) to
protect their intellectual property, including copyrights. This soware
and third party soware use WMDRM to play and copy WMDRM-
protected content. If the soware fails to protect the content, content
owners may ask Microso to revoke the soware’s ability to use
WMDRM to play or copy protected content. Revocation does not aect
other content. When you download licenses for protected content, you
agree that Microso may include a revocation list with the licenses.
Content owners may require you to upgrade WMDRM to access their
content. Microso soware that includes WMDRM will ask for your
consent prior to the upgrade. If you decline an upgrade, you will not
be able to access content that requires the upgrade. You may switch o
WMDRM features that access the Internet. When these features are o,
you can still play content for which you have a valid license.
• Windows Media Player. When you use Windows Media Player, it
checks with Microso for
• compatible online music services in your region;
• new versions of the player; and
• codecs if your device does not have the correct ones for playing
content.
You can switch o this feature. For more information, go to:
go.microso.com/fwlink/?LinkId=51331.
• Malicious Soware Removal/Clean On Upgrade. Before installation
of the soware, the soware will check and remove certain malicious
soware listed at www.support.microso.com/?kbid=890830
(“Malware”) from your device. When the soware checks your device
for Malware, a report will be sent to Microso about any Malware
detected or errors that occurred while the soware was checking for
Malware. No information that can be used to identify you is included
in the report. You may disable the soware’s Malware reporting
functionality by following the instructions found at www.support.
microso.com/?kbid=890830.
• Network Awareness. This feature determines whether a system is
connected to a network by either passive monitoring of network trac
or active DNS or HTTP queries. The query only transfers standard TCP/
IP or DNS information for routing purposes. You can switch o the
March 26, 2014 T2 Elite/Pro/Express User Manual
15
Page 16
Section 1 ― Notice
active query feature through a registry seing.
• Windows Time Service. This service synchronizes with www.time.
windows.com once a week to provide your l device with the correct
time. The connection uses standard NTP protocol.
• Search Suggestions Service. In Internet Explorer, when you type
a search query in the Instant Search box or type a question mark
(?) before your search term in the Address bar, you will see search
suggestions as you type (if supported by your search provider).
Everything you type in the Instant Search box or in the Address bar
when preceded by a question mark (?) is sent to your search provider as
you type. Also, when you press Enter or click the Search buon, the text
in the Instant Search box or Address bar is sent to the search provider.
If you use a Microso search provider, use of the information sent is
subject to the Microso Online Privacy Statement. This statement is
available at go.microso.com/fwlink/?linkid=31493. If you use a third-
party search provider, use of the information sent will be subject to
the third party’s privacy practices. You can turn search suggestions o
at any time. To do so, use Manage Add-ons under the Tools buon in
Internet Explorer. For more information about the search suggestions
service, see go.microso.com/fwlink/?linkid=128106.
• Consent to Update Infrared Emier/Receiver. The soware may contain
technology to ensure the proper functioning of the infrared emier/
receiver device shipped with certain Media Center-based products. You
agree that the soware may update the rmware of this device.
• Media Center Online Promotions. If you use Media Center features of
the soware to access Internet-based content or other Internet-based
services, such services may obtain the following information from the
soware to enable you to receive, accept and use certain promotional
oers:
• certain device information, such as your Internet protocol address,
the type of operating system and browser you are using, and the
name and version of the soware you are using,
• the requested content, and
• the language code of the device where you installed the soware.
• Your use of the Media Center features to connect to those services
serves as your consent to the collection and use of such information.
• Media Playback Updates. The soware on the device may include
media playback features which receives updates directly from the
MSCORP Media Playback Update servers. If activated by your
manufacturer, these updates will be downloaded and installed without
further notice to you. The manufacturer is responsible for ensuring
these updates work on your device.
• Windows Update Agent. The soware on the device includes Windows
16
T2 Elite/Pro/Express User Manual March 26, 2014
Page 17
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
Update Agent (“WUA”). This feature enables your device to access
Windows Updates either directly from MSCORP Windows Update
server or from a server installed with the required server component
and from the Microso Windows Update server. To enable the proper
functioning of the Windows Update service in the soware (if you
use it) updates or downloads to the Windows Update service will be
required from time to time and downloaded and installed without
further notice to you. Without limiting any other disclaimer in these
license terms or any license terms accompanying a Windows Update,
you acknowledge and agree that no warranty is provided by Microso
Corporation or their aliates with respect to any Windows Update that
you install or aempt to install on your device.
b. Use of Information. Microso may use the device information, error
reports, and Malware reports to improve our soware and services. We
may also share it with others, such as hardware and soware vendors.
They may use the information to improve how their products run with
Microso soware.
c. Misuse of Internet-based Services. You may not use these services in
any way that could harm them or impair anyone else’s use of them. You
may not use the services to try to gain unauthorized access to any service,
data, account or network by any means.
7. PRODUCT SUPPORT.
the support number provided with the device.
8. MICROSOFT .NET BENCHMARK TESTING.
more components of the .NET Framework (“.NET Components”). You may
conduct internal benchmark testing of those components. You may disclose the
results of any benchmark test of those components, provided that you comply
with the conditions set forth at go.microso.com/fwlink/?LinkID=66406.
Notwithstanding any other agreement you may have with Microso, if you
disclose such benchmark test results, Microso shall have the right to disclose
the results of benchmark tests it conducts of your products that compete
with the applicable .NET Component, provided it complies with the same
conditions set forth at go.microso.com/fwlink/?LinkID=66406.
9. BACKUP COPY.
use it only to reinstall the soware on the device.
Contact Grass Valley, Inc. for support options. Refer to
The software includes one or
You may make one backup copy of the soware. You may
10. DOCUMENTATION.
internal network may copy and use the documentation for your internal,
reference purposes.
Any person that has valid access to your device or
March 26, 2014 T2 Elite/Pro/Express User Manual
17
Page 18
Section 1 ― Notice
11. PROOF OF LICENSE.
disc or other media, a genuine Certicate of Authenticity label with a genuine
copy of the soware identies licensed soware. To be valid, this label must
be affixed to the device, or included on or in Grass Valley, Inc.’s software
packaging. If you receive the label separately, it is not valid. You should keep
the label on the device or packaging to prove that you are licensed to use the
soware. To identify genuine Microso soware, see www.howtotell.com.
12. TRANSFER TO A THIRD PARTY.
device, the Certicate of Authenticity label, and these license terms directly to
a third party. Before the transfer, that party must agree that these license terms
apply to the transfer and use of the soware. You may not retain any copies of
the soware including the backup copy.
13. NOTICE ABOUT THE H.264/AVC VISUAL STANDARD, THE VC-1 VIDEO
STANDARD, THE MPEG-4 VISUAL STANDARD AND THE MPEG-2 VIDEO
STANDARD.
and MPEG-2 visual compression technology. If the software includes those
visual compression technologies MPEG LA, L.L.C. requires this notice:
This software may include H.264/AVC, VC-1, MPEG-4 Part 2,
If you acquired the software on the device, or on a
You may transfer the soware only with the
THIS PRODUCT IS LICENSED UNDER ONE OR MORE VIDEO PATENT
PORTFOLIO LICENSES SUCH AS, AND WITHOUT LIMITATION, THE
AVC, THE VC-1, THE MPEG-4 PART 2 VISUAL, AND THE MPEG 2
VIDEO PATENT PORTFOLIO LICENSES FOR THE PERSONAL AND
NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE ABOVE STANDARDS (“VIDEO STANDARDS”)
AND/OR (ii) DECODE VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY OR
WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE
VIDEO UNDER SUCH PATENT PORTFOLIO LICENSES. NONE OF THE
LICENSES EXTEND TO ANY OTHER PRODUCT REGARDLESS OF
WHETHER SUCH PRODUCT IS INCLUDED WITH THIS PRODUCT IN A
SINGLE ARTICLE. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR
ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED
FROM MPEG LA, L.L.C. SEE WWW.MPEGLA.COM.
14. NOTICE ABOUT THE MP3 AUDIO STANDARD.
audio encoding and decoding technology as dened by ISO/IEC 11172-3 and
ISO/IEC 13818-3. It is not licensed for any implementation or distribution in
any commercial product or service.
This soware includes MP3
18
15. NOT FAULT TOLERANT. The software is not fault tolerant. Grass Valley,
Inc. installed the software on the device and is responsible for how it
operates on the device.
T2 Elite/Pro/Express User Manual March 26, 2014
Page 19
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
16. RESTRICTED USE.
not require fail-safe performance. You may not use the Microso soware in
any device or system in which a malfunction of the soware would result in
foreseeable risk of injury or death to any person. This includes operation of
nuclear facilities, aircra navigation or communication systems and air trac
control.
17. NO WARRANTIES FOR THE SOFTWARE. The software is provided “as
is”. You bear all risks of using it. Microsoft gives no express warranties,
guarantees or conditions. Any warranties you receive regarding the
device or the software do not originate from, and are not binding on,
Microsoft or its affiliates. When allowed by your local laws, Grass Valley,
Inc. and Microsoft exclude implied warranties of merchantability, fitness
for a particular purpose and non-infringement.
18. LIABILITY LIMITATIONS. You can recover from Microsoft and its affiliates
only direct damages up to two hundred fifty U.S. Dollars (U.S. $250.00).
You cannot recover any other damages, including consequential, lost
profits, special, indirect or incidental damages.
The Microso soware was designed for systems that do
This limitation applies to:
• anything related to the software, services, content (including
code) on third party internet sites, or third party programs, and
• claims for breach of contract, breach of warranty, guarantee or
condition, strict liability, negligence, or other tort to the extent
permitted by applicable law.
It also applies even if Microsoft should have been aware of the
possibility of the damages. The above limitation may not apply to you
because your country may not allow the exclusion or limitation of
incidental, consequential or other damages.
19. EXPORT RESTRICTIONS.
laws and regulations. You must comply with all domestic and international
export laws and regulations that apply to the software. These laws include
restrictions on destinations, end users and end use. For additional information,
see www.microso.com/exporting.
20. ENTIRE AGREEMENT.
printed-paper license terms that accompany the soware and may modify or
replace some or all of these terms), and the terms for supplements, updates,
Internet-based services and support services that you use, are the entire
agreement for the soware and support services.
The software is subject to United States export
This agreement, additional terms (including any
March 26, 2014 T2 Elite/Pro/Express User Manual
19
Page 20
Section 1 ― Notice
21. APPLICABLE LAW
a. United States. If you acquired the soware in the United States,
Washington state law governs the interpretation of this agreement and
applies to claims for breach of it, regardless of conict of laws principles.
The laws of the state where you live govern all other claims, including
claims under state consumer protection laws, unfair competition laws,
and in tort.
b. Outside the United States. If you acquired the soware in any other
country, the laws of that country apply.
22. Third Party Programs. Microsoft provides the following copyright notices
for third party software included in the software. These notices are
required by the respective copyright holders and do not change your
license to use this software.
Portions of this soware are based in part on the work of Spider Systems ®
Limited. Because Microso has included the Spider Systems Limited soware
in this product, Microso is required to include the following text that
accompanied such soware:
Copyright 1987 Spider Systems Limited
Copyright 1988 Spider Systems Limited
Copyright 1990 Spider Systems Limited
Portions of this soware are based in part on the work of Seagate Soware.
Portions of this soware are based in part on the work of ACE*COMM Corp.
Because Microso has included the ACE*COMM Corp. soware in this product,
Microso is required to include the following text that accompanied such
soware:
Copyright 1995-1997 ACE*COMM Corp
Portions of this soware are based in part on the work of Sam Leer and
Silicon Graphics, Inc. Because Microso has included the Sam Leer and Silicon
Graphics soware in this product, Microso is required to include the following
text that accompanied such soware:
Copyright © 1988-1997 Sam Leer
Copyright © 1991-1997 Silicon Graphics, Inc.
Permission to use, copy, modify, distribute, and sell this soware and
its documentation for any purpose is hereby granted without fee, provided
that (i) the above copyright notices and this permission notice appear in
all copies of the soware and related documentation, and (ii) the names of
Sam Leer and Silicon Graphics may not be used in any advertising or
publicity relating to the soware without the specic, prior wrien
permission of Sam Leer and Silicon Graphics.
20
T2 Elite/Pro/Express User Manual March 26, 2014
Page 21
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
THE SOFTWARE IS PROVIDED "AS-IS" AND WITHOUT WARRANTY
OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS
BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES
WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS,
WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE,
AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN
CONNECTION WITH THE USE OR PERFORMANCE OF THIS
SOF T WA R E .
Portions Copyright © 1998 PictureTel Corporation
Portions of this soware are based in part on the work of Highground Systems.
Because Microso has included the Highground Systems soware in this
product, Microso is required to include the following text that accompanied
such soware:
Copyright © 1996-1999 Highground Systems
Windows 7 incorporates compression code from the Info-ZIP group. There are no
extra charges or costs due to the use of this code, and the original compression
sources are freely available from www.info-zip.org/ or p://p.info-zip.org/pub/
infozip/src/ on the Internet.
Portions Copyright © 2000 SRS Labs, Inc
This product includes soware from the 'zlib' general purpose compression
lib r ar y.
Portions of this soware are based in part on the work of ScanSo, Inc. Because
Microso has included the ScanSo, Inc. soware in this product, Microso is
required to include the following text that accompanied such soware:
TextBridge® OCR © by ScanSo, Inc.
Portions of this soware are based in part on the work of University of Southern
California. Because Microso has included the University of Southern California
soware in this product, Microso is required to include the following text that
accompanied such soware:
Copyright © 1996 by the University of Southern California
All rights reserved.
Permission to use, copy, modify, and distribute this soware and
its documentation in source and binary forms for any purpose and
without fee is hereby granted, provided that both the above copyright
notice and this permission notice appear in all copies, and that any
March 26, 2014 T2 Elite/Pro/Express User Manual
21
Page 22
Section 1 ― Notice
documentation, advertising materials, and other materials related
to such distribution and use acknowledge that the soware was
developed in part by the University of Southern California, Information
Sciences Institute. The name of the University may not be used to
endorse or promote products derived from this soware without
specic prior wrien permission.
THE UNIVERSITY OF SOUTHERN CALIFORNIA makes no
representations about the suitability of this soware for any purpose.
THIS SOFTWARE IS PROVIDED "AS IS" AND WITHOUT ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT
LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
Other copyrights might apply to parts of this soware and are so noted
when applicable.
Portions of this soware are based in part on the work of James Kanze. Because
Microso has included the James Kanze soware in this product, Microso is
required to include the following text that accompanied such soware:
COPYRIGHT AND PERMISSION NOTICE
All rights reserved.
Permission is hereby granted, free of charge, to any person obtaining
a copy of this soware and associated documentation les (the
"Soware"), to deal in the Soware without restriction, including
without limitation the rights to use, copy, publish, distribute, and/or
sell copies of the Soware, and to permit persons to whom the Soware
is furnished to do so, provided that the above copyright notice(s) and
this permission notice appear in all copies of the Soware and that
both the above copyright notice(s) and this permission notice appear
in supporting documentation. Permission is also given to modify
the soware to any extend, under the condition that, in the modied
soware, the prex "GB_" is changed to something else, and the name
directories for includes les ("gb" in this distribution) is also changed.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF
ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD
PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER
OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR ANY
CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL
DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM
LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION
OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION,
22
T2 Elite/Pro/Express User Manual March 26, 2014
Page 23
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THIS SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall
not be used in advertising or otherwise to promote the sale, use or other
dealings in this Soware without prior wrien authorization of the
copyright holder.
This product contains soware from Cisco ISAKMP Services.
Portions of this soware are based in part on the work of RSA Data Security,
Inc. Because Microso has included the RSA Data Security, Inc. soware in this
product, Microso is required to include the following text that accompanied
such soware:
Copyright © 1990, RSA Data Security, Inc. All rights reserved.
License to copy and use this soware is granted provided that it
is identied as the "RSA Data Security, Inc. MD5 Message-Digest
Algorithm" in all material mentioning or referencing this soware
or this function. License is also granted to make and use derivative
works provided that such works are identied as "derived from the
RSA Data Security, Inc. MD5 Message-Digest Algorithm" in all material
mentioning or referencing the derived work.
RSA Data Security, Inc. makes no representations concerning either the
merchantability of this soware or the suitability of this soware for
any particular purpose. It is provided "as is" without express or implied
warranty of any kind.
These notices must be retained in any copies of any part of this
documentation and/or soware.
Portions of this soware are based in part on the work of OpenVision
Technologies, Inc. Because Microso has included the OpenVision Technologies,
Inc. soware in this product, Microso is required to include the following text
that accompanied such soware:
Copyright 1993 by OpenVision Technologies, Inc.
Permission to use, copy, modify, distribute, and sell this soware and
its documentation for any purpose is hereby granted without fee,
provided that the above copyright notice appears in all copies and
that both that copyright notice and this permission notice appear
in supporting documentation, and that the name of OpenVision
not be used in advertising or publicity pertaining to distribution of
the soware without specic, wrien prior permission. OpenVision
makes no representations about the suitability of this soware for any
purpose. It is provided "as is" without express or implied warranty.
March 26, 2014 T2 Elite/Pro/Express User Manual
23
Page 24
Section 1 ― Notice
OPENVISION DISCLAIMS ALL WARRANTIES WITH REGARD
TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS, IN NO EVENT SHALL
OPENVISION BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER
RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN
AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS
ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE
OR PERFORMANCE OF THIS SOFTWARE.
Portions of this soware are based in part on the work of Regents of The
University of Michigan. Because Microso has included the Regents of The
University of Michigan soware in this product, Microso is required to include
the following text that accompanied such soware:
Copyright © 1995, 1996 Regents of The University of Michigan.
All Rights Reserved.
Permission to use, copy, modify, and distribute this soware and its
documentation for any purpose and without fee is hereby granted,
provided that the above copyright notice appears in all copies and
that both that copyright notice and this permission notice appear
in supporting documentation, and that the name of The University
of Michigan not be used in advertising or publicity pertaining to
distribution of the soware without specic, wrien prior permission.
This soware is supplied as is without expressed or implied warranties
of any kind.
24
Copyright © 1993, 1994 Regents of the University of Michigan.
All rights reserved.
Redistribution and use in source and binary forms are permied
provided that this notice is preserved and that due credit is given to the
University of Michigan at Ann Arbor. The name of the University may
not be used to endorse or promote products derived from this soware
without specic prior wrien permission. This soware is provided ``as
is'' without express or implied warranty.
Portions of this soware are based in part on the work of Massachuses Institute
of Technology. Because Microso has included the Massachuses Institute
of Technology soware in this product, Microso is required to include the
following text that accompanied such soware:
Copyright 1989, 1990 by the Massachuses Institute of Technology. All
Rights Reserved.
Export of this soware from the United States of America may
require a specic license from the United States Government. It is the
T2 Elite/Pro/Express User Manual March 26, 2014
Page 25
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
responsibility of any person or organization contemplating export to
obtain such a license before exporting.
WITHIN THAT CONSTRAINT, permission to use, copy, modify,
and distribute this soware and its documentation for any purpose
and without fee is hereby granted, provided that the above copyright
notice appear in all copies and that both that copyright notice and this
permission notice appear in supporting documentation, and that the
name of M.I.T. not be used in advertising or publicity pertaining to
distribution of the soware without specic, wrien prior permission.
M.I.T. makes no representations about the suitability of this soware for
any purpose. It is provided "as is" without express or implied warranty.
Under U.S. law, this soware may not be exported outside the US
without license from the U.S. Commerce department.
Copyright 1994 by the Massachuses Institute of Technology. All Rights
Reserved.
Export of this soware from the United States of America may
require a specic license from the United States Government. It is the
responsibility of any person or organization contemplating export to
obtain such a license before exporting.
WITHIN THAT CONSTRAINT, permission to use, copy, modify,
and distribute this soware and its documentation for any purpose
and without fee is hereby granted, provided that the above copyright
notice appear in all copies and that both that copyright notice and this
permission notice appear in supporting documentation, and that the
name of M.I.T. not be used in advertising or publicity pertaining to
distribution of the soware without specic, wrien prior permission.
M.I.T. makes no representations about the suitability of this soware for
any purpose. It is provided "as is" without express or implied warranty.
This product includes soware developed by the University of California,
Berkeley and its contributors.
Portions of this soware are based in part on the work of the "Entrust" security
technology licensed from Northern Telecom.
Portions of this soware are based in part on the work of Hewle-Packard
Company. Because Microso has included the Hewle-Packard Company
soware in this product, Microso is required to include the following text that
accompanied such soware:
Copyright © 1994 Hewle-Packard Company
Permission to use, copy, modify, distribute and sell this soware and its
documentation for any purpose is hereby granted without fee, provided
March 26, 2014 T2 Elite/Pro/Express User Manual
25
Page 26
Section 1 ― Notice
that the above copyright notice appear in all copies and that both that
copyright notice and this permission notice appear in supporting
documentation. Hewle-Packard Company and Microso Corporation
make no representations about the suitability of this soware for any
purpose. It is provided "as is" without express or implied warranty.
This product includes soware from the 'libpng' PNG reference library.
Portions of this soware are based in part on the work of Autodesk, Inc. Because
Microso has included the Autodesk, Inc. soware in this product, Microso is
required to include the following text that accompanied such soware:
© Copyright 1995 by Autodesk, Inc.
This product contains graphics lter soware; this soware is based in part on
the work of the Independent JPEG Group.
This product includes “True Verb” technology from KS Waves Ltd.
Portions of this soware are based in part on the work of SGS-Thomson
Microelectronics, Inc. Because Microso has included the SGS-Thomson
Microelectronics, Inc. soware in this product, Microso is required to include
the following text that accompanied such soware:
Copyright 1996 SGS-Thomson Microelectronics, Inc. All Rights
Reserved
Portions of this soware are based in part on the work of Unicode, Inc. Because
Microso has included the Unicode, Inc. soware in this product, Microso is
required to include the following text that accompanied such soware:
COPYRIGHT AND PERMISSION NOTICE
Copyright © 1991-2005 Unicode, Inc. All rights reserved. Distributed
under the Terms of Use in www.unicode.org/copyright.html.
Permission is hereby granted, free of charge, to any person obtaining a
copy of the Unicode data les and any associated documentation (the
"Data Files") or Unicode soware and any associated documentation
(the "Soware") to deal in the Data Files or Soware without restriction,
including without limitation the rights to use, copy, modify, merge,
publish, distribute, and/or sell copies of the Data Files or Soware, and
to permit persons to whom the Data Files or Soware are furnished
to do so, provided that (a) the above copyright notice(s) and this
permission notice appear with all copies of the Data Files or Soware,
(b) both the above copyright notice(s) and this permission notice
appear in associated documentation, and © there is clear notice in each
modied Data File or in the Soware as well as in the documentation
associated with the Data File(s) or Soware that the data or soware
26
T2 Elite/Pro/Express User Manual March 26, 2014
Page 27
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
has been modied.
THE DATA FILES AND SOFTWARE ARE PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT
SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN
THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL
INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES
WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS,
WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR
OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION
WITH THE USE OR PERFORMANCE OF THE DATA FILES OR
SOF T WA R E .
Except as contained in this notice, the name of a copyright holder shall
not be used in advertising or otherwise to promote the sale, use or
other dealings in these Data Files or Soware without prior wrien
authorization of the copyright holder.
The Combined PostScript Driver was the result of a cooperative development
process by Adobe Systems Incorporated and Microso Corporation.
Portions of this soware are based in part on the work of Media Cybernetics.
Because Microso has included the Media Cybernetics soware in this product,
Microso is required to include the following text that accompanied such
soware:
HALO Image File Format Library © 1991-1992 Media Cybernetics, Inc.
Portions of this soware are based in part on the work of Luigi Rizzo. Because
Microso has included the Luigi Rizzo soware in this product, Microso is
required to include the following text that accompanied such soware:
© 1997-98 Luigi Rizzo (luigi@iet.unipi.it)
Portions derived from code by Phil Karn (karn@ka9q.ampr.org),
Robert Morelos-Zaragoza (robert@spectra.eng.hawaii.edu) and Hari
Thirumoorthy (harit@spectra.eng.hawaii.edu), Aug 1995
Redistribution and use in source and binary forms, with or without
modication, are permied provided that the following conditions are
met:
1. Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright
March 26, 2014 T2 Elite/Pro/Express User Manual
27
Page 28
Section 1 ― Notice
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
THIS SOFTWARE IS PROVIDED BY THE AUTHORS “AS IS'' AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE AUTHORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
Portions of this soware are based in part on the work of W3C. Because
Microso has included the W3C soware in this product, Microso is required
to include the following text that accompanied such soware:
W3C ® SOFTWARE NOTICE AND LICENSE
www.w3.org/Consortium/Legal/2002/copyright-soware-20021231
This work (and included soware, documentation such as READMEs,
or other related items) is being provided by the copyright holders
under the following license. By obtaining, using and/or copying this
work, you (the licensee) agree that you have read, understood, and will
comply with the following terms and conditions.
Permission to copy, modify, and distribute this soware and its
documentation, with or without modication, for any purpose and
without fee or royalty is hereby granted, provided that you include the
following on ALL copies of the soware and documentation or portions
thereof, including modications:
1. The full text of this NOTICE in a location viewable to users of the
redistributed or derivative work.
2. Any pre-existing intellectual property disclaimers, notices, or terms
and conditions. If none exist, the W3C Soware Short Notice should be
included (hypertext is preferred, text is permied) within the body of
any redistributed or derivative code.
3. Notice of any changes or modications to the les, including the date
changes were made. (We recommend you provide URLs to the location
from which the code is derived.)
28
T2 Elite/Pro/Express User Manual March 26, 2014
Page 29
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
THIS SOFTWARE AND DOCUMENTATION IS PROVIDED "AS IS,"
AND COPYRIGHT HOLDERS MAKE NO REPRESENTATIONS OR
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR ANY PARTICULAR PURPOSE OR THAT THE USE OF THE
SOFTWARE OR DOCUMENTATION WILL NOT INFRINGE ANY
THIRD PARTY PATENTS, COPYRIGHTS, TRADEMARKS OR OTHER
RIGHTS.
COPYRIGHT HOLDERS WILL NOT BE LIABLE FOR ANY DIRECT,
INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF ANY USE OF THE SOFTWARE OR DOCUMENTATION.
The name and trademarks of copyright holders may NOT be used in
advertising or publicity pertaining to the soware without specic,
wrien prior permission. Title to copyright in this soware and any
associated documentation will at all times remain with copyright
holders.
Portions of this soware are based in part on the work of Sun Microsystems,
Inc. Because Microso has included the Sun Microsystems, Inc. soware in this
product, Microso is required to include the following text that accompanied
such soware:
Sun RPC is a product of Sun Microsystems, Inc. and is provided for
unrestricted use provided that this legend is included on all tape media
and as a part of the soware program in whole or part. Users may copy
or modify Sun RPC without charge, but are not authorized to license
or distribute it to anyone else except as part of a product or program
developed by the user.
SUN RPC IS PROVIDED AS IS WITH NO WARRANTIES OF
ANY KIND INCLUDING THE WARRANTIES OF DESIGN,
MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE,
OR ARISING FROM A COURSE OF DEALING, USAGE OR TRADE
PR ACTIC E .
Sun RPC is provided with no support and without any obligation
on the part of Sun Microsystems, Inc. to assist in its use, correction,
modication or enhancement.
SUN MICROSYSTEMS, INC. SHALL HAVE NO LIABILITY WITH
RESPECT TO THE INFRINGEMENT OF COPYRIGHTS, TRADE
SECRETS OR ANY PATENTS BY SUN RPC OR ANY PART THEREOF.
In no event will Sun Microsystems, Inc. be liable for any lost revenue or
prots or other special, indirect and consequential damages, even if Sun
March 26, 2014 T2 Elite/Pro/Express User Manual
29
Page 30
Section 1 ― Notice
has been advised of the possibility of such damages.
Sun Microsystems, Inc.
2550 Garcia Avenue
Mountain View, California 94043
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D
symbol are trademarks of Dolby Laboratories. Condential unpublished works.
Copyright 1992-1997 Dolby Laboratories. All rights reserved.
Portions of this soware are based in part on the work of Andrei Alexandrescu.
Because Microso has included the Andrei Alexandrescu soware in this
product, Microso is required to include the following text that accompanied
such soware:
The Loki Library
Copyright © 2001 by Andrei Alexandrescu
This code accompanies the book:
Alexandrescu, Andrei. "Modern C++ Design: Generic Programming and
Design Paerns Applied." Copyright © 2001. Addison-Wesley.
Permission to use, copy, modify, distribute and sell this soware for
any purpose is hereby granted without fee, provided that the above
copyright notice appear in all copies and that both that copyright notice
and this permission notice appear in supporting documentation.
The author or Addison-Welsey Longman make no representations
about the suitability of this soware for any purpose. It is provided "as
is" without express or implied warranty.
Portions Copyright © 1995 by Jerey Richter
Portions of this soware are based in part on the work of the Distributed
Management Task Force, Inc. (DMTF). Because Microso has included soware
based on DMTF specications in this product, Microso is required to include
the following text:
Copyright © 2007 Distributed Management Task Force, Inc. (DMTF). All
rights reserved.
Portions of this work are derived from "The Dra Standard C++ Library"
Copyright © 1995 by P.J. Plauger published by Prentice-Hall and are used with
permission.
Portions of this soware are based in part on the work of Hewle-Packard
Company. Because Microso has included the Hewle-Packard Company
soware in this product, Microso is required to include the following text that
accompanied such soware:
Copyright © 2002, 2003 Hewle-Packard Company.
30
T2 Elite/Pro/Express User Manual March 26, 2014
Page 31
MICROSOFT SOFTWARE LICENSE TERMS (WINDOWS EMBEDDED STANDARD 7)
About Notice:
This soware is based on soware available from mpvtools.
sourceforge.net.
This soware processes a format called MPV. MPV is an open
specication for managing collections and multimedia playlists of
photo, video, and music content and associated metadata and is
available at no cost from the Optical Storage Technology Association.
More information about the MPV specication can be found at www.
ost a.org /mpv.
Permission Notice:
Permission is hereby granted, free of charge, to any person obtaining
a copy of this soware and associated documentation les (the
"Soware"), to deal in the Soware without restriction, including
without limitation the rights to use, copy, modify, merge, publish,
distribute, sublicense, and/or sell copies of the Soware, and to permit
persons to whom the Soware is furnished to do so, subject to the
following conditions:
The above copyright notice, this permission notice, and the above
About Notice shall be included in all copies or substantial portions of
the Soware.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF
ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR
ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN
ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE
OR OTHER DEALINGS IN THE SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall
not be used in advertising or otherwise to promote the sale, use or other
dealings in this Soware without prior wrien authorization of the
copyright holder.
All other trademarks are property of their respective owners.
March 26, 2014 T2 Elite/Pro/Express User Manual
31
Page 32
Overview
Overview
T2 is multi-channel video disk recorder that allows simultaneous video
recording and playing and has 1 input and 2 output channels. Video and
audio data are saved in the built-in data drive.
T2 has pre-installed soware that performs recording/editing/playing of
video and creating or playing of playlists. The following two operation
modes are available depending on the environment.
You can operate this mode by tapping the display on the touch screen LCD
on the T2 front panel. The operation is available under minimum network
environment.
The basic operations can be performed only on the front panel mode.
Section 2
¾ Front panel mode
¾ Workstation mode
You can connect and use a PC monitor, mouse, and keyboard to T2 in this
mode.
All functions are available in this mode.
Operations in Workstation Mode►P123
The operating instructions on this manual describe procedures in the front
panel mode.
For the changed specications from T2 BASIC/T2 RAID/T2 SSD, and the
added and changed functions by the service pack, see our web site.
32
T2 Elite/Pro/Express User Manual March 26, 2014
Page 33
About this manual
The indications and the meanings are as follows.
About this manual
ȱŚȱȲȰȲȦȬȦ¡
(1)
(2)
Connecting peripheral devices
The procedure to connect peripheral devices such as external input/output
device to T2 is described in this part.
1
Connect a device for R1 channel input to T2.
Connect a device to the analog audio input/output section or R1 input
section on T2 rear panel.
Analog audio input /output sectionŹp. 38
R1 input sectionŹp. 38
ȊȱYPbPr signal is input via the analog RGB pins on the DVI-I port. To
TIP
input YPbPr signal, use an analog RGB conversion connector cable.
2
Connect a device for P1/P2 channel output to T2.
Connect a device to the analog audio input/output section or P1/P2 output
section on T2 rear panel.
Analog audio input /output sectionŹp. 38
P1/P2 output sectionŹp. 39
Supported video for mat and output terminalŹp. 205
ȊȱYPbPr signal is input via analog RGB pins on the DVI-I port. To
TIP
output YPbPr signal, use an analog RGB conversion connector cable.
3
If you wish to operate T2 in the workstation mode, connect a
mouse, keyboard, and PC monitor (optional) to T2.
Connect the mouse and keyboard to the USB (2.0) port, and connect the
PC monitor to the monitor port.
Rear panelŹp. 37
If you wish to operate T2 in the front panel mode, you do not need to
connect a mouse, keyboard, and PC monitor.
4
Insert the power cable to the inlet of T2.
5
ȱ¢ǰȱę¡ȱȱȱȱę¡ȱȱȱȱȱ
screws.
Ȋȱȱę¡ȱ ȱȱ ȱę¡ȱ ǰȱȱ ȱȱȱ
(3)
46
T2 User Manual August 3, 2012
NOTE
ȱȱę¡ȱ ȱȱȱȱȱ ȱȱ ǯ
*The illustration on this page is only for explanation purpose. It diers
from the actual page on this manual.
(1)
TIP
(2)
Reference page
(3)
NOTE
Describes important points for operations.
Indicates related pages.
Describes cautions and restrictions for
operations.
March 26, 2014 T2 Elite/Pro/Express User Manual
33
Page 34
Part Names and Functions
Front panel
(2)(1)
(3) (4) (5) (6) (7)
Section 3
(1)
SSD drive bay
(2)
Touch screen LCD
(3)
Power switch
(4)
USB (2.0) ports
(5)
Volume control
(6)
Headphone jack
(7)
Control buttons
Works as an SSD drive bay.
Operates T2 by tapping the display on the
screen.
Turns on T2.
Used to connect USB removable devices.
Used to adjust the headphone volume.
Used to connect a headphone.
Audio level detail display (R1 channel)►P137
Audio level det ail display (P 1/ P2 c hannel) ►P138
Performs channel selection or playing back
and recording of video.
Control buttons►P35
34
T2 Elite/Pro/Express User Manual March 26, 2014
Page 35
Control buttons
(1)
R1
SHTL
JOG
Front panel
(9)
VAR
(10)
(2)
(3)
(1)
[R1] button
(2)
[P1] button
(3)
[P2] button
(4)
[Rew] button
(5)
[Play] button
(6)
[FF] button
P1
P2
(4)
(5) (6) (7) (8)
(11)
Switches to 1ch view of the R1 channel. Makes
the R1 channel active.
Switches to the 1ch view of P1 channel. Makes
the P1 channel active.
Switches to the 1ch view of P2 channel. Makes
the P2 channel active.
By every press, moves back frame by frame.
Holding on the buon will rewind by 32 times
speed.
Starts playback.
By every press, moves forward frame by frame.
Holding on the buon will fast-forward by 32
times speed.
(7)
[Stop] button
(8)
[Rec] button
[SHTL/JOG]
(9)
button
Stops playback or recording.
Starts recording.
Switches to the jog/shule mode.
Playing back in jog/shuttle mode►P101
Switches to the variable speed mode.
Displays the speed controller and allows to
(10)
[VAR] button
change the playback speed.
Playing back in variable speed mode (variable
playback)►P100
When the [SHTL/JOG] buon is on, executes jog/
(11)
Jog/Shuttle
shule playback operations.
When the [VAR] buon is on, executes variable
speed playback.
March 26, 2014 T2 Elite/Pro/Express User Manual
35
Page 36
Section 3 ― Part Names and Functions
[Rew] + [Stop] buttons
[FF] + [Stop] buttons
Rear panel
(1) (2) (3) (4)
While playing a clip, moves to the previous
In/Out point or to the top of the clip.
While playing a playlist, moves to the
previous event.
While playing a clip, moves to the previous
In/Out point or to the end of the clip.
While playing a playlist, moves to the next
event.
(5)
(6)
(7)
AC Power inlet (3-
(1)
pin)
(2)
Main power switch
Analog audio input/
(3)
output section
(4)
LAN port
(5)
R1 input section
(6)
P1 output section
(7)
P2 output section
(8)
Monitor (VGA) port
(9)
Monitor (DVI-D) port
(10)
USB (2.0) port
(8) (9)
(12)(10) (11) (13) (14) (15)
Used to connect to the AC power outlet
with the supplied power cable.
Turns on/o the main power.
Used for analog audio input/output.
Analog audio input/output section►P37
Used to connect a LAN cable.
Used for input to the R1 channel.
R1 input section►P38
Used for output from the P1 channel.
P1/P2 output section►P38
Used for output from the P2 channel.
P1/P2 output section►P38
Used to connect a PC monitor.
Used to connect a PC monitor.
Used to connect a keyboard, mouse, and so
on.
36
T2 Elite/Pro/Express User Manual March 26, 2014
Page 37
Rear panel
(11)
(12)
(13)
(14)
(15)
NOTE
Sound
REF IN
GPI I/O
REMOTE RS422 port
MONITOR
• In the workstation mode, you cannot use T2 with the monitor
ports (VGA/DVI-D) connected simultaneously. (Exclusive use
on ly)
• Be sure to turn o your T2 when removing and inserting the
cable for the monitor ports.
Not used.
Used to input REF signal.
Used for GPI input/output.
Used for remote control of R1, P1, P2
channels.
Used for audio monitor.
Analog audio input/output section
(1) (2) (3)
Used for audio input to the R1 channel.
(Balanced audio input.)
XLR-3-31 × 2 (CH1 - 2)
Used for audio output to the P1 channel.
(Balanced audio output.)
XLR-3-32 × 2 (CH1 - 2)
Audio level det ail display (P 1/ P2 c hannel) ►P138
Used for audio output to the P2 channel.
(Balanced audio output.)
XLR-3-32 × 2 (CH1 - 2)
Audio level det ail display (P 1/ P2 c hannel) ►P138
(1)
(2)
(3)
R1 - CH1
R1 - CH2
P1 - CH1
P1 - CH2
P2 - CH1
P2 - CH2
March 26, 2014 T2 Elite/Pro/Express User Manual
37
Page 38
Section 3 ― Part Names and Functions
R1 input section
(1) (2) (3) (4) (5)
(1)
LTC
(2)
AES/EBU
(3)
CMPST
(4)
DVI-I
(5)
SDI
TIP
• YPbPr signal is input via the analog RGB pins on the DVI-I
port. To input YPbPr signal, use an analog RGB conversion
connector cable.
P1/P2 output section
Used for LTC (timecode) input.
Used for digital audio (AES/EBU) input.
Used for composite input.
Used for DVI-I input. (Also for DVI and YPbPr.)
Used for SDI input (le), and for active
through (right).
38
(1) (2) (3) (4) (5) (6)
(2)
(3)
(4)
(5)
(6)
TIP
(1)
LTC
AES/EBU
CMPST
DVI-I
SDI
MONITOR
• YPbPr signal is output via the analog RGB pins on the DVI-I
port. To output YPbPr signal, use an analog RGB conversion
connector cable.
Used for LTC (timecode) output.
Used for digital audio (AES/EBU) output.
Audio level det ail display (P 1/ P2 c hannel) ►P138
Used for composite output.
Used for DVI-I output. (Also for DVI, RGB,
and YPbPr.)
Used for SDI output.
Used for monitor output (composite).
T2 Elite/Pro/Express User Manual March 26, 2014
Page 39
Connection/Start-up/Exit
This section describes how to aach T2 iDDR Rack Mount Kit (optional),
how to connect peripheral devices to T2, start-up and exit procedures, and
switching procedures of front panel mode and workstation mode.
Attaching T2 iDDR Rack Mount Kit (optional)
The procedure to set T2 to a rack using T2 iDDR Rack Mount Kit (optional)
is described in this part.
Parts of T2 iDDR Rack Mount Kit
T2 iDDR Rack Mount Kit includes two rails for the le and right sides and
other accessories.
The following illustration shows the right side of the parts of T2 iDDR Rack
Mount Kit. (The parts are same on the le side.)
305A slide rail
Drawer section
Section 4
305A slide rail
Middle cabinet section
Pan-head screw
M4x10
Pan-head screw
M5x10
Pan-head screw
M4x10
Pan-head screw
M4x10
Pan-head inch screw
No. 10-32UNF
or
Pan-head inch screw
No. 12-24UNC
Latch (slide lock)
Pan-head screw
M5x10
Pan-head screw
M4x12 (with SW)
3U mounting bracket
Nut
M5 (with washer)
Nut
M5 (with washer)
Mounting bracket BK5517
Nut
Nut
M4 (with washer)
Mounting bracket BK5517
M4 (with washer)
March 26, 2014 T2 Elite/Pro/Express User Manual
39
Page 40
Section 4 ― Connection/Start-up/Exit
Setting to a 19 inch rack
T2 iDDR Rack Mount Kit supports EIAJ 19 inch unit rack.
With the brackets supplied with T2 iDDR Rack Mount Kit, set your T2 to
the mounting holes of the mounting chassis of the EIAJ 19 inch unit rack.
EIAJ 19 inch unit chassis specifications
Wide pitch Universal pitch
1.250 in
0.500 in
・
・
・
Repeated
pitch
0.625 in
0.625 in
0.500 in
・
・
・
Repeated
pitch
Setting T2 to a rack
The procedure to aach T2 iDDR Rack Mount Kit to a rack and set T2 is
described in this part.
NOTE
• The screws can come loose because of the movement of the
slide rails. To set this product, make sure that the screws are
rmly fastened. (If the product is not xed rmly, the drawer
may not move smoothly.)
• When you operate your T2 set in a rack, in order to dissipate
the exhaust heat, be sure that there is enough space between
the devices set above and below so that the heat can be easily
released. (When devices are set too close to each other, their
internal temperatures may increase, causing problems or
malfunctions.)
40
T2 Elite/Pro/Express User Manual March 26, 2014
Page 41
Attaching T2 iDDR Rack Mount Kit (optional)
1
Disassembly of slide rail
If you pull out the slide rail to as far as it goes in the direction of the
arrow in the illustration, the latch on the drawer section (slide lock) will
automatically lock the slide rail.
To disassemble, push the tip of the latch (slide lock) to unlock, and pull the
drawer section in the direction shown in the arrow.
Disassemble the slide rail on the other side in the same procedure.
NOTE
• Be careful not to get your ngers jammed in the moving parts
when pulling out the slide rail.
• A small amount of oil is applied on the moving parts of the
drawer and middle cabinet sections for the smooth slide
movements. Be careful when handling those parts.
305A slide rail
Latch (slide lock)
Middle cabinet section
Drawer section
March 26, 2014 T2 Elite/Pro/Express User Manual
41
Page 42
Section 4 ― Connection/Start-up/Exit
2
Set the mounting bracket to the slide rails (middle cabinet
section).
Set the mounting bracket (two pieces) to the middle cabinet section and
ax them.
Set the mounting bracket to the other side of the middle cabinet section in
the same procedure.
Pan-head screw
M4x10
Mounting bracket
BK5517
Nut
M4 (with washer)
305A slide rail
Middle cabinet section
Mounting bracket
BK5517
Nut
M4 (with washer)
Pan-head screw
M4x10
3
Set the slide rails (middle cabinet section) to the rack.
Aer axing the bracket to the panel mounting frame, fasten the screws to
ax the slide rail and the bracket so that they are rmly fastened.
Set the slide rail on the other side to the rack in the same procedure.
To mount your T2 to a rack, make sure that the two rails are set at the same
height, and be sure to fasten the mounting brackets on both ends to the rack
(panel mounting frame).
TIP
• When using female screws on the panel mounting frame,
follow the instructions and use screws specied for the rack.
Rack panel mounting frame
(Both front and rear sides)
Pan-head screw
M5x10
42
Nut
M5 (with washer)
T2 Elite/Pro/Express User Manual March 26, 2014
Page 43
Attaching T2 iDDR Rack Mount Kit (optional)
4
Set the 3U mounting bracket and slide rail (drawer section) to
the T2 body.
Set the 3U mounting bracket and slide rail (drawer section) to the side of
the T2 body.
Set the other 3U mounting bracket and slide rail (drawer section) to the
other side of your T2, in the same way.
When seing slide rails to the le and right sides, make sure that both rails
are set at the same height.
305A slide rail
T2
Drawer section
Pan-head screw
M4x10
Pan-head screw
M4x12 (with SW)
3U mounting bracket
5
Set T2 to the slide rails aached on the rack.
Insert the slide rails (drawer section) aached on both sides of T2 into the
slide rails (middle cabinet section) to set your T2 to the rack.
T2 will mount smoothly without locking the latch (slide lock), when seing
your T2 to a rack. If you try to forcefully slide your T2 into the rack, the
slide rails may be damaged.
Make sure that T2 can be mounted all the way to the end, and that T2 can
then be smoothly slid out, and then ax the 3U mounting bracket to the
rack panel mounting frame.
TIP
• If your T2 cannot slide smoothly in the rack, the position and
angle of the slide rails must be adjusted. check the positions
of the parts and adjust them so that the slide rails move
smoothly.
• Some rack types may not t the accessories (screws) of this
product. Check the specications of your rack, and use the
recommended parts for your rack.
March 26, 2014 T2 Elite/Pro/Express User Manual
43
Page 44
Section 4 ― Connection/Start-up/Exit
Operating after set up
When you slide your T2 out from a rack, if you remove the xing screws of
the 3U mounting brackets set on the le and right sides of the T2, the latch
automatically locks at the position where the T2 was fully slid out.
To pull your T2 out from a rack, or to slide it back into a rack again, push
down the tip of the latches on the slide rails (drawer section) on both the le
and right sides, to unlock the slide rail.
NOTE
• When you operate your T2 set in a rack, in order to dissipate
the exhaust heat, be sure that there is enough space between
the devices set above and below so that the heat can be easily
released. (When devices are set too close to each other, their
internal temperatures may increase, causing problems or
malfunctions.)
Connecting peripheral devices
The procedure to connect peripheral devices such as external input/output
device to T2 is described in this part.
1
Connect a device for R1 channel input to T2.
Connect a device to the analog audio input/output section or R1 input
section on T2 rear panel.
Analog audio input/output section►P37
R1 input section►P38
TIP
• YPbPr signal is input via the analog RGB pins on the DVI-I port. To
input YPbPr signal, use an analog RGB conversion connector cable.
44
2
Connect a device for P1/P2 channel output to T2.
Connect a device to the analog audio input/output section or P1/P2 output
section on T2 rear panel.
Analog audio input/output section►P37
P1/P2 output section►P38
Supported video format and output port►P226
TIP
• YPbPr signal is output via analog RGB pins on the DVI-I port. To
output YPbPr signal, use an analog RGB conversion connector cable.
T2 Elite/Pro/Express User Manual March 26, 2014
Page 45
Starting up and exiting T2
3
If you wish to operate T2 in the workstation mode, connect a
mouse, keyboard, and PC monitor (optional) to T2.
Connect the mouse and keyboard to the USB (2.0) port, and connect the PC
monitor to the monitor port.
Rear panel►P36
If you wish to operate T2 in the front panel mode, you do not need to
connect a mouse, keyboard, and PC monitor.
4
Insert the power cable to the inlet of T2.
5
If necessary, x the power cable xing clamp using the provided screws.
NOTE
6
• When xing the power cable xing clamp, be careful not to
loosen the xing screw of the fan on the power unit.
Connect the power cable to the AC power outlet.
Starting up and exiting T2
Starting up T2
1
Turn on the main power switch on the T2 rear panel.
March 26, 2014 T2 Elite/Pro/Express User Manual
45
Page 46
Section 4 ― Connection/Start-up/Exit
2
Turn on the main power switch on the T2 front panel.
When starting up for the rst time, T2 will start up in the front panel mode.
The display appears in the 3ch view on the touch screen LCD.
Other than the rst time, T2 will start up in the previously used operation
mode (front panel mode or workstation mode).
TIP
• To start up T2 in the workstation mode, start up T2 in the front
panel mode, and then switch to the workstation mode.
Switching from the front panel mode to the workstation mode►P47
Once switched to the workstation mode, T2 will start up in the
workstation mode aer the next start-up.
Exiting T2 in the front panel mode
NOTE
1
You can also perform the operation by tapping [1ch View] on the touch
screen LCD or [Bin].
2
• Do not forcibly exit T2 by holding down the power switch or
turning o the main power switch. A malfunction may occur.
Press one of the [R1], [P1], or [P2] buon.
Tap [Menu], and then tap [Tools] -> [Exit].
46
T2 Elite/Pro/Express User Manual March 26, 2014
Page 47
Switching front panel mode/workstation mode
3
Select [Shut Down] from the list and tap [OK].
To restart T2, select [Restart].
If you do not use T2 for a long time, turn o the main power switch on the
T2 rear panel and unplug the power cord.
Exiting T2 in workstation mode
NOTE
1
2
To restart T2, select [Restart].
If you do not use T2 for a long time, turn o the main power switch on the
T2 rear panel and unplug the power cord.
• Do not forcibly exit T2 by holding down the power switch or
turning o the main power switch. A malfunction may occur.
On the PC monitor, click [System] on the menu bar, and click
[Exit].
Select [Shut Down] from the list and click [OK].
Switching front panel mode/workstation mode
Switching from the front panel mode to the workstation mode
1
On the PC monitor, click [System] on the menu bar, and click
[Switch to Workstation mode].
March 26, 2014 T2 Elite/Pro/Express User Manual
47
Page 48
Section 4 ― Connection/Start-up/Exit
Switching from the workstation mode to the front panel mode
1
Tap the touch screen LCD.
You can also switch the mode on the PC monitor, by clicking [System] on
the menu bar, and then clicking [Switch to Front Panel mode].
Checking the software version
You can check the soware version of your T2.
1
Press one of the [R1], [P1], or [P2] buon.
You can also perform the operation by tapping [1ch View] on the touch
screen LCD or [Bin].
2
Tap [Menu] on the touch screen LCD, and tap [Tools] -> [About
T2].
The version information of T2 is displayed.
48
T2 Elite/Pro/Express User Manual March 26, 2014
Page 49
Recording
This section describes the recording procedure in the R1 channel.
Displaying R1 channel in 1ch view
In the 1ch view of the R1 channel, various operations for recording are
available.
1
The display switches to the 1ch view of the R1 channel, and the [R1] buon
lights in green.
You can also switch by tapping [1ch View] and then tapping the R1 channel
tab.
¾ R1 channel – 1ch view
Section 5
Press the [R1] buon.
(2) (8) (9)
(11) (12) (19)(13) (15) (16) (18)(17)(14)
(1)
(2)
(4) (6)(3) (5) (7)(1)
R1 channel tab
Status
By tapping, selects and highlights the R1
channel.
Indicates the recording progress status.
(10)
March 26, 2014 T2 Elite/Pro/Express User Manual
49
Page 50
Section 5 ― Recording
(3)
(4)
[Locked]
Preview
Locks R1 channel operations.
While the operations are locked, [Locked]
and [R1] buons light in red.
Tapping it again releases the lock.
Displays the video currently recorded.
Tapping the preview displays in the full
sc re en vi ew.
(5)
[Cur:]
(6)
Scrubbing bar
(7)
[Elap:]
(8)
Audio level display
(9)
[Menu]
(10)
Recording mode
(11)
Operation buttons Operation buttons of R1 channel►P51
(12)
[Clip:]
(13)
[Saving destination]
(14)
[Length:]
Indicates the current timecode.
Indicates the recording progress status.
Indicates the elapsed time of recording by
timecode display.
Displays input audio level.
Displays the related menu.
Switches the recording mode (R1-live mode
/R1-VTR mode/R1-remote mode).
Displays the name of the clip currently
recorded.
Sets the saving destination of the recorded
clip.
The destination bin name is displayed in
the right. If the saving destination is an
external storage, it changes to green.
If [Fixed Length] is on, sets the time length
(duration) from the start point to the end
point of recording by tapping the timecode.
50
Indicates the timecode of In/Out points and
duration.
(15)
[In:]/[Out:]/[Dur:]
If xed length recording mode is o, you
can set In or Out point by tapping the
timecode of [In:] or [Out:].
T2 Elite/Pro/Express User Manual March 26, 2014
Page 51
(16)
(2) (4) (6)(3) (5)(1)
(17)
(18)
[Schedule]
[Format:]
[Fixed Length]
Displaying R1 channel in 1ch view
In the R1-live mode, automatically starts
recording operation at a specied time,
and ends it at a specied time. In the front
panel mode, allows to switch on/o of
schedule and to display the schedule list.
To add, edit, or delete schedules, use the
workstation mode.
R1-live mode / schedule mode►P127
Displays the video size, frame rate, input
seings, port used for input, source TC (TC
(LTC)/SDI (VITC)/INT), etc.
By tapping to set it on, automatically ends
recording aer the duration specied in
[Length:] has passed.
(19)
1ch view/3ch view/
bin/transfer screen
common area
1ch view/3ch view/bin/transfer screen
common area►P52
¾ Operation buttons of R1 channel
(1)
[Clear (In/Out)]
(2)
[Cue(In)]
(3)
[Mark(In)]
(4)
[Mark(Out)]
(5)
[Cue(Out)]
(6)
[Create Subclip]
*1
*1
*2
Clears set In/Out points.
Moves the VTR to the In point.
Sets In point to the current position.
Sets Out point to the current position.
Moves the VTR to the Out point.
Creates a sub clip between In-Out points
set while recording, and saves it as
highlight.
*1 Only for R1-VTR mode.
*2 Only for R1-live mode. However, if the video being recorded is saved
to an external media/storage, a sub clip cannot be created.
March 26, 2014 T2 Elite/Pro/Express User Manual
51
Page 52
Section 5 ― Recording
¾ 1ch view/3ch view/bin/transfer screen common area
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(1)
[Bin]
(2)
[1ch View]
(3)
[3ch View]
(4)
[Config.]
(5)
[Transfer]
Remaining HDD
(6)
(remaining time)
(7)
[Remove Device]
Display the bin view.
Managing contents in the bin►P79
Switches the currently selected channel to
1c h v iew.
Switches to 3ch view.
Displays the seing screen.
Displaying the setting screen►P170
Display the transfer screen.
Checking the transfer status►P67
Displays the estimated recording time
available on HDD.
When the remaining capacity reduces, the
icon is displayed in red.
Displayed when a removable drive such as
USB removable media, XDCAM, P2, GF, etc.
is connected.
By tapping, disconnects the removable
media.
52
(8)
NOTE
Time
• If the icon appears in 1ch view/3ch view/bin/transfer
Displays the current time.
Date and time ssetting dialog box►P183
screen common area, there is a problem with the RAID
system. Consult the shop of purchase.
T2 Elite/Pro/Express User Manual March 26, 2014
Page 53
Selecting R1 channel in 3ch view
In 3ch view, you can view three channels, the video recorded in the R1
channel and the clip or playlist played in the P1/P2 channel simultaneously.
In 3ch view of the R1 channel, you can use the operation buons on the
lower part of the touch screen LCD, to start and end of recording.
1
Tap [3ch View].
The display switches to 3ch view.
2
Tap the R1 channel tab.
Selecting R1 channel in 3ch view
R1 channel is selected and highlighted.
¾ R1 channel – 3ch view
(2) (8)(4) (6)(3) (5) (7)(1)
(1)
R1 channel tab
(2)
Status
(3)
[Locked]
(4)
Preview
Audio level
(5)
display
By tapping, selects and highlights the R1
channel.
Indicates the recording progress status.
Locks R1 channel operations.
While the operations are locked, [Locked] and
[R1] buons light in red.
Tapping it again releases the lock.
Displays the video currently recorded.
Displays input audio level.
(6)
[Clip:]
Indicates the name of the clip.
March 26, 2014 T2 Elite/Pro/Express User Manual
53
Page 54
Section 5 ― Recording
(7)
(8)
[Cur:]
[Elap:]
Indicates the current timecode.
Indicates the elapsed time of recording by
timecode display.
Recording by VTR control from T2 (R1-VTR mode)
The procedure to control VTR from your T2 and perform recording is
described in this part.
Set the connection information of the VTR used for recording or the video
format for capturing beforehand.
General – Hardware settings►P171
R1 settings►P184
Transfer – common settings►P195
If necessary, make seings in the seing screen according to the environment
in use.
Settings►P170
TIP
• In the workstation mode, you can import the batch capture list
to your T2 and record sources at once.
Recording sources at once (batch capturing)►P162
• The VTR can be controlled by using your T2 as a controller and
via AMP command or BVW command.
Controlling an external device from T2 with AMP/BVW (R1-VTR
mode)►P213
AMP command list►P229
BVW command list►P242
54
1
Press the [R1] buon on T2.
R1 channel is displayed in 1ch view.
R1 channel – 1ch view►P49
The video from the external input device is displayed in the preview.
2
Tap [VTR].
The mode switches to the R1-VTR mode.
3
Tap [Saving destination], select the saving destination of the clip
to record, and then tap [OK].
4
Play back the video to record and tap [Mark(In)] and [Mark(Out)]
to specify the recording range (In/Out points).
Playing back video►P100
You can also specify the timecode by tapping the entry area of [In:] and
[O ut :].
T2 Elite/Pro/Express User Manual March 26, 2014
Page 55
Recording by VTR control from T2 (R1-VTR mode)
TIP
5
The recording starts. The recording automatically ends at the specied Out
point.
You can set the clip name by tapping the entry area of [Clip:] while recording.
To end the recording in the middle, press the [Stop] buon.
Aer the recording ends, the recorded clip is saved in the bin selected in
step 3.
TIP
• You can also specify the time lapse from the start point of
recording (duration) to automatically end the recording. Tap
[Fixed Length], tap the entry area of [Length:], and enter the
timecode.
Press the [Rec] buon.
• The video currently recorded in the R1 channel can be loaded
and played on the P1/P2 channel.
Loading and playing back video currently recorded (chasing
playback)►P101
• The video currently recorded in the R1 channel can be output
from the P1/P2 channel with active through.
Outputting currently recorded video with active through (E to E
mode)►P102
• To check the properties of the clip currently recorded, tap
[Menu] and then tap [Properties] on the 1ch view of the R1
channel.
• To change the name of the clip currently recorded, tap [Menu]
and then tap [Rename] on the 1ch view of the R1 channel.
• To unload the video aer recording, tap [Menu] and then tap
[Unload] on the 1ch view of the R1 channel.
March 26, 2014 T2 Elite/Pro/Express User Manual
55
Page 56
Section 5 ― Recording
Recording live video (R1-live mode)
The procedure to record live video from an external device is described in
this part.
Set the connection information of the external device used for recording or
the video format for capturing beforehand.
General – Hardware settings►P171
R1 settings►P184
Transfer – common settings►P195
If necessary, make seings in the seing screen according to the environment
in use.
Settings►P170
You can also set to automatically start recording operation at a specied
time and end it at a specied time. (Only available in the workstation mode.)
R1-live mode / schedule mode►P127
TIP
1
R1 channel is displayed in 1ch view.
R1 channel – 1ch view►P49
The video from the external input device is displayed in the preview.
2
The mode switches to the R1-live mode.
3
• You can also record video from a device that cannot allow deck
control in the same procedure. Find the start point of the video
for recording beforehand.
Press the [R1] buon on T2.
Tap [Live].
Tap [Saving destination], select the saving destination of the clip
to record, and then tap [OK].
56
T2 Elite/Pro/Express User Manual March 26, 2014
Page 57
Recording live video (R1-live mode)
4
If necessary, play the video from the external device and press
the [Rec] buon on T2.
The recording starts.
You can set the clip name by tapping the entry area of [Clip:] while recording.
TIP
• An important part in the recorded video can be saved in
another clip as highlight. Tap [Mark(In)] and [Mark(Out)], and
then tap [Create Subclip]. However, if the video being recorded
is saved to an external storage, a sub clip cannot be created.
• You can also specify the time lapse from the start point of
recording (duration) to automatically end the recording. Tap
[Fixed Length], tap the entry area of [Length:], and enter the
timecode.
• The video currently recorded in the R1 channel can be loaded
and played on the P1/P2 channel.
Loading and playing back video currently recorded (chasing
playback)►P101
• The video currently recorded in the R1 channel can be output
from the P1/P2 channel with active through.
Outputting currently recorded video with active through (E to E
mode)►P102
• To check the properties of the clip currently recorded, tap
[Menu] and then tap [Properties] on the 1ch view of the R1
channel.
• To change the name of the clip currently recorded, tap [Menu]
and then tap [Rename] on the 1ch view of the R1 channel.
5
Aer recording the necessary video, press the [Stop] buon on T2.
Aer stopping recording, the recorded clip is saved in the bin selected in
step 3.
TIP
• To unload the video aer recording, tap [Menu] and then tap
[Unload] on the 1ch view of the R1 channel.
March 26, 2014 T2 Elite/Pro/Express User Manual
57
Page 58
Import/Export
This section describes the procedure to import a media le from a removable
media or network drive and to export contents edited in your T2.
Importing a media file
Displaying the [Browse] tab
Import of media les from a removable media such as USB removable
device, XDCAM, P2, GF, and from a network drive to your T2 is performed
from the [Browse] tab.
1
Tap [Bin].
The bin view appears.
2
Tap the [Browse] tab.
Section 6
¾ [Browse] tab
(2)
(8) (9)
(1)
[Preview]
(2)
View switching tab
(4) (6)(3) (5) (7)(1)
(10)
Switches on/o of the preview (lmstrip).
Switches between [Bin] tab/[Browse] tab/
[Recycle Bin] tab.
(11)
58
T2 Elite/Pro/Express User Manual March 26, 2014
Page 59
(3)
[New connection]
Importing a media file
When a removable media is connected to
T2, you can select a folder to display in the
[Browse] tab.
(4)
[Import]
(5)
[>P1]
(6)
[>P2]
(7)
[Menu]
Removable media
(8)
list
Imports the selected media le to T2 as a
clip.
Loads the selected media le to the P1
channel.
You can play and check the video without
importing to T2 as a clip. However,
the playback speed depends on the
specications of the connected removable
media.
Loads the selected media le to the P2
channel.
You can play and check the video without
importing to T2 as a clip. However,
the playback speed depends on the
specications of the connected removable
media.
Displays the related menu.
Displays the media or folders in the
removable media connected to T2.
The selected folder is highlighted in blue.
(9)
(10)
(11)
Filmstrip display
Media file list
1ch view/3ch view/
bin/transfer screen
common area
By tapping [Preview] and set it on, displays
the contents in the media le in lmstrip
with six frames.
Displays the list of media les in the drive
selected from the removable media list.
The selected media le is highlighted in
blue.
1ch view/3ch view/bin/transfer screen
common area►P52
March 26, 2014 T2 Elite/Pro/Express User Manual
59
Page 60
Section 6 ― Import/Export
Displaying media file in removable media
Media les in a removable media such as USB removable device, XDCAM,
P2, GF, etc. can be displayed without importing to T2.
NOTE
TIP
1
2
• When using XDCAM, XDCAM EX, or P2 device, install the
driver in the maintenance mode before connecting the device
to P2. For more information about the maintenance mode,
refer to the T2 Maintenance Manual.
Operation-ensured driver versions for XDCAM/XDCAM EX►P222
Operation-ensured driver version for P2►P222
• If you make seings of the network drive in the workstation
mode, you can display media les in the network drive from
the [Browse] tab.
Displaying media files in network drive►P164
Connect a removable media to your T2 and insert medium.
Tap [Import].
The screen switches to the [Browse] tab.
3
Tap [New connection] and select a medium type.
4
Select a drive, and then tap [OK].
Media le list including media les appears.
TIP
• To update information in the removable media, tap [Menu],
and then tap [Refresh].
60
T2 Elite/Pro/Express User Manual March 26, 2014
Page 61
Importing a media file
Playing media file in removable media
You can load media les in a removable media to T2 and play them.
NOTE
1
Displaying media file in removable media►P60
2
While another clip is loaded, a conrmation message appears. Tap [Yes] to
unload the clip.
The media le is loaded to the P1 channel or P2 channel.
TIP
3
Playing back video►P100
TIP
• The system is under heavy load during playback of clips in
removable media. It is recommended that you import the le
to your T2 and play it.
Select a drive in the [Browse] tab and display the media le.
Select a media le and tap [>P1] or [>P2].
• You can also load the le to the selected channel by tapping
the media le two times.
Press the [Play] buon.
• The following operation are available on the media les loaded
to the P1/P2 channel.
- Playback operation using the T2 front panel control buons
- Seing of In and Out points and moving to In or Out point
NOTE
• Depending on the specications of the connected removable
media, playback operation may not catch up.
• The following operations are not available on the media les
loaded to the P1/P2 channel.
- Import of video between set In-Out points
- Gain adjustment of audio level
- Tag editing (workstation mode only)
- Sync playback (pairing)
- Adding to playlist
- Creating sub clips
If you add les to playlist or create sub clips, import the media
le before you perform the operation.
March 26, 2014 T2 Elite/Pro/Express User Manual
61
Page 62
Section 6 ― Import/Export
Checking the properties of media file
The procedure for checking the properties of media le is described in this
part.
1
Displaying media file in removable media►P60
2
The properties of media le is displayed.
Select a drive in the [Browse] tab and display the media le.
Select a media le, tap [Menu], and then tap [Properties].
¾ Properties of media file
[Clip Info] tab
[Media Info] tab
[Timecode] tab
Displays the clip information.
You can check the clip name, format, In/Out
points timecode, length, alpha channel presence,
date of creation, etc.
Tapping the entry area allows to change the clip
name.
Checking [Locked] locks the clip from editing.
The information of media le is displayed.
You can check the le path, number of clips and
playlists linked to the media le, size, In/Out
points timecode, etc.
Tapping [Details...] allows to check the details of
the clips linked to the media le.
Species starting timecode.
To use the starting timecode of a media le, select
[Source].
To specify a starting timecode, select [Specify
Start Time], tap the entry area, and enter
timecode.
62
3
Tap [OK].
T2 Elite/Pro/Express User Manual March 26, 2014
Page 63
Importing a media file
Changing media file list display
You can switch the display of the media le list between icon display and
text display.
1
Tap [Menu], and then tap [View].
2
Tap [Icon View] or [Text View].
Importing a media file
The procedure for importing media le to T2 is described in this part.
At the time of import, you can set whether to import the le in the native
format or in a converted format such as Grass Valley HQ AVI.
The import operation will be easier if the format for the imported le and
other seing items have been set beforehand.
Transfer settings►P195
If necessary, make seings in the seing screen according to the environment
in use.
Settings►P170
TIP
1
• For more information about the le formats that can be
imported, see “Appendix”.
Input format►P223
• For XDCAM, XDCAM EX, P2, and GF sources, all les under
the root folder and all folders in the root folder will be copied.
As for les in each folder, only the les that are related to the
selected le for the import will be copied.
• You can convert a le to Grass Valley HQ AVI aer importing
it as the native format.
Converting contents to other formats►P85
• Still image les are converted to Grass Valley HQ AVI and
imported.
• The maximum le size of the still image that can be imported
is 4,096 x 2,304 pixels (4K).
• The system will import les that contain transparency
information aer converting them to Grass Valley HQ AVI. In
this case, the conversion is performed so that the bitrate will
be lower (the Q value = 12).
Select a drive in the [Browse] tab and display the media le.
Displaying media file in removable media►P60
2
Select a media le, tap [Import], and then tap [Import...].
The Import dialog box appears.
March 26, 2014 T2 Elite/Pro/Express User Manual
63
Page 64
Section 6 ― Import/Export
¾ Import dialog box
(2) (4)(3)
(1)
(5)
(1)
[Delete]
(2)
[UP]
(3)
[DOWN]
(4)
[Config.]
(5)
Import list
(6)
[Bin:]
[Select Import
(7)
Destination Bin]
(8)
[Start]
(9)
[Cancel]
(7)(6) (8) (9)
Deletes the selected le from the import
list.
Moves up the selected le.
Moves down the selected le.
Displays the seing screen. Sets the le
format aer imported.
Displays the list of the les to be imported.
[Format] shows the formats of les to be
imported.
Displays the saving destination bin for the
imported media les.
Selects the saving destination bin for the
imported media les.
Starts import.
Closes the import dialog box.
64
3
Tap [Cong.].
If conversion of the format of the le to import is not necessary, you do not
need to change the seings in the seing screen. Proceed to step 6.
T2 Elite/Pro/Express User Manual March 26, 2014
Page 65
Importing a media file
4
Tap the tab of the format of the media le.
For example, if the media le to import is XDCAM format, tap the [XDCAM]
tab. If it is an MXF single le, tap the [MXF] tab.
5
From the [File format after import:] list, select a post-import
format and then tap [OK].
6
In the import dialog box, tap [Select Import Destination Bin],
select a bin, and tap [OK].
7
Tap [Start].
Import starts. You can check the progress in the transfer screen.
Checking the transfer status►P67
NOTE
• By default, the system will pause any transfer and conversion
during a recording or playback. If you want transfer and
conversion to be performed even during a recording or
playback, change the seing by [Transfer] -> [Common] on
the seing screen. Unchecking [Pause le transfers while
recording or playing out.] enables transfer and conversion
even during a recording or playback. However, if this option
is unchecked, the recording/playback operations may not be
performed normally, therefore, we recommend that you use
the system with this option checked.
Transfer – common settings►P195
March 26, 2014 T2 Elite/Pro/Express User Manual
65
Page 66
Section 6 ― Import/Export
Importing still images with serial numbers as a sequence clip
Still images with serial numbers can be imported as a single sequence clip
(in Grass Valley HQ AVI).
If necessary, make seings in the seing screen according to the environment
in use.
Settings►P170
NOTE
TIP
1
Displaying media file in removable media►P60
2
The Import dialog box appears.
Import dialog box►P64
3
• If a le has a name that has characters followed by numerics,
such as Clip1234.jpg, it will be recognized as a still image le
with a sequential number.
• If some of the les have dierent extensions, or if les with
added alpha channel and those without alpha are mixed,
the import of the still images with serial numbers will be
canceled.
• The maximum le size of the still image that can be imported
is 4,096 x 2,304 pixels (4K).
Select a drive in the [Browse] tab and display the media le.
Select the rst le in the serial numbers, tap [Import], and then
tap [Import (Sequence)...].
Tap [Cong.].
66
4
In [Congure import of image and images in a sequence format],
select a post-import format and then tap [OK].
T2 Elite/Pro/Express User Manual March 26, 2014
Page 67
(2) (3) (4)(1)
Importing a media file
5
In the import dialog box, tap [Select Import Destination Bin],
select a bin, and tap [OK].
6
Tap [Start].
Import starts. You can check the progress in the transfer screen.
Checking the transfer status►P67
NOTE
• By default, the system will pause any transfer and conversion
during a recording or playback. If you want transfer and
conversion to be performed even during a recording or
playback, change the seing by [Transfer] -> [Common] on
the seing screen. Unchecking [Pause le transfers while
recording or playing out.] enables transfer and conversion
even during a recording or playback. However, if this option
is unchecked, the recording/playback operations may not be
performed normally, therefore, we recommend that you use
the system with this option checked.
Transfer – common settings►P195
Checking the transfer status
You can check the status of le transfer or conversion (jobs) in the transfer
screen.
1
Tap [Transfer].
¾ Transfer screen
March 26, 2014 T2 Elite/Pro/Express User Manual
67
Page 68
Section 6 ― Import/Export
(1)
(2)
Job list
[Delete]
Displays the list of jobs.
[Clip]
Indicates the name of the clip.
[Status]
Indicates the job progress status.
[Bin]
Indicates the bin name.
[Path]
Indicates media le path and le name.
Deletes selected jobs. If you tap [Delete]
while executing a job, the job will be
canceled.
(3)
[Clear]
1ch view/3ch view/
(4)
bin/transfer screen
common area
Deletes all jobs from the job list.
1ch view/3ch view/bin/transfer screen
common area►P52
Removing medium in removable media
The procedures to remove a medium in the removable media connected
to your T2 (such as XDCAM professional disc, SxS memory card, and P2
card), and to disconnect the folder in the USB removable device or GFPAK
are described in this part.
1
Select a drive in the [Browse] tab.
2
Tap [Menu], and then tap [Disconnect].
3
A message appears. Tap [OK].
4
Remove the medium (XDCAM professional disc, SxS memory
card, or P2 card) from the removable media.
68
If you want to disconnect your T2 from the removable media, disconnect
the removable media.
Removing removable media►P69
T2 Elite/Pro/Express User Manual March 26, 2014
Page 69
Exporting a file
Removing removable media
The procedure to remove a removable media such as USB removable device,
XDCAM, P2, GF, etc. from T2 is described in this part.
Before removing the removable media you need to disconnect the medium
or le in the media.
Removing medium in removable media►P68
1
Tap [Remove Device].
You can operate it from the bi n view, 1ch view, 3ch view, and tran sfer sc reen.
2
3
4
TIP
Exporting a file
Exporting contents to a file
The procedure to export a clip or playlist stored in the bin of your T2 to a
le is described in this part.
At the time of export, you can set whether to export the le in the native
format or in a converted format.
The export operation will be easier if the format for the exported le and
other seing items have been set beforehand.
Transfer settings►P195
If necessary, make seings in the seing screen according to the environment
in use.
Operations in Workstation Mode►P123
Select a removable media, and then tap [Remove].
A message appears. Tap [Yes].
Remove the removable media from T2.
• If the media indicates a status that it is being used and you
cannot remove it even aer tapping [Remove], turn o the T2
and remove the removable media.
March 26, 2014 T2 Elite/Pro/Express User Manual
69
Page 70
Section 6 ― Import/Export
NOTE
TIP
• For XDCAM, XDCAM EX, P2, and GF sources, all les under
the root folder and all folders in the root folder will be copied.
As for les in each folder, only the les that are related to the
selected le for the import will be copied. If a clip imported as
its native format is exported with no conversion, the exported
clip may not be properly handled depending on the device.
• For more information about the le formats that can be
exported, see “Appendix”.
Output format►P225
• For important notes on exporting, see “Appendix”.
Notes on T2 export►P226
• When exporting to a Grass Valley HQ AVI le, the le is
trimmed between the set In and Out points and exported. For
other formats, the whole le is exported.
• You can export Grass Valley HQ AVI les by converting them
to the following formats.
- MXF format (XDCAM HD422) (1920 x 1080
59.94i/50i/29.97p/25p 50 Mbps)
- MXF format (XDCAM HD) (1440 x 1080
59.94i/50i/29.97p/25p/23.98p 25 Mbps)
- MXF format (XDCAM IMX) (720 x 486 59.94i, 720 x 576 50i)
- MXF format (XDCAM DV) (720 x 486 59.94i, 720 x 576 50i)
• When exporting a playlist to a le, the le is converted with
the following features.
- If several formats are contained, they are converted in one
le.
- A timecode set in a playlist or event properties can be
retained in each frame of the converted le.
- When exporting les in Grass Valley HQ AVI format, the
prole (size and frame rate) of the converted le is same as
the prole of the playlist.
- When exporting les in MXF format (XDCAM), les are
converted according to the seings of [Advanced AVI
transcoding seings] in [Transfer] -> [AVI] on the seing
screen.
- The audio gain set for the event in the playlist is maintained
in the converted clip.
- Audio is converted into PCM 48kHz 24bit 8ch.
• You cannot export a playlist that includes a place holder event.
70
T2 Elite/Pro/Express User Manual March 26, 2014
Page 71
Exporting a file
1
Display the contents in the [Bin] tab.
Displaying the [Bin] tab►P79
2
Select an item, tap [Export], and then tap [Export Media Files...].
A message related to export appears. Read the message, and then tap [OK].
The Export dialog box appears.
¾ Export dialog box
(2) (4)(3)
(1)
(5)
(1)
[Delete]
(2)
[UP]
(3)
[DOWN]
(4)
[Config.]
(5)
Export list
(6)
[Export Path:]
[Select Export
(7)
Folder]
(8)
[Start]
(9)
[Cancel]
(7)(6) (8) (9)
Deletes the selected le from the export list.
Moves up the selected le.
Moves down the selected le.
Displays the seing screen. Sets the le
format and others aer exported.
Displays the list of the les to be exported.
[Format] shows the formats of les to be
exported.
Displays the saving destination of the les
to be exported.
Selects the saving destination of the les to
be exported.
Starts export.
Closes the export dialog box.
TIP
• If you export to XDCAM drive (PDW-U1, PDW-U2), you tap
[Export], and then tap [Export Media Files to XDCAM Deive...].
March 26, 2014 T2 Elite/Pro/Express User Manual
71
Page 72
Section 6 ― Import/Export
3
• If conversion is not necessary, you do not need to change the seings
• To export a Grass Valley HQ AVI le to be converted to MXF (XDCAM
• To export a playlist, tap the [Playlist] tab. From the [File format aer
4
5
Export starts. You can check the progress in the transfer screen.
Checking the transfer status►P67
If necessary, tap [Cong.] to set the le format aer conversion.
in the seing screen. Proceed to step 4.
format), tap [AVI] and check [Execute transcoding when exporting AVI
le.]. Make seings in [Advanced AVI transcoding seings], and tap [OK].
Transfer – AVI settings►P199
export:] list, select a post-import format and then tap [OK].
Transfer – Playlist settings►P205
In the export dialog box, tap [Select Export Folder], select a
folder, and tap [OK].
Tap [Start].
NOTE
• By default, the system will pause any transfer and conversion
during a recording or playback. If you want transfer and
conversion to be performed even during a recording or
playback, change the seing by [Transfer] -> [Common] on
the seing screen. Unchecking [Pause le transfers while
recording or playing out.] enables transfer and conversion
even during a recording or playback. However, if this option
is unchecked, the recording/playback operations may not be
performed normally, therefore, we recommend that you use
the system with this option checked.
Transfer – common settings►P195
Exporting contents in T2 format
If you export playlists or clips in the T2 format (TWF le), you can import
them to other T2 with the information (In/Out points, eect, event list, etc.)
retained.
TIP
• For important notes on exporting, see “Appendix”.
Notes on T2 export►P226
• TWF le is a le in the ZIP format. If you change the extension
of the TWF le to “*.zip” and extract it with soware for ZIP,
you can extract it as a media le.
• You can send/receive playlists and clips directly from T2 to
other T2 via FTP.
Transferring a file to other T2►P73
72
T2 Elite/Pro/Express User Manual March 26, 2014
Page 73
Transferring a file to other T2
1
Display the contents in the [Bin] tab.
Displaying the [Bin] tab►P79
2
Select an item, tap [Export], and then tap [Export in T2 Format
(TWF Files)...].
A message related to export to other T2 appears. Read the message, and
then tap [OK].
The Export dialog box appears.
Export dialog box►P71
3
In the export dialog box, tap [Select Export Folder], select a
folder, and tap [OK].
4
Tap [Start].
Export starts. You can check the progress in the transfer screen.
Checking the transfer status►P67
Transferring a file to other T2
Overview of file transfer function from T2 to T2
You can transfer media les from T2 to other T2 via FTP. If you export media
les from T2 (source) to the FTP server of T2 (destination), you can use the
les from the [Bin] tab on T2 (destination) without import operations.
Configuring the FTP server settings of T2 (destination)
The procedure to make seings for the FTP server of T2 (destination) is
described in this part.
TIP
1
You can operate it from the bin view, 1ch view, 3ch view, and transfer
screen.
• Set T2 (destination) to be used as the FTP server beforehand.
Perform steps 1 to 8 in “Sending/receiving les to T2” on T2
(destination).
Sending/receiving files to T2►P75
Tap [Cong.].
2
Tap [General], and then tap the [FTP] tab.
3
Tap [Add...].
The FTP destination seing dialog box appears.
FTP destination setting dialog box►P177
March 26, 2014 T2 Elite/Pro/Express User Manual
73
Page 74
Section 6 ― Import/Export
4
In the export dialog box, you can tap [Select Export Folder] to select the FTP
server of T2 (destination).
Exporting a file from T2 to T2
Congure the FTP server seings of T2 (destination) before you perform
export operation.
Configuring the FTP server settings of T2 (destination)►P73
The export operation will be easier if the format for the exported le and
other seing items have been set beforehand.
Transfer settings►P195
Make seings in the seing screen according to the environment in use.
Settings►P170
Configure the FTP server settings of T2 (destination), and then
tap [OK].
TIP
1
Displaying the [Bin] tab►P79
2
• For more information about the le formats that can be
exported, see “Appendix”.
Output format►P225
• For important notes on exporting, see “Appendix”.
Notes on T2 export►P226
Display the contents in the [Bin] tab.
Select an item and tap [Export], and then tap [Export Media
Files...] or [Export in T2 Format (TWF Files)...].
NOTE
A message related to export or a message related to export to other T2
appears. Read the message, and then tap [OK].
The Export dialog box appears.
Export dialog box►P71
3
• Playlists or clips composed of multiple les cannot be exported
as the original formats. Export them in the T2 format.
If necessary, tap [Cong.] to set the le format aer conversion.
74
• If conversion is not necessary, you do not need to change the seings
in the seing screen. Proceed to step 4.
• To export a Grass Valley HQ AVI le to be converted to MXF (XDCAM
format), tap [AVI] and check [Execute transcoding when exporting AVI
le.]. Make seings in [Advanced AVI transcoding seings], and tap
[OK].
Transfer – AVI settings►P199
T2 Elite/Pro/Express User Manual March 26, 2014
Page 75
• To export a playlist, tap the [Playlist] tab. From the [File format aer
export:] list, select a post-convert format and then tap [OK].
Transfer – Playlist settings►P205
4
In the export dialog box, tap [Select Export Folder].
5
Tap [FTP Server], select the FTP server of T2 (destination), and
then tap [OK].
6
Tap [Start].
Export starts. You can check the progress in the transfer screen.
Checking the transfer status►P67
Sending/receiving files to T2
You can use FTP server to connect devices or edit terminals to your T2 and
upload/download les.
Sending/receiving files to T2
NOTE
1
You can operate it from the bin view, 1ch view, 3ch view, and transfer
screen.
• For the following format les, only single les can be
uploaded/downloaded.
- XDCAM: MXF single le of XDCAM format only
- XDCAM EX: Single le of XDCAM EX format only (*.mp4,
*.av i)
- GF: MXF single le of GF format only
• When uploading les to T2 via FTP, if [File format aer
import:] is set to [AVI(HQ)] for the transfer seing of each
format, the les will be converted to Grass Valley HQ AVI aer
uploaded.
Transfer settings►P195
• If you want to use Japanese for le names, you must set
the character set of le names to UTF-8 on the FTP client
side beforehand. Correct le names cannot be displayed if
the character sets do not match. The conguration method
depends on your soware. Refer to the help etc.
Tap [Cong.].
2
Tap [General], and then tap the [Network-1] tab or [Network-2]
tab.
3
Congure the IP address and DNS server address.
General – Network-1/Network-2 settings►P172
March 26, 2014 T2 Elite/Pro/Express User Manual
75
Page 76
Section 6 ― Import/Export
4
5
The dialog box for FTP seing of T2 appears.
FTP setting dialog box for T2►P177
6
7
Tap the [FTP] tab.
Tap [Seings...].
Congure the FTP server seings of T2, and then tap [OK].
Tap [Start].
76
8
Tap [OK].
9
Access your T2 from a client.
Enter the IP address you congured in [Network-1] or [Network-2] and the
user name and password you congured in the dialog box for FTP seing
of T2, and connect to your T2 via FTP.
10
Upload or download data.
NOTE
T2 Elite/Pro/Express User Manual March 26, 2014
• When using the FTP client where disconnection cannot be
made explicitly such as Windows Explore, connection may
be terminated due to the restriction of the simultaneous
connection of clients. In such a case, tap [General] -> the [FTP]
tab on the setup screen, and tap [Stop], and then tap [Start]
again.
[FTP] tab►P175
Page 77
Loading and editing T2 contents to other editing software
NOTE
• Depending on the FTP client, les may be transferred with
multiple connections simultaneously. When using such an FTP
client, make sure that the simultaneous connection of clients
does not exceed the [Max Clients:] value set in the FTP seing
dialog box of T2.
FTP setting dialog box for T2►P177
• By default, the system will pause any transfer and conversion
during a recording or playback. If you want transfer and
conversion to be performed even during a recording or
playback, change the seing by [Transfer] -> [Common] on
the seing screen. Unchecking [Pause le transfers while
recording or playing out.] enables transfer and conversion
even during a recording or playback. However, if this option
is unchecked, the recording/playback operations may not be
performed normally, therefore, we recommend that you use
the system with this option checked.
Transfer – common settings►P195
Loading and editing T2 contents to other editing software
You can load T2 contents to Adobe Premiere Pro and Apple Final Cut Pro
to edit the data. Clips in a bin can be converted to XDCAM format and the
converted clips can be downloaded from a client via FTP.
NOTE
1
Sending/receiving files to T2►P75
2
Displaying the [Bin] tab►P79
3
• If you want to use Japanese for le names, you must set
the character set of le names to UTF-8 on the FTP client
side beforehand. Correct le names cannot be displayed if
the character sets do not match. The conguration method
depends on your soware. Refer to the help etc.
Perform steps 1 to 8 in “Sending/receiving files to T2”.
Display the contents in the [Bin] tab.
Select an item, tap [Menu], and then tap [Convert] -> [Convert to
MXF(XDCAM)].
March 26, 2014 T2 Elite/Pro/Express User Manual
77
Page 78
Section 6 ― Import/Export
4
The conversion starts. You can check the progress in the transfer screen.
Checking the transfer status►P67
The new converted clips will be saved in the same bin as their original
ones.
5
6
Tap [Yes].
Download the converted clip(s) via FTP from a client PC.
Load the downloaded clips to the editing soware on the client
PC.
78
T2 Elite/Pro/Express User Manual March 26, 2014
Page 79
Contents Management
This section describes the operations for contents management using the
bin.
Managing contents in the bin
Displaying the [Bin] tab
In the [Bin] tab, you can manage the contents loaded to T2 and export
contents edited with T2.
1
Tap [Bin].
The bin view appears.
2
Tap the [Bin] tab.
¾ [Bin] tab
Section 7
(2)
(10) (11) (12)
(1)
[Preview]
(2)
View switching tab
(6)(3) (7) (8) (9)(1) (4) (5)
Switches on/o of the preview (lmstrip).
Switches between [Bin] tab/[Browse] tab/
[Recycle Bin] tab.
(13)
March 26, 2014 T2 Elite/Pro/Express User Manual
79
Page 80
Section 7 ― Contents Management
(3)
[Empty Recycle Bin]
Deletes all les in the recycle bin.
Note that the deleted contents cannot be
restored.
(4)
[New Bin]
(5)
[Export]
(6)
[Delete]
(7)
[>P1]
(8)
[>P2]
(9)
[Menu]
(10)
Bin list
(11)
Filmstrip display
(12)
Contents list
1ch view/3ch view/
(13)
bin/transfer screen
common area
Creates a new bin.
Exports the selected contents.
Deletes the selected contents.
Loads the selected contents to the P1
channel.
Loads the selected contents to the P2
channel.
Displays the related menu.
Displays the list of bins.
The selected bin is highlighted in blue.
By tapping [Preview] and set it on, displays
the contents in lmstrip with six frames.
Displays the list of contents selected in the
bin list.
The selected item is highlighted in blue.
1ch view/3ch view/bin/transfer screen
common area►P52
80
Changing bin name
You can change the name of the bin.
1
Select a bin in the [Bin] tab.
Displaying the [Bin] tab►P79
2
Tap [Menu], and then tap [Rename Folder].
3
Enter a name for the bin and tap [OK].
Software keyboard►P120
T2 Elite/Pro/Express User Manual March 26, 2014
Page 81
Managing contents in the bin
Deleting a bin
You can delete a bin and the contents in the bin. The deleted bins are moved
to the recycle bin.
1
Select a bin in the [Bin] tab.
Displaying the [Bin] tab►P79
2
Tap [Menu], and then tap [Delete Folder].
A message appears and the list of contents in the bin is displayed.
3
Tap [Yes].
Contents types and icons
The icons that indicate the contents types and common icons, and icons
displayed regardless of the contents types are described in this section.
¾ Clip
¾ Still image clip
¾ Playlist
March 26, 2014 T2 Elite/Pro/Express User Manual
81
Page 82
Section 7 ― Contents Management
¾ Common icons
(1) (2)
(3) (4) (5) (6)
(7)
(1)
Pairing
(2)
Used in playlist
(3)
Lock
Available number of
(4)
times of recording
while playing
Available number
of times of
(5)
simultaneous
playing
Containing alpha
(6)
channel
Indicates that pairing is set.
Indicates that the contents is used in the
playlist.
Indicates that the item is locked.
“1” indicates that another source can be
recorded in the R1 channel while the
contents are played back.
“0” indicates that another source cannot
be recorded in the R1 channel while the
contents are played back.
“2” indicates that another contents can be
played back simultaneously in the P1/P2
channel while the contents are played back.
“1” indicates that another contents cannot
be played back simultaneously in the P1/P2
channel while the contents are played back.
Indicates that the contents have
transparency information.
82
Indicates that the contents is being
(7)
Recording
recorded. The sub clip of recording contents
is not shown this icon.
T2 Elite/Pro/Express User Manual March 26, 2014
Page 83
Managing contents in the bin
Moving contents to another bin
You can move the contents in the bin to another bin.
1
Select the bin in the [Bin] tab and display the contents.
Displaying the [Bin] tab►P79
2
Select an item, tap [Menu], and then tap [Move].
3
Select the destination bin and tap [OK].
Changing the display of contents list
You can switch the display of the contents list between icon display and
text display.
1
Tap [Menu], and then tap [View].
2
Tap [Icon View] or [Text View].
Checking the properties of the contents
The procedure to check the properties of the clips or playlists in the bin is
described in this part.
1
Select the bin in the [Bin] tab and display the contents.
Displaying the [Bin] tab►P79
2
Select an item, tap [Menu], and then tap [Properties].
The properties of contents are displayed.
¾ Clip properties
March 26, 2014 T2 Elite/Pro/Express User Manual
83
Page 84
Section 7 ― Contents Management
[Clip Info] tab
[Media Info] tab
[Timecode] tab
Displays the clip information.
You can check the clip name, format, In/Out
points timecode, length, alpha channel presence,
date of creation, etc.
Tapping the entry area allows to change the clip
name and audio gain. (For still images, the length
can be changed.)
Checking [Locked] locks the clip from editing.
The information of media le is displayed.
You can check the le path, clips referenced to
the media le, and the number of reference clips,
size, In/Out points timecode, etc.
Tapping [Details...] displays the list of clips
referenced to the media le and the number of
reference clips.
Species starting timecode.
To use the starting timecode of a media le, select
[Source].
To specify a starting timecode, select [Specify
Start Time], tap the entry area, and enter
timecode.
¾ Playlist properties
[Playlist Info] tab
Displays the playlist information.
You can check the playlist name, bin name
where the playlist is stored, format, length, alpha
channel presence, date of creation, etc.
Tapping the entry area allows to change the
playlist name and audio gain.
Checking [Locked] locks the playlist from editing.
84
T2 Elite/Pro/Express User Manual March 26, 2014
Page 85
Managing contents in the bin
Species starting timecode.
[Source]
Uses the starting timecode of the media le.
[Timecode] tab
[All Events] tab
3
Tap [OK].
[Specify Start Time]
Species a desired starting timecode. Tap the
entry area and enter a desired timecode.
[According to event setting]
Uses the timecode set in each event in the playlist.
Updates the seings of eect for event starting
(start eects) and actions or eects for event
ending (end eects) of all events in the playlist.
Updating playlist effect settings►P113
Releasing pairing of contents
You can release the pairing of contents.
For pairing of contents, refer to “Sync playback of contents (Sync mode)”.
Sync playback of contents (Sync mode)►P103
1
Select the bin in the [Bin] tab and display the contents.
Displaying the [Bin] tab►P79
2
Select an item, tap [Menu], and then tap [Unpairing].
Converting contents to other formats
You can convert contents to other formats.
A playlist can be converted to a single clip (media le).
NOTE
• If a playlist is converted to a single clip, the eect set to the
playlist is disabled.
March 26, 2014 T2 Elite/Pro/Express User Manual
85
Page 86
Section 7 ― Contents Management
TIP
• If you want to convert a Grass Valley HQ AVI le to an MXF
(XDCAM format) le, set the format details in the seing
screen beforehand.
Transfer – AVI settings►P199
• Playlists are converted with the following features.
- If several formats are contained, they are converted in one le.
- A timecode set in a playlist or event properties can be
retained in each frame of the converted le.
- When exporting les in Grass Valley HQ AVI format, the
prole (size and frame rate) of the converted le is same as
the prole of the playlist.
- When exporting les in MXF format (XDCAM), les are
converted according to the seings of [Advanced AVI
transcoding seings] in [Transfer] -> [AVI] on the seing
screen.
- The audio gain set for the event in the playlist is maintained
in the converted clip.
- Audio is converted into PCM 48kHz 24bit 8ch.
• You cannot convert a playlist that includes a place holder
event.
1
Select the bin in the [Bin] tab and display the contents.
Displaying the [Bin] tab►P79
2
Select an item, tap [Menu], and then tap [Convert] -> [Convert to
(converted format)].
3
Tap [Yes].
The conversion starts. You can check the progress in the transfer screen.
Checking the transfer status►P67
The new converted clips will be saved in the same bin as their original
ones.
NOTE
• By default, the system will pause any transfer and conversion
during a recording or playback. If you want transfer and
conversion to be performed even during a recording or
playback, change the seing by [Transfer] -> [Common] on
the seing screen. Unchecking [Pause le transfers while
recording or playing out.] enables transfer and conversion
even during a recording or playback. However, if this option
is unchecked, the recording/playback operations may not be
performed normally, therefore, we recommend that you use
the system with this option checked.
Transfer – common settings►P195
86
T2 Elite/Pro/Express User Manual March 26, 2014
Page 87
Checking the recycle bin
Displaying the [Recycle Bin] tab
In the [Recycle Bin] tab, you can restore the deleted contents and completely
delete the les in the recycle bin.
1
Tap [Bin].
The bin view appears.
2
Tap the [Recycle Bin] tab.
¾ [Recycle Bin] tab
Checking the recycle bin
(2)
(3)(1)
(6) (7)
(1)
[Preview]
(2)
View switching tab
(3)
[Empty Recycle Bin]
(4) (5)
(8)
Switches on/o of the preview (lmstrip).
Switches between [Bin] tab/[Browse] tab/
[Recycle Bin] tab.
Deletes all les in the recycle bin.
Note that the deleted contents cannot be
restored.
(9)
Restores contents to the original bin.
(4)
[Restore]
(5)
[Menu]
Recycle bin folder
(6)
list
When restoring a playlist, if clips linked to
the playlist are also in the recycle bin, the
clips are restored at the same time.
Displays the related menu.
Displays the list of folders in the recycle
bin.
March 26, 2014 T2 Elite/Pro/Express User Manual
87
Page 88
Section 7 ― Contents Management
(7)
Filmstrip display
(8)
Contents list
1ch view/3ch view/
(9)
bin/transfer screen
common area
By tapping [Preview] and set it on, displays
the contents in lmstrip with six frames.
Displays the list of contents in the folder
selected in the recycle bin folder list.
1ch view/3ch view/bin/transfer screen
common area►P52
Backing up all data to other T2 (full sync backup)
Overview of full sync backup function
T2 data (media les and database) can be synchronized to other (multiple)
T2 on the network. T2 (slave) data on the sync destination is initialized and
they are completely synchronized to T2 (master) data.
To synchronize data, set the sync destination T2 (slave) to the slave mode
(step 1), and then set the sync source T2 (master) to the master mode. (step 2)
Step 1: Setting T2 on the sync destination (slave) to the slave mode
NOTE
1
2
If contents are being captured or loaded in the R1/P1/P2 channel, a message
appears asking whether to unload the contents. Tap [OK] to unload the clip.
3
T2 on the sync destination (slave) is set to the slave mode.
To sync data to multiple T2 (slave), repeat steps 1 to 3 on all of the T2 (slave).
• Set the remote mode (R1-remote mode/P1-remote mode/P2remote mode) to o on both T2 (master and slave) beforehand.
(You cannot switch the remote mode to on and o while
transferring les.)
• Synchronization is not available between T2 devices that have
dierent database versions. Database version will be changed
by such an event as soware update.
On the sync destination T2, tap [Bin] or [1ch View].
Tap [Menu], and then tap [Tools] -> [T2 to T2 Sync backup...].
In [Operating mode] on the [T2 to T2 Sync backup] dialog box,
select [Slave mode] and tap [Close].
88
T2 Elite/Pro/Express User Manual March 26, 2014
Page 89
Backing up all data to other T2 (full sync backup)
Step 2: Setting T2 on the sync source (master) to the master mode for data sync
1
On the sync source T2, tap [Bin] or [1ch View].
2
Tap [Menu], and then tap [Tools] -> [T2 to T2 Sync backup...].
If contents are being captured or loaded in the R1/P1/P2 channel, a message
appears asking whether to unload the contents. Tap [OK] to unload the clip.
3
In [Operating mode] on the [T2 to T2 Sync backup] dialog box,
select [Master mode] and tap [Slave conguration...].
T2 on the sync source (master) is set to the master mode.
The number of T2 set to the slave mode is displayed in [Slave count:].
4
In the [Slave conguration...] dialog box, set the IP address of T2
set to the slave mode.
• Tap [Auto Search...] to search for T2 set to the slave mode on the
network. Select an IP address on the [Search Results] dialog box, and
then tap [Add ALL].
• To set an IP address manually, tap [Add] and enter an IP address.
5
Tap [Close].
6
In the [T2 to T2 Sync backup] dialog box, tap [Start Sync].
7
A message appears. Tap [OK].
The synchronization starts. You can check the le transfer status on the
upper progress bar, and the whole status on the lower progress bar.
If you stop synchronization in the middle, tap [Stop]. You can also stop
synchronization from T2 set to the slave mode.
March 26, 2014 T2 Elite/Pro/Express User Manual
89
Page 90
TIP
• If data synchronization has been stopped forcibly by such an
event as the power o of T2, contents may be displayed with
the following thumbnail. Such contents cannot be used.
• If synchronization has been stopped and started again, les
that are already transferred will be skipped.
90
T2 Elite/Pro/Express User Manual March 26, 2014
Page 91
Playing/Editing
This section describes operations to play contents in the P1/P2 channel and
to edit playlists.
Displaying P1/P2 channel in 1ch view
In the 1ch view of the P1/P2 channel, you can perform operations regarding
contents editing.
1
Press the [P1] buon (or [P2] buon).
The display switches to the 1ch view of the P1 channel (or P2 channel) and
the [P1] buon (or [P2] buon) lights in green.
You can also switch by tapping [1ch View] and then tapping the P1 channel
tab (or P2 channel tab).
If the clip is loaded to the P1 channel (or P2 channel), clip view is displayed.
And if a playlist is loaded, playlist view is displayed.
Displaying P1/P2 channel in 1ch view
Section 8
¾ P1/P2 channel (clip view) – 1ch view
(2) (8) (9)
(4) (6)(3) (5) (7)(1)
(15) (16) (17)(14)
*(2) to (18) are common in P2 channel.
P1 channel tab/P2
(1)
channel tab
(10)
By tapping, selects and highlights the P1
channel (or P2 channel).
(11) (12)
(13)
(18)
March 26, 2014 T2 Elite/Pro/Express User Manual
91
Page 92
Section 8 ― Playing/Editing
(2)
Playback mode
Indicates the current playback mode (sync
mode, E to E mode, loop playback mode)
of the P1 channel (or P2 channel) in white
characters.
By tapping, also switches the playback
mode.
Switching playback mode►P102
(3)
Status
(4)
[Locked]
(5)
Preview
(6)
[Cur:]
(7)
Playback speed
(8)
Scrubbing bar
(9)
[Rem:]
Indicates the playback progress status.
Locks P1 channel (or P2 channel)
operations.
While the operations are locked, [Locked]
and [P1] (or [P2] buon) buons light in red.
Tapping it again releases the lock.
Displays the video currently played back.
Tapping the preview displays in the full
sc re en vi ew.
If a clip is not loaded, displays the output
prole of the channel on the upper le.
Indicates the current timecode.
Indicates the current playback speed
(times).
Indicates the playback progress status and
markers of set In/Out points.
Indicates the timecode of the remaining
time.
92
Switches the display scale of the scrubbing
bar.
Tapping it displays [Zoom] in red, and
(10)
[Zoom]
(11)
Audio level display
(12)
[Menu]
(13)
[Playlist View]
(14)
Operation buttons
displays the In-Out points of the clip as the
whole scale.
Tapping it again returns the display to the
original scale and displays the whole clip.
Displays output audio level.
Displays the related menu.
Switches to the playlist view.
Operation buttons of P1/P2 channel (clip
view)►P93
T2 Elite/Pro/Express User Manual March 26, 2014
Page 93
(15)
(16)
[Clip:]
[In:]/[Out:]/[Dur:]
Displaying P1/P2 channel in 1ch view
Indicates the name of the loaded clip.
Tapping the entry area allows to change the
clip name.
Software keyboard►P120
Indicates the timecode of In/Out points and
duration.
Tapping the entry area allows to set the In
and Out points or duration.
Software keypad – Timecode►P121
(17)
(18)
[Format:]
1ch view/3ch view/
bin/transfer screen
common area
Indicates the video size of the clip and
frame rate.
1ch view/3ch view/bin/transfer screen
common area►P52
¾ Operation buttons of P1/P2 channel (clip view)
(2) (4) (6) (7)(3) (5)(1)
(1)
[Clear (In/Out)]
(2)
[Cue(In)]
(3)
[Mark(In)]
(4)
[Mark(Out)]
Clears In/Out points set on the clip.
Moves to the In point of the clip.
Sets In point to the current position. Aer
In point has been set, the In point marker
appears on the scrubbing bar.
Sets Out point to the current position.
Aer Out point has been set, the Out point
marker appears on the scrubbing bar.
(5)
[Cue(Out)]
(6)
[Create Subclip]
(7)
[Set]
Moves to the Out point of the clip.
Creates a sub clip between the set In-Out
points.
Creating a sub clip between In-Out points
(highlight)►P107
Trims the clip between the set In-Out
points.
Trimming a clip between the set In-Out
points►P106
March 26, 2014 T2 Elite/Pro/Express User Manual
93
Page 94
Section 8 ― Playing/Editing
¾ P1/P2 channel (playlist view) – 1ch view
(2) (8) (9)
(4) (6)(3) (5) (7)(1)
(10)
(11)
(12)
(13)
(14)
(15)
(17) (18) (19)(16)
*(2) to (20) are common in P2 channel.
P1 channel tab/P2
(1)
channel tab
By tapping, selects and highlights the P1
channel (or P2 channel).
Indicates the current playback mode (sync
mode, E to E mode, loop playback mode)
of the P1 channel (or P2 channel) in white
(2)
Playback mode
characters.
By tapping, also switches the playback
mode.
Switching playback mode►P102
(3)
Status
Indicates the playback progress status.
Locks P1 channel (or P2 channel)
operations.
(4)
[Locked]
While the operations are locked, [Locked]
and [P1] (or [P2] buon) buons light in red.
Tapping it again releases the lock.
(20)
94
Displays the video currently played back.
Tapping the preview displays in the full
(5)
Preview
sc re en vi ew.
If a playlist is not loaded, displays the
output prole of the channel on the upper
le.
(6)
[Cur:]
Indicates the current timecode of the
playlist.
T2 Elite/Pro/Express User Manual March 26, 2014
Page 95
Displaying P1/P2 channel in 1ch view
(7)
(8)
(9)
(10)
(11)
(12)
(13)
Playback speed
Scrubbing bar
[Rem:]
[Add Event]
[Delete Event]
[Move Up]
[Move Down]
Indicates the current playback speed
(times).
Indicates the playback progress status and
markers of set In/Out points.
Indicates the timecode for the remaining
time of event or the timecode for the
remaining time of whole playlist.
The timecode to be displayed can be
changed by [Playlist Remain TC:] in [P1] (or
[P2]) -> the [Monitor & Remote] tab on the
seing screen.
[Monitor & Remote] tab►P191
Adds an event to the playlist.
Creating a playlist►P108
Deletes the event selected in the event list.
Moves up the event selected in the event
list.
Moves down the event selected in the event
list.
(14)
(15)
(16)
(17)
(18)
[Menu]
[Clip View]
Operation buttons
[ P.L i s t: ]
[Current Event:]
Displays the related menu.
Switches to the clip view.
Operation buttons of P1/P2 channel (playlist
view)►P96
Indicates the name of the loaded playlist.
Tapping the entry area allows to change the
playlist name.
Software keyboard►P120
Displays the information of the event being
played.
[In:]/[Out:]/[Dur:]
Indicates the timecode of In/Out points and
the length of the event (duration).
[Format:]
Indicates the video size and frame rate.
March 26, 2014 T2 Elite/Pro/Express User Manual
95
Page 96
Section 8 ― Playing/Editing
(19)
Event list
Displays the list of events in the playlist.
The selected event is displayed with a blue
frame.
The event being played is highlighted in
blue.
1ch view/3ch view/
(20)
bin/transfer screen
common area
1ch view/3ch view/bin/transfer screen
common area►P52
¾ Operation buttons of P1/P2 channel (playlist view)
(2) (4) (6)(3) (5)(1)
(1)
[Clear (In/Out)]
(2)
[Cue(In)]
(3)
[Mark(In)]
(4)
[Mark(Out)]
In the TRIM mode, clears In/Out points set
on the event to cancel the TRIM mode.
Moves to the In point of the event.
In the TRIM mode, sets In point to the
current position. Aer In point has been
set, the In point marker appears on the
scrubbing bar.
In the TRIM mode, sets Out point to the
current position. Aer Out point has been
set, the Out point marker appears on the
scrubbing bar.
96
(5)
(6)
[Cue(Out)]
[TRIM]
Moves to the Out point of the event.
Switches to the TRIM mode. You can edit
the In/Out points of the event selected in
the event list.
Trimming an event►P110
Selecting P1/P2 channel in 3ch view
In 3ch view, you can view three channels, the video recorded in the R1
channel and the clip or playlist played in the P1/P2 channel simultaneously.
In 3ch view of P1/P2 channel, you can use the operation buons and jog/
shule on the lower part of the touch screen LCD, to play or to switch
playback modes.
1
Tap [3ch View].
The display switches to 3ch view.
T2 Elite/Pro/Express User Manual March 26, 2014
Page 97
Selecting P1/P2 channel in 3ch view
2
Tap the P1 channel tab (or P2 channel tab).
P1 channel (or P2 channel) is selected and highlighted. The playback
operation to the selected channel becomes valid.
If the clip is loaded to the P1 channel (or P2 channel), clip view is displayed.
And if a playlist is loaded, playlist view is displayed.
¾ P1/P2 channel (clip view) – 3ch view
(2) (8) (9)(4) (6)(3) (5) (7)(1)
*(2) to (9) are common in P2 channel.
P1 channel tab/
(1)
P2 channel tab
(2)
Playback mode
(3)
Status
(4)
[Locked]
By tapping, selects and highlights the P1
channel (or P2 channel).
Indicates the current playback mode (sync
mode, E to E mode, loop playback mode) of the
P1 channel (or P2 channel) in white characters.
By tapping, also switches the playback mode.
Switching playback mode►P102
Indicates the playback progress status.
Locks P1 channel (or P2 channel) operations.
While the operations are locked, [Locked] and
[P1] (or [P2] buon) buons light in red.
Tapping it again releases the lock.
March 26, 2014 T2 Elite/Pro/Express User Manual
97
Page 98
(2) (8) (9)
(10) (11)
(4) (6)(3) (5) (7)(1)
Section 8 ― Playing/Editing
(5)
(6)
(7)
Preview
Audio level
display
[Clip:]
Displays the video currently played back.
If a clip is not loaded, displays the output
prole of the channel on the upper le.
Displays output audio level.
Indicates the name of the loaded clip.
Tapping the entry area allows to change the
clip name.
Software keyboard►P120
(8)
(9)
[Cur:]
[Rem:]
Indicates the current timecode.
Indicates the timecode of the remaining time.
¾ P1/P2 channel (playlist view) – 3ch view
*(2) to (11) are common in P2 channel.
P1 channel tab/
(1)
P2 channel tab
(2)
Playback mode
By tapping, selects and highlights the P1
channel (or P2 channel).
Indicates the current playback mode (sync
mode, E to E mode, loop playback mode) of the
P1 channel (or P2 channel) in white characters.
By tapping, also switches the playback mode.
Switching playback mode►P102
98
T2 Elite/Pro/Express User Manual March 26, 2014
(3)
(4)
(5)
Status
[Locked]
Preview
Indicates the playback progress status.
Locks P1 channel (or P2 channel) operations.
While the operations are locked, [Locked] and
[P1] (or [P2] buon) buons light in red.
Tapping it again releases the lock.
Displays the video currently played back.
If a playlist is not loaded, displays the output
prole of the channel on the upper le.
Page 99
(6)
(7)
Audio level
display
[ P.L i s t: ]
Loading contents to P1/P2 channel
Displays output audio level.
Indicates the name of the loaded playlist.
Tapping the entry area allows to change the
playlist name.
Software keyboard►P120
(8)
(9)
(10)
(11)
[Now:]
[Next:]
[Cur:]
[Rem:]
Indicates the name of the current event.
Indicates the name of the next event.
Indicates the current timecode of the playlist.
Indicates the timecode of the remaining time
of event or the timecode of remaining time of
whole playlist.
The timecode to be displayed can be changed
by [Playlist Remain TC:] in [P1] (or [P2]) -> the
[Monitor & Remote] tab on the seing screen.
[Monitor & Remote] tab►P191
Loading contents to P1/P2 channel
The procedure to load the contents in the bin to the P1 channel or P2 channel
is described in this part.
Contents loaded to the P1/P2 channel can be performed playback or editing
of In/Out points.
1
Select the bin in the [Bin] tab and display the contents.
Displaying the [Bin] tab►P79
2
Select an item and tap [>P1] or [>P2].
The item is loaded to the P1 channel or P2 channel.
If the clip is loaded to the P1 channel (or P2 channel), clip view is displayed.
And if a playlist is loaded, playlist view is displayed.
P1/P2 channel (clip view) – 1ch view►P91
P1/P2 channel (playlist view) – 1ch view►P94
TIP
• To unload contents, display the P1 channel (or P2 channel) in
1ch view, tap [Menu], and then tap [Unload].
March 26, 2014 T2 Elite/Pro/Express User Manual
99
Page 100
(2)
(4)
(3)
(1) (1)
Section 8 ― Playing/Editing
Playing back video
Playing back with operation buttons
You can play the video of the selected channel using the operation buons.
1
Control buttons►P35
During the playback, the [Play] buon lights up.
Playing back in variable speed mode (variable playback)
You can play the video of the selected channel in the variable speed mode.
1
Control buttons►P35
The mode switches to the variable speed mode and VAR speed control is
displayed.
While in the variable speed mode, the [VAR] buon lights up.
Press the [Play] buon.
Press the [VAR] buon.
¾ VAR speed control
(1)
[<]/[>]
(2)
Speed control bar
(3)
[Play Speed:]
(4)
[Close]
By every tap, increases or decreases the
playback speed by 0.1 time.
By tapping on the speed control bar,
species the playback speed within the
range of -2 to +2 times.
Indicates the current playback speed.
Closes the VAR speed control.
Even aer closing the VAR speed control,
you can perform variable speed playback
by operating the jog/shule.
2
Press the [Play] buon.
3
Tap the speed control bar and move it.
100
Steps 2 and 3 can also be operated by the jog/shule.
T2 Elite/Pro/Express User Manual March 26, 2014
