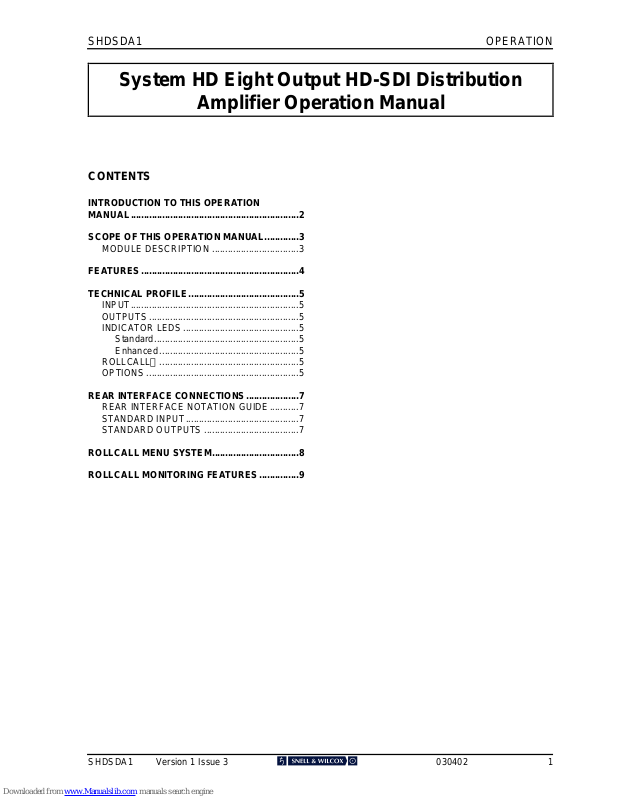

SHDSDA1 OPERATION
System HD Eight Output HD-SDI Distribution
Amplifier Operation Manual
SHDSDA1 Version 1 Issue 3 030402 1
CONTENTS
INTRODUCTION TO THIS OPERATION
MANUAL................................................................2
SCOPE OF THIS OPERATION MANUAL.............3
MODULE DESCRIPTION .................................3
FEATURES............................................................4
TECHNICAL PROFILE..........................................5
INPUT................................................................5
OUTPUTS.........................................................5
INDICATOR LEDS............................................5
Standard.......................................................5
Enhanced.....................................................5
ROLLCALL.....................................................5
OPTIONS..........................................................5

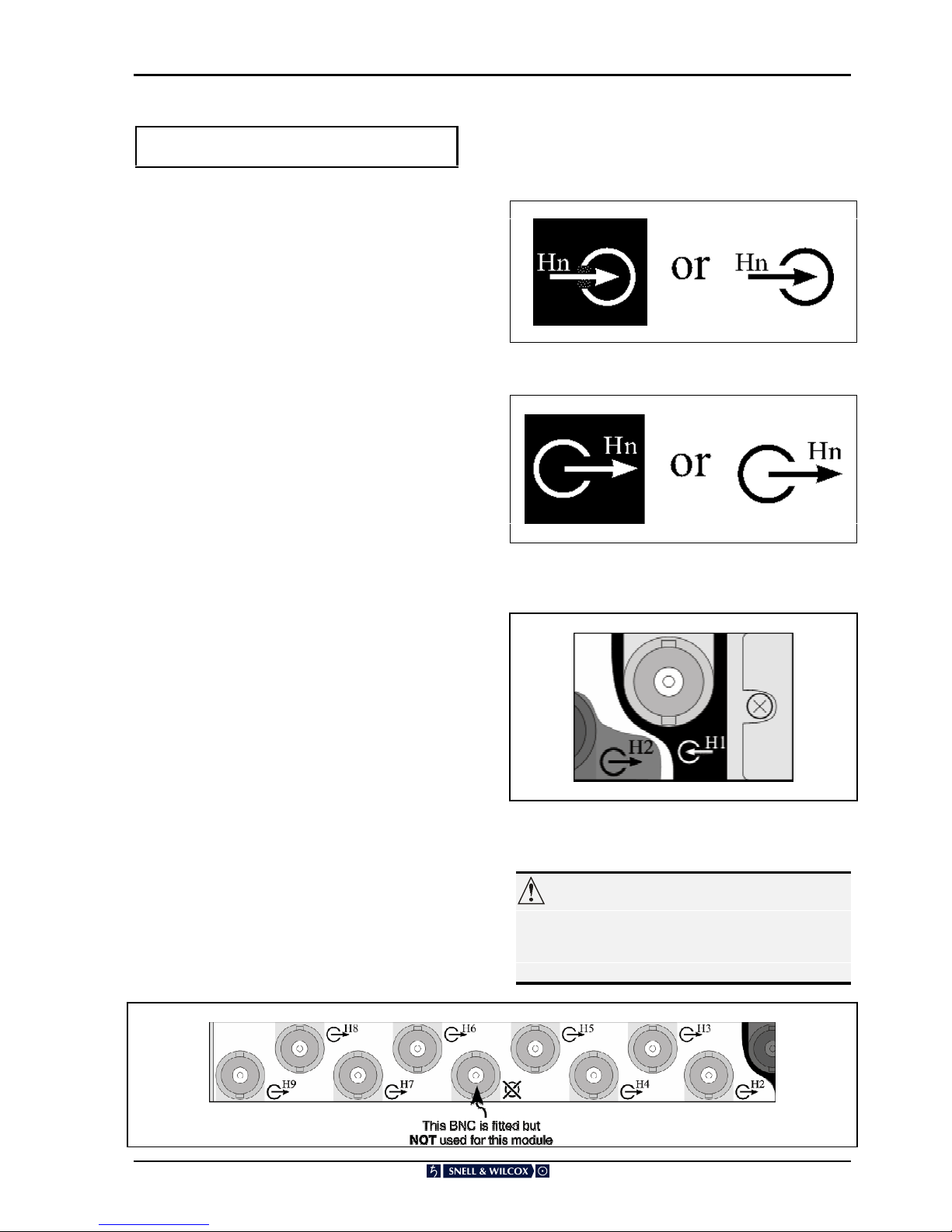

REAR INTERFACE CONNECTIONS....................7
REAR INTERFACE NOTATION GUIDE...........7
STANDARD INPUT...........................................7
STANDARD OUTPUTS ....................................7

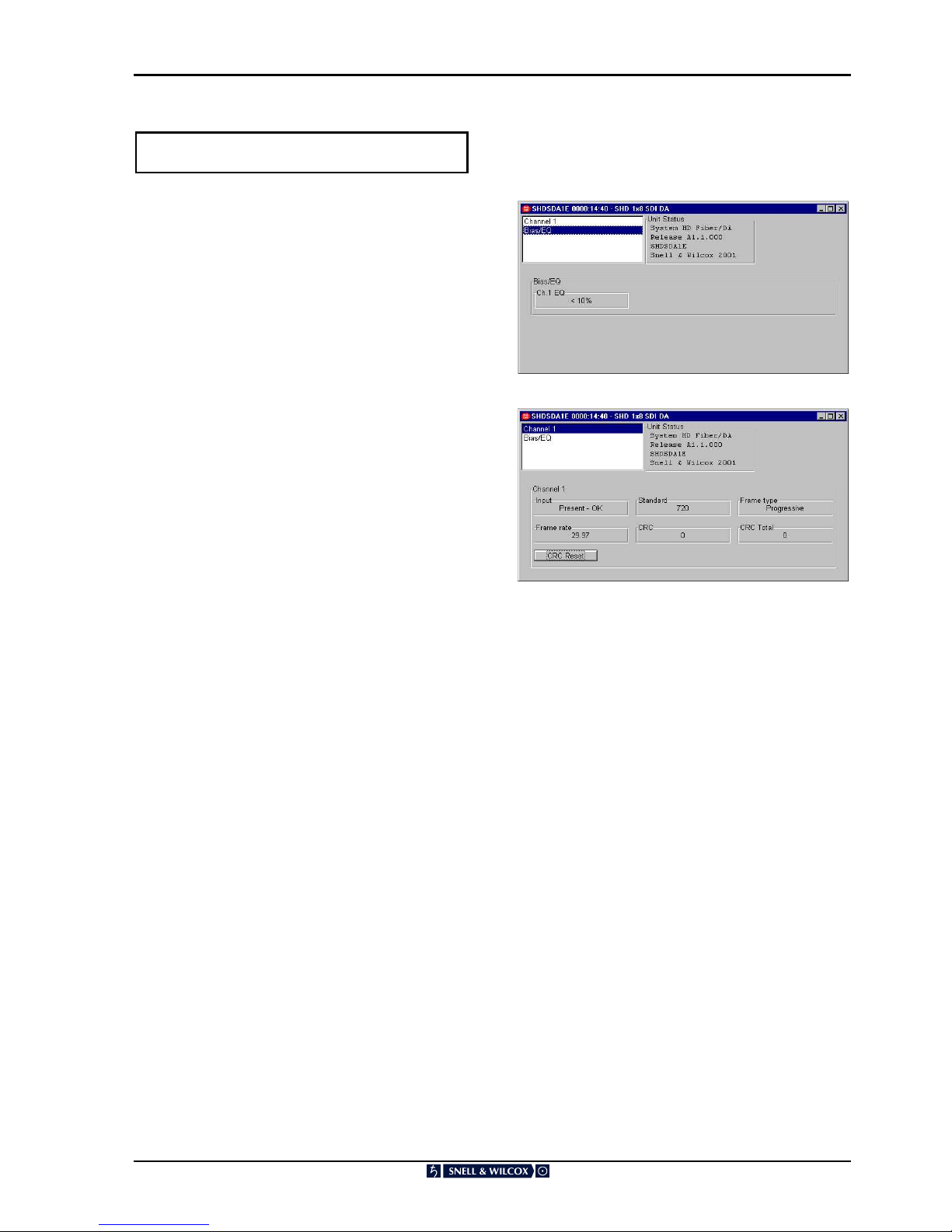

ROLLCALL MENU SYSTEM.................................8
ROLLCALL MONITORING FEATURES ...............9
SHDSDA1 OPERATION
SHDSDA1 Version 1 Issue 3 030402 2
Introduction to this Operation Manual
This manual covers the operation and use of the module described below.
WARNING…
THE FRONT PANEL OF THE UNIT MUST NOT BE
OPENED BY THE OPERATOR. ACCESS IS ONLY
PERMITTED TO FULLY QUALIFIED
INSTALLATION ENGINEERS.
System HD Modules must only be installed and/or replaced by qualified service personnel, with reference to
the System HD Installation guide. Refer all installation and servicing to qualified personnel only.
Manufacturers Notice
Copyright protection claimed includes all forms and matters of copyrightable material and information now
allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from
the software programs which are displayed on the screen such as icons, screen display looks etc.
Reproduction or disassembly of embedded computer programs or algorithms is prohibited.
No part of this publication may be transmitted or reproduced in any form or by any means, electronic or
mechanical, including photocopy, recording or any information storage and retrieval system, without permission
being granted, in writing, by the publishers or their authorised agents.
Important Notice
No responsibility is taken by the manufacturer or supplier for any non-compliance to EMC standards due to
incorrect installation.
Information in this manual and software are subject to change without notice and does not represent a
commitment on the part of Snell & Wilcox Ltd. The software described in this manual is furnished under a
licence agreement and may not be reproduced or copied in any manner without prior agreement with Snell &
Wilcox Ltd. or their authorised agents.
SHDSDA1 OPERATION
SHDSDA1 Version 1 Issue 3 030402 3
Scope of this Operation Manual
This is the operation manual for the System HD Single Channel Distribution Amplifier Module. It covers the
modules ordered under the following codes :
SHDSDA1S-S1 – Standard 8 output distribution amplifier with basic reporting.
SHDSDA1E-S1 – 8 output distribution amplifier with enhanced reporting
SHDSDA1S-S1 and SHDSDA1E-S1 Distribution Amplifier, Rear Panel View
Module Description
The Eight Output HD-SDI Distribution Amplifier
provides eight reclocked HD-SDI outputs from a
single HD-SDI input.
The electrical high definition serial digital (HD-SDI)
bitstream is input into the distribution amplifier main
board via a 75Ω BNC connector on a rear panel
interface card. The HD-SDI input signal is then
equalised and re-clocked before being split to
provide eight identical coaxial HD-SDI outputs for
the user via 75Ω BNC connectors on the backpanel
of the interface card.
Detailed performance information can be obtained
via the RollCall interface.
Two levels of monitoring sophistication are
available to the user. A standard operational level
is available on all boards, covering parameters
ranging from voltage supply status to the presence
of an input signal. The optional enhanced
monitoring level provides a comprehensive
analysis of the incoming HD-SDI signal such as
CRC error detection, line standard and frame rate
identification.
WARNING…
THE FRONT PANEL OF THE UNIT MUST NOT
BE OPENED BY THE OPERATOR. ACCESS IS
ONLY PERMITTED TO FULLY QUALIFIED
INSTALLATION ENGINEERS.
It is recommended that a record is made of the
System HD Order Code for the module in the table
on the following page. This will allow easy
identification of the monitoring level of the main
board when referring to this manual at a later date.
Quick guide to order codes:
SHD SDA1 X S X
Dist. Amplifier
Code
Properties
S
Standard reporting
E
Enhanced reporting
Interface card
option code
Interface card supplied with
main amplifier board
1
10 BNC labelled for 8 output
Codes other than those listed refer to custom
options.
Amplifier
Interface
card
