User’s Guide

3922 496 30481 February 2007 v3.0

LDK 5417 + LDK 4417

SD Digital Triax camera system

LDK 5417 + LDK 4417 User’s Guide ii

Declaration of Conformity

We, Grass Valley Nederland B.V., Kapittelweg 10, 4827 HG Breda, The Netherlands, declare under our sole responsibility that this product is in compliance with the following standards:

- EN60950 : Safety

- EN55103-1: EMC (Emission)

- EN55103-2: EMC (Immunity)

following the provisions of:

a. the Safety Directives 73/23//EEC and 93/68/EEC b. the EMC Directives 89/336/EEC and 93/68/EEC

FCC Class A Statement

This product generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause interference to radio communications.

It has been tested and found to comply with the limits for a class A digital device pursuant to part 15 of the FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.

Trademarks

Website

Operation of this product in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.

Copyright Grass Valley Nederland B.V. 2007. Copying of this document and giving it to others, and the use or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or design. Liable to technical alterations in the course of further development.

Grass Valley and Infinity are trademarks of Grass Valley, Inc. All other tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies.

Visit the Grass Valley public website to download the latest user’s guide updates and additional information about your broadcast product:

www.thomsongrassvalley.com

LDK 5417 + LDK 4417 User’s Guide i

Table of contents

1 – Specifications

1.1 LDK 5417 Digital Triax Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 LDK 4417 Digital Triax Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.3 Triax cable specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.4 Remote control cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 – Configuration

2.1 Typical setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Connecting a control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 – Adapter controls

3.1 Powering the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.2 Selecting monitoring signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.4 Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.5 Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

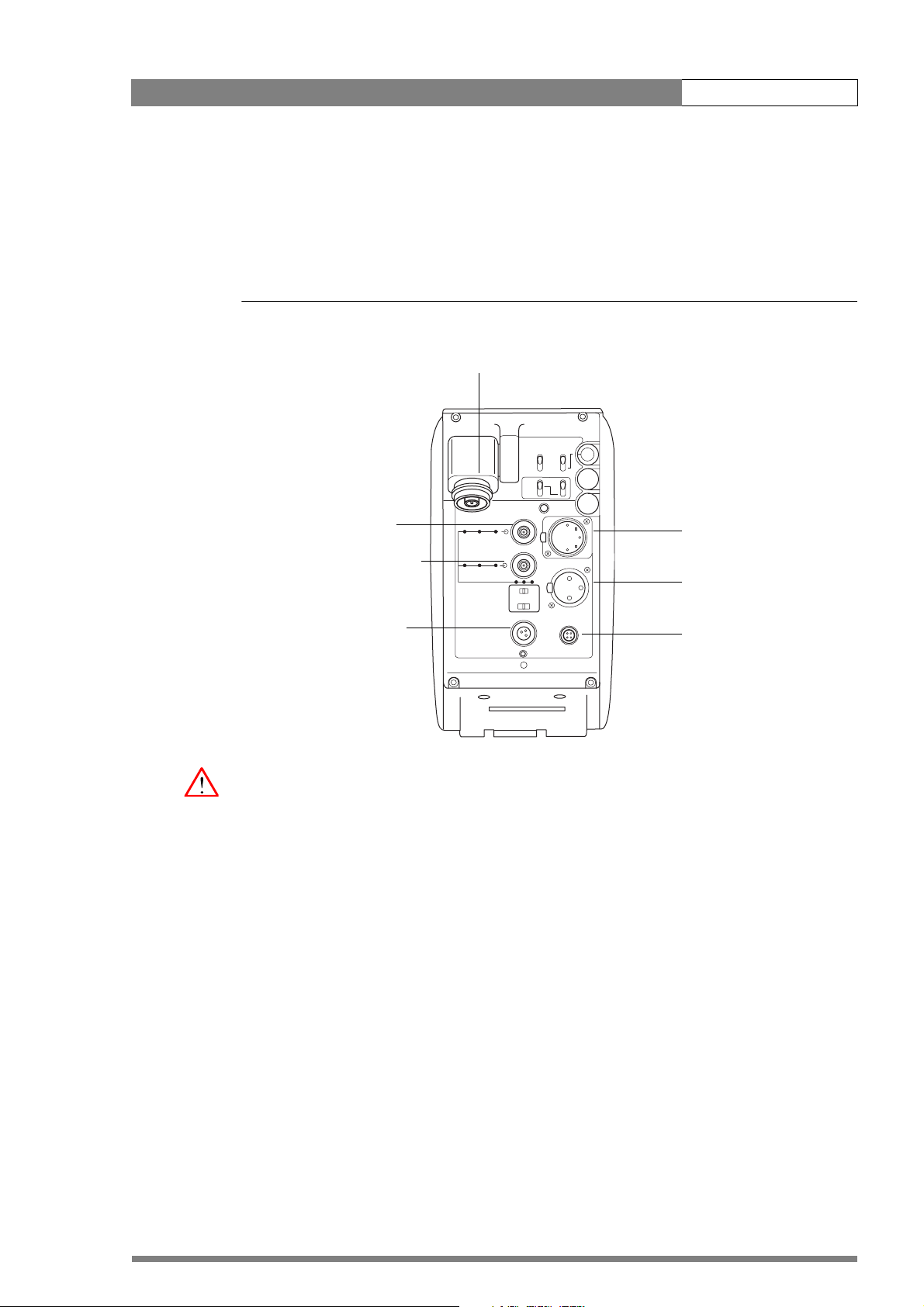

4 – Adapter connectors

4.1 Triax connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.2 Ext1/Ext2 video output connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.3 Viewfinder / External 1 video output connector . . . . . . . . . . . . . . . . . . . . . . . . 12

4.4 Script light power supply socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.5 DC power output socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.6 Audio microphone 1 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.7 Intercom headset connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5 – Camera install menu

6 – Base Station

6.1 Dimensions, weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

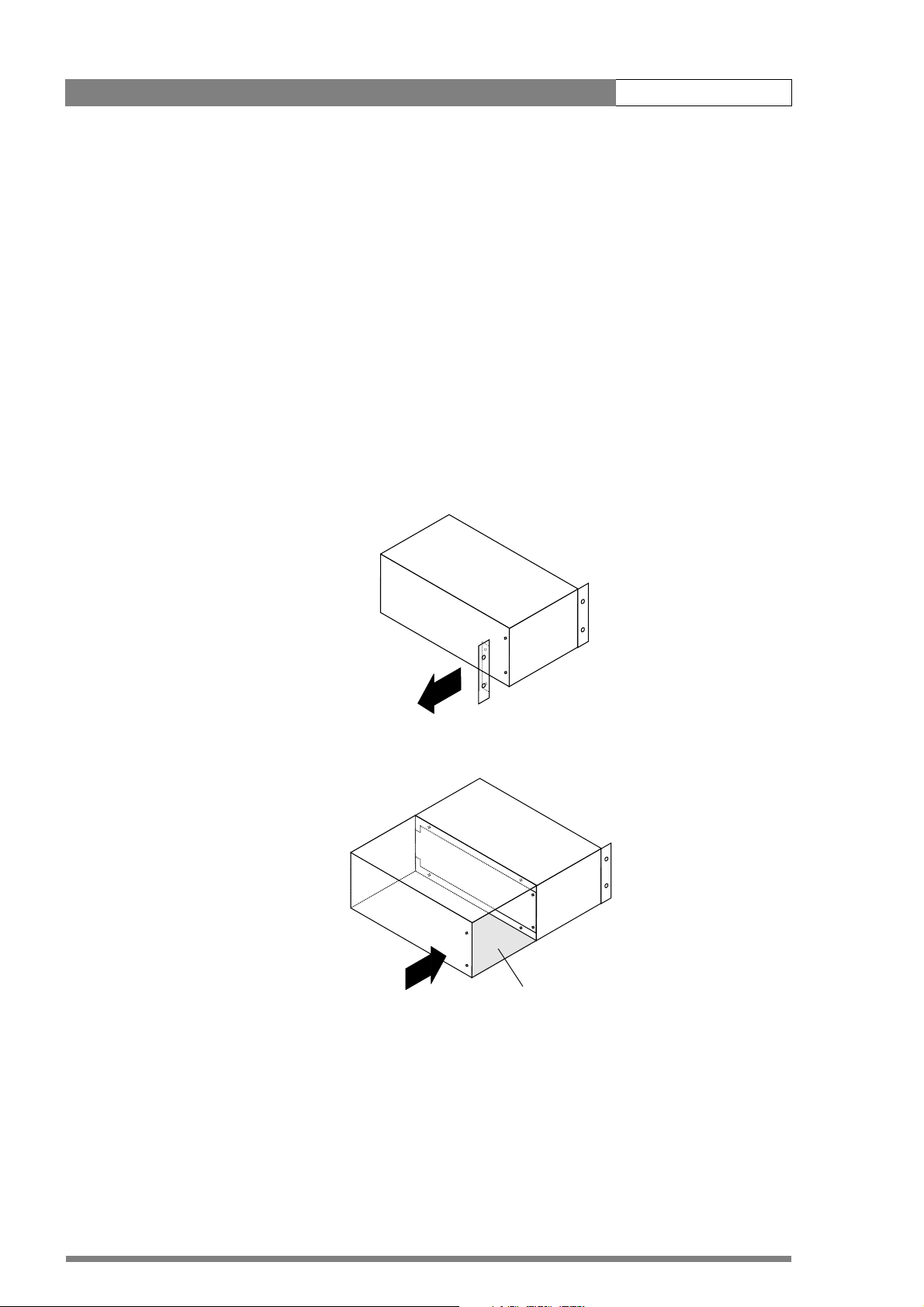

6.2 Installation of Base Station in rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

7 – Mains power supply

7.1 Adapting the Base Station to the mains voltage . . . . . . . . . . . . . . . . . . . . . . . 23

7.2 Fuse changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

8 – Base Station connections

8.1 Back panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

LDK 5417 + LDK 4417 User’s Guide ii

9 – Base Station controls

9.1 Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

10 – Base Station installation

10.1 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

10.2 Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

10.3 Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

10.4 Adaptation of BS to external on-air signal controls from the studio . . . . . . . . 38

11 – DC/DC converters

11.1 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

LDK 5417 + LDK 4417 User’s Guide iii

End-of-life product recycling

Grass Valley’s innovation and excellence in product design also extends to the programs we’ve established to manage the recycling of our products. Grass Valley has developed a comprehensive end-of-life product take back program for recycle or disposal of end-of-life products. Our program meets the requirements of the European Union’s WEEE Directive and in the United States from the Environmental Protection Agency, individual state or local agencies.

Grass Valley’s end-of-life product take back program assures proper disposal by use of Best Available Technology. This program accepts any Grass Valley branded equipment. Upon request, a Certificate of Recycling or a Certificate of Destruction, depending on the ultimate disposition of the product, can be sent to the requester.

Grass Valley will be responsible for all costs associated with recycling and disposal, including freight, however you are responsible for the removal of the equipment from your facility and packing the equipment ready for pickup.

For further information on the Grass Valley product take back system please contact Grass Valley at + 800 80 80 20 20 or +33 1 48 25 20 20 from most other countries. In the US and Canada please call 800-547-8949 or 530-478-4148. Ask to be connected to the EH&S Department. In addition, information concerning the program can be found at:

www.thomsongrassvalley.com/environment

LDK 5417 + LDK 4417 User’s Guide iv

Important information

Read this information carefully before installing this equipment and retain them for future reference. Read and comply with the warning and caution notices that appear in the manual.

Any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Safety Summary

This informaton is intended as a guide for trained and qualified personnel who are aware of the dangers involved in handling potentially hazardous electrical/electronic equipment. It is not intended to contain a complete list of all safety precautions which should be observed by personnel in using this or other electronic equipment.

The installation of this equipment involves risks both to personnel and equipment and must be performed only by qualified personnel exercising due care.

During installation and operation of this equipment, local building safety and fire protection standards must be observed.

Warnings

Before connecting the equipment to the power supply of the installation, the proper functioning of the protective earth lead of the installation needs to be verified.

Whenever it is likely that safe operation is impaired, the apparatus must be made inoperative and secured against any unintended operation. The appropriate servicing authority must then be informed. For example, safety is likely to be impaired if the apparatus fails to perform the intended function or shows visible damage.

Warnings indicate danger that requires correct procedures or practices to prevent death or injury to personnel.

• Do not modify this equipment;

• Installation of this equipment must only be performed by qualified personnel;

• Only mount the unit on a tripod or pedestal and head that can carry a payload of more than 50 kg.

• Do not use any accessories other than those recommended by the manufacturer;

• In case of an emergency ensure that the power is disconnected;

• Mount equipment so that power lead can be accessed to disconnect power;

• Any interruption of the protection conductor inside or outside the apparatus, or disconnection of the protective earth terminal, is likely to make the apparatus dangerous. Intentional interruption is prohibited;

• Use only fuses of the type and rating specified;

• To prevent fire or shock hazard, do not expose the unit to rain. If the unit is used in a wet environment, a rain cover should be used for personal safety reasons;

• There are no user servicable parts inside. Refer servicing to qualified personnel only or contact your local Grass Valley representative;

LDK 5417 + LDK 4417 User’s Guide v

• Observe local building safety, fire protection and electrical installation standards during installation and operation of this equipment;

• Before connecting the equipment to the power supply of the installation, verify the proper functioning of the protective earth lead;

• Whenever it is likely that safe operation is impaired, the apparatus must be made inoperative and secured against any unintended operation.

Cautions

Cautions indicate procedures or practices that should be followed to prevent damage or destruction to equipment or property.

• Do not subject the unit to severe shocks or vibration;

• Do not expose the unit to extremes of temperature;

• To prevent risk of overheating, ventilate the product correctly;

• Connect the product only to a power source with the specified voltage rating.

LDK 5417 + LDK 4417 User’s Guide vi

Wichtige Hinweise

Lesen Sie bitte diese Hinweise genau bevor Sie diese Apparatur installieren und erhalten Sie Sie für künftiges Nachslagen. Beachten und Lesen Sie alle mit “Achtung” und “Vorsicht” gekennzeichneten Warnhinweise.

Änderungen haben zur Folge, dass die Garantie ungültig wird und der Benutzer für etwaige durch die veränderte Ausrüstung verursachte Störungen haftbar gemacht werden könnte.

Sicherheit (Zusammenfassung)

Diese Informationen sind als Leitfaden für qualifiziertes Fachpersonal gedacht, das die Gefahren beim Umgang mit potenziell gefährlicher elektrischer/elektronischer Ausrüstung kennt. Es handelt sich dabei nicht um eine vollständige Zusammenstellung aller Sicherheitsvorkehrungen, die beim Gebrauch dieser oder anderer elektronischer Geräte zu beachten sind.

Die Montage, Wartung und Instandsetzung dieser Ausrüstung ist mit Risiken für Personal und Ausrüstung verbunden und darf nur von qualifiziertem Personal vorgenommen werden, wobei mit der nötigen Sorgfalt vorzugehen ist.

Vorsicht

Beim Einbau und Betrieb dieser Ausrüstung müssen die örtlichen Gebäudesicherheits- und Brandschutzvorschriften beachtet werden. Vor dem Anschluss der Ausrüstung an die Stromversorgung der Anlage muss überprüft werden, ob der Schutzleiter intakt ist.

Wenn eine Beeinträchtigung des sicheren Betriebs wahrscheinlich ist, muss das Gerät außer Betrieb gesetzt und gegen ungewollten Betrieb gesichert werden. Dann muss der zuständige Kundendienst benachrichtigt werden. Eine Beeinträchtigung der Sicherheit ist zum Beispiel dann wahrscheinlich, wenn das Gerät nicht wie vorgesehen funktioniert oder einen sichtbaren Schaden aufweist.

Mit “Vorsicht” wird auf eine Gefahr hingewiesen, die korrekte Arbeits- oder Verfahrensweisen erfordert, um Tod oder Verletzung zu verhindern.

• An dieser Ausrüstung dürfen keine Änderungen vorgenommen werden;

• Die Montage dieser Ausrüstung darf nur von Fachpersonal vorgenommen werden;

• Diese Ausrüstung soll nur auf einem Stativ oder Sokkel und einem Kopf aufgestellt werden die eine Last von mehr als 50 kg trägen kann.

• Es sollen nur von den Hersteller empfohlene Zubehöre verwendet werden;

• Bei Eintreten eines Notfalls unbedingt die Stromzufuhr abschalten;

• Ausrüstung so montieren, daß das Netzkabel zum Abschalten der Stromzufuhr zugänglich ist;

• Jede Unterbrechung des Schutzleiters innerhalb oder ausserhalb des Geräts oder Trennung der Schutzleiter-anschlussklemme Könnte das Gerät fefährlich machen. Eine absichtliche Unterbrechung ist untersagt;

• Es dürfen nur Sicherungen des vorgeschriebenen Typs und Nennwerts verwendet werden;

LDK 5417 + LDK 4417 User’s Guide vii

• Um Feuer oder Schlaggefahr vorzubeugen, soll das Produkt nie an Regen ausgesetzt werden. Wenn das Produkt in eine nasse Umgebung verwendet wird muss eind Regenüberzug verwendet werden.

• Dieses Produkt enthält keine Anwenderteile. Reparatur und Wartung nur von qualifiziertem Fachpersonal vornehmen lassen oder nehmen Sie Kontakt auf mit Ihrem Grass Valley Vertretene;

• Beim Einbau und Betrieb dieser Ausrüstung müssen die örtlichen Gebäudesicherheits- und Brandschutzvorschriften beachtet werden;

• Vor dem Anschluss der Ausrüstung an die Stromversorgung der Anlage muss überprüft werden, ob der Schutzleiter intakt ist;

• Wenn eine Beeinträchtigung des sicheren Betriebs wahrscheinlich ist, muss das Gerät außer Betrieb gesetzt und gegen ungewollten Betrieb gesichert werden.

Achtung

Mit “Achtung” werden Arbeitsanweisungen gekennzeichnet, die zu befolgen sind, um eine Beschädigung oder Zerstörung der Ausrüstung bzw. von Eigentum zu verhindern.

• Dieses Produkt darf nicht an extremen stöße oder Zittern ausgesetzt werden;

• Dieses Produkt darf nicht an extremen Temperaturen ausgesetzt werden;

• Um einer Überhitzungsgefahr vorzubeugen, ist das Produkt korrekt zu belüften;

• Das Produkt darf nur an eine Stromquelle mit der vorgeschriebenen Nennspannung angeschlossen werden.

LDK 5417 + LDK 4417 User’s Guide viii

Installation notices

For proper installation the following NEC articles should be noticed:

Regarding communication circuits:

• Installation of equipment (NEC article 800.18).

Regarding radio and television equipment:

• Avoid contact with conductors of other systems (NEC article 810.13);

Provide extensive, separate clearance requirements for indoor and outdoor locations (NEC article 810.18).

Mains power supply chord

General

A mains power supply chord is not shipped with the device. To connect the device to the mains the following power supply cord is advised: type H03 VV-F or H03 VVH2-F flexible wire: 1 mm², 250V / 10A minimum or 16 AWG.

When the device is installed in one of the following countries the power chord must be compliant to the indicated specifications and regulations below:

Denmark

Supply cord of single-phase equipment having a rated current not exceeding 10A shall be provided with a plug according to the Heavy Current Regulations section 107-2-D1. Class I equipment provided with socket-outlets with earth contact or which are intended to be used in locations where protection against indirect contact is required according to the wiring rules shall be provided with a plug in accordance with standard sheet DK 2-1a or DK 2-5a.

Ireland

Apparatus which is fitted with a flexible cable or cord and is designed to be connected to a mains socket conforming to I.S. 411 by means of that flexible cable or cord and plug, shall be fitted with a 13A plug in accordance with Statutory Instrument 525:1997 National Standards Authority of Ireland (section 28) (13A plugs and Conversion Adaptors for Domestic Use) Regulations, 1997.

Spain

Supply cords of single-phase equipment having a rated current not exceeding:

• 10A shall be provided with a plug according to UNE 20315:1994

CLASS I EQUIPMENT provided with socket-outlets with earth contacts, or which are intended to be used in locations where protection against indirect contact is required according to the wiring rules, shall be provided with a plug in accordance with UNE 20315:1994

LDK 5417 + LDK 4417 User’s Guide ix

Switzerland

Supply cords of equipment having a rated current not exceeding 10A shall be provided vwith a plug complying with SEV 1011 or IEC 884-1 and the following dimension sheet:

• SEV 6534-2.1991 Plug Type 12: L+N+PE250V 10A

Apparatus which is fitted with a flexible cable or a cord and is designed to be connected to a mains socket conforming to BS 1363 by means of that flexible cable or cord and plug, shall be fitted with a "standard plug" in accordance with Statutory Instrument 1786: 1994 The Plugs and Sockets etc. (Safety) Regulations 1994, unless exempted by those regulations.

Note: "Standard plug" is defined in SI 1786:1994 and essentially means an approved plug conforming to BS 1363 or an approved conversion plug.

Listed, detachable, maximum 4.5 m (14.76 ft.) long; rated minimum 125V, 10A, type SJT or type SVT flexible cord; one end terminates in NEMA 5-15P or 5-20P groundingtype attachment plug, other end in appliance coupler.

Listed, detachable, maximum 4.5 m (14.76 ft.) long; rated minimum 250V, 10A, type SJT or type SVT flexible cord; one end terminates in NEMA 6-15P or NEMA 6-20P groundingtype attachment plug, other end in appliance coupler.

LDK 5417 + LDK 4417 User’s Guide x

LDK 5417 + LDK 4417 User’s Guide | Specifications 1

1 Specifications

1.1 LDK 5417 Digital Triax Adapter

Item Value

Power requirements Digital Triax powered

Operating temperatures -20°C to +45°C (-4°F to +113°F)

Storage temperatures -20°C to +60°C (-4°F to +140°F)

Weight (approx.) 2.3 kg (5.0 lbs.)

Dimensions 180 mm (H) x 110 mm (W) x 191 mm (L) without handgrip

Digital Triax in/out Fischer, ARD, Lemo or Trilock connector

Maximum Triax cable length 600m (1,600 ft) with 14mm cable (without teleprompter)

refer to the Triax cable specifications below for other values.

Intercom XLR-5 with PROD channel

Video EXT out 1 Vpp ~75 Ohm; BNC socket

Video VF out 1 Vpp ~ 75 Ohm; BNC socket

Rear microphone in XLR-3, balanced, +48 Vdc

DC power out +48 Vdc, 4-pin Lemo (12 or 24 Vdc with optional DC-DC

convertor)

Scriptlight power 12 Vdc, 0.25A, 3-pin Fischer

1.2 LDK 4417 Digital Triax Base Station

Item Value

Power requirements Approx. 70 W with camera and viewfinder

Mains supply 100 - 125V or 200 - 240 Vac, 50 or 60 Hz

Operating temperatures 0°C to +40°C (32°F to +104°F)

Storage temperatures -20°C to +55°C (-4°F to +131°F)

Weight (approx.) 7.0 kg (15.4 lbs.)

Dimensions 1/2 width 19-inch 3U rack

Video links Camera to Base Station: 270 Mbits digital

Base Station to camera: 2 analog links, bandpass @ 4.5 MHz

Base Station to OCP distance max. 50m or 100m using specified serial cables

Input signals Genlock and return video Base Station to camera

Output signals Digital outputs 270 Mbits (3x), encoded video (2x), camera

microphone output (1x)

LDK 5417 + LDK 4417 User’s Guide | Specifications 2

Item Val ue

Other signals Intercom (4-wire or RTS)

RS-422 link to operational control panel Power supply - ON AIR1 and ON AIR2 indications

Electromagnetic compatibility and safety devices

Conforms with CE directives (CE marking)

1.3 Triax cable specifications

Features used Cable length (8 mm) Cable length (14 mm)

Camera video and return signals, audio signals and control bus

including teleprompter power 100m (330 ft.) 300 m (1,000 ft.)

300m (1,000 ft.) 600m (2,000 ft.)

Note 1

Maximum cable lengths are specified with Draka cables (8 mm and 14 mm). Exact cable lengths depend on the quality of the cables and connectors used.

Note 2

Video signal rule: cable length is restricted by an attenuation of 24 dB max. at 100 MHz.

Note 3

Teleprompter power rule: maximum cable length is restricted by the conductor plus screen cable resistance which may not exceed 4Ω.

1.4 Remote control cables

1.4.1 Standard length cables

Use one of the following RS-422 remote control cables to connect the OCP 400/10 to the Base Station:

Cable type: Product code:

RS-422 Cable (2m) LDK 8121/02

RS-422 Cable (10m) LDK 8121/10

RS-422 Cable (25m) LDK 8121/25

LDK 5417 + LDK 4417 User’s Guide | Specifications 3

1.4.2 Custom length cables

To create your own custom length RS-422 remote control cable use the following wiring diagrams (for cable runs up to 50m or 100m respectively):

Figure 1-1. RS-422 serial cable type 1 (twisted pair; 0 to 50 m)

Base Station

Ground Ground

Return A Return B

Out B

Out A Ground Ground

OCP power (+ On Air 1, On Air 2)

Cable Shield

Figure 1-2. RS-422 serial cable type 2 (twisted power; 0 to 100 m)

Base Station OCP 400/10

Ground

Return A Return B

Out B Out A

Ground

OCP Power (+ On Air1, On Air2)

Cable Shield

OCP 400/10

Ground Ground Out A Out B Return B Return A Ground Ground OCP Power

(+ On air1, On AIR 2)

Ground Out A Out B Return B Return A Ground

OCP Power (+ On Air1, On Air 2)

LDK 5417 + LDK 4417 User’s Guide | Specifications 4

LDK 5417 + LDK 4417 User’s Guide | Configuration 5

2 Configuration

2.1 Typical setup

A camera head with an LDK 5417 Triax adapter is connected to a LDK 4417 Base Station using a Triax cable. The maximum length of cable that can be used without significant degradation of the video signal is 600m (2,000 ft.) for a 14 mm Triax cable when no prompter is used (see specifications for other values). The power supply is applied to the Base Station and via the Triax cable to the camera.

Figure 1-3. Typical Digital Triax system setup

SD Camera Head

LDK 5417 Digital Triax Adapter

Clear

ND1/4

Star 4P

ND1/16

Star 6P

Smart card

ND1/64

Soft Focus

P wel

wer o P

Tracke rAux

Triax cable

remote control cable

OCP 400/10

LDK 4417 Digital Triax Base Station

External Power

Supply (optional)

LDK 5417 + LDK 4417 User’s Guide | Configuration 6

2.2 Connecting a control panel

An OCP 400/10 operational control panel can be connected to the Base Station using an serial (RS-422) link. Refer to the user’s guides of your camera and the OCP 400/10 for more information about the functions that are available.

Powering the control panel

The recommend method to power the OCP 400/10 is to use a remote control cable mentioned in chapter 1.4. The control panel is powered by the Base Station via the remote control cable.

It is also possible to use an external power supply. The Grassvalley LDK 5903/00 external power supply can provide for up to five operational control panels. In this case, any standard RS-422 cable can be used to connect to the Base Station.

LDK 5417 + LDK 4417 User’s Guide | Adapter controls 7

3 Adapter controls

Figure 1-4. Digital Triax adapter LDK 5417 controls

Ext1 Ext2 Ext2

VF VF Ext1

DIGITAL TRIAX

Intercom routing switch

Headset production volume control selection

Headset volume control

Call button

Prod Off (Prod)

Ext1 Ext2

Front

Rear

Loc

Call

Mic

Script Light

Front Rear 48V

Prompter power

Power on

5. Audio microphone switch

6. Power On indicator

7. Video output selection switch

8. Viewfinder display signal selection

3.1 Powering the camera

The power supply for the camera and Digital Triax adapter is supplied via the triax cable from the Base Station. The power on indicator (6) lights when power is supplied and the camera power switch is On.

An output power socket supplies +48 Vdc, 50W maximum for a converter (LDK 5930 or LDK 5940) to supply power for a teleprompter. Refer to chapter 11“DC/DC converters“ for more information about power converters.

LDK 5417 + LDK 4417 User’s Guide | Adapter controls 8

3.2 Selecting monitoring signals

Viewfinder display signal

The viewfinder can display local or external video signals. The viewfinder display signal selection switch (8) determines the signal that is displayed in the viewfinder.

Set the first switch to LOC to display the local camera Y signal in the viewfinder. (The Ret. button on the lens also selects this signal in parallel with this switch.) If set to the other position, then the second switch determines the signal displayed in the viewfinder.

The second switch selects the signal displayed in the viewfinder when the viewfinder signal selection switch is not in the LOC position. The signal then displayed is:

• EXT 1 BS external input 1

• EXT 2 BS external input 2.

Video output signal selection

Two BNC connectors on the rear of the adapter carry viewfinder or external signals. To select the output signal for these connectors use the top switch located underneath them (the bottom switch is used for the audio microphone).

Figure 1-5. Video output switch and associated connectors

Ext1 Ext2 Ext2

VF VF Ext1

Video output selection switch

The video output signal selection switch shown above is a three-position switch which determines the output video signal on the two video output connectors as shown in the following table:

Switch position VF/Ext1 connector Ext1/Ext2 connector

Set to the right External 1 signal External 2 signal

Centered Viewfinder signal External 2 signal

Set to the left Viewfinder signal External 1 signal

LDK 5417 + LDK 4417 User’s Guide | Adapter controls 9

3.3 Audio

A high quality audio channel is available. Set the gain levels (-22 dB to -64 dB) for this channel in the Audio section of the Install menu. A high-pass filter for the channel can also be switched on via this menu.

The microphone for channel 1 is connected either to the socket at the front-right of the camera or to the Mic 1 socket on the triax adapter. A 3-position switch (5) activates the socket at the front-right or the connector at the rear. The third position selects the rear socket with a phantom power supply (+48V). The front microphone socket always has a phantom power supply (+48V).

Switch position Camera front-right connector Adapter rear connector

Set to the right No input Active input with +48V

Centered No input Active Input

Set to the left Active input with +48V No input

3.4 Intercom

The production (PROD) intercom channel is sent from the Base Station to the camera operator's headset. The camera operator's intercom microphone signal is sent to the Base Station.

The Intercom section of the Install menu contains various settings for these channels. Signals for left and right headset muffs and sidetone levels can be selected. Intercom microphone amplification levels, phantom power supply and microphone on/off switches are also available in this menu.

Additional controls can be found on the back of the adapter.

Intercom microphone routing switch

This 3-position switch (1) routes the camera operator's intercom microphone signal to production (Prod) or turns off the intercom. The third (momentary) position also routes the intercom signal to production but operates only as long as it is held in place.

Use the VTR Start button at the front of the camera, or the VTR button on the lens, to send the camera operator's intercom microphone signal to production, regardless of the position of this switch.

Production volume control selection

Use this 2-position switch (2) to control the volume of the production signal in the intercom either at the front of the camera or at the rear of the adapter.

Intercom headset volume control

This control adjusts the volume of the production signal to the camera operator's headset when selection switch (2) is in the REAR position.

LDK 5417 + LDK 4417 User’s Guide | Adapter controls 10

3.5 Communication

Call button

Press this momentary button (4) to send a signal to the control panels calling for attention. The ND/RE indicator in the 1.5-inch viewfinder shows when a call signal is sent or received.

LDK 5417 + LDK 4417 User’s Guide | Adapter connectors 11

4 Adapter connectors

Figure 1-6. Digital Triax adapter connector location

Triax connector

Front

Prod Off (Prod)

Rear

Loc

Ext1 Ext2

Call

Ext1/Ext2 video output

Viewfinder/Ext1 video output

Ext1 Ext2 Ext2

VF VF Ext1

Mic

Front Rear 48V

Intercom headset

Audio microphone 1 input

DIGITAL TRIAX

Script Light

Power on

Prompter power

DC power supply output

Script light power

Do not allow system earth currents to exceed 1.5A in the outer shield of the Triax cable or

0.2A in other cable shields. To avoid excessive earth currents in a Triax system, galvanically separate the power earth connection of equipment connected to the camera from the camera earth.

LDK 5417 + LDK 4417 User’s Guide | Adapter connectors 12

4.1 Triax connector

Figure 1-7. Triax connector

1. Centre pin: Power and signals

2. Inner shield: Return

3. Outer shield: Camera housing GND

Centre pinOuter shield Inner shield

Panel view (X100)

4.2 Ext1/Ext2 video output connector

Figure 1-8. External 1 / External 2 video output connector

This socket provides a 1.0 Vpp external video signal from the Base Station (output signal is selectable).

BNC connector: panel view (X105)

4.3 Viewfinder / External 1 video output connector

Figure 1-9. Viewfinder / External 1 video output connector

This socket provides a 1.0 Vpp output viewfinder signal or the external 1 video signal from the Base Station.

NC connector: panel view (X106)

LDK 5417 + LDK 4417 User’s Guide | Adapter connectors 13

4.4 Script light power supply socket

Figure 1-10. Script light power supply output connector

1. +12 Vdc (maximum dissipation 3W)

2. Power return

ischer 3-pole female: panel view (X102)

3. Shield

4.5 DC power output socket

Figure 1-11. DC power output connector

1. +48 Vdc (max. 50W)

2. -5 Vdc

Lemo 4-pole female: panel view (X101)

3. Ground

4. Ground

This connector can be used to supply a DC/DC converter (LDK 5930/5940) to supply power for a teleprompter.

4.6 Audio microphone 1 connector

Figure 1-12. Audio microphone 1 connector

1. Audio Screen

2. Audio In signal

3. Audio Return signal

Microphone impedance >200 ohm

Sensitivity range: -64 to -24 dBu

XLR 3-pole female; panel view (X107)

A phantom power supply of +48 Vdc can be supplied to the microphone via this connector. To select this use the Audio Microphone switch (5) at the rear of the

LDK 5417 + LDK 4417 User’s Guide | Adapter connectors 14

4.7 Intercom headset connector

Figure 1-13. XLR intercom headset connector

1. Microphone return

2. Microphone

XLR 5-pole female; panel view (X104)

3. Telephone return

4. Telephone left

5. Telephone right

Microphone level: -60 dBu / -20 dBu switchable Microphone impedance: >600 Ohm

Telephone level: +6 dBu nominal Telephone output impedance: <50 Ohm

LDK 5417 + LDK 4417 User’s Guide | Camera install menu 15

5 Camera install menu

Main menu items Purpose

Disable Camera on/off

IR receiver on/off

OnAir Lamp on/off

Intercom set intercom values (sidetone, gain, phantom power)

Audio set gain and filter

Aspect ratio select aspect ratio values

Exposure set lighting and clear scan values

Gain preset set gain preset values

Autowhite set autowhite speed and gain

Quick Smart Touch on/off

Heater on/off switch for SuperXpander heater

Classic Mode set on for classic control

Text insert switches text insert on/off

Buttons assign functions to buttons

LDK 5417 + LDK 4417 User’s Guide | Camera install menu 16

LDK 5417 + LDK 4417 User’s Guide | Base Station 17

6 Base Station

6.1 Dimensions, weight

218

rs)

390 (with

TRIAX

CAM. OK

GENLOCK/

VIDEO

CAM.LOCK

EXT.REF.

COARSE

FINE

SC/H

FRONT PORCH

CAM.LOCK

EXT.REF.

COARSE

FINE

SC/H

FRONT PORCH

SOUND/

AUX

264

246

ON AIR

RCP

OFF

CABLE OPEN

CCU

POWER

ON AIR

RCP

OFF

CABLE OPEN

MAINSCAMERA

TRIAX

Weight: Approximately 7 kg

GENLOCK/

VIDEO

SOUND/

AUX

CCU

POWER

LDK 5417 + LDK 4417 User’s Guide | Base Station 18

6.2 Installation of Base Station in rack

The Base Station is fitted in a 19"rack:

1. Either alone or with an accessory of dimension 1/2 19" (vectorscope, oscilloscope,

etc.) using the assembly kit for Base Station in 19" racks, part number LDK 5108.

2. Or two Base Stations side by side using kit part number LDK 5107.

Installation of a Base Station with a 1/2 19" accessory

Equipment and tools required:

• Rack installation kit part number LDK 5108 containing various accessories,

• A screwdriver.

Fitting of accessory to the left of the Base Station

1. Remove the LH lug from the Base Station by unscrewing both attaching screws.

2. Couple the accessory rack to the LH side of the Base Station with the lugs located at

the back of the Base Station.

accessory rack

LDK 5417 + LDK 4417 User’s Guide | Base Station 19

3. Tighten the six 4 mm dia. screws with the allen wrench from inside the accessory

rack to attach it to the Bas e Statio n.

6 screws F/90HC M4x5

allen wrench

4. Place the front cover panel against the left-hand edge of the Base Station (only one

position is correct).

front cover panel

5. Tighten both the 3 mm dia. screws with the screwdriver from inside the accessory

rack to fit the front cover.

2 screws F/90 M3x4

LDK 5417 + LDK 4417 User’s Guide | Base Station 20

6. Attach the LH lug of the Base Station (removed in 1) to the left of the accessory rack.

7. Place the accessory in the accessory rack (accessory attachment is to be adapted

according to its type and brand).

8. Place the Base Station + accessory in the 19" rack at the desired location and attach

by means of the two lugs.

Fitting of accessory rack to the right of the Base Station

The principle is identical to the previous procedure, but the six 4 mm dia. screws joining the two assemblies are to be fitted from inside the Base Station. This implies that the Base Station power supply unit must be removed.

1. Remove the right-hand lug from the Base Station by unscrewing both attaching

screws.

2. Couple the accessory rack to the RH side of the Base Station, with the lugs located at

the front of the Base Station.

3. Remove the power supply unit by unscrewing the 3 attaching screws.

4. Tighten the six 4 mm dia. screws using the screwdriver from inside the Base Station

(power supply unit removed) to attach the accessory rack to the Base Station.

5. Place the front cover against the right-hand edge of the Base Station (only one

position correct).

6. Tighten both 3 mm dia. screws using the screwdriver from the inside of the Base

Station to attach the front cover.

7. Attach the RH lug of the Base Station (removed in step 1) to the right of the

accessory rack.

LDK 5417 + LDK 4417 User’s Guide | Base Station 21

8. Place the accessory in the accessory rack (accessory attachment is to be adapted

according to its type and brand).

9. Place the Base Station + accessory assembly in the 19" rack at the location required

and attach it using both lugs.

Fitting two Base Stations in a rack

Equipment and tools required:

• Reference kit LDK 5107.

• One screwdriver.

1. Remove the right-hand lug from the Base Station located to the left by unscrewing

both the attaching screws.

2. Remove the left-hand lug from the Base Station located on the right by unscrewing

both the attaching screws.

3. Remove the Base Station power supply located to the left by unscrewing the 3

attaching screws.

4. Place the front cover against the left-hand side of the Base Station located to the right

(only one position correct).

LDK 5417 + LDK 4417 User’s Guide | Base Station 22

5. Tighten both the 3 mm dia. screws using the screwdriver to attach the front cover.

2 screws F/90 M3x4

6. Place both Base Stations side by side.

7. Tighten the six 4 mm dia. screws with the screwdriver from inside the Base Station

to the left (power supply unit removed).

6 screws F/90HC M4x5

allen wrench

8. Place both Base Stations in the 19" rack at the required location and attach it using

both lugs.

LDK 5417 + LDK 4417 User’s Guide | Mains power supply 23

7 Mains power supply

7.1 Adapting the Base Station to the mains voltage

According to equipment serial number, the power supplies equipping the Base Station are:

• Bivoltage (fitted with an automatic switching system: 100 to 125 V AC and 200 to 240

V AC 50 or 60 Hz). In this case, no adaptations are required in terms of mains voltage.

• Or monovoltage 100 to 125V AC or 200 to 240V AC 50 or 60 Hz.

Caution

Before connect the Base Station to the mains, to make sure of the equipment operation voltage. This voltage is indicated on the label located on the Base Station rear panel.

7.2 Fuse changing

The fuse is located in the mains connector on the back of the Base Station.

• Disconnect the mains plug for access to fuse.

• This connector also contains a spare fuse.

Fuse t ype:

110V or 220V: Value T 6,3 AH 250V Fuse reference: T9000671

2 fuses:

• Equipment protection fuse.

• Spare fuse.

LDK 5417 + LDK 4417 User’s Guide | Mains power supply 24

LDK 5417 + LDK 4417 User’s Guide | Base Station connections 25

8 Base Station connections

8.1 Back panel

T6,3A H 250V

3 4 5

REMOTE

TALLY

INTERCOM

MIC OUTPUT

VIDEO RET 1

PROMPTER VIDEO RET 2

GENLOCK EXT. REF.

OUTPUT

COMPOSITE

SERIAL DIGITAL OUTPUT

V. B. S.

INPUT

CAMERA

DATA + DC OUT 53V 3A MAX

LDK 5417 + LDK 4417 User’s Guide | Base Station connections 26

1. Mains socket and fuses Connection to mains cable

2 fuses:

1 : Neutral 2 : Ground (connected to chassis ground) 3 : Phase

2. «MIC OUT» receptacle

MIC OUTPUT

- Equipment protection fuse

- Spare fuse. Fuse type: 110V or 220V: Value T 6,3 AH 250V P/N: T9000671

Male receptacle

Type: XLR-3-32

P/N: 91.355.161

Corresponding

socket Type: XLR-3-11C P/N: 91.355.160

According to equipment serial number, the power supplies equipping the Base Station are: Bivoltage (fitted with an automatic switching system: 100 to 125 V AC and 200 to 240 V AC 50 or 60 Hz). In this case, no adaptations are required in terms of mains voltage. Or monovoltage 100 to 125V AC or 200 to 240V AC 50 or 60 Hz. Before connecting the Base Station to the mains, to make sure of the equipement operation voltage. This voltage is indicated on the label located on the Base Station rear panel.

FUSE CHANGING The fuse is located in the mains connector on the back of the Base Station. Disconnect the mains plug for access to fuse. This connector also contains a spare fuse.

Audio output from ambient microphone connected to camera. The nominal output level is 0 dB. To modify this level, refer to the «INSTALLATION» Chapter 10.

1 : GND 2 : MIC X OUT 3 : MIC Y OUT

LDK 5417 + LDK 4417 User’s Guide | Base Station connections 27

«INTERCOM» receptacle Connection of intercommunication network between the Cameraman and producer.

Female receptacle

INTERCOM

Type: DEP09S400T P/N: T9001515

Corresponding socket Type: PMD2T09+ZHE5-M2 P/N: 99.155.568

1 : GND 2 : IN Y 3 : OUT X 4 : CH1 RTS

6 : Not connected 7 : IN X 8 : OUT Y 9 : GND

5 : CH2 RTS (Not used)

3. «REMOTE» receptacle Connection of remote control panel.

Female receptacle

REMOTE

Type: DEP09S400T

P/N: T9001515

Corresponding socket: Type: PMD2T09+Z-HE5-M2 P/N: 99.155.568

The nominal input and output levels are 0 dB. To alter these levels, refer to the «INSTALLATION» Chapter 10. The link may be «4-wire» or «RTS». Refer to the «INSTALLATION» Chapter 10.

INTERCOM

Y X

OUT

Return A

Return B

Ground

Out A

Out B

OCP

CH1 RTS

The link is an RS-422 link:

1 : GND 2 : RETURN A2 3 : OUT B2 4 : GND 5 : PV RCP

6 : GND 7 : RETURN B2 8 : OUT A2 9 : GND

PV RCP

The «PV RCP» 12 V voltage is used for powering the panel (Pmax = 6W). The «ON AIR1» and «ON AIR2» signals to the OCP and the camera are added to the «PV RCP».

LDK 5417 + LDK 4417 User’s Guide | Base Station connections 28

4. «TALLY» receptacle Connection of «ON AIR1» and «ON AIR2» signals.

Female receptacle Type: DEP09S400T P/N: T9001515

TALLY

1 : Not used 2 : ON AIR1 NEG 3 : ON AIR2 POS 4 : GND

Corresponding socket Type: PMD2T09+Z-HE5-M2

P/N: 99.155.568

6 : Not used 7 : ON AIR1 POS 8 : ON AIR2 NEG 9 : Not connected

5 : Not connected

5. «VIDEO RET 1» receptacles

Receptacles Type: P2189-A P/N: T9003306

VIDEO RET 1

The «ON AIR1» and «ON AIR2» signals received may be «VOLTAGE» or «CONTACT» signals. Adaptation of the equipment to the various types of control is described in the «INSTALLATION» Chapter. Example: «CONTACT» type ON AIR1.

TALLY

Example: «VOLTAGE» type ON AIR1

TALLY

The «Loopedthrough» No. 1 return video input. The signal is not loaded into the Base Station. Input level is 1 Vpp ~ 75 Ohm. Transmission of the «RET 1» video of the camera depends on the triaxial cable length. Refer to the specifications chapter.

ON AIR1

ON AIR1 U=5 - 48V

6. «PROMPTER VIDEO RET 2» receptacles.

Receptacles Type: P2189-A

PROMPTER

P/N: T9003306

VIDEO RET 2

7. «TRIAX» receptacle Connection of the TRIAXIAL cable connected to the camera control unit.

CAMERA

Receptacles:

•LEMO 75 Ω

•LEMO 50 Ω

•FISCHER

• KINGS

•DAMAR HAGEN

The No. 2 return video (or «PROMPTER») input is «loopedthrough». The signal is not loaded in the Base Station. Input level: 1 Vpp ~ 75 Ohm Transmission of the «RET 2» video to the camera depends on the length of the triaxial cable. Refer to the SPECIFICATION chapter.

The cable transmits the various signals and the camera power supply. Output voltage: 52 Vdc; Imax: 3 A

LDK 5417 + LDK 4417 User’s Guide | Base Station connections 29

8. «GEN LOCK EXT. REF» receptacles

Receptacles Type: P2189-A P/N: T9003306

GENLOCK EXT. REF.

9. «COMPOSITE V.B.S.» receptacles.

The «looped through» reference signal input. The signal is not loaded in the Base Station. Input level: 1 Vpp ~ 75 Ohm. As a general rule, the signal must be of "composite video" type to control the composite and digital signals at the output from the Base Station (link J92 set to ON on the GENLOCK/VIDEO board. If the reference signal does not a "Burst", place link J92 on the GENLOCK/VIDEO board to OFF position. The composite signal subcarrier is then slaved with respect to the composite sync signal. Refer to the INSTALLATION Chapter 10 for equipment phase alignment.

Encoded PAL or NTSC signal outputs. Levels: 1 Vpp ~ 75 Ohm.

CVBS

Type: P2189-A

P/N: T9003306

10.«SERIAL DIGITAL OUTPUT» receptacles

Receptacles

SERIAL DIGITAL OUTPUT

Receptacles+cables Type:

12 3

98230x-021-009.0 P/N: T6000091

Serial digital signal outputs:

4:2:2, 270 Mbits.

LDK 5417 + LDK 4417 User’s Guide | Base Station connections 30

LDK 5417 + LDK 4417 User’s Guide | Base Station controls 31

9 Base Station controls

9.1 Front panel

2 3 4 5 6 7

TRIAX

1. «CAM OK» indicator light

CAM. OK

2. «H, SC, SC/H» adjustments

COARSE

FINE

SC/H

CAM. OK

GENLOCK/

VIDEO

CAM.LOCK

EXT.REF.

COARSE

FINE

SC/H

FRONT PORCH

SOUND/

AUX

ON AIR

RCP

CCU

POWER

OFF

CABLE OPEN

MAINSCAMERA

Normally lit, this indicator light indicates that the digital signal from the camera is present.

Adjustments of the digital video horizontal phase at the equipment output. Adjustment of the subcarrier and horizontal phases for encoded videos at the equipment output. «FRONT PORCH» adjustments of the encoded videos at the equipment output.

Refer to the «INSTALLATION» Chapter 10 for a complete description of these adjustments.

FRONT PORCH

3. «CAM LOCK, EXT. REF» indicator lights

CAM.LOCK

EXT.REF.

CAM LOCK: Normally lit, this indicator light indicates that the camera phase is controlled by the Base Station. EXT REF.: When lit, this indicator light indicates presence of an external sync signal on the «GEN LOCK» receptacle of the Base Station.

LDK 5417 + LDK 4417 User’s Guide | Base Station controls 32

4. «RCP» indicator light

RCP

5. «CAMERA: ON, OFF, CABLE OPEN» indicator lights

CAMERA

OFF

CABLE OPEN

6. «ON AIR» indicator light

ON AIR

This indicator light lights to indicate activity on the link between Camera and OCP connected on the «REMOTE» receptacle of the Base Station.

ON: Normally and permanently lit, this light indicates that the camera is powered. This indicator light when flashing indicates excessive consumption at the camera. The current in the triaxial cable is then between 3 A and 3.3 A. Above 3.3 A, the Base Station power supply cuts out. rearming is obtained automatically 4 times. If the overload persists, the cut-out becomes permanent. An equipment on/off is then required to start the equipment operating again.

OFF: This permanently lit indicator light indicates that the camera power is off. When flashing, this indicator light indicates that the camera consumption is excessively low. The current in the triaxial cable is then between 0.1 A and 0.4 A.

CABLE OPEN: This normally extinguished indicator light indicates that the triaxial cable is not connected to the camera or to the back panel of the Base Station.

When lit, this light indicates that the equipment is switched to the antenna («ON AIR1»).

7. «MAINS» switch

The equipment master on/off switch: «I»: The equipment is operating.

«O»: The equipment is not operating.

MAINS

LDK 5417 + LDK 4417 User’s Guide | Base Station installation 33

10 Base Station installation

10.1 Audio

The «MIC 1» sound output level can be adjusted on the «SOUND/AUX» card over the range -6 dB to + 18 dB. This adjustment is made using selector switch S500 «0 dB + 12 dB» and «LEVEL» potentiometer R500.

ON AIR 1

ON AIR 2

SOUND / AUX PCB

10.2 Intercom

The «INTERCOM» link of the sound engineer’s control room may be of the 4-wire or RTS/ CLEARCOM type.

4-wire link

• Selector switches S560 and S50 on the «SOUND/AUX» board of the Base Station should be set to 4W.

S800

S801

S900

S901

CONTACT

VOLTAGE

CONTACT

VOLTAGE

+12dB

0dB

S580

S560

MIC-2 MIC-1

CCU->CAM CAM->CCU

S581

OUT LEVEL

R580

RTS

OUT LEVEL

S500

OUT LEVEL

S540

R500

+12dB0dB

R540

+12dB0dB

• The «INTERCOM» sound output level can be adjusted on the «SOUND/AUX» board of the Base Station over the range - 6 dB to + 18 dB. The adjustment is performed using «0 dB + 12 dB» selector switch S540 and «LEVEL» potentiometer R540.

• The «INTERCOM» sound input level can be adjusted on the «SOUND / AUX» board of the Base Station over the range - 6 dB to + 18 dB. The adjustment is made using the «0 dB + 12 dB» selector switch S581 and the «LEVEL» potentiometer R580.

Note

☞

When the 4-wire link is in use, the RTS/CLEARCOM intercom link is unavailable.

LDK 5417 + LDK 4417 User’s Guide | Base Station installation 34

RTS/CLEARCOM link

• Selector switches S560 and S580 on the «SOUND/AUX» board of the Base Station must be set to RTS

• The RTS «INTERCOM» sound input level can be adjusted on the «SOUND/AUX» board of the Base Station over the range - 6 dB to + 18 dB. The adjustment is made using the «0 dB +12 dB» selector switch S581 and «LEVEL» potentiometer R580.

Note

☞

When the RTS/CLEARCOM link is in use, the 4-wire intercom link is unavailable. The RTS/CLEARCOM link must be loaded with 200 Ohm.

10.3 Video

The various adjustments are made on the «GENLOCK/VIDEO» board.

ON AIR 1

ON AIR 2

CONTACT

S800

S801

VOLTAGE

CONTACT

S900

S901

VOLTAGE

MIC-2 MIC-1

CCU->CAM CAM->CCU

+12dB

S581

0dB

OUT LEVEL

R580

S580

S560

RTS

OUT LEVEL

S500

OUT LEVEL

S540

R500

+12dB0dB

R540

+12dB0dB

SOUND / AUX PCB

S1151

CAM.LOCK

EXT.REF.

COARSE

FINE

SC/H

FRONT PORCH

«GENLOCK VIDEO» board switches

S300

CO1140

CO1160

CO1150

GENLOCK/

VIDEO

«GENLOCK VIDEO» board adjustments

Factory switches

Rotary switch CO1160 is for factory testing only. For normal operation, this switch must be set to position 0.

Switch S300 is for factory use only; do not change its position.

Rotary switch CO1140 is for special applications; do not change its position.

LDK 5417 + LDK 4417 User’s Guide | Base Station installation 35

Composite video output standard selection

This selection is made using rotary switch CO1150. Select the position corresponding to the standard you require.

Table 0-1. Standard selection

Position Standard

0NTSC

1PAL M

2 PAL BGHI

3PAL N

4 to F Not used

Equipment phase alignment with a digital installation

Equipment slaved to an external reference on «GENLOCK» input

The reference signal should be a black video signal with or without burst delivered by a Broadcast generator and terminated with 75 Ohm load.

0.3 V

Reference with Black Burst (BBS)

Horizontal phase alignment of the digital output signal

The horizontal phase of the digital output signal with respect to the external reference signal is adjusted using the «ΦH COARSE» and «ΦH FINE» thumbwheels. The range of variation depends on the position of the lower switch of S1151.

S1151 up position (FINE):

• «ΦH COARSE»: Adjustment in steps of 592 ns.

• «ΦH FINE»: Adjustment in steps of 37 ns.

Reference without Black Burst

0.3 V

The range of variation of the digital output signal with respect to the reference signal is approximately -6.4 µs + 2.7 µs.

S1151 down position (COARSE):

• «ΦH COARSE»: Adjustment in steps of 1184 ns.

• «ΦH FINE»: Adjustment in steps of 74 ns.

LDK 5417 + LDK 4417 User’s Guide | Base Station installation 36

The range of variation of the digital output signal with respect to the reference signal is approximately -12.8 µs + 5.4 µs.

Reference signal

Digital signal

- ) 8

5 ) 8

- ) 8

REF

5 ) 8

S1151 : FINE = -6.4µs to +2.7µs S1151 : WIDE = -12.8µs to +5.4µs

If the composite video output is used as a monitoring output, it is recommended to set the upper switch of S1151 to «OFF» to disable the Subcarrier genlock. In this case, the output composite signal carrier is internally slaved with respect to the sync signals.

If necessary, the «SC phase« and «Front porch» alignment can be adjusted using the «SC/H» and «FRONT PORCH» thumbwheels.

Equipment without external reference (free mode)

Set the upper switch of S1151 to «OFF». The «ΦH COARSE» and «ΦH FINE» thumbwheels are inactive.

If the composite video output is used as a monitoring output, and if necessary, the «SC phase« and «Front porch» alignment can be adjusted using the «SC/H» and «FRONT PORCH» thumbwheels. The output composite signal carrier is internally slaved with respect to the sync signals.

Phase alignment with a analog installation

External reference on «GENLOCK» input with blackburst

The reference signal should be a black video signal with burst delivered by a Broadcast generator (stable SC/H) and terminated with 75 Ohm load.

Set the upper switch of S1151 to «ON». In this case, the output composite signal subcarrier is slaved to the reference burst.

The horizontal phase of the composite signal with respect to the external reference signal is adjusted using the «ΦH COARSE» and «ΦH FINE» thumbwheels. The range of variation depends on the position of the lower switch of S1151.

S1151 up position (FINE):

• «ΦH COARSE»: Adjustment in steps of 592 ns.

• «ΦH FINE»: Adjustment in steps of 37 ns.

The range of variation of the composite signal with respect to the reference signal is approximately -6.4 µs + 2.7 µs.

LDK 5417 + LDK 4417 User’s Guide | Base Station installation 37

S1151 down position (COARSE):

• «ΦH COARSE»: Adjustment in steps of 1184 ns.

• «ΦH FINE»: Adjustment in steps of 74 ns.

The range of variation of the composite signal with respect to the reference signal is approximately -12.8 µs + 5.4 µs.

REFERENCE VIDEO

COMPOSITE VIDEO

S1151 : FINE = -6.4µs to +2.7µs S1151 : WIDE = -12.8µs to +5.4µs

REF

The output composite signal subcarrier phase with respect to the external reference signal (BBS) is adjusted using thumbwheel «ΦSC».

Adjustment of the composite signal front porch width is made using the «FRONT PORCH» thumbwheel.

Note

☞

This setting has no effect on horizontal blanking width

PAL 1,5 ±0,3 µs (1,65 µs ±0,1 µs PAL I)

NTSC 1,5 ±0,1 µs

Composite outputs 1 and 2

LDK 5417 + LDK 4417 User’s Guide | Base Station installation 38

External reference without blackburst

The reference signal should be a black video signal and terminated with 75 Ohms load.

Set the upper switch of S1151 to «OFF». The output composite signal carrier is internally slaved with respect to the sync signals.

The horizontal phase of the composite signal with respect to the external reference signal is adjusted using the «ΦH COARSE» and «ΦH FINE» thumbwheels:

The SC/H phase alignment of the composite output signal is adjusted using the «SC/H» thumbwheel.

Adjustment of the front porch of the composite signal is made using the «FRONT PORCH» thumbwheel.

Equipment without external reference (free mode)

The «ΦH COARSE» and «ΦH FINE» thumbwheels are inactive.

The output composite signal SC/H phase alignment is adjusted using the «SC/H» thumbwheel.

The output composite signal front porch duration is adjusted using the «FRONT PORCH» thumbwheel.

10.4 Adaptation of BS to external on-air signal controls from the studio

The «ON AIR 1» and «ON AIR 2» main and secondary studio commands received by the Base Station may be of two different forms:

• A DC voltage of between + 5 Volts and + 48 Volts.

• A closed loop (contact).

Adaptation is made in the «SOUND/AUX» board of the Base Station.

ON AIR 1

ON AIR 2

S800

S801

S900

S901

CONTACT

VOLTAGE

CONTACT

VOLTAGE

S580

S560

+12dB

0dB

MIC-2 MIC-1

CCU->CAM CAM->CCU

S581

OUT LEVEL

R580

RTS

OUT LEVEL

S500

OUT LEVEL

S540

R500

+12dB0dB

R540

+12dB0dB

SOUND / AUX PCB

LDK 5417 + LDK 4417 User’s Guide | Base Station installation 39

Depending on the type of signal from the mixer, set selector switches S800 and S801 (ON AIR 1) and S900 and S901 (ON AIR 2) to the positions indicated in the figure.

S800-S801 Control

Contact (up) Loop (contact)

Voltage (down) +5 V to +48 V

S900-S901 Control

Contact (up) Loop (contact)

Voltage (down) +5 V to +48 V

Note

☞

Selector switches S1000 and S1001 are not used.

LDK 5417 + LDK 4417 User’s Guide | Base Station installation 40

LDK 5417 + LDK 4417 User’s Guide | DC/DC converters 41

11 DC/DC converters

These converters, which are available as an option, are attached to the camera baseplate. The can be used to supply teleprompters for example. They provide a regulated voltage of 12 V or 24 V (depending on converter type) and a power of 50 W. The maximum power produced by the converter is ensured with a maximum triax length of :

• Type A triax (diameter 9 mm): 90 metres.

• Type B triax (diameter 13 mm): 150 metres.

LDK 5930 is the 12V version; LDK 5940 is the 24V version.

Figure 1-14. DC/DC converter

Attaching screws to the

camera baseplate or

optional fixing plate

All dimensions in mm

110

131

177

LDK 5417 + LDK 4417 User’s Guide | DC/DC converters 42

«12V/50W» or «24V/50W» receptacle Regulated voltage output.

Receptacle Type: XLR-4-31

1 : GND

2 : N.C.

P/N: 91538047 Corresponding socket Type: XLR-4-12C P/N: 91647565

3 : N.C.

4 : +V OUT (12V OR 24V(

«DC IN» receptacle Connection of cable connecting the converter to the camera.

DC IN

132

1 : +48V IN

Receptacle Type: EMD04+Z-ERNC P/N: T9003619 Corresponding socket Type: FFA-1S-304-CLAC52 P/N: T9003618

3 : GND

DC IN

The voltage on output 4 of the connector is 12 or 24 V depending on the type of converter. The maximum power produced is 50 Watts.

Note:

The maximum power (50W) produced by the external converter connected on the camera "DC OUT" is ensured with a maximum triaxial cable length.

Converter supply: The voltage received on this receptacle varies between 30 V DC and 52 V DC depending on:

- The length and type of the triaxial cable

- The power consumed by the converter. The -5 V is used to delay starting of the converter on camera power on to prevent the Channel Control Unit power supply tripping out. If a DC-to-DC converter (even unloaded) is connected to the camera while operating, the safety system will cause the camera to trip out.

The converter must be connected to the camera with camera power off.

2 : -5V IN

DC out indicator

4 : GND

Light: the DC voltage is present on the converter output.

LDK 5417 + LDK 4417 User’s Guide | DC/DC converters 43

11.1 Installation

To attach the DC/DC convertor to the camera proceed as follows:

• Ensure power is disconnected.

• Attach the LDK6506 fixing plate to the tripod plate using the supplied bolted screws (A).

• To ensure the converter’s thermal isolation from the tripod attach the screws in the exact following order:

1. Tighten screw (B).

2. Tighten two screws (C).

• Connect the cable from the DC IN input of the converter to the DC OUT output of the camera. This cable is supplied with the converter.

• Connect the equipment to be supplied to the "DC OUT 12V/50W" or "DC OUT 24V/ 50W"ouput depending on the converter type used.

Figure 1-15. Installing the DC/DC converter

Tripod plate

DC/DC convertor

Screws C

Screw B

LDK 6506 Fixing plate *

Screws A

Note

☞

The LDK 6506 Fixing Plate is always required when using the LDK5930/5940 DC/DC convertor with LDK cameras.

LDK 5417 + LDK 4417 User’s Guide | DC/DC converters 44

Grass Valley LDK 5417 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
