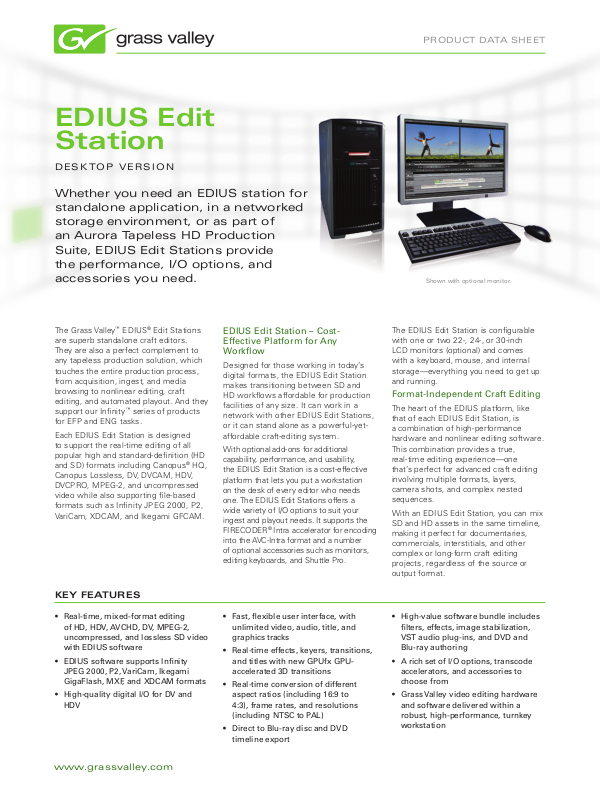

GRASS VALLEY EDIUS EDIT STATION Datasheet

EDIUS Edit
Station

DESKTOP VERSION

Whether you need an EDIUS station for
standalone application, in a networked
storage environment, or as part of
an Aurora Tapeless HD Production
Suite, EDIUS Edit Stations provide
the performance, I/O options, and
accessories you need.

PRODUCT DATA SHEET

Shown with optional monitor.

The Grass Valley™ EDIUS® Edit Stations
are superb standalone craft editors.
They are also a perfect complement to
any tapeless production solution, which
touches the entire production process,
from acquisition, ingest, and media
browsing to nonlinear editing, craft
editing, and automated playout. And they
support our Infinity™ series of products
for EFP and ENG tasks.

Each EDIUS Edit St ation is designed
to support the real-time editing of all
popular high and standard-definition (HD
and SD) formats including Canopus® HQ,
Canopus Lossless, DV, DVCAM, HDV,
DVCPRO, MPEG-2, and uncompressed
video while also supporting file-based
formats such as Infinity JPEG 2000, P2,
VariCam, XDCAM, and Ikegami GFCAM.

KEY FEATURES

Real-time, mixed-format editing •
of HD, HDV, AVCHD, DV, MPEG-2,
uncompressed, and lossless SD video
with EDIUS software

EDIUS software supports Infinity •
JPEG 2000, P2, VariCam, Ikegami
GigaFlash, MXF, and XDCAM formats

High-quality digital I/O for DV and •
HDV

EDIUS Edit Station – Cost­Effective Platform for Any
Workflow

Designed for those working in today’s
digit al formats, the EDIUS Edit Station
makes transitioning between SD and
HD workflows affordable for production
facilities of any size. It can work in a
network with other EDIUS Edit Stations,
or it can stand alone as a powerful-yet­affordable craft-editing system.

With optional add-ons for additional
capability, performance, and usability,
the EDIUS Edit Station is a cost-effective
platform that lets you put a workstation
on the desk of every editor who needs
one. The EDIUS Edit Stations offers a
wide variety of I/O options to suit your
ingest and playout needs. It supports the
FIRECODER® Intra accelerator for encoding
into the AVC-Intra format and a number
of optional accessories such as monitors,
editing keyboards, and Shuttle Pro.

Fast, flexible user interface, with •
unlimited video, audio, title, and
graphics tracks

Real-time effects, keyers, transitions, •
and titles with new GPUfx GPU­accelerated 3D transitions

Real-time conversion of different •
aspect ratios (including 16:9 to
4:3), frame rates, and resolutions
(including NTSC to PAL)

Direct to Blu-ray disc and DVD •
timeline export

The EDIUS Edit Station is configurable
with one or two 22-, 24-, or 30-inch
LCD monitors (optional) and comes
with a keyboard, mouse, and internal
storage—ever ything you need to get up
and running.

Format-Independent Craft Editing

The heart of the EDIUS platform, like
that of each EDIUS Edit Station, is
a combination of high-performance
hardware and nonlinear editing software.
This combination provides a true,
real-time editing experience—one
that’s perfect for advanced craft editing
involving multiple formats, layers,
camera shots, and complex nested
sequences.

With an EDIUS Edit Station, you can mix
SD and HD assets in the same timeline,
making it perfect for documentaries,
commercials, interstitials, and other
complex or long-form craft editing
projects, regardless of the source or
output format.

High-value software bundle includes •
filters, effects, image stabilization,
VST audio plug-ins, and DVD and
Blu-ray authoring

A rich set of I/O options, transcode •
accelerators, and accessories to
choose from

Grass Valley video editing hardware •
and software delivered within a
robust, high-performance, turnkey
workstation

www.grassvalley.com

PRODUCT DATA SHEET

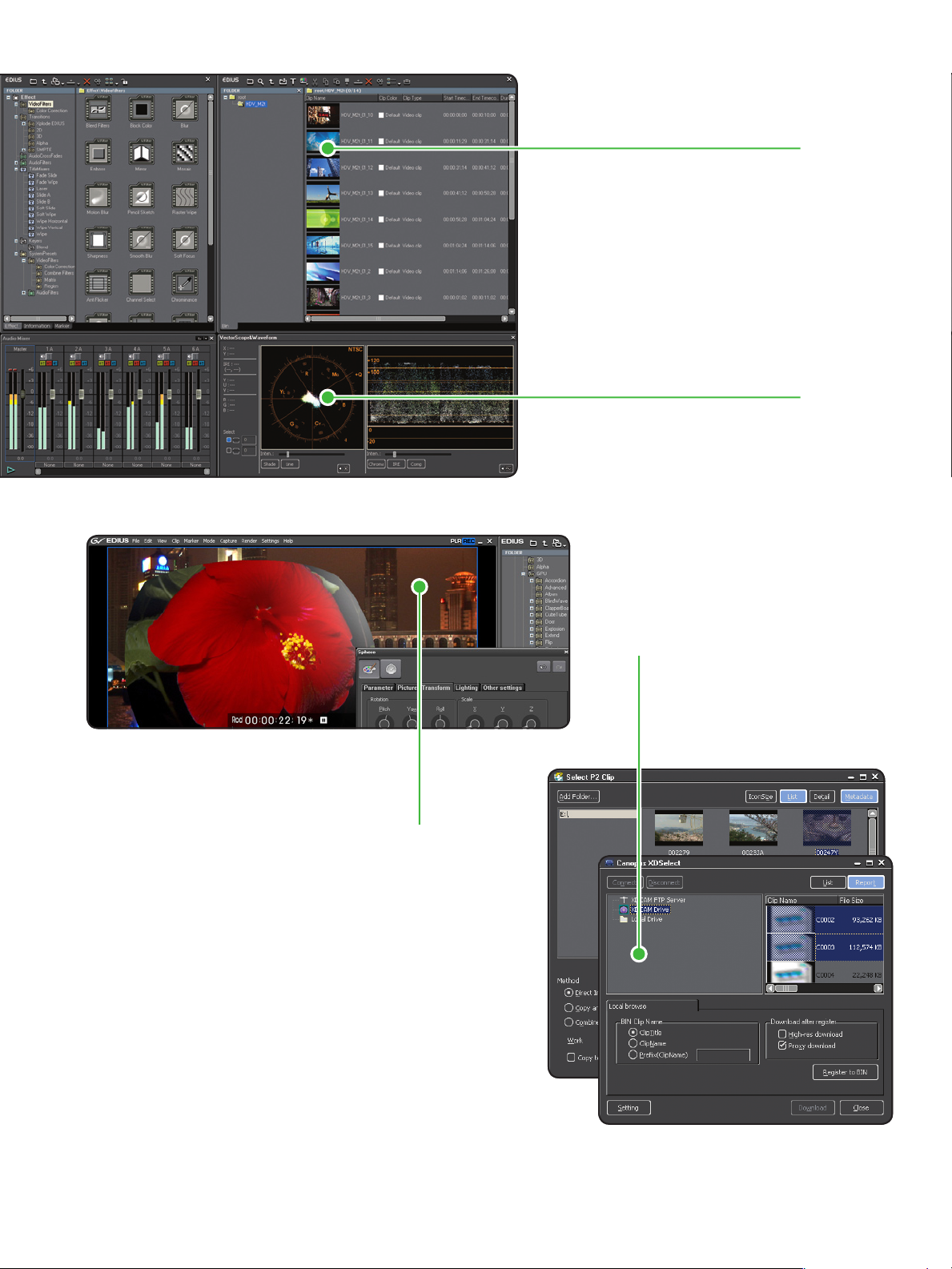

Player/Recorder Monitor View

Player side controls capture and source
trimming. Recorder side controls
timeline operation and trimming .

Jog/Shuttle Control

Jog/shuttle control via slider, mouse
scroll-wheel, or mouse motion.

Unlimited Video, Audio, and Title Tracks

Edit with unlimited video, audio, and title tracks.

Real-Time Color Correction

Use real-time color correction with
an interactive split-screen display and
secondary controls. Stack multiple filters
for even greater control.

Keyframeable Color Correction

Color correction filters are keyframeable
for precise, subtle changes over time.

www.grassvalley.com

Unsurpassed Image Quality and Performance

EDIUS software features the revolutionary Canopus HQ codec. Designed
with scalable technology, this innovative codec offers the highest
image quality and performance available in any HD editing platform. The
Canopus HQ codec not only provides superior luma and chroma sampling
of HD video, but features an adjustable bit rate for increased video
quality when capturing and encoding on high-performance systems.

PRODUCT DATA SHEET

Flexible Bin Structure

Organize, search, and manage assets

with folders and dynamic search results.

Real-Time Audio Mixer and

Waveform/Vectorscope

Use the real-time audio mixer for audio

adjustments and the real-time waveform/

vectorscope to ensure legal output.

GPU-Accelerated 3D Transitions

Harness the power of your graphics card to create
real-time, stunning quality transition effects in SD and
HD, featuring uniquely native YUV 4:2:2 processing for
improved image quality and performance. Using the
GPU as an additional, parallel source of comput ation
means that the CPU does not become a bottleneck.

Superior Integration for Tapeless Workflows

EDIUS software provides excellent support for today’s tapeless
digital workflows including those that use Grass Valley K2
media server/media client systems, as well as Panasonic P2
and VariCam, Sony XDCAM, Ikegami GigaFlash, and popular
direct-to-edit (DTE) devices. It doesn’t matter whether assets
come from tape, disk, network, or a mixture of them all, with
EDIUS software, you spend less time worrying—and less time
editing, too.

Tapeless Workflow Support

Support for tapeless workflows with

metadata preservation for modern

file-based production.

PRODUCT DATA SHEET

SPECIFICATIONS

Video Formats

Canopus HQ•
Canopus Lossless•
Canopus DV•
DVCPRO 50•
DVCPRO HD•
HDV•
Ikegami GFCAM•
Infinity JPEG 2000•
Microsoft DV•
MPEG-1•
MPEG-2 program stream, elementary •

stream, transport stream (SD and HD)
P2 (SD and HD)•
VariCam•
QuickTime (including DV, DVCPRO HD)•
XDCAM (SD and HD)•
Uncompressed•
Windows Media•

Digital Input/Output

Standard definition: DV, DVCAM, •
Infinity, P2, XDCAM

High definition: HDV, Infinity, P2, •
XDCAM, Ikegami GFCAM

2 x FireWire (IEEE 1394a)•

Device Control

DV/HDV AV/C control over FireWire
(IEEE 1394a)

Additional Input/Output and Device
Control

Depends on choice of I/O hardware
and other options. See individual data
sheets for:

HDSPARK•
HDSPARK Pro•
HDSTORM Plus•
HDTHUNDER•
EDIUS SP-SDI•
EDIUS HD•
FIRECODER Blu (not available with •

the EDIUS HD I/O option)
FIRECODER Intra•

ORDERING INFORMATION

EDIUS-TK-BASE

EDIUS Edit Station for all I/O Options
Except EDIUS HD

EDIUS-TK-BASE2

EDIUS Edit Station for the EDIUS HD
I/O Option

Turnkey I/O Options

EDIUS-TK-NOIO

Add this item for EDIUS Software-only
Turnkey Systems

EDIUS-TK-SPARK

EDIUS HDSPARK board for Turnkey
Systems

EDIUS-TK-SPARKPRO

EDIUS HDSPARK Pro board for Turnkey
Systems

EDIUS-TK-STORMPLUS

EDIUS HDSTORM Plus board for Turnkey
Systems

EDIUS-TK-THUNDER

EDIUS HDTHUNDER board for Turnkey
Systems

EDIUS-TK-SPSDI

EDIUS SP-SDI I/O boards (3 boards +
multi cable), for Turnkey Systems

EDIUS-TK-SPSDI-BX

EDIUS SP-SDI I/O boards (3 boards +
multi cable) + External Break Out Box, for
Turnkey Systems

EDIUS-TK-HD

EDIUS HD board + Break Out Box (HDBX

1000), for Turnkey Systems

System Configuration

Operating system:•

Windows XP Professional —

Workstation: HP Z800 (or Dell •
Precision T7500 when ordering the
EDIUS HD I/O option)

CPU: •

Intel Xeon 5550 2.66 GHz, —
quad core

System Drive:•

250 GB SATA —

Memory: 3 GB•
Storage:•

1 TB of SATA (500 GB x 2, RAID —

™

™

0) storage (12 hours of HQ (HD)
@ 140 Mb/s, 66 hours of DV/
HDV @ 25 Mb/s, 12 hours of
uncompressed SD, 16 hours of
DVCPRO HD)*

Blu-ray drive —

Graphics: nVidia GeForce 9600 GT •
512 MB

Connectivity: 7 x USB 2.0, 2 x •
FireWire (IEEE 1394a), 2 x 1 Gb
Ethernet

Additional Options

603064

FIRECODER Blu – Encoder Board for
Blu-ray (not available with EDIUS-TK­BASE2/EDIUS HD systems)

613063

FIRECODER Intra – Encoder Board for
AVC-Intra

601015

Aurora-EDIUS-SYS 5.1 System Option
to Integrate EDIUS 5.1 into an Aurora™
System

616309

GXF Exporter for EDIUS

606300

VTR Emulation for EDIUS

Service & Support

Twelve-month limited warranty with
service provided through local resellers.
Additional support available on a
contractual basis.

Note: System configuration is subject
to change without notice. Monitors and
other accessories not included with base
system – available separately.

* Storage time capacity depends on

compression method used, if any.

Accessories

EDIUS-22-MONITOR

EDIUS Turnkey 22" Widescreen Monitor

EDIUS-24-MONITOR

EDIUS Turnkey 24" Widescreen Monitor

EDIUS-30-MONITOR

EDIUS Turnkey 30" Widescreen Monitor

EDIUS-KB-EN

EDIUS Keyboard (US English) option for
GV Turnkey

EDIUS-KB-DE

EDIUS Keyboard (German) option for GV
Turnkey

EDIUS-KB-FR

EDIUS Keyboard (French) option for GV
Turnkey

MFS-SPRO1

ShuttlePro option for EDIUS Edit Stations

CUSTOMER SUPPORT & SERVICES

Our customer support and services offerings ensure optimal system performance and maximize uptime. These services include call centers staffed around the clock, commissioning,
professional training courses, and technical maintenance programs and service agreements.

www.grassvalley.com/support
