GRAPHTEC FC5100-75, FC5100-100, FC5100-130 User Manual

FC5100
user manual
Graphtec Part No. 53801-084T Rev. A
4
The specifications, etc., in this manual are subject to change without notice.
Printed in USA
Thank you for choosing an FC5100 Cutting Plotter.
servo drive system for highly precise cutting of color adhesive film at high speed.
For more information about Graphtec and Graphtec products, visit Graphtec’s home pages at:
www.graphtecusa.com
(USA, Canada, South America)
www.graphteccorp.com (Other regions)
Table of Contents
Chapter 1: Special Precautions . . . . . . . . . . . . . . . . . . . . . . . . 10
Handling the Cutting Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Handling the Cutters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Attaching a Cutter Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
After Turning on the Plotter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Machine Caution Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Notes on Working Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Notes on Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Daily Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Storing the Plotter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 2: Out of the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Checking the Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installing the Accuload System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Connecting the Plotter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connecting to the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connecting to the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Power to the Plotter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Chapter 3: Cutters and Holders . . . . . . . . . . . . . . . . . . . . . . . 27
Blade Application and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cutter Pen Nomenclature 28
PHP32-CB09N Cutter Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
PHP32-CB15N Cutter Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
PHP31-CB15 Cutter Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
PHP32-CB09 Cutter Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
PHP32-CB15 Cutter Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Replacing the Cutter Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Cutter Offset Value Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Replacing Supersteel Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Replacing Ceramic & Sapphire Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Blade Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

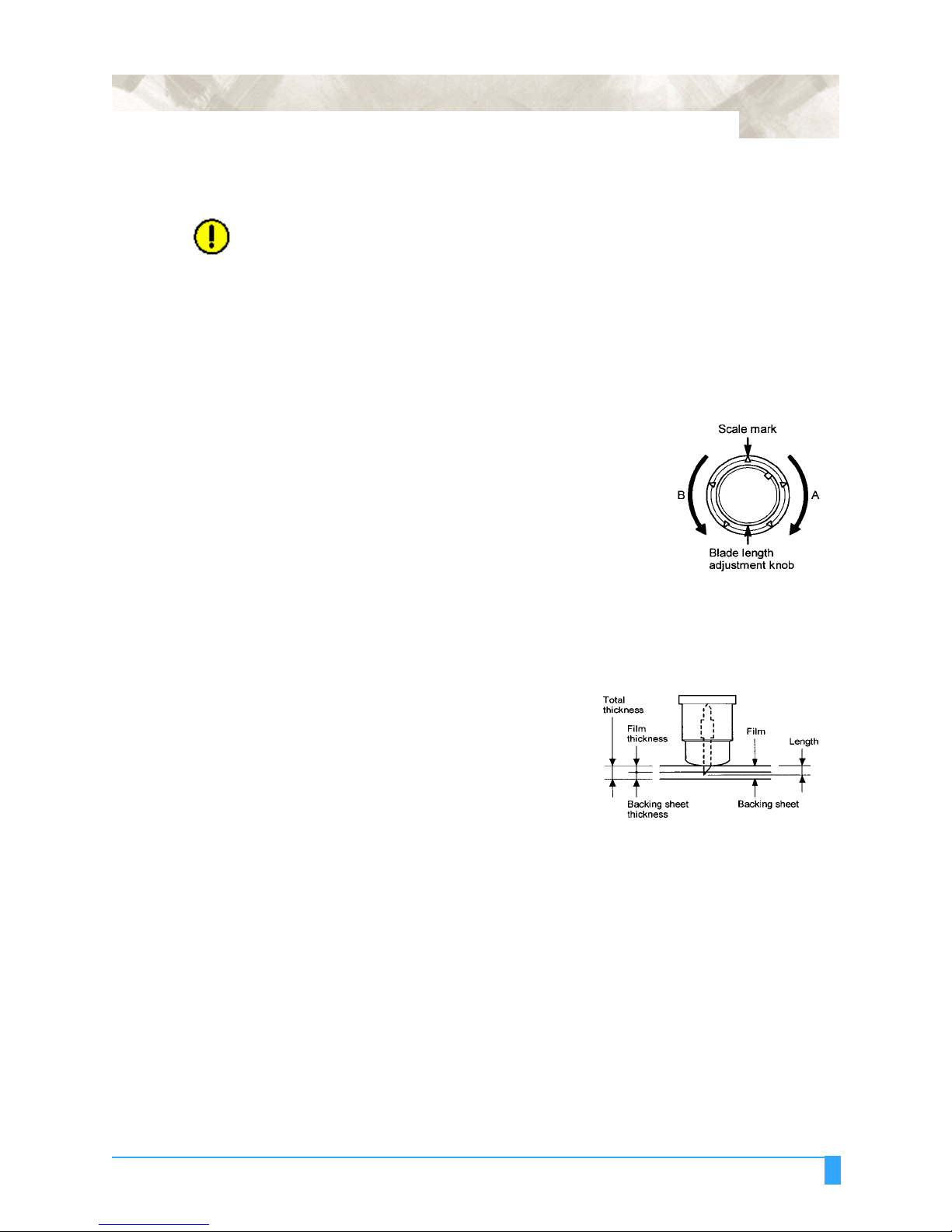

Adjusting the Blade Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Obtaining the Correct Blade Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Chapter 4: Preparing to Cut . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Indicator Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Position Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Menu Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Selecting a Function Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Initial Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Setting the Multilanguage Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Turn on the Plotter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

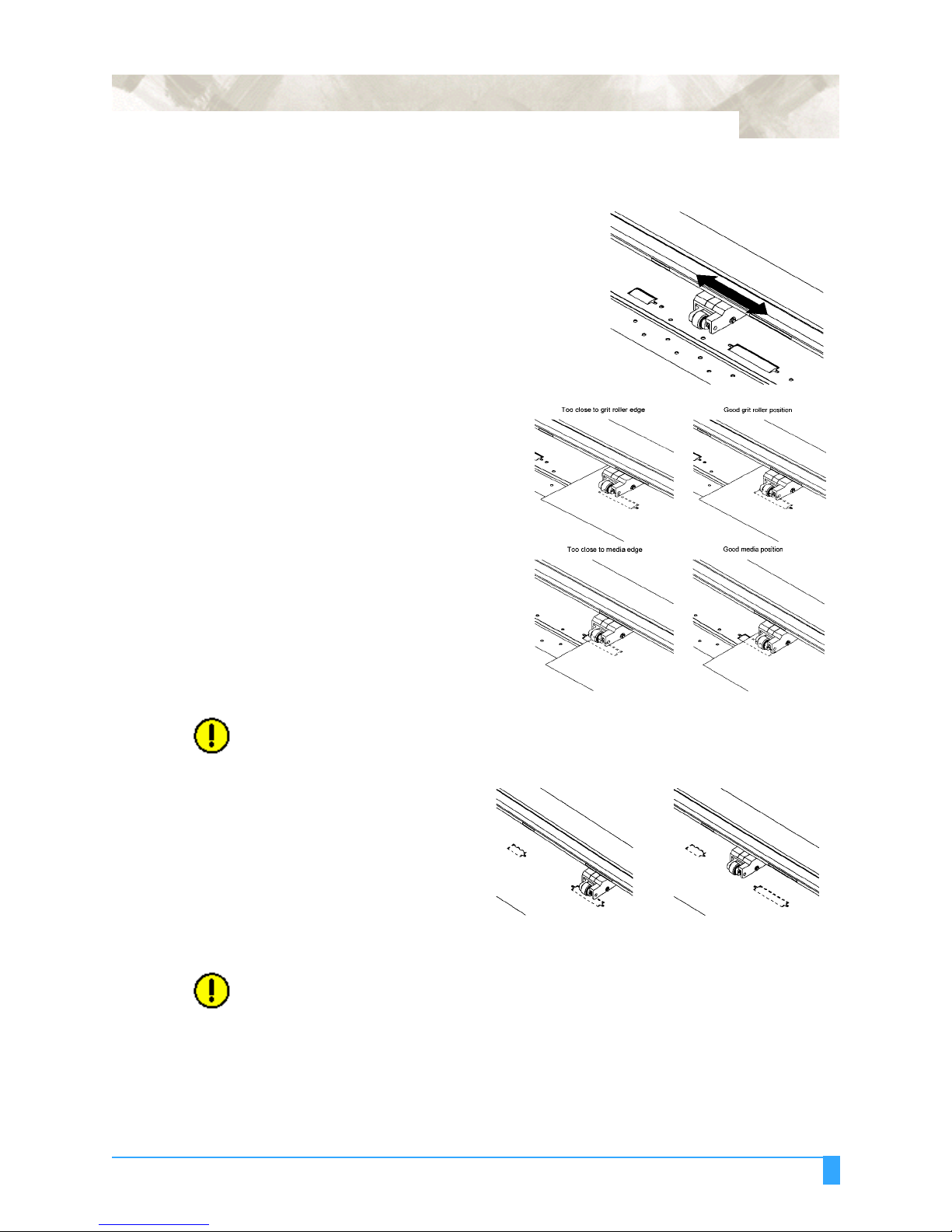

Loading Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Sheet Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

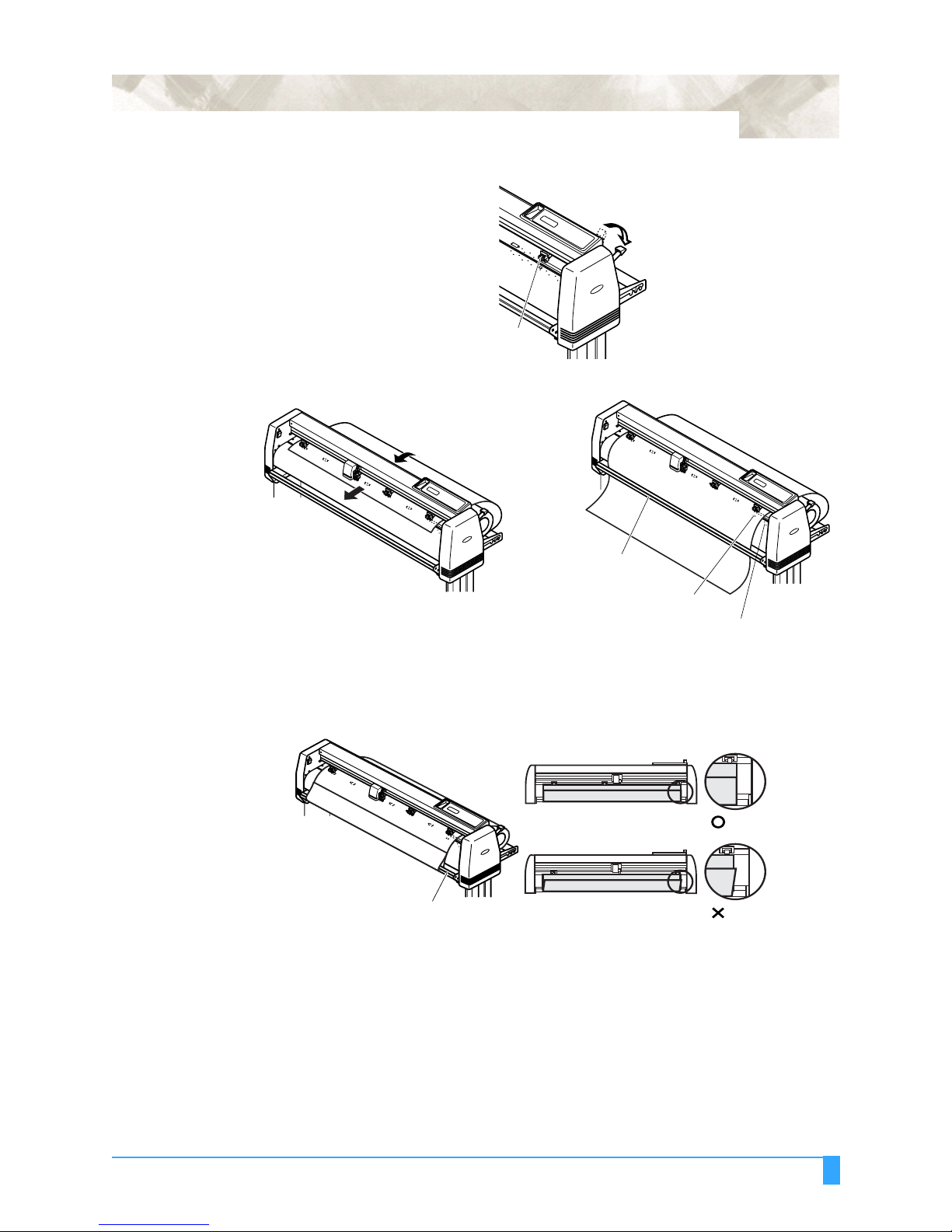

Roll Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Select the Media Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
ROLL–1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
ROLL–2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
SHEET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
CONTINUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Initializing Routine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
ROLL-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
ROLL-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
SHEET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
CONTINUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Setting Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Select the Tool from the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
TANGENTIAL mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cutter Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
To Change the Cutter Force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
To Change the Cutter Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
To Change the Cutter Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
To Change the Cutter Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Fine Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Running Cutting Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Test 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Test 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Cutting Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Plotter Pen Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Pen Reference Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
To Change the Pen Force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
To Change the Pen Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
To Change the Pen Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Pounce Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
To Change the Pounce Force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
To Change the Pounce Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
To Change the Pounce Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
To Change the Pounce Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Light Pointer Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
How to Point the Target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Checking the Cutter Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Changing Feed Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

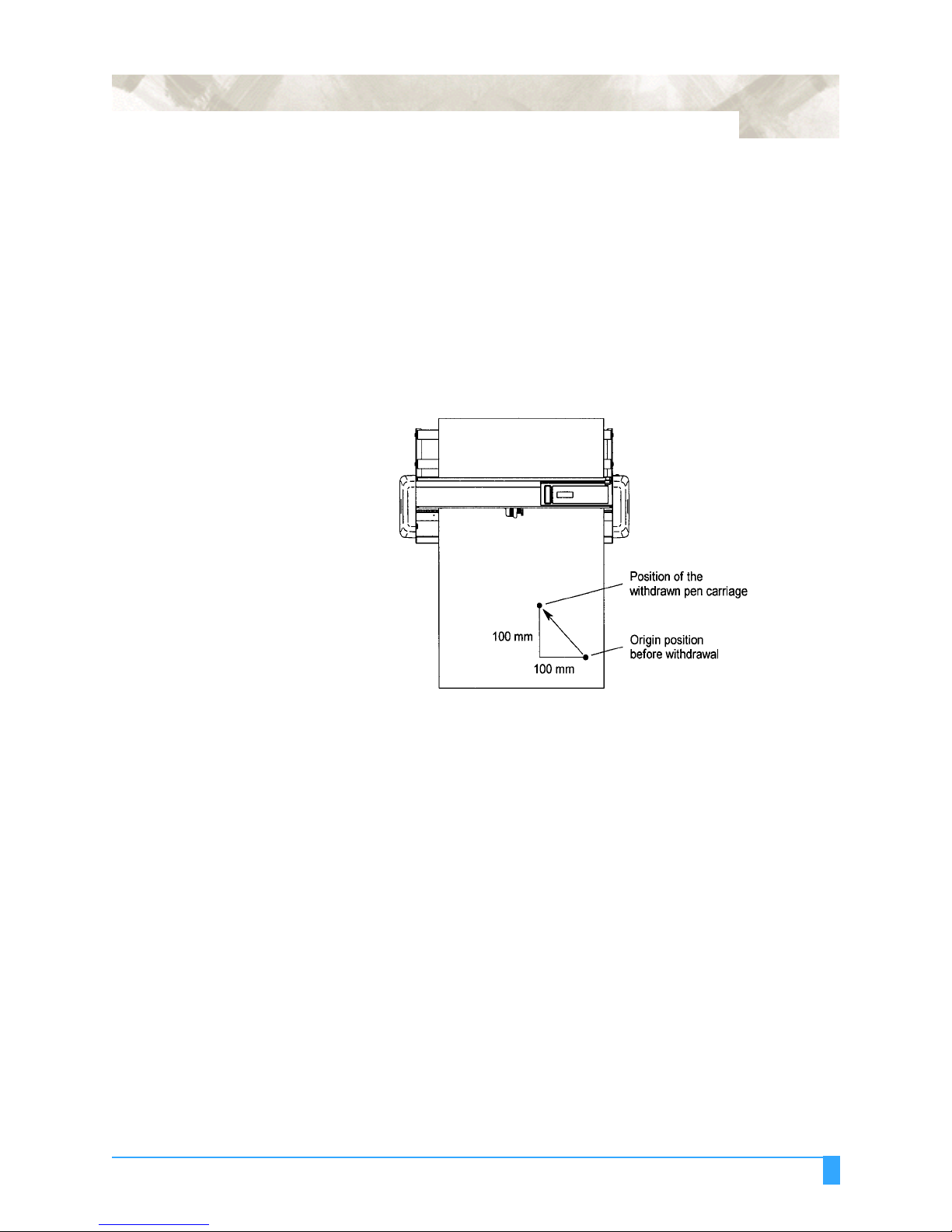

Withdrawal of the Pen Carriage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Returning the Pen Carriage to Origin . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Chapter 5: Advanced Functions and Settings . . . . . . . . . . . . 65
Control Panel Quick Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Menu Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

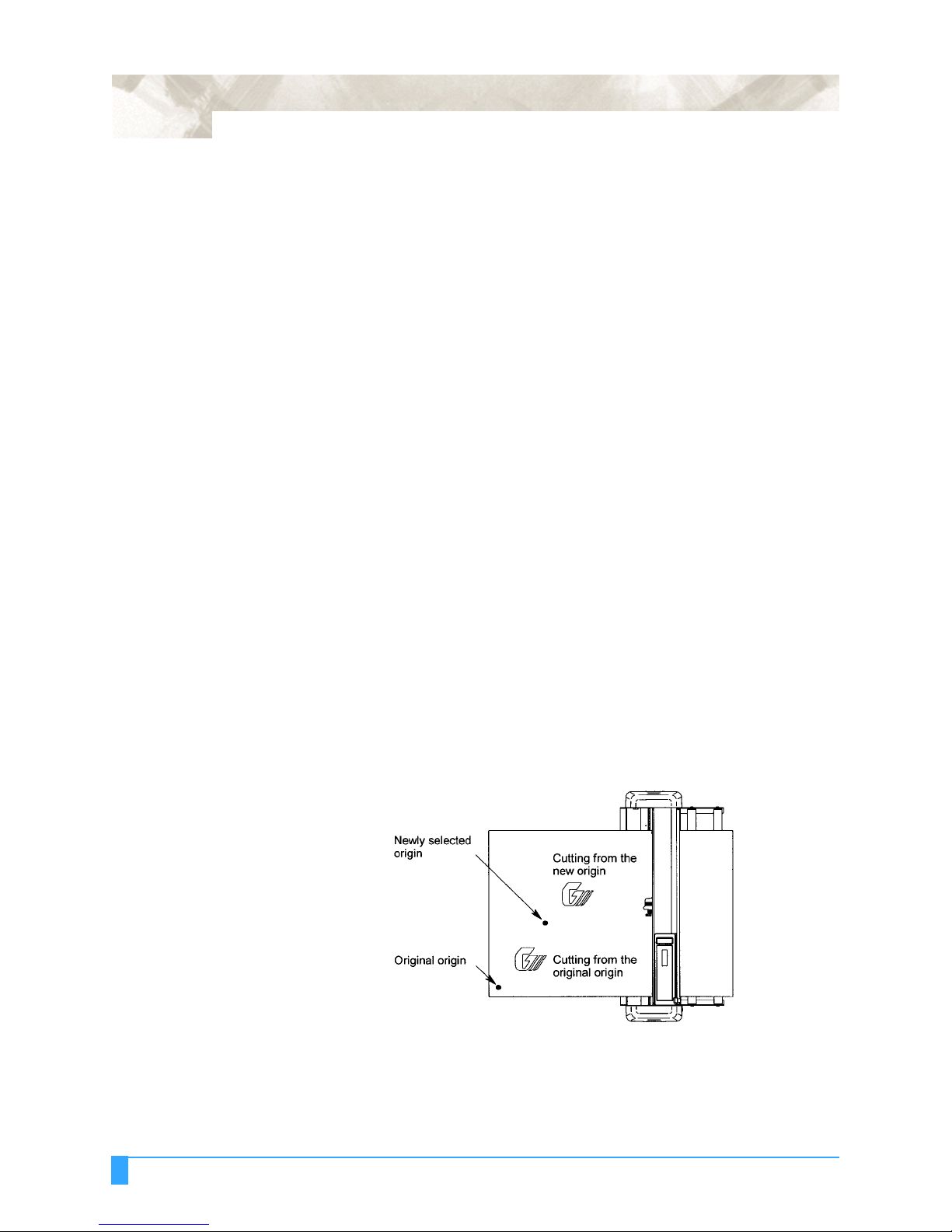

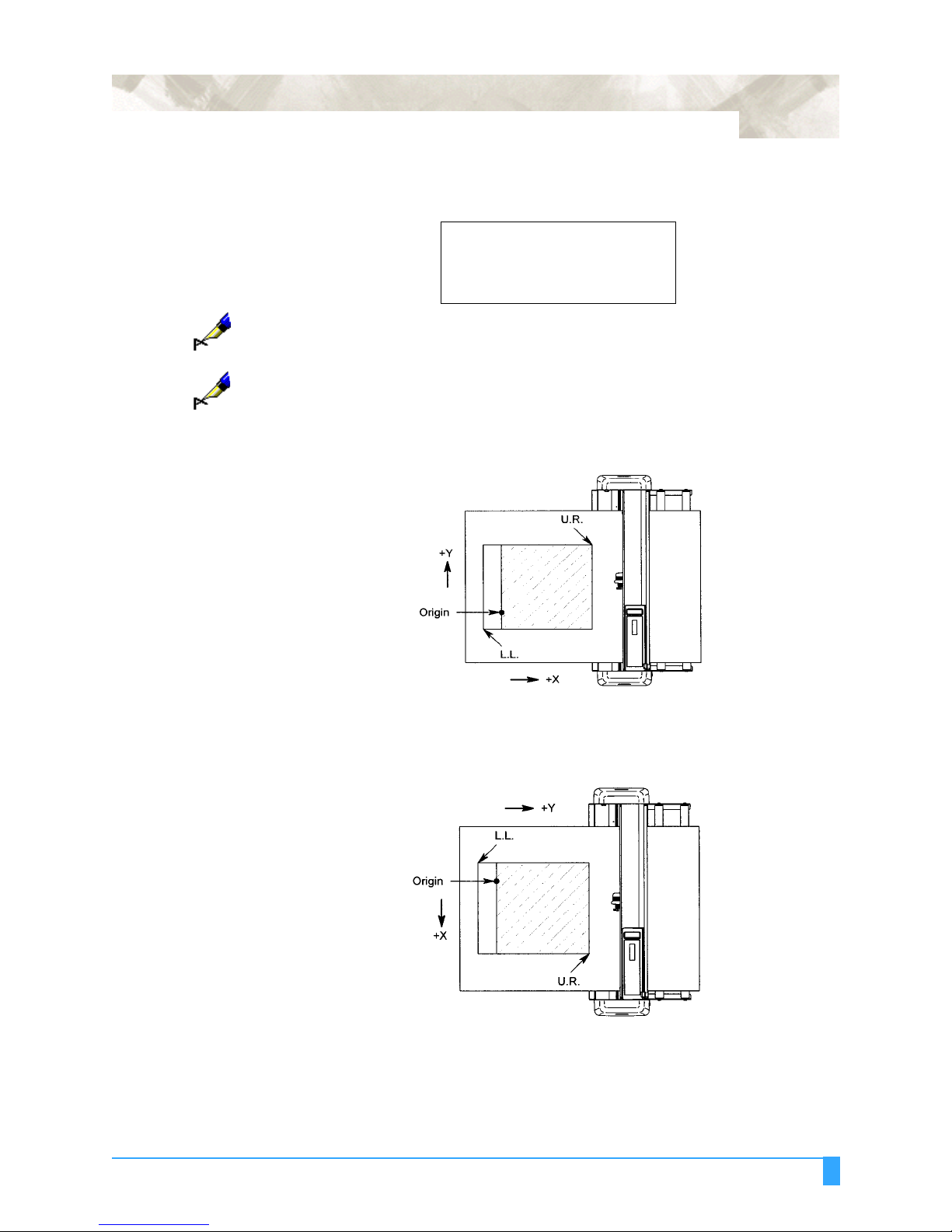

ORIGIN - Setting the Cutting Origin . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

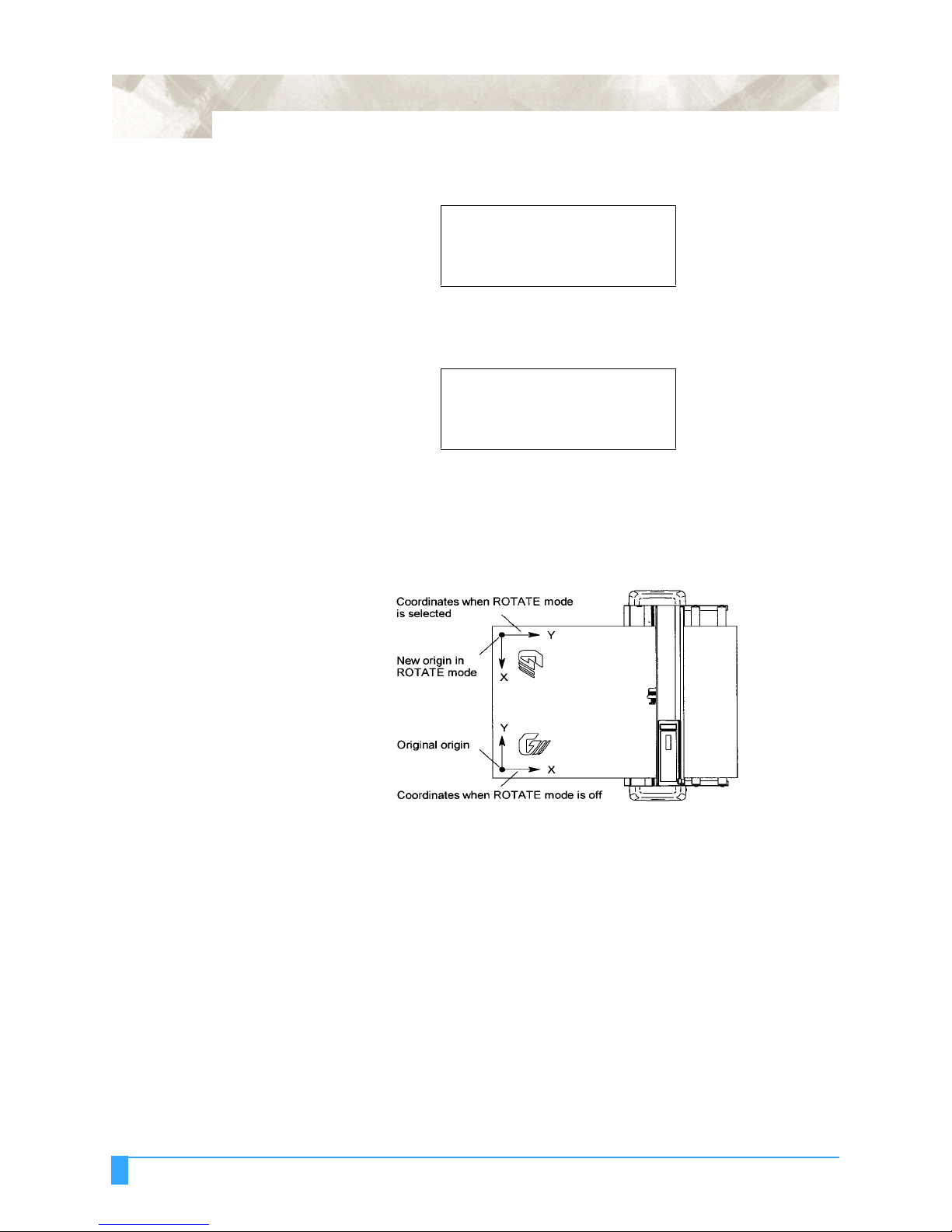

Origin Point with ROTATE function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
COPY - Copying the Data in Plotter Buffer Memory . . . . . . . . . . . . . . . 67
Copying Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
PEN UP/DOWN - Raising/Lowering the Pen . . . . . . . . . . . . . . . . . . . . . 70
BUFFER CLEAR - Clearing the Buffer . . . . . . . . . . . . . . . . . . . . . . . . . 70
FEED - Advancing the Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
ORIGIN - Setting the Origin in HP-GL Mode . . . . . . . . . . . . . . . . . . . . 72
AREA - Setting the Cutting Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
EXPAND - Expanding the Cut Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
PAGE LENGTH - Setting the Length of the Page with Roll Media . . . . 78
ROTATE - Rotating the Coordinate Axes . . . . . . . . . . . . . . . . . . . . . . . . 79
MIRROR – Reversing the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
SCALE - Enlarging/Reducing an Image Size . . . . . . . . . . . . . . . . . . . . . . 81
DATA SORTING - Sorting the Cut Data . . . . . . . . . . . . . . . . . . . . . . . . 82
AXIS ALIGNMENT - Axis Alignment Parameter Setting . . . . . . . . . . . 84
Selecting the Axis Alignment Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Selecting the Axis Alignment Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Two-Point Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Three-Point Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Axis Alignment Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
AUTO PRE-FEED - Advancing the Media Automatically . . . . . . . . . . . 91
TANGENTIAL EMULATION - Cutting Thick & Thin Material . . . . . . 93
Selecting Tangential Emulation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Enabling Tangential Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Setting Overcut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
SPEED - Setting the Pen-Up Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
OFFSET ANGLE - Adjusting the Blade Offset Angle . . . . . . . . . . . . . . 97
OFFSET FORCE - Setting the Offset Cut Pressure . . . . . . . . . . . . . . . . . 98
STEP PASS - Setting the Step Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
INITIAL DOWN FORCE- Adjusting the Initial Media Cut Force . . . . 100
DISTANCE ADJUST - Adjusting the Length of Line Segments . . . . . 101
Setting Distance Adjust Parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
RS-232C Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Pin Assignment of the Serial Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Chapter 6: Background Settings . . . . . . . . . . . . . . . . . . . . . . 107
Background Settings for GP-GL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
LANGUAGE SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
“:” “;” Command Control (“:” “;” COMMAND) . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Pen UP/DOWN for the “W” Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Condition Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Pen Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Initial Blade Control Position (INITIAL BLADE CONTROL) . . . . . . . . . . . . . . . 112
Length Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
UP Movement Control (PEN UP MOVE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Media Sensor Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Pinch Roller Sensor Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Check Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Background Settings for HP-GL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
LANGUAGE SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Model No. Response (MODEL EMULATED) . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Condition Priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Pen Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Initial Blade Control Position (INITIAL BLADE CONTROL) . . . . . . . . . . . . . . . 118
Length Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
UP Movement Control (PEN UP MOVE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Media Sensor Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Pinch Roller Sensor Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Circle Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Check Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Chapter 7: Test Modes and Troubleshooting . . . . . . . . . . . . 125
CONDITION LIST - Listing the Cutting Conditions . . . . . . . . . . . . . . 125
Sample printout of the CONDITION function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
DATA DUMP - Using the Character Dump Mode . . . . . . . . . . . . . . . . 127
SELF TEST - Running the Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Error Messages in HP-GL Command Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Chapter 8: Setting the Interface Functions . . . . . . . . . . . . . 141
Setting the Parallel Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Setting the USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Setting the Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Factory Preset Interface Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
INTERFACE - Setting the Interface Functions . . . . . . . . . . . . . . . . . . . 142
How to access the INTERFACE menu before loading the media . . . . . . . . . . . . . 142
How to access the INTERFACE menu after loading the media . . . . . . . . . . . . . . . 143
STEP SIZE - Setting the Programmable Resolution . . . . . . . . . . . . . . . 143
RS-232C – Setting the Data Transmitting Conditions . . . . . . . . . . . . . . 145
COMMAND - Selecting the Command Mode . . . . . . . . . . . . . . . . . . . . 146
Centronics-Compatible Parallel Interface . . . . . . . . . . . . . . . . . . . . . . . 146
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Input/Output Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Input/Output Timing Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Pin Assignment of the Parallel Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
RS-232C Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Pin Assignment of the Serial Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Chapter 9: Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Main Specifications: FC5100-75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Main Specifications: FC5100-100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Main Specifications: FC5100-130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
External Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
FC5100-75 without Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
FC5100-100 without Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
FC5100-130 without Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
FC5100-75 with Stand and Basket Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
FC5100-100 with Standard Stand and Basket Option . . . . . . . . . . . . . . . . . . . . . . 156
FC5100-130 with Standard Stand and Basket Option . . . . . . . . . . . . . . . . . . . . . . 156
Chapter 10: Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
FC5100 Pounce Tool Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Inserting the Pounce Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Select Pounce Tool from the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Pounce Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
To Change the Pounce Force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
To Change the Pounce Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
To Change the Pounce Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
To Change the Pounce Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
FC5100 Stand Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Stand Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Assembly Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
FC5100 Basket Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Basket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Assembly Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
FC5100 Media Roll Holder Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Media Roll Holder Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Assembly Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
FC5100 Auto Registration Mark Sensor . . . . . . . . . . . . . . . . . . . . . . . . 169
AUTO REG. MARK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
The Registration Mark Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
The Registration Mark Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
The Registration Mark Reading Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
The Position of the Origin Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Media For Which Registration Marks Cannot Be Detected . . . . . . . . . . . . . . . . 173
If Registration Mark Can Not Be Automatically Recognized . . . . . . . . . . . . . . . 173
Specifying the Registration Mark Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Axis alignment method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Scanning Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Selecting the Axis Alignment Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
2-POINTS Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
3 POINTS Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
AUTO REG. MARK Setting Menu Shortcut . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Setting the Registration Mark Reading Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Selecting the Registration MARK TYPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Specifying the Registration MARK SIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Setting the DISTANCE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Setting of AXIS ORIGIN OFFSET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Setting of PAPER-WEIGHT Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Setting the SENSOR OFFSET ADJustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Selecting METHOD 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Selecting METHOD 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Using the AUTO REG. MARK Sensing Function . . . . . . . . . . . . . . . . . . . . . . . . . 190
2 Pen Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Attaching a Cutter Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Attaching a Writing Pen to the Pen Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Setting of the Pen Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Setting of the Pen Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Chapter 11: Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Compliance Information Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
EC Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
10
Sharp
Chapter 1: Special Precautions
This section covers special precautions you should take when operating or storing your plotter.
NOTE: Information to simplify or correctly complete a task.
CAUTION: Will cause damage to the unit.
ACHTUNG: Lesen Sie den mit diesem Symbol markierten Absatz besonders aufmerksam.
Es besteht die Gefahr eines irreparablen Schadens, sofern nicht genau nach den Anweisungen vorgegangen wird und diese korrekt durchgefürhrt werden.
WARNING: Will cause injury to the Operator!
WARNUNG:Es besteht Verletzungsgefahr.
Handling the Cutting Blades
WARNING: Sharp cutter blades are used with this plotter. Handle the cutter blades
and holders with care to prevent bodily injury.
WARNUNG:Benutzen Sie diese Messer vorsichtig, um Verletzungen zu vermeiden.
• Cutter blades are very sharp. While handling a cutter blade or cutter pen, be careful to avoid cutting your fingers or other parts of your body.
• Die Messereinsätze sind sehr scharf! Um Verletzungen vorzubengen, müs­sen die Messereinsätze mit vorsicht gehandhabt werden.
• Promptly return used blades to the cut­ter case provided. When the case is completely filled, discard the used blades together with the case.
Special Precautions: Handling the Cutting Blades
Handling the Cutters
• The tip consists of a sharp blade. Be sure not to extend it too far.
• Instructions on replacing the blade or adjusting the blade length are provided in Cutters and Holders.
Attaching a Cutter Pen
WARNING: To avoid bodily injury, do not touch the pen tip after the plotter is turned
on.
WARNUNG:Um das Risiko einer Verletzung herabzusetzen, sollten Sie niemals das
messer berühren während der Schneidplotter arbeitet.
11
Sharp Blade
Follow the procedure below to attach a cutter pen to the pen carriage.
1 Make sure that the pen holder
screw is loose.
2 While positioning the pen
holder upward, push the cutter pen all the way into the holder until its rim contacts the pen stopper.
Flange
Pen Holder
Special Precautions: Handling the Cutters
12
Upper groove
Flange
Bracket to hold pen
Flange
Bracket to hold pen
3 Once the pen has been prop-
erly mounted, tighten the screw.
CAUTION: The pen has two flanges
and must be fully seated (the pen holder is engaged on the second flange) before tighten the screw.
Flange
Bracket to hold pen
CAUTION: The cutter must be prop-
erly seated (the pen holder is engaged on the flange) before tighten the screw.
Special Precautions: Attaching a Cutter Pen
After Turning on the Plotter
During the course of turning on the plotter, be sure to observe the following pre-
cautions:
• The pen carriage and loaded media may suddenly move during the cutting oper­ation, immediately afterward and when setting the plotter’s functions.
• Keep hands, hair, clothing and other objects out of the vicinity of the pen car­riage, grit rollers and loaded media.
• To prevent operator injury and poor cutting results, be careful not to allow hands, hair, clothing or other foreign objects to become entangled with the pen carriage or loaded media while the plotter is operating.
• Um das Risiko einer Verletzung herabzusetzen, Halten Sie Hände, Haare und Kleidung fern von bewegten Teilen! Legen Sie nicht die Hände oder Gegen­stände auf oder neben die bewegten Teilen!
13
Special Precautions: After Turning on the Plotter
14
Machine Caution Label
The machine’s Caution Label is located on the top cover.
Achtung, Fur weitere informat­ionen leses, Sie bille diese handbuch. bevor Sie mil Arbeil beginnen!
Sharle Kante!
Halten Sie Handem Haare, und Kleidung fere bewigien leiten!
Notes on Working Environment
Be sure to observe the following regarding the working environment of your plot-
ter:
• Avoid use or storage of the plotter in locations subject to direct sunlight or the direct draft from air-conditioning.
• Avoid locations which are extremely dusty.
Special Precautions: Machine Caution Label
15
• Prior to cutting, ensure that no obstacles are placed in the vicinity of the pen carriage or loaded media.
CAUTION: Impeded movement of the pen carriage or loaded media may prevent accurate
cutting, or may trigger the position alarm to reset the system or system over­load. An overloaded system triggers the product’s circuit protection. Should the system overload, causing the power to shut down, turn off the power switch and unplug the power cord. Wait 5 to 10 minutes then reconnect the power cord and turn on the system. For more information, see Test Modes and Trou-
bleshooting.
To prevent malfunctions of the plot­ter’s sensors, position the plotter at least one meter (3 feet) away from flu­orescent lamps, electric lamps and any other source of indoor illumina­tion.
Notes on Use
Be sure to observe the following on the use of your plotter:
CAUTION: Make sure your computer and power sources are adequately grounded (the
RS-232 interface cable should meet the CCITT V24, EIA RS-232 standards. Graphtec’s RS-232 serial interface cable conforms to the EIA standard). Inade­quate grounding may result in severe damage to your plotter or computer and constitute misuse of the plotter.
Never lubricate the plotter mechanisms, this
will result in plotter malfunction.
Special Precautions: Notes on Use
16
• To avoid scratching the cutting mat, ensure
that the cutter pen blade is not excessively extended.
• Do not touch the moving parts of the plotter
while it is operating.
• When manually moving the pen carriage to
load the media, be sure to move the carriage slowly.
CAUTION: Do not unplug or plug in the USB connector when the plotter is working or you
Daily Maintenance
During the course of daily plotter operation, be sure to observe the following
precautions:
• Never lubricate the mechanisms of the plotter.
• Clean the plotter’s casing using a dry cloth that has been moistened in a neutral
detergent diluted with water. Never use thinner, benzene, alcohol, or similar solvents to clean the casings; they will damage the casing’s finish.
• Clean the cutting mat using a dry cloth. In case of stubborn stains, use a cloth
that has been moistened in alcohol or in a neutral detergent diluted with water.
• Clean the plotter’s paper sensors using a cloth moistened in a neutral detergent
diluted with water. Never use thinner, benzene, alcohol, or similar solvents to clean the sensors; they will damage the sensors.
will loose data when the computer restores the USB directory.
Special Precautions: Daily Maintenance
Storing the Plotter
When your plotter is not in use, be sure to observe the following points:
• Remove the pen attached to the penholder.
• Cover the plotter with a cloth to protect it from dust and dirt.
• Do not store the plotter in direct sunlight or in high temperatures
17
Special Precautions: Storing the Plotter
18
Special Precautions: Storing the Plotter
Chapter 2: Out of the Box
This chapter describes plotter nomenclature and how to install your plotter.
Checking the Contents
After unpacking your plotter, check that each of the standard accessories shown below are present. If any accessory is missing, contact your sales representative or the nearest Graphtec dealer.
Accessories The Stand Kit is an option for the FC5100-75 and is standard for both the
FC5100-100 and FC5100-130 cutters.
Power cord. The configuration pictured may differ from the actual cord supplied.
19
Cutter Pen Set. Cutter holder PHP32­CB09N with two CB09UA cutter blades.
RS-232 cable with adapter (US mar­ket only).
Black water-based fiber-tip pen (KF552-BK-P).
Out of the Box: Checking the Contents
20
User’s manual
AcculoadSystem components.
Nomenclature
1 AC Line Inlet: Inlet where the power cord is connected.
2 Control Panel: Used to access various plotter functions.
3 Cutting Channel: A channel running along the cutting mat area. Used to
reduce pouncing tool wear.
4 Cutting Mat: A black strip placed under the cutting area. Used to reduce cut-
ting blade wear.
5 Grit Rollers: Metallic rollers which have a file-like surface.
6 Media Set Lever: Used to raise or lower the push rollers during loading or
unloading media.
7 Accuload™: Used to carry rolled media and ensure its proper rotation.
8 Paper Sensors: The front sensor is used to sense the leading edge of the
media. The rear sensor is used to sense the trailing edge of the media.
9 Parallel Interface Connector: Used to connect the plotter to the computer
with a Centronics-compatible parallel interface cable.
10 Pen Carriage: Moves the pen across the media during cutting or plotting.
11 Pen Holder: Holds the pen onto the pen carriage.
12 Power Switch: Used to turn the plotter on and off.
13 Pinch Rollers: Black rubber rollers that push the media against the grit roll-
ers.
Out of the Box: Nomenclature
21
14 Roller Location Guide: Yellow markings on the rail and rear side of the top
cover that show the position of each grit roller. Use these guides as an aid in locating the push rollers and in locating the media roll on the stock roller.
15 Serial Interface Connector: Used to connect the plotter to the computer with
a RS-232 serial interface cable.
16 Stock Rollers: Area of the media stocker where the media is mounted.
17 USB Connector: Used to connect the plotter to the computer with a USB inter-
face cable.
18 Pen Station: Part of Two-Pen Option.
19 Stand: Used to make the plotter more portable and free-up counter space.
12
13
10
11
13
14
4
3
2
5
8
16
19
1
7
7
18
14
6
9
17
15
Out of the Box: Nomenclature
22
Installing the Accuload System
The Accuload system consists of two media brackets, two stock rollers and one media alignment bar.
Installation procedure:
1 Place the right media bracket against the inside surface of the plotter’s side
box (right).
Front
M4 Screw
Media Bracket Right
2 Insert an M4 screw in the second hole from the front side of the plotter.
NOTE: Do not over tighten. The bracket should rotate easily.
NOTE: When attaching the bracket onto the cutter, use the foam shipping cover to pro-
tect the cutter.
CAUTION: Do not lay the cutter on it’s back side, this may damage the Media Set Lever.
3 Insert an M4 screw in the third hole from the front side of the plotter.
4 Secure the first screw.
5 Secure the second screw.
6 Repeat steps 1-5 with the left Media Bracket.
7 Place the media alignment bar in between the tabs of the media brackets that
protrude from the front side of the plotter.
Media Bracket Left
Out of the Box: Installing the Accuload System
8 Secure the media alignment bar to the tabs at both ends with M4 screws.
Rear
M4 Screw
Media Alignment Bar
23
Groove
M4 Screw
9 Install the stock rollers into the holes on the rear side of the media brackets.
Front
Stock Rooler
NOTE: Be sure to tighten all the screws to ensure accurate media loading. The Accu-
load™ system may not function properly if even one of the screws is loose.
NOTE: Be sure to place the plotter on an acceptable work surface. Refer to dimen-
sions below:
FC5100-75: 45 inches (114cm) wide by 19 inches (48cm) deep.
FC5100-100: 57 inches (144cm) wide by 19 inches (48cm) deep.
FC5100-130: 67 inches (170cm) wide by 19 inches (48cm) deep.
Out of the Box: Installing the Accuload System
24
Connecting the Plotter
Connecting to the Computer
The FC5100 Plotter is equipped with an RS-232 Serial Interface Cable in the accessory kit.
1 Connect the 25-pin connector to the RS232-C connector on the plotter and tighten the screws. If you are using a Centronics-compatible parallel interface cable, connect the 36-pin connector to the Parallel connector on the plotter and lock the levers.If you are using a USB connentor, connect the connector to the USB connector on the plotter.
2 Connect the 9-pin connector to the
RS-232C
connector on the computer COM port and tighten the screws. If your computer has a 25-pin connector port, use the 9­pin to 25-pin adapter that is supplied in the accessory kit.
Parallel
USB
Out of the Box: Connecting the Plotter
25
Connecting to the Power
Power to the Plotter
The FC5100 Plotter is equipped with a Power Cord in the accessory kit.
1 Connect the provided power cord to the AC inlet of the plotter.
2 Connect the other end of the power cord to an electrical socket of the rated supply voltage.
To turn on the plotter, perform the following steps:
1 Make sure that the plotter is turned off (the “O” side of the
POWER switch is depressed).
2 Connect the plotter to a computer and then configure your
software application to the desired interface conditions, (if the RS-232-C serial interface is used), command mode and programmable resolu­tion.
3 Connect one end of the provided power cord to the plotter’s AC line inlet then
connect the other end of the power cord to an electrical socket of the rated supply voltage. The plotter’s power supply accepts multi-voltage (100VAC to 240VAC) without changing switches.
4 Turn on the computer.
5 Turn on the plotter by depressing the “l” side of the POWER
switch.
Out of the Box: Connecting the Plotter
26
Out of the Box: Connecting the Plotter
Chapter 3: Cutters and Holders
This chapter describes the different cutters and their uses.
Blade Application and Features
27
Blade part
no. and
type
CB09UA
(supersteel)
CB15U
(supersteel)
CB15UA
(supersteel)
CB15UB
(supersteel)
CB15U-K30 (supersteel)
Diameter
and blade
offset value
0.9 mm
0.45
1.5 mm
0.75
1.5 mm
0.75
1.5 mm
0.75
1.5 mm
0.75
Plunger part
no. Applications and features
PHP32-CB09N
or
PHP32-CB09
PHP32-CB15N
or
PHP32-CB15
PHP32-CB15N For cutting high intensity reflective media.
PHP32-CB15N For cutting small characters on mono-vinyl chloride
PHP32-CB15N
or
PHP32-CB15
Standard blade for cutting color adhesive media. Suitable for cutting media up to 0.25 mm think. Maximum cutting distance of approximately 4000 m.
For cutting media which is too thick for the CB09UA blade to handle. Suitable for cutting media from 0.25 mm to 0.5 mm thick.
media. Suitable for cutting small size characters that are less than 10mm.
For cutting sandblast rubber. The sharply angled point provides a longer cutting edge. Suitable for cutting mate­rial from 0.05 mm to 1.5 mm thick.
CB15-10C
(ceramic)
CB15-05S
(sapphire)
1.5 mm
0.50
1.5 mm
0.25
PHP31-CB15 This is the hardest blade, but may chip or shatter if
dropped or subjected to impact. Suitable for cutting material up to 0.05 mm thick.
PHP31-CB15 For cutting masking media. Suitable for cutting material
up to 0.05 mm thick.
Cutters and Holders: Blade Application and Features
28
)
Cutter Pen Nomenclature
WARNING: To avoid bodily injury, handle cutter blades with care.
PHP32-CB09N Cutter Pen
PHP32-CB15N Cutter Pen
PHP31-CB15 Cut­ter Pen
PHP32-CB09 Cut­ter Pen
(For cutter blades of 0.9 mm diameter)
Plunger Cap
(For supersteel cutter blades of 1.5 mm diameter)
Plunger Cap
(For ceramic and sapphire cutter blades of 1.5 mm diameter)
(For cutter blades of 0.9 mm diameter)
Spring Cutter Blade Plunger Blade length adjustment knob (blue)
Cutter Blade Plunger Blade length adjustment knob (red)
Plunger
cap
Protective Plunger Holder Cutter Holder Blade length
Cap A blade B adjustment
knob (red)
Plunger Spring Cutter Plunger Holder Blade length
Cap blade adjustment knob
(blue)
PHP32-CB15 Cut-
(For supersteel cutter blades of 1.5 mm diameter)
ter Pen
Replacing the Cutter Blade
WARNING: Will cause injury to the operator.
Various types of plungers are available which correspond to the diameter and type of blade used. Check the cutter blade you are going to use and its appropri­ate cutter offset value against the table below:
Cutters and Holders: Cutter Pen Nomenclature
Plunger Cutter Plunger Holder Blade length
cap blade adjustment knob
(red)
Cutter Offset
Upper groove
Flange
Bracket to hold pen
Value Settings
29
Cutter pen
PHP32-CB09N Blue CB09UA Supersteel 18 + 2
PHP32-CB15N Red CB15U
PHP31-CB15 Red CB15-10C
Replacing Super­steel Blades
Color
classification
For the PHP32­CB09(N) & PHP32­CB15(N):
1 Turn the plunger cap
counterclockwise.
2 Remove the plunger
cap.
3 Remove the blade
and spring from the plunger cap.
Compatible blade types
CB15U-K30
CB15UB
CB15-05S
Blade
Material
Supersteel Supersteel Supersteel
Ceramic
Sapphire
Cutter offset
values
2
28 +
2
28 +
5 + 5
18 +
2
9 + 2
4 Stand the cap
upright.
5 Insert the new blade
and spring into the hole.
6 Reattach cap to the plunger.
CAUTION: The pen has two flanges
and must be fully seated (the pen holder is engaged on the second flange) before tighten the screw.
Cutters and Holders: Replacing the Cutter Blade
30
Flange
Bracket to hold pen
CAUTION: The cutter must be properly
seated (the pen holder is engaged on the flange) before tighten the screw.
Replacing Ceramic & Sap­phire Blades
For the PHP31-CB15:
1 Turn the blade length adjustment knob
counterclockwise.
2 Remove Holder B.
3 Remove the blade from Holder A.
4 Point the tip of Holder A downward.
5 Insert new blade.
6 Make sure blade is inserted straight. Gen-
tly tap the plunger to correct angled blades.
7 Point the tip of Holder A downward.
8 Attach the holder cap.
9 Turn the blade length adjustment knob
clockwise until the blade tip is visible.
NOTE: If the blade does not rotate smoothly or
the blade falls off after attaching the cut­ter pen to the pen carriage, the inside of the holder is insufficiently lubricated. Apply the provided grease to the three (3) points indicated by arrows in the fig­ure above
NOTE: The blades can also be replaced from
the front of the plunger.
1. Turn the blade adjustment knob fully clockwise.
2. Remove the blade from the front of the plunger.
3. Replace the blade.
4. Turn the blade adjustment knob counterclockwise.
Cutters and Holders: Replacing the Cutter Blade
Blade Length
31
CAUTION: Make sure to correctly adjust the blade length. If the blade length is too long
for the thickness of the media being used, you may cut through the cutting mat and damage your plotter.
Adjusting the Blade Length
Obtaining the Correct Blade Length
1 Retract the blade by turning the blade adjustment knob in a counterclockwise
direction (Direction B) until the blade tip is aligned with the tip of the cutter pen, then extend the blade by turning the blade adjustment knob in a clockwise direction (Direction A) until the blade tip reaches a suitable length.
2 Observe the scale on the plunger cap to deter-
mine how far to move the blade. When the knob is turned the distance of one scale unit, the blade moves 0.1 mm. One full turn moves the blade 0.5 mm.
The blade length should never be greater than the combined thickness of the media and its backing sheet.
If the media thickness cannot be accu­rately determined, adjust the blade length gradually until only traces of the blade appear on the backing sheet when a cut­ting test is executed.
For more information about the cutting test, see Running a Cutting Test.”
Cutters and Holders: Blade Length
32
Cutters and Holders: Blade Length
33
Chapter 4: Preparing to Cut
This chapter describes how to use the control panel, load the media, select and install the appro­priate cutting tools, and to achieve the best cutting results.
Control Panel
Indicator Lamps
The POWER lamp remains lit (green) while the plotter is on.
The PROCESSING INDICATOR lamp lights green when the cutting data goes beyond the effective cutting area.
Function Keys These four keys [F1, F2, F3 and F4] have functions which change as each menu
changes. Depending on the menu being displayed, these keys are used to:
• Load a group of cutting conditions retained in the plotter’s memory
• Select the desired submenu
• Select the desired parameters
Position Keys All four keys are used to move the pen carriage when setting a function that
requires the specification of a coordinate position. The moving speed of the pen carriage can be controlled in two levels by changing pressure applied to the posi­tion keys.
• Used to raise the displayed numeric setting of a function.
• Used to select the numeric setting of a function.
• Used to select the pen type when setting a group of cutting conditions.
• Used to shift the cursor when setting a numeric value for a function.
Preparing to Cut: Control Panel
34
Menu Keys
Press MENU CONTROL to access the MENU mode to set functions on the con­trol panels (green lamp lights). Press MENU CONTROL again to cancel MENU mode.
The plotter continues to store data from the computer in the plotter’s receive buffer although the cutting or plotting operation is temporarily suspended.
Press ENTER after setting a function on the control panel to register your set­ting. The cutting area can also be displayed by pressing the ENTER key in ready status.
To reset the plotter, press ENTER and ORIGIN together while in the MENU mode.
Press ORIGIN to move the origin point. See the section ORIGIN in Advanced Functions and Settings for details.
Press COPY to repeat the cutting operation defined by the data in the plotter’s receive buffer. See the section COPY in Advanced Functions and Settings for
details.
Press CONDITION to set the four groups of cutting conditions retained in the plotter’s internal memory. See the section Setting Conditions in this chapter
for details.
CAUTION: Excessive speed and quality parameters in the CONDITION mode may trigger
the position alarm to reset the system or cause system overload. An over­loaded system triggers the product’s circuit protection.
Should the system overload, causing the power to shut down, turn off the power switch and unplug the power cord. Wait 5 to 10 minutes, then reconnect the power and turn on the system. For more information, seeTest Modes and
Troubleshooting.
Press TEST to run a cutting test to check whether the currently selected cutting conditions are compatible with the media loaded. See Running Cutter Tests in
this chapter for details.
Press NEXT to scroll through the functions of the control panel or to return to the previous menu with no registration of the setting.
Press HOLD to temporarily suspend cutting or plotting. While the cutter is sus­pended, the media set lever can be lowered to reset the media, if necessary. The plotter is not initialized, but is ready to continue or quit the suspended job.
Press AXIS ALIGN to access the axis alignment adjustment mode. See the
section Axis Alignment in Advanced Functions and Settings for details.
Preparing to Cut: Control Panel
Selecting a Function Menu
When the plotter is in MENU mode (the MENU lamp is lit), each of the functions listed below in the “Function Selection” column can be accessed by pressing the NEXT key until the desired menu appears and then pressing the select key indi­cated by a box.
Menu Function Selection Sub Menus
NEXT
35
NEXT
NEXT INTERFACE
NEXT LANGUAGE SELECTION
BACKGROUND SETTINGS
PEN UP/DOWN
BUFFER CLEAR
FEED
AREA PARAMETERS STEP SIZE GP-GL
FUNCTION 1 RS-232C FUNCTION 2 COMMAND
ORIGIN GP-GL
AREA
EXPAND
PAGE LENGTH
ROTATE
MIRROR
SCALE
DATA SORTING
AXIS ALIGNMENT
AUTO PRE FEED
TANGENTIAL EMULATION
OPTION 1 [ ENGLISH ] OPTION 2
PEN UP SPEED
OFFSET ANGLE
OFFSET FORCE
STEP PASS
INITIAL DOWN FORCE
DISTANCE ADJUST
TEST
Preparing to Cut: Selecting a Function Menu
36
Initial Menu
When the paper set lever is lowered, the INITIAL menu appears on the LCD.
Menu Function Selection Sub Menus
INITIAL
MENU
F4 KEY AUTO PRE FEED
INITIAL FEED SPEED
INTERFACE
Setting the Multilanguage Display
Your plotter’s display can be set to one of 12 different languages. To select the language:
Method 1:
• Press the MENU key to select MENU MODE.
• Press the NEXT key until you get to BACKGROUND SETTING menu.
• Press the F2 key to select BACKGROUND SETTING menu and then the LAN-
GUAGE SELECTION menu appears.
• Press the UP and DOWN ARROW keys to scroll through the languages (Danish,
Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Por-
tuguese, Spanish and Swedish).
• Press the ENTER key to select the desired language, then next menu appears
with selected language.
STEP SIZE
RS-232C
COMMAND
• Press the MENU key to cancel menu mode.
Method 2:
• Turn the power on while pressing the DOWN ARROW key; the Menu selection
display then appears.
• Press the UP and DOWN ARROW keys to scroll through the languages (Danish,
Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Por-
tuguese, Spanish and Swedish).
• Press the ENTER key to select the desired language and then turn the power
off, then on again.
Preparing to Cut: Initial Menu
Turn on the Plotter
• Check to make sure that the pen carriage is not located near the pinch rollers so
that it does not interfere with the pinch roller settings.
• After checking that both ends of the plotter’s power cord are securely con-
nected, turn on the plotter by pressing the “|” side of the POWER switch.
• The control panel’s POWER lamp lights (green) and the plotter initializes. The
MAIN menu is displayed. This screen displays the firmware’s version number
and selected command set. The screen displays either GL or HL. If GL is dis-
played the GP-GL command set is selected. If HL is diplayed the HP-GL com-
mand set is selected.
If you have already loaded media, the MEDIA TYPE menu appears.
37
V 1.12 GL
Buffer RAM Checking
ROLL-1> ROLL-2>
SHEET>
CONTINUE>
NOTE: CONTINUE does not appear in the MEDIA TYPE menu during the first initial-
ization after turning the power on. All the menus in this section include CON­TINUE assuming that it is in the second or a later initialization.
• If no media is loaded, you are prompted to do so.
LOAD MEDIA!
INITIAL MENU>
• Press the F4 key to change parameters such as initial feed speed or interface
settings.
ROLL-1> ROLL-2>
SHEET>
CONTINUE>
NOTE: If you are using media that tends to skew while cutting, the initial feed speed
The MEDIA TYPE menu appears when the media set lever is raised to secure the loaded media.
setting should be set to SLOW.
Preparing to Cut: Turn on the Plotter
38
Loading Media
media can be loaded either before or after turning on the plotter.
CAUTION: Be sure to move the pen carriage slowly. Moving the pen carriage quickly may
NOTE: If necessary, slowly move the pen carriage out of the way while the power is
Sheet Media
CAUTION: To avoid damaging the cutting mat, make sure to set the media type to SHEET
• Lower the media set lever to
This section describes the steps for loading media in the plotter. Note that the
damage the plotter.
off. After the first initialization, use the arrow keys to move the pen carriage.
when using sheet media. Whenever possible, use sheet media of rectangular shape.
To load sheet media:
raise the pinch rollers.
• Load the media in the plotter. Use
the yellow markings to locate the
grit rollers. Place the media so
that its edges align with the grit
rollers.
• Wrap media behind and around
the media alignment shaft. While
keeping tension on the vinyl,
adjust the vinyl edges so that
both edges match accurately.
Alignment bar
Alignment bar
Grit rollers
Preparing to Cut: Loading Media
To adjust the pinch roller positions:
• Position the left and right pinch rollers to
correspond with the width of the media.
• When moving the media to the
left or right be sure to move the
pinch rollers as required to hold
down the media within the
appropriate range.
• Be sure to position the pinch
rollers so that they are not
located right at the edges of the
media or grit rollers.
39
• The FC5100-100 and FC5100-
130 plotters have a middle
pinch roller that should be posi-
tioned in the center of the
media.
CAUTION: The location of the middle pinch roller on the FC5100-100 and FC5100-130
cutting plotters effects the cutter’s performance.
• If the middle pinch roller
is not positioned in the
center range of the
media and located over
the grit roller, the media
will not feed evenly.
Good Pinch Roller Position Poor Pinch Roller Position
CAUTION: When cutting narrow media that is 10 inches or less, the position of the left and
middle pinch rollers will effect the performance of the FC5100-100 and FC5100-130 cutting plotters. The position of the narrow media will effect the media sensors.
CAUTION: Always load media from the largest grit roller so that the photo sensor can
sense the media.
Preparing to Cut: Loading Media
40
To load sheet media:
• Lower the media set lever to raise the pinch rollers.
• Move the left pinch roller next to the middle pinch
roller.
• Move both the left and middle pinch rollers
together until they reach the right stop.
• Load the media so that the left side of the narrow
media is under the left pinch roller.
• Adjust the right pinch roller over the right side of
the media.
• Raise the media set lever to lower the pinch roll-
ers.
• Lower the pinch rollers (raise the lever) and pull
the vinyl out from the alignment bar.Turn on the
power if it is off.
• Plotter performs the initialization routine.
Good Pinch Roller Position
V 1.12 GL
Buffer RAM Checking
• Loading of the media is complete.
Roll Media To load rolled media:
• Place the roll of media on the media stocker. Use the yellow markings to locate
the grit rollers. Place the media so that its edges align with the grit rollers.
Roller Location Guide
Preparing to Cut: Loading Media
• Lower the media set lever to raise the pinch rollers.
Pinch Roller
• Load the media in the plotter as shown.
Media Alignment Bar
41
Media Sensor
Grit Roller
• Wrap media behind and around the media alignment shaft. While keeping ten-
sion on the vinyl, adjust the edges of the vinyl so that both edges match accu-
rately.
Good
Media Alignment Bar
No Good
Preparing to Cut: Loading Media
42
To adjust the pinch roller positions:
• Position the left and right pinch rollers to
correspond with the width of the media.
• When moving the media to the
left or right be sure to move the
roll as required to ensure that
no slack develops in the media.
• When moving the media to the
left or right be sure to move the
pinch rollers as required to hold
down the media within the
appropriate range.
• Be sure to position the pinch
rollers so that they are not
located right at the edges of the
media or grit rollers.
• The FC5100-100 and FC5100-
130 cutting plotters have a mid-
dle pinch roller that should be positioned in the center of the media.
CAUTION: The location of the middle pinch roller on the FC5100-100 and FC5100-130
cutting plotters effects the cutter’s performance.
• If the middle pinch roller
is not positioned in the
center range of the
media and located over
the grit roller, the media
will not feed evenly.
Good Pinch Roller Position Poor Pinch Roller Position
CAUTION: When cutting narrow media that is 10 inches or less, the position of the left and
middle pinch rollers will effect the performance of the FC5100-100 and FC5100-130 cutting plotters.
• Lower the media set lever to raise the pinch rollers.
Preparing to Cut: Loading Media
43
• Move the left pinch roller next to the middle pinch
roller.
• Move both the left and middle pinch rollers together
until they reach the right stop.
• Load the media so that the left side of the narrow
media is under the left pinch roller.
• Adjust the right pinch roller over the right side of the
media.
• Raise the media set lever to lower the pinch rollers.
• Lower the pinch rollers (raise the lever) and pull the vinyl out from the alignment
bar.
• Re-adjust the position of the media roll as necessary to eliminate slack between
the roll and pinch rollers.
Eliminate slack
Good Pinch Roller Position
NOTE: The length of the media at the front of the plotter should be sufficient to com-
Hold the media down:
• Check that there is no slack in the media between the roll and the front edge,
reposition the media roll if necessary.
• Turn the roll of media so that you can pull out the amount required for your cut-
ting operation. (You can also use the plotter’s feed function to feed out the spec-
ified amount of media).
• Before you begin a long-length cutting operation, pull out the approximate
length of media which will be required for your cutting operation. Let the media
pletely cover the paper sensor. If the front edge extends too far when you have pulled the media taut, wind the media back onto the roll.
Preparing to Cut: Loading Media
44
sit for 30 minutes to become acclimated to the environment before starting the
cutting operation. Next, use the plotter’s feed function to feed out the specified
amount of media needed for your cutting operation.
• Turn on the power if it is off.
• Plotter performs the initialization routine.
V 1.12 GL
Buffer RAM Checking
• Loading of the media is complete.
Preparing to Cut: Loading Media
Select the Media Type
CAUTION: To avoid damaging the cutting mat, be sure to set the media type to SHEET
when using sheet media. Whenever possible, use sheet media of rectangular shape.
If you have already loaded the media, the MEDIA TYPE menu appears. Select
the media type.
45
ROLL-1> ROLL-2>*
SHEET>*
CONTINUE>*
*
ROLL–1 Roll-1 detects the width and leading edge of roll media. The coordinate origin is
initialized with respect to the media’s leading edge.
Press the F1 key to select ROLL-1.
ROLL-1>*
ROLL-2>*
SHEET>*
CONTINUE>*
The initialization routine is executed to determine the paper size and origin point.
CUT AREA shows the effective cut area that is determined by the position of the
pinch roller and the page length setting.
CUT AREA
ROLL–2 ROLL-2 detects the width but the leading edge of the roll media is not detected
and the coordinate origin is initialized with respect to the cutting mat.
Press the F2 key to select ROLL-2
The initialization routine is executed to determine the paper size and origin point.
X=2000mm Y=730mm
ROLL-1>*
ROLL-2>*
SHEET>*
CONTINUE>*
Preparing to Cut: Select the Media Type
46
CUT AREA shows the effective cut area that is determined by the position of the
pinch roller and the page length setting.
CUT AREA
X=2000mm Y=730mm
NOTE: After initializing the plotter by choosing ROLL-1 or ROLL-2, use the FEED
function to pre-feed the length of media needed for the job. This embosses the grit roller pattern onto the media to help prevent media skewing or excessive system torque which triggers the position alarm. The position alarm resets the system, or if the system is overloaded, it triggers the product’s circuit protection causing the power to shut down.
Should the system overload causing the power to shut down, turn off the power switch and unplug the power cord. Wait 5 to 10 minutes, reconnect the power and turn on the system. For more information, see Chapter 6 Test Modes and Troubleshooting.
SHEET SHEET detects the width and both the leading and trailing edges of the media.
Press the F3 key to select SHEET
ROLL-1>* ROLL-2>*
SHEET>*
CONTINUE>*
The initialization routine is executed to determine the paper size and origin point.
CUT AREA shows the effective cut area that is determined by the position of the
pinch roller and the page length setting.
CUT AREA
X= 830mm Y= 730mm
CONTINUE The CONTINUE function is useful and will save time if you intend to cut a large
quantity of the same-size media. This selection is available from the second initial­ization after turning on the power. CONTINUE does not appear in the media selec­tion menu on the first initialization after turning on the power. The plotter assumes that the current media is the same size as the last media that was loaded on the plotter and does not detect the media’s edges. To use CONTINUE effectively, set the media so that the current pen carriage position can be located at the same place as it was on the last media.
Preparing to Cut: Select the Media Type
Press the F4 key to select CONTINUE
47
No sensing operations are performed. Set the various functions of the plotter as desired.
NOTE: Make sure to set the correct cutting conditions to suit the cutter blade and
Initializing Routine
ROLL-1> ROLL-2>*
SHEET>*
CONTINUE>*
media being used. For details see Setting Conditions.
*
ROLL-1 1 During initialization, the pen carriage moves right until it detects the mechani-
cal home position.
2 The pen carriage then moves left until it detects the left-hand side of the media
edge.
3 It then returns to the right edge of the media.
4 The media is fed backwards until the media’s leading edge is detected.
Preparing to Cut: Initializing Routine
48
ROLL-2 1 During initialization, the pen carriage moves right until it detects the mechani-
cal home position.
2 The pen carriage then moves left until it detects the left-hand side of the media
edge.
3 It then returns to the right edge of the media.
SHEET 1 During initialization, the pen carriage moves right until it detects the mechani-
cal home position.
2 The pen carriage then moves left until it detects the left-hand side of the media
edge.
3 It then returns to the right edge of the media.
4 The media is fed backwards until the media’s leading edge is detected.
5 The media is then fed forward until the media’s trailing edge is found.
6 The media is fed backwards until the pen carriage locates the lower left posi-
tion of the cutting area.
CONTINUE CONTINUE does not perform initialization but begins plotting from the pen car-
riage’s current position. Set the various functions of the plotter as desired.
NOTE: Make sure to set the correct cutting conditions to suit the cutter blade and
media being used. For details see Setting Conditions.
Preparing to Cut: Initializing Routine
Setting Conditions
This function allows you to register eight different groups of conditions in the plotter’s memory. These conditions greatly affect the finished quality of the cutting operation. The desired group can be quickly loaded by simply pressing the corre­sponding function key [F1] through [F4] on the control panel. Each key corre­sponds to two conditions. Press the key to switch from one condition to the other. Use the F1 key to toggle between CONDITION 1 and CONDITION 5. Use the F2 key to toggle between CONDITION 2 and CONDITION 6. Use the F3 key to toggle between CONDITION 3 and CONDITION 7. Use F4 key to toggle between CONDI­TION 4 and CONDITION 8.
CONDITION 1 - To get the factory default setup conditions for the cutter, press the F1 key.
CONDITION 2 - To get the factory default setup conditions for the pen, press the F2 key.
CONDITION 3 - To get the factory default setup conditions for the cutter intermediate, press
CONDITION 4 - To get the factory default setup conditions for the cutter reflective, press the
CONDITION 5 - To get the factory default setup conditions for the high intensity reflective,
CONDITION 6 - To get the factory default setup conditions for the sandblast with tangential
CONDITION 7 - To get the factory default setup conditions for a user selected condition,
CONDITION 8 - The factory default setup conditions for the pounce, press the F4 key.
NOTE: The parameters set within each of these conditions greatly affect the finished
Each group consists of four parameters as described below:
49
the F3 key.
F4 key.
press the F1 key.
emulation turned off, press the F2 key. Using tangential emulation will give better results when cutting sandblast media. For more details see TAN-
GENTIAL EMULATION.
press the F3 key.
quality of cutting operations. The factory set default parameters for each of the eight conditions are a starting point for the user to fine tune the parameters of each condition.
Cutting Force (Pen Pressure): Sets the force to be applied by the cutter blade
during cutting, the hole punching force during pouncing, and the plotter pen pressure during plotting.
Speed: Sets the traveling speed of the lowered pen.
Quality: Sets the acceleration rate of the pen during cutting or plotting. When
you select a speed that is faster than 60, you can not select quality. At that time an “xx” appears.
Cutter Offset: Sets the cutter blade control factor that greatly affects the shape
of corners. CUTTER OFFSET accesses parameters such as the tool type and the offset value. Select the tool you wish to use first, then set the value.
Preparing to Cut: Setting Conditions
50
The following is a list of all eight conditions and their respective settings.
Condition Comments Tool Force Speed Quality Offset
1 Cutter CB09Ux 14 30 4 0
2 Pen PEN 14 60 4
3 Cutter Immediate CB09Ux 20 30 4 0
4 Cutter Reflective CB015Ux 30 15 4 0
5 Cutter High Intensity Reflective CB015Ux 38 15 4 0
6 Cutter Sandblast with Tangential
7 Other OTHER 17 30 4 17
8 Pounce POUNCE 12 30 4 1
Select the Tool from the Menu
CB015U-K30x 38 10 2 0
Emulation turned off
NOTE: The selected conditions greatly affect the finished quality of cutting operations.
NOTE: Raising the SPEED and QUALITY values results in lower precision but
reduced overall cutting time. This is useful when making test runs.
NOTE: Lowering the SPEED and QUALITY values results in high-precision but
increased overall cutting time.
Press function keys [F1] through [F4] corresponding to the number of the group
whose registered tool you wish to change.
CONDITION 1........14.
30.
READY .........4.
CB09Ux...0.
• Press the CONDITION key to select the tool.
• Press the F4 key to select the tool you wish to use. A blinking cursor appears
next to your choice.
• Press the RIGHT or LEFT ARROW key to scroll through the tool selection.
• Select one of the following cutter blades: CB09Ux, CB15-10Ux, CB15Ux,
CB15U-K30x, CB15-10Cx, CB15-05Sx, CB15-10Ux, CB15UBx.
Preparing to Cut: Setting Conditions
SET.... ........14
CONDITION 1........30
4
CB09Ux...0
51
• Select OTHER when above preset values and their deviation ranges cannot
cover the range needed for satisfactory results.
• Select PEN to use a plotter pen.
• Select POUNCE to use the pouncing pen.
• Select LIGHT POINT to use the light pointer to check the cutter pass.
NOTE: These tool names are actually the names of preset offset values, and each
value can be changed within a range from -5 to +5.
NOTE: The suffix “x” represents any cutter suffix within the family. For example, select
CB09Ux when using a CB09UA cutter.
NOTE: When you select POUNCE, the cutter offset refers to the spacing between the
holes.
Press the ENTER key to select the desired tool.
TANGEN TIAL mode
Cutter Condi­tions
Beside the cutter blade selection noted above, you can select the tangential emulation mode to cover additional selection of media. For details see Tangen-
tial Emulation in Advanced Functions and Settings.
• To change the setting of a group of conditions, press function keys [F1] through
[F4] corresponding to the number of the group you wish to change. For example,
press the F1 key to select CONDITION 1. If the CONDITION 5 appears, then
press the F1 key again to select CONDITION 1.
• Press the CONDITION key to access the condition menu.
SET............14.
CONDITION 1........30.
4.
CB09Ux...0.
• Press the NEXT key to cancel the condition where you are currently set and
return to the main menu.
NOTE: If the TANGENTIAL EMULATION mode is enabled for the condition number
that you are currently working on, the overcut menu appears as soon as the ENTER key is pressed. Change the values, if necessary. For details see Tan- gential Emulation.
TO CHANGE THE CUTTER FORCE
• Press the F1 key to change FORCE. The blinking cursor indicates that you can
change its setting.
SET............14
CONDITION 1........30
4
CB09Ux...0
Preparing to Cut: Setting Conditions
52
• Press the UP or DOWN ARROW key to raise or lower the numeric value 1 to 40.
• If you wish to change another parameter then:
• Press the F2 key to change SPEED.
• Press the F3 key to change QUALITY.
• Press the F4 key to change OFFSET.
• If all of the parameters are set press the ENTER key to register your setting.
TO CHANGE THE CUTTER SPEED
• Press the F2 key to change SPEED. The blinking cursor indicates that you can
change its setting.
SET............14
CONDITION 1........30
4
CB09Ux...0
• Press the UP or DOWN ARROW key to raise or lower the numeric value from 1
to 100. [1 to 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100]
• If you wish to change another parameter then:
• Press the F1 key to change FORCE.
• Press the F3 key to change QUALITY.
• Press the F4 key to change OFFSET.
• If all of the parameters are set press the ENTER key to register your setting.
TO CHANGE THE CUTTER QUALITY
• Press the F3 key to change QUALITY. The blinking cursor indicates that you can
change its setting.
SET............14
CONDITION 1........30
4
CB09Ux...0
• Press the UP or DOWN ARROW key to raise or lower the numeric value from 1
to 8. The smaller the value, the higher the quality. When you select a speed that
is faster than 60, you cannot select quality. At that time an “xx” appears.
• If you wish to change another parameter then:
Preparing to Cut: Setting Conditions
• Press the F1 key to change FORCE.
• Press the F2 key to change SPEED.
• Press the F4 key to change OFFSET.
53
• If all of the parameters are set press the ENTER key to register your setting.
TO CHANGE THE CUTTER OFFSET
• Press the F4 key to change OFFSET. The blinking cursor indicates that you can
change its setting.
SET............14
CONDITION 1........30
4
CB09Ux...0
• Press the UP or DOWN ARROW key to raise or lower the numeric value from –5
to +5. For more information, see Running Cutting Test.
• If all of the parameters are set press the ENTER key to register your setting.
FINE ADJUSTMENT
1 Set the blade type to OTHER to permit fine adjustment of the CUTTER OFF-
SET value.
Running Cutting Tests
2 While referring to the figures above, gradually adjust the cutter offset value
while checking the results by running a cut test.
The TEST function allows you to check the suitability of your condition settings. If the test results are not satisfactory, adjust the settings as described in Cutter
Conditions.
WARNING: The cutter pen starts moving as soon as a cutting test is selected. To
avoid bodily injury and damage to the plotter, load the media before pressing the [TEST] key and keep your hands, face and other objects out of the vicinity of the cutting mat and media.
The cutter condition is critical to achieve the best cut quality and to increase the life of the blade. Since the cutter condition depends on the media type and thick­ness, perform a cut test to check your settings and fine-tune the cut quality before starting your new cutting job.
Observe the following steps to achieve good cutter condition settings:
1 Cut the test pattern (Test 1, Test 2, Cutting-Pro) in three locations: the far right
side, the center and the far left side of the media.
2 Check the shape of the pattern.
3 Change the condition parameters if needed.
4 Repeat steps 1 through 3 until the test results are satisfactory.
The following illustrations display test pattern results:
Preparing to Cut: Setting Conditions
54
1 Peel off the outside triangle first to view the
shape of the corners. The corner’s shape represents the cutter offset setting. If the cor­ners are rounded, the cutter offset value should be decreased; if the corners are too sharp, the cutter offset value should be increased.
2 Next peel off the triangle from the liner to
view the depth of the cutter trail. The depth of the cutter trail represents the blade length. The best setting creates a light scratch on the liner.
3 If the scratch is too light and the trail breaks
in places, increase the blade length; if the scratch is so heavy that it cuts the liner, the blade should be shortened.
4 Change the parameters as needed.
5 Repeat steps 1 through 3 until the test results are satisfactory.
Test 1 Use this TEST 1 triangle pattern to test your condition settings. With the media
loaded in the plotter and the READY mode displayed on the menu, press the TEST
key on the control panel.
CONDITION 1........14.
30.
READY.............4.
CB09Ux...0.
You will see the following test menu:
TEST 1>.
TEST 2>.
CUTTING PRO>.
Press the F2 key to select TEST 1.
The plotter will immediately cut one (1) triangle from the current pen position.
• Adjust the cutting conditions and re-run the cutting test.
• Repeat this process until you achieve the desired results.
• Press the ENTER key to return to the READY mode when the results are satis-
factory.
Preparing to Cut: Setting Conditions
55
Test 2 When you believe that you are nearing the most desirable condition setting, use
the TEST 2 pattern. This test cuts three triangle patterns using three different cut­ting forces. The center triangle is cut using the force which you selected. The left triangle is cut using a force that is one step lower than your selection. The right triangle is cut using a force that is one step higher than your selection. This range allows you to confirm that your force selection is the best.
With the media loaded in the plotter and the READY or PAUSE mode displayed
on the menu,
CONDITION 1........14.
30.
READY.............4.
CB09Ux...0.
press the TEST key on the control panel. You will see the following test menu:
TEST 1>.
TEST 2>.
CUTTING PRO>.
Press the F3 key to select TEST 2.
The plotter will immediately cut three (3) triangles from the current pen position.
• Adjust the cutting conditions and re-run the cutting test.
• Repeat this process until you achieve the desired results.
Press the ENTER key to return to the READY mode when the results are satis­factory.
Cutting Pro Use the CUTTING PRO Test pattern to check your cutting quality with an actual
cut pattern without having to access your application software.
With the media loaded in the plotter and the READY or PAUSE mode displayed
on the menu,
CONDITION 1........14.
30.
READY.............4.
CB09Ux...0.
press the TEST key on the control panel. You will see the following test menu:
TEST 1>. TEST 2>.
CUTTING PRO>.
Preparing to Cut: Setting Conditions
56
Press the F4 key to select CUTTING PRO.
Press the F3 key to select YES and start.
PATTERN CUTTING PRO
OK?
YES>.
NO>.
Press the F4 key to select NO and cancel.
• Adjust the cutting conditions and re-run the cutting test.
• Repeat this process until you achieve the desired results.
• Press the ENTER key to return to the READY mode when the results are satis-
factory.
Plotter Pen Con­ditions
To change the setting of a group of conditions, press the function key [F1] through [F4] corresponding to the number of the group you wish to change. For example, press the F2 key to select CONDITION 2. If CONDITON 6 appears, then press the F2 key again to select CONDITION 2.
PEN REFERENCE VALUES
The table below gives the recommended settings for each pen condition.
Pen type Force Speed Quality
Water-based fibertip pen 10 to 12 30 4
Oil-based fibertip pen 10 to 12 20 2
Water-based ballpoint pen 15 to 18 60 4
Ceramic pen 7 to 8 20 2
Ink pen 4 to 7 10 2
NOTE: The condition settings will vary according to the type of paper being used. To
prolong the life of your pen keep the FORCE setting as low as possible. Set the SPEED according to the type of output quality required.
Press the CONDITION key to access the condition menu.
Preparing to Cut: Setting Conditions
SET............14.
CONDITION 2........60.
4.
PEN......
57
NOTE: Press the NEXT key to cancel the condition that you are currently setting and
return to the main menu.
TO CHANGE THE PEN FORCE
• Press the F1 key to change FORCE. A blinking cursor indicates that you can
change its setting.
SET............14
CONDITION 2........60
4
PEN.....
• Press the UP or DOWN ARROW key to raise or lower the numeric value from 1
to 40.
• If you wish to change another parameter then:
• Press the F2 key to change SPEED.
• Press the F3 key to change QUALITY.
• If all of the parameters are set press the ENTER key to register your setting.
TO CHANGE THE PEN SPEED
• Press the F2 key to change SPEED. A blinking cursor indicates that you can
change its setting.
SET............14
CONDITION 2........60
4
PEN.....
• Press the UP or DOWN ARROW key to raise or lower the numeric value from 1
to 100. [1 to 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100.]
• If you wish to change another parameter then:
• Press the F1 key to change FORCE.
• Press the F3 key to change QUALITY.
• If all of the parameters are set press the ENTER key to register your setting.
Preparing to Cut: Setting Conditions
58
O CHANGE THE PEN QUALITY
T
• Press the F3 key to change QUALITY. A blinking cursor indicates that you can
change its setting.
SET............14
CONDITION 2........60
4
PEN.....
• Press the UP or DOWN ARROW key to raise or lower the numeric value from 1
to 8. The smaller the value, the higher the quality. When you select a speed that
is faster than 60, you cannot select quality. At that time an “xx” appears.
• If you wish to change another parameter then:
• Press the F1 key to change FORCE.
• Press the F2 key to change SPEED.
• If all of the parameters are set press the ENTER key to register your setting.
Pounce Condi­tions
To change the setting of a group of conditions, press the function key [F1] to [F4] corresponding to the number of the group you wish to change. For example, press the F4 key to select CONDITION 8. If CONDITON 4 appears, then press the
F4 key again to select CONDITION 8.
SET...........12.
CONDITION 8......30.
..........4.
POUNCE...1.
Press the CONDITION key to access the condition menu.
Press the NEXT key to cancel the condition where you are currently set and return to the main menu.
TO CHANGE THE POUNCE FORCE
• Press the F1 key to change FORCE. The blinking cursor indicates that you can
change its setting.
SET...........12
CONDITION 8......30
..........4
POUNCE...1
• Press the UP or DOWN ARROW key to raise or lower the numeric value from 1
to 40.
• If you wish to change another parameter then:
Preparing to Cut: Setting Conditions
59
• Press the F3 key to change QUALITY.
• Press the F4 key to change OFFSET.
• If all of the parameters are set press the ENTER key to register your setting.
TO CHANGE THE POUNCE SPEED
• Press the F2 key to change SPEED. The blinking cursor indicates that you can
change its setting.
SET...........12
CONDITION 8......30
..........4
POUNCE...1
• Press the UP or DOWN ARROW key to raise or lower the numeric value from 1
to 100. [1 to 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100.]
• If you wish to change another parameter then:
• Press the F1 key to change FORCE.
• Press the F3 key to change QUALITY.
• Press the F4 key to change OFFSET.
• If all of the parameters are set press the ENTER key to register your setting.
TO CHANGE THE POUNCE QUALITY
• Press the F3 key to change QUALITY. The blinking cursor indicates that you can
change its setting.
SET...........12
CONDITION 8......30
..........4
POUNCE...1
• Press the UP or DOWN ARROW key to raise or lower the numeric value from 1
to 8. The smaller the value, the higher the quality. When you select a speed that
is faster than 60, you cannot select quality. At that time an “xx” appears.
• If you wish to change another parameter then:
• Press the F1 key to change FORCE.
• Press the F2 key to change SPEED.
• If all of the parameters are set press the ENTER key to register your setting.
• Press the F4 key to change OFFSET.
Preparing to Cut: Setting Conditions
60
O CHANGE THE POUNCE OFFSET
T
• Press the F4 key to change OFFSET. The blinking cursor indicates that you can
change its setting.
SET...........12
CONDITION 8......30
..........4
POUNCE...1
• Press the UP or DOWN ARROW key to raise or lower the numeric value from 1
to 99.
• If all of the parameters are set press the ENTER key to register your setting.
NOTE: For the pounce condition, the cutter offset refers to the spacing between holes
in mm units.
Light Pointer Conditions
How to Point the Target
The light pointer, embedded in the pen carriage, provides a means to point out certain positions on the media which are necessary to perform functions such as AXIS ALIGNMENT and AREA. The light pointer automatically activates when it is needed.
Since the light pointer is offset from the pen, it immediatley moves to the pen’s current location as soon as it is activated. The position of the light pointer there­fore, represents the position of the pen.
The light pointer can also be used to check the cutter path before cutting the contour of pre-printed images of labels and stickers.
The light pointer is projected on the media as a small red circle. The position of the light pointer is easily visible even though it is placed on a large target. The tar­get, usually printed on the media as crossed lines, should be positioned such that it is centered over the circle projected by the light pointer, as shown below.
Preparing to Cut: Setting Conditions
61
Checking the Cutter Path
Use the light pointer to verify the contour cut before actually cutting the job. Select the light pointer as the tool and reduce the pen speed as low as possible so that its path is visible on the media.
Send the cut data to the plotter. The plotter runs the job with the light pointer turning on and off to represent the PEN UP/DOWN status. The light pointer is off to show when the pen is UP. The light pointer is on to show when the pen is DOWN.
Changing Feed Speed
This function allows you to change the media feed speed from SLOW to NOR­MAL. In the case of selecting ROLL-1 and SHEET on the media type menu, the plotter uses SLOW to ensure the accuracy of the leading and trailing edges of the media. After the initialization, the feed speed can increase once the grit rollers and the pinch rollers secure the media. Always select SLOW for heavy media or media with a slippery surface, otherwise select NORMAL to shorten the initializa­tion time. Remember that the media will back up at the pen up speed when NOR­MAL is selected. For details see FEED – Advancing Media.
When the media set lever is lowered, the following menu appears on the display:
LOAD MEDIA!
INITIAL MENU>.
• Press the F4 key.
• Press the F3 key to select INITIAL FEED SPEED.
AUTO PRE FEED>.
INITIAL FEED SPEED>.
INTERFACE>.
• Press the F3 key to select NORMAL or the F4 key to select SLOW.
INITIAL FEED SPEED
..........NORMAL.
SLOW.
• Press the ENTER key to return to the previous menu.
• Press the NEXT key to advance to the next menu.
Preparing to Cut: Changing Feed Speed
62
• Press the F4 key to set parameters such as STEP SIZE, RS232C CONDITIONS
AND COMMANDS. For details see Setting the Interface Conditions.
AUTO PRE FEED>.
INITIAL FEED SPEED>.
INTERFACE>.
• Raise the media set lever to engage the media. The media type menu appears
on the display; press the key which corresponds to the type of media that is
loaded for cutting/plotting.
ROLL-1>. ROLL-2>.
SHEET>.
CONTINUE>.
• Press the F1 key to select ROLL-1.
• Press the F2 key to select ROLL-2.
• Press the F3 key to select SHEET.
• Press the F4 key to select CONTINUE.
Preparing to Cut: Changing Feed Speed
Withdrawal of the Pen Carriage
This function moves the pen carriage from its current position to a position that is +100 mm away along both the X and Y axis. This also helps to confirm the job is completed.
While holding down the ENTER key, press the UP ARROW key, and then release it.
Repeat this process as needed to move the pen carriage away from the cutting/ plotting job.
63
Returning the Pen Carriage to Origin
This function moves the pen carriage from its current position to the origin point.
While holding down the ENTER key, press the DOWN ARROW key and then release it. The pen carriage will return to the origin point.
Preparing to Cut: Withdrawal of the Pen Carriage
64
Preparing to Cut: Returning the Pen Carriage to Origin
65
Chapter 5: Advanced Functions and Settings
This chapter describes the advanced functions and settings for your cutter. You can access these functions through the menu, however, some functions have quick keys on the control panel to pro­vide faster access to these menus.
Control Panel Quick Keys
Origin – Sets the cutting origin.
Copy – Copies the data in the plotter’s buffer memory.
Condition – Sets the cutter conditions; see Preparing to Cut.
Test – Tests the cutter conditions; see Test Modes and Troubleshooting.
Axis Alignment - Aligns pre-printed material for cutting; see Menu Controls.
Menu Controls
Pen UP/DOWN –Raises or lowers the pen.
Buffer Clear – Clears the plotter’s receiving buffer.
Feed – Feeds the media before cutting when the cutting area is known.
Interface:
Step Size – For details see Setting the Interface Functions.
RS-232C – For details see Setting the Interface Functions.
Command – For details see Setting the Interface Functions.
Area Parameters:
Origin – Sets the Origin in HP-GL™ mode.
Area – Specifies the effective cutting area of the plotter.
Expand – Expands the cut width instantly.
Page Length – Specifies the length of individual pages when using roll
media.
Function 1:
Rotate – Rotates the coordinate axes by 90°.
Mirror – Cuts a reverse image of the original data.
Scale – Enlarges or reduces an image.
Advanced Functions and Settings: Control Panel Quick Keys
66
Function 2:
Data Sorting – Groups the line segments.
Axis Alignment – Aligns pre-printed material for cutting.
Auto Pre Feed – Prevents slippage on large media jobs.
Tangent Emulation – Enables special blade control under specific circum-
stances.
Background Settings - For details see Background Settings.
Option 1:
Pen Up Speed – Reduces overall cutting time.
Offset Angle – Smooths curves on large characters.
Offset Force – Controls blade angle under special circumstances.
Step Pass – Smooths curves on small characters.
Option 2:
Initial Down Force - Enables special blade control during initial cutting of
media.
Distance Adjust –Corrects the distance distortion under special circum­stances.
Tes t – For details see Test Modes and Troubleshooting.
ORIGIN - Setting the Cutting Origin
This function allows you to move the origin point of cutting.
Use the UP, DOWN, RIGHT or LEFT ARROW keys to move the cutter to the desired origin position.
• Press the ORIGIN key. The beeper sounds and the LCD displays a message
indicating that the new origin is in effect.
Advanced Functions and Settings: ORIGIN - Setting the Cutting Origin
Origin Point with ROTATE function
67
NOTE: The coordinates being displayed represent displacements along the X and Y-
axes from the original origin.
NOTE: If you intend to use the ORIGIN function in combination with the ROTATE or
MIRROR function, be sure to set the ORIGIN function first.
COPY - Copying the Data in Plotter Buffer Memory
This function allows you to automatically cut duplicates of the data sent from the computer.
The data sent from the computer is always stored automatically in the plotter’s receive buffer while it is cutting/plotting. Once the data has been stored in the plotter’s receive buffer, it can be repeatedly cut by using this function.
CAUTION: While a copy operation is in process, do not send new data to the plotter.
Use the UP, DOWN, RIGHT or LEFT ARROW keys to move the cutter to the desired starting position for cutting, this is the Copy origin.
• Press the COPY key to select the COPY mode.
If the data for copy is available in the receive buffer, the following menu will
appear:
COPY SPACE
1 mm
Advanced Functions and Settings: COPY - Copying the Data in Plotter Buffer Memory
68
If the receive buffer is empty the following message will appear. You will need to
re-send the data to the plotter by returning to the previous menu.
NO DATA FOR COPY
IN BUFFER !
If one block of the data sent from the computer has exceeded the plotter’s receive buffer size (2Mbyte), the following message will appear. Return to the pre­vious menu. You will need to divide the data into smaller sizes or segments so that
it fits the plotter’s receive buffer. After doing so re-send the data.
BUFFER IS FULL
CANNOT COPY!
Use the UP or DOWN ARROW key to increase or decrease the copy space after
the COPY SPACE menu appears.
COPY SPACE
5 mm
• Press the ENTER key to store the setting. If the effective cutting area is smaller
than the area required to cut one copy, the following menu appears:
CANNOT COPY
CUT AREA TOO SMALL
OK>.
• Press the F4 key to return to the start menu. If the effective cutting area is avail-
able, the following menu appears:
COPY MODE
NUMBER OF COPIES
[ 1 ]
CAUTION:The number of copies is limited by the PAGE LENGTH setting.
• Press the UP and DOWN ARROW keys to increase or decrease the number of
copies. The number can be increased up to the maximum number of copies that
can be cut out of the currently loaded media. You may re-load additional media
to achieve the number of copies you wish to cut. Then reset the copy function
again.
Advanced Functions and Settings: COPY - Copying the Data in Plotter Buffer Memory
69
• Press the ENTER key, the following menu will appear:
CONDITION 2........14.
30.
COPY.............4.
CB09Ux...0.
The plotter will start cutting/plotting as soon as the ENTER key is pressed.
If you wish to continue cutting additional copies, reload the media and begin again by pressing the COPY key.
NOTE: If there is an interval of ten seconds or greater when the data is sent, the previ-
ous data is cleared.
Copying Sequence
The following figures illustrate the sequence in which copies are cut, with the shaded areas representing the uncut areas of the media.
Copies are normally cut in this sequence.
If MIRROR mode is selected, the copies are cut in this sequence.
If ROTATE mode is selected, the copies are cut in this sequence.
Advanced Functions and Settings: COPY - Copying the Data in Plotter Buffer Memory
70
PEN UP/DOWN - Raising/Lowering the Pen
The PEN UP/DOWN function allows you to raise or lower the pen from the con­trol panel. When the light pointer is selected as the tool, this function controls the light pointer’s light. The light turns on when PEN DOWN is selected. The light turns off when PEN UP is selected.
WARNING: While using this function, keep your hands out of the vicinity of the pen
holder (especially the pen).
• Press the MENU key to select MENU mode.
• Press the NEXT key.
• Press the F2 key to toggle between PEN UP and PEN DOWN. The Pen UP/
DOWN message does not change, but the pen will move up or down.
.
PEN UP/DOWN>.
BUFFER CLEAR>.
FEED>.
• Press the MENU key to cancel MENU mode.
BUFFER CLEAR - Clearing the Buffer
The BUFFER CLEAR function is used to clear the plotter’s receive buffer of all data that has been sent from the computer.
WARNING: Do not execute the BUFFER CLEAR function until the computer has com-
pleted data output. If you clear the buffer while the computer is still send­ing data to the plotter, the data received up to the time that MENU mode was selected is cleared, but the computer resumes sending subsequent data which remains in its buffer. At such time, the pen carriage may sud­denly start moving so be sure to keep your hands, face and other obsta­cles out of the vicinity of the cutting mat and media.
• Press the MENU key to select MENU mode.
• Press the NEXT key.
• Press the F3 key to select BUFFER CLEAR
PEN UP/DOWN>.
BUFFER CLEAR>.
.
FEED>.
The NOTE message then prompts you to stop sending data from the computer before clearing the buffer. If you wish to quit the current job, cancel the current plotting on the application software.
Advanced Functions and Settings: PEN UP/DOWN - Raising/Lowering the Pen
71
• This menu appears 3 seconds after you select BUFFER CLEAR.
NOTE:
CONFIRM DATA FROM.
HOST STOPPED.
• Press the F3 key to clear the buffer or press the F4 key to resume the cutting/
plotting job.
BUFFER CLEAR OK?
CLEAR>.
CANCEL>.
• If the F3 key is pressed, the following menu appears, clearing of the buffer is
then complete.
CLEARING BUFFER !
• Press the MENU key to cancel MENU mode.
FEED - Advancing the Media
The FEED function is used to prevent the loaded media from slipping by auto­matically advancing the media and imprinting it with grit roller marks; the media is then returned to its original position.
If you know approximately how much media you will require for the next cut, advance the media prior to starting the cut by using this function. Otherwise, enable the AUTO PRE-FEED FUNCTION.
CAUTION: Do not use the FEED function with media that is shorter than 1 meter. If the
FEED LENGTH setting exceeds the actual length of loaded media, the media will fall out in front of the plotter. If this happens, shorten the FEED LENGTH.
• Press the MENU key to select MENU mode.
PLEASE WAIT
BUFFER CLEAR
COMPLETED !
• Press the NEXT key.
Advanced Functions and Settings: FEED - Advancing the Media
72
• Press the F4 key to select FEED.
.
PEN UP/DOWN>.
BUFFER CLEAR>.
FEED>.
• Press the UP and DOWN ARROW keys to obtain the desired FEED LENGTH.
FEED LENGTH
1 m
• Press the ENTER key to register your settings. The plotter will start feeding as
soon as the ENTER key is pressed.
• Press the MENU key to cancel MENU mode.
ORIGIN - Setting the Origin in HP-GL Mode
There are two types of origins: Center and Lower Left. If HP-GL™ utilizes the Center mode and the plotter utilizes the Lower Left Origin point, you may lose plot data that is located in the upper right quadrant. The ORIGIN mode allows you to alternate between both origin types in HP-GL™ mode.
Center Origin Lower Left Origin Designed with
Center Origin and plotted with a Lower Left Origin
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
• Press the F2 key to select AREA PARAMETERS.
Advanced Functions and Settings: ORIGIN - Setting the Origin in HP-GL Mode
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>. FUNCTION 2>.
73
• Press the F1 key to select ORIGIN. If there is no ORIGIN in the menu, the plot-
ter is in GP-GL mode. Change the mode if necessary.
ORIGIN>.
AREA>.
EXPAND>.
PAGE LENGTH>.
• Press the F3 key to select LOWER LEFT or press the F4 key to select CENTER.
ORIGIN POINT
LOWER LEFT.
CENTER.
• Press the ENTER key to register your settings or press the MENU key to cancel
MENU mode.
NOTE: Your ORIGIN setting is retained in the plotter’s internal memory even while the
plotter is turned off. When the origin has been set to CENTER, the X- and Y­axis coordinate values shown on the display panel represent the respective distances from the lower left point of the effective cutting (plotting) range.
AREA - Setting the Cutting Area
The Upper Right (UR) and Lower Left (LL) functions are used to specify the effective cutting area of the plotter so that any data specifying coordinate positions outside of the effective cutting area are disregarded.
WARNING: As soon as both the LL and UR points are set, the pen carriage will move
to the new origin. To avoid injury, keep your hands, face and other obsta­cles out of the vicinity of the cutting mat and media.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
• Press the F2 key to select AREA PARAMETERS.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>. FUNCTION 2>.
Advanced Functions and Settings: AREA - Setting the Cutting Area
74
• Press the F2 key to select AREA. (ORIGIN in the 1st row appears in HP-GP
mode only). The following menu appears:
ORIGIN>.
AREA>.
EXPAND>.
PAGE LENGTH>.
Use the POSITION Keys to specify a new LL position. The X- and Y- coordinate values will represent the current pen position as X- and Y-axis offsets from the
original origin.
SET LOWER LEFT
X= 0 mm Y= 0 mm
DEFAULT>.
• Press the ENTER key to register the newly specified LL Position.
• Press the F4 key to select the DEFAULT if you wish to return to the original ori-
gin point.
The following menu appears:
SET UPPER RIGHT
X= 1000 mm Y= 1000 mm
DEFAULT>.
Use the POSITION Keys to specify a new UR position. The X- and Y- coordi­nate values will represent the current pen position as X- and Y-axis offsets from the original origin.
• Press the ENTER key to register the newly specified UR position.
• Press the F4 key to select the DEFAULT if you wish to withdraw the current
upper right setting. The origin point returns to the original upper right point
which is determined by loaded media size.
• Press the MENU key to cancel MENU mode.
NOTE: When the plotter is initialized, your LL and UR settings are erased, and are ini-
tialized to their default position (the lower left and upper right corners of the maximum effective cutting area) unless CONTINUE is selected on the media type menu.
NOTE: The LL and UR positions cannot be specified outside of the actual area of the
loaded media.
NOTE: The effective cutting area can only be set by specifying the lower left and upper
right points. If the effective cutting area is incorrectly specified (for example, by specifying the Upper Left or Lower Right point or specifying the same point for
Advanced Functions and Settings: AREA - Setting the Cutting Area
75
both UR and LL positions), the message below appears for several seconds. In this case, reset the effective cutting area.
ILLEGAL PLOT AREA
NOTE: When the ROTATE and MIRROR mode is selected or canceled after specifying
new LL and UR positions, your LL and UR settings are initialized to their default positions.
NOTE: The effective cutting area cannot be specified past the origin in the direction of
media feeding.
When the origin is set as shown in the example below, the shaded area repre­sents the effective cutting area defined by the LL and UR points.
When the ROTATE mode has been selected to rotate the coordinate axes by 90° as shown in the example, the shaded area represents the effective cutting area defined by the LL and UR points.
Advanced Functions and Settings: AREA - Setting the Cutting Area
76
EXPAND - Expanding the Cut Area
EXPAND mode allows you to both widen and narrow the cutting area. The cut­ting area is automatically determined by the position of the pinch rollers when the plotter is initialized.
Select EXPAND when cutting a pattern that is nearly as wide as the media, and you do not mind the footprint caused by the grit rollers along the edges of the pat­tern. However, this function can be used to protect the cut pattern from the foot­print by narrowing the cut area.
When the parameter of the EXPAND mode is set to zero (default), the limit of the cutting area is set at 1mm from the inside edge of the pinch roller tracks. The parameter of the EXPAND mode ranges from -10 to +10 mm. This parameter rep­resents the allowable range on each side of the cutting area.
A positive setting indicates the limit of both sides move toward the outside of the cutting area while a negative setting indicates the limit of both sides move toward the inside of the cutting area.
For example, a setting at +5 allows a 10mm wider cutting area than the size of the default cutting area, whereas a setting at -5 allows a 10mm narrower cutting area than the default size cutting area.
CAUTION: In the case of setting the positive figure for the parameter, be sure to load the
media on to the plotter accurately so that the media does not skew during cut­ting. The cutter blade may damage the cutting mat if the media skews.
CAUTION: In the case of setting +8 mm or more, be sure to set the Initial Blade Control
Position to “2mm below”. The cutter blade will damage the cutting mat if it is set to “OUTSIDE”. See Initial Blade Control Position in the Background Set- ting.
NOTE: This function should be set before the cutting/plotting job is started since
changing the setting of this mode will cause the plotter to initialize which will clear all data in the buffer.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
• Press the F2 key to select AREA PARAMETERS.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>. FUNCTION 2>.
Advanced Functions and Settings: EXPAND - Expanding the Cut Area
77
• Press the F3 key to select EXPAND. (ORIGIN in the 1st row appears in HP-GP
mode only.)
ORIGIN>.
AREA>.
EXPAND>.
PAGE LENGTH>.
• Press the UP or DOWN ARROW key to select the value.
SET EXPAND LIMIT
0 mm
DEFAULT>.
• Press the F4 key to select DEFAULT (0), if you wish to return to the original cut-
ting area.
• Press the ENTER key to store your setting, the following menu will appear:
THIS OPERATION
RESETS THE PLOTTER !
CONTINUE>.
CANCEL>.
If the F4 key is pressed, return to the previous menu.
• Press the F3 key to select CONTINUE or press the F4 key to select CANCEL.
If CONTINUE is selected, the MEDIA TYPE MENU will appear. Select the
media type you wish to use.
ROLL-1>. ROLL-2>.
SHEET>.
• Press the F1 key to select ROLL-1, press the F2 key to select ROLL-2 or press
the F3 key to select SHEET.
If CANCEL is selected, return to the previous menu. Press the MENU key to
cancel MENU mode.
ORIGIN>.
AREA>.
EXPAND>.
PAGE LENGTH>.
Advanced Functions and Settings: EXPAND - Expanding the Cut Area
78
Setting a negative expansion limit.
Setting a positive expansion limit.
PAGE LENGTH - Setting the Length of the Page with Roll Media
This function is used to specify the length of individual pages when using roll media.
CAUTION: For optimum precision, specify the PAGE LENGTH to 2m or less.
CAUTION: When PAGE LENGTH is set to over 2m, be especially careful to load the media
properly to prevent the it from coming loose from the rollers during cutting or plotting.
CAUTION: When using roll media or roll paper, be sure to pull out the entire amount of
media required for the operation before you begin cutting or plotting, unless the AUTO PRE FEED function is enabled.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
Advanced Functions and Settings: PAGE LENGTH - Setting the Length of the Page with Roll Media
• Press the F2 key to select AREA PARAMETERS.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>. FUNCTION 2>.
• Press the F4 key to select PAGE LENGTH. (ORIGIN in the 1
HP-GL™ mode only.)
ORIGIN>.
AREA>.
EXPAND>.
PAGE LENGTH>.
• The following page length menu appears:
PAGE LENGTH.
L = 02000 mm.
st
row appears in
79
• Press the LEFT or RIGHT ARROW key next to the blinking cursor to the next
digit to the left or right.
• Press the UP or DOWN ARROW key to increase or decrease the L value.
• Press the ENTER key to register your settings or press the MENU key to cancel
MENU mode.
NOTE: Your PAGE LENGTH setting is retained in the plotter’s internal memory even
while the plotter is turned off. By specifying a long PAGE LENGTH, your plotter can perform long-axis plotting to produce banners of up to 50m in length.
ROTATE - Rotating the Coordinate Axes
This function is used to move the origin and rotate the coordinate axes by 90° as shown in the figure below.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
• Press the F3 key to select FUNCTION 1.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>.
FUNCTION 2>.
Advanced Functions and Settings: ROTATE - Rotating the Coordinate Axes
80
• Press the F2 key to select ROTATE.
ROTATE>.
MIRROR>.
SCALE>.
• Press the F3 key to turn ON the function or press the F4 key to turn OFF the
function.
ROTATE
.
ON*
OFF *
• Press the ENTER key to register your settings or press the MENU key to cancel
MENU mode.
When the ROTATE mode is selected or canceled, the displacement of the new origin remains valid in the “a” direction, but is reset to its default position in the “b” direction.
MIRROR – Reversing the Image
To cut a reversed image of the original data, use the mirror mode. When the mirror mode is enabled, the origin and coordinate axes are changed as shown in the figure below. A mirror image of the original data is cut.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
Advanced Functions and Settings: MIRROR – Reversing the Image
81
• Press the F3 key to select FUNCTION 1.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>.
FUNCTION 2>.
• Press the F3 key to select MIRROR.
.
ROTATE>.
MIRROR>.
SCALE>.
• Press the F3 key to turn ON the function or press the F4 key to turn OFF the
function
.
MIRROR.
ON*
OFF *
• Press the ENTER key to register your settings.
• Press the MENU key to cancel the menu mode.
When the MIRROR mode is selected or canceled, the displacement of the new origin remains valid in the “a” direction, but is reset to its default position in the “b” direction.
Before MIRROR is selected. After MIRROR is selected.
SCALE - Enlarging/Reducing an Image Size
This function sets the SCALE factor for enlarging or reducing an image to be cut or plotted.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
Advanced Functions and Settings: SCALE - Enlarging/Reducing an Image Size
82
• Press the F3 key to select FUNCTION 1.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>.
FUNCTION 2>.
• Press the F4 key to select SCALE.
.
ROTATE>. MIRROR>.
SCALE>.
• Press the UP or DOWN ARROW keys to select the desired SCALE factor within
the magnification range of 1/8, ¼, ½, 1, 2, 3, 4, 5, 6, 7, and 8.
SCALE
.
SCALE FACTOR = 1.
.
Press the ENTER key to register your settings or press the MENU key to cancel
MENU mode.
DATA SORTING - Sorting the Cut Data
DATA SORTING allows you to shorten the throughput time by minimizing the movements of the pen carriage and the media by means of sorting receiving data. In cases when the order of cut data from the application software is not well opti­mized, this function will increase throughput. The plotter has two modes to sort data:
Area Sorting: The plotter sorts cut data to optimize the movement of the media.
Pen Sorting: The plotter sorts cut data to optimize the changing of the pen. This
mode is only available when the two pen option is installed on the plotter.
Use this function when the pen carriage and the media move back and forth excessively, and their movement is not minimized by the application software.
If your application software is able to efficiently manage the order of data, dis­able this function as it unnecessarily burdens the plotter’s CPU.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
Advanced Functions and Settings: DATA SORTING - Sorting the Cut Data
83
• Press the F4 key to select FUNCTION 2.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>.
FUNCTION 2>.
• Press the F1 key to select DATA SORTING.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
• Press the F3 key to turn AREA sorting ON or OFF. Press the F4 key to turn PEN
sorting ON or OFF
.
DATA SORTING
.
AREA ON*
PEN OFF *
• Press the ENTER key to store your setting. If the sorting OFF is selected, return
to the previous menu.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
If sorting ON is selected, the following menu will appear.
THIS OPERATION
RESETS THE PLOTTER!.
CONTINUE>.
CANCEL>.
• Press the F3 key to select CONTINUE or press the F4 key to select CANCEL for
the data sorting mode setting.
If CONTINUE is selected, the MEDIA TYPE MENU then appears. Select the
media type you wish to use.
ROLL-1>. ROLL-2>.
SHEET>.
CONTINUE>.
Advanced Functions and Settings: DATA SORTING - Sorting the Cut Data
84
• Press the F1 key to select ROLL-1, press the F2 key to select ROLL-2, press the
F3 key to select SHEET. The following menu appears:
CONDITION 1........14.
........30.
SORTING... ........4.
CB09Ux...0.
The plotter immediately begins sorting when it receives the cut data from the PC.
If CANCEL is selected, return to the previous menu.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
• Press the MENU key to cancel the menu mode.
NOTE: The plotter immediately begins sorting when it receives the cut data from the
PC, however, the cutting/plotting may experience a delay due to the data sort­ing process. While the plotter is data sorting, following key operations becomes invalid.
Direct keys: COPY, ORIGIN, AXIS ALIGNMENT, CONDITION, F KEYS TO SELECTING CONDITION NUMBER
Menu mode: All the functions except for PEN UP/DOWN, BUFFER CLEAR and FEED
NOTE: Your data sorting setting is retained in the plotter’s internal memory even while
the plotter is turned off.
AXIS ALIGNMENT - Axis Alignment Parameter Setting
AXIS ALIGNMENT is a very important function that should be used when you intend to cut pre-printed media, such as stickers or decals. When the media is loaded in the plotter, it should be loaded at exactly the same angle and position as it was on the printer which printed the images to ensure that the position of the contour matches the printed images. Since this can not be done manually, the AXIS ALIGNMENT function allows one to adjust the angle and position of the media on the plotter electrically, as if it were being loaded on the same printer.
The direct key for AXIS ALIGNMENT is located on the operation panel so that you can rapidly access this function.
Axis Alignment parameters should be configured prior to performing the AXIS ALIGNMENT function. There are two main parameters: METHOD and TOOL
Advanced Functions and Settings: AXIS ALIGNMENT - Axis Alignment Parameter Setting
85
TOOL: There are two choices for the digitizing tool, LIGHT POINTER and
LOUPE.
• LIGHT POINTER: Comes with the plotter’s pen carriage and is the primary axis
alignment tool.
• LOUPE: A pen shaped magnifier associated with a cross cursor (optional)
referred to as “Bombsight”. This option must be swapped with the cut­ter holder.
METHODS: There are two types of axis alignment methods, 2 points and 3
points. Each number represents the number of points, which will be digitized for the angle adjustment.
• 2 POINTS: This method should be used in cases where the printed media has
two registration marks. This method is also applicable when there is one registration mark for the origin point of the printing, and paral­lelism between the axis of the printed image and the side edge of the media is guaranteed. For example, in the case of the tractor feed printer, if the axis of the printed image is parallel with the axis of the media edge, then a 2-point axis alignment can be performed. This is done by pointing at two different points on the edge of the media. The origin point can be set independently.
Selecting the Axis Alignment Tool
• 3 POINTS: This method should be used if the printed media has three registra-
tion marks. If the relative position of each of the three marks is already known, then the distortion of the printed image can be taken into account. The origin point can be set independently.
When the light pointer is selected and the AXIS ALIGNMENT key is pressed, the pen carriage and media move into position so that the light pointer is in the same position as the cutter/pen in READY mode. In this case, the position of the light pointer represents the position of the cutter/pen in READY mode.
If the loupe or bombsight has been selected, neither the pen carriage nor the media will move evenly, even when the AXIS ALIGNMENT key has been pressed. This is because the loupe is already in the same position as the cutter/pen in READY mode. The light pointer will not light. If you are pointing to a registration mark colored with an illegible color such as red, use the loupe.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
• Press the F4 key to select FUNCTION 2.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>.
FUNCTION 2>.
Advanced Functions and Settings: AXIS ALIGNMENT - Axis Alignment Parameter Setting
86
• Press the F2 key to select AXIS ALIGNMENT.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
• Press the F4 key to select TOOL.
AXIS ALIGNMENT
.
METHOD>.
TOOL>.
• Press the F3 key to select the LIGHT POINTER or press the F4 key to select the
LOUPE.
AXIS ALIGNMENT TOOL
.
LIGHT POINT*
LOUPE *
Selecting the Axis Alignment Method
• Press the ENTER key to register your settings.
The following menu appears. If you wish to change another setting, press the
key corresponding to that setting.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
• Press the MENU key to cancel the menu mode.
TWO-POINT METHOD
The two-point method requires you to enter “AXIS POINT 1”, “AXIS POINT 2” and the “AXIS ORIGIN POINT” which are shown at the bottom. The origin point may be located at the same position as that of point one. The virtual angle of the X Axis and the position of the origin point can be adjusted individually.
THREE-POINT METHOD
The three-point method requires you to enter “AXIS POINT 1”, “AXIS POINT 2”, “AXIS POINT 3” and the “AXIS ORIGIN POINT” which are shown at the bottom. The origin point may be located at the same position as that of point one. You may adjust the virtual angle of both X and Y axes and the position of the origin point
Advanced Functions and Settings: AXIS ALIGNMENT - Axis Alignment Parameter Setting
87
individually, as with the 2-point method, and you may match the plotter’s distance scale to that of the printed image.
To match the plotter’s distance scale to that of the printed image, the distance between points 1 and 2, and points 1 and 3 must be known. This function helps when the dimensions of the printed image change during printing, laminating or storage.
• AXIS POINT 1: Registration mark. In both the two and three-point methods, this
point is commonly used as the reference for X and/or Y axis alignment.
• AXIS POINT 2: Registration mark or any point on the line which goes through
AXIS POINT 1 and along the X axis of the pre-printed image.
• AXIS POINT 3: Registration mark or any point on the line which goes through
AXIS POINT 1 and along the Y axis of the pre-printed image. This is only avail-
able when the three-point method is selected.
• AXIS ORIGIN POINT: Origin point of pre-printed image.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
• Press the F4 key to select FUNCTION 2.
Advanced Functions and Settings: AXIS ALIGNMENT - Axis Alignment Parameter Setting
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>.
FUNCTION 2>.
88
• Press the F2 key to select AXIS ALIGNMENT.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
• Press the F3 key to select METHOD.
AXIS ALIGNMENT
.
METHOD>.
TOOL>.
• Press the F3 key to select 2-Point Method or press the F4 key to select 3-Point
Method.
AXIS ALIGNMENT METHOD
2POINT*
3POINT *
Axis Alignment Adjustment
• Press the ENTER key to register your settings.
The following menu appears. If you wish to change another setting, press the
key corresponding to that setting.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
• Press the MENU key to cancel the menu mode.
When the light pointer is selected and the AXIS ALIGNMENT key is pressed, the pen carriage and media move into position so that the light pointer is in the same position as the cutter/pen in READY mode. In this case, the position of the light pointer represents the position of the cutter/pen in READY mode.
If the loupe or bombsight has been selected, neither the pen carriage nor the media will move evenly, even when the AXIS ALIGNMENT key has been pressed. This is because the loupe is already in the same position as the cutter/pen in READY mode. The light pointer will not light. If you are pointing to a registration mark colored with an illegible color such as red, use the loupe.
Press the ALIGNMENT key to select the Axis Alignment mode.
Advanced Functions and Settings: AXIS ALIGNMENT - Axis Alignment Parameter Setting
89
The Axis Alignment menu appears:
AXIS POINT 1
.
X= ...0 mm Y= ...0 mm
• Press the POSITION key to move the light pointer or the loupe to Axis Point 1.
AXIS POINT 1
.
X= +...0 mm Y= +...0 mm
• Press the ENTER key to store the setting. The following menu appears:
AXIS POINT 2
.
X= +...410 mm
Y= +.....9 mm
• Press the POSITION key to move the light pointer or the loupe to Axis Point 2.
• Press the ENTER key to store the setting.
If you select the two-point method, the Axis Origin Point menu appears. If you
select the three-point method, Axis Point 3 menu appears.
AXIS POINT 3
.
X= +.....9 mm
Y= +...408 mm
• Press the POSITION key to move the light pointer or the loupe to Axis Point 3.
• Press the ENTER key to store the setting.
The following menu appears:
DISTANCE POINT 1-2
00399.6 mm.
OK?.......... 00400.0 mm.
If the distance between point 1 and point 2 is unknown, press the ENTER key to
skip to the next step.
If the distance between point 1 and point 2 is a known value, use the POSITION
key to change the distance value to that of the printed image, i.e., the distance
Advanced Functions and Settings: AXIS ALIGNMENT - Axis Alignment Parameter Setting
90
between point 1 and point 2. The measured distance is shown on the 3rd row. Set
th
the actual distance on the 4
row.
• Press the RIGHT or LEFT ARROW key to move the cursor.
• Press the UP or DOWN key to increase or decrease the number for the distance value.
• Press the ENTER key to store the setting.
The following menu appears:
DISTANCE POINT 1-3
00399.6 mm.
OK?.......... 00400.0 mm.
Use the POSITION key to change the distance value to that of the printed
image, i.e., the distance between point 1 and point 3.
• Press the RIGHT or LEFT ARROW key to move the cursor.
• Press the UP or DOWN key to increase or decrease the number for the distance value.
• Press the ENTER key to store the setting.
The following menu appears:
AXIS ORIGIN POINT
.
X= ... mm
Y= ....mm
The light pointer or the loupe move back to the Axis Point 1.
If the Axis Point 1 is not the origin point of the pre-printed image, press the POSITION key to move the light pointer or the loupe to the desired origin point for cutting.
If the Axis Point 1 is the origin point of the pre-printed image, press the ENTER key. Then press the ENTER key to store the setting. The READY menu appears,
the plotter is ready to start the cutting operation.
CONDITION 1.........14.
30.
READY.............4.
CB09Ux...0.
Advanced Functions and Settings: AXIS ALIGNMENT - Axis Alignment Parameter Setting
91
AUTO PRE-FEED - Advancing the Media Automatically
The auto pre-feed function is used to prevent the loaded media from slipping caused by pulling the media out from the stock roll during cutting/plotting.
If this function is enabled, the plotter begins feeding as soon as initialization is complete. During cutting/plotting, the plotter stops its job if the next cut/plot data goes beyond the length that has been pulled out from the stock roll. If this occurs, feed the media length in accordance with the Feed Length setting, then resume the cutting/plotting job.
Please note that this function should be set before the cutting/plotting job is started since changing the setting of this mode leads to the plotter’s initialization, clearing all the data needed to continue the suspended job in the buffer.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
• Press the F4 key to select FUNCTION 2.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>.
FUNCTION 2>.
• Press the F3 key to select AUTO PRE-FEED.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
• Press the F3 key to select ENABLED or press the F4 key to select DISABLED.
AUTO PRE FEED
ENABLED.
DISABLED.
• Press the ENTER key to store the selection.
If the F3 key is pressed, the following menu will appear:
AUTO PRE FEED
FEED LENGTH= 1 m
• Press the UP or DOWN ARROW to lengthen or shorten the FEED LENGTH. The
menu will cycle through the available lengths in sequence.
Advanced Functions and Settings: AUTO PRE-FEED - Advancing the Media Automatically
92
The FEED LENGTH can be set in a range of 1 to 50 meters. If the feed length is set too high (too long), the media will unwind. Unwound media will not cut as eas­ily as wound media.
• Press the ENTER key to register your settings or press the MENU key to cancel
MENU mode.
NOTE: The plotter begins pre-feeding as soon as the cutting data is sent from the PC
when the auto pre-feed is enabled AND the new origin point is within 50mm of the previous feed’s border.
You may access the auto pre-feed menu from the initial menu which appears on
the LCD when the paper set lever is lowered.
LOAD MEDIA!
INITIAL MENU>.
• Press the F4 key to select the initial menu while the initial menu appears on the
LCD.
• Press the F2 key to select AUTO PRE-FEED.
.
AUTO PRE FEED>.
INITIAL FEED SPEED>.
INTERFACE>.
• Press the F3 key to select ENABLED or press the F4 key to select DISABLED.
AUTO PRE FEED
ENABLED*
DISABLED *
If the F3 key is pressed, the following menu will appear:
AUTO PRE FEED
FEED LENGTH= 1 m
• Press the UP or DOWN ARROW to lengthen or shorten the FEED LENGTH. The
menu will cycle through the available lengths in sequence.
Advanced Functions and Settings: AUTO PRE-FEED - Advancing the Media Automatically
• Press the ENTER key to store the setting. The following menu appears:
.
AUTO PRE FEED>.
INITIAL FEED SPEED>.
INTERFACE>.
• Press the NEXT key.
The LOAD MEDIA message then appears again. Mount the media and raise the
media set lever.
LOAD MEDIA!
INITIAL MENU>.
TANGENTIAL EMULATION - Cutting Thick & Thin Material
93
Selecting Tan­gential Emula­tion Mode
Tangential emulation blade control prevents the problems listed below from occurring in the normal blade control.
Normal Overcut
• Dull corner shapes on thick material.
• Inadequate line length particularly on thick material.
• Broken corners on thick and thin material.
When tangential emulation is enabled a special blade rotation control and cut pressure control are performed at turning points such as corners, to ensure a qual­ity cut. In addition, an overcut function which eliminates uncut portions from thick material is available when tangential emulation is enabled.
Be sure to set TANGENTIAL settings to suit the media being cut.
There are two modes available for tangential emulation control, MODE 1 and MODE 2. MODE 1 is overcut with start and end point control, plus, if the line is curved, MODE 1 uses a series of overcuts to ensure that curved lines are cut pre­cisely. Mode 2 is also overcut with start and end point control, but it follows the curve of the line without overcuts. The quality of Mode 1 is superior to that of MODE 2, however, Mode 2 has the best overall time. If the cut/plot time is too
Advanced Functions and Settings: TANGENTIAL EMULATION - Cutting Thick & Thin Material
94
slow due to the excessive up/down pen movements of MODE 1, select MODE 2 to shorten the cut/plot time. Remember that the cutting quality with MODE 2 is infe­rior to that of MODE1.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
• Press the F4 key to select FUNCTION 2.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>.
FUNCTION 2>.
• Press the F4 key to select TANGENT EMULATION.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
Enabling Tangen­tial Emulation
• Press the F3 key to select mode.
TANGENT EMULATION.
MODE>.
ENABLE/DISABLE>.
• Press the F3 key to select MODE 1 or press the F4 key to select MODE 2.
TANGENT EMULATION.
MODE 1>. MODE 2>.
• Press the ENTER key to register your settings or press the MENU key to cancel
MENU mode.
Tangential emulation control can be individually enabled or disabled by pen con­dition.
• Press the MENU key to select MENU mode.
• Press the NEXT key two times.
Advanced Functions and Settings: TANGENTIAL EMULATION - Cutting Thick & Thin Material
• Press the F4 key to select FUNCTION 2.
INTERFACE>.
AREA PARAMETERS>.
FUNCTION 1>.
FUNCTION 2>.
• Press the F4 key to select TANGENT EMULATION.
DATA SORTING>.
AXIS ALIGNMENT>.
AUTO PRE FEED>.
TANGENT EMULATION>.
• Press the F4 key to toggle between ENABLE/DISABLE.
TANGENT EMULATION.
MODE>.
ENABLE/DISABLE>.
95
• Press the LEFT or RIGHT ARROW key as required to enable/disable the tangen-
tial emulation mode per each condition of numbers. Press the UP or DOWN
ARROW key to select ENABLE or DISABLE. The V mark appears when enable
is selected for that tangential emulation mode.
TANGENTIAL.EMULATION
CONDITION 1 2 3 4 5 6 7 8
| xxVxxxxxVxxxx
• Press the ENTER key to register your settings or press the MENU key to cancel
MENU mode.
In READY status, the message TANGENTIAL appears along with the condition
menu when the condition on which the enabled tangential emulation is selected.
CONDITION 6.........38.
TANGENTIAL RREADY ..60.
READY TANGENTIAL ....2.
CB15U-K30x...0.
.........
Setting Overcut An overvcut function is available when tangential emulation is enabled. The
overcut function enables the plotter to cut a line longer that the cutting data speci­fies. Overcutting eliminates uncut portions when using thick material. You can specify the covercut length by entering the start and end points of the overcut.
Advanced Functions and Settings: TANGENTIAL EMULATION - Cutting Thick & Thin Material
96
Press the function key [F1] thru [F4] corresponding to the condition that enables
the tangential emulation mode and requires an overcut setting.
CONDITION 6.........38.
TANGENTIAL RREADY ..60.
READY TANGENTIAL ....2.
CB15U-K30x...0.
• Press the condition key.
SET.............38.
CONDITION 6.........60.
....2.
CB15U-K30x...0.
• Set the parameters if necessary, then press the ENTER key to register your set-
tings.
• Press the F3 key or the F4 key to select the start point or end point. Press the
UP or DOWN ARROW key to set the overcut length. The overcut length can be
set from 0.0mm to 0.9mm in 0.1mm increments.
OVERCUT
START = 0.2mm.
• Press the ENTER key to register your settings.
SPEED - Setting the Pen-Up Speed
To reduce the overall cutting time, this function allows you to set the traveling speed of the pen in raised status, separately from the cutting SPEED setting.
• Press the MENU key to select MENU mode.
• Press the NEXT key three times.
• Press the F3 key to select OPTION 1.
BACKGROUND SETTINGS>.
END = 0.2mm.
.
OPTION 1>.
OPTION 2>.
Advanced Functions and Settings: SPEED - Setting the Pen-Up Speed
97
• Press the F1 key to select PEN-UP SPEED.
PEN UP SPEED>.
OFFSET ANGLE>. OFFSET FORCE>.
STEP PASS>.
• Press the UP or DOWN ARROW key to sequence through the available choices.
The PEN-UP SPEED can be set to AUTO or to 10, 20, 30, 40, 50 or 60 cm/s. When AUTO is selected the PEN UP-SPEED is set to match the current cutting
SPEED setting.
PEN UP SPEED
SPEED = AUTO
• Press the ENTER key to register your settings or press the MENU key to cancel
MENU mode.
NOTE: Your PEN-UP SPEED setting is retained in the plotter’s internal memory even
while the plotter is turned off.
OFFSET ANGLE - Adjusting the Blade Offset Angle
Use this function to smooth curves on large characters or shapes. At the joints of each line segment, the plotter stops cutting and very quickly rotates the blade tip. This ensures the accurate cutting of the computer data. In some cases, it is better to bypass this blade rotation and drag the blade in order to make the shape smoother and to shorten overall cutting time. This action will result in a slightly different shape from the original computer data.
With the OFFSET ANGLE function you may set the reference angle of connec­tion and eliminate the blade control at the connections whose angles are under that reference angle.
• Press the MENU key to select MENU mode.
• Press the NEXT key three times.
• Press the F3 key to select OPTION 1.
.
BACKGROUND SETTINGS>.
OPTION 1>.
OPTION 2>.
Advanced Functions and Settings: OFFSET ANGLE - Adjusting the Blade Offset Angle
98
• Press the F2 key to select OFFSET ANGLE.
PEN UP SPEED>.
OFFSET ANGLE>.
OFFSET FORCE>.
STEP PASS>.
• Press the UP or DOWN ARROW key to sequence through the available choices.
The OFFSET ANGLE can be set in a 61-step range from 0 to 60.
OFFSET ANGLE
ANGLE = 30
• Press the ENTER key to register your settings or press the MENU key to cancel
MENU mode.
NOTE: Your OFFSET ANGLE setting is retained in the plotter’s internal memory even
when the plotter is turned off.
NOTE: Excessive settings may deform the shape of characters. Be sure to perform
adequate testing before performing your final cut to ensure that you have located the appropriate setting which offers the proper quality.
OFFSET FORCE - Setting the Offset Cut Pressure
Since the direction in which the blade tip is facing cannot be determined during initialization of the plotter, initial blade control is performed to adjust the offset angle of the blade (See OFFSET FORCE - Adjusting the Blade Offset Angle).
The Offset Cut Pressure function is used to specify the force applied during ini­tial blade control.
The Offset Cut Pressure is also used to offset the blade angle in TANGENTIAL EMULATION MODE. This pressure should be set as low as possible to ensure cutting quality. If the pressure is too great the corners may break or lack a clear cut, particularly when using very thin material. Start with the default setting (4), then change the value if necessary.
• Press the MENU key to select MENU mode.
• Press the NEXT key three times.
• Press the F3 key to select OPTION 1.
.
BACKGROUND SETTINGS>.
OPTION 1>.
OPTION 2>.
Advanced Functions and Settings: OFFSET FORCE - Setting the Offset Cut Pressure
99
• Press the F3 key to select OFFSET FORCE.
PEN UP SPEED>. OFFSET ANGLE>.
OFFSET FORCE>.
STEP PASS>.
• Press the UP ARROW or DOWN AROW key to sequence through the available
choices. The OFFSET PRESSURE can be set in a 40-step range from 1 to 40.
OFFSET FORCE
FORCE = 4
• Press the ENTER key to register your settings.
• Press the MENU key to cancel the menu mode.
NOTE: Your OFFSET PRESSURE setting is retained in the plotter’s internal memory
even when the plotter is turned off.
NOTE: The OFFSET PRESSURE setting specifies the pressure being applied during
initial blade control and during offset control in TANGENTIAL EMULATION MODE. This is separate from the cutting force setting which specifies the down force of the lowered cutter pen during cutting.
STEP PASS - Setting the Step Pass
Use this function when the cut line is jagged in detailed shapes such as small characters with tiny curves. The jaggedness is caused by the excessive number of line segments used for small characters. This slows the cutting speed.
Use this function to skip or PASS some of the STEPS, make the line smoother and to accelerate the cutting time.
• Press the MENU key to select MENU mode.
• Press the NEXT key three times.
• Press the F3 key to select OPTION 1.
BACKGROUND SETTINGS>.
.
OPTION 1>.
OPTION 2>.
Advanced Functions and Settings: STEP PASS - Setting the Step Pass
