1

Overview

Thank you for choosing the 86360V4GA, an excellent industrial computer
board.

Based on the innovative Intel
the 86360 accommodates the Intel® Haswell processor and supports
up to 4 DDR3/DDR3L 1333/1600 UDIMM slots to provide the maximum
of 32GB memory capacity.

In the advanced-level and mid-range market segment, 86360V4GA provi
a high-performance solution for today’s front-end and general purpose
workstation, as well as in the future.

®

Q87 chipset for optimal system efficiency,

1-1-1

Overview MS-98G3

Motherboard Specications

Processor

4th generation Intel Core i3/ i5/ i7 processor (LGA1150)■

Chipset

Intel Q87 chipset ■

Memory

4 * DDR3/DDR3L 1333/1600 UDIMM slots

■

Supports the maximum of 32GB

■

Supports dual-channel mode

■

LAN

Intel I217-LM Gigabit Fast Ethernet controller (LAN1)

■

Intel I210-AT Gigabit Fast Ethernet controller (LAN2, LAN3, LAN4)

■

SATA

4 * SATA 6Gb/s ports■

Audio

Realtek ALC887 audio codec

■

1 * front audio header

■

1 * amplifier header

■

Graphics

Graphics integrated in Intel processor■

USB

2 * onboard USB 2.0 headers (4 ports)

■

4 * USB 2.0 ports on the rear panel

■

4 * USB 3.0 ports on the rear panel

■

Serial Port

4 * RS-232 serial port connectors (COM1, COM2, COM3, COM4)

■

2 * RS-232/422/485 serial port connectors (COM5, COM6)

■

1 * RS-232 serial port header providing 4 * RS-232 ports (COM7~COM10)

■

1-2

Rear Panel I/O

1 * PS/2 mouse/keyboard combo port

■

1 * VGA port

■

1 * DVI-D port

■

4 * Gigabit LAN jacks

■

4 * USB 2.0 ports

■

4 * USB 3.0 ports

■

Onboard Headers/ Connectors/ Jumpers

1 * 24-pin power connector

■

1 * 4-pin power connector

■

1 * CPU fan connector

■

2 * system fan connectors

■

4 * SATA 6Gb/s ports

■

2 * USB 2.0 headers (4 * ports)

■

4 * RS-232 serial port connectors

■

2 * RS-232/422/485 serial port connectors

■

1 * RS-232 serial port header (4 * ports)

■

1 * TPM header

■

1 * parallel port connector

■

1 * front panel header

■

1 * front audio header

■

1 * S/PDIF header

■

1 * amplifier header

■

1 * GPIO header

■

1 * chassis intrusion header

■
1 * clear CMOS jumper

■

2 * serial port pin 9 function select jumpers

■

4 * serial port power jumpers

■

1 * AMT jumper

■
1 * AT/ATX select jumper

■

Slot

1 * PCIe x16 slot

■

1 * PCIe x8 slot (x1 signal)

■

1 * Mini-PCIe slot (mSATA compatible)

■

2 * PCI slots

■

Form Factor

uATX 244mm * 244mm■

Environmental

Operating Temperature: 0oC ~ 60oC

■

Storage Temperature: -20oC ~ 80oC

■

Humidity: 5% ~ 90% RH, Non-Condensing

■

1-3

Overview MS-98G3

Motherboard Layout

1-4

2

Hardware Setup

This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the com
ponents and follow the installation procedures. For some components, if
you install in the wrong orientation, the components will not work prop
erly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

-

-

2-2-1

Hardware Setup MS-98G3

Components Reference Guide

CPU (Central Processing Unit) ........................................................2-3

Memory ..............................................................................................2-6

Power Supply ....................................................................................2-8

System Power Connector: PWRCONN1 ...................................................2-8

CPU Power Connector: JPWR1 .................................................................2-8

Rear Panel I/O ...................................................................................2-9

Connector ........................................................................................2-11

Fan Power Connector: CPUFAN1, SYSFAN1, SYSFAN2 ....................... 2-11

GPIO Header: JGPIO1 .............................................................................2-12

Serial ATA Connector: SATA1 ~ SATA4

RS-232 Serial Port Connector: COM1, COM2, COM3, COM4, COM7~COM10

.................................................................................................................2-13

RS-232/422/485 Serial Port Connector: COM5, COM6

USB 2.0 Connector: JUSB1, JUSB2 ........................................................ 2-17

Front Panel Connector: JFP1 ...................................................................2-17

TPM Module Connector: JTPM1 .............................................................. 2-18

S/PDIF Header: JSPD1 ............................................................................2-19

Audio Amplifier

Front Audio Connector: JAUD1

Chassis Intrusion Header: JCASE1

Parallel Port Connector: JLPT1 ................................................................2-20

Header: JSPK1 ...............................................................2-19

Jumper.............................................................................................2-21

Clear CMOS Jumper: JCMOS1 ...............................................................2-21

AT/ATX Select Jumper: JATX1 .................................................................2-21

AMT Jumper: JIAMT1 ..............................................................................2-21

Serial Port Pin 9 Function Select Jumper: JCOMP1, JCOMP2

Serial Port Power Jumper: JCOMP3, JCOMP4, JCOMP5, JCOMP7

Slot ...................................................................................................2-23

PCIe (Peripheral Component Interconnect Express) Slot ........................ 2-23

Mini-PCIe (Peripheral Component Interconnect Express) Slot

PCI (Peripheral Component Interconnect) Slot

...................................................2-12

........................... 2-13

................................................................ 2-19

......................................................... 2-20

............... 2-22

...... 2-22

................2-23

........................................ 2-23

2-2

CPU (Central Processing Unit)

When installing the CPU, make sure that you install the cooler to prevent over­heating. If you do not have the CPU cooler, consult your dealer before turning on
the computer.

Important

Overheating

Overheating will seriously damage the CPU and system. Always make sure the
cooling fan can work properly to protect the CPU from overheating. Make sure
that you apply an even layer of thermal paste (or thermal tape) between the CPU
and the heatsink to enhance heat dissipation.

Replacing the CPU

While replacing the CPU, always turn off the power supply or unplug the power
supply’s power cord from the grounded outlet first to ensure the safety of CPU.

Introduction to LGA 115x CPU

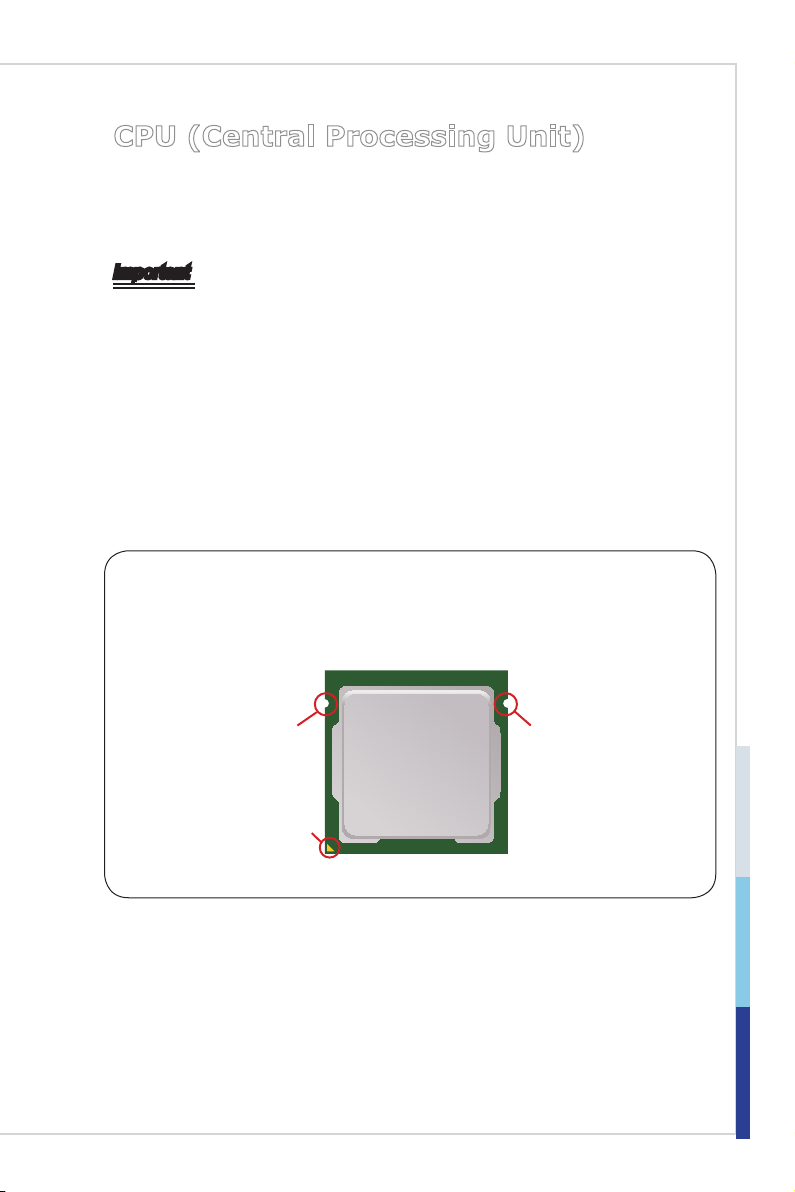

The surface of LGA 115x CPU. Remember to apply some thermal paste on it for
better heat dispersion.

Alignment Key

Yellow triangle is the
Pin 1 indicator

Alignment Key

2-3

Hardware Setup MS-98G3

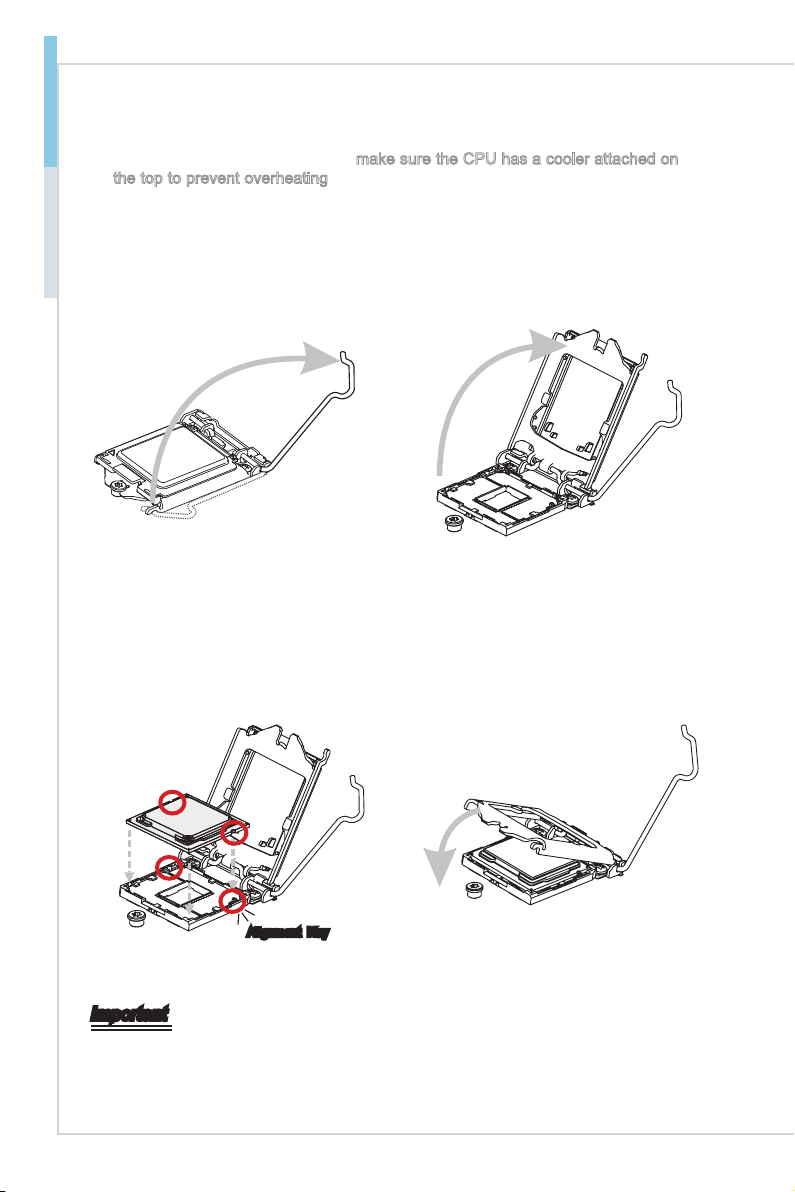

CPU Installation

When you are installing the CPU, make sure the CPU has a cooler attached on
the top to prevent overheating. Meanwhile, do not forget to apply some thermal
paste on CPU before installing the heat sink/cooler fan for better heat disper­sion.

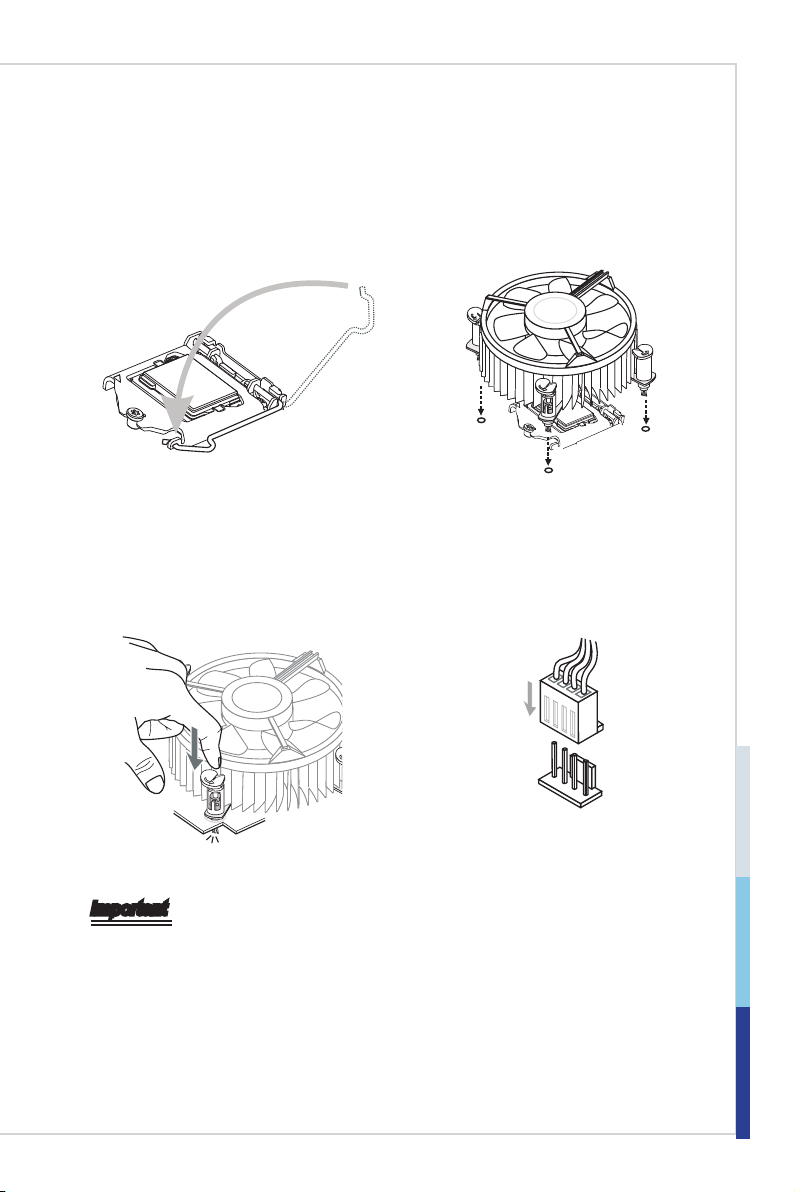

Open the load lever and remove the

1.
plastic cap.

After con󰘰rming the CPU direction for

3. Engage the load lever while pressing
correct mating, put down the CPU in
the socket housing frame. Be sure to
grasp on the edge of the CPU base.
Note that the alignment keys are
matched.

Lift the load lever up to fully open

2.
position.

4.
down lightly onto the load plate.

Alignment Key

Important

Visually inspect if the CPU is seated well into the socket. If not, take out the CPU with
pure vertical motion and reinstall.

2-4

Secure the load lever with the hook

5. Make sure the four hooks are in proper
under the retention tab.

Press the four hooks down to fasten

7. Finally, attach the CPU Fan cable
the cooler. Turn over the motherboard
to con󰘰rm that the clip-ends are
correctly inserted.

6.
position before you install the cooler.
Align the holes on the motherboard
with the cooler. Push down the cooler
until its four clips get wedged into the
holes of the motherboard.

8.
to the CPU fan connector on the
motherboard.

Important

•

Confirm if your CPU cooler is firmly installed before turning on your system.

•

Do not touch the CPU socket pins to avoid damage.

•

Whenever CPU is not installed, always protect your CPU socket pins with the plastic
cap covered.

•

Please refer to the documentation in the CPU cooler package for more details about
the CPU cooler installation.

•

Read the CPU status in BIOS.

2-5

Hardware Setup MS-98G3

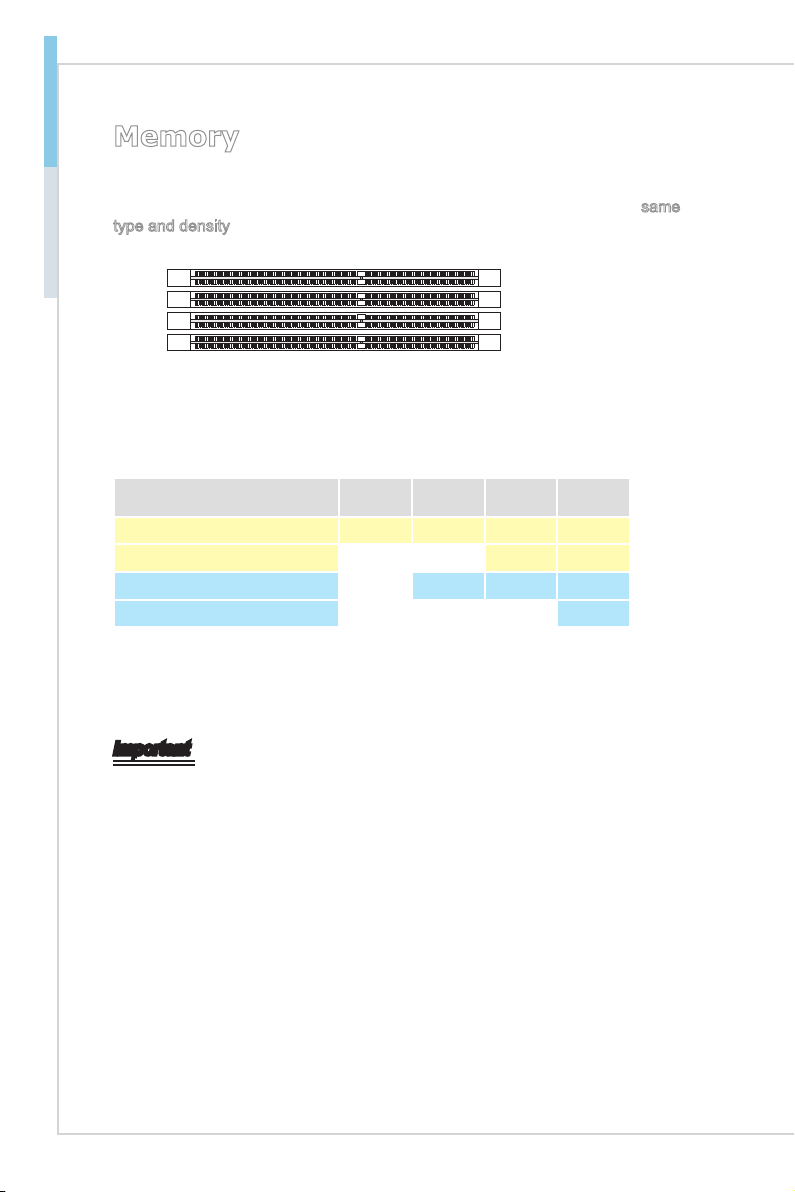

Memory

Dual-Channel Mode

In Dual-Channel mode, make sure that you install memory modules of the same
type and density in different channel DIMM slots.

DIMM1 (Channel A)

DIMM2 (Channel A)

DIMM3 (Channel B)

DIMM4 (Channel B)

Recommended Memory Population

Number of DIMMs installed 1 2 3 4

DIMM1 (ch A) V V V V

DIMM2 (ch A) V V

DIMM3 (ch B) V V V

DIMM4 (ch B) V

Important

•

"V" indicates a populated DIMM slot.

•

Paired memory installation for Max performance.

•

Populate the same DIMM type in each channel, specifically: 1. Use the same
DIMM size; 2. Use the same number of ranks per DIMM.

2-6

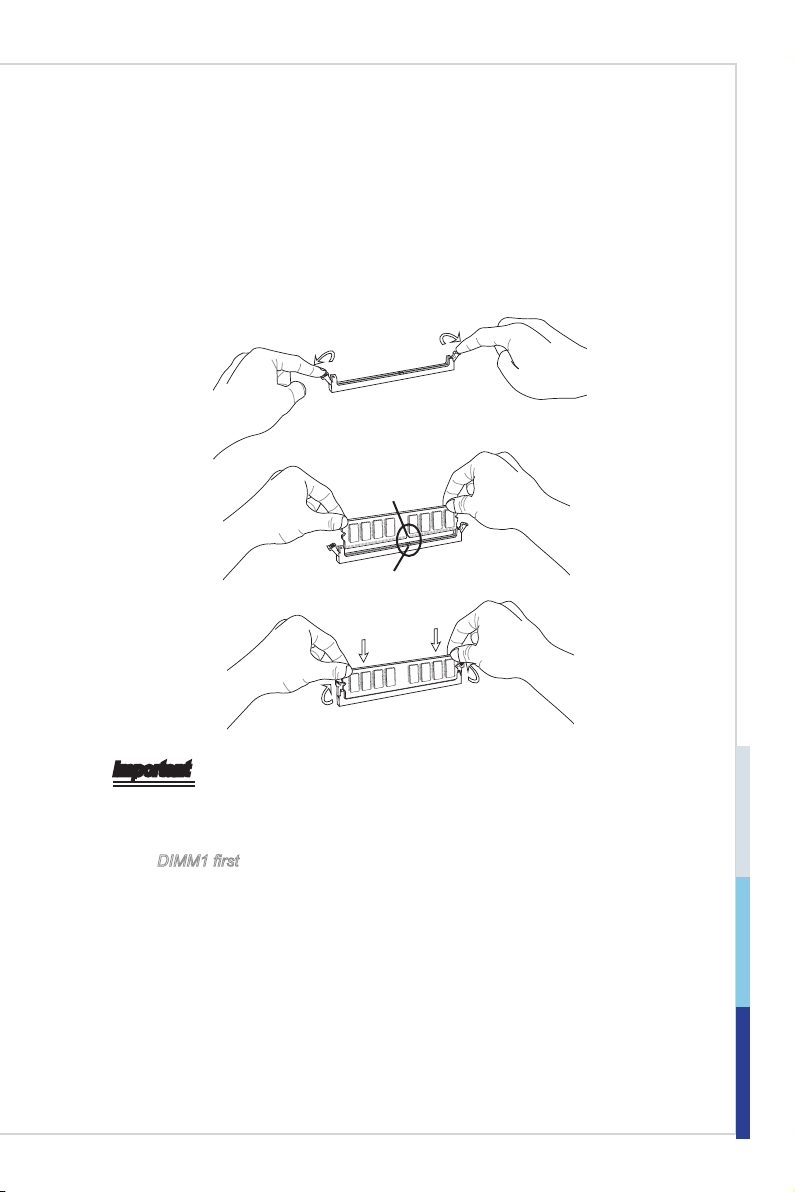

Installing Memory Modules

The memory module has only one notch on the center and will only 󰘰t in the

1.
right orientation.

Insert the memory module vertically into the DIMM slot. Then push it in until

2.
the golden 󰘰nger on the memory module is deeply inserted in the DIMM slot.
The plastic clip at each side of the DIMM slot will automatically close when
the memory module is properly seated.

Manually check if the memory module has been locked in place by the DIMM

3.
slot clips at the sides.

Notch

Volt

Important

•

You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.

•

To enable successful system bootup, always insert the memory module into

DIMM1 first.

the

2-7

Hardware Setup MS-98G3

V

1

4. +1 2V

1

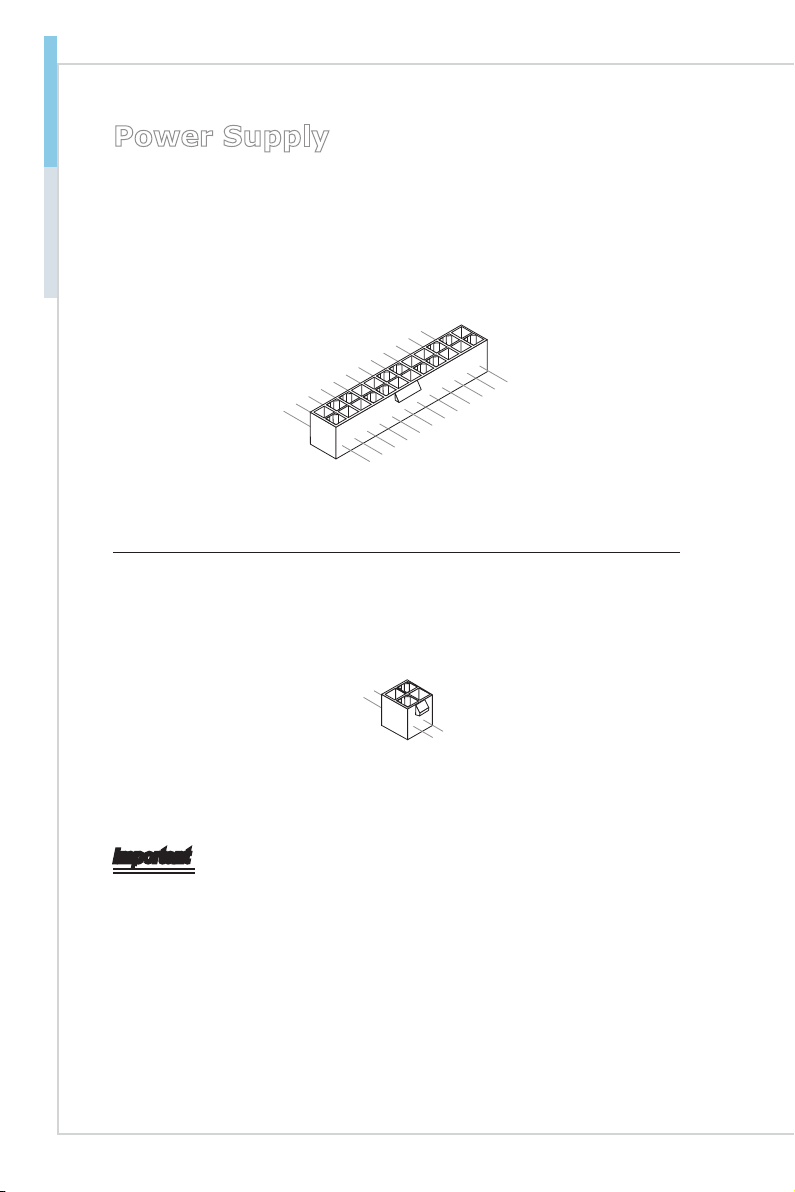

Power Supply

System Power Connector: PWRCONN1

This connector allows you to connect a power supply. To connect to the power
supply, make sure the plug of the power supply is inserted in the proper orienta­tion and the pins are aligned. Then push down the power supply firmly into the
connector.

2. +3 .3

11. +1 2V

10 .+ 12 V

9. 5V SB

8. PW

7

.G ro un d

6. +5
R O

V

V

2. +3 .3 V

1. +3 .3

5

4. +5

3

.G ro un d

V

.G ro un d

CPU Power Connector: JPWR1

This connector is used to provide power to the CPU.

K

14 .- 12 V

13 .+ 3. 3

V

19 .G ro un d

18 .G ro un d

17 .G ro un d

16 .P S- ON #

15 .G ro un d

22 .+ 5

21 .+ 5

20 .- 5V

24 .G ro un d

23 .+ 5V

V

V

.G ro un d

2

.G ro un d

3. +1 2V

Important

Make sure that all power connectors are connected to the power supply to ensure
stable operation of the motherboard.

2-8

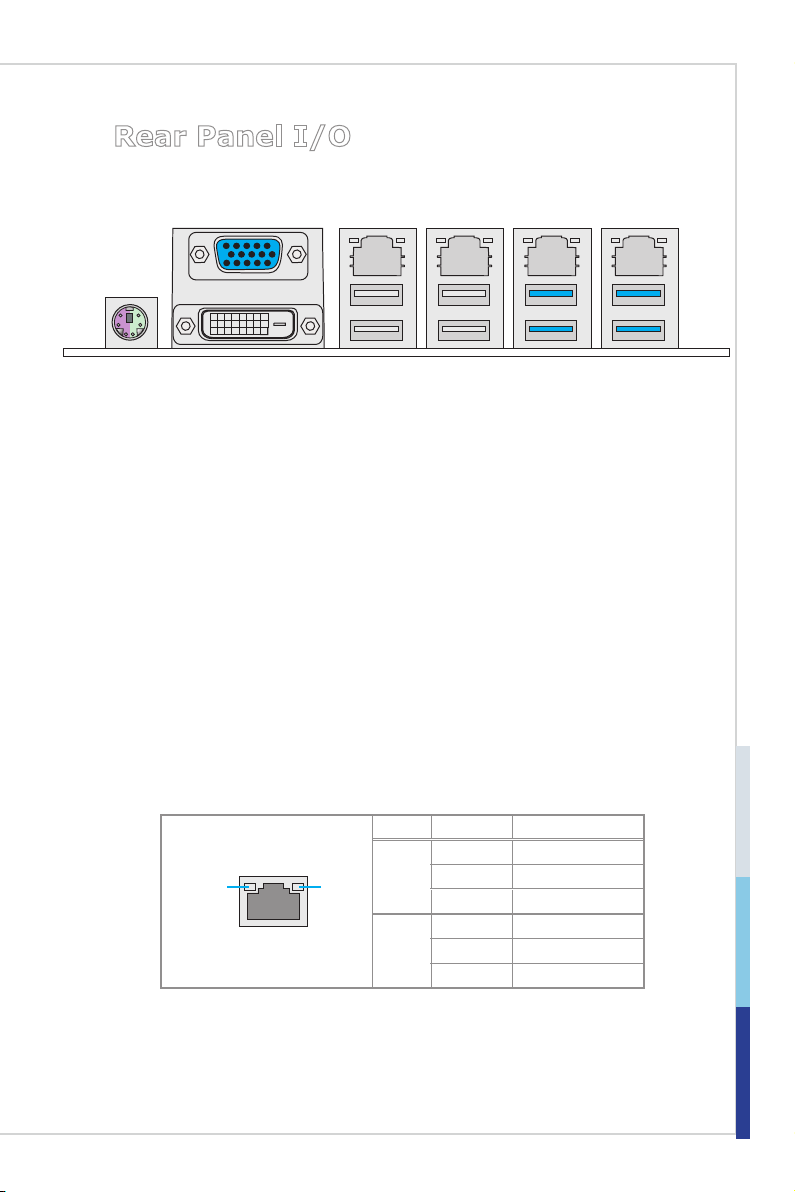

Rear Panel I/O

VGA Port

Mouse/

Keyboard

Combo

Port

DVI-D Port



Keyboard / Mouse Combo Port

USB 2.0

LAN3

Port

LAN4 LAN1 LAN2

USB 2.0

Port

USB 3.0

Port

USB 3.0

Port

The standard PS/2® mouse/keyboard DIN connector is for a PS/2® mouse/key­board.



VGA Port

The DB15-pin female connector is provided for monitor.



DVI-D Port

The DVI-D (Digital Visual Interface-Digital) connector allows you to connect an
LCD monitor. It provides a high-speed digital interconnection between the com­puter and its display device. To connect an LCD monitor, simply plug your moni­tor cable into the DVI connector, and make sure that the other end of the cable
is properly connected to your monitor (refer to your monitor manual for more
information.)



LAN Jack

The standard RJ45 LAN jack is provided for connection to the Local Area Network (LAN).
You can connect a network cable to it.

LED LED Status Description

Off No link

Link/
Activity

LINK/ACT

LED

SPEED

LED

Yellow Linked

LED

Blinking Data activity

Off 10 Mbps connection

Speed

Green 100 Mbps connection

LED

Orange 1 Gbps connection

2-9

Hardware Setup MS-98G3

USB 2.0 Port



The USB (Universal Serial Bus) port is for attaching USB devices such as key­board, mouse, or other USB-compatible devices.

USB 3.0 Port



The USB 3.0 port is backward-compatible with USB 2.0 devices and supports
data transfer rate up to 5 Gbit/s (SuperSpeed).

2-10

Connector

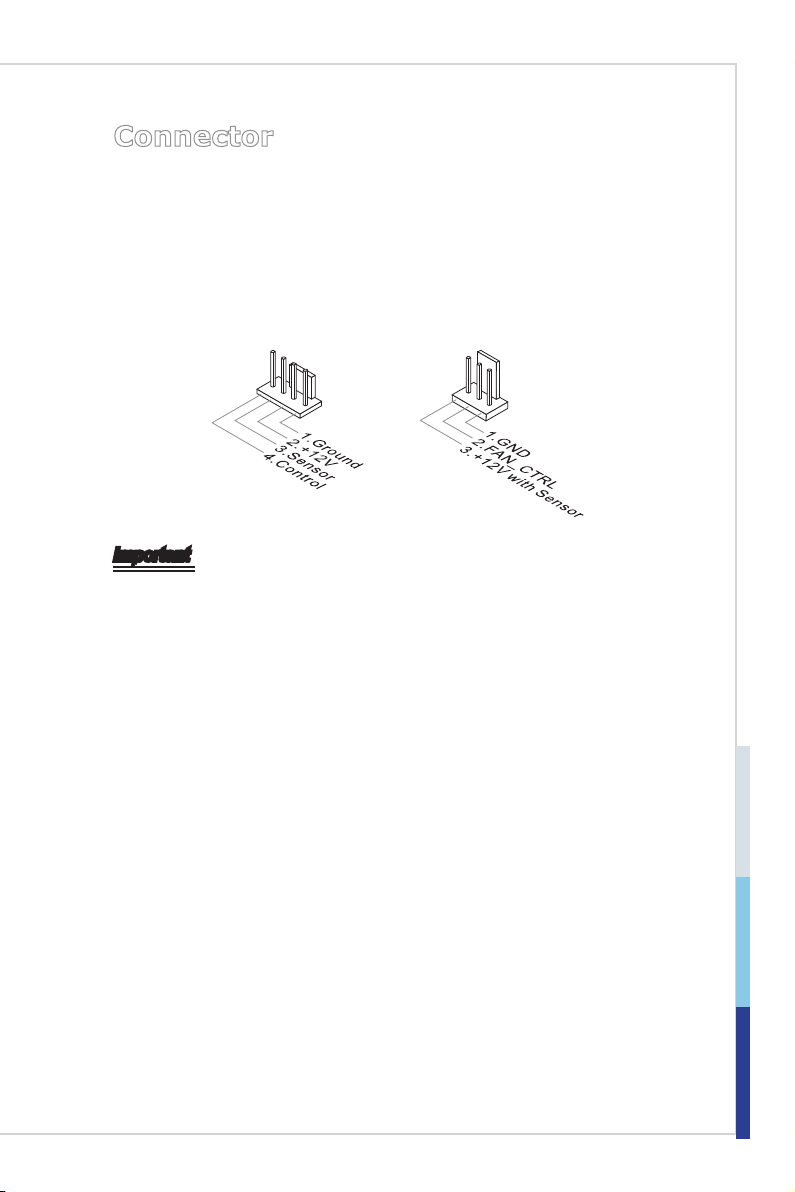

Fan Power Connector: CPUFAN1, SYSFAN1, SYSFAN2

The fan power connectors support system cooling fan with +12V. When con­necting the wire to the connectors, always note that the red wire is the positive
and should be connected to the +12V; the black wire is Ground and should be
connected to GND. If the motherboard has a System Hardware Monitor chipset
onboard, you must use a specially designed fan with speed sensor to take advan­tage of the CPU fan control.

Important

Please refer to the recommended CPU fans at processor’s official website or

•

consult the vendors for proper CPU cooling fan.

Fan cooler sets with 3- or 4-pin power connector are both available. Users can

•

select the fan type through BIOS.

2-11

Hardware Setup MS-98G3

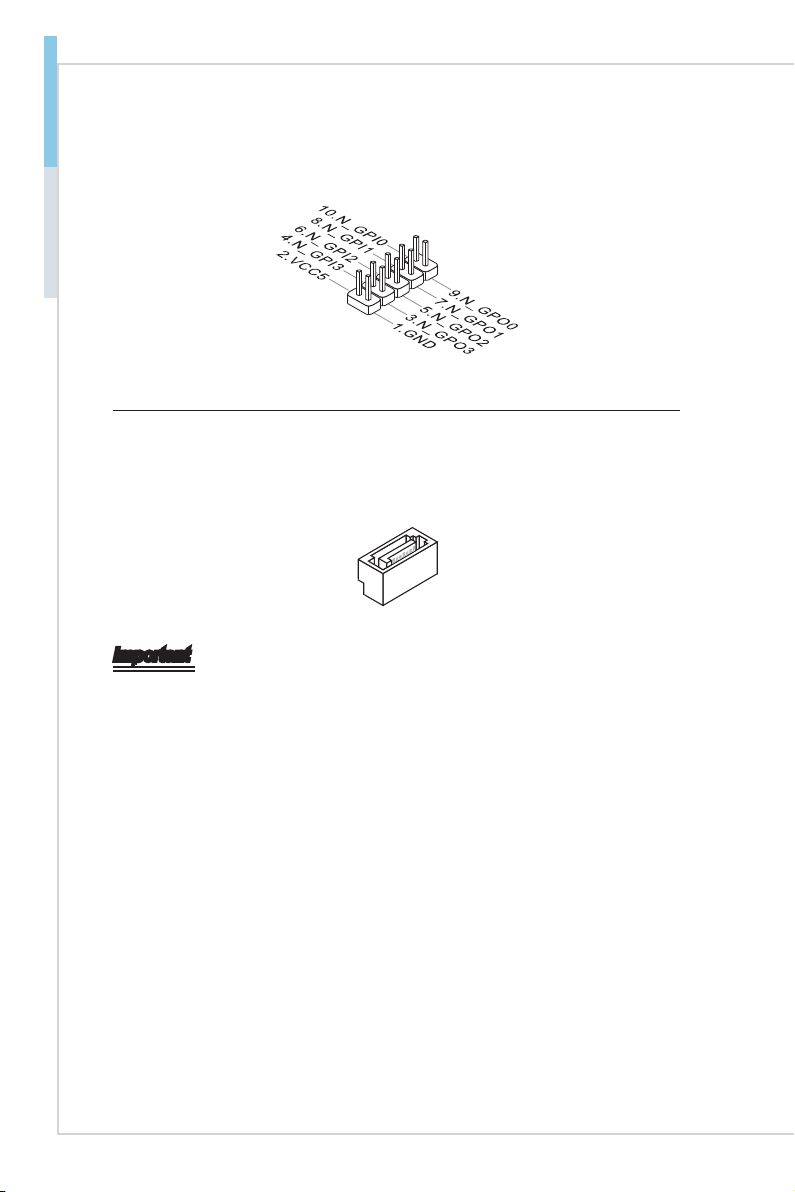

GPIO Header: JGPIO1

This connector is provided for the General-Purpose Input/Output (GPIO) periph­eral module.

Serial ATA Connector: SATA1 ~ SATA4

This connector is a high-speed Serial ATA interface port. Each connector can
connect to one Serial ATA device.

Important

Please do not fold the SATA cable into a 90-degree angle. Otherwise, data loss
may occur during transmission.

2-12

RS-232 Serial Port Connector: COM1, COM2, COM3, COM4,
COM7~COM10

RS-232/422/485 Serial Port Connector: COM5, COM6

This connector is a 16550A high speed communications port that sends/receives
16 bytes FIFOs. You can attach a serial device to it through an optional serial port
bracket.

Port Description

COM1 RS-232;

COM2 RS-232;

COM3 RS-232;

COM4 RS-232;

COM5 RS-232/422/485;

COM6 RS-232/422/485

COM7~COM10 RS-232;

Pin 9 supports RI or power;
Ring, 5V or 12V via JCOMP1

Pin 9 supports RI or power;
Ring, 5V or 12V via JCOMP2

Pin 9 supports power;
5V or 12V via JCOMP3

Pin 9 supports power;
5V or 12V via JCOMP4

Pin 9 supports power;
5V or 12V via JCOMP5

5V or 12V via JCOMP7

COM1, COM2



RS-232

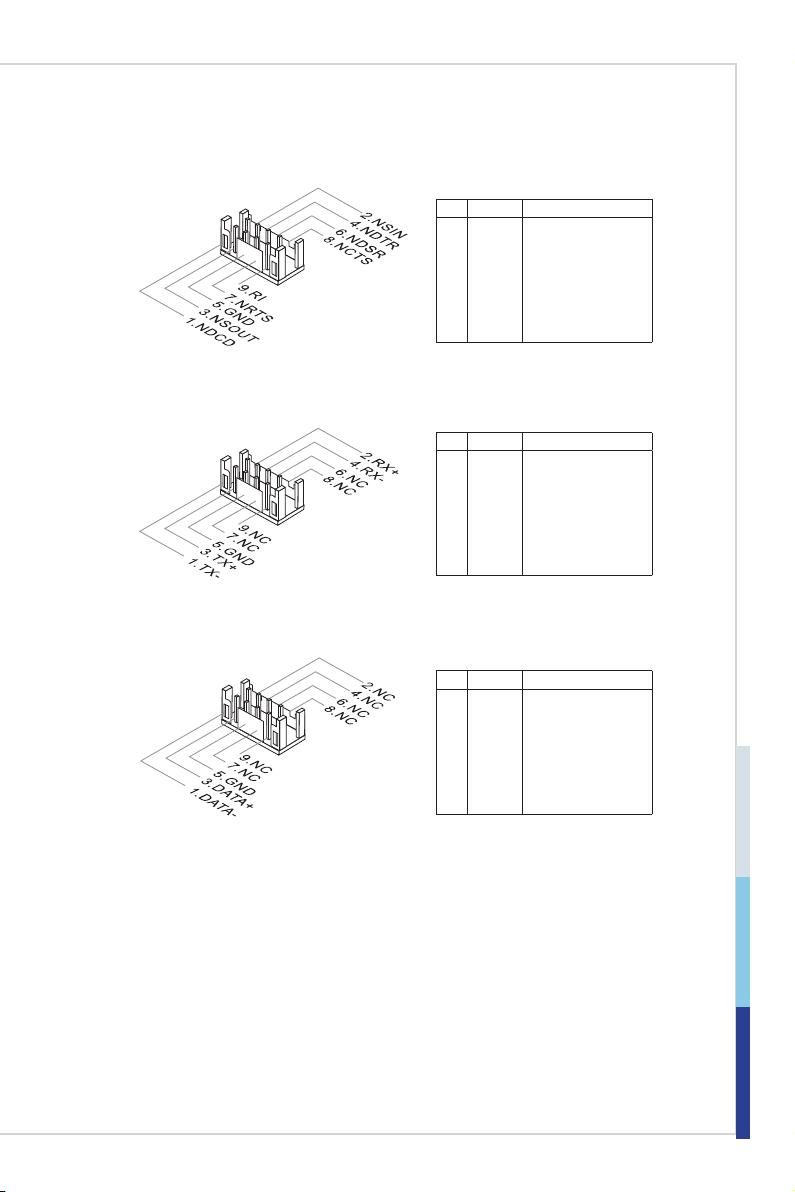

PIN SIGNAL DESCRIPTION

NDCD
NSIN
NSOUT
NDTR
GND
NDSR
NRTS
NCTS
RI or
VCC
NC

Data Carrier Detect
Signal In
Signal Out
Data Terminal Ready
Signal Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indicate or
5V or 12V selected by jumper
No Connection

1
2
3
4
5
6
7
8
9

10

2-13

Hardware Setup MS-98G3

COM3, COM4



RS-232



COM5

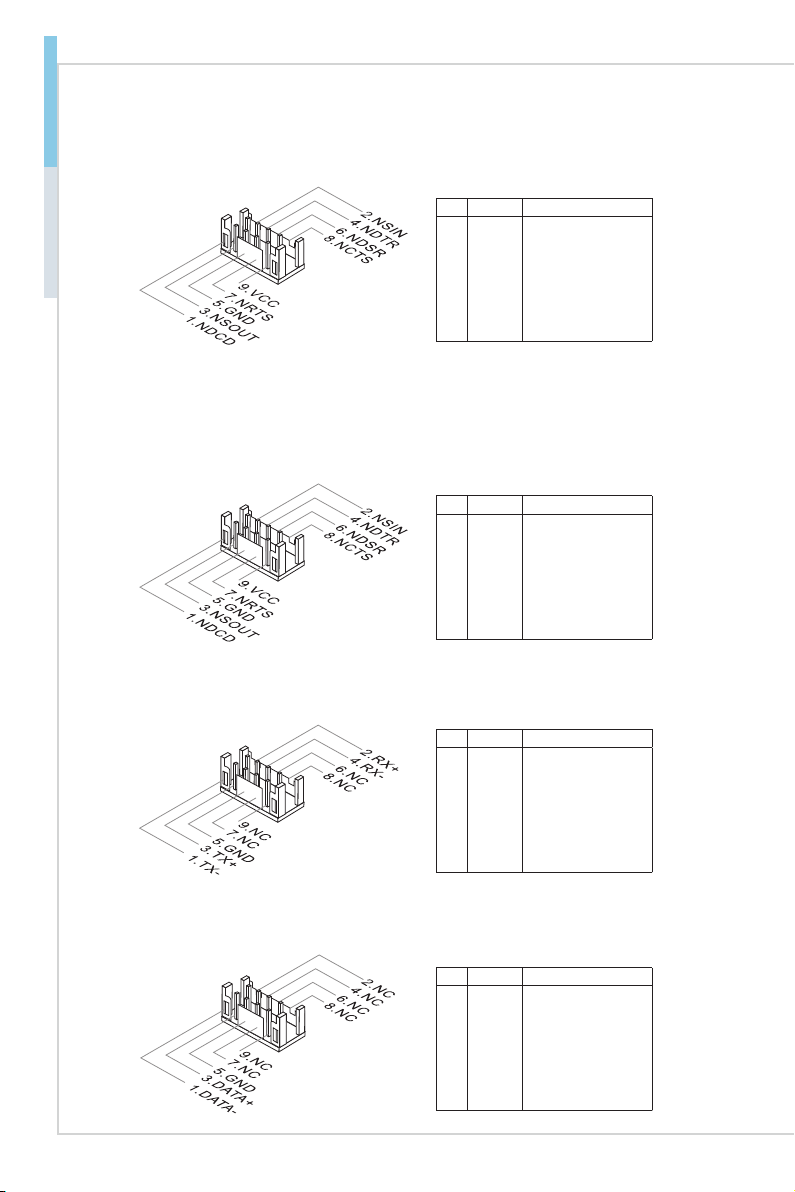

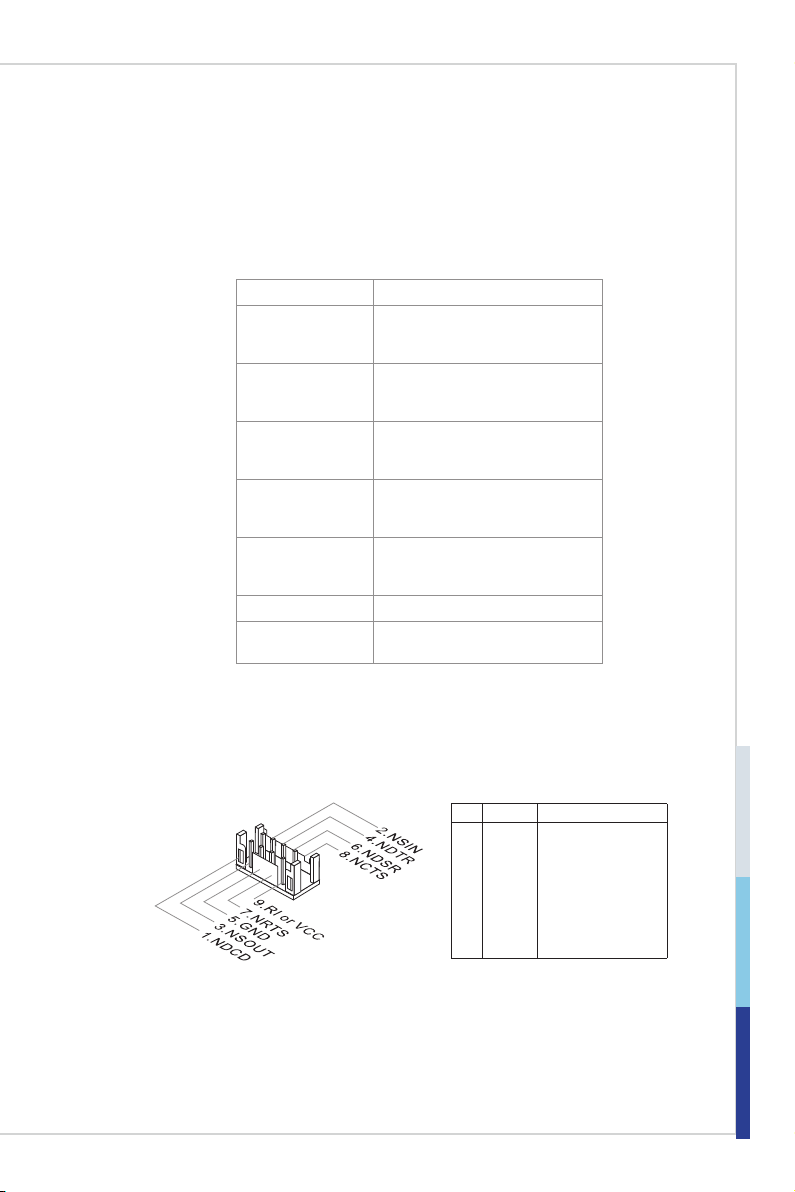

PIN SIGNAL DESCRIPTION

1
2
3
4
5
6
7
8
9
10

NDCD
NSIN
NSOUT
NDTR
GND
NDSR
NRTS
NCTS
VCC
NC

Data Carrier Detect
Signal In
Signal Out
Data Terminal Ready
Signal Ground
Data Set Ready
Request To Send
Clear To Send
5V or 12V selected by jumper
No Connection

RS-232

PIN SIGNAL DESCRIPTION

1
2
3
4
5
6
7
8
9
10

NDCD
NSIN
NSOUT
NDTR
GND
NDSR
NRTS
NCTS
VCC
NC

Data Carrier Detect
Signal In
Signal Out
Data Terminal Ready
Signal Ground
Data Set Ready
Request To Send
Clear To Send
5V or 12V selected by jumper
No Connection

2-14

RS-422

RS-485

PIN SIGNAL DESCRIPTION

1
2
3
4
5
6
7
8
9
10

PIN SIGNAL DESCRIPTION

1
2
3
4
5
6
7
8
9
10

422 TXD­422 RXD+
422 TXD+
422 RXD­GND
NC
NC
NC
NC
NC

485 TXD­NC
485 TXD+
NC
GND
NC
NC
NC
NC
NC

Transmit Data, Negative
Receive Data, Positive
Transmit Data, Positive
Receive Data, Negative
Signal Ground
No Connection
No Connection
No Connection
No Connection
No Connection

Transmit Data, Negative
No Connection
Transmit Data, Positive
No Connection
Signal Ground
No Connection
No Connection
No Connection
No Connection
No Connection

COM6



RS-232

RS-422

RS-485

PIN SIGNAL DESCRIPTION

1
2
3
4
5
6
7
8
9
10

PIN SIGNAL DESCRIPTION

1
2
3
4
5
6
7
8
9
10

NDCD
NSIN
NSOUT
NDTR
GND
NDSR
NRTS
NCTS
RI
NC

422 TXD­422 RXD+
422 TXD+
422 RXD­GND
NC
NC
NC
NC
NC

Data Carrier Detect
Signal In
Signal Out
Data Terminal Ready
Signal Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indicate
No Connection

Transmit Data, Negative
Receive Data, Positive
Transmit Data, Positive
Receive Data, Negative
Signal Ground
No Connection
No Connection
No Connection
No Connection
No Connection

PIN SIGNAL DESCRIPTION

1
2
3
4
5
6
7
8
9
10

485 TXD­NC
485 TXD+
NC
GND
NC
NC
NC
NC
NC

Transmit Data, Negative
No Connection
Transmit Data, Positive
No Connection
Signal Ground
No Connection
No Connection
No Connection
No Connection
No Connection

2-15

Hardware Setup MS-98G3



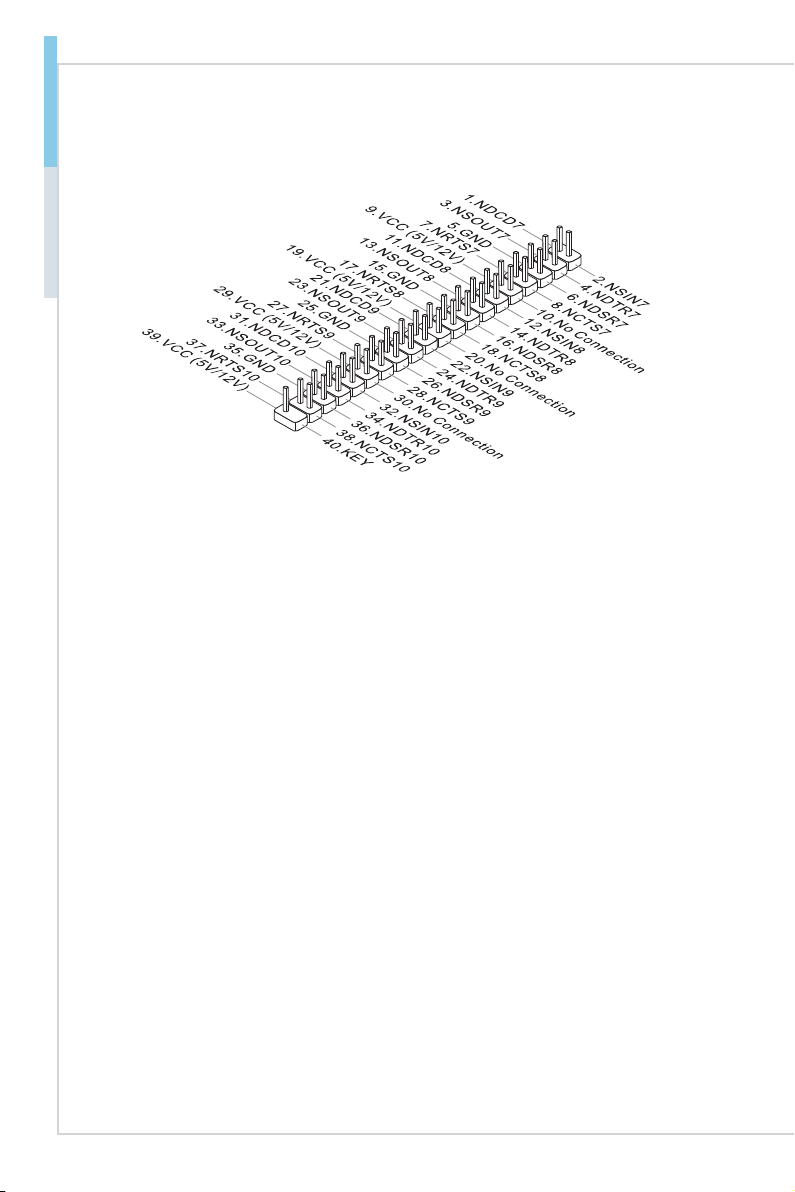

COM7~COM10

RS-232

2-16

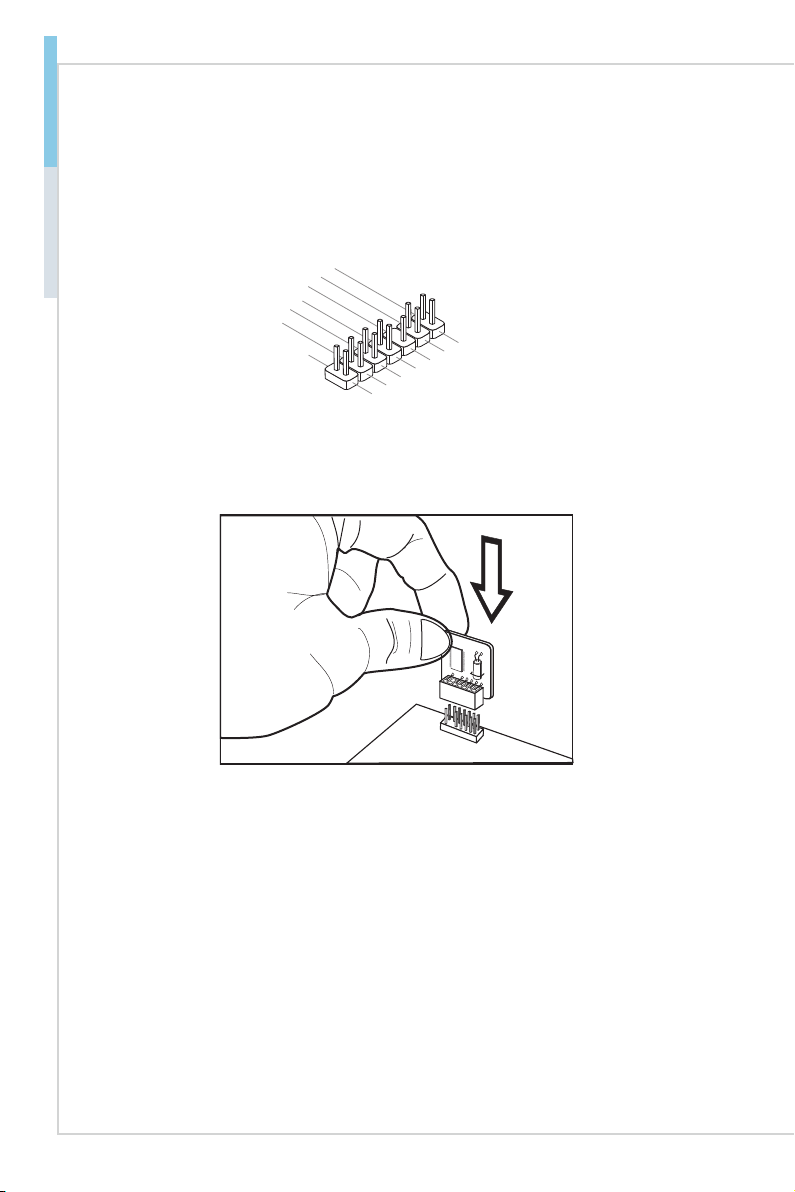

USB 2.0 Connector: JUSB1, JUSB2

C

n

h

D

This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital cam

7

5. US B0

3. US B0

9. No

.G ro un d

+

-

Pi

eras, MP3 players, printers, modems and the like.

8

10 .N C

.G ro un d

6. US B1

4. US B1 -

2. VC

+

C

1. VC

Important

Note that the pins of VCC and GND must be connected correctly to avoid pos­sible damage.

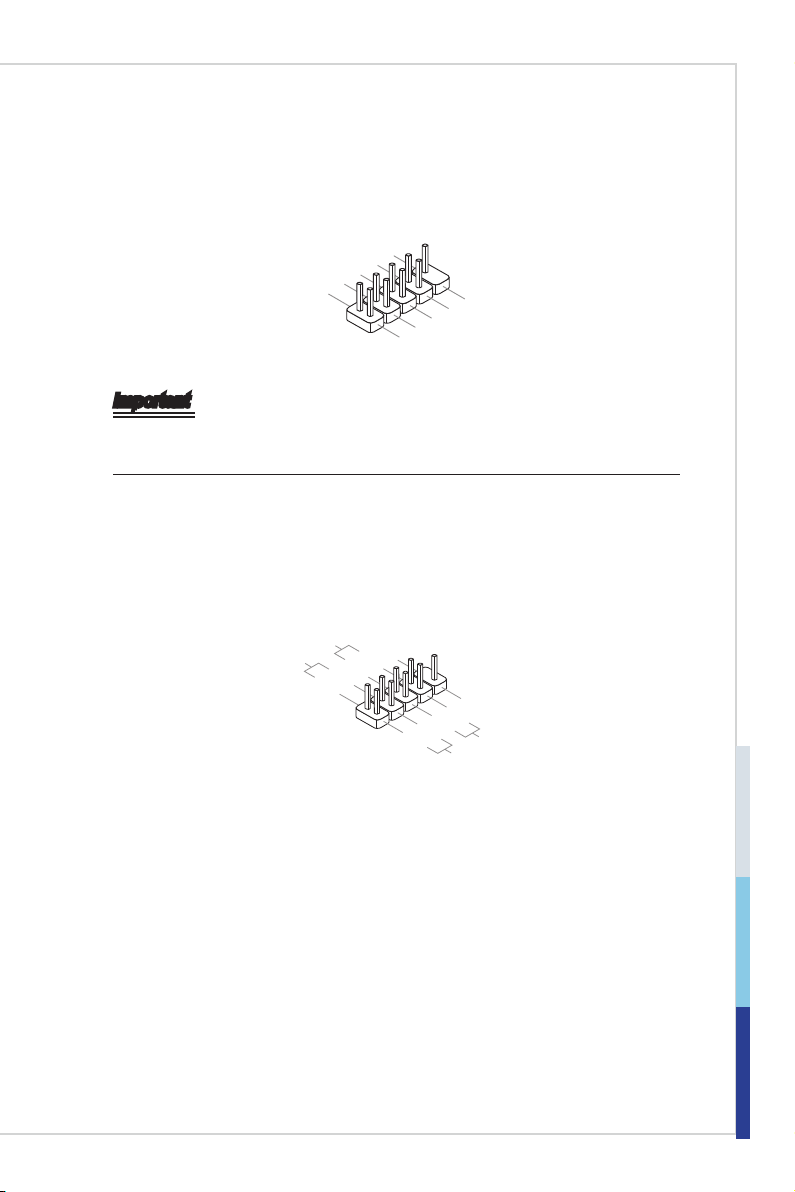

Front Panel Connector: JFP1

This front panel connector is provided for electrical connection to the front panel
switches & LEDs and is compliant with Intel Front Panel I/O Connectivity Design
Guide.

Po we r

S

P

ow er

LE

D

wi tc h

2.

10 .N o

4.

+

Pi

8.

n

-

6.
+

-

9. Re se rv e

7.
+

5.

-

3.

-

1.
+

HD D

Re se t

LE

d

S

wi tc

-

2-17

Hardware Setup MS-98G3

14.G ro un d

in0

in3

TPM Module Connector: JTPM1

This connector connects to a TPM (Trusted Platform Module) module (optional).
Please refer to the TPM security platform manual for more details.

12.G ro un d

10.N o

8.5V

6.Se ri al IR

4.3. 3V

2.3V Stan db y
P

P

ower

Pi

ower

Q

p

ower

n

13.L P

11

.LPC

3.LP

1.LP

9.LP

7.LP

5.LPC a

C R

C C lo c

C a

eset

k

ddre s

C F

C a dd re s

a

ddre s

s & data p

rame

ddre s

s & d

s & d

s & d

at

at

a p

a p

in1

ata p

in2

2-18

S/PDIF Header: JSPD1

D

C

This header is used to connect S/PDIF (Sony & Philips Digital Interconnect For­mat) interface for digital audio transmission.

3. GN

2. SP DI

1. VC
F

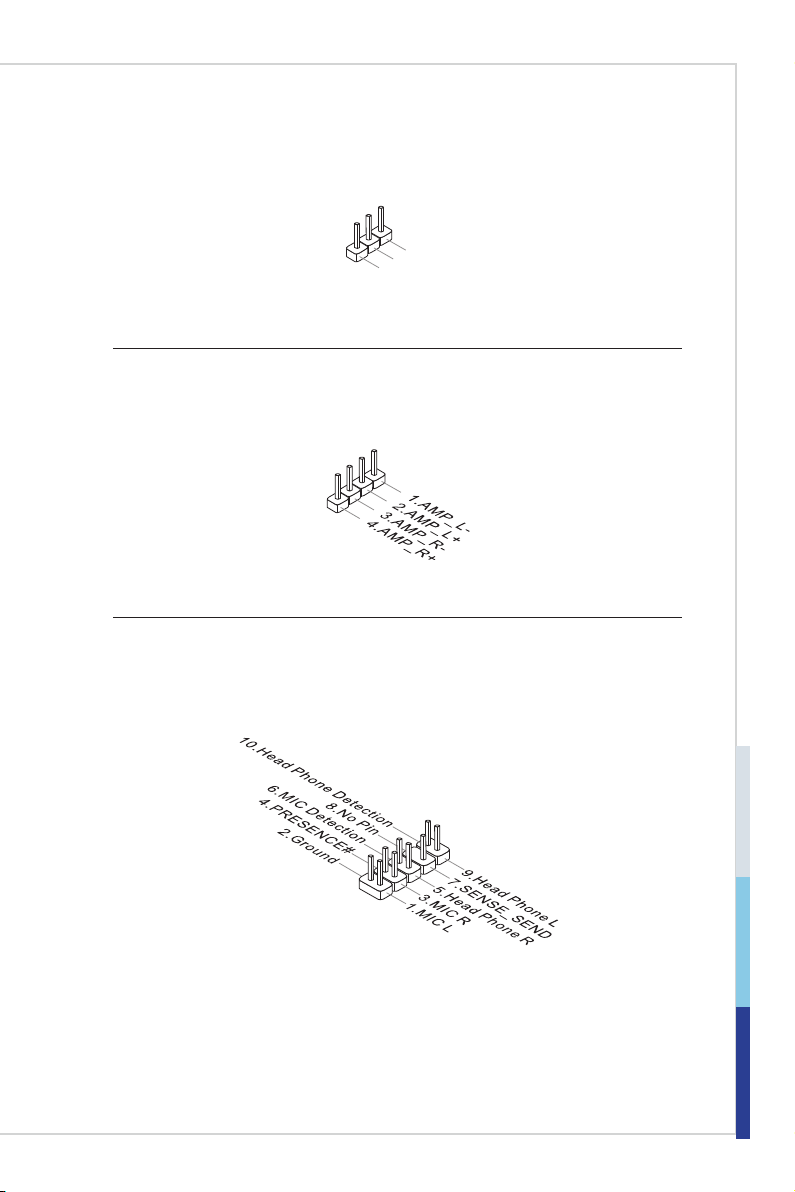

Audio Amplifier Header: JSPK1

The JAMP1 is used to connect audio amplifiers to enhance audio performance.

Front Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with
Intel Front Panel I/O Connectivity Design Guide.

2-19

Hardware Setup MS-98G3

26.No

Chassis Intrusion Header: JCASE1

This connector connects to the chassis intrusion switch cable. If the computer
case is opened, the chassis intrusion mechanism will be activated. The system
will record this intrusion and a warning message will flash on screen. To clear the
warning, you must enter the BIOS utility and clear the record.

2

.

G

1

r

.

C

o

u

I

N

n

d

T

R

U

Parallel Port Connector: JLPT1

The motherboard provides a 26-pin header for connection to an optional parallel
port bracket. The parallel port is a standard printer port that supports Enhanced
Parallel Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.

24.Grou nd

22.Grou nd

8.LPT_S LI N

10.Grou nd

6.PINIT #

4.ERR#

2.AFD#

18.Grou nd

16.Grou nd

14.Grou nd

12.Grou nd

#

20.Grou nd

Pi

7.PRND2

5.PRND1

3.PRND0

1.RSTB#

n

13.PRND 5

11.P RN D4

9.PRND3

21.BUSY

19.ACK#

17.PRND 7

15.PRND 6

25.SLCT

23.PE

2-20

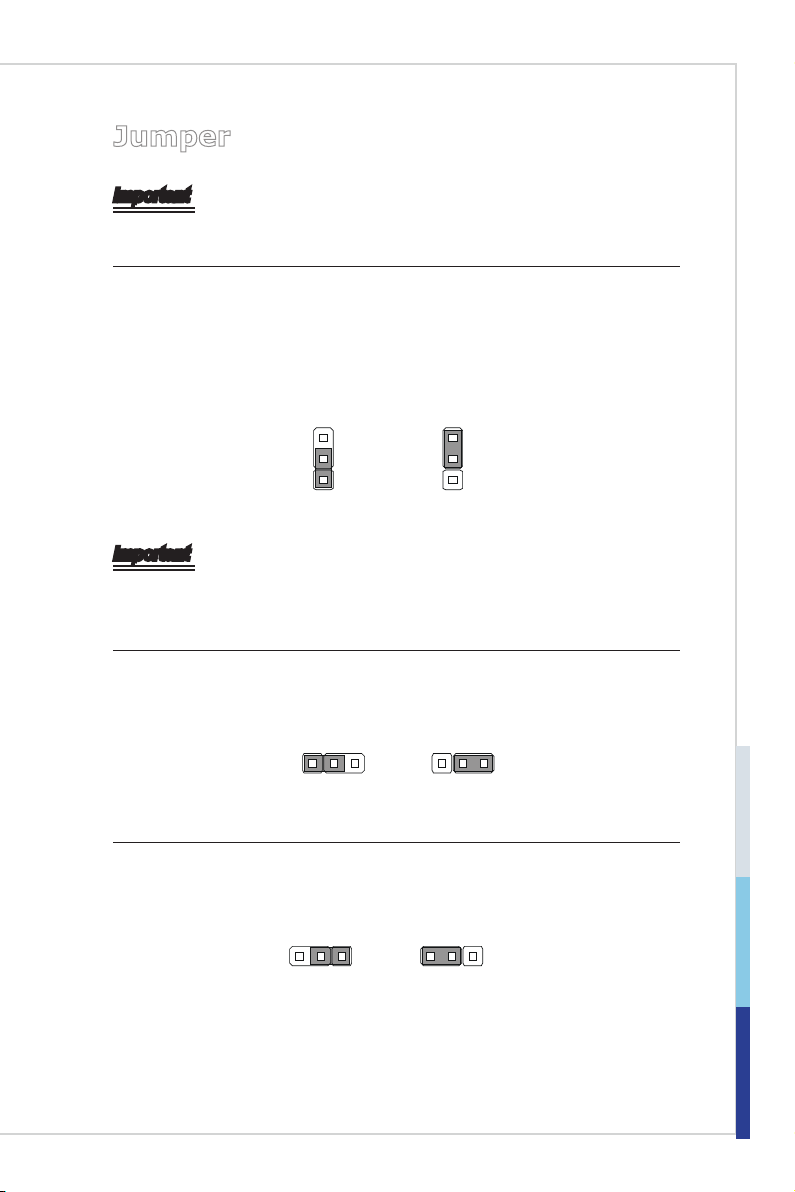

Jumper

Important

Avoid adjusting jumpers when the system is on; it will damage the motherboard.

Clear CMOS Jumper: JCMOS1

There is a CMOS RAM onboard that has a power supply from an external battery
to keep the data of system configuration. With the CMOS RAM, the system can
automatically boot OS every time it is turned on. If you want to clear the system
configuration, set the jumper to clear data.

1 1

Normal Clear CMOS

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to
1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage
the motherboard.

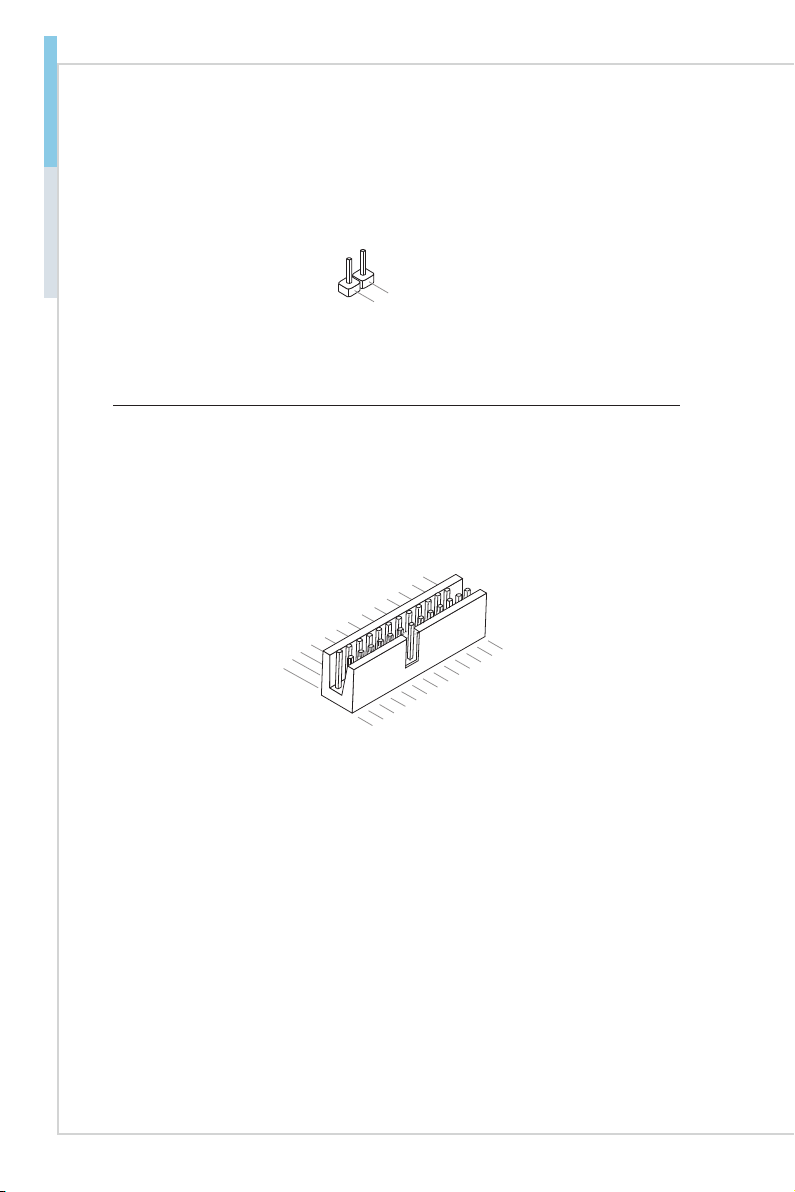

AT/ATX Select Jumper: JATX1

This jumper allows users to select between AT and ATX power.

11

ATX AT

AMT Jumper: JIAMT1

This jumper is used to enable/disable the Intel AMT ME technology.

11

Normal ME disable

2-21

Hardware Setup MS-98G3

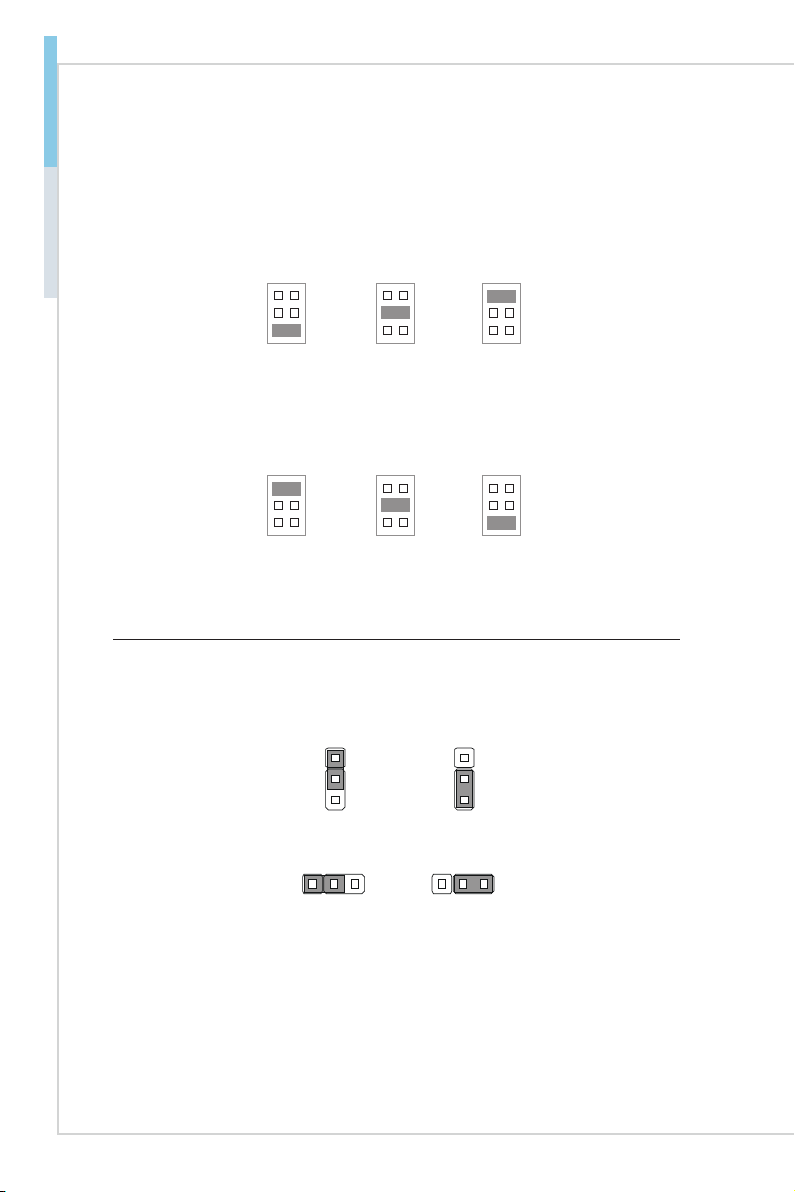

Serial Port Pin 9 Function Select Jumper: JCOMP1, JCOMP2

These jumpers specify the pin 9 function of the specified serial ports.

JCOMP1 (for COM1)

6 5

2 1

Ring VCC5 +12V

JCOMP2 (for COM2)

1 2

5 6

Ring VCC5 +12V

6 5

2 1

1 2

5 6

6 5

2 1

1 2

5 6

Serial Port Power Jumper: JCOMP3, JCOMP4, JCOMP5, JCOMP7

These jumpers specify the operation voltage of the onboard serial ports.

1 1

+5V +12V

2-22

11

+5V +12V

Slot

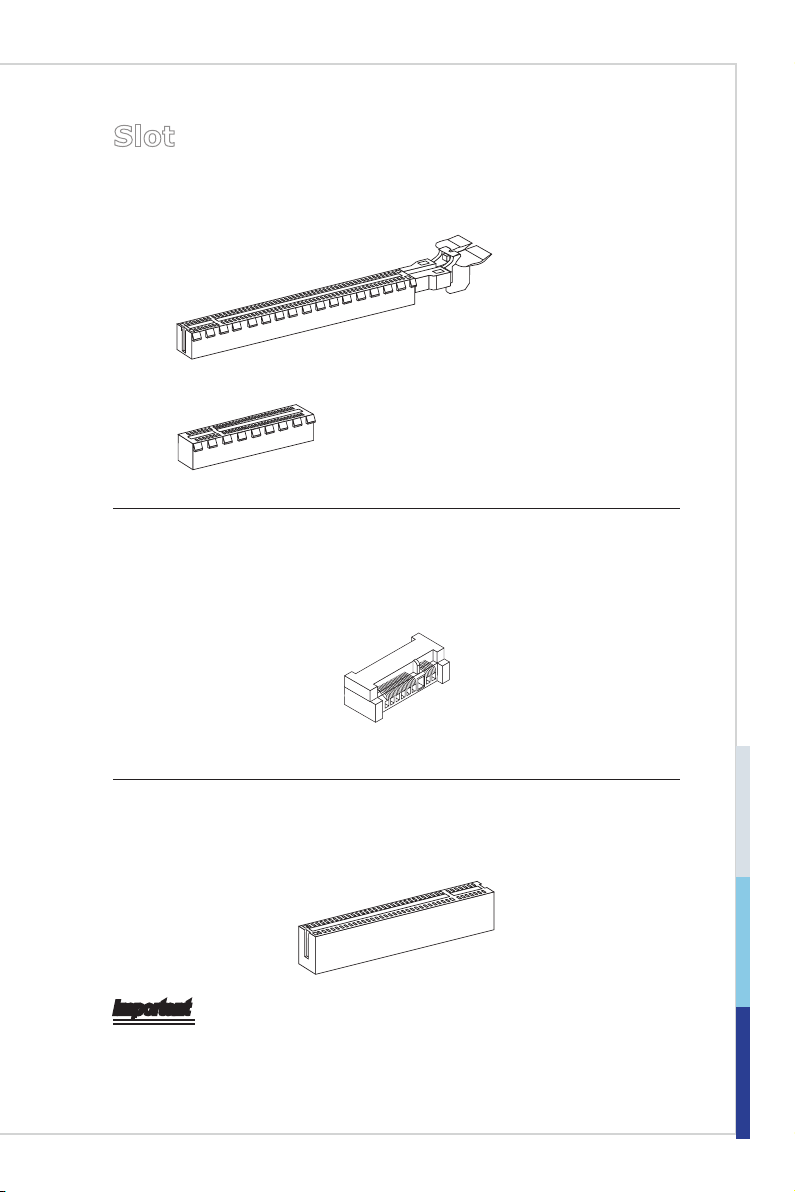

PCIe (Peripheral Component Interconnect Express) Slot

The PCI Express slot supports PCIe interface expansion cards.

PCIe x16 slot

PCIe x8 slot
(x1 signal)

Mini-PCIe (Peripheral Component Interconnect Express) Slot

The Mini-PCIe slot is provided for wireless LAN cards, TV tuner cards, Robson
NAND Flash cards and mSATA devices.

PCI (Peripheral Component Interconnect) Slot

The PCI slot supports PCI interface expansion cards.

Important

When adding or removing expansion cards, make sure that you unplug the power
supply first. Meanwhile, read the documentation for the expansion card to config­ure any necessary hardware or software settings for the expansion card, such as
jumpers, switches or BIOS configuration.

2-23

Appendix

WDT & GPIO

This appendix provides the sample codes of WDT (Watch Dog Timer)
and GPIO (General Purpose Input/ Output).

2-A-1

WDT & GPIO MS-98G3

SIO_INDEX_Port equ 04Eh
SIO_DATA_Port equ 04Fh
SIO_UnLock_Value equ 087h
SIO_Lock_Value equ 0AAh
WatchDog_LDN equ 007h
WDT_UNIT equ 60h ;60h=second, 68h=minute, 40h=Disabled Watchdog timer
WDT_Timer equ 30 ;ex. 30 seconds

Sample code:
;Enable config mode
mov dx, SIO_INDEX_Port
mov al, SIO_UnLock_Value
out dx, al
jmp short $+2 ;Io_delay
jmp short $+2 ;Io_delay
out dx, al
;Change to WDT
mov dx, SIO_INDEX_Port
mov al, 07h
out dx, al
mov dx, SIO_DATA_Port
mov al, WatchDog_LDN
out dx, al
;Acive WDT
mov dx, SIO_INDEX_Port
mov al, 30h
out dx, al
mov dx, SIO_DATA_Port
in al, dx
or al, 01h
out dx, al
;set timer
mov dx, SIO_INDEX_Port
mov al, 0F6h
out dx, al
mov dx, SIO_DATA_Port
m

ov al, WDT_Timer

out dx, al
;set UINT
mov dx, SIO_INDEX_Port
mov al, 0F5h
out dx, al
mov dx, SIO_DATA_Port
mov al, WDT_UNIT
out dx, al
;enable reset
mov dx, SIO_INDEX_Port
mov al, 0FAh
out dx, al
mov dx, SIO_DATA_Port
in al, dx
or al, 01h
out dx, al
;close config mode
mov dx, SIO_INDEX_Port
mov al, SIO_Lock_Value
out dx, al

WDT Sample Code

A-2

GPIO Sample Code

 GPI 0 ~ GPI 3

 GPO 0 ~ GPO 3

GPI_REG equ 1C0Ch

GPO_REG equ 1C0Eh

GPO_REG 2 equ 1C3Ah

GPO_0 equ 00000100b

GPO_1 equ 00010000b

GPO_2 equ 00000100b

GPO_3 equ 00010000b

Sample Code:

#1 : Get GPI 0 status

mov dx, GPI_REG

in al, dx

;al bit2 = GPI 0 status

;al bit3 = GPI 1 status

;al bit4 = GPI 2 status

;al bit5 = GPI 3 status

#2 : Set GPO 0/1/2/3 status to high

mov dx, GPO_REG

in al, dx
and Not (GPO_0+ GPO_1) ;reset to 0

or al, (GPO_0+ GPO_1)

out dx, al

in al, GPO_REG 2

and Not (GPO_2+ GPO_3) ;reset to 0

or al, (GPO_2+ GPO_3)

out dx, al

GPI 0 GPI 1 GPI 2 GPI 3

IO Address 1C0Ch 1C0Ch 1C0Ch 1C0Ch

SIO GPIO Register

Bit 2 3 4 5

Sample code #1 #1 #1 #1

GPO 0 GPO 1 GPO 2 GPO 3

IO Address 1C0Eh 1C0Eh 1C3Ah 1C3Ah

SIO GPIO Register

Bit 2 4 2 4

Sample code #2 #2 #2 #2

A-3
