Grandstream HT701 User Manual

HT701

Analog Telephone Adapter

Grandstream Networks, Inc.

1297 Beacon Street, 2nd Floor

Brookline, MA 02446, USA

Tel : [phone] – 9300

Fax: [phone] – 1987

www.grandstream.com

For Warranty and RMA information, please visit www.grandstream.com

QuickStart

QuickStart

Guide

Guide

EN

The HT701 is not pre-confi gured to support or
carry emergency calls to any type of hospital,
law enforcement agency, medical care unit
(“Emergency Service(s)”) or any other kind
of Emergency Service. You must make ad­ditional arrangements to access Emergency
Services. It is Your responsibility to purchase
SIP-compliant Internet telephone service,
properly confi gure the HT701 to use that ser-
vice, and periodically test your confi gura-
tion to confi rm that it works as You expect.
If You do not do so, it is Your responsibility to
purchase traditional wireless or landline tele­phone services to access Emergency Servic-

PRECAUTIONS

• Do not attempt to open, disassemble, or modify the
device

• Do not use a third party power adapter

• Do not expose this device to temperatures outside
range of -10 °C to +55 °C

• Do not expose the HT701 to environments
outside of the following humidity range: 10-90% RH
(non-condensing)

• Do NOT power cycle the HantyTone during system
boot up or fi rmware upgrade. You may corrupt fi rm-
ware images and cause the unit to malfunction.

PACKAGE CONTENTS

es.
GRANDSTREAM DOES NOT PROVIDE CON-

NECTIONS TO EMERGENCY SERVICES VIA THE
HT701. NEITHER GRANDSTREAM NOR ITS OF­FICERS, EMPLOYEES OR AFFILIATES MAY BE
HELD LIABLE FOR ANY CLAIM, DAMAGE, OR
LOSS, AND YOU HEREBY WAIVE ANY AND ALL
SUCH CLAIMS OR CAUSES OF ACTION ARIS­ING FROM OR RELATING TO YOUR INABILITY
TO USE THE HT701 TO CONTACT EMERGENCY
SERVICES, AND YOUR FAILURE TO MAKE AD­DITIONAL ARRANGEMENTS TO ACCESS EMER­GENCY SERVICES IN ACCORDANCE WITH
THE IMMEDIATELY PRECEDING PARAGRAPH.

Handy Tone

1 X Ethernet Cable

12V

Power Adapter

QUICKSTART GUIDE

~1~

~2~

OVERVIEW

Grandstream HandyTone Analog Telephone Adapt­ers/IAD series offers a comprehensive line of afford-

CONNECTING THE HANDYTONE

able VoIP access devices based on Grandstream’s
innovative and proprietary technology platform. The
HandyTone series offers the entry-level IP Telephony
user superb audio quality, rich functionalities, interop­erability with the leading 3rd party VoIP providers, and
compatibility with most service providers. The Handy­Tone series is compact, works with any cordless phone
and fax machines and offers the simplicity of plug and
dial, making it ideal for the basic IP telephony user

CONNECTING THE HT701

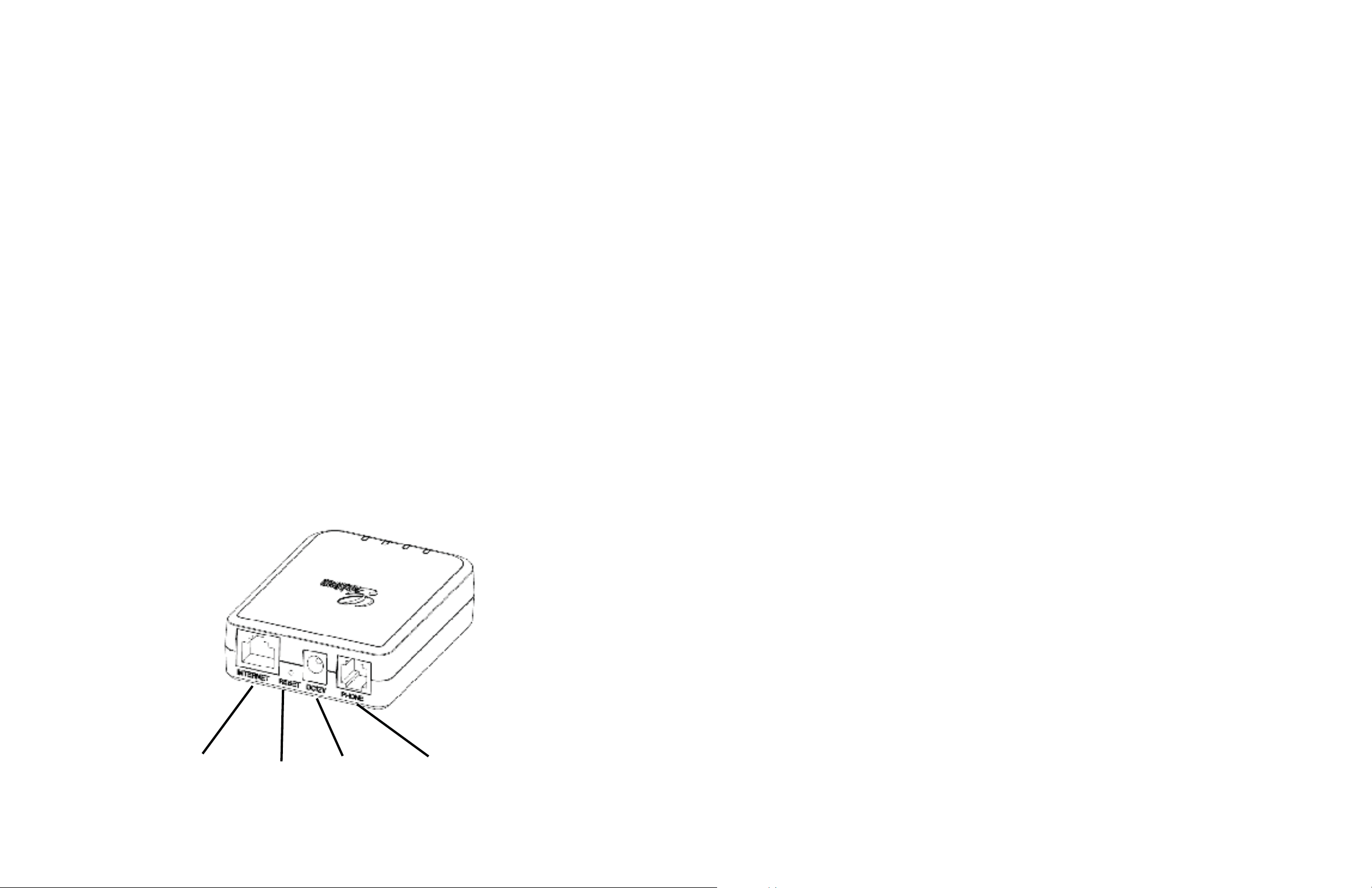

Refer to the illustration below when following the
instructions on the next page.

1. Connect a standard touch-tone ana­log telephone (or fax machine) to PHONE port.

2. Insert the Ethernet cable into the Internet port
of HandyTone and connect the other end of the Ether­net cable to an uplink port (a router, a modem, etc.).

3. Using the HandyTone embedded web server
or IVR (Interactive Voice Prompt) menu, you can further
confi gure the phone using either a static IP or DHCP.

HT701 CONFIGURATION

Confi gure using Interactive Voice Prompt

Internet Port Reset Power PHONE Port

~3~

1. From the analog phone, press *** to get into
the IVR menu. Enter option 02 to obtain the Handy­Tone’s IP address.

2. Type the HandyTone’s IP address in your PC
browser.

3. Log in using password “admin” to confi gure
the HandyTone.

~4~

You will need the following information to confi gure
the HandyTone via the web browser:

• IP address, subnet mask and gateway IP if using
static IP.

• SIP server and/or Outbound Proxy FQDN or IP
address.

• User subscriber information: User ID, Authentica­tion ID, Password

• HandyTone supports “Plug-n-Call” if your ITSP
(Internet Telephony Service Provider) provides
this automatic provisioning service. Ensure the
HandyTone has an internet connection (either
DHCP or static IP in your internet ready network),
then power up the device.

• Please contact your ITSP for additional settings
that may be necessary to confi gure the device.

Please download the user manual and FAQ for

more detailed confi guration instructions:

~5~

http://www.grandstream.com/products
