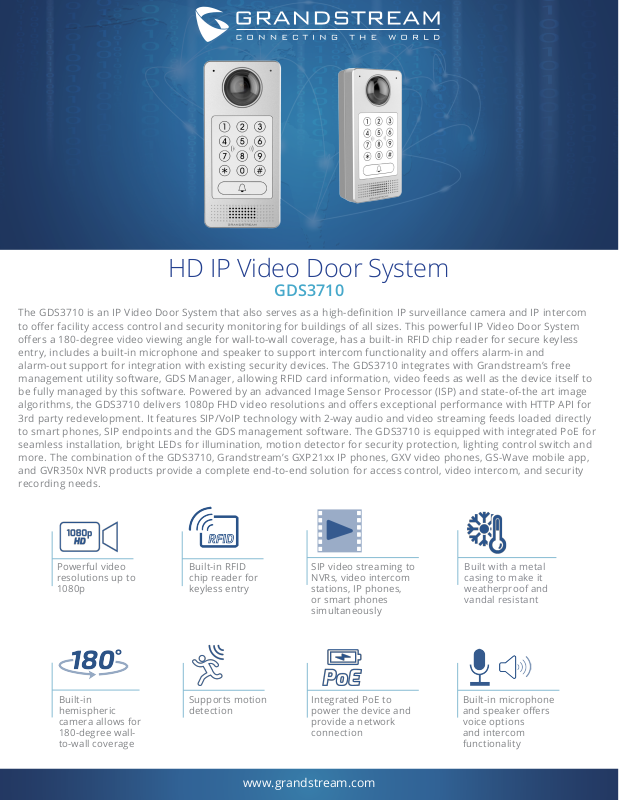

Grandstream GDS3710 Technical data
HD IP Video Door System
GDS3710
The GDS3710 is an IP Video Door System that also serves as a high-denition IP surveillance camera and IP intercom
to oer facility access control and security monitoring for buildings of all sizes. This powerful IP Video Door System
oers a 180-degree video viewing angle for wall-to-wall coverage, has a built-in RFID chip reader for secure keyless
entry, includes a built-in microphone and speaker to support intercom functionality and oers alarm-in and
alarm-out support for integration with existing security devices. The GDS3710 integrates with Grandstream’s free
management utility software, GDS Manager, allowing RFID card information, video feeds as well as the device itself to
be fully managed by this software. Powered by an advanced Image Sensor Processor (ISP) and state-of-the art image
algorithms, the GDS3710 delivers 1080p FHD video resolutions and oers exceptional performance with HTTP API for
3rd party redevelopment. It features SIP/VoIP technology with 2-way audio and video streaming feeds loaded directly
to smart phones, SIP endpoints and the GDS management software. The GDS3710 is equipped with integrated PoE for
seamless installation, bright LEDs for illumination, motion detector for security protection, lighting control switch and
more. The combination of the GDS3710, Grandstream’s GXP21xx IP phones, GXV video phones, GS-Wave mobile app,
and GVR350x NVR products provide a complete end-to-end solution for access control, video intercom, and security
recording needs.
Powerful video
resolutions up to
1080p
Built-in
hemispheric
camera allows for
180-degree wallto-wall coverage
Built-in RFID
chip reader for
keyless entry
Supports motion
detection
www.grandstream.com
SIP video streaming to
NVRs, video intercom
stations, IP phones,
or smart phones
simultaneously
Integrated PoE to
power the device and
provide a network
connection
Built with a metal
casing to make it
weatherproof and
vandal resistant
Built-in microphone
and speaker oers
voice options
and intercom
functionality
Video Compression H.264 High Prole / Main Prole / Base Prole, Motion JPEG
Image Sensor Resolution 1/2.7”, 2 Megapixel, 1920H x 1080V
Lens Type 1/2”, F2.5, FOV: 180°(W) x 150°(H)
Day & Night White LEDs with smart brightness control
Max Video Resolution 1920x1080
Max Frame Rate 30 frames per second
Minimum Illumination 0.5Lux
Wide Dynamic Range Yes, up to 120db
Video Bit Rates 128 Kbps to 4 Mbps, multi-rate for preview & recording
Embedded Analytics Motion detection (up to 4 privacy masks)
Snapshots Triggered upon events, sent via email and/or FTP
High-performance streaming server allowing multiple simultaneous access
Multi-Stream Resolution
Network Protocol
SIP/VoIP Support Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms
Voice Codecs G.711µ/a-law, G.722, DTMF (RFC2833, SIP INFO), AEC
Primary video stream: 1920 x 1080 resolution for continuous full HD recording
Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls
Third video stream: 320 x 240 resolution for smartphone applications
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069 (pending), ARP/
RARP, ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP
QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiServ, MPLS)
Security
Upgrade/ Provisioning
Audio Input Built-in microphone, up to 1.5m with AEC
Audio Output Built-in HD loudspeaker, sound quality suitable for up to 3 m
Button 12-key touchpad plus a capacitive doorbell button, each with individual LED illumination
RFID Number Supported Up to 2,000 recommended
Alarm Input Yes, 2 channels, Vin < 15V, for door sensor or other devices
Alarm Output
Network Interface 10M/100M auto-sensing
Expansion Interface RS485, Wiegand input and output
Dimensions (H x W x D)
and Weight
Power Supply PoE IEEE 802.3af Class 3, or 12VDC/1A connection (AC power adapter not included)
Interoperability ONVIF (Prole S)
User and administrator level access control (pending), MD5 and MD5-sess based authentication, 256-bit
AES encrypted conguration le, TLS, SRTP, HTTPS, 802.1x media access control
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 (Pending) or AES encrypted
XML conguration le
RFID 125KHz: EM4100 (1 RFID card and 1 RFID key fob included)
Yes, 2 channels, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or
other devices
173mm(H) x 80mm(W) x 36mm(D)
0.6Kg
Ingress Protection Weather proof, vandal resistant, with support for extra back reinforcing metal plate
Temperature and
Humidity
Protection Class IP66 (EN60529), IK09 (IEC62262)
Compliance
Operation: -30°C to 60°C (-22°F to 140°F)
Storage: -35°C to 60°C (-31°F to 140°F)
Humidity: 10% to 90% Non-condensing
FCC: Part 15 subpart B Class B; Part 15 C; MPE
CE: EN 55032 Class B; EN 61000-3-2; EN 61000-3-3; EN 50130; EN 60950-1; EN 300330;
EN 301489; EN 62311
RCM: AS/NZS CISPR 22; AS/NZS 4268; AS/NZS 60950.1
IC: ICES-003; RSS310
