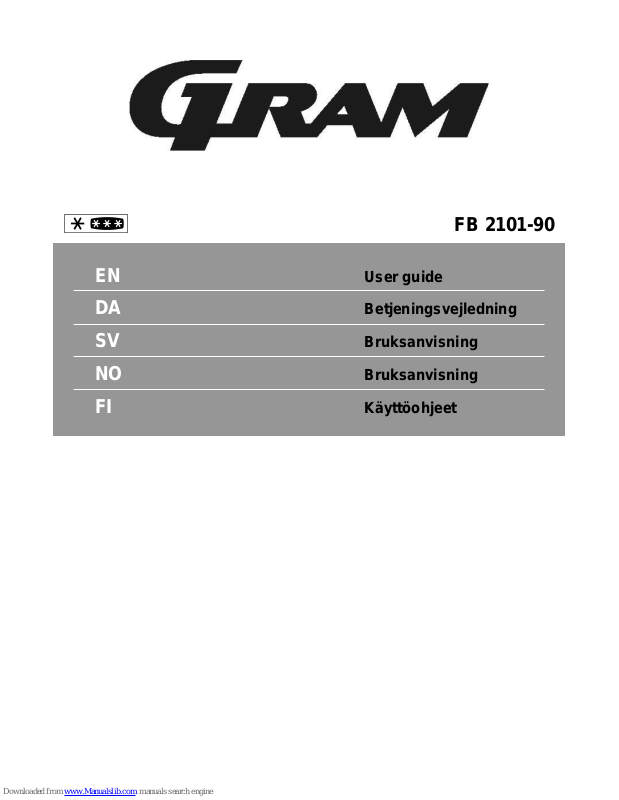

Gram FB 2101-90 User Manual
FB 2101-90
EN
User guide
DA
Betjeningsvejledning
SV
Bruksanvisning
NO
Bruksanvisning
FI
Käyttöohjeet
WARNING!
In order to ensure a normal operation of your fridge/freezing appliance, which uses a completely environmentally
friendly refrigerant the R600a (Flammable only under certain conditions) you must observe the following rules:
Do not hinder the free circulation of the air around the appliance.
Do not use mechanical devices in order to accelerate the defrosting, other than the ones recommended by the
manufacturer.
Do not destroy the refrigerating circuit.
Do not use electric appliances inside the food keeping compartment, other than those that might have been
recommended by the manufacturer.
ADVARSEL!
For at sikre en normal funktion af køle-/fryseskabet, der anvender et komplet miljøvenligt kølemiddel, R600a (Kun
brændbar under visse betingelser), skal du overholde følgende regler:
Undlad at hindre den frie luftcirkulation rundt om apparatet.
Der må ikke anvendes mekanisk udstyr, ud over det af producenten anbefalede, til at fremskynde
afrimningsprocessen.
Undgå at beskadige kølekredsløbet.
Undlad at bruge elektrisk udstyr inde i rummet, hvor der opbevares mad, ud over de steder, som producenten evt.
har anbefalet.
VARNING!
För att säkerställa normal användning av kyl/frysskåpet, som utnyttjar helt miljöanpassade kylmedlet R600a (Endast
antändbart under vissa förhållanden) måste du iaktta följande regler:
Hindra inte fri luftcirkulation runt kyl/frysskåpet.
Använd inga mekaniska enheter för att påskynda avfrostningen, förutom det som rekommenderas av tillverkaren.
Skada inte kylningskretsen.
Använd inga elektriska enheter inuti matsignalsfacket, utöver det som rekommenderas av tillverkaren.
ADVARSEL!
For å sikre normal drift av kombiskap, som bruker en fullstendig miljøvennlig kjølevæske – R600a (Kun antennelig
under bestemte forhold), må du overholde følgende regler:
Ikke blokker den frie luftsirkulasjonen rundt apparatet.
Ikke bruk mekanisk utstyr for å akselerere avisingsprosessen annet enn slikt utstyr som produsenten anbefaler.
Pass på så du ikke ødelegger kjølekretsen.
Ikke bruk elektriske apparater inne i de delene av skapet der du lagrer mat, såfremt de ikke er av en slik type som
produsenten anbefaler.
VAROITUS!
Laitteen kylmäaineena on ympäristöystävällinen R600a (syttyvää vain tietyissä olosuhteissa). Jotta laite toimisi
normaalisti, on noudatettava seuraavia ohjeita:
Älä estä ilman vapaata kiertoa laitteen ympäri.
Älä käytä mekaanisia välineitä sulatuksen nopeuttamiseen, paitsi sellaisia, joita valmistaja suosittelee.
Älä vahingoita jäähdytyspiiriä.
Älä käytä ruokalokeroiden sisällä sähkölaitteita, jollei valmistaja niin suosittele.
Råd om gjenvinning av det gamle apparatet /22
Gjenvinning av emballasje /23
Transportanvisninger /23
Advarsler og spesielle råd /23
Installasjon /24
Tilkobling til strømnett /24
Slå av /24
Bruk /24
Beskrivelse av apparatet /24
Bruk av fryser /25
Råd for oppbevaring av matvarer /25
Avising av apparatet /26
Rengjøring av apparatet /26
Feilsøking /27
Apparatets dataark /27
Neuvoja vanhan laitteen kierrätykseen /28
Pakkauksen kierrätys /29
Kuljetusohjeet /29
Varoitukset ja yleiset ohjeet /29
Asennus /30
Sähköliitännät /30
Pois päältä kytkeminen /31
Käyttöönotto /31
Laitteen kuvaus /31
Pakastimen käyttö /31
Neuvoja ruuan säilömiseen /32
Laitteen sulatus /33
Laitteen puhdistus /33
Vikojen etsintä /34
Laitteen tuotetiedot /34
Advice for recycling of the old appliance /1
Packing Recycling /2
Transport instructions /2
Warnings and special advice /2
Setting up /3
Electric connection /3
Switching off /4
Appliance description /4
Freezer operation /4
Advice for food conservation /5
Defrosting of the appliance /6
Cleaning of the appliance /6
Defects finding guide /7
Appliance data sheet /7
Råd om genbrug af deres gamle fryser /8
Genbrug af emballage /9
Instruktioner vedr. Fragt /9
Advarsler og særlige råd /9
Opsætning /10
Elektrisk forbindelse /10
Slukning /11
Beskrivelse af apparatet /11
Fryserfunktioner /11
Gode råd angående opbevaring af madvarer /12
Afisning af apparatet /13
Rengøring af apparatet /13
Fejlfinding /14
Tekniske beskrivelse af apparatet /14
Råd vid återvinning av din gamla enhet /15
Återvinning av paketering /16
Transportinstruktioner /16
Varningar och speciella råd /16
Installera /17
Elektrisk anslutning /17
Stänga av /18
Drift /18
Enhetsbeskrivning /18
Frysens funktioner /18
Råd vid förvarning av mat /19
Avfrostning av enheten /20
Rengöring av enheten /20
Felsökningsguide /21
Enhetens informationsblad /21
EN
Index
DA
Register
SV
Index
NO
Indeks
FI
Hakemisto
1
2
3
4
5
Congratulations for your choice!
The chest freezer you have purchased is one in the GRAM
products range and represents a harmonious joinng between
the refrigeration technique with the aestetical outlook. It has a
new and attractive design and is built according to the
European and national standards which guarantee its operation
and safety features. At the same time, the used refrigerant,
R600a, is environment-friendly and it does not affect the ozone
layer.
In order to use the best your freezer, we advise you to read
carefully the information in these user instructions.
Advice for recycling your old appliance
If your newly purchased appliance replaces an older appliance,
you must consider a few aspects.
The old appliances are not valueless scrap. Their disposal,
while preserving the environment, allows the recovery of
important raw materials.
Make your old appliance useless :
- disconnect the appliance from the supply;
- remove the supply cord (cut it);
- remove the eventual locks on the door to avoid the blocking of
children inside, while playing, and the endangering of their lives.
The refrigerating apliances contain insulating materials and
refrigerants which require a proper recycling.
1
EN
User guide
This appliance is not intended for people with reduced physical, sensory or mental
capabilities or lack of experience and knowledge unless they have been supervised or
instructed in the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Packing Recycling
WARNI N G !
Do not allow children to play with the
packing or with parts of it. There is the risk
of suffocation with parts of corrugated
cardboard and with plastic film.
In order to get to you in good condition, the
appliance was protected with a suitable
packing. All the materials of the packing are
compatible with the environment and
recyclable. Please help us recycle the packing
while protecting the environment !
IMPOR T A NT!
Before putting the appliance in operation, read
carefully and entirely these instructions. They
contain important information concerning the
setting up, use and maintenance of the
apliance.
The manufacturer is free of any responsibility if
the information in this document are not
observed. Keep the instructions in a safe place
in order to reach them easily in case of need.
They can also be useful subsequently by
another user.
ATTENT ION!
This appliance must be used only for its
intended purpose, (household use), in
suitable areas, far from rain, moisture or
other weather conditions.
Transport instructions
The appliance must be transported, as much
as possible, only in vertical position. The
packing must be in perfect condition during
transport.
If during transport the appliance was put in
horisontal position (only according to the
markings on the packing), it is advised that,
before putting it into operation, the appliance
is left to rest for 12 hours in order to allow the
settling of the refrigerating circuit.
The failure to to observe these instructions
can cause the breakdown of the
motorcompressor and the cancellation of its
warranty.
Warnings and general advice
Do not plug in the appliance if you noticed a
failure.
The repairs must be done only by qualified
personel.
In the following situations please unplug the
appliance from the mains:
- when you defrost completely the appliance;
- when you clean the appliance.
To unplug the appliance, pull by the plug,
not by the cable!
Ensure the minimum space between the
appliance and the wall against which it is
placed.
Do not climb on the appliance.
Do not allow the children to play or hide
inside the appliance.
Never use electric appliances inside the
freezer, for defrosting.
Do not use the appliance near heating
appliances, cookers or other sources of heat
and fire.
Do not leave the freezer door open more
than it is necessary to put in or take out the
food.
Do not leave the food in the appliance if it is
not working.
Do not keep inside products containing
flammable or explosive gases.
Do not keep inside fizzy drinks (juice,
mineral water, champagne, etc.) in the
freezer: the bottle can explode! Do not freeze
drinks in plastic bottles.
Do not eat ice cubes or icecream
immediately after having taken them out of the
freezer because they may cause „freezer
burns”.
Never touch cold metal parts or frozen food
with wet hands because your hands can
quickly freeze on the very cold surfaces.
2
EN
User guide
If you do not use your appliance for a few
days, it is not advisable to switch it off. If you
do not use it for a longer period, please
proceed as follows :
- unplug the appliance;
- empty the freezer;
- defrost it and clean it;
- leave the door open to avoid the for
mation of
unpleasant smells.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
If your appliance has a lock, keep it locked
and store the key in a safe place, out of the
reach of children. If you are discarding an
appliance with lock, make sure that, is made
ineffective. This is very important so as to
avoid children being trapped inside, which
may cause their loss of life.
Setting up
This appliance was designed to operate at an
ambient temperature between +100C and
+430C (SN-T class). If the ambient
temperature is above +430C, inside the
appliance the temperature can increase.
Set up the appliance far from any source of
heat and fire. Placing it in a warm room, the
direct exposure to sunbeams or near a heat
source (heaters, cookers, ovens), will
increase the energy consumption and shorten
the product life.
• Please observe the following minimun
distances:
• 100 cm from the cookers working with
coal or oil;
• 150 cm from the electric and gas
cookers.
• Ensure the free circulation of the air around
the appliance, by observing the distances
shown in Item 2.
Assemble on the condenser (in the rear side)
the supplied spacers. (Item 3).
• Place the appliance in a perfectly even, dry
and well ventilated place.
Assemble the supplied accessories.
Electric connection
Your appliance is intended to operate at a
single-phase voltage of 230V/50 Hz. Before
plugging in the appliance, please make sure
that the parameters of the mains in your house
(voltage, currect type, frequency) comply to the
operation parameters of the appliance.
• The information concerning the supply voltage
and the absorbed power is given on the marking
label placed in the back side of the freezer.
• The electric installation must comply with
the law requirements.
• The earthing of the appliance is
compulsory. The manufacturer has no
responsibility for any damage to persons,
animals or goods which may arise from
the failure to observe the specified
conditions.
• The appliance is endowed with a supply
cord and a plug (European type, marked
10/16A) with double earthing contact for
safety. If the socket is not the same type with
the plug, please ask a specialised electrician
to change it.
•
Do not use extension pieces or multiple
adapters.
3
EN
User guide
Switching off
The switching off must be possible by taking
the plug out of the socket or by means of a
mains two-poles switch placed before the
socket.
Operation
Before putting into operation, clean the inside
of the appliance (see chapter „Cleaning").
After finishing this operation please plug in the
appliance, adjust the thermostat knob to an
average position. The green and red LEDs in
the signalling block must light. Leave the
appliance work for about 2 hours without
putting food inside it.
The freezing of the fresh food is possible after
min. 20 hours of operation.
Appliance description
(Item. 1)
1. Door
2. Basket
3. Thermostat box
Freezer operation
Temperature adjustment
The temperature of the freezer is adjusted by
means of the knob assembled on the
thermostat (item. 4), position „MAX” being the
lowest temperature.
The achieved temperatures can vary
according to the conditions of use of the
appliance, such as: place of the appliance,
ambient temperature, frequency of door
opening, extent of filling with food of the
freezer. The position of the thermostat knob
will change according to these factors.
Normally, for an ambient temperature of
approx. 320C, the thermostat will be adjusted
on an average position.
The signalling system is placed on the front
side of the freezer (Item 5).
It includes:
1. Thermostat adjustment knob – the inside
temperature is adjusted.
2. green LED – shows that the appliance is
supplied with electric energy.
3. red LED – damage – lights if the
temperature in the freezer is too high. The
LED will operate 15-45 minutes after the
putting into operation of the freezer, then it
must go off. If the LED goes on during the
operation, this means that defects have
occurred.
4. Orange button– fast freeze – by pushing it
the orange led goes on, showing that the
appliance entered into the "fast freeze"
mode . The exit of this mode is done by
pushing the button again, and the orange
led goes off.
The three LEDs give information about the
mode of operation of the freezer.
4
EN
User guide
Advice for food conservation
The freezer is intended to keep the frozen
food for a long time, as well as to freeze fresh
food.
One of the main elements for a successful
food freezing is the packing.
The main conditions that the packing must
fulfill are the following: to be airtight, to be
inert towards the packed food, to resist to low
temperatures, to be proof to liquids, grease,
water vapours, smells, to be able to be
washed.
These conditions are fulfilled by the following
types of packings: plastic or aluminium film,
plastic and aliminium vessels, waxed
cardboard glasses or plastic glasses.
IMPOR T A NT!
- For freezing the fresh food please use the
supplied baskets of the appliance.
- Do not place into the freezer a too large
quantity of food at a time. The quality of the
food is best kept if they are deeply frozen as
quickly as possible. This is why it is advisable
not to exceed the freezing capacity of the
appliance specified in the "Appliance data
sheet" (page 7). In order to reduce the
freezing time, push the button for „fast freeze”.
- The fresh food must not come into contact
with the food already frozen.
- The frozen food you have bought can be
placed into the freezer without having to
adjust the thermostat.
- If the freezing date is not mentioned on the
packing, please take into consideration a
period of max. 3 months, as a general guide.
- The food, even partially defrosted, cannot be
frozen again, it must be consumed
immediately or cooked and then refrozen.
- The fizzy drinks will not be kept in the
freezer.
- In case of a power failure, do not open the
door of the appliance. The frozen food will not
be affected if the failure lasts less than 18
hours.
DO NO T FORGET !
After 24 hours since the food was
placed inside, please cancel the "fast
freeze" mode by pushing again the
button 4, when the orange led goes off.
5
EN
User guide
Inside cleaning
Before starting the cleaning, unplug the
appliance from the mains.
• It is advisable to clean the appliance when
you defrost it.
• Wash the inside with lukewarm water
where you add some neutral detergent. Do
not use soap, detergent, gasoline or acetone
which can leave a strong odour.
•
Wipe with a wet sponge and dry with a soft
cloth.
During this operation, avoid the excess of
water, in order to prevent its entrance into the
thermal insulation of the appliance, which
would cause unpleasant odours.
Do not forget to clean also the door gasket
especially the bellow ribs, by means of a
clean cloth.
Outside cleaning
• Clean the outside of the freezer by means
of a sponge soaked in soapy warm water,
wipe with a soft cloth and dry.
• The cleaning of the outside part of the
refrigerating circuit (motorcompressor,
condenser, connection tubes) will be done
with a soft brush or with the vacuum-cleaner.
During this operation, please take care not to
distort the tubes or detach the cables.
Do not use scouring or abrasive materials !
• After having finished the cleaning, replace
the accessories at their places and plug in the
appliance.
6
Defrosting of the appliance
We advise you to defrost the freezer at
least twice a year or when the ice layer has an
excessive thickness.
The ice build-up is a normal phenomenon.
The quantity and the rapidity of ice buildup depends on the ambient conditions and on
the frequency of the door opening.
We advise you to defrost the appliance
when the quantity of frozen food is the least.
Before defrosting, adjust the thermostat
knob to a higher position so that the food
stores more cold.
- Unplug the appliance.
- Take out the frozen food, wrap it in several
sheets of paper and put them in refrigerator or
a cool place.
For a fast thaw please leave the door open.
Do not use sharp metal objects to remove
the ice.
Do not use hairdriers or other electric
heating appliances for defrosting.
EN
User guide
Appliance data sheet
BRAND
GRAM
MODEL
FB 2101
-90
APPLIANCE TYPE
CHEST FREEZER
Gross volume (litre) 101
Net volume (litre) 99
Freezing capacity (kg/24 h) 4.5
Energy class (1) A+
Power consumption (kWh/year) (2) 178
Safety during electricity cut (hours) 18
Noise dB(A) 40
Environmentally friendly refrigerating agent R600a
(1) Energy classes : A++ . . . D (A++ = economical . . . D = less economical)
(2) The real power consumption depends on using conditions and appliance location.
Defects finding guide
The appliance does not work.
There is a power failure.
The plug of the supply cord is not inserted
well into the socket.
The fuse is blown.
The thermostat is in „OFF” position.
The temperatures are not low
enough(red LED on).
The food prevents the door closing.
The appliance was not placed correctly.
The appliance is placed too close to a heat
source.
The thermostat knob is not in the correct
position.
Excessive ice build-up
The door was not closed properly.
The following are not defects
Possible noddings and cracks coming from
the product: circulation of the refrigerant in
the system.
7
Noises during operation
In order to keep the temperature at the value
you have adjusted, the compressor of the
appliance starts periodically.
The noises which can be heard in such
situation are normal.
They are redced as soon as the appliance
reaches the operation temperature.
The humming noise is made by the
compressor. It can become a little stronger
when the compressor starts.
The bubbling and gurgling noises coming from
the refrigerant circulating in the pipes of the
appliance, are normal operating noises.
Warnin g !
Never try to repair yourself the appliance or its
electric components. Any repair made by an
unaut
horised person is dangerous for the user
and can result in the warranty cancellation.
EN
User guide
The symbol on the product or on packaging indicates that this product must not be
treated as household waste. Instead it has to be handed over to the place of collection for
the recycling of electrical and electronic equipment. By ensuring the correct removal of this
product, you help preventing the potential negative consequences for the environment and
human health, which could be caused by the inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local
government offices, your household waste disposal service or the shop where you
purchased the product.
Loading...
