Mobile Lubrication Library
Wheel Loader
Suggested wheel loader automated lubrication system layout
333503B
Kit No.: 24R377, G3, USP, 31PT
Maximum System Working Pressure: 3000 psi (206 bar, 20.7 MPa)
Important Safety Information
Read all warnings and instructions in all
related manuals. Save all instructions.
Related Manuals
Manual No. Manual Title
3A0414 G3 Pump
3A0525 Pressure Relief Valve
3A0528 Remote Manual Run
3A0860 USP Valves
The information contained in this document is only a recommendation for an automatic lubrication system and is not intended to
replace the installation and maintenance instructions provided by the original equipment manufacturer.
Fluid leaks from incorrectly installed or ruptured components, and/or failure to verify the components are properly installed and tested, can result in serious injury
such as fluid spraying in the eyes or on skin and fluid
injection, or equipment damage.
To prevent injury or equipment damage, installation
must be done by a professional and tested prior to use.
Consult Parker literature for specific hose assembly
instructions. These instructions are available from your
Parker representative or at www.Parker.com/pdf.
Mobile Lubrication Library
1
2
3
4
5
6
Secondary #3 USP 6
Left Side
Right Side
POINT 8
POINT 7
UNUSEABLE
UNUSEABLE
POINT 9
POINT 10
POINT 11
POINT 12
1
2
3
4
5
6
7
8
Secondary #5 USP 8
Left Side
Right Side
POINT 28
POINT 27
POINT 26
POINT 25
PLUG
POINT 29
POINT 30
POINT 31
9
10
11
12
1
2
3
4
5
6
7
8
Master #1 USP12
Left Side
Right Side
Secondary #4
Secondary #2
Secondary #3
Secondary #5
PLUG
PLUG
PLUG
PLUG
PLUG
PLUG
PLUG
PLUG
1
2
3
4
5
6
Secondary #2 USP 6
Left Side
Right Side
POINT 2
POINT 1
UNUSEABLE
UNUSEABLE
POINT 3
POINT 4
POINT 5
POINT 6
9
10
11
12
13
14
1
2
3
4
5
6
7
8
Secondary #4 USP 14
Left Side
Right Side
POINT 17
POINT 16
POINT 15
POINT 14
PLUG
POINT 13
POINT 24
POINT 23
POINT 22
POINT 21
POINT 20
PLUG
POINT 19
POINT 18
UNUSEABLE
UNUSEABLE
1
2
3
4
5
6
7
8
9
10
11
12
15
16
17
13
14
18
19
20
22
21
23
24
27
28
29
30
31
25
26
Suggested Lube Points
USP Valves
LUBE POINT INFORMATION
Lube Point USP Outlet Bearing Description USP Block
1 5 Bucket pin right SB#2 Single
2 6 Bucket pin right lower SB#2 Single
3 1 Bucket pin scissor upper right SB#2 Single
4 2 Bucket pin scissor lower right SB#2 Single
5 3 Cylinder head SB#2 Single
6 4 H beam right SB#2 Single
7 5 Bucket pin left SB#3 Single
8 6 Bucket pin left lower SB#3 Single
9 1 Bucket pin scissor upper left SB#3 Single
10 2 Bucket pin scissor lower left SB#3 Single
11 3 Cylinder foot SB#3 Single
12 4 H beam left SB#3 Single
13 9 Cylinder foot right SB#4 Single
14 10 and 11 Cylinder foot left SB#4 Double
15 12 Pivot pin lower right SB#4 Single
16 13 Pivot pin mid right SB#4 Single
17 14 Pivot pin upper right SB#4 Single
18 1 Lower pivot right SB#4 Single
19 2 Cylinder head left SB#4 Single
20 3 and 4 Cylinder head left SB#4 Double
21 5 Pivot pin lower left SB#4 Single
22 6 Lower pivot left SB#4 Single
23 7 Pivot pin mid left SB#4 Single
24 8 Pivot pin upper left SB#4 Single
25 5 Articulation cylinder head end left SB#5 Single
26 6 Articulation cylinder foot left SB#5 Single
27 7 Articulation cylinder head end right SB#5 Single
28 8 Articulation cylinder foot right SB#5 Single
29 1 and 2 Articulation pivot center SB#5 Double
30 3 Differential SB#5 Single
31 4 Differential SB#5 Single
Mobile Lubrication Library
USP Volume
Dispense
Mobile Lubrication Library
Part
Number
96G112 PUMP, G3-G-24MX-8L0L00-UDMVA1R2 (see manual 3A0414)
571036 KIT, accessory, cover
571028 KIT, accessory, pressure relief (see manual 3A0525)
24E406 KIT, valve, USP, 6 outlet (see manual 3A0860)
24E407 KIT, valve, USP, 8 outlet (see manual 3A0860)
24E409 KIT, valve, USP, 12 outlet (see manual 3A0860)
24E410 KIT, valve, USP, 14 outlet (see manual 3A0860)
571033 KIT, remote manual run, 24V, w/ cable (see manual 3A0528)
24N007 KIT, accessory, mounting, USP, 6-8
24N008 KIT, accessory, mounting, USP, 10-12
24N009 KIT, accessory, mounting, USP, 14-16
16U586 KIT, accessory, hose, 100 ft
556773 HOSE, end female swivel SAE 4 JIC
556763 FITTING, 4 JIC 1/8 pm
555749 CONNECTOR, 4 JIC 1/8 pm
557393 COUPLING, 1/8 fp x 1/8 mp x 1-1/4 HEX
556402 FITTING, 1/4 x 1/8 nptf hex
557349 PLUG, dryseal 1/8 nptf
16U587 KIT, accessory, guard, scuff, 75 ft
15K783 FITTING, elbow, street, 1/8
127009 TIE, cable, 14.75’ x .31” black
16U982 KIT, accessory, hose, 200 ft
16U983 KIT, accessory, guard, scuff, 160 ft
24F467 PLUG, USP, doubling plug
557944 CLAMP, 7/16, tube 4TS6-14002
127012 CLAMP, hose, .375 OD hose
563178 COUPLING, extension 1/8 female to 1/8 male
127013 FITTING, swivel, JIC 37D size #4
24R377: Recommended Kit Parts List
Description
Qty
1
1
1
2
1
1
1
1
3
1
1
1
10
33
39
31
1
5
1
5
8
1
1
11
20
20
5
62
USP VALVES* AND ACCESSORIES
Part Number Description
24E408 KIT, valve, USP, 10 outlet
24E411 KIT, valve, USP, 16 outlet
*see manual 3A0860

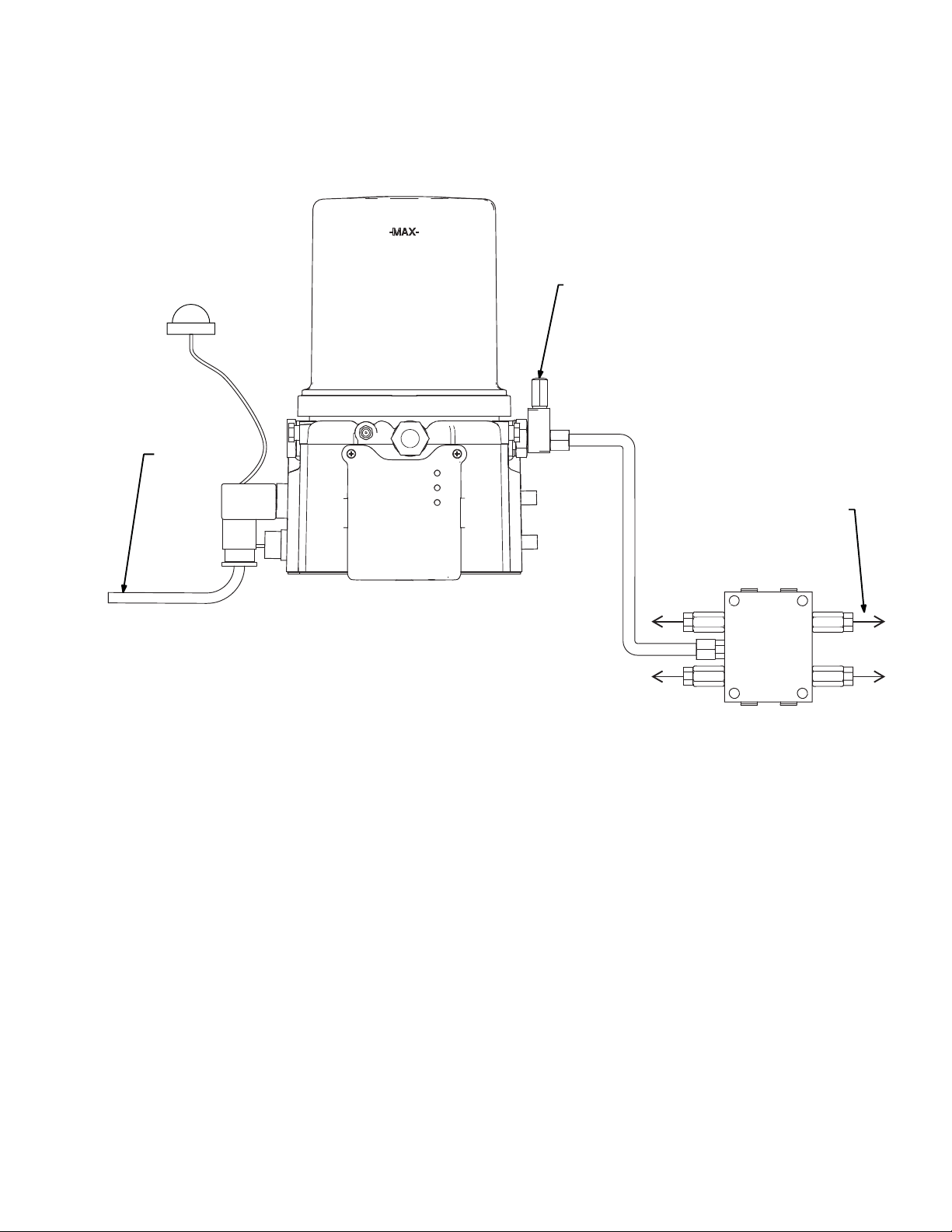

Typical Pump Installation
Pressure Relief
To Lube Points
USP
Valve
G3
Pump
To Fuse/Power
Manual Run
Button
Mobile Lubrication Library
Mobile Lubrication Library
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590
All written and visual data contained in this document reflects the latest product information available at the time of publication.
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2013, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original information. This manual contains English. MM 333503
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
www.graco.com
August 2013, revised January 2014
