Graco PD202326A User Manual

AFFIX

Booster Seat

Owner’s Manual

READ THIS MANUAL.

Do not install or use this car seat until you read and

understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS CAR SEAT

INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH.

Table of Contents

Registration Information ............................... 3

For Recall Information .................................. 3

If You Need Help/Booster Seat Useful Life . 4

Parts List ....................................................... 5

Warnings to Parents and Other Users ........6-9

Weight and Height Limits......................10-11

Vehicle Seat Location Requirements .......... 12

Vehicle Seat Belt Requirements ............ 13-14

SAFE Vehicle Belt Systems ....................... 13

UNSAFE Vehicle Belt Systems ................. 14

Assembling the Booster Seat .................15-16

Assembling the Back Support ...............17-22

Using your Graco Booster Seat ................. 23-25

Booster Seat Positions .......................................26

Attaching Booster to Vehicle Seat .............27-29

Securing your Child in Vehicle .............30-33

Adjusting the Head Support ........................ 34

Removing the Back Support (on certain

models) to Use as Backless Booster ......... 35

Securing Child in Vehicle with

Shoulder Belt Positioning Clip .............36-39

Airplane Use ............................................... 40

Cupholder and Storage Compartment.........40

Instruction Sheet Storage ............................ 41

Care and Maintenance ...........................41-42

Replacement Parts ....................................... 44

Registration Information

Model Number:

Date of Manufacture:

Purchase Date:

Please fill in the above information. The model number and date of manufacture can be found

on a label underneath your booster seat. Fill out the prepaid registration postcard attached to the seat cover and mail it today.

Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, and the restraint¶s model number and date of manufacture to:

Attn: Customer Service 3 Glenlake Parkway Atlanta, GA 30328

or call 1-800-345-4109 or register online at http://www.gracobaby.com/carseatregistration

Graco Children¶s Products Inc.

For Recall Information

 Call the U.S. Government¶s Vehicle Safety Hotline

at 1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov

 Graco: 1-800-345-4109 or www.gracobaby.com

If You Need Help

Please contact our Customer Service Department with any questions you may have concerning parts, use, or maintenance. When you contact us, please have your product¶s model number ready so that we may help you quickly. This number can be found on a sticker on the underside of your booster seat.

1-800-345-4109 or www.gracobaby.com

www.cpsc.gov

www.NHTSA.gov

www.seatcheck.org

Booster Seat Useful Life

STOP using this booster seat and throw it away

10 years after the date of manufacture.

Look for this sticker on the bottom of the booster seat:

MODEL Date of Manufacture GRACO CHILDREN'S PRODUCTS, INC.

ATLANTA, GA 30328 1-800-345-4109 Made in China

NAME

year month day

PD206938A

Parts List

Adult assembly required.

Base

Armrests

On certain models

Lower back support

Head support

Shoulder belt

positioning clip

Cupholder

(in bottom of base)

Seat pad

Warnings to Parents and

Other Users

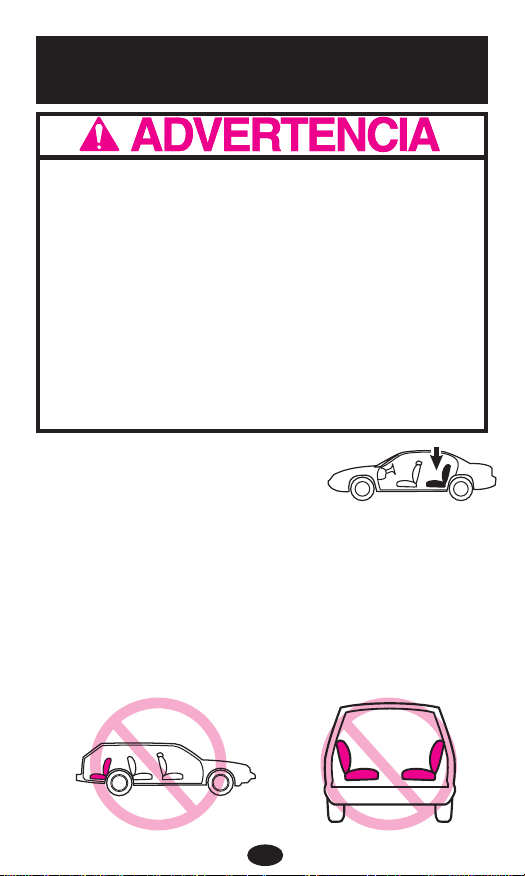

NEVER PLACE THIS BOOSTER SEAT IN A VEHICLE SEATING LOCATION THAT HAS AN AIR BAG. If an air bag inflates, it

can hit the child and booster seat with great force and cause serious injury or death to your child. Refer to your vehicle owner¶s manual for information about air bags and booster seat installation.

 NO BOOSTER SEAT CAN GUARANTEE

PROTECTION FROM INJURY. HOWEVER, PROPER USE OF THIS BOOSTER SEAT REDUCES THE RISK OF SERIOUS INJURY OR DEATH TO YOUR CHILD.

 DO NOT INSTALL OR USE THIS

BOOSTER SEAT UNTIL YOU READ AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL AND IN YOUR VEHICLE OWNER’S MANUAL. DO NOT let others

install or use the booster seat unless they understand how to use it.

 FAILURE TO PROPERLY USE THIS

BOOSTER SEAT INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SHARP TURN, SUDDEN STOP OR CRASH. Your

child can be injured in a vehicle even if you are not in a crash. Sudden braking and sharp turns can injure your child if the booster seat is not properly installed or if your child is not properly secured in the booster seat.

 According to crash statistics, CHILDREN ARE

SAFER WHEN PROPERLY RESTRAINED IN REAR VEHICLE SEATING POSITIONS, RATHER THAN FRONT SEATING POSITIONS. For a vehicle

with a front passenger air bag, refer to your vehicle owner¶s manual as well as these instructions for booster seat installation.

 NEVER LEAVE YOUR CHILD

UNATTENDED.

 NEVER LEAVE A BOOSTER SEAT

UNSECURED IN YOUR VEHICLE. An

unsecured booster seat can be thrown around and may injure occupants in a sharp turn, sudden stop or crash. Remove it or make sure that it is securely belted in the vehicle.

 IF AFFIX

BOOSTER IS NOT CONNECTED

TO VEHICLE ANCHORS, secure the booster

seat with the lap/shoulder belt into the vehicle seat.

 REPLACE THE BOOSTER SEAT AFTER

A CRASH OF ANY KIND. A crash can cause

damage to the booster seat that you cannot see.

 DO NOT MODIFY YOUR BOOSTER SEAT

or use any accessories or parts supplied by other manufacturers.

 NEVER USE BOOSTER SEAT IF IT HAS

DAMAGED OR MISSING PARTS. DO NOT

use a cut, frayed or damaged vehicle seat belt.

 THE BOOSTER SEAT CAN BECOME VERY

HOT IF LEFT IN THE SUN. Contact with these

parts can burn your child¶s skin. Always touch the surface of any metal or plastic parts before putting your child in the booster seat.

 THIS CHILD RESTRAINT CONFORMS

to all applicable Federal Motor Vehicle Safety Standards and is certified for use in motor vehicles. This restraint is NOT certified for use in aircraft because there is no shoulder belt available.

 NEVER GIVE THIS BOOSTER SEAT to

someone else without also giving them this manual.

 NEVER USE A SECOND-HAND BOOSTER

SEAT or a booster seat whose history you do not

know.

 NEVER USE THIS BOOSTER SEAT without

the armrests attached to the base.

Weight and Height Limits

FAILURE TO USE booster seat in a manner appropriate for your child¶s si]e may increase the risk of serious injury or death.

To use this Graco booster seat, your child MUST meet ALL of the following requirements:

With back support

(approximately 3 to 10 years old) :

 weigh between 30 and 100 lbs.

(mass between 13.6 and 45 kg), and

 are between 38 and 57 inches (96 and 145 cm)

in height, and

 the shoulder belt MUST lie

across child¶s shoulders in red ]one as shown in

and the

lap portion is positioned low on the childs hips, and

 the child¶s ears are below top

of booster seat. If tops of ears are above top of seat, your child is too large for the booster seat

Without back support

(approximately 4 to 10 years old) :

 weigh between 40 and 100 lbs.

(mass between 18 and 45 kg), and

 are between 40 and 57 inches

(101 and 145 cm) in height, and

 the shoulder belt MUST

lie across child¶s shoulders in red ]one as shown in

and the lap portion is positioned low on the childs hips, and

 when sitting on the booster

seat, your child¶s ears are below the top of the vehicle seat cushion / head rest.

Your Graco booster seat can be used with or without the back support (on certain models) as long as the above requirements are met.

Vehicle Seat Location Requirements

IMPROPER PLACEMENT OF THE BOOSTER SEAT INCREASES THE RISK OF SERIOUS INJURY OR DEATH. Some seating

positions in your vehicle may NOT be safe for this booster seat. Some vehicles do not have any seating positions that can be used safely with the booster seat. If you are not sure where to place the booster seat in your vehicle, consult your vehicle owner¶s manual or call Graco Children¶s Products Inc., at 1-800-345-4109.

 Children are safer when properly restrained in

rear vehicle seating positions. Whenever possible

secure the Graco booster seat in the center position of the seat directly behind the front seats. However, this position is often equipped with a lap belt only and cannot be used.

 The vehicle seat MUST face forward.

Vehicle Seat Belt Requirements

A FEW SEAT BELT SYSTEMS ARE NOT SAFE TO USE WITH THE BOOSTER SEAT.

Pay careful attention to these systems; some of the seat belts that are NOT safe to use look very much like seat belts that are safe to use. If you are unsure,

or call Graco Children¶s Products Inc., at 1-800-345-4109.

consult your vehicle owner¶s manual

SAFE Vehicle Seat Belt System

ONLY A LAP/SHOULDER BELT SYSTEM CAN BE USED WITH THIS BOOSTER SEAT, IF

the seat location meets all other requirements of these instructions and those in your vehicle owner¶s manual.

UNSAFE Vehicle Seat Belt Systems

DO NOT USE ANY

OF THE FOLLOWING VEHICLE BELT SYSTEMS.

 NEVER use a

lap-only belt.

 NEVER use a

Passive Restraint Lap or Shoulder Belt Mounted on Door

 NEVER use a

Passive Restraint Lap Belt with Motori]ed Shoulder Belt

NEVER use vehicle

belts that are attached to the door in any way or that move along a track to automatically surround the passenger when the door is closed.

Assembling the Booster Seat

Step 1.

To attach armrests to base, press armrests into opening in base

CHECK to make sure armrests are securely attached by pulling up on them

Step 2.

Remove cupholder from compartment in bottom of base on side and bottom of cupholder with their slots in base and press cupholder into place 4.

DO NOT REMOVE CUPHOLDER ONCE IT IS ATTACHED.

. Align tabs

SNAP!

Step 3.

Wrap seat pad around front of base attach with elastic straps

as shown.

and

Step 4.

Your Graco booster seat is now ready to use. See page 27, “Attaching Booster to Vehicle Seat”.

FOR MODELS with a back support continue on to Step 5.

Assembling the Back Support (on certain models)

Step 5.

On certain models, your lower back support pad may

not be attached to the back support. Place lower back support pad around edges of support as shown. Then fasten lower elastic strap to the metal hook on the other side of the seat pad. If your lower back support pad is already attached go to Step 5a.

Step 5a.

Flip head support and lower back support over

as shown .

Step 6.

Squee]e red adjustment button and slide two pieces

together until they snap into place .

CHECK to make sure two pieces are securely snapped together by pulling on them.

SNAP!

Step 7.

Attach elastic strap to metal hook on other side of seat pad as shown . If your elastic strap is already attached you can skip to Step 8.

Step 8.

Flip seat over and insert the fabric from the head support underneath the fabric on the lower back support

as shown .

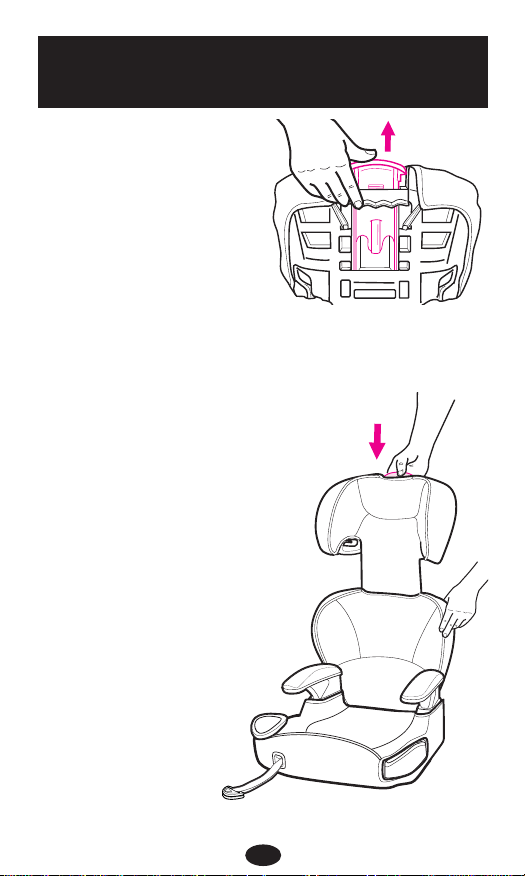

To make insertion of fabric easier, slide the upper and lower back pieces apart by squee]ing the red adjustment button.

Step 9.

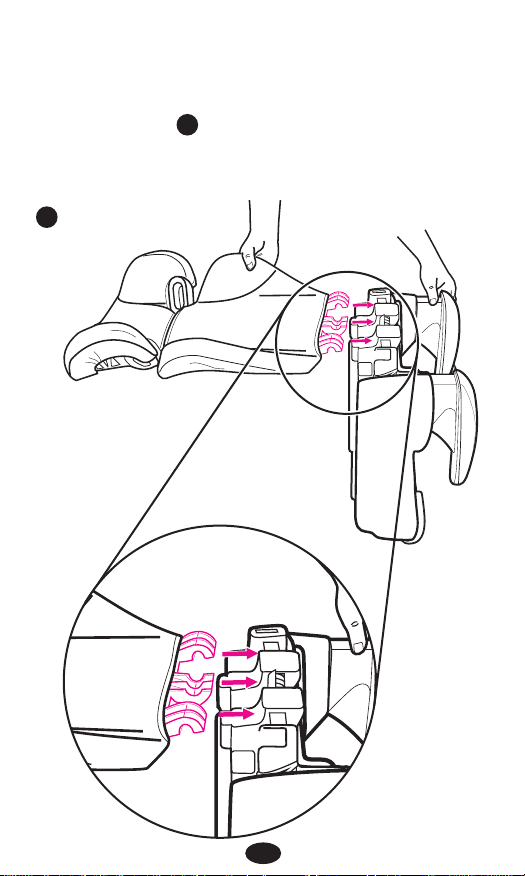

Attach backrest to base. “U”-shaped hooks on bottom of backrest will interlock with bars on base .

Make sure that no part of the seat covering interferes when attaching backrest to the base.

Step 10.

Once backrest is securely attached to the base, push

backrest up as shown .

Step 11.

Your Graco booster seat is now ready to use.

See page 23-35.

Using your Graco Booster Seat

FAILURE TO PROPERLY SECURE YOUR CHILD AND THE BOOSTER SEAT IN YOUR VEHICLE INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN THE EVENT OF A SHARP TURN, SUDDEN STOP OR CRASH.

WARNING: Use only

the vehicle¶s lap and shoulder belt system when restraining the child

in this booster seat .

NEVER use a vehicle lap-only belt across front

of child .

Vehicle belts MUST lie flat against child and MUST not be twisted.

DO NOT use shoulder belt loose or positioned under child¶s arm .

DO NOT position vehicle belt over top of the armrests . It must pass

underneath the armrests.

Make sure vehicle belt is NOT twisted.

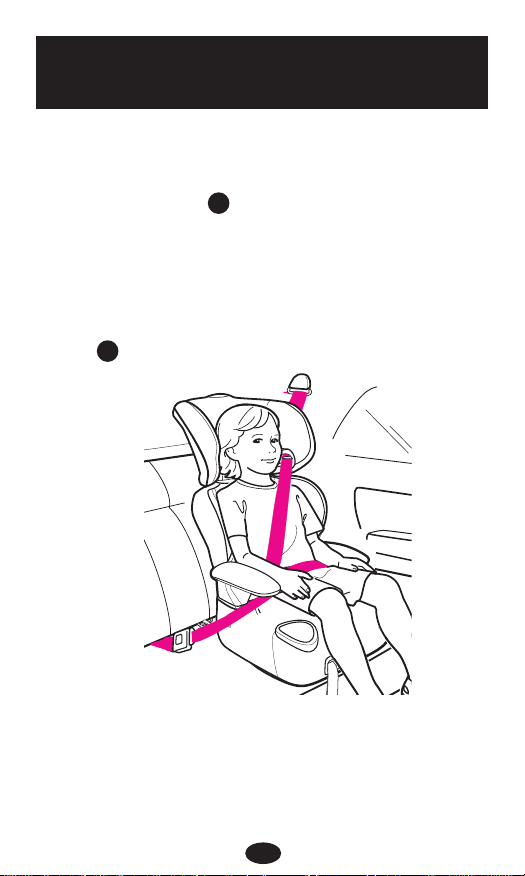

Lap portion of lap/shoulder belt MUST be low and snug on hips, just touching thighs.

DO NOT allow child

to slide down in booster

seat .

If child will not keep vehicle restraint properly positioned, DO NOT use this booster seat. Use a different child restraint system.

Vehicle seat headrest must not interfere with booster seat head support. The front of booster seat MUST NOT hang over

front of vehicle seat .

The back of the booster seat MUST fit tight against the vehicle seat

back as shown .

Booster Seat Positions

Your booster seat has two positions as shown.

Upright

Reclined

The back of the booster seat MUST fit tight against the vehicle seat

back as shown in in

either the first or second position.

DO NOT USE booster seat beyond

reclined position .

Attaching Booster to Vehicle Seat

WARNING: Use only

the vehicle¶s lap and shoulder belt system when restraining the child in this booster seat.

AFFIX are ONLY to secure the booster seat to the vehicle seat.

When using the AFFIXTM connectors, DO NOT place booster seat off-center of the vehicle anchors.

connectors
