ick Start
l
E
R
R
R
Product Instruction Manua
MODEL# 2797VIB3
R
Parent UnitNursery Unit
1 Remove battery door.
R
1 Remove battery door (optional).
2 Plug battery in. 3 Replace battery door.
2 Install 3 AAA (LR03) batteries
(optional) Batteries not included.
3 Connect AC adapter and place
nursery unit on base.
R
4 To charge battery, connect
the AC adapter to the monitor
and charge for 3 hours.
R
R
4 Parent unit & nursery unit
are ready for use.
Activating Units
Power Button
1 Depress for 1 sec. to turn camera on. 2 Place camera facing baby. 3 Open monitor and press
power button for 1 sec. to turn on.
R
LCD
SCREEN
LCD SCREEN: QUICK REFERENCE GUID
Parent Unit
9:22pm 9:22pm 9:22pm 9:22pm
To cycle through the different choices, press up or down.
VOLUME
06: 15 am
English
Français
Español
O
p
12 Hour(am/pm)
24 Hour
10
e
n
4 Parent unit will begin search
and activate video.
07:32 pm
Vibe on
Vibe off
Alarm On
Alarm Off
To cycle through the different choices, press up or down.
9:22pm9:22pm 9:22pm 9:22pm 9:22pm
No Signal
©2008 Graco ISPM023AA 03/08
ick Start
n
R
R
E
R
Manuel de directives de productio
MODÈLE# 2797VIBCA3
R
Appareil pour adulte
1 Retirer le couvercle du compartiment
à pile.
R
Appareil de chambre d’enfant
1 Retirer le couvercle du
compartiment à piles (facultatif).
2 Raccorder la pile. 3 Remettre le couvercle du
compartiment à pile en place.
2 Insérer 3 piles AAA (LR03)
(facultatif). Piles non comprises.
3 Brancher l’adaptateur de courant
alternatif et placer l’appareil de
chambre d’enfant sur la base.
R
4 Brancher l’adaptateur de courant
alternatif dans une prise murale
pendant 3 heures pour charger la pile.
R
R
4 L’appareil pour adulte et l’appareil
de chambre d’enfant sont prêts
à fonctionner.
Mise en marche de l’appareil
1 Appuyer sur le bouton pendant
1 seconde pour allumer la caméra.
R
Appareil pour adulte
HAUT
ÉCRAN
DEL
VOLUME
BAS
MARCHE
/ARRÊT
DU VIDÉO
O
u
v
r
i
r
Appuyer sur le bouton
2 Placer la caméra face au bébé. 3 Ouvrir l’écran et appuyer sur le
bouton pendant 1 seconde
pour l’allumer.
CRAN DEL : GUIDE DE RÉFÉRENCE RAPID
12 Hour(am/pm)
24 Hour
9:22pm 9:22pm 9:22pm 9:22pm
Pour afficher les différents choix, appuyer vers le haut ou vers le bas.
06: 15 am
English
Français
Español
9:22pm9:22pm 9:22pm 9:22pm 9:22pm
10
Pour afficher les différents choix, appuyer vers le haut ou vers le bas.
4 L’appareil pour adulte commencera
à rechercher et à activer la vidéo.
07:32 pm
Vibe on
Vibe off
Alarm On
Alarm Off
No Signal
ick Start
R
R
A
R
Manual de instrucciones para la producción
MODELO# 2797VIB3
R
Unidad para padres
1 Saque la tapa de las pilas.
R
Unidad para el dormitorio
1 Saque la tapa de las pilas (opcional).
2 Ponga la pila. 3 Vuelva a poner la tapa de las pilas.
2 Instale 3 pilas tamaño AAA
(LR03) (opcional). No se incluyen
las pilas.
3 Conecte el adaptador de CA y ponga
la unidad para el dormitorio sobre
la base.
R
4 Para cargar la pila, conecte el
adaptador de CA al monitor y
cárguelo durante 3 horas.
R
R
4 La unidad para padres y la unidad
para el dormitorio están listas
para el uso.
Activación de la unidad
1 Oprímala durante 1 segundo para
encender la cámara.
R
Unidad para padres
ARRIBA
PANTALLA
LCD
VOLUMEN
ABAJO
A
b
r
i
r
Botón de activación
2 Ponga la cámara mirando al bebé. 3 Abra el monitor y oprima el botón de
encendido durante 1 segundo para
activarlo.
PANTALLA DE CRISTAL LÍQUIDO (LCD): GUÍA RÁPIDA DE REFERENCI
12 Hour(am/pm)
24 Hour
9:22pm 9:22pm 9:22pm 9:22pm
Para pasar por las diferentes opciones, oprima arriba o abajo.
06: 15 am
English
Français
Español
10
4 La unidad para padres comenzará a
buscar y activará el video.
07:32 pm
Vibe on
Vibe off
Alarm On
Alarm Off
ENCENDIDO
/APAGADO
DEL VIDEO
Para pasar por las diferentes opciones, oprima arriba o abajo.
9:22pm9:22pm 9:22pm 9:22pm 9:22pm
No Señal
R
R
OWNER’S MANUAL
©2008 Graco ISPM024BA 3/08
Keep Instructions For Future Reference
2
Failure to follow these warnings and the assembly
instructions could result in serious injury or death.
This device is designed to aid in the monitoring of
your child. When using the monitor, you must still
provide the supervision necessary for the continued
safety of your child. This product is not designed or
intended for use as a medical monitor. Always be sure
that both the transmitter and receiver are working
properly and are within range of each other.
• STRANGULATION HAZARD. Keep the adapter
cords out of the reach of children. Do not use with
extension cords.
• DO NOT place the Nursery Unit or its cord within
your child’s reach. Do not put the Nursery Unit inside a
crib or playard.
• Use ONLY with 110-120 volt AC electrical outlets.
• Protect the AC adapter cords. Place them so they are
not walked on or pinched by furniture or other items.
• Allow for proper ventilation when units are in use.
Do not cover the Nursery Unit or Parent Units with any
object such as a blanket. Do not place it in a drawer or in
any location which would mufe the sound or interfere
with the normal ow of air.
• DO NOT immerse any part of the Nursery Unit, Parent
Units, or docking station in water. Clean only with a dry
cloth.
Warnings to Parents and Other Users
3
• DO NOT place unit near water and moisture. Do not
use the Nursery Unit outdoors. Do not use the Nursery
Unit near possible wet areas, such as a bathtub, shower,
wash basin, sink, laundry tub, swimming pool, wet
basement, etc.
• Keep Nursery Unit away from heat sources, such as
replaces, radiators, stoves, and TVs or other appliances.
Heat can damage the case or electrical parts.
• Do not use the Nursery Unit if:
• The adapter cords or plugs have been damaged.
• The unit has been exposed to liquids.
• Unit has been dropped or is damaged.
• DO NOT OPEN THE NURSERY UNIT, PARENT
UNIT, NURSERY UNIT BASE OR ADAPTERS. No
user-serviceable parts inside. Risk of electrical shock,
re or death.
• The antenna used for this transmitter must be installed
to provide a separation distance of at least 20 cm (7.9”)
from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.
FCC Statement:
WARNING Modications not authorized by the
manufacturer may void users authority to operate this
device.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
4
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
Nursery Unit
(A6403)
R
R
Parent Unit
(A6402)
Parent Unit Battery
Nursery Unit Base
(A5195)
(1) AC Adapter
OWNER’S MANUAL Keep instructions for future use.
Digital Color Video Baby Monitor
Q u i c k St a rt
Pr o du ct Ins tru cti on Man ual
Quick Start Manual
Wall Mount
(1) AC Adapter
Belt Clip
5
Parts List
Adult assembly required.
Tool required: Phillips screwdriver
VIDEO ON/OFF (pg14)
CHARGING
STATUS LIGHT
(pg26)
LCD
SCREEN
SPEAKER
BATTERY LEVEL LIGHT (pg25)
POWER ON/OFF (pg13)
AC ADAPTER JACK (pg8)
UP(pg15)
OK (pg15)
DOWN (pg15)
BATTERY(pg7)
6
Parent Unit
CONNECTION
LIGHT
(pg13)
SOUND LIGHTS
ANTENNA
VOLUME DOWN (pg24)
VOLUME UP (pg24)
7
Installing Batteries
The battery must be plugged
into the Parent Unit before
the unit will be ready for use.
Remove the battery door
cover on the Parent Unit by
sliding it down.
Place battery pack into recess
and press wire into the slot.
Plug battery into the slot
shown in #2.
1
2
3
8
Replace the battery door.
4
R
Attach the AC Adapter
to the unit and plug into
wall to charge the
battery. Charge battery
for 3 hours.
5
NOTE: Make sure to use the adapter with the “L”
shaped end, as shown.
R
9
Nursery Unit
R
MICROPHONE
BATTERIES
(pg10)
VIDEO CAMERA
POWER LIGHT
(pg26)
ON/OFF
(pg12)
AC ADAPTER JACK
(pg11)
10
Installing Batteries
Use AC adapters for normal
power usage – batteries
intended as backup for
power outage.
(Optional)
Use a Phillips head
screwdriver to remove the
battery door.
NOTE: Screw should be
loosened but stay attached
to battery door.
(Optional)
Insert 3 AAA (LR03)
batteries.
Make sure they are inserted
correctly.
● Batteries can be useful in the case of a power outage.
● Batteries should be replaced periodically.
● Batteries should only be used in case of emergency
or for short periods of time.
● To save battery power, only audio functions are active
while using batteries (NO VIDEO).
6
7
NOTE: Make sure to use the adapter with the straight
shaped end, as shown.
11
Attaching Nursery Unit Base
Attach the AC Adapter to
the back of the nursery
unit base and plug into
wall.
Mount nursery unit onto
base to operate.
8
9
12
R
R
Nursery Unit Power On/Off
Depress button for 1 sec.
to turn camera on.
To change camera angle,
swivel the nursery unit
top in the desired
direction. Please note that
camera cannot swivel
completely around.
10
11
R
R
9:22pm
13
Parent Unit Power On/Off
Press and hold Power
On/Off button for 1
second. Unit will cycle
through intro and begin
searching for the Nursery
Unit.
Make sure Nursery Unit is
turned on. The live video
feed will then be shown.
The Connection Light at
the top of the unit, will turn
from red to green.
Connection Light
12
13
R
R

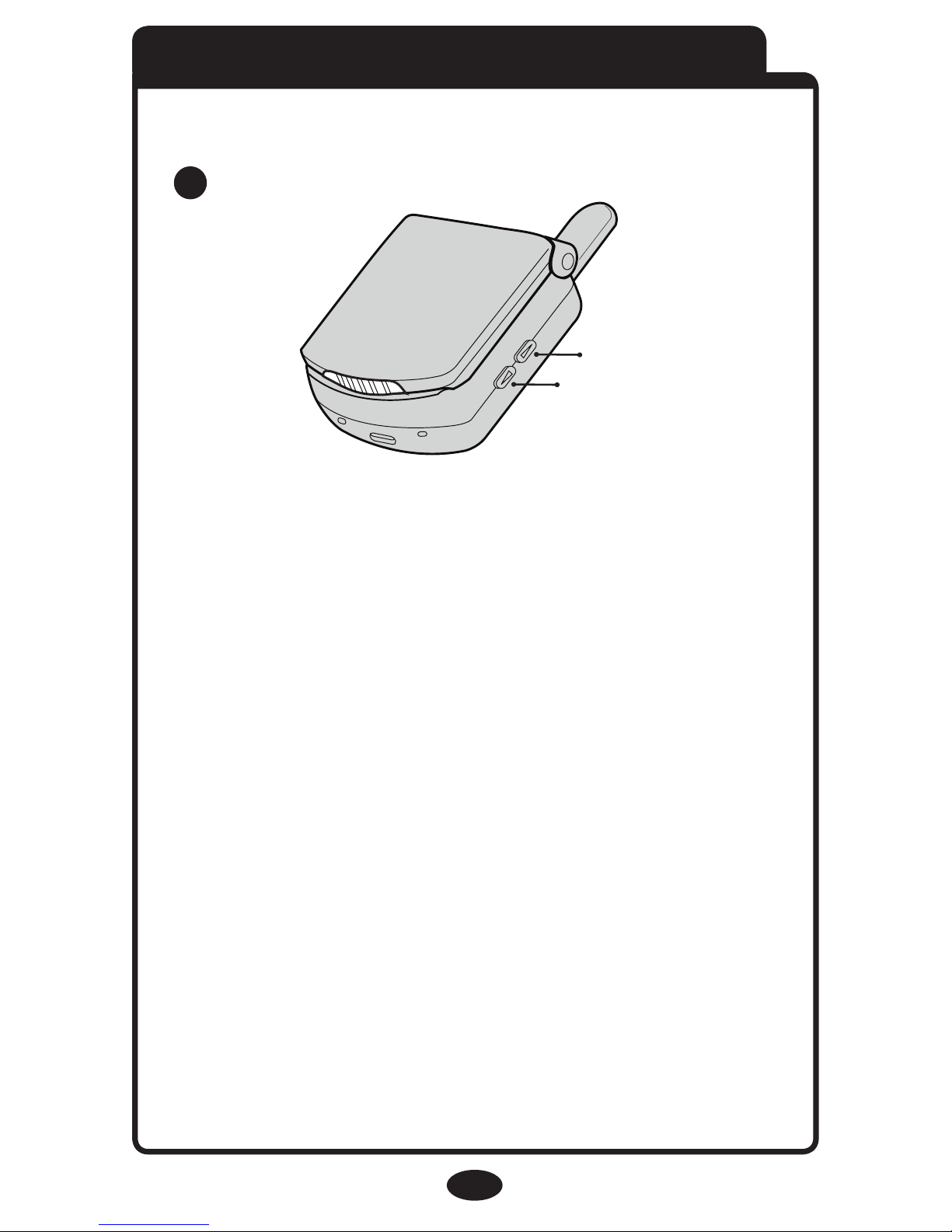

Press and hold Power
On/Off button for
1 second to turn unit off.
14
To activate or deactivate the
live video feed, press the
Video button.
Pressing the Video button will allow the user to view
the image from the Nursery Unit.
14
15
R
R
R
15
To cycle through the
different choices, press up
or down.
After choosing one of the
options, press the “OK”
button to make the
selection.
NOTE: Once you make a selection (OK), the unit will
automatically advance you to the next option/screen or
return you to the live video feed (if applicable).
To set up preferences, press
the “OK” button.
16
17
18
9:22pm
Use UP/DOWN to
:
22pm
Use UP/DOWN to
choose, OK to select
9:22pm
The Zoom icon will appear at
the top the status screen.
Monitor will return to the live
video feed if available.
16
Zoom

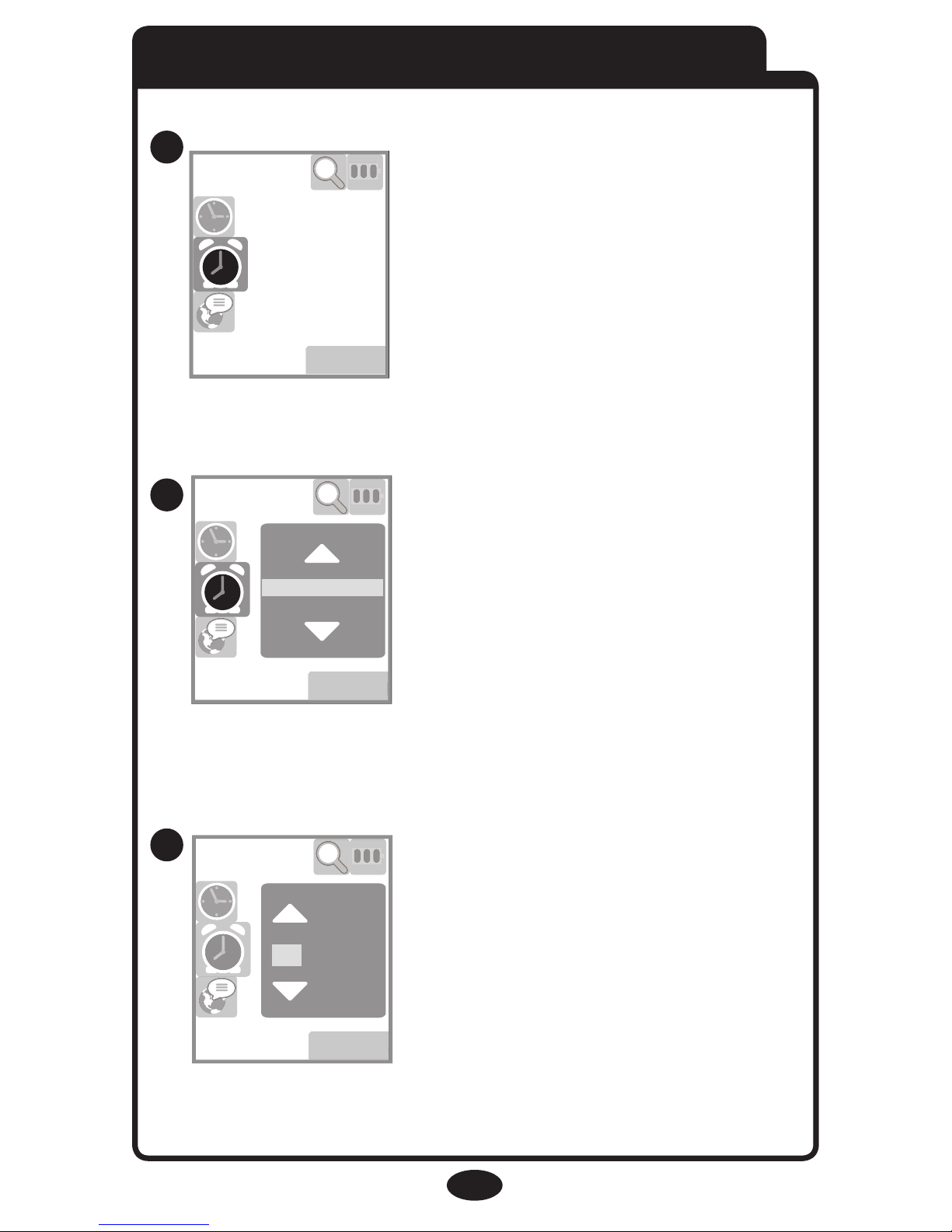

Press “OK” to open Menu.
Press Up/Down to choose
Zoom icon. Press “OK” to
select it.
Press Up/Down to choose
Zoom area. Press “OK” to
select it.
Choose one of the 5 positions
19
20
21
9:22pm
Use UP/DOWN to
9:22pm
17
Press OK to open Menu.
Press Up/Down to choose
Zoom out icon. Press OK to
select it.
Monitor will return to live video
screen if available.
Zoom icon will not be visible
on the status screen.
Zoom Out
22
23
9:22pm
:
22p
m
9:22pm
:
22p
m
12 Hour(am/pm)
24 Hour
Press Up/Down to choose your
preferred time display format
and press OK to select.
Press Up/Down to adjust the
rst digit. Press OK to move
to the next digit. Monitor will
return to the live feed after
adjusting all digits.
18
Press “OK” to open Menu.
Press Up/Down to choose
Clock icon. Press “OK” to select
it.
Setting Time
26
9:22pm
:
22p
m
07:32 pm
25
24
Loading...
