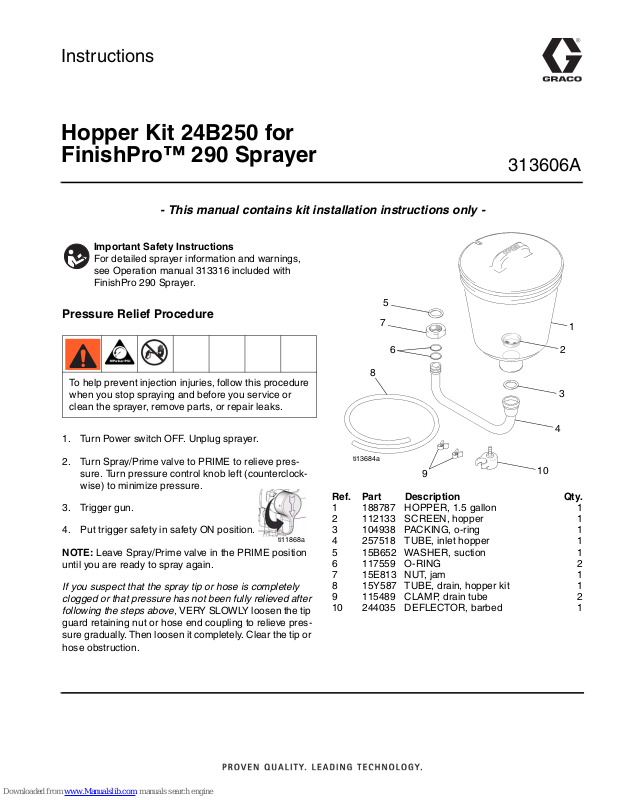

Instructions

Hopper Kit 24B250 for
FinishPro™ 290 Sprayer

- This manual contains kit installation instructions only -

Important Safety Instructions

For detailed sprayer information and warnings,
see Operation manual 313316 included with
FinishPro 290 Sprayer.

Pressure Relief Procedure

To help prevent injection injuries, follow this procedure
when you stop spraying and before you service or
clean the sprayer, remove parts, or repair leaks.

1. Turn Power switch OFF. Unplug sprayer.

313606A

5

7

6

8

1

2

3

4

2. Turn Spray/Prime valve to PRIME to relieve pres­sure. Turn pressure control knob left (counterclock­wise) to minimize pressure.

3. Trigger gun.

4. Put trigger safety in safety ON position.

ti11868a

NOTE: Leave Spray/Prime valve in the PRIME position
until you are ready to spray again.

If you suspect that the spray tip or hose is completely
clogged or that pressure has not been fully relieved after
following the steps above, VERY SLOWLY loosen the tip

guard retaining nut or hose end coupling to relieve pres­sure gradually. Then loosen it completely. Clear the tip or
hose obstruction.

ti13684a

9

Ref. Part Description Qty.

1 188787 HOPPER, 1.5 gallon 1
2 112133 SCREEN, hopper 1
3 104938 PACKING, o-ring 1
4 257518 TUBE, inlet hopper 1
5 15B652 WASHER, suction 1
6 117559 O-RING 2
7 15E813 NUT, jam 1
8 15Y587 TUBE, drain, hopper kit 1
9 115489 CLAMP, drain tube 2
10 244035 DEFLECTOR, barbed 1

10

Hopper Kit 24B250

Hopper Kit 24B250

Installation

1. Relieve pressure.

2. Loosen jam nut and remove suction set.

ti13688a

3. Remove drain tube.

5. Tighten jam nut until hopper does not move.

ti13689a

6. Replace drain tube with longer tube and place into
hopper. Push drain tube fully onto barbs with hose
clamps in place.

ti13687a

4. Remove hopper lid. Insert hopper into pump.

ti3134b

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

This manual contains English. MM 313606

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

Copyright 2009, Graco Inc. is registered to ISO 9001

ti13685a

7. Replace hopper lid.

ti13686a
