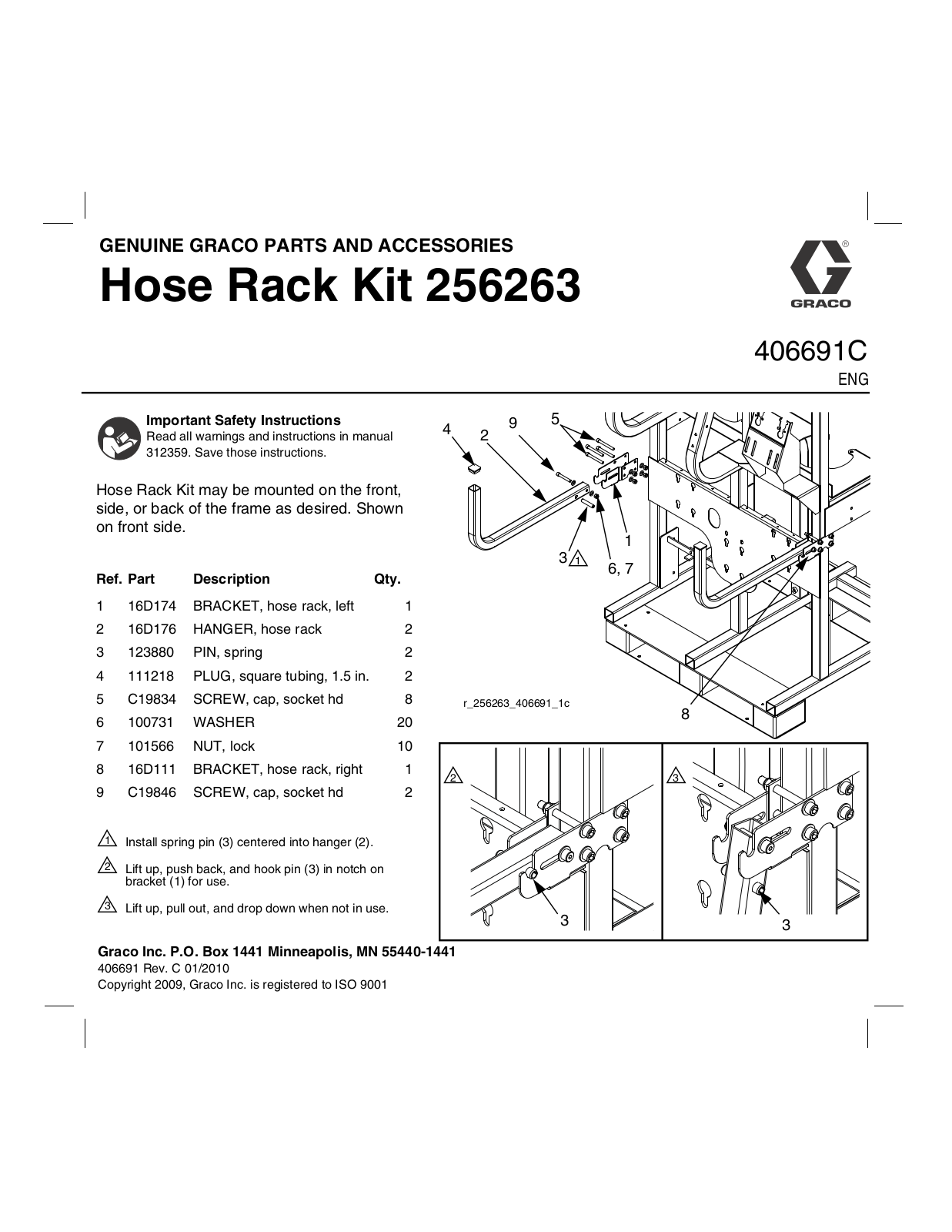

GENUINE GRACO PARTS AND ACCESSORIES

Hose Rack Kit 256263

Important Safety Instructions

Read all warnings and instructions in manual

312359. Save those instructions.

Hose Rack Kit may be mounted on the front,
side, or back of the frame as desired. Shown
on front side.

Ref. Part Description Qty.

1 16D174 BRACKET, hose rack, left 1

2 16D176 HANGER, hose rack 2

3 123880 PIN, spring 2

4 111218 PLUG, square tubing, 1.5 in. 2

5 C19834 SCREW, cap, socket hd 8

6 100731 WASHER 20

7 101566 NUT, lock 10

8 16D111 BRACKET, hose rack, right 1

9 C19846 SCREW, cap, socket hd 2

5

4

9

2

1

3

1

6, 7

r_256263_406691_1c

2 3

406691C

ENG

8

1

Install spring pin (3) centered into hanger (2).

2

Lift up, push back, and hook pin (3) in notch on
bracket (1) for use.

3

Lift up, pull out, and drop down when not in use.

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441

406691 Rev. C 01/2010
Copyright 2009, Graco Inc. is registered to ISO 9001
