Repair/Parts
Husky™ 2200 Air
Diaphragm Pum
Polypropylene or PVDF pumps for fluid transfer applications, including high viscosity materials. For
professional use only.
Not for use in European explosive atmosphere locations.
Important Safety Instructions
Read all warnings and instructions in this manual and in your
Operation manual.
Save these instructions.
Maximum W
(0.86 MPa, 8.6 bar)
orking Pressure: 125 psi
-Operated
p
3A2714B
EN
PROVEN QUALITY. LEADING TECHNOLOGY.
Contents
Warnings ........................................................... 3
Ordering Information........................................... 6
Related Manuals ................................................ 6
Configuration Number Matrix............................... 7
Troubleshooting.................................................. 8
Notes................................................................. 10
Repair................................................................ 11
Pressure Rel
Replace Com
ief Procedure............................ 11
plete Air Valve ......................... 11
Replace Seals or Rebuild Air Valve............... 12
Check Valve Repair .....................................14
Diaphragm and Center Section Repair........... 15
Torque Instructions............................................. 19
Parts.................................................................. 20
Manifold Sea
Accessories........................................................ 31
Technical Data ...................................................32
Graco Stan
ls............................................. 30
dard Husky Pump Warranty................ 34
2
3A2714B
Warnings
Warnings
The following
exclamation p
risks. When th
Warnings. Pr
the body of th
warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
oint symbol alerts you to a general warning and the hazard symbols refer to procedure-specific
ese symbols appear in the body of this manual or on warning labels, refer backtothese
oduct-specific hazard symbols and warnings not covered in this section may appear throughout
is manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable
prevent fir
• Use equipment only in well ventilated area.
• Eliminate
plastic d
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable
fumes are present.
•Grounda
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless
they are antistatic or conductive.
• Stop op
equipm
• Keep a working fire extinguisher in the work area.
• Route exhaust away from all ignition sources. If diaphragm ruptures, fluid may be exhausted
with air.
fumes, such as solvent and paint fumes, in work area can ignite or explode. To help
e and explosion:
all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and
rop cloths (potential static arc).
ll equipment in the work area. See Grounding instructions.
eration immediately if static sparking occurs or you feel a shock. Do not use
ent until you identify and correct the problem.
Static charge may build up on plastic parts during cleaning and could discharge and ignite
flammable vapors. To help prevent fire and explosion:
• Clean
• Do not clean with a dry cloth.
• Do not operate electrostatic guns in equipment work area.
PRES
Fluid from the equipment, leaks, or ruptured components can splash in the eyes or on skin
and cause serious injury.
• Follow the Pressure Relief Procedure when you stop spraying/dispensing and before
• Tighten all fluid connections before operating the equipment.
•Ch
3A2714B 3
plastic parts only in well ventilated area.
SURIZED EQUIPMENT HAZARD
cleaning, checking, or servicing equipment.
eck hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cau
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed
system compo
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data
in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete
information about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
•Turnoffal
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals
and create safety hazards.
•Makesure
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kin
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
THERMA
Fluids subjected to heat in confined spaces, including hoses, can create a rapid rise in pressure
due to the thermal expansion. Over-pressurization can result in equipment rupture and serious
injury.
se death or serious injury.
the maximum working pressure or temperature rating of the lowest rated
nent. See Technical Data in all equipment manuals.
l equipment and follow the Pressure Relief Procedure when equipment is not in use.
all equipment is rated and approved for the environment in which you are using it.
k or over bend hoses or use hoses to pull equipment.
L EXPANSION HAZARD
• Open a valve to relieve the fluid expansion during heating.
• Replace hoses proactively at regular intervals based on your operating conditions.
PLASTIC PARTS CLEANING SOLVENT HAZARD
solvents can degrade plastic parts and cause them to fail, which could cause serious
Many
ry or property damage.
inju
• Use only compatible water-based solvents to clean plastic structural or pressure-containing
parts.
•See
4
Technical Data in this and all other equipment instruction manuals. Read fluid and
vent manufacturer’s MSDSs and recommendations.
sol
3A2714B
WARNING
TOXIC FLUID OR FUMES HAZARD
Warnings
Toxic fluids or
inhaled, or s
• Read MSDSs to know the specific hazards of the fluids you are using.
• Route exhaus
the air.
• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid
severe burns:
• Do not touch hot fluid or equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:
•Protect
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.
fumes can cause serious injury or death if splashed in the eyes or on skin,
wallowed.
t away from work area. If diaphragm ruptures, fluid may be exhausted into
ive eyewear, and hearing protection.
3A2714B 5
Ordering Inform
ation
Ordering Info
To Find Your Ne
1. Visit www.graco.com.
2. Click on Where to Buy and use the Distributor
Locator.
rmation
arest Distributor
To Specify the Configuration of a New
Pump
Please call your distributor.
OR
Use the On
Equipmen
line Husky Selector Tool on the Process
t page at www.graco.com.
To Order Replacement Parts
Please call your distributor.
Distributor N
1. To find part numbers for new pumps or kits, use
the Online Husky Selector Tool.
2. To find part numbers for replacement parts:
a. Use the 20–d
the pump. If
part number
correspon
b. Use the Con
next page t
described
c. Refer to t
Parts/Ki
referenc
as needed
3. Please c
ote
igit number from the ID plate on
you only have the Graco 6–digit
, use the selector tool to find the
ding 20–digit number.
figuration Number Matrix on the
o understand which parts are
by each digit.
he main Parts illustration and to the
ts Quick Reference. Follow the page
es for further ordering information,
.
all Graco Customer Service to order.
Relat
Manual
Number
3A2578
ed Manuals
Title
y 2200 Air-Operated Diaphragm
Husk
,Operation
Pump
6 3A2714B
Configuration Nu
mber Matrix
Configuration
Check the identification plate (ID) for the Configuration Number of your pump. Use the following matrix to
define the components of your pump.
Sample Configuration Number: 2200P-P01AP1PPPTFKPT
2200P P01A P1
Pump Model
Center Section and Air
Valve
Number Matrix
Fluid Covers and
Manifolds
PP PT FK PT
Seats
Balls Diaphragms
Manifold and Seat
Seals
Pump
2200P
Polypropylene
2200F
PVDF
Seat Material
Polypropylene
PP
PVDF
PV
Santoprene
SP
Stainless Steel
SS
Center Section and Air
Valve Material
P01A
P01G
Ball Material Diaphragm Material
FK
PT
SP
Polypropylene
Polypropylene
FKM
PTFE
Santoprene
For Use With
Standard
Diaphragms
Overmolded
Diaphragms
FK
PO
PT
SP
FKM
PTFE/EPDM Overmolded
PTFE/Santoprene 2–Piece
Santoprene
Fluid Covers and Manifolds
P1
P2
F2
Polypropylene, Center Flange,
ANSI/DIN
Polypropylene, End Flange,
ANSI/DIN
PVDF, End Flange, ANSI/DIN
Manifold and Seat
Seal Material
PT
PTFE
3A2714B
7
Troubleshootin
g
Troubleshooting
Problem Cause Solution
Pump cycles but will not prime.
Pump cycles at stall or fails to hold
pressure at stall.
Pump will not cycle, or cycles once
and stops.
Pump is running too fast, causing
cavitation before prime.
Check valve ball severely worn or
wedged in seat or manifold.
Seat sever
Outlet or inlet clogged.
Inlet or o
Inlet fit
Manifold o-rings damaged.
Worn ch
o-ring
Air valve is stuck or dirty. Disassemble and clean air valve.
Check valve ball severely worn and
wedged in seat or manifold.
Pilot valve worn, damaged, or
plugged.
valve gasket damaged.
Air
Dispensing valve clogged. Relieve pressure and clear valve.
ely worn.
utlet valve closed.
tings or manifolds loose.
eck valve balls, seats, or
s.
Reduce air inlet pressure.
Replace bal
Replace ball and seat.
Unclog.
Open.
Tighten.
Replace o-rings.
Replac
Use filtered air.
ace ball and seat.
Repl
Replace pilot valve.
lace gasket.
Rep
landseat.
e.
Pump operates erratically.
ogged suction line.
Cl
Sticky or leaking check valve balls. Clean or replace..
Diaphragm (or backup) ruptured.
Restricted exhaust. Remove restriction.
Pilot valves damaged or worn. Replace pilot valves.
Air valve damaged. Replace air valve.
Air valve gasket damaged. Replace air valve gasket.
Air supply erratic. Repair air supply.
Exhaust muffler icing.
Inspect; clear.
eplace.
R
Use drier air supply.
8 3A2714B
Problem Cause Solution
Troubleshootin
g
Air bubbles in
Exhaust air contains fluid being
pumped.
Moisture in exhaust air. High inlet air humidity. Use drier air supply.
Pump exhausts excessive air at
stall.
Pump leaks air externally.
leaks fluid externally from
Pump
ts.
join
fluid.
Suction line i
Diaphragm (or backup) ruptured.
Loose manifolds, damaged seats or
o-rings.
Pump cavitation.
Loose diaphragm shaft bolt.
Diaphragm (or backup) ruptured.
Loose dia
Worn air valve cup or plate. Replace cup and plate.
Damaged
Damaged pilot valve. Replace pilot valves.
Worn sh
Air valve or fluid cover screws loose.
ragm damaged.
Diaph
Air valve gasket damaged. Replace gasket.
e manifold screws or fluid cover
Loos
ws.
scre
s loose.
phragm shaft bolt.
air valve gasket.
aft seals or bearings.
Tighten.
Replace.
Tighten manifold bolts or replace
seats or o-rings.
Reduce pump
Tighten.
Replace.
Tighten or replace.
Replace
Replac
Tighten.
Repla
Tigh
cove
e shaft seals or bearings.
ce diaphragm.
ten manifold screws or fluid
rscrews.
speed or suction lift.
gasket.
Manifold o-rings worn out.
Replace o-rings. Alternate
materials are available. See
Manifold Seals, page 30.
3A2714B 9
Notes
Notes
10 3A2714B
Repair
Repair
Pressure Relief Procedure
Follow the Pressure Relief Procedure
whenever you see this symbol.
This equipment stays pressurized
is relieved manually. To help prev
injury from pressurized fluid, suc
in the eyes or on skin, follow the Pr
Procedure when you stop pumping a
clean, check, or service the equi
1. Shut off the air supply to the pump.
2. Open the dispensing valve, if used.
3. Open the fluid drain valve to relieve fluid
pressure. Have a container ready to catch the
drainage.
until pressure
ent serious
h as splashing
essure Relief
nd before you
pment.
Replace Complete Air Valve
4. Align the new air valve gasket (105*) on the
center housing, then attach the new air valve.
Follow the Torque Instructions, page 19.
5. Reconnect the air line to the motor.
Follow these instructions to install Air Valve
Replacement Kit 24V231.
1. Stop the pump. Follow the
Pressure Relief Procedure, page 11.
2. Disconnect the air line to the motor.
3. Remov
and ga
e nuts (104). Remove the air valve (102)
sket (105).
3A2714B
11
Repair
Replace Seals
Follow these instructions to service the air valve with
one of the available repair kits. Air Valve Seal Kit
parts are marked with a †. Air Valve Repair Kit parts
are marked with a ♦. Air Valve End Cap Kit parts
aremarkedwitha‡.
or Rebuild Air Valve
Disassemble the Air Valve
1. Perform steps 1-3 under
Replace Complete Air Valve, page 11.
2. Use a T10 Torx screwdriver to remove two
screws (209). Remove the valve plate (205) and
cup assembly (212-214).
3. Pull the cup (213) off of the base (212). Remove
the o-ring (214) from the cup.
4. Remove the retaining ring (210) from each end
of the air valve. Use the piston (202) to push
the end cap (207) out of one end. Remove the
u-cup seal (208) from the piston. Pull the piston
out of the end and remove the other u-cup seal
(208). Remove the other end cap (207) and the
end cap o-rings (206).
2. Grease the u-cups (208♦†) and install on the
piston with lips facing toward the center of the
piston.
Lips face
down.
Lips face
up.
3. Grease both ends of the piston (202♦) and the
housing bore. Install the piston in the housing
(201), with the flat side toward the cup (213♦).
Be careful not to tear u-cups (208♦†) when
sliding piston into housing.
Reassemble the Air Valve
NOTE: Apply lithium-based grease when instructed
to grease. Order Graco PN 111920.
1. Use all
and in
parts in the repair kits. Clean other parts
spect for damage. Replace as needed.
4. Grease new o-rings (206♦†‡) and install on the
end caps (207‡). Install the end caps into the
housing.
5. Install a retaining ring (210‡) on each end to hold
end caps in place.
2
1
3A2714B
6. Install the o-ring (214♦) on the cup (213♦). Apply
a light film of grease to the outside surface of the
o-ring and the inside mating surface of the base
(212♦).
Orient the end of the base that has a magnet
toward the end of the cup that has the larger
cutout. Engage the opposite end of the parts.
Leave the end with the magnet free. Tilt the base
toward the cup and fully engage the parts, using
care so that the o-ring remains in place. Align the
magnet in the base with the air inlet and install
the cup assembly.
Apply lithiumbased grease.
U-cup lips must
face piston.
Repair
7. Grease the cup side and install the valve plate
(205♦). Align the small hole in the plate with the
air inlet. Tighten the screws (209♦†) to hold it in
place.
Apply lit
based gre
contact s
Air inlet.
hium-
ase to
urface.
3A2714B 13
Repair
Check Valve Re
NOTE: Kits are available for new check valve balls
and seats in a range of materials. See page 27
to order kits in the material(s) desired. O-ring and
fastener kits also are available.
NOTE: To ens
always repl
Also, repla
removed.
Disassemb
1. Follow the
Disconne
NOTE: The pump is heavy. Always use two
people or a lift to move it.
2. Remove the pump from its mounting.
3. NOTE: Use hand tools until thread-locking
adhesive patch releases. Use a 17 mm (11/16 in)
socket wrench to remove the manifold fasteners
(5), then remove the manifold (3).
ure proper seating of the check balls,
ace the seats when replacing the balls.
ce the o-rings every time the manifold is
le the Check Valve
Pressure Relief Procedure, page 11.
ct all hoses.
pair
4. Remove the o-rings (9), seats (7), and balls (8).
5. Turn the pump over and remove the inlet
manifold (4).
6. Remove the o-rings (9), seats (7), and balls (8).
Reassemble the Check Valve
1. Clean all parts and inspect for wear or damage.
Replace parts as needed.
2. Reassemble in the reverse order, following all
notes in the illustration. Put the inlet manifold on
first. Be sure the ball checks (7-9) and manifolds
(3, 4) are assembled exactly as shown. The ball
must seat on the chamfered side of the seat.
The arrows (A) on the fluid covers (2) must point
toward the outlet manifold (3).
Figure 1 Check valve assembly
Torqueto190to200in-lb(21to25
N·m). Follow torque sequence. See
Torque Instructions, page 19.
Arrow (A) must point toward outlet
manifold
The chamfered side of the seat must face
the ball.
4
1
3A2714B
Repair
Diaphragm and
NOTE: Diaphragm kits are available in a range of
materials and styles. See pages 28 – 29. A Center
Rebuild Kit also is available. See page 23. Parts
included in the Center Rebuild Kit are marked with an
*. For best results, use all kit parts.
Center Section Repair
Disassemble the Diaphragm and Center
Section
1. Follow the Pressure Relief Procedure, page 11.
2. Remove the manifolds and disassemble
the ball check valves as explained in
Check Valve Repair, page 14.
NOTE: You
cover bol
convenie
3. Overmol
may wish to remove the inner fluid
ts (5) as you remove each manifold, for
nce.
ded Diaphragms (PO models)
4. All Other Diap
a. Orient the pump so one of the fluid covers
facesup. Usea17mmsocketwrenchto
remove the fluid cover screws (5, 6), then pull
thefluidcover(2)upoffthepump. Turnthe
pump over and remove the other fluid cover.
b. Hold the hex of one fluid side diaphragm
plate (15) with a 1–1/2 socket or box end
wrench. Use another wrench (same size)
on the hex of the other plate to remove.
Then remove all parts of each diaphragm
assembly.
5. Inspect the diaphragm shaft (108) for wear or
scratches. If it is damaged, inspect the bearings
(107) in place. If they are damaged, use a
bearing puller to remove them.
NOTE: Do not remove undamaged bearings.
6. Useano-ringpicktoremovetheu-cuppackings
(106) from the center housing. Bearings (107)
canremaininplace.
hragms
a. Orient the pump so one of the fluid covers
(2) faces up. Use a 17 mm socket wrench to
remove the fluid cover bolts (5, 6), then pull
the fluid cover up off the pump.
b. The exposed diaphragm (12) will screw off by
hand. The shaft will either release and come
off with this diaphragm, or remain attached to
the other diaphragm. If the diaphragm shaft
bolt (14) remains attached to the shaft (108),
remove it. Remove the air side diaphragm
plate (11) and washer (17).
c. Turn the pump over and remove the other
fluid cover. Remove the diaphragm (and the
shaft, if necessary).
d. If the shaft is still attached to either
diaphragm, grasp the diaphragm firmly and
useawrenchontheflatsoftheshaftto
remove. Also remove the air side diaphragm
plate (11) and washer (17). Continue with
Step 5.
7. If necessary, use a socket wrench to remove the
pilot valves (111).
8. Remove the pilot valve cartridges only if
necessary due to a known or suspected problem.
After removing pilot valves, use a hex to remove
the cartridges (109), then remove cartridge
o-rings (110). If stripped, use two screwdrivers to
screw out the cartridge.
NOTE:
cartr
Do not remove undamaged pilot valve
idges.
3A2714B 15
Repair
Reassemble the Diaphragm and Center Section
Follow all notes in the illustration. These notes
contain important information.
NOTE: Apply li
instructed to
1. Clean all parts and inspect for wear or damage.
Replace parts as needed.
2. If removed, grease and install the new pilot valve
cartridges (109), cartridge o-rings (110), and
retaining rings (113).
NOTE: Cartridges (109)
pilot valves (111).
3. Grease and install the pilot valves (111). Torque
to 20-25 in.-lb (2-3 N•m), at 110 rpm. Do not
over-torque.
4. Grease and install the diaphragm shaft u-cup
packings (106) so the lips face out of the housing.
5. If removed, insert the new bearings (107) into
the center housing. Use a press or a block and
rubber mallet to press-fit the bearing so it is flat
with the surface of the center housing.
6. Overmolded Diaphragms (PO)
a. Clamp th
b. If diap
replac
locker
diaphr
c. Assem
(17) o
of the
d. Apply
threa
asse
as ti
thium-based grease whenever
grease.
must
be installed before
eshaftflatsinavise.
hragm setscrew comes loose or is
ed, apply permanent (red) thread
to diaphragm side threads. Screw into
agm until tight.
ble the air side plate (11) and washer
nto the diaphragm. The rounded side
plate must face the diaphragm.
primer and medium-strength (blue)
d locker to the threads of the diaphragm
mbly. Screw the assembly into the shaft
ght as possible by hand.
e. Grease the shaft u-cups (106*) and the
length and ends of the diaphragm shaft
(108*). Slide the shaft into the housing.
f. Reattach one fluid cover (3). Arrow (A)
must point toward the air valve. See
Torque Instructions, page 19.
g. Repeat Steps b-d for the other diaphragm
assembly and install on the exposed end of
the shaft.
h. Tighten by hand as much as possible. Go
to Step 8.
7. All Other Diaphragms
a. Assemble t
diaphragm
diaphragm
on the flui
b. Apply pri
thread lo
thefluids
the shaf
c. Grease t
length a
(108*).
d. Repeat
and ins
e. Hold on
torque
(136–
over-
f. Reatt
must p
Torqu
he diaphragm (12), the backup
(13, if present), the air side
plate (11), and the washer (17)
d side plate (10) exactly as shown.
mer and medium-strength (blue)
cker to the threads of the screw on
ide plate. Screw the assembly into
t hand-tight.
he shaft u-cups (106*) and the
nd ends of the diaphragm shaft
Slide the shaft into the housing.
for the other diaphragm assembly
tall on the exposed end of the shaft.
e of the plates with a wrench, and
the other plate to 100-105 ft-lb
142 N•m) at 100 rpm maximum. Do not
torque.
ach one fluid cover (3). Arrow (A)
oint toward the air valve. See
e Instructions, page 19.
16 3A2714B
SP and FK Models PO Models
Repair
PT Models
Rounded side faces diaphragm
Apply lithium based grease.
Apply primer and medium-strength (blue) thread
locker. Torque to 100-105 ft-lb (136–142 N•m).
AIR SIDE markings on diaphragm must face
center housing.
If screw comes loose or is replaced, apply
permanent (red) thread locker to diaphragm side
threads. Apply primer and medium-strength (blue)
thread locker to shaft side threads.
Lips must face out of housing.
idges (109) must be installed before pilot
Cartr
s (111).
valve
ue to 20-25 in.-lb (2-3 N•m).
Torq
3A2714B
17
Repair
8. To ensure proper seating and extend diaphragm
life, apply air pressure to the pump prior to
attaching the second fluid cover.
a. Place the supp
valve gasket (
(A) must face t
already atta
Figure 2 Fluid cover tool
b. Reattach the air valve.
lied tool (302) where the air
105) normally goes. Arrows
oward the fluid cover that is
ched.
c. Supply a minimum of 20 psi (0.14 MPa, 1.4
bar) air pressure to the air valve. Shop air
may be used. The diaphragm will shift so the
second fluid cover will seat properly. Keep
air pressure on until the second fluid cover
is attached.
d. Attach the second fluid cover (3). See
Torque Instructions, page 19.
e. Removetheairvalveandthetool(302),
replace the gasket (105), and reattach the air
valve. See Torque Instructions, page 19.
NOTE: If you
but not the a
valve and g
gasket, an
the air pre
of the seco
remove the
finished.
f. Reassemb
and manif
Check Val
are replacing the diaphragms
ir valve, you must remove the air
asket, put the tool in place of the
dputtheairvalvebackontoget
ssure needed for proper installation
nd fluid cover. Remember to
tool and replace the gasket when
le the ball check valves
olds as explained in
ve Repair, page 14.
18 3A2714B
Torque Instructions
Torque I nstruct
ions
If fluid cover or manifold fasteners have been
loosened, it is important to torque them using the
following procedure to improve sealing.
NOTE: Fluid cover and manifold fasteners have a
thread-locking adhesive patch applied to the threads.
If this patch is excessively worn, the fasteners may
loosen during operation. Replace screws with new
ones or apply medium-strength (blue) Loctite or
equivalent to the threads.
NOTE: Always completely torque fluid covers before
torquing manifolds.
1. Start all fluid cover screws a few turns. Then, turn
down each screw just until head contacts cover.
2. Turn each screw by 1/2 turn or less working in a
crisscross pattern to specified torque.
3. Repeat for manifolds.
Fluid cover and manifold fasteners: 190to220
in-lb (21 to 25 Nm)
4. Reto
rque the air valve fasteners in a crisscross
ern to the specified torque.
patt
Inlet and Outlet Manifold Screws
Air Valve Screws and Pilot Valves
Air valve fasteners: 45to55in-lb(5to6Nm)
5. Retorque the pilot valves to the specified torque.
Do not overtorque.
Pilot valves: 20to25in-lb(2to3Nm)
d Cover Screws
Flui
3A2714B 19
Parts
Parts
20 3A2714B
Parts

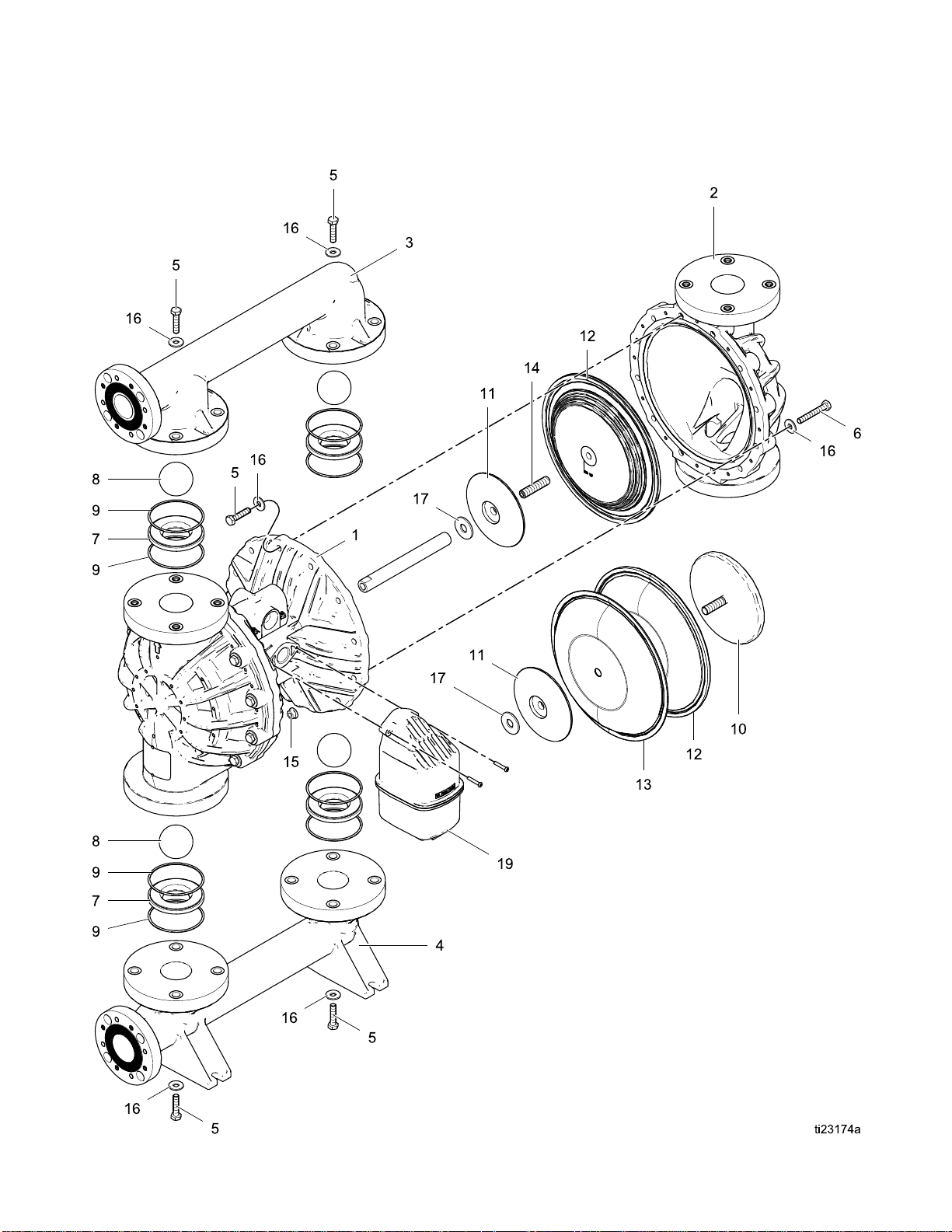

Parts/Kits Qu
Use this table as a quick reference for parts/kits. Go to the pages indicated in the table for a full description of
kit contents.
Ref. Part/Kit Description Qty.
–——
1
102 24V231 Air Valve;
2
24V234 Polypropylene
24V240 PVDF
3
24V255 Polypropylene, center
24V238
24V414
4
24V413 Polypropylene, center
24V239
24V415
5
24V237
6 24V235
7
24V248 Polypropylene
24V247 PVDF
24V249
24V250
8
24V253 FKM
24V251 PTFE
24V252
ick Reference
Center Section;
Polypropylene, not sold
separately
seepage24
Fluid Cover Kits;
26
Outlet Manifold Kits;
page 26
flange
Polypropylene, end flange
PVDF, end flange
Inlet Manifold Kits;
page 26
flange
Polypropylene, end flange
PVDF, end flange
Manifold Fastener Kit;
page 26
Fluid Cover Fastener Kit;
see page 26
Seats; 4-pack,
Santoprene
Stainless Steel
BALLS, valve, check;
4–pack;
Santoprene
see page 27
see page
see
see
see
seepage27
Ref. Part/Kit Description Qty.
1
9 24V236
O-RING, seat; 8–pack;
see
1
page 30.
10
1
2
1
24V245 Polypropylene
24V246 PVDF
11 24V254
12
Fluid Side Diaphragm
Plate;
see page 29
Air Side Diaphragm Plate;
includes washer (Ref. 17);
see page 29
Diaphragm Kits;
see pages
2
2
1
28 to 29
24V243 FKM Fluoroelastomer
Standard
24V242
1
2
2
1
1
24V241
24V244
-——
13
-——
14
-——
15
-——
16
-——
17
18 188621▲ LABEL, warning 1
19 24P932
20 16P055▲
21 198382▲ LABEL, warning,
Santoprene Standard
PTFE/EPDM Overmolded;
includes screw (Ref. 14)
PTFE/Santoprene
Two-Piece; includes
backup diaphragm (Ref.
13)
DIAPHRAGM, backup,
Santoprene
SCREW, set; included with
PO diaphragms (Ref. 12).
NUT, included with Ref. 6
WASHER, included with
Ref. 5 and Ref. 6
WASHER, included with
Ref. 11
Muffler; includes o-ring and
mounting hardware
TAG, torque instructions
multilingual
1
16
40
1
1
1
1
▲ Replacement Warning labels, signs, tags, and
cards are available at no cost.
3A2714B
21
Parts
Center Sectio
n
Sample Configuration Number
Pump
Model
2200P
Center
Section and
Air Valve
P01A
Fluid
Covers and
Manifolds
P1
Seats
PP PT FK PT
Balls Diaphragms
Seat and
Manifold
Seal
Ref
101
102 VAL
103
104* NUT, hex, flange, serrated
105* GASKET, air valve
106* U-CUP, center shaft
107* BEARING, shaft
Included in Center Section Rebuild Kit.
*
2
2
Description
HOUSING, center, not sold
separately
VE, air,
SCREW, hi-lo stud
seepage24
Qty
1
1
4
4
1
2
2
Ref
108* SHAFT, center
109* CARTRIDGE, pilot receiver
110* O-RING, Buna-N
111*
112* LUBRICANT
113* RING, retaining
Description
VALVE, pilot, assembly 2
Qty
1
2
2
1
2
3A2714B
Sample Configuration Number
Parts
Pump
Model
2200P
Center Secti
P01A with 2–Piece diaphragms (PT)
or standard diaphragms (SP, FK)
PO1G with overmolded diaphragms
(PO)
Kits include:
• 1 center shaft (108)
• 4 hex nuts, serrated (104)
• 2 center shaft bearings (107)
• 2 center shaft u-cups (106)
• 1 air valve gasket (105)
• 8 seat o-rings (9)
• 2 pilot valves (111)
Center
Section and
Air Valve
P01A
on Rebuild Kits (*)
Fluid
Covers and
Manifolds
P1 PP PT FK PT
24V226
24V227
Seats
Balls Diaphragms
Center Shaft
P01A with 2–Piece diaphragms (PT)
or standard diaphragms (SP, FK)
PO1G with overmolded diaphragms
(PO)
Kits include:
• 2 center shaft u-cups (106)
• 1 center shaft (108)
• 2 center shaft bearings (107)
• 1 grease packet (112)
Center S
All models 24V230
Kits (*)
haft Bearing Kit
Seat and
Manifold
Seal
24V228
24V229
• 2 pilot valve receiver cartridges (109)
• 2 retaining rings (113)
• 2 receiver cartridge o-rings (110)
• 1 grease packet (112)
Pilot Valve Assembly Kit
odels
All m
ncludes:
Kit i
• 2 pilot valves (111)
• 2 pilot valve receiver cartridges (109)
• 2 receiver cartridge o-rings (110)
• 1 grease packet (112)
• 2 retaining rings (113)
24V8
Kit includes:
• 2 center shaft u-cups (106)
• 2 center shaft bearings (107)
• 1 grease packet (112)
23
3A2714B 23
Parts
Air Valve
Sample Configuration Number
Pump
Model
2200P
Center
Section and
Air Valve
P01A
Fluid
Covers and
Manifolds
P1
Seats
PP PT FK PT
Balls Diaphragms
Seat and
Manifold
Seal
iption
Ref
201
202✦
205✦ PLATE, air valve 1
206✦✝‡
207‡
208✦✝
✦
Parts included in Air Valve Repair Kit.
✝
Parts included in Air Valve Seals Kit..
4
2
Descr
HOUSING, not sold
separately
ON
PIST
ING
O-R
,end
CAP
UP
U-C
Qty
1
1
2
2
2
iption
Ref
209✦✝
210‡
212✦
213✦
214✦
‡
Parts included in Air Valve End Cap Kit.
Descr
SCREW, #4, thread forming
RETAINING RING
BASE, cup
CUP
O-RING, cup
Qty
2
2
1
1
1
3A2714B
Sample Configuration Number
Parts
Pump
Model
2200P
✝ Air Valve Se
All models 24K859
Kit includes:
• 2 end cap o-rings (206)
• 2 piston u-cups (208)
• 2 screws, M3, shorter (not used)
• 2 screws, #4, longer (209)
• 1 air valve gasket (105)
• 1 grease packet (112)
• 1 solenoid release button o-ring (not shown), used
only with optional DataTrak kit.
✦ Air Valve Repair Kit
All mode
ludes:
Kit inc
• 1 air valve piston (202)
• 1 detent piston assembly (203, not used)
Center
Section and
Air Valve
P01A
als Kit
ls
Fluid
Covers and
Manifolds
P1 PP PT FK PT
24K860
Seats
Balls Diaphragms
Air Valve Replacement Kit
All models 24V231
Kits includ
• 1 air valve assembly (102)
• 1 air valve gasket (105)
• 4 hex nuts (104)
‡ Air Valve End Cap Kit
All model
Kit includes:
• 2 end caps (207)
• 2 retaining rings (210)
• 2 o-rings (206)
• 1 grease packet (112)
NOTE: I
pump, s
Repla
e:
s
f you have the optional DataTrak on your
ee Accessories, page 31,forAirValve
cement kits.
Seat and
Manifold
Seal
24C053
• 1 detent cam (204, not used)
• 1 air valve plate (205)
• 2 end cap o-rings (206)
• 2 piston u-cups (208)
• 2 screws, M3, shorter (not used)
• 2 screws, #4, longer (209)
• 1 detent spring (211, not used)
• 1 air cup base (212)
• 1 air cup (213)
• 1 air cup o-ring (214)
• 1 solenoid release button o-ring (not shown), used
only with optional DataTrak kit.
• 1 air valve gasket (105)
• 1 grease packet (112)
3A2714B 25
Parts
Fluid Covers a
nd Manifolds
Sample Configuration Number
Pump
Model
2200P P01A
Fluid Cover Kits
Polypropylene PVDF
P1,
P2
Kits include 1 fluid cover (2)
24V234
Center
Section and
Air Valve
F2
Fluid
Covers and
Manifolds
P1
24V240
Seats
PP PT FK PT
Balls Diaphragms
End Inlet Manifold Kits
Polypropylene PVDF
P2
Kits include 1 manifold (4)
24V239
Seat and
Manifold
Seal
F2
24V415
Center Manifold Kits
(Polypropylene Only)
Outlet (3) Inlet (4)P1
24V255 24V413
Kits include 1 manifold
End Outlet Manifold Kits
Polypropylene PVDF
P2
24V238
F2
24V414
Fluid Cover Fastener Kits
All Mod
Kit inc
• 8 bolts (6), hex head, stainless steel, M10 x 1.5
• 4 bolts (5), hex head, stainless steel, M10 x 1.5
• 12 washers (16)
• 8 nuts (15), hex, flange, M10
Manifold Fastener Kits
All
Kit
• 8 bolts (5), hex head, stainless steel, M10 x 1.5
•8washers(16)
els
ludes:
x 70 mm (2.76 in)
x 45 mm (1.77 in.)
Models
includes:
x 45 mm (1.77 in.)
24V235
24V
237
Kits include 1 manifold (3)
26 3A2714B
Parts
Seats and Chec
k Balls
Sample Configuration Number
Pump
Model
2200P P01A P1
Seat Kits
PP 24V248
SS
SP
PV 24V247
Kits include:
•4seats(
NOTE: O-rings are sold separately. See Manifold
Seals, page 30..
Center
Section and
Air Valve
24V250
24V249
7), material indicated in table.
Fluid
Covers and
Manifolds
Seats
Balls Diaphragms
PP PT
Ball Kits
Kits include:
• 4 balls (8
NOTE: O-rings are sold separately. See Manifold
Seals, page 30..
FK PT
FK 24V253
PT 24V251
24V252
SP
), material indicated in table.
Seat and
Manifold
Seal
3A2714B
27
Parts
Diaphragms
Sample Configu
Pump
Model
2200P P01A P1
Standard Diaphragm Kits
SP
FK 24V243
Kits include:
• 2 diaphragms (12), material indicated in table
• 1 diaphragm install tool (302)
• 1 packet anaerobic adhesive
NOTE: Fluid and Air plates are sold separately.
The shaft is part of the Center Section Rebuild Kit
(24V226) or the Center Shaft Kit (24V228). See
Center Section.
24V242
ration Number
Center
Section and
Air Valve
Fluid
Covers and
Manifolds
Seats
PP PT
Balls Diaphragms
FK
Overmolded Diaphragm Kit
PO
Kits inclu
• 2 overmolded diaphragms (12), material indicated
in table.
• 2 diaphragm set screws, stainless steel (14)
• 1 diaphragm install tool (302)
• 1 packet anaerobic adhesive
NOTE: Air plates are sold separately. The shaft is
part of the Center Section Rebuild Kit (24V227) or
the Center Shaft Kit (24V229). See Center Section.
24V241
de:
Seat and
Manifold
Seal
PT
28 3A2714B
Sample Configuration Number
Parts
Pump
Model
2200P P01A P1 PP PT
Two-Piece Di
PT 24V244
Kits include:
• 2 diaphragms (12), PTFE
• 2 backup diaphragms (13), Santoprene
• 1 diaphragm install tool (302)
• 1 packet anaerobic adhesive
NOTE: Flui
The shaft
(24V226)
Center Se
Center
Section and
Air Valve
aphragm Kit
d and Air plates are sold separately.
is part of the Center Section Rebuild Kit
or the Center Shaft Kit (24V228). See
ction.
Fluid
Covers and
Manifolds
Seats
Balls Diaphragms
FK
ude:
s
its
24V245
24V246
24V254
Fluid Plate K
P1, P2
F2
Kits include:
• 1 fluid side diaphragm plate (10), includes shaft bolt
• 1 packet anaerobic adhesive
Air Plate Kits
All Model
Kits incl
• 1 air side plate (11)
• 1 washer (17)
Seat and
Manifold
Seal
PT
3A2714B 29
Parts
Manifold Seal
s
Sample Configuration Number
Balls Diaphragms
Kits include:
• 8 o-rings (9), material shown in tables
24V978
Fluid
Covers and
Manifolds
Seats
Pump
Model
2200P P01A P1 PP PT FK
Standard Ma
All Models PTFE 24V236
Optional Manifold O-Ring Kits
PTFE-Enca
FKM
FX75 24W463
Center
Section and
Air Valve
nifold O-Ring Kits
psulated
Seat and
Manifold
Seal
PT
30 3A2714B
Accessories
Muffler 111897
Legacy or remo
NOTE: See DataTrak Manual 313840 for:
• Pulse Count Conversion Kits 24B794 and 24B795
• DataTrak Conversion Kits 24K861 and 24K862
• All other data monitoring parts, including reed
switches and solenoids.
te exhaust muffler option.
Accessories
Replacemen
Polypropy
Kit includ
lene, DataTrak Compatible
es nuts, valve, and gasket.
t Air Valve Kit 24V232,
3A2714B 31
Technical Data
Technical Data
Husky 2200 Diaphragm Pump
US
Maximum fluid working pressure
Air pressure
Air inlet siz
Air exhaust s
operating range
e
ize
Fluid inlet and outlet size (ANSI/DIN
125 psi 0.86 MPa, 8.6 b
20 to 125 psi 0.14 to 0.86 M
3/4 in. npt(f)
1 in. npt (f)
2in 50mm
flange)
Maximum suction lift (reduced
if balls don’t seat well due to
Wet: 31 ft
Dry: 16 ft
damaged balls or seats, lightweight
balls, or extreme speed of cycling)
Maximum size pumpable solids 1/4 in. 6.3 mm
Minimum ambient air temperature
32° F 0° C
for operation and storage.
NOTE: Exposure to extreme low
temperatures may result in damage
to plastic parts.
Metric
Pa, 1.4 to 8.6 bar
Wet: 9.4 m
Dry: 4.9 m
ar
Air consumption
Standa
rd diaphragms
70 scfm
at 70 psi; 100 gpm
2.0 m
/min at 0.48 MPa, 4.8
3
bar, 379 lpm
Overmo
lded diaphragms
75 scfm
at 70 psi, 100 gpm
2.1 m
/min at 0.48 MPa, 4.8
3
bar, 379 lpm
Maximum air consumption
ard diaphragms
Stand
olded diaphragms
Overm
e (dBa)
Nois
d power measured per ISO-9614–2. Sound pressure was tested 3.28 ft (1 m) from equipment.
Soun
Sound Power
95.2
140 sc
157 sc
at 70 psi and 50 cpm
fm
fm
95.2
4.0 m
4.4 m
at 4.8 bar and 50 cpm
101.8 at 100 psi and full flow 101.8 at 7.0 bar and full flow
Sound Pressure
at 70 psi and 50 cpm
87.3
at 4.8 bar and 50 cpm
87.3
94.7 at 100 psi and full flow 94.7 at 7.0 bar and full flow
Fluid flow per cycle
Standard diaphragms
Overmolded diaphragms
1.6
1.3
gallons
6.1
4.9
gallons
Maximum free-flow delivery
0gpm
Standard diaphragms
Overmolded diaphragms
20
0gpm
20
75
75
3
/min
3
/min
liters
liters
7lpm
7lpm
32 3A2714B
Technical Data
Maximum pump speed
Standard diaphragms
Overmolded diaphragms
Weight
Polypropylene 80 lb 36.3 kg
PVDF 106 lb 48.1 kg
Wetted Parts
Wetted parts include material(s) chosen for seat, ball, and diaphragm options, plus the pump’s material of
construction: Polypropylene or PVDF
Non-wetted external parts stainless steel, polypropylene
Fluid Temperature Range
125 cycles per minute
155 cycles per minute
6°
Metric
PVDF Pump
0° to 1
07°
0°
150°
US
PVDF Pump Polypropylene
32° to 15
32° to
0°
225°
Pump
0° to 66° 0° to 66°
0° to 6
Diaphragm/Ball/Seat Material
Polypropylene
Pump
FKM Fluor
Polypropylene
PTFE overmolded diaphragm
PTFE ch
PVDF
Santoprene 32° to 150° 32° to 180° 0° to 66° 0° to 82°
2–piece PTFE/Santoprene
diaphragm
oelastomer
eck balls
32° to 150° 32° to 225° 0° to 66° 0° to 107°
32° to 15
40° to 150° 40° to 180° 4° to 66° 4° to 82°
40° to 150° 40° to 220° 4° to 66° 4° to 104°
32° to
40° to 150° 40° to 180° 4° to 66° 4° to 82°
3A2714B 33
Graco Standard Husky Pump Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its
name to be free from defects in material and workmanship on the date of sale to the original purchaser for
use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a
period of five years from the date of sale, repair or replace any part of the equipment determined by Graco
to be defective. This warranty applies only when the equipment is installed, operated and maintained in
accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction,
damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper
maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall
Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment
with structures, accessories, equipment or materials not supplied by Graco, or the improper design,
manufacture, installation, operation or maintenance of structures, accessories, equipment or materials
not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an
authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco
will repair or replace free of charge any defective parts. The equipment will be returned to the original
purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material
or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of
parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above.
The buyer agrees that no other remedy (including, but not limited to, incidental or conseq
for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall
be available. Any action for breach of warranty must be brought within six (6) years of the date of sale..
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH
ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED BY
GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.),
are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable
assistance in making any claim for breach of these warranties..
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from
Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other
goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or
otherwise.
FOR GRACO CA
The Parties acknowledge that they have required that the present document, as well as all documents,
notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or
indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du
présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés,
donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures
concernées.
NADA CUSTOMERS
uential damages
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
To place an order, contact your Graco Distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original Instructions. This manual contains English. MM 3A2714
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2014, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
Graco Headquarters: Minneapolis
www.graco.com
Revision B, July 2014
Loading...
